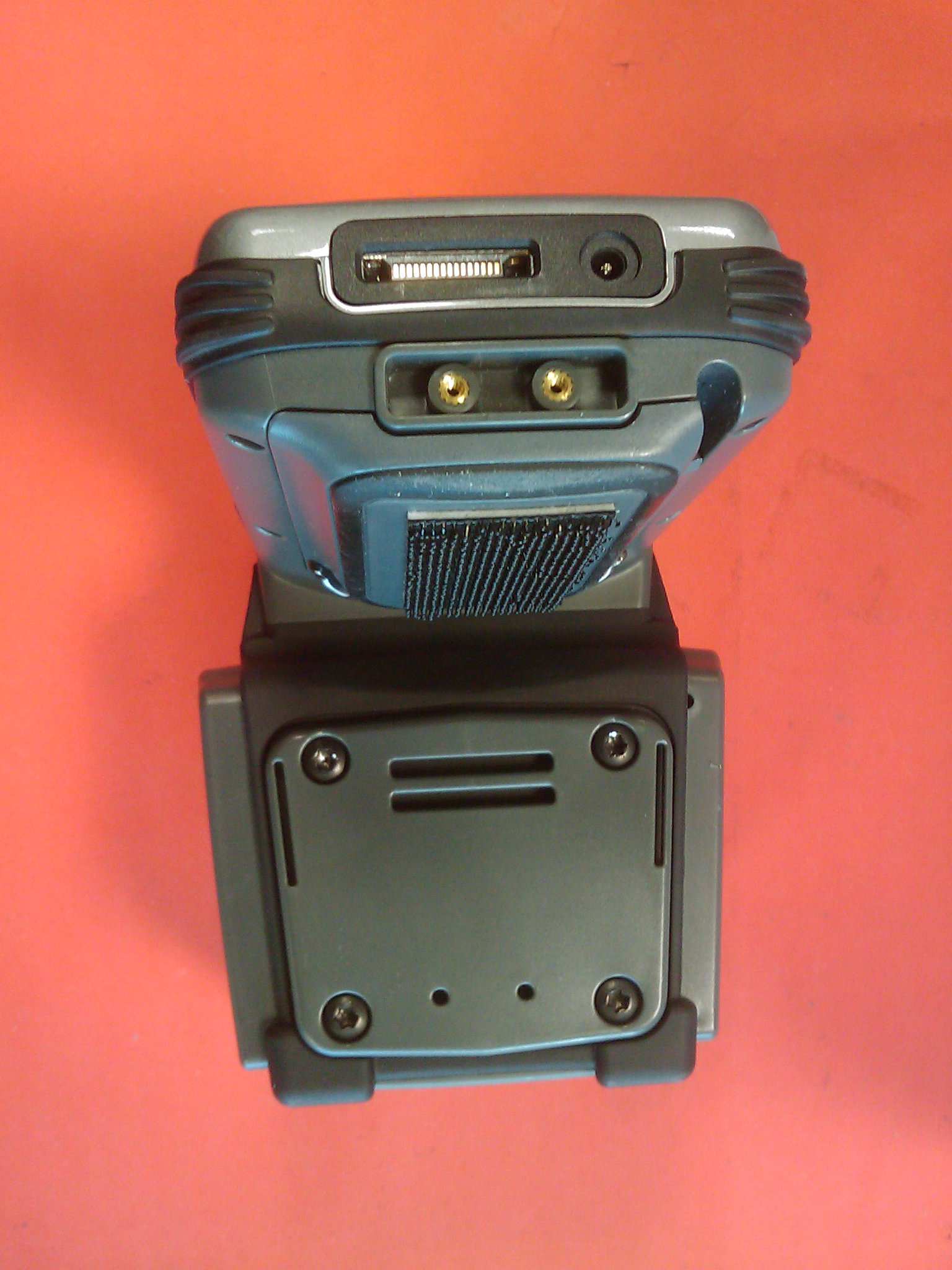

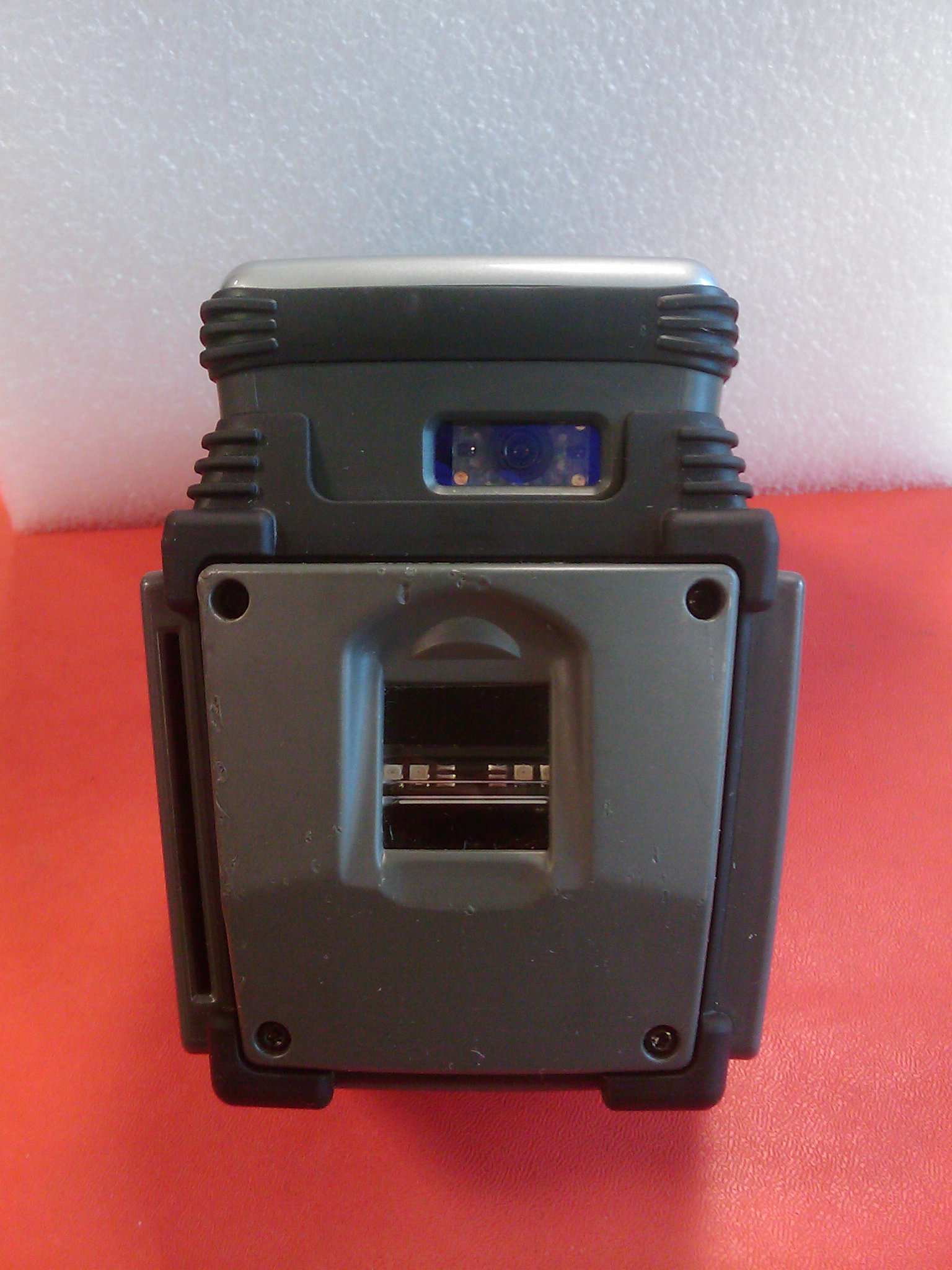

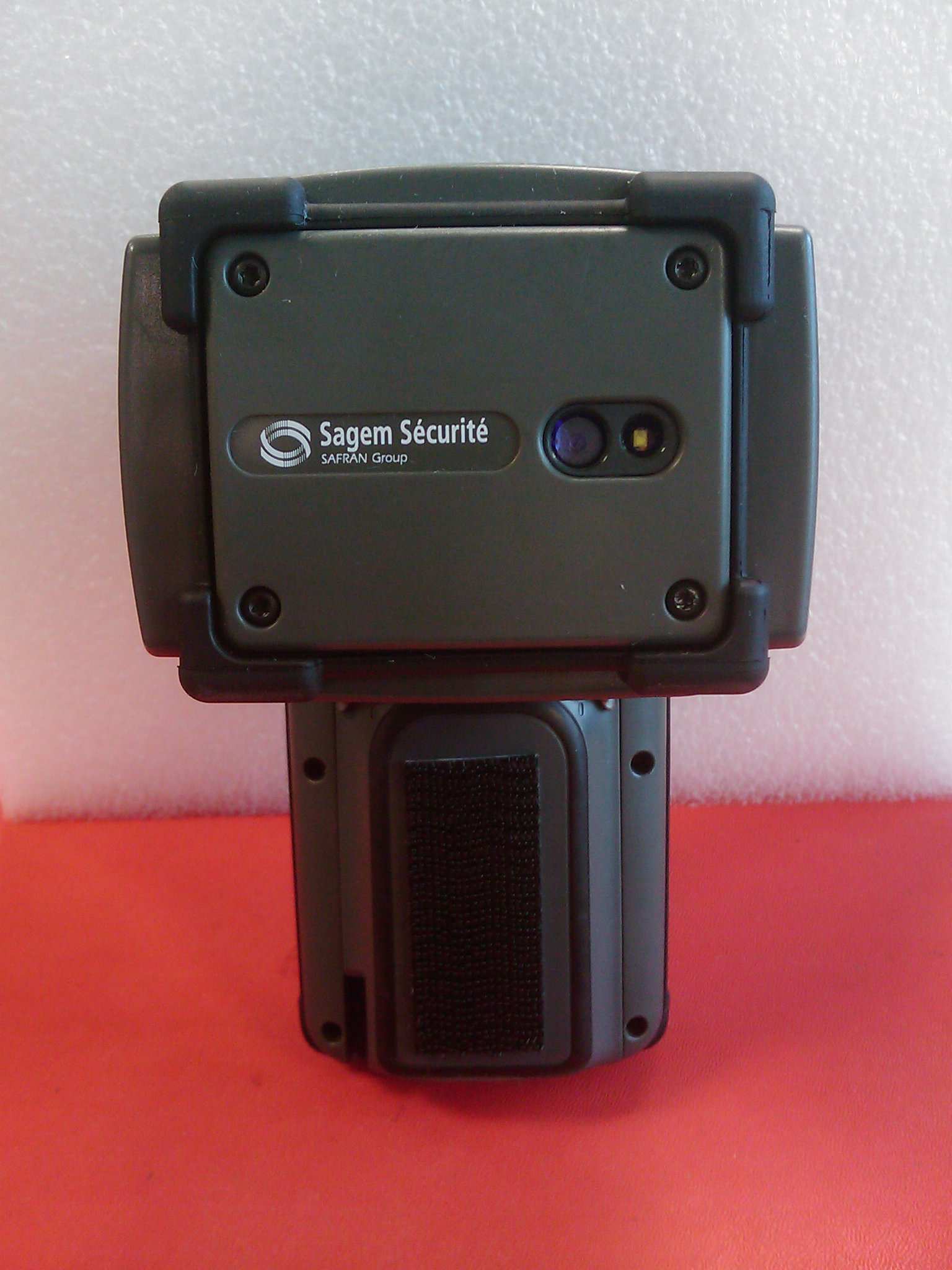

XGKMR12XXHandheld Computer

M ORPHO™ RAPID QUICK USER’S GUIDE MorphoRapID™ Specifications 0000025754-07 - AUGUST 2009 1 SAGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED. MORPHORAPID QUICK USER’S GUIDE 1.MorphoRapID™ Specifications Technical Specifications Display • Size: 3.7" • VGA Display: 640 x 480 high resolution LCD Touch Panel • 65536 Full-Colors Fingerprint Sensor • 500 DPI in X and Y axis • 8-bit gray scale • Acquisition area 21 x 21 mm (0,8 x 0,8 ") Wireless modem • HSDPA/EDGE/GPRS • 850 / 900 / 1800 / 1900 / 2100 MHz frequencies WiFi interface • 802.11b/g radio module Bluetooth interface • Bluetooth v2.0, Class II module RFID reader • ISO 14443A/B/Mifare 13.56MHz High Frequency reader Smartcard reader • ISO 7816 smartcard reader 2D imager • 2D imager to read linear (1D) and 2D barcodes (including PDF417) Input/Output USB 2.0 Power PSA 15R-050P Model - Input: AC 100-240 V~ 50-60 Hz 0.5 A - Output: DC 5.0 V 3.0 A Temperature Range • Operating +0°C to 45°C • Storage -20°C to 70°C MORPHO™ RAPID USER’S GUIDE MorphoRapID™ Specifications 2 0000025754-07 - AUGUST 2009 SAGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED. Humidity • Operating 15% < RH < 95% non-condensing • Storage < 95% Weight 800 g Dimensions 89 x 126 x 185 mm NOTE A removable power cord connects the MorphoRapID™ to the mains supply - Its socket- outlet shall be near the MorphoRapID™ and shall be easily accessible. M ORPHO™ RAPID QUICK USER’S GUIDE International Standards 0000025754-07 - AUGUST 2009 3 SAGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED. 2.International Standards The MorphoRapID™ terminal and accessories comply with both European and U.S. standards as follows: Region Standards Europe R&TTE Directive 1999/5/EC: EN301 489, EN300 328, EN302 291; EN50392, EN50360, EN301 511 & EN301 908; EMC Directive 2004/108/EC: EN55022 / EN55024 Low Voltage Directive 2006/95/EC: EN60950 USA FCC Part 15 Class B digital device requirements; FCC Part 15C; FCC Parts 22 & 24; PTCRB Certified USA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Compliance This product complies with the FCC RF exposure limits for an uncontrolled environment. For continued com- pliance the product must not be operated closer than 20 cm from the rest of the body. This product must not be operated in a holster or on a belt-clip. End users must follow the specific operating instructions for satisfying RF exposure compliance. Some equipment in hospitals and aircraft are not shielded from radio frequency energy. Do not use the device onboard aircraft, or in hospitals, without first obtaining permission. Do not use near pacemakers. The MorphoRapID™ may affect the operation of some medically implanted de- vices such as pacemakers, causing them to malfunction. Avoid placing your MorphoRapID™ next to such de- vices. Keep a minimum distance of 20 cm between the medical device and the MorphoRapID™ to reduce the risk of interference. If you have any reason to suspect that interference is taking place, turn off the Mor- phoRapID™ and contact your medical specialist for assistance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. MORPHO™ RAPID USER’S GUIDE MorphoRapID™ Specifications 4 0000025754-07 - AUGUST 2009 SAGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED. WARNING Changes or modifications not expressly approved by the party responsible for the compliance could void the user’s authority to operate the equipment. Canada This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regu- lations. When using the 802.11 radio option, to prevent radio interference, this device is intended to be oper- ated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. En cas d’utilisation du module radio 802.11, afin d'éviter toute interférence radio avec le service autorisé, l'appareil doit être utilisé à l'intérieur, tout en étant éloigné de toute fenêtre afin de garantir le maximum de protection. Si cet équipement (ou son antenne émettrice) est installé à l'extérieur, il est alors soumis à licence. Model Option Morpho RapID 1100 Standard version Morpho RapID 1200 Standard version with RFID and Smartcard Morpho RapID 1x50 + Imager Morpho RapID 1xx0 W + WiFi Morpho RapID 1xx0 G + GSM/GPRS/3G Morpho RapID 1xx0 WG + WiFi + GSM/GPRS/3G Example: Morpho RapID 1250 WG stands for Standard version with RFID and Smartcard read…
