XS8-MINILA-RBluetooth Keyboard

EN CN TW KR MINILA-R Convertible MINILA-R Convertible MINILA-R Convertible 1 ON 2 3 4 5 6 Health Issues Attention Items If you have been using a mouse, keyboard, trackball mouse for a prolong period of time, the stress to your hand, wrist, head or shoulder might result in pain or numbness in these areas. If you continue to use repeatedly, it might result in serious injuries. When you encounter any of the above-mentioned discomforts, please stop using the mouse and keyboard immediately, and it is recommended that you consult a professional doctor. When using a personal computer, please rest periodically, and please take care not to add stress to your hand, wrist, head and shoulder. Thank you for purchasing the FILCO Majestouch MINILA-R Convertible Bluetooth Keyboard. Please read carefully the Attention Items published in this manual. Attention Items During Use • To begin installation, please register using an account that has administrator privileges. • This product is applicable only for general usage within the office or at home. Please do not use this product with medical facilities and financial systems, computer systems, nuclear power facilities where there might be direct or indirect impact to life, or in an environment that requires a high level of security and reliability, or an environment that directly impacts military defense objectives. Our Company will not be liable for any losses incurred from any of these above actions. • Our Company will not be liable for any losses incurred by external factors, such as product malfunction, connectivity failure, bad communication, power outage, or interference by a third party resulting in lost communication opportunities. • Our Company will not be liable for any losses incurred due to interception of communications, leaked information, tamper- ing or destruction by a third party. Attention Items During Communication • Please use in an environment where there are no obstructions and where there is good reception. The distance for reception may vary, depending on the building structure and influence from obstructing objects. When sandwiched between steel, metals and concrete, the signal might not come online. • If user moves to a location where there is an obstruction to the communication and where there is no wireless signal, under such circumstances, the communication connectivity will be terminated. • During connection, please ensure a distance of at least 2m away from any AV or OA equipment. In addition, microwaves tend to influence signals. Therefore, during connection, please maintain a distance of at least 3m away, or else the connection will not be successful. • IEEE802.11g/b wireless LAN mechanism and the Bluetooth mechanism in our product uses the same frequency (2.4GHz), if the distance is too near during use, it might result in wave interference, affecting connection speed or unable to connect. Under such circumstances, please switch off the power of the device that is not in use. • Electromagnetic waves are emitted from this product or other Bluetooth devices, please do not use in the vicinity of a televi- sion or radio, as it might interfere with the transmission of sound or images. Safety Items • Battery Usage • Please place in a location that is out of reach from children. • Please do not add heat to the batteries. Please do not open up the batteries or place them in water. • Please do not mix usage of new and old batteries. In addition, please do not mix usage of different types of batteries (such as mix usage of alkaline batteries and manganese batteries). • Stop usage of expired or insufficient power batteries, and please dispose used batteries according to the local regulations or in a manner stipulate by the regulations of the administrative authorities. • Keyboard Handling • Please place on a flat smooth surface to avoid dropping accidentally or otherwise. The keyboard is a precision machine, comprising of internal batteries and transformer. Therefore, please handle with care, and avoid spilling beverages or liquid into the interior of the keyboard. • Please do not dismantle or modify. Please do not tear off or modify the original factory maintenance label to avoid affect- ing the terms and conditions of warranty. • Under the following circumstances, either temporarily stop or completely stop the use of the product. Under the influ- ence of the electronic waves, equipment might not operate properly and accidents might happen. • in the vicinity of a cardiac pacemaker • in the vicinity of medical institutions or medical electronic equipment • inside an airplane cabin • the use of this product interfered with the electronic waves of other devices • The terms and conditions of the warranty of this product is restricted to the country of purchase. If the product was purchased in Japan, the terms and conditions of Diatec Corporation Japan will apply; if the purchase is made through an overseas representative, then the maintenance terms and conditions of that representative will apply. In addition, the warranty in this user manual is applicable and effective only within Japan. System Requirements PC : When installing with a wired connection, please use a Windows PC that has a USB port. When installing with a wireless connection, please use a Windows PC that has a Bluetooth HID Profile. OS Windows XP Service Pack 2 or higher version, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 If using Bluetooth connection, the personal computer must be equipped with Bluetooth function or have a Bluetooth adapt- er. Nevertheless, due to toggling, there might be situations whereby it is unable to connect. Therefore, not all Bluetooth adapters are supported. * When installing Bluetooth connection, please ensure to use the mouse for operations. Product Overview 2way Keyboard USB wired connection and Bluetooth wireless connection USB Connection May use the USB cable supplied with the product for operations. (This product is not eq…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (obsolete) 4.0 5.0 Sep-16-2014 Updated company name & logo (current) 5.0 6.0 Jun-27-2018 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 6.0 Date: 04/13/2020 To: BVCPS, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Diatec Corporation hereby authorize Bureau Veritas Consumer Product Services, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: XS8-MINILA-R Product Description: Bluetooth Keyboard Model: FILCFF03 Sincerely, Kaname Fujita / General Manager 4F Kairaku Bldg. (Soto-kanda) 6-5-4, Soto-kanda, Chiyoda-ku, Tokyo, 101-0021, Japan

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (obsolete) 4.0 5.0 Nov-19-2015 Updated company logo (current) 5.0 6.0 Jun-26-2019 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 6.0 Date: 04/13/2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: XS8-MINILA-R Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Kaname Fujita / General Manager 4F Kairaku Bldg. (Soto-kanda) 6-5-4, Soto-kanda, Chiyoda-ku, Tokyo, 101-0021, Japan

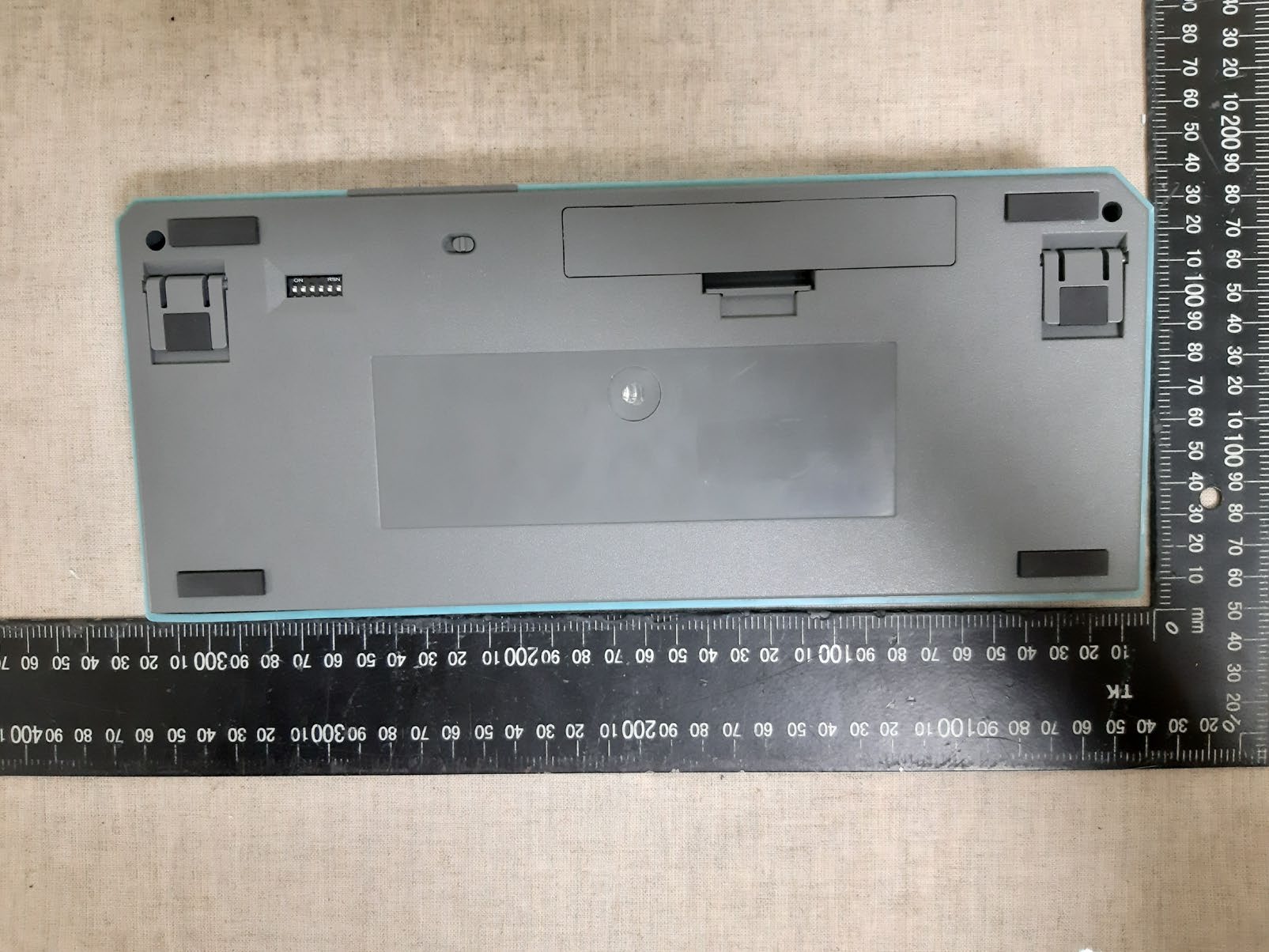

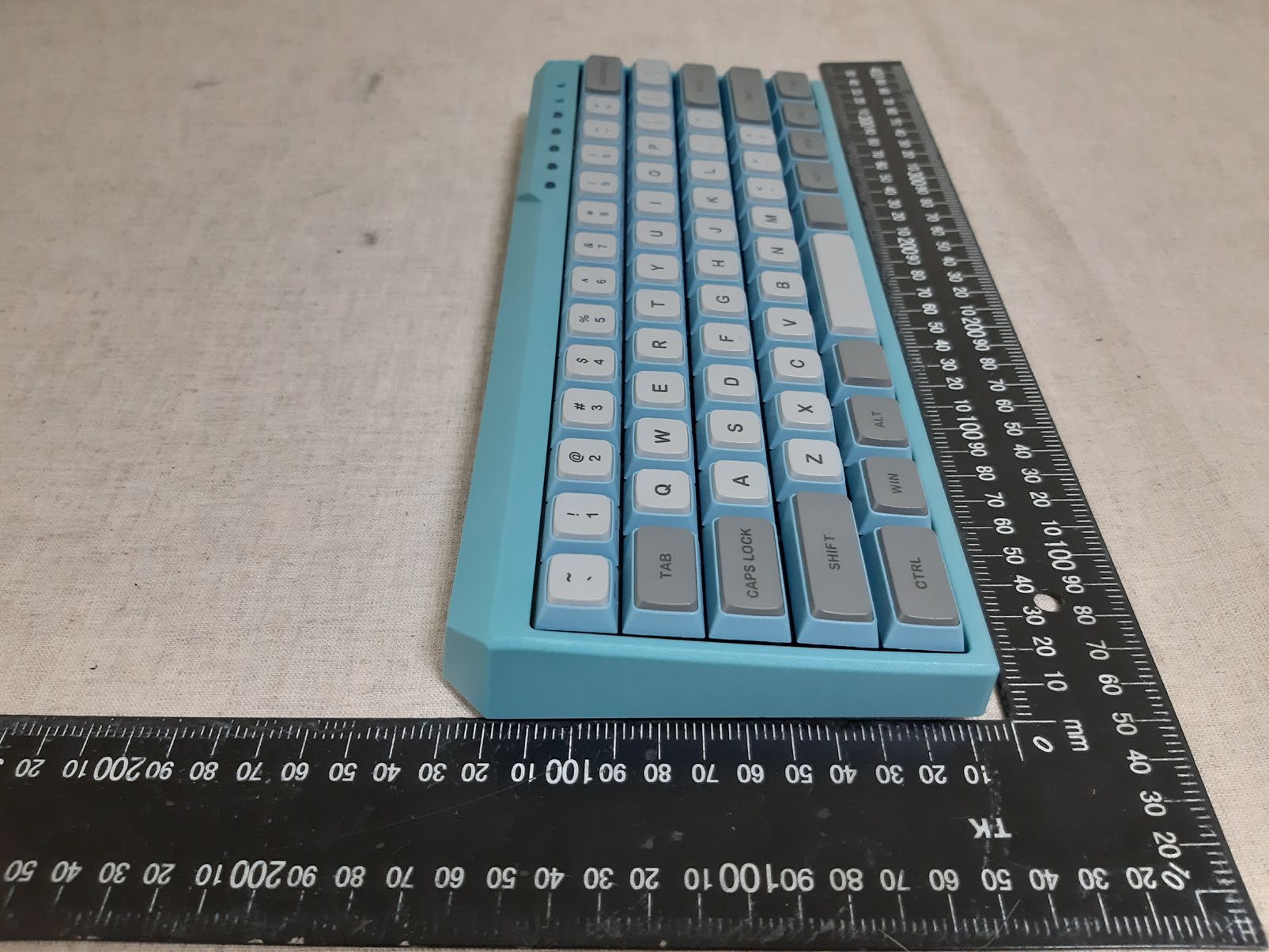

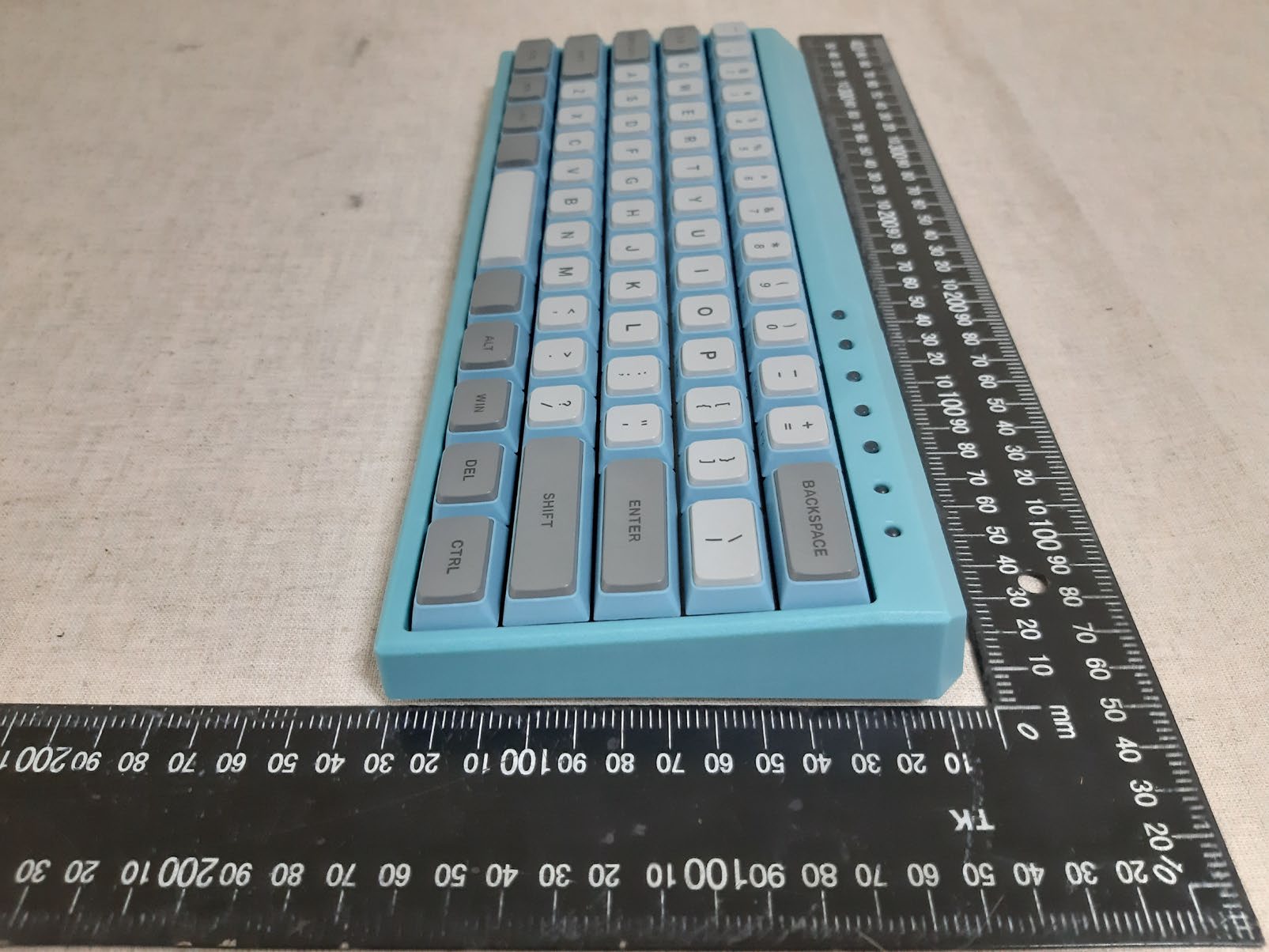

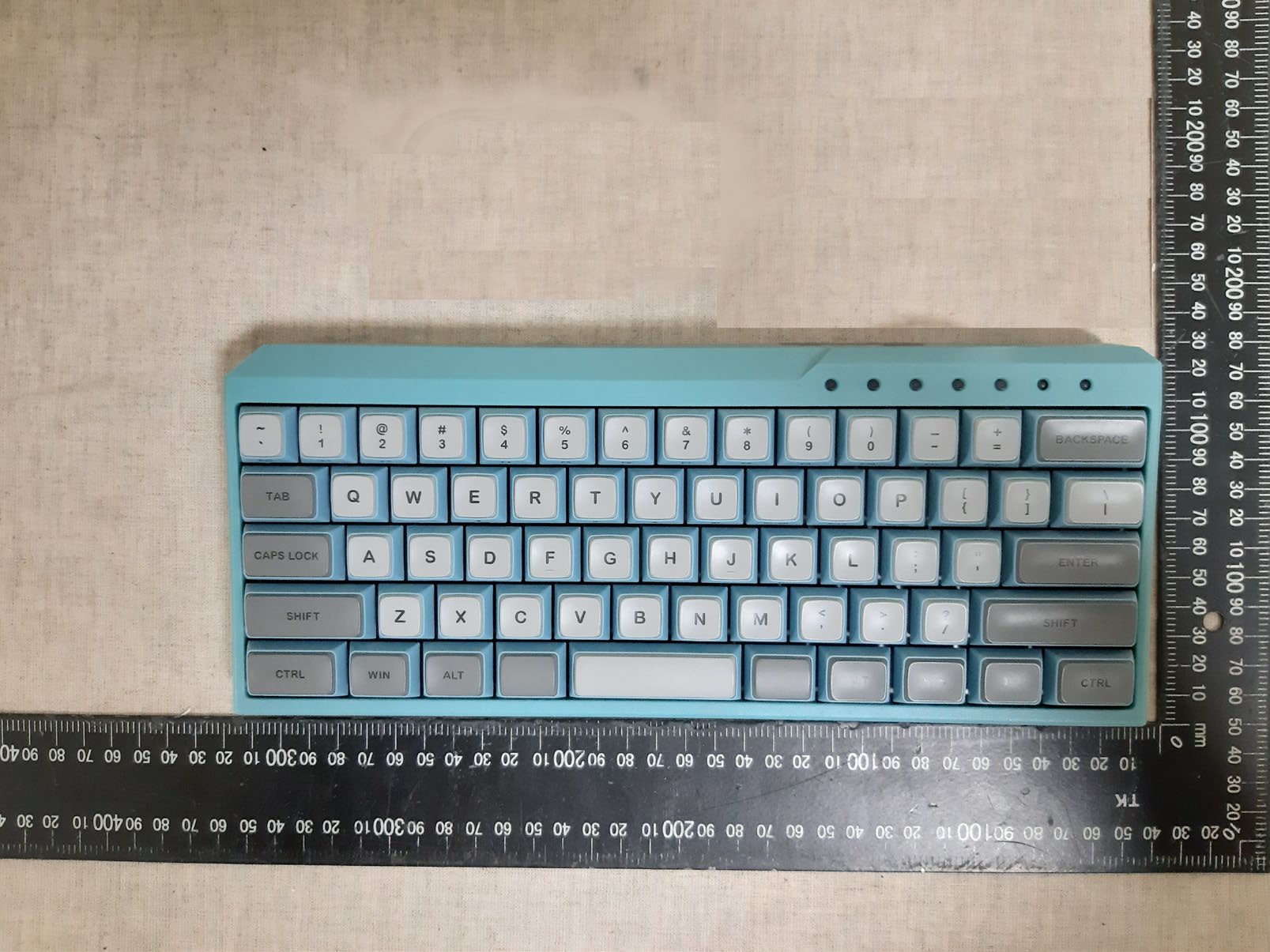

WH Technology Corp. Date of Issue: Feb. 27, 2020 Report No.: WH-FCC-R19120502 Page 1/4 External Photos WH Technology Corp. Date of Issue: Feb. 27, 2020 Report No.: WH-FCC-R19120502 Page 2/4 WH Technology Corp. Date of Issue: Feb. 27, 2020 Report No.: WH-FCC-R19120502 Page 3/4 WH Technology Corp. Date of Issue: Feb. 27, 2020 Report No.: WH-FCC-R19120502 Page 4/4

Page 1/1 Lable

WH Technology Corp. Date of Issue: Feb. 27, 2020 Report No.: WH-FCC-R19120502 Page 1/5 Internal Photos WH Technology Corp. Date of Issue: Feb. 27, 2020 Report No.: WH-FCC-R19120502 Page 2/5 WH Technology Corp. Date of Issue: Feb. 27, 2020 Report No.: WH-FCC-R19120502 Page 3/5 WH Technology Corp. Date of Issue: Feb. 27, 2020 Report No.: WH-FCC-R19120502 Page 4/5 WH Technology Corp. Date of Issue: Feb. 27, 2020 Report No.: WH-FCC-R19120502 Page 5/5

WH Technology Corp. Date of Issue: May. 12, 2020 Report No.: WH-FCC-R19120502 Page 1/1 Radio Frequency Exposure EUT INFORMATION FCC ID XS8-MINILA-R EUT Bluetooth Keyboard Frequency band (Operating) 2402 MHz ~ 2480 MHz Max. output power -8.331 dBm Antenna gain (Max) 2.78 dBi TEST RESULT According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance,mm)] *[√ f(GHz)] ≤ 3.0 The max. average power of channel, including tune-up tolerance(mW) is 0.3 mW @ 2480 MHz (With tune-up tolerance), The min. test separation distance (mm) is 5 mm, So, [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *[√f(GHz)] = 0.3/5*√2.480 = 0.0945 < 3.0 (With Tune-up tolerance). Therefore, standalone SAR measurements are not required for both head and body. Tested By: Reviewed by: May. 12, 2020 May. 12, 2020 (Date) Bing / Engineer (Date) Bell / Manager FCC Designation Number: TW2954

WH Technology Corp. Date of Issue: May. 12, 2020 Report No.: WH-FCC-R19120502 Page 1/79 FCC 47 CFR PART 15 SUBPART C 15.247 TEST REPORT FOR Bluetooth Keyboard Model : FILCFF03 Trade Name : FILCO Issued to Diatec Corporation 4F Kairaku Bldg. (Soto-kanda) 6-5-4, Soto-kanda, Chiyoda-ku, Tokyo, 101-0021, Japan Issued by WH Technology Corp. Xizhi Office 7F., No.262, Sec. 3, Datong Rd., Xizhi Dist., New Taipei City 221, Taiwan (R.O.C.) Xizhi Lab No. 67-22, Baoxin St., Xizhi Dist., New Taipei City 221, Taiwan (R.O.C.) Tel.: +886-2-7729-7707 Fax: +886-2-8648-1311 Note: This test refers exclusively to the test presented test model and sample. This report shall not be reproduced except in full, without the written approval of WH Technology Corp. This document may be altered or revised by WH Technology Corp. personnel only, and shall be noted in the revision section of the document. WH Technology Corp. Date of Issue: May. 12, 2020 Report No.: WH-FCC-R19120502 Page 2/79 Contents 1. General Information ................................................................................................................................ 4 2. Report of Measurements and Examinations ........................................................................................ 5 2.1 List of Measurements and Examinations ....................................................................................... 5 3. Test Configuration of Equipment under Test ....................................................................................... 6 3.1 Description of the Tested Samples................................................................................................. 6 3.2 Carrier Frequency of Channels ...................................................................................................... 7 3.3 Test Mode and Test Software ......................................................................................................... 7 3.4 Test Methodology & General Test Procedures ............................................................................... 8 3.5 Measurement Uncertainty .............................................................................................................. 9 3.6 Description of the Support Equipments ......................................................................................... 9 4. Test and Measurement Equipment ...................................................................................................... 10 4.1 Calibration .................................................................................................................................... 10 4.2 Equipment .................................................................................................................................... 10 5. Antenna Requirements ......................................................................................................................... 12 5.1 Standard Applicable ..................................................................................................................... 12 5.2 Antenna Construction and Directional Gain ................................................................................. 12 6. Test of Conducted Emission ................................................................................................................ 13 6.1 Test Limit ...................................................................................................................................... 13 6.2 Test Procedures ........................................................................................................................... 13 6.3 Typical Test Setup ........................................................................................................................ 14 6.4 Test Result and Data .................................................................................................................... 15 7. Test of Radiated Emission ................................................................................................................... 17 7.1 Test Limit ...................................................................................................................................... 17 7.2 Test Procedures ........................................................................................................................... 18 7.3 Typical Test Setup ........................................................................................................................ 19 7.4 Test Result and Data (9kHz ~ 30MHz)......................................................................................... 20 7.5 Test Result and Data (30MHz ~ 1GHz, worst emissions found) .................................................. 20 7.6 Test Result and Data (Above 1GHz) ............................................................................................ 26 8. 20dB Bandwidth Measurement Data ................................................................................................... 32 8.1 Test Limit ...................................................................................................................................... 32 8.2 Test Procedures ........................................................................................................................... 32 8.3 Test Setup Layout ........................................................................................................................ 32 8.4 Test Result and Data .................................................................................................................... 32 9. Frequencies Separation ....................................................................................................................... 38 9.1 Test Limit ...................................................................................................................................... 38 9.2 Test Procedures ........…

Text truncated - open the document above for the full version.

WH Technology Corp. Date of Issue: Feb. 27, 2020 Report No.: WH-FCC-R19120502 Page 1/3 Test Setup Photos Photograph – Conducted Emission Test Setup WH Technology Corp. Date of Issue: Feb. 27, 2020 Report No.: WH-FCC-R19120502 Page 2/3 Photograph – Radiated Emission Below 1G Test Setup WH Technology Corp. Date of Issue: Feb. 27, 2020 Report No.: WH-FCC-R19120502 Page 3/3 Photograph – Radiated Emission Above 1G Test Setup
