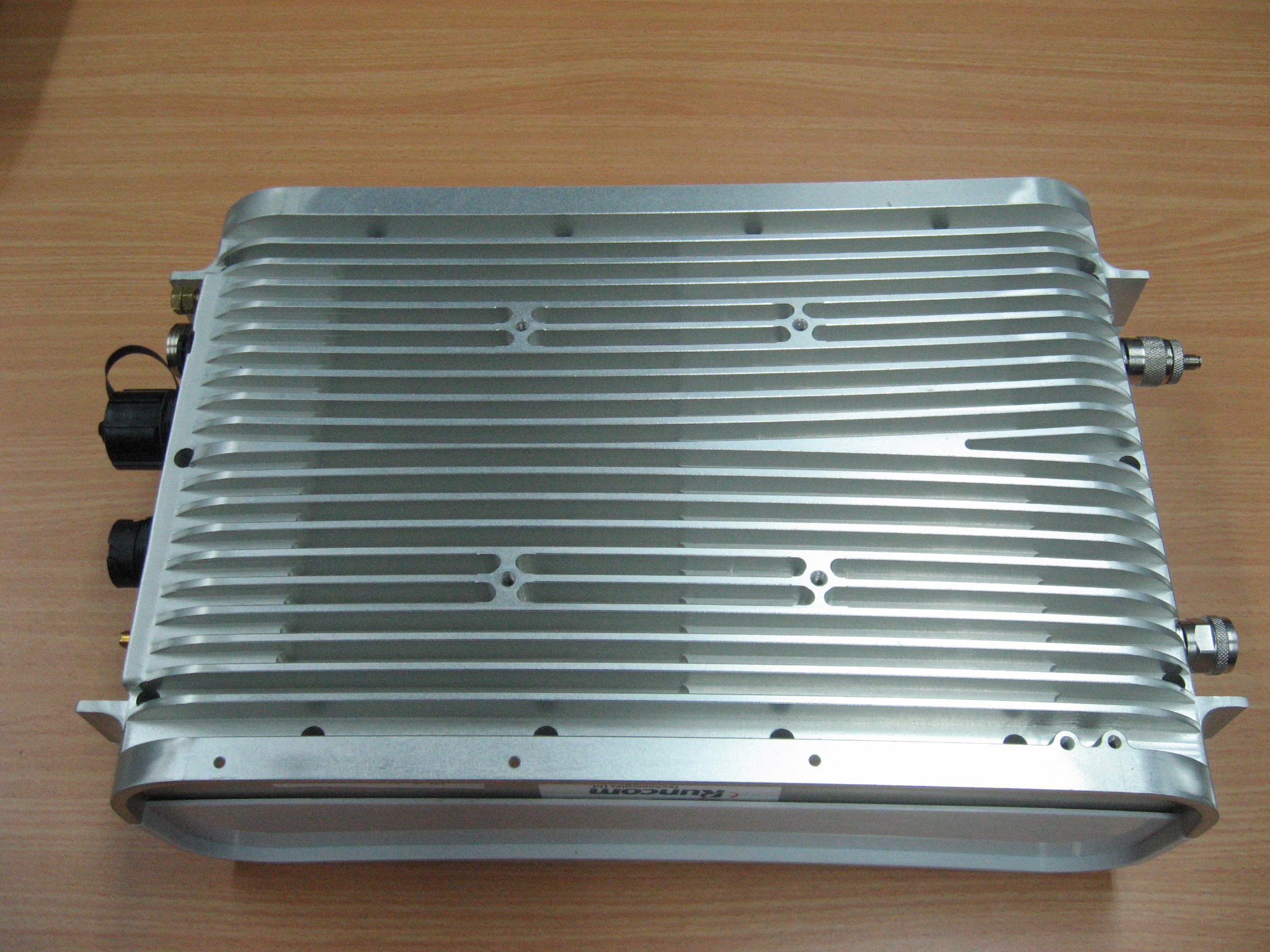

CONFIDENTIAL WiMAX PicoPlus Base Station User Manual Doc No.: PPBS_UM 6-JAN-10 REV-02 Preface Material PicoPlus Base Station User Manual II CONFIDENTIAL Runcom Technologies Ltd. About this Guide This User Manual describes the procedures for commissioning, mounting, installing and managing the PicoPlus Base Station. Notice This document contains proprietary and confidential material of Runcom Ltd. Any unauthorized reproduction, use or disclosure of this material, or any part thereof, is strictly prohibited. This document is solely for the use of Runcom Ltd. employees and authorized Runcom Ltd. customers. The material furnished in this document is believed to be accurate and reliable. However, no responsibility is assumed by Runcom Ltd. for the use of this material. Runcom Ltd. reserves the right to make changes to the material at any time and without notice. All other trademarks are the property of their respective owners. Other company and brand products and service names are trademarks or registered trademarks of their respective holders. Revision History Date Author Description Revision AUG 2009 tothepoint Initial A0 Safety Precautions To avoid injury and to prevent equipment damage, observe the safety precautions below. • Outdoor installation procedures should be performed by quality professionals following all safety and the other requirements and acting in accordance with standard practices and procedures. Failure to meet safety requirements and/or non-standard practices and procedures could result in personal injury and/or damage to equipment. • Always observe standard safety precautions during installation, operation and maintenance of this product. • This equipment must be installed according to country national electrical codes. • Any changes and modifications to the device and the accessories must be approved by Runcom. • All equipment and accessories must be installed in a restricted access area. • Observe all the labels on the equipment, providing operation details and warnings. • Read and follow the installation instructions provided in this manual. • In case of using cables that are not provided with the equipment package, ensure these cables comply with the regulatory inspection authorities and are the responsibility of the customer. • Do not move or ship equipment unless it is properly packed in its original wrapping and shipping containers. Electrical Shock Prevention • When connecting equipment to the AC and DC voltage supplies, ensure proper polarity. • Disconnect the power source before installing or maintaining the power wiring. PicoPlus Base Station User Manual Preface Material Runcom Technologies Ltd. CONFIDENTIAL III • Do not operate the equipment if there is any failure or damage to electrical components. • Do not touch exposed connections, components or wiring when power is on. • Install the equipment and the grounded DC supply circuits in adjacent cabinets. • Protect the DC power source with an adjacent circuit breaker. • The equipment must be properly grounded before attempting to operate or perform any repairs. RF Exposure To avoid RF exposure - Installation of antennas must comply with the FCC RF exposure requirements. Radio Interference This equipment generates and radiates radio frequency energy and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. To avoid interferences: • Avoid conjunction with any other antenna or transmitter. • In case of Radio Interference: Relocate the antenna and Increase separation between the equipment and the receiver (e.g. connect to a separate circuit or outlet). FCC General: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: a) Reorient or relocate the receiving antenna. b) Increase the separation between the equipment and receiver. c) Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. d) Consult the dealer or an experienced radio/TV technician. Warning: Modifications not expressly approved by the manufacturer could void the user authority to operate the equipment under FCC Rules Preface Material PicoPlus Base Station User Manual IV CONFIDENTIAL Runcom Technologies Ltd. Installation Rules: 1. Unit is intended for installation in Restricted Access Location only. 2. Unit shall be installed on/above concrete or other non combustible surface only. 3. The minimum distance between the BS antennas and the public zone is at least 1 meter 4. The unit shall be installed at least 5 meters above the ground level 5. When unit is installed outdoors length of exposed outdoor wiring shall not exceed 130ft (46meters) 6. Unit earthing screw terminal shall be permanently connected to protective earth in building installation in accordance with applicable national code and regulations. 7. The screen of the coaxial cables (connections to outdoor antennas) shall be permanently connected to protective earth in building installation. 8. In Finland, Norway and Sweden unit shall be installed in a Restricted Access Location where equipotential bonding has been applied (e.g. telecommunication center). 9. Unit power line 48VDC shall be protected by 2-pole circuit breaker, suitably certified in accordance with applica…

Text truncated - open the document above for the full version.

I.T.L (PRODUCT TESTING) Ltd. PRODUCT SAFETY, EMC & TELECOMS LAB. Bat-Sheva St., POB 87 LOD 71100 ISRAEL Tel. 972-8-9153100 Fax. 972-8-9153101 Email: [email protected], Web Site: http://www.itl.co.il To: Timco Engineering/FCC From: Shaike Raz Att: Reviewing Engineer Reference No: L95130.00 Date: 08 June 2008 Subject: Testing of Runcom Technologies Outdoor Pico Base Station 3.5 GHz per FCC KDB 9650270 D01 To Whom it may concern, 1. The subject product was tested for Part 90 Subpart Z according to FCC KDB 9650270 D01. 2. The only difference in the test procedure used is that a peak detector was used instead of a sample detector. Regards Shaike Raz EMC/Radio Laboratory Manager EMC/Radio Laboratory ITL (Product Testing) Ltd. Kfar Bin Nun/Lod Israel Tel: +972-8-918-6117 Fax: +972-8-915-3101 Email: [email protected] http://www.itl.co.il

Operational description Upon power‐up of the Outdoor Pico Base Station, a loader application (burned in FLASH and different then the SW application) launches the SW application. The Application initializes its internal modules and waits for a command to activate WiMAX activity. Command is sent via servers or manually. Upon command the downlink and uplink is activated and the Base Station is ready to serve the end users.

01

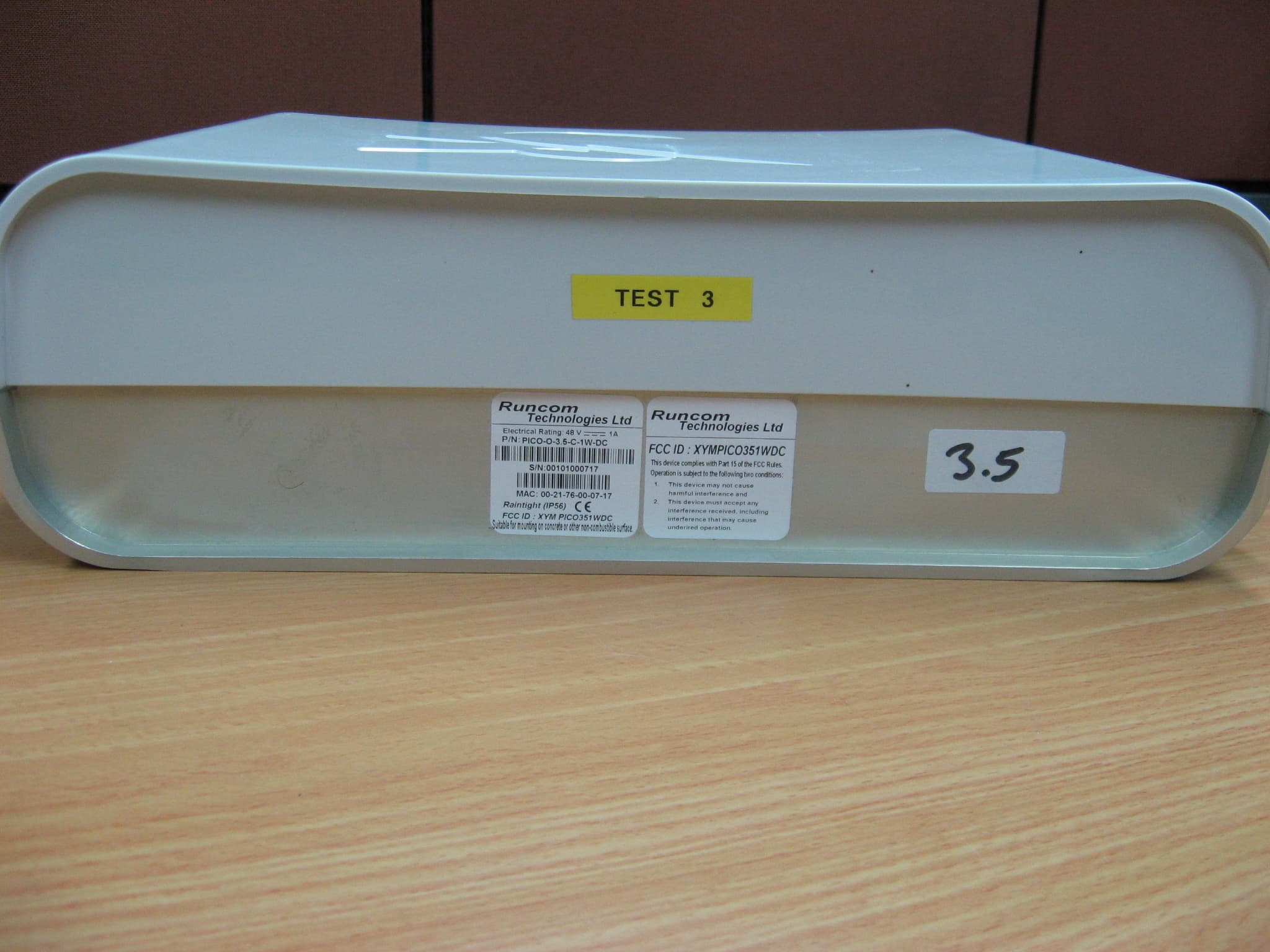

06/2010 Model: PICO-O-3.5-C-1W-DC FCC ID: XYMPICO351WDC Restricted Contention Protocol Oded Redlich, Runcom Technologies 1.1.1. Although the restricted protocol does not have the extended requirement to recognize all other systems it is still mandatory to incorporate a contention based protocol that provides satisfactory sharing of spectrum with similar systems. RESPONSE: See 1.4 Bellow
1.1.2. Address the key requirements for operation using restricted contention based protocol opportunities for other transmitters to operate. Please note that this requires recognizing like systems (similar to yours) that permit operation on a co-channel. RESPONSE: In addition to the Ranging method stated bellow, there are 2 more techniques that allow the separation of transmissions/reception to/of different subscribers. The first is by transmitting data in different resources (either time resources, frequency resources or both). The second technique is to multiply each information stream (bit stream) by a different pseudo random binary sequence (PRBS). This way each receiver decodes its data by multiplying the received signal by the same PRBS, causing all other received signals to be seen as noise. These techniques allow recognizing like-systems assuming they comply with the standard.

1.2. Describe the method to permit occupancy RESPONSE: In the UL, the subscribers transmit their request (to connect / request BW) on a special contention area, using the slotted ALOHA algorithm. Each subscriber decides to retransmit its request after decoding the DL information over a predefined interval and checking whether its request had been approved or lost/denied. The Base-Station scheduler allocates resources to identified subscribers that transmitted over this contention area. The allocation is done for both the UL and the DL.





1.3. Describe the action taken if two or more transmitters simultaneously access the same channel by the master and the client devices. RESPONSE: The above UL contention area uses a CDMA over OFDM method allowing more than one subscriber to access the channel in order to request resources. This can be done if each subscriber uses a different code. In the DL, each Base-Station uses a different Cell-ID (a number that identifies it from other nearby Base-Stations) that helps subscribers in the decoding process.


1.4. Describe opportunities for other similar systems to operate Address how or if a different system operator using the same technology can operate in the same band. RESPONSE: The above method described in 1.3 allows subscribers of different vendors to access the same channel and connect to the same Base-Station provided each one transmits a different code. Other than that, the BW/time separation also enables other like-systems to operate in the same band provided they use different frequency/time resources.



Runcom Technologies Ltd. 11, Moshe Levi Street Rishon Lezion 75655, Israel Tel: +972-3-9428888 Fax: +972-3-9528805 Email: [email protected]

R.F Exposure/Safety Calculation Outdoor Pico Base Station 3.5 GHz Calculation of Maximum Permissible Exposure (MPE) Based on Section 1.1307(b)(1) Requirements 2 1 cm mW (a) FCC limits at 3660 MHz is: Using table 1 of Section 1.1310 limit for general population/uncontrolled exposures, the above level is an average over 30 minutes. (b) The power density produced by the E.U.T. is 2 4R GP S tt π = π4 tt GP R= P - Transmitted Power 38.3dBm = 6761 mW t G T - Antenna Gain 17dBi = 50.11 R- Distance from Transmitter S- MPE=1 (c) The calculated minimum distance between the EUT antenna and the general public is : mR64.1 4 11.506761 = × = π (d) According to the customer the minimum distance between the EUT antenna and the general public is 1.7 meters.

Test Report E93102.00 Runcom Technologies Ltd. Page 1 of 181 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 09 March 2010 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for Runcom Technologies Ltd. Equipment under test: WiMAX Base Station Outdoor Pico Base Station 3.5 GHz Written by: _____________________________ D. Shidlowsky, Documentation Approved by: _____________________________ A. Sharabi, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E93102.00 Runcom Technologies Ltd. Page 2 of 181 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for Runcom Technologies Ltd. WiMAX Base Station Outdoor Pico Base Station 3.5 GHz FCC ID: XYMPICO351WDC This report concerns: Original Grant: X Class II change: Class I change: Equipment type: Licensed Non-Broadcast Transmitter Limits used: 47CFR Part 90 Subpart Z Measurement procedure used is ANSI C63.4-2003. Substitution Method used as in ANSI/TIA-603-B: 2002 Application for Certification Applicant for this device: prepared by: (different from "prepared by") Ishaishou Raz Ronen Greenberg ITL (Product Testing) Ltd. Runcom Technologies Ltd. Kfar Bin Nun 11 Moshe Levi St. D.N. Shimshon 99780 Rishon Le Zion 75658 Israel Israel e-mail [email protected] Tel: +972-3-952-8440 Fax: +972-3-952-8805 e-mail: [email protected] TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 5 1.1 Administrative Information ................................................................................. 5 1.2 List of Accreditations ......................................................................................... 6 1.3 Product Description ........................................................................................... 7 1.4 Test Methodology .............................................................................................. 7 1.5 Test Facility ....................................................................................................... 7 1.6 Measurement Uncertainty ................................................................................. 8 2. SYSTEM TEST CONFIGURATION --------------------------------------------------------------------- 9 2.1 Justification ........................................................................................................ 9 2.2 EUT Exercise Software ..................................................................................... 9 2.3 Special Accessories .......................................................................................... 9 2.4 Equipment Modifications ................................................................................... 9 2.5 Configuration of Tested System ...................................................................... 10 3. TEST SET-UP PHOTOS ----------------------------------------------------------------------------------11 4. MAXIMUM PEAK OUTPUT POWER 5 MHZ BANDWIDTH ------------------------------------12 4.1 Test Specification ............................................................................................ 12 4.2 Test procedure ................................................................................................ 12 4.3 Results table .................................................................................................... 18 4.4 Test Equipment Used. ..................................................................................... 19 5. MAXIMUM PEAK OUTPUT POWER 10 MHZ BANDWIDTH -----------------------------------20 5.1 Test Specification ............................................................................................ 20 5.2 Test procedure ................................................................................................ 20 5.3 Results table .................................................................................................... 26 5.4 Test Equipment Used. ..................................................................................... 27 6. SPECTRAL POWER DENSITY 5 MHZ BANDWIDTH -------------------------------------------28 6.1 Test Specification ............................................................................................ 28 6.2 Test procedure ................................................................................................ 28 6.3 Results table .................................................................................................... 34 6.4 Test Equipment Used. ..................................................................................... 35 7. SPECTRAL POWER DENSITY 10 MHZ BANDWIDTH ------------------------------------------36 7.1 Test Specification ............................................................................................ 36 7.2 Test procedure ................................................................................................ 36 7.3 Results table .................................................................................................... 42 7.4 Test Equipment Used. ..................................................................................... 43 8. OCCUPIED BANDWIDTH 5 MHZ BANDWIDTH --------------------------------------------------44 8.1 Test Specification ............................................................................................ 44 8.2 Test Procedure ................................................................................................ 44 8.3 Results Table .................................................................................................. 49 8.4 Test Equipment Used. ..................................................................................... 50 9. OCCUPIED BANDWIDTH 10 MHZ BANDWIDTH -------------------------------------------------51 9.1 Te…
