XYN815ABLE 5.0 Remote Control

2815-006 remote control user manual model 815A date: 2024-09-09 version: 1 copyright 2024 ruwido austria gmbh - this document is the intellectual property of ruwido austria gmbh and contains information. reproduction, modification, communication to third parties and any other use is strictly prohibited without prior written accordance of ruwido. ruwido_user-manual_2815-006_model815A_2024-09-09.docx page 2 of 5 table of content 1 user operating instructions ................................................................. 3 1.1 manual BLE pairing ................................................................................ 3 1.2 LED behavior ......................................................................................... 3 1.3 TV programming .................................................................................... 3 1.4 switch transmitting mode........................................................................ 3 1.5 factory reset ......................................................................................... 3 2 declaration.......................................................................................... 4 copyright 2024 ruwido austria gmbh - this document is the intellectual property of ruwido austria gmbh and contains information. reproduction, modification, communication to third parties and any other use is strictly prohibited without prior written accordance of ruwido. ruwido_user-manual_2815-006_model815A_2024-09-09.docx page 3 of 5 1 user operating instructions 1.1 manual BLE pairing - press home and back buttons for 3 seconds to start pairing process (continuous green LED flashing)  LED will stop flashing green if pairing was successful - to delete pairing from remote control press home and left buttons for 3 seconds to delete pairing  LED will flash 4 times red if pairing deletion was successful 1.2 LED behavior - LED will flash green when STB is connected via BLE and BLE command is transmitted - LED will flash red when remote IR command (TV database od STB IR) is transmitted 1.3 TV programming press OK button for 3 seconds to start BLE configuration mode for ruwido direct app. 1.4 switch transmitting mode - press home and up buttons for 3 seconds to activate BLE+IR mode - press home and down buttons for 3 seconds to activate IR only mode  LED flash twice if programming was successful 1.5 factory reset - to set remote control back to factory mode press and hold home + mute buttons for a minimum of 3 seconds  LED will flash 4 times red copyright 2024 ruwido austria gmbh - this document is the intellectual property of ruwido austria gmbh and contains information. reproduction, modification, communication to third parties and any other use is strictly prohibited without prior written accordance of ruwido. ruwido_user-manual_2815-006_model815A_2024-09-09.docx page 4 of 5 2 declaration user information FCC 15.21: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. part 15 statement gem. FCC 15.19: this device complies with Part 15 of the FCC rules. operation is subject to the following two conditions: (1) this device may not cause interference. (2) this device must accept any interference, including interference that may cause undesired operation. statement RSS GEN Issue 5:: this device contains licence-exempt transmitter(s)/receiver(s) that comply with innovation, science and economic development canada’s licence-exempt RSS(s). operation is subject to the following two conditions: (1) this device may not cause interference (2) this device must accept any interference, including interference that may cause undesired operation of the device.. cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS) d'innovation, sciences et développement économique canada. le fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas causer d'interférences (2) cet appareil doit accepter toutes les interférences, y compris celles susceptibles de provoquer un fonctionnement indésirable de l'appareil. ruwido austria gmbh Koestendorfer Str. 8 . 5202 Neumarkt . Austria . t +43 6216 4571-0 . [email protected] . www.ruwido.com

PHOENIX TESTLAB GmbH Date: 2024-12-03 Product Certification Department Koenigswinkel 10 32825 Blomberg Germany Attestation FCC Justification Statement about Antenna Gain Information This device complies with the FCC limits for fundamental and spurious emissions solely by radiated measurements as documented in the test report. Therefore, neither antenna manufacturers data sheets, antenna reference design specification nor Antenna Under Test (AUT) reports as required for the FCC certification under CFR 47 Part 15. FCC ID: XYN815A FCC Rule Part Section: FCC 15.247 If you have any questions, please feel free to contact me Contact Person: Marie-Luise Schuster Position in the Company: GMA Project Coordinator Date of Signature: 2024-12-03 ___________________________ Signatory (signature of the applicant)

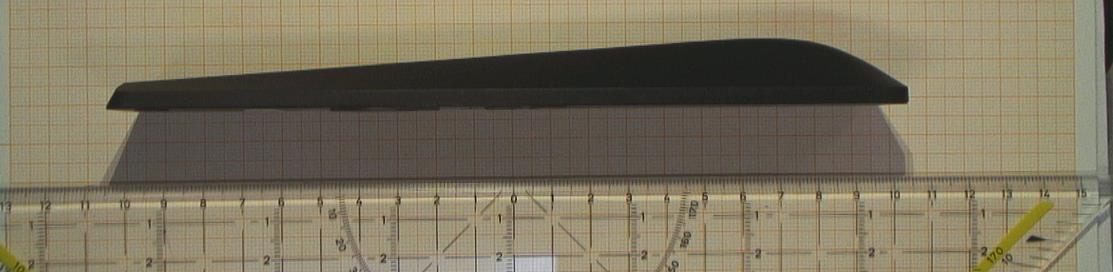

1 Photo Documentation of the EUT 1.1 External Views:

Photo of Device Label:

1 Photo Documentation of the EUT 1.2 Internal Views:

The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. 80201625-01 Rev_0, page 1 of 9 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.: +49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 6.3, 2021-11-03 CSA Confidential R F − T E S T R E P O R T - Human Exposure - Type / Model Name : 2815-006 – Model: 815A HVIN: 815A Product Description : BLE5.0 remote control Applicant : ruwido austria gmbh Address : Koestendorfer Strasse 8 5202 NEUMARKT, AUSTRIA Manufacturer : ruwido austria gmbh Address : Koestendorfer Strasse 8 5202 NEUMARKT, AUSTRIA Test Result according to the standards listed in clause 1 test standards: POSITIVE Test Report No. : 80201625-01 Rev_0 13. November 2024 ________________________________________________________________ ___________ ____________ _______ Date of issue The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: XYN815A IC ID: 8748A-815A CSA Group Bayern GmbH File No. 80201625-01 Rev_0, page 2 of 9 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.: +49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 6.3, 2021-11-03 CSA Confidential Contents 1 T E S T S T A N D A R D S 3 2 E Q U I P M E N T U N D E R T E S T 4 2.1 Information provided by the Client 4 2.2 Sampling 4 2.3 Photo documentation of the EUT – See ATTACHMENT A 4 2.4 Equipment type 4 2.5 Short description of the equipment under test (EUT) 4 2.6 Variants of the EUT 4 2.7 Operation frequency and channel plan 4 2.8 Transmit operating modes 4 2.9 Antennas 4 2.10 Power supply system utilised 5 3 T E S T R E S U L T S U M M A R Y 6 3.1 Revision history of test report 6 3.2 Final assessment 6 4 T E S T E N V I R O N M E N T 7 4.1 Address of the test laboratory 7 4.2 Environmental conditions 7 4.3 Statement of the measurement uncertainty 7 5 H U M A N E X P O S U R E 8 5.1 RF Output Power 8 5.2 SAR test exclusion considerations 9 ATTACHMENT A as separate supplement The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: XYN815A IC ID: 8748A-815A CSA Group Bayern GmbH File No. 80201625-01 Rev_0, page 3 of 9 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.: +49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 6.3, 2021-11-03 CSA Confidential 1 T E S T S T A N D A R D S The tests were perf ormed according to f ollowing standards: FCC Rules and Regulations Part 1, Subpart I - Procedures Implementing the National Environmental Policy Act of 1969 KDB 447498 D01 RF Exposure procedures and equipment authorisation policies for mobile and portable devices, April 20, 2021. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: XYN815A IC ID: 8748A-815A CSA Group Bayern GmbH File No. 80201625-01 Rev_0, page 4 of 9 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.: +49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 6.3, 2021-11-03 CSA Confidential 2 E Q U I P M E N T U N D E R T E S T 2.1 Information provided by the Client Please note, we do not take any responsibility for information provided by the client or his representative which may have an inf luence on the validity of the test results. 2.2 Sampling The customer is responsible for the choice of sample. Sample configuration, start-up and operation is carried out by the customer or according his/her instructions. 2.3 Photo documentation of the EUT – See ATTACHMENT A 2.4 Equipment type BLE device 2.5 Short description of the equipment under test (EUT) The EUT is a Bluetooth Low Energy wireless remote control. A single PCB antenna is used within the system. The EUT has only one integrated antenna, no temporary connector and no external antenna can be connected. Number of tested samples: 2 Serial number: prototype Firmware version: 0.0.232 2.6 Variants of the EUT There are no variants. 2.7 Operation frequency and channel plan The operating f requency is 2400 MHz to 2483.5 MHz. 2.8 Transmit operating modes The EUT uses GFSK modulation and may provide f ollowing data rates: - 1000 kbps - 2000 kbps 2.9 Antennas The f ollowing antennas shall be used with the EUT: The EUT has only an integrated PCB antenna with a maximum of -3 dBi, no temporary connector and no external antenna to be connected. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: XYN815A IC ID: 8748A-815A CSA Group Bayern GmbH File No. 80201625-01 Rev_0, page 5 of 9 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.: +49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 6.3, 2021-11-03 CSA Confidential 2.10 Power supply system utilised Power supply voltage, V nom : 3 V DC battery powered The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: XYN815A IC ID: 8748A-815A CSA Group Bayern GmbH File No. 80201625-01 Rev_0, page 6 of 9 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.: +49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 6.3, 2021-11-03 CSA Confidential 3 T E S T R E S U L T S U M MARY BLE operating in the 2400 MHz – 2483.5 MHz band: Rule Part Description Result KDB 447498 1 mW exemption limit passed 3.1 Revision history of test report Test report No Rev. Issue Date Changes 80201625-01 0 04 April 2024 Initial test report 80201625-01 1 13. November 2024 EIRP corrected, 1 mW exemption limit used The test report with the highest revision number replaces the previous test reports. 3.2 Final assessment The equipment under test f ulf ils the requir…

Text truncated - open the document above for the full version.

The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. 80201625-00 Rev_1, page 1 of 38 Ohmstrasse 1-4 94342 STRASSKIRCHEN GERMANY Tel.:+49(0)9424-94810 Fax:+49(0)9424-9481440 Rev. No. 6.5 2021-11-05 R F T E S T R E P O R T - FCC Part 15.247, RSS-247 - Type / Model Name : 2815-006 Model: 815A HVIN: 815A Product Description : BLE5.0 remote control Applicant : ruwido austria gmbh Address : Koestendorfer Strasse 8 5202 NEUMARKT, AUSTRIA Manufacturer : ruwido austria gmbh Address : Koestendorfer Strasse 8 5202 NEUMARKT, AUSTRIA Test Result according to the standards listed in clause 1 test standards: POSITIVE Test Report No. : 80201625-00 Rev_1 13. November 2024 ________________________________________________________________ ___________ ____________ _______ Date of issue The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: XYN815A IC ID: 8748A-815A CSA Group Bayern GmbH File No. 80201625-00 Rev_1, page 2 of 38 Ohmstrasse 1-4 94342 STRASSKIRCHEN GERMANY Tel.:+49(0)9424-94810 Fax:+49(0)9424-9481440 Rev. No. 6.5 2021-11-05 Contents 1 T E S T S T A N D A RDS 3 2 E Q U I P M E NT U N DE R T E S T 4 2.1 Information provided by the Client 4 2.2 Sampling 4 2.3 General remarks 4 2.4 Photo documentation of the EUT Detailed photos see ATTACHMENT A 4 2.5 Equipment type 4 2.6 Short description of the equipment under test (EUT) 4 2.7 Variants of the EUT 4 2.8 Operation frequency and channel plan 5 2.9 Transmit operating modes 5 2.10 Antenna 5 2.11 Power supply system utilised 5 2.12 Peripheral devices and interface cables 5 2.13 Determination of worst-case conditions for final measurement 6 3 T E S T RE S UL T S UM M A RY 7 3.1 Revision history of test report 7 3.2 Final assessment 7 4 T E S T E NV I R ON M E N T 8 4.1 Address of the test laboratory 8 4.2 Environmental conditions 8 4.3 Statement of the measurement uncertainty 8 4.4 Conformity Decision Rule 9 4.5 Measurement protocol for FCC and ISED 9 5 T E S T CO N DI T I O NS A N D RE S UL T S 12 5.1 EBW and OBW 12 5.2 Maximum peak output power 18 5.3 Power spectral density 22 5.4 Spurious emissions radiated 26 5.5 Antenna application 37 6 U S E D T E S T E Q U I P M E NT A N D A CCE S S O RI E S 38 ATTACHMENT A as separate supplement The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: XYN815A IC ID: 8748A-815A CSA Group Bayern GmbH File No. 80201625-00 Rev_1, page 3 of 38 Ohmstrasse 1-4 94342 STRASSKIRCHEN GERMANY Tel.:+49(0)9424-94810 Fax:+49(0)9424-9481440 Rev. No. 6.5 2021-11-05 1 T ES T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October 2023) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October 2023) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.247 Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz and 5725 - 5850 MHz ANSI C63.10: 2013 Testing Unlicensed Wireless Devices KDB 558074 D01 v05r02 Guidance for compliance measurements on DTS; FHSS and hybrid system devices operating under Section 15.247 of the FCC rules, April 2, 2019. ISED Canada Rules and Regulations RSS-Gen, Issue 5 + Amendment 1 + 2 General Requirements for Compliance of Radio Apparatus RSS-247, Issue 3 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE- LAN) Devices ANSI C63.10: 2013 Testing Unlicensed Wireless Devices The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: XYN815A IC ID: 8748A-815A CSA Group Bayern GmbH File No. 80201625-00 Rev_1, page 4 of 38 Ohmstrasse 1-4 94342 STRASSKIRCHEN GERMANY Tel.:+49(0)9424-94810 Fax:+49(0)9424-9481440 Rev. No. 6.5 2021-11-05 2 E Q UI P M EN T U N D E R T E ST 2.1 Information provided by the Client Please note, we do not take any responsibility for information provided by the client or his representative which may have an influence on the validity of the test results. 2.2 Sampling The customer is responsible for the choice of sample. Sample configuration, start-up and operation is carried out by the customer or according his/her instructions. 2.3 General remarks 2.4 Photo documentation of the EUT Detailed photos see ATTACHMENT A 2.5 Equipment type BLE device 2.6 Short description of the equipment under test (EUT) The EUT is a Bluetooth Low Energy wireless remote control. A single PCB antenna is used within the system. The EUT has only one integrated antenna, no temporary connector and no external antenna can be connected. Number of tested samples: 1x radiated sample 1x conducted sample Serial number: prototype prototype Firmware version: 0.0.232 0.0.232 2.7 Variants of the EUT There are no variants. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: XYN815A IC ID: 8748A-815A CSA Group Bayern GmbH File No. 80201625-00 Rev_1, page 5 of 38 Ohmstrasse 1-4 94342 STRASSKIRCHEN GER…

Text truncated - open the document above for the full version.
