XZB-MAXR-950Highpower USB WiFi Module

OEM INTEGRATION GUIDE Product Overview The MaxR 950 is a Hi-Power USB dongle complies with the IEEE 802.11 specification to communicate with other 802.11 wireless devices in 2.4 GHz, and in the 4.9 GHz band, up to 65 Mbps Packing Contents The USB dongle package contains the following item (s): 1 x Wireless USB Dongle Installation Guide • Shut down the power of the platform. • Align the dongle with the USB 2.0 port and adjust until the LED power off. • Connect the antenna(s) on the USB dongle. • Reboot on the platform • Install drivers if necessary Product Features • 2.4 GHz ISM ( Industrial , Science , Medical ) band operation • 4.9 GHz Public Safety band operation • USB 2.0 PHY, high speed client device • Two antenna ports (Design support single antenna with one port left unconnected /unterminated) • Transmit power , average : 24 dBm, +/- 2 dB, measure at the TX Port • Radio Interoperability : 802.11a /g OFDM • Antenna Interface: MMCX • Channel Bandwidth : 5 MHz – 20 MHz • Mesh support : 802.11s • The device operates continuously in the 2.4 GHz or 4.9 GHz band ( not both at the same time) Product Specification • Ad host supported • Infrastructure ( Access Point ) supported • Linux Driver • Operating Temperature : -20C to 70C Radio shall be sufficiently shielded to prevent emission/reception of EMI to / from host Easy installation and use System Requirement PC compatible laptop with one available USB 2.0 bus-power port Windows XP with SP2 or later, Windows Vista or Windows 7 Host Device Labeling The outside of the host device into which the MaxR 950 module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: “XZB-MAXR-950” or “Contains FCC ID: XZB-MAXR-950.” Any similar wording that expresses the same meaning may be used. The host OEM user manual must also contain clear instructions on how end users can find and/or access the module. Regulatory Information FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC Radiation Exposure Statement This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter.

Date: 04/18/2012 Subject: Confidentiality Request for FCC ID: XZB-MXR-950 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Permanent User’s Manual Arada Systems has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180) days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705.

Arada Systems, Inc. www.aradasystems.com Tel: +1 (408)-773-9298 4633 Old Ironsides, Suite 415, Santa Clara,CA 95054 Fax: +1 (408) -716- 3238 Date: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Limited Modular Approval Letter To Whom It May Concern: In accordance with Section 15.212 (b), Arada Systems, Inc. believes it has met all of the requirements set out in that document for the granting of limited single modular approval. Specifically, the criteria set out in that document are addressed below in bold: 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The Model MaxR-950 has its own shielding covering all critical RF components. This can be seen in the photographs included in the accompanying test report. Or Unit has passed spurious emissions test without shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The module MaxR-950 has buffered modulation/data inputs provided by the AR9350 component 3. The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. The MaxR-950 module incorporates its own supply regulation, and components YYYY provide this 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through Class II permissive change. The “professional installation” provision of Section 15.203 may not be applied to modules. The MaxR-950 employs a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). All antennas have been verified at the time of initial authorization. Arada Systems, Inc. www.aradasystems.com Tel: +1 (408)-773-9298 4633 Old Ironsides, Suite 415, Santa Clara,CA 95054 Fax: +1 (408) -716- 3238 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during the testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites; unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). The MaxR-950 does not employ any ferrites 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: “XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The MaxR-950 is fitted with their own labels, including the FCC ID number. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modules have been tested to comply with all rules under Part 15. The compliance is assured by the design of the device and the user is unable to intervene to cause the device to operate incorrectly. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating…

Text truncated - open the document above for the full version.

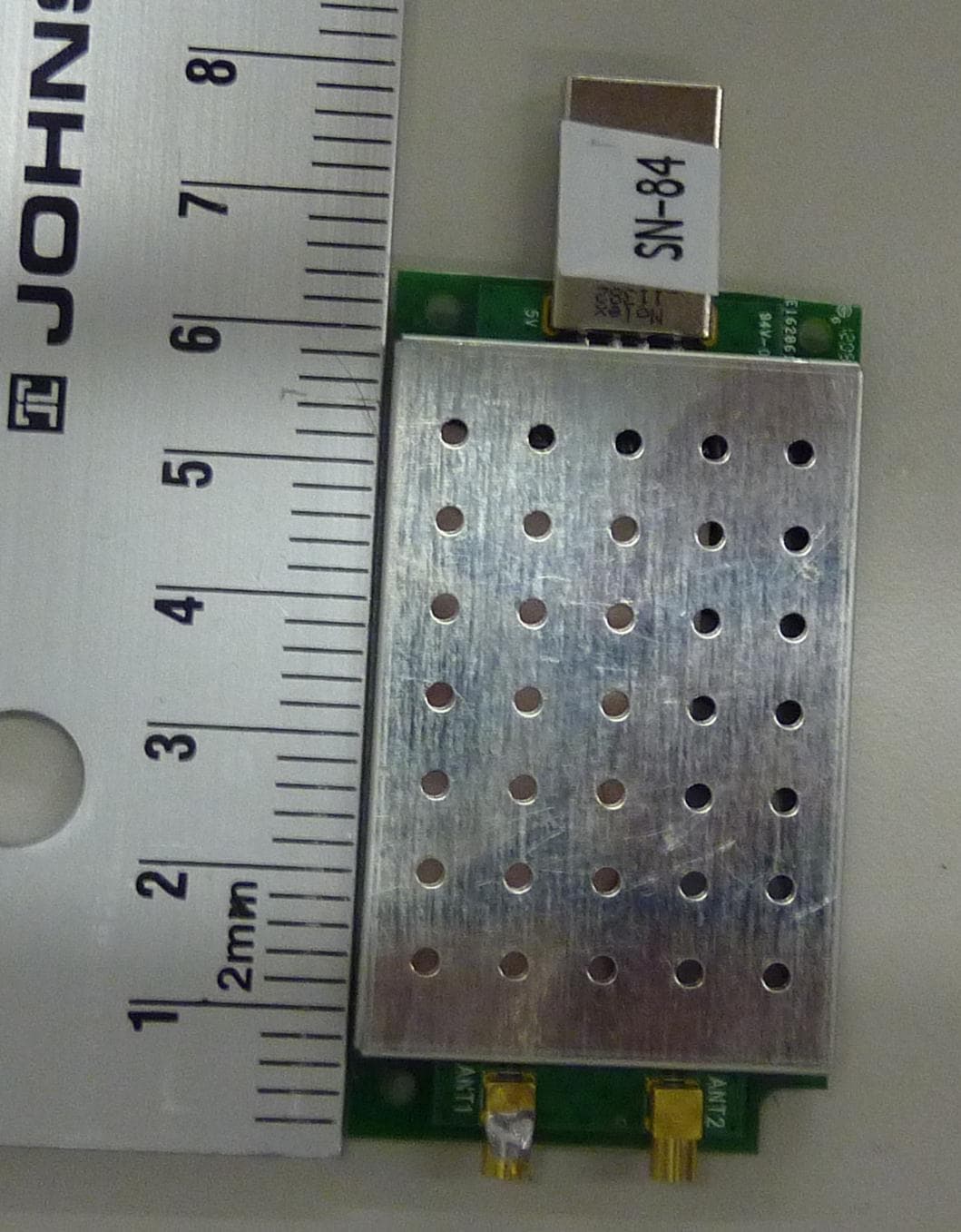

TUV Rheinland External Photos 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Page 1 of 5 EUT: MaxR 950 EMC / Rev 6/20/2012 FCCID:XZB-MAXR-950 1.1 External Photos MaxR 950 TUV Rheinland External Photos 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Page 2 of 5 EUT: MaxR 950 EMC / Rev 6/20/2012 FCCID:XZB-MAXR-950 TUV Rheinland External Photos 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Page 3 of 5 EUT: MaxR 950 EMC / Rev 6/20/2012 FCCID:XZB-MAXR-950 TUV Rheinland External Photos 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Page 4 of 5 EUT: MaxR 950 EMC / Rev 6/20/2012 FCCID:XZB-MAXR-950 TUV Rheinland External Photos 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Page 5 of 5 EUT: MaxR 950 EMC / Rev 6/20/2012 FCCID:XZB-MAXR-950

TUV Rheinland Internal Photos 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Page 1 of 5 EUT: MaxR 950 EMC / Rev 6/20/2012 FCCID:XZB-MAXR-950 1.1 Internal Photos MaxR 950 TUV Rheinland Internal Photos 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Page 2 of 5 EUT: MaxR 950 EMC / Rev 6/20/2012 FCCID:XZB-MAXR-950 TUV Rheinland Internal Photos 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Page 3 of 5 EUT: MaxR 950 EMC / Rev 6/20/2012 FCCID:XZB-MAXR-950 TUV Rheinland Internal Photos 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Page 4 of 5 EUT: MaxR 950 EMC / Rev 6/20/2012 FCCID:XZB-MAXR-950 TUV Rheinland Internal Photos 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Page 5 of 5 EUT: MaxR 950 EMC / Rev 6/20/2012 FCCID:XZB-MAXR-950

To Whom It May Concern: FCC ID: XZB-MXR-950 Arada Systems Model: MaxR 950 – High Power USB is digitally tuned to the desired frequency, and no tune up procedure is needed. The MaxR 950 employs 3.3V DC and 1.5amps in the final output stage

Report Number: 31250954.001 Appendix A EUT: Highpower USB Wifi Module EMC / Rev 6/19/2012 Page 1 of 5 FCCID: XZB-MAXR-950 RF Exposure Exhibit EUT Name: Highpower USB Wifi Module Model No.: MAXR 950 CFR 47 Part 15.247 and 90 Prepared for: Arada Systems, Inc 4635, Old Ironsides Drive, Suite 415 Santa Clara, CA 95054 USA Tel: (408)-7738-9923 Prepared by: TUV Rheinland of North America, Inc. 1279 Quarry Lane Pleasanton, CA 94566 Tel: (925) 249-9123 Fax: (925) 249-9124 http://www.tuv.com/ Report/Issue Date: June 10, 2012 Report Number: 31250954.001 Appendix A Report Number: 31250954.001 Appendix A EUT: Highpower USB Wifi Module EMC / Rev 6/19/2012 Page 2 of 5 FCCID: XZB-MAXR-950 TUV Rheinland 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 RF Exposure Limit Contents RF Exposure Exhibit ................................................................................................................. 1 1 Test Methodology.................................................................................................................... 3 1.1 RF Exposure Limit ..................................................................................................................... 3 1.2 EUT Operating Condition.......................................................................................................... 3 1.2.1 Classification ...........................................................................................................................................3 1.3 Test Results............................................................................................................................... 4 1.3.1 Antenna Gain ...........................................................................................................................................4 1.3.2 Mobile Configuration ..............................................................................................................................4 1.3.3 Sample Calculation ..................................................................................................................................5 Report Number: 31250954.001 Appendix A EUT: Highpower USB Wifi Module EMC / Rev 6/19/2012 Page 3 of 5 FCCID: XZB-MAXR-950 TUV Rheinland 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 RF Exposure Limit 1 Test Methodology In this document, we evaluate the RF Exposure to human body due the intentional transmission from the transmitter (EUT). The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over- prediction for near field power density. We will take that as the worst case to specify the safety range. 1.1 RF Exposure Limit According to FCC 1.1310 table 1: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300 - 1500 ... ... F/300 6 1500 - 100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300 - 1500 ... ... F/1500 6 1500 - 100,000 ... ... 1.0 30 F = Frequency in MHz 1.2 EUT Operating Condition The software provided by Manufacturer enabled the EUT to transmit data at lowest, middle and highest channel individually. Software provided enables to transmit on multi channels simultaneously. 1.2.1 Classification Arada proprietary software is used for mobile installation. EUT is installed inside a mobile host device. The antenna of the product, under normal use condition, is at least 20cm away from the body of the user and accessible to the end user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in user’s manual. Report Number: 31250954.001 Appendix A EUT: Highpower USB Wifi Module EMC / Rev 6/19/2012 Page 4 of 5 FCCID: XZB-MAXR-950 TUV Rheinland 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Test Results 1.3 Test Results 1.3.1 Antenna Gain Highest gain of the antenna used with device is 2.1dBi 1.3.2 Mobile Configuration Calculations for this report are based on highest power measured for each band. Band Mode Output Power dBm Antenna gain (Max) EIRP/ERP Channels Available Channels Used Total EIRP dBm W W dBm 2400 – 2483.5MHz 802.11b, g & HT20 29.12 2.1 31.22 1.32 11 1 1 4940 – 4990MHz 30.94 2.1 33.04 2.01 20 2.01 33.04 Totals: 2.01 33.04 Note 1: Stations using 2400 to 2483.5MHz Power limited 1 Watt Max gain of antenna 6dBi; Stations operating 4940 to 4990MHz band maximum output power permitted antenna port is 33dBm. The highest measured power is +33.04dBm or 2.01W. Using the Friss transmission formula, the EIRP is Pout*G, and R is 20cm. Pd= EIRP/(1600π) Pd = (2010) / (1600π) = 0.399mW/cm2, which is below the limit. Calculating the distance at which Power density equal the limit Calculation uses the free space transmission formula: S = (PG)/(4 πd 2 ) Where: S is power density (W/m 2 ), P is output power (W), G is antenna gain relative to isotropic, d is separation distance from the transmitting antenna (m). d = Sqroot ( PG/4π) d in Cm when PG in mW/cm^2 Limit for Frequency above 1500MHz permissible power density is 1.0 mW/cm^2 d = Sqroot { 2010/4π (1)} D= 12.65cms Report Number: 31250954.001 Appendix A EUT: Highpower USB Wifi Module EMC / Rev 6/19/2012 Page 5 of 5 FCCID: XZB-MAXR-950 TUV Rheinland 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Tes…

Text truncated - open the document above for the full version.

Report Number: 31250954.002 Page 1 of 111 EUT: Highpower USB Wifi Module Model: MaxR 950 EMC / Rev 6/21/2012 FCCID: XZB-MAXR-950 Emissions Test Report EUT Name: Highpower USB Wifi Module Model No.: MaxR 950 CFR 47 Part 90Y Prepared for: Praveen Singh Arada Systems, Inc. 4633 Old Ironsides Drive, Suite 415 Santa Clara, CA 95054 Tel: (408) 773-9923 Prepared by: TUV Rheinland of North America, Inc. 1279 Quarry Lane Pleasanton, CA 94566 Tel: (925) 249-9123 Fax: (925) 249-9124 http://www.tuv.com/ Report/Issue Date: Aug 26, 2012 Report Number: 31250954.002 Statement of Compliance Report Number: 31250954.002 Page 2 of 111 EUT: Highpower USB Wifi Module Model: MaxR 950 EMC / Rev 6/21/2012 FCCID: XZB-MAXR-950 Manufacturer: Arada Systems, Inc. 4633 Old Ironsides Drive, Suite 415 Santa Clara, CA 95054 Requester / Applicant: Praveen Singh Name of Equipment: Highpower USB Wifi Module Model No. MaxR 950 Type of Equipment: Intentional Radiator Application of Regulations: CFR 47 Part 90Y Test Dates: 04 April to 22 May, 06 June 2012 and Aug 13, 2012 Guidance Documents: Emissions: ANSI C63.10-2009 & TIA 603-C Test Methods: Emissions: ANSI C63.10-2009 & TIA 603-C The electromagnetic compatibility test and documented data described in this report has been performed and recorded by TUV Rheinland, in accordance with the standards and procedures listed herein. As the responsible authorized agent of the EMC laboratory, I hereby declare that the equipment described above has been shown to be compliant with the EMC requirements of the stated regulations and standards based on these results. If any special accessories and/or modifications were required for compliance, they are listed in the Executive Summary of this report. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. This report contains data that are not covered by NVLAP accreditation. This report shall not be reproduced except in full, without the written authorization of TUV Rheinland of North America. Suresh Kondapalli Aug 26, 2012 Conan Boyle Aug 26, 2012 Test Engineer Date NVLAP Signatory Date INDUSTRY CANADA Testing Cert#1331.02 US5254 2932M-1 Index of Tables Report Number: 31250954.002 Page 3 of 111 EUT: Highpower USB Wifi Module Model: MaxR 950 EMC / Rev 8/29/2012 FCCID: XZB-MAXR-950 1 Executive Summary _______________________________________________________ 6 1.1 Scope______________________________________________________________________ 6 1.2 Purpose____________________________________________________________________ 6 1.3 Summary of Test Results _____________________________________________________ 6 1.4 Special Accessories __________________________________________________________ 8 1.5 Equipment Modifications _____________________________________________________ 8 2 Laboratory Information ____________________________________________________ 9 2.1 Accreditations & Endorsements _______________________________________________ 9 2.1.1 US Federal Communications Commission _______________________________________________ 9 2.1.2 NIST / A2LA _____________________________________________________________________ 9 2.1.3 Canada – Industry Canada ___________________________________________________________ 9 2.1.4 Japan – VCCI _____________________________________________________________________ 9 2.1.5 Acceptance by Mutual Recognition Arrangement ________________________________________ 10 2.2 Test Facilities ______________________________________________________________ 10 2.2.1 Emission Test Facility _____________________________________________________________ 10 2.2.2 Immunity Test Facility _____________________________________________________________ 10 2.3 Measurement Uncertainty ___________________________________________________ 11 2.3.1 Sample Calculation – radiated & conducted emissions ____________________________________ 11 2.3.2 Measurement Uncertainty ___________________________________________________________ 11 2.4 Calibration Traceability _____________________________________________________ 12 3 Product Information ______________________________________________________ 13 3.1 Product Description ________________________________________________________ 13 3.2 Equipment Configuration ___________________________________________________ 13 3.3 Operating Mode ___________________________________________________________ 13 3.4 Duty Cycle: None __________________________________________________________ 13 3.5 Unique Antenna Connector __________________________________________________ 14 3.5.1 Results _________________________________________________________________________ 14 4 Emission Requirements – 4940 to 4990 MHz Band _____________________________ 15 4.1 Output Power Requirements _________________________________________________ 15 4.1.1 Results _________________________________________________________________________ 16 4.2 Channel Bandwidth ________________________________________________________ 43 4.2.1 Test Method _____________________________________________________________________ 43 4.3 Spectral Mask requirements _________________________________________________ 53 4.4 Conducted Spurious Emissions _______________________________________________ 67 4.4.1 Test Method _____________________________________________________________________ 67 4.4.2 Results _________________________________________________________________________ 68 Index of Tables Report Number: 31250954.002 Page 4 of 111 EUT: Highpower USB Wifi Module Model: MaxR 950 EMC / Rev 8/29/2012 FCCID: XZB-MAXR-950 4.5 Peak Power Spectral Density and Peak Excursion _______________________________ 75 4.5.1 Test Method _____________________________________________________________________ 75 4.5.2 Results _________________________________________________________________________ 76 4.6 Transmitter Spurious Emissions ______________________________________________ 83 4.6.1 Test Methodology ___________________________________________…

Text truncated - open the document above for the full version.

TUV Rheinland Test setup Photos 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Page 1 of 6 EUT: MaxR 950 EMC / Rev 7/24/2012 FCCID:XZB-MAXR-950 1.1 Test setup Photos MaxR 950 Radiated Emissions Front side TUV Rheinland Test setup Photos 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Page 2 of 6 EUT: MaxR 950 EMC / Rev 7/24/2012 FCCID:XZB-MAXR-950 Test Setup – Radiated Emissions TUV Rheinland Test setup Photos 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Page 3 of 6 EUT: MaxR 950 EMC / Rev 7/24/2012 FCCID:XZB-MAXR-950 Test Setup – Radiated Emissions TUV Rheinland Test setup Photos 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Page 4 of 6 EUT: MaxR 950 EMC / Rev 7/24/2012 FCCID:XZB-MAXR-950 Test Setup – Radiated Emissions TUV Rheinland Test setup Photos 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Page 5 of 6 EUT: MaxR 950 EMC / Rev 7/24/2012 FCCID:XZB-MAXR-950 Test Setup – Radiated Emissions 18 to 40GHz TUV Rheinland Test setup Photos 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Page 6 of 6 EUT: MaxR 950 EMC / Rev 7/24/2012 FCCID:XZB-MAXR-950 Test Setup – Radiated Emissions 18 to 40GHz
