XZB-MAXR3210WIRELESS ACCESS POINT

ARADA, Inc. 1024 Morse Avenue, Sunnyvale, CA 94089 Arada Systems Inc., 1024 Morse Avenue, Sunnyvale, CA - 94089. Tel: +1 (408) 773 9298 www.aradasystems.com Arada Systems, Inc. MaxR-3210 Single Band Wireless-N Access Point User Manual This document helps you to configure and use the MaxR-3210 Single Band Wireless-N Access Point Dec 2009 Book Version: 1.1 ii Contents About This Manual Conventions, Formats, and Scope ..................................................................................... i Chapter 1 Introduction About the MaxR-3210 Single Band Wireless-N Access Point ........................................1-1 Key Features and Standards ..........................................................................................1-1 Supported Standards and Conventions ...................................................................1-2 Key Features ............................................................................................................1-2 802.11b/g/n Standards-based Wireless Networking ................................................1-4 Autosensing Ethernet Connections with Auto Uplink ...............................................1-4 System Requirements ....................................................................................................1-4 What’s In the Box? .........................................................................................................1-5 Hardware Description .....................................................................................................1-5 Rear Panel ...............................................................................................................1-5 Chapter 2 Basic Installation and Configuration Wireless Equipment Placement and Range Guidelines .................................................2-2 Understanding MaxR-3210 Wireless Security Options ..................................................2-3 Installing the MaxR-3210 Wireless Access Point ...........................................................2-4 Setting up the MaxR-3210 Wireless Access Point ...................................................2-4 Configuring LAN and Wireless Access ....................................................................2-4 Configuring Time Settings .................................................................................2-7 Configuring Wireless Access .............................................................................2-9 Deploying the MaxR-3210 Wireless Access Point ...................................................2-9 Verifying Wireless Connectivity ..............................................................................2-10 Logging In Using the Default IP Address ......................................................................2-10 Setting Basic IP Options ............................................................................................... 2-11 Wireless Settings ..........................................................................................................2-13 Configuring 802.11b/bg/ng Wireless Settings ........................................................2-13 MaxR-3210 Wireless-N Access Point User Manual ivArada Systems Confidential v1.1, Dec 2009 Configuring Basic QoS Settings .............................................................................2-16 Setting Up and Testing Basic Wireless Connectivity ....................................................2-17 Understanding Security Profiles ...................................................................................2-18 SSID and WEP/WPA Settings Setup Form ..................................................................2-22 802.11b/bg/ng Configuration ............................................................................2-22 Configuring the RADIUS Server Settings .....................................................................2-23 Setting up a Security Profile .........................................................................................2-25 Configuring WEP ..........................................................................................................2-27 Configuring WPA with RADIUS ....................................................................................2-29 Configuring WPA2 with RADIUS ..................................................................................2-31 Configuring WPA and WPA2 with RADIUS ..................................................................2-32 Configuring WPA-PSK ..................................................................................................2-34 Configuring WPA2-PSK ................................................................................................2-35 Configuring WPA-PSK and WPA2-PSK ........................................................................2-36 Restricting Wireless Access by MAC Address .............................................................2-38 Chapter 3 Management Remote Management .....................................................................................................3-1 Remote Console .............................................................................................................3-3 Using the Secure Telnet Interface ............................................................................3-3 CLI Commands ........................................................................................................3-4 Upgrading the Wireless Access Point Software .............................................................3-5 Configuration File Management .....................................................................................3-6 Saving Your Configuration Settings .........................................................................3-7 Restoring Saved Settings .........................................................................................3-7 Restoring the MaxR-3210 to the Factory Defau…

Text truncated - open the document above for the full version.

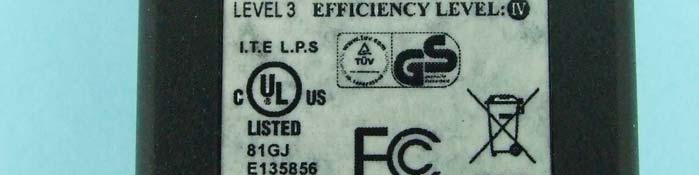

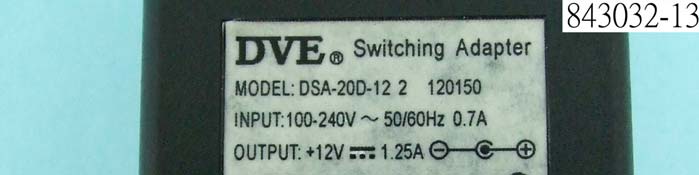

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT Monopole Antenna (TWX-145XRSXX361) FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C8 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C19 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C20 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C21 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C22 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C23 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C24 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 Label location

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C8 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C9 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 PCB Antenna (TFF-A015MPAX-361) PCB Antenna (TFF-A015MPAX-361) FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C10 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C11 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C12 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C13 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C14 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C15 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C16 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C17 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C18 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255

FCC TEST REPORT Report No.: FR843032-15AN Page No. : A1 of A3 FCC ID : XZB-MAXR3210 Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR843032-15AN Page No. : A2 of A3 FCC ID : XZB-MAXR3210 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR843032-15AN Page No. : A3 of A3 FCC ID : XZB-MAXR3210 1.3. Calculated Result and Limit Antenna Type : PCB Antenna (TFF-A015MPAX-361) For Single Chain: Max Conducted Power for IEEE 802.11n-2.4G (20MHz) : 20.08dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.00 1.9953 20.0800 101.8591 0.040453 1 Complies For Two Chain: Max Conducted Power for IEEE 802.11n-2.4G Ant. A & B (40MHz) : 22.88dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.00 1.9953 22.8800 194.0886 0.077082 1 Complies

FCC TEST REPORT Report No.: FR843032-15AN Page No. : A1 of A3 FCIC ID : XZB-MAXR3210 Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR843032-15AN Page No. : A2 of A3 FCIC ID : XZB-MAXR3210 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR843032-15AN Page No. : A3 of A3 FCIC ID : XZB-MAXR3210 1.3. Calculated Result and Limit Antenna Type : Monopole Antenna (TWX-145XRSXX361) For Single Chain: Max Conducted Power for IEEE 802.11n-2.4G (20MHz) : 18.62dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 18.6200 72.7780 0.022959 1 Complies For Two Chain: Max Conducted Power for IEEE 802.11n-2.4G Ant. A & B (40MHz) : 21.46dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 21.4600 139.9587 0.044152 1 Complies

FCC TEST REPORT Report No.: FR843032-15AB Page No. : A1 of A3 FCC ID : XZB-MAXR3210 Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR843032-15AB Page No. : A2 of A3 FCC ID : XZB-MAXR3210 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR843032-15AB Page No. : A3 of A3 FCC ID : XZB-MAXR3210 1.3. Calculated Result and Limit Antenna Type : PCB Antenna (TFF-A015MPAX-361) Max Conducted Power for IEEE 802.11b/g (2.4G): 23.61dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.00 1.9953 23.6100 229.6149 0.091191 1 Complies

FCC TEST REPORT Report No.: FR843032-15AB Page No. : A1 of A3 FCIC ID : XZB-MAXR3210 Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR843032-15AB Page No. : A2 of A3 FCIC ID : XZB-MAXR3210 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR843032-15AB Page No. : A3 of A3 FCIC ID : XZB-MAXR3210 1.3. Calculated Result and Limit Antenna Type : Monopole Antenna (TWX-145XRSXX361) Max Conducted Power for IEEE 802.11b/g (2.4G): 20.44dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 20.4400 110.6624 0.034910 1 Complies

FCC TEST REPORT Report No.: FR843032-15AB SPORTON International Inc. Report Format Version: a FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : WIRELESS ACCESS POINT Model No. : MaxR-3210 Filing Type : New Application Applicant : Arada Systems, Inc 4633 Old Ironsides Drive, Suite 415, Santa Clara, California 95054 United States FCC ID : XZB-MAXR3210 Manufacturer : DONG GUAN G-COM COMPUTER CO., LTD 1 st Row Yin Shan Rd., Yin Hwu Industrial Area, Qingxi Town, DongGuan City, Guang Dong, China Received Date : Apr. 22, 2008 Final Test Date : Jul. 17, 2009 Statement Test result included is only for the 802.11b/g and PCB Antenna (TFF-A015MPAX-361) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No.: FR843032-15AB SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC ID : XZB-MAXR3210 Table of Contents 1 SUMMARY OF THE TEST RESULT ...................................................................................................................... 2 2 GENERAL INFORMATION..................................................................................................................................... 3 2.1 Product Details ........................................................................................................................................................................................ 3 2.2 Table for Filed Antenna ........................................................................................................................................................................... 3 2.3 Table for Carrier Frequencies ................................................................................................................................................................. 4 2.4 Table for Test Modes .............................................................................................................................................................................. 4 2.5 Table for Testing Locations ..................................................................................................................................................................... 5 2.6 Table for Supporting Units....................................................................................................................................................................... 5 2.7 Table for Parameters of Test Software Setting ....................................................................................................................................... 5 2.8 EUT Operation during Test ..................................................................................................................................................................... 6 2.9 Test Configuration ................................................................................................................................................................................... 6 3 TEST RESULT ........................................................................................................................................................ 8 3.1 AC Power Line Conducted Emissions Measurement.............................................................................................................................. 8 3.2 Maximum Conducted Output Power Measurement .............................................................................................................................. 16 3.3 Power Spectral Density Measurement .................................................................................................................................................. 18 3.4 6dB Spectrum Bandwidth Measurement............................................................................................................................................... 24 3.5 Radiated Emissions Measurement........................................................................................................................................................ 30 3.6 Band Edge Emissions Measurement .................................................................................................................................................... 50 3.7 Antenna Requirements.......................................................................................................................................................................... 55 4 LIST OF MEASURING EQUIPMENTS ................................................................................................................. 56 5 TEST LOCATION.................................................................................................................................................. 58 6 TAF CERTIFICATE OF ACCREDITATION .......................................................................................................... 59 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. A1 ~ A3 APPENDIX B. TEST PHOTOS ...................................................................................................................... B1 ~ B10 APPENDIX C. PHOTOGRAPHS OF EUT ..................................................................................................... C1 ~ C24 FCC TEST REPORT Report No.: FR843032-15AB SPOR…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No.: FR843032-15AB SPORTON International Inc. Report Format Version: a FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : WIRELESS ACCESS POINT Model No. : MaxR-3210 Filing Type : New Application Applicant : Arada Systems, Inc 4633 Old Ironsides Drive, Suite 415, Santa Clara, California 95054 United States FCC ID : XZB-MAXR3210 Manufacturer : DONG GUAN G-COM COMPUTER CO., LTD 1 st Row Yin Shan Rd., Yin Hwu Industrial Area, Qingxi Town, DongGuan City, Guang Dong, China Received Date : May 01, 2008 Final Test Date : Jul. 17, 2009 Statement Test result included is only for the 802.11b/g and Monopole Antenna (TWX-145XRSXX361) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No.: FR843032-15AB SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Dec. 16, 2009 FAX : 886-2-2696-2255 FCC ID : XZB-MAXR3210 Table of Contents 1 SUMMARY OF THE TEST RESULT ...................................................................................................................... 2 2 GENERAL INFORMATION..................................................................................................................................... 3 2.1 Product Details ........................................................................................................................................................................................ 3 2.2 Table for Filed Antenna ........................................................................................................................................................................... 3 2.3 Table for Carrier Frequencies ................................................................................................................................................................. 4 2.4 Table for Test Modes .............................................................................................................................................................................. 4 2.5 Table for Testing Locations ..................................................................................................................................................................... 4 2.6 Table for Supporting Units....................................................................................................................................................................... 5 2.7 Table for Parameters of Test Software Setting ....................................................................................................................................... 5 2.8 EUT Operation during Test ..................................................................................................................................................................... 6 2.9 Test Configuration ................................................................................................................................................................................... 6 3 TEST RESULT ........................................................................................................................................................ 8 3.1 AC Power Line Conducted Emissions Measurement.............................................................................................................................. 8 3.2 Maximum Conducted Output Power Measurement .............................................................................................................................. 16 3.3 Power Spectral Density Measurement .................................................................................................................................................. 18 3.4 6dB Spectrum Bandwidth Measurement.....................................…

Text truncated - open the document above for the full version.
