XZB-MAXR900900MHz WLAN mini-PCI card

Arrada Systems, Inc. 4633 Old Ironsides Drive, Suite 415, Santa Clara, CA95054, USA MaxR-900 miniPCI User’s Manual 1. Product Overview The MaxR-900 series PCI adapter cards contain a Atheros AR5414 chip for IEEE 802.11a/b/g Wireless LAN applications. It is based on the latest industry standard Wi-Fi Certified IEEE 802.11 b/g specifications. The mini PCI adapter cards support key security features like Wi-Fi Protected Access (WPA), WPA2, WEP and 802.1x. Typical application of the card is integration into other wireless products such as the notebook computers or any other devices containing Mini PCI socket. 2. Packaging Contents The mini PCI card package contains the following item(s): 1 x Wireless Mini PCI Adapter 3. Installation guide • Shut down the power of the platform. • Align the PCI adapter with the Mini PCI socket on the platform. • Adjust and push down the PCI adapter gently until the metal locking levers on the Mini PCI socket is latched. (Please take note that the PCI adapter can only fit in one direction due to the keyed notch. Wrong orientation will cause improper installation and may damage the Mini PCI socket ! ). • Connect the antenna(s) on the mini PCI module. • Reboot on the platform. • Install drivers if necessary. 4. Frequency : 902 ~ 928 MHz 5. Electro-Magnetic Interference: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the distance between the equipment and the receiver. Arrada Systems, Inc. 4633 Old Ironsides Drive, Suite 415, Santa Clara, CA95054, USA • Connect the equipment to outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 6. Radio Frequency Radiation. To comply with FCC RF exposure compliance requirements, a separation distance of at least 25 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user manual of the end product. The user manual which is provided by OEM integrators for end users must include the following information in a prominent location. “To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 25 cm from all persons and must not be co- located or operating in conjunction with any other antenna or transmitter 7. Label for end product must include “ Contains FCC ID: XZB-MAXR900” or “ A RF transmitter inside, FCC ID: XZB-MAXR900”.

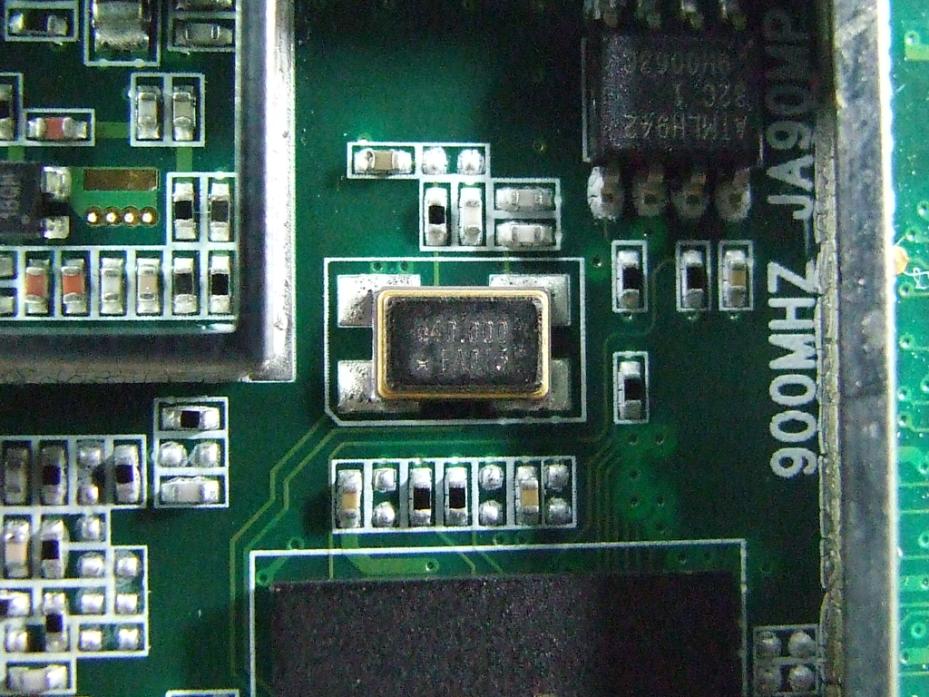

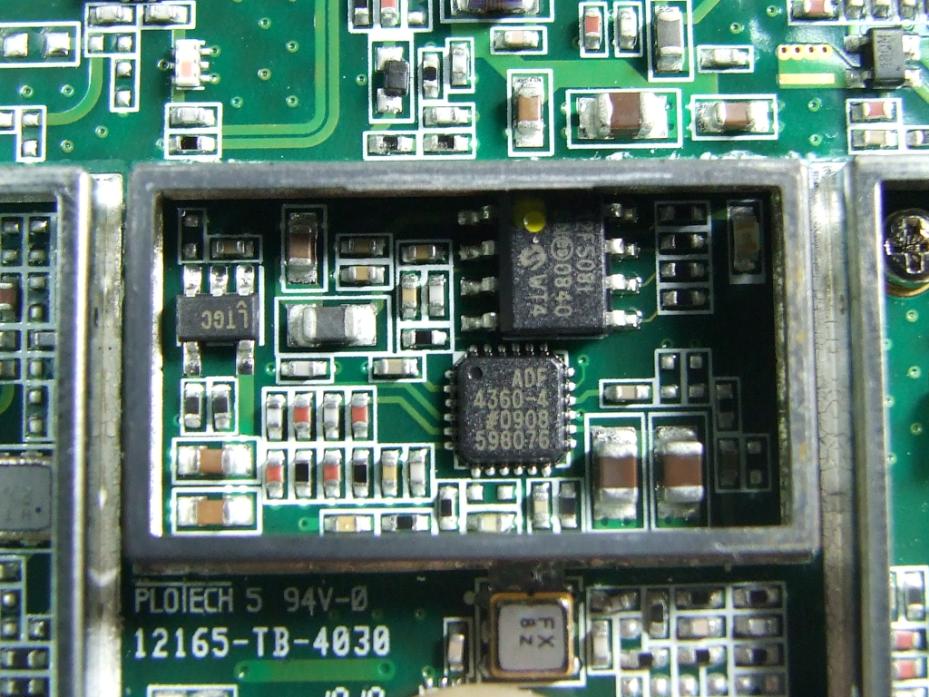

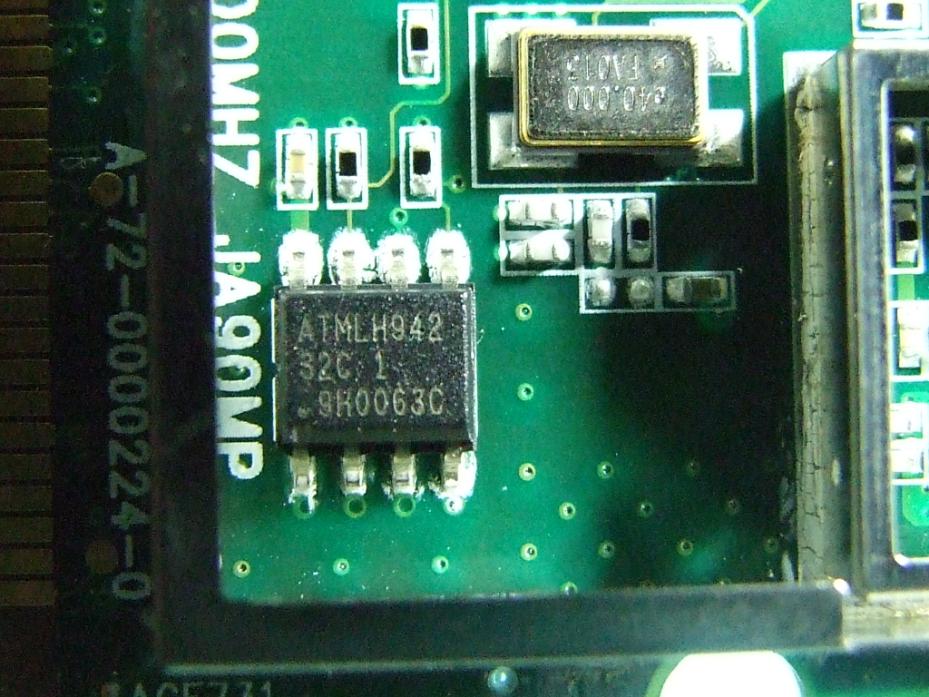

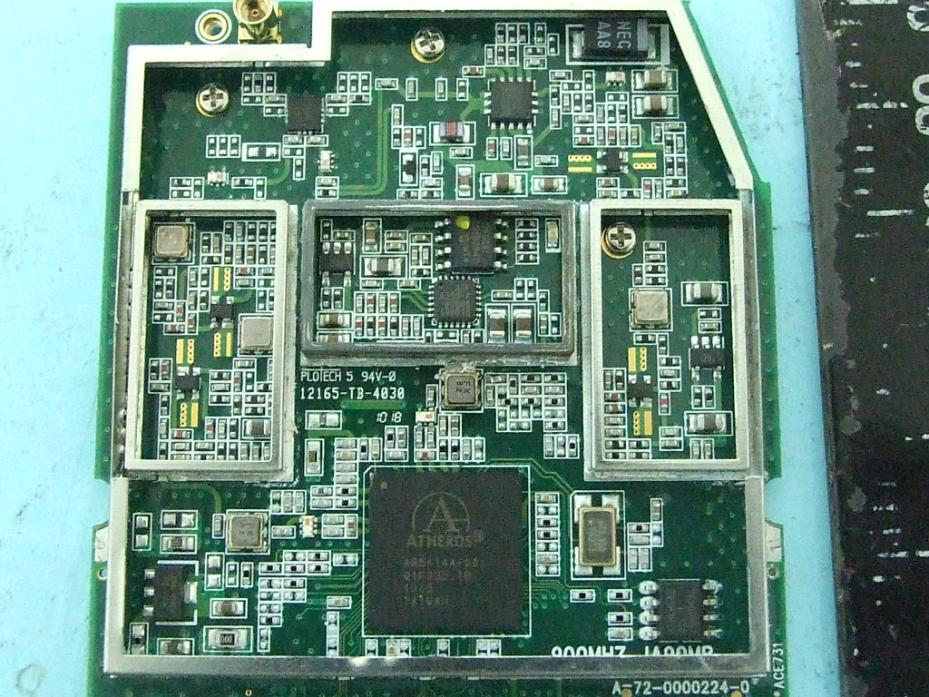

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C8 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C9 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C10 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C11 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C12 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255

FCC label sample & location:

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C8 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C9 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C10 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C11 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C12 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2011 FAX : 886-2-2696-2255

Page No. : A1 of A3 FCC ID : XZB-MAXR900 FCC TEST REPORT Report No. : FR0D2437 Appendix A. Maximum Permissible Exposure Page No. : A2 of A3 FCC ID : XZB-MAXR900 FCC TEST REPORT Report No. : FR0D2437 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Page No. : A3 of A3 FCC ID : XZB-MAXR900 FCC TEST REPORT Report No. : FR0D2437 1.3. Calculated Result and Limit Antenna Type : Patch antenna 5M : 23.64 dBm Test Mode Min. User Distance (cm) Gain (dBi)Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm 2 ) 902 ~ 928MHz 25 1215.8489323.64 231.2065 0.4668 Power Density (S) (mW/ cm²) = 922/1500 =0.615 10M : 23.80dBm Test Mode Min. User Distance (cm) Gain (dBi)Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm 2 ) 902 ~ 928MHz 25 1215.8489323.80 239.8833 0.4843 Power Density (S) (mW/ cm²) = 912/1500 =0.608 20M : 23.59dBm Test Mode Min. User Distance (cm) Gain (dBi)Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm 2 ) 902 ~ 928MHz 25 1215.8489323.59 228.5599 0.4615 Power Density (S) (mW/ cm²) = 917/1500 =0.611

SPORTON International Inc. Report Format Version: b F FCC TEST REPORT Report No. : FR0D2437 FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : 900MHz WLAN mini-PCI card Model No. : MaxR-900 Brand Name : Arada Filing Type : New Application Applicant : Arada Systems, Inc. 4633 Old Ironsides Drive, Suite 415 Santa Clara, CA 95054 FCC ID : XZB-MAXR900 Manufacturer : Arada Systems, Inc. 4633 Old Ironsides Drive, Suite 415 Santa Clara, CA 95054 Received Date : Dec. 31, 2010 Final Test Date : Jan. 06, 2011 Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Jan. 17, 2011 FAX : 886-2-2696-2255 FCC ID : XZB-MAXR900 F FCC TEST REPORT Report No. : FR0D2437 Table of Contents 1. SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2. GENERAL INFORMATION ...................................................................................................................................... 3 2.1. Product Details ................................................................................................................................................................................... 3 2.2. Table for Filed Antenna ....................................................................................................................................................................... 3 2.3. Table for Test Modes .......................................................................................................................................................................... 3 2.4. Table for Testing Locations ................................................................................................................................................................. 4 2.5. Table for Supporting Units .................................................................................................................................................................. 4 2.6. Table for Parameters of Test Software Setting .................................................................................................................................... 4 2.7. EUT Operation during Test ................................................................................................................................................................. 4 2.8. Test Configurations ............................................................................................................................................................................. 5 3. TEST RESULT ......................................................................................................................................................... 7 3.1. AC Power Line Conducted Emissions Measurement .......................................................................................................................... 7 3.2. Maximum Peak Output Power Measurement .................................................................................................................................... 11 3.3. Power Spectral Density Measurement .............................................................................................................................................. 13 3.4. 6dB Spectrum Bandwidth Measurement ........................................................................................................................................... 25 3.5. Radiated Emissions Measurement .................................................................................................................................................... 37 3.6. Band Edge Emissions Measurement ................................................................................................................................................ 79 3.7. Antenna Requirements ..................................................................................................................................................................... 92 4. LIST OF MEASURING EQUIPMENTS .................................................................................................................. 93 5. TEST LOCATION ................................................................................................................................................... 95 6. TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 96 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................. A1 ~ A3 APPENDIX B. TEST PHOTOS ........................................................................................................................ B1 ~ B7 APPENDIX C. PHOTOGRAPHS OF EUT ..................................................................................................... C1 ~ C12 SPORTON International Inc. Page No. : ii of ii TEL : 886-2-2696-2468 Issued Date : Jan. 17, 2011 FAX : 886-2-2696-2255 FCC ID : XZB-MAXR900 F FCC TEST REPORT Report No. : FR0D2437 History of This Test Report Original Issue Date: Jan. 17, 2011 Report No.: FR0D2437 Attachment No. Issue Date Description FHSS (ASK) 1 WLAN 47 CFR FCC Part 15 Subpart C Further, this requirement does not apply to intentio…

Text truncated - open the document above for the full version.

Page No. : B1 of B7 FCC ID : XZB-MAXR900 F FCC TEST REPORT Report No. : FR0D2437 Appendix B. Test Photos Page No. : B2 of B7 FCC ID : XZB-MAXR900 F FCC TEST REPORT Report No. : FR0D2437 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Page No. : B3 of B7 FCC ID : XZB-MAXR900 F FCC TEST REPORT Report No. : FR0D2437 SIDE VIEW Page No. : B4 of B7 FCC ID : XZB-MAXR900 F FCC TEST REPORT Report No. : FR0D2437 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW Page No. : B5 of B7 FCC ID : XZB-MAXR900 F FCC TEST REPORT Report No. : FR0D2437 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW Page No. : B6 of B7 FCC ID : XZB-MAXR900 F FCC TEST REPORT Report No. : FR0D2437 For radiated emissions above 1GHz FRONT VIEW REAR VIEW Page No. : B7 of B7 FCC ID : XZB-MAXR900 F FCC TEST REPORT Report No. : FR0D2437 EUT take a close-up FRONT VIEW REAR VIEW
