YAKBM14Field Disturbance Sensor

Resmed Sensor Technologies Ltd

Click to zoom

Application Details

Equipment Class: FDS - Part 15 Field Disturbance Sensor
Date of Grant: Feb 16, 2014
Application Purpose: Original Equipment
Date of Application: Feb 13, 2014
Equipment Note: Field Disturbance Sensor
Frequency Range: 10525.00000000 - 10525.00000000
Company: Resmed Sensor Technologies Ltd
Country: Ireland

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

ResMed Sensor Technologies Ltd NexusUCD Block 9 & 10 Belfield Office Park Clonskeagh Dublin 4 Ireland Tel: +353 1 2096400 Fax: +353 1 2096499 Only to be released under the cover of a mutual NDA Only to be released under the cover of a mutual NDA ResMed Sensor Technologies Ltd, NexusUCD, Block 9 & 10, Belfield Office Park, Clonskeagh, Dublin 4, Ireland. Tel: + 353 1 2096400 Fax: + 353 1 2096499 Registered in Ireland no:372477 VAT Reg: 6392477W Directors: C. Hanley D. Pendarvis(USA) BM14 Advice to OEMs Content for User Leaflets ResMed Sensor Technologies Ltd NexusUCD Block 9 & 10 Belfield Office Park Clonskeagh Dublin 4 Ireland Tel: +353 1 2096400 Fax: +353 1 2096499 Only to be released under the cover of a mutual NDA Only to be released under the cover of a mutual NDA ResMed Sensor Technologies Ltd, NexusUCD, Block 9 & 10, Belfield Office Park, Clonskeagh, Dublin 4, Ireland. Tel: + 353 1 2096400 Fax: + 353 1 2096499 Registered in Ireland no:372477 VAT Reg: 6392477W Directors: C. Hanley D. Pendarvis(USA) Introduction The following items are provided for OEMs to include in the user leaflets of products that incorporate the ResMed Sensor Technologies BM14 Sensor. The items are categorised as Mandatory and Information. • Mandatory items are required by regulatory authorities to be included in device documentation. • The Information items are for guidance and can be altered in tone and language to suit the house style. It is recommended that the draft device labels and user information leaflet are reviewed by ResMed Sensor Technologies to ensure their accuracy and regulatory compliance. Mandatory Device Label: (For US Market) The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: YAKBM14” or “Contains FCC ID:YAKBM14” (For Canadian Market) The final end product must be labeled in a visible area with the following: “ Contains transmitter module IC ID: 11415A-BM14” or “Contains IC ID: 11415A-BM14”. User Leaflet: (For US Market) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ResMed Sensor Technologies Ltd NexusUCD Block 9 & 10 Belfield Office Park Clonskeagh Dublin 4 Ireland Tel: +353 1 2096400 Fax: +353 1 2096499 Only to be released under the cover of a mutual NDA Only to be released under the cover of a mutual NDA ResMed Sensor Technologies Ltd, NexusUCD, Block 9 & 10, Belfield Office Park, Clonskeagh, Dublin 4, Ireland. Tel: + 353 1 2096400 Fax: + 353 1 2096499 Registered in Ireland no:372477 VAT Reg: 6392477W Directors: C. Hanley D. Pendarvis(USA) - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by “OEM name” could void the user's authority to operate this equipment. Note for OEM: This transmitter module is authorized to be used in other devices only by OEM, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user manual of the end product. (For Canadian Market) This equipment has been tested and found to comply with the limits for a Category 1 device, pursuant to Part RSS- 210 of the IC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Industry Canada Statement: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. ResMed Sensor Technologies Ltd NexusUCD Block 9 & 10 Belfield Office Park Clonskeagh Dublin …

Text truncated - open the document above for the full version.

Cover Letter(s)

ResMed Sensor Technologies Ltd NexusUCD Block 9 & 10 Belfield Office Park Clonskeagh Dublin 4 Ireland Tel: +353 1 2096400 Fax: +353 1 2096499 ResMed Sensor Technologies Ltd, NexusUCD, Block 9 & 10, Belfield Office Park, Clonskeagh, Dublin 4, Ireland. Tel: + 353 1 2096400 Fax: + 353 1 2096499 Registered in Ireland no:372477 VAT Reg: 6392477W Directors: C. Hanley D. Pendarvis(USA) Request for Confidentiality Date: 21 st February,2014 Subject: Confidentiality Request for: YAKBM14 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters right be harmful to the applicant and provide unjustified benefits to its competitors. ResMed Sensor Technologies Ltd has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 2 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. NOTE for Industry Canada Applications: 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. ResMed Sensor Technologies Ltd NexusUCD Block 9 & 10 Belfield Office Park Clonskeagh Dublin 4 Ireland Tel: +353 1 2096400 Fax: +353 1 2096499 ResMed Sensor Technologies Ltd, NexusUCD, Block 9 & 10, Belfield Office Park, Clonskeagh, Dublin 4, Ireland. Tel: + 353 1 2096400 Fax: + 353 1 2096499 Registered in Ireland no:372477 VAT Reg: 6392477W Directors: C. Hanley D. Pendarvis(USA) The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: _______ ___________________ Michael Wren (Signature/Title) (Print name) Title: Product Development Director On behalf of: ResMed Sensor Technologies (Company Name) Telephone: 00 353 1 609 6400

External Photos

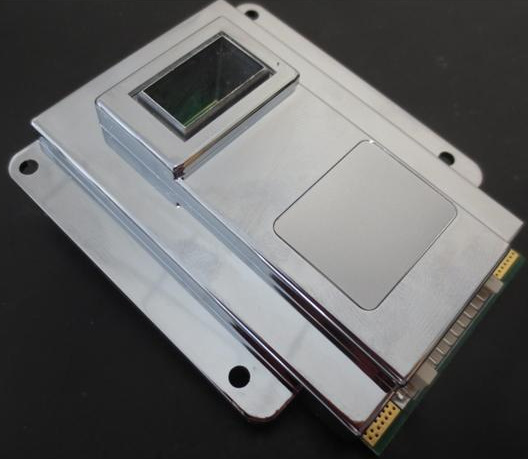

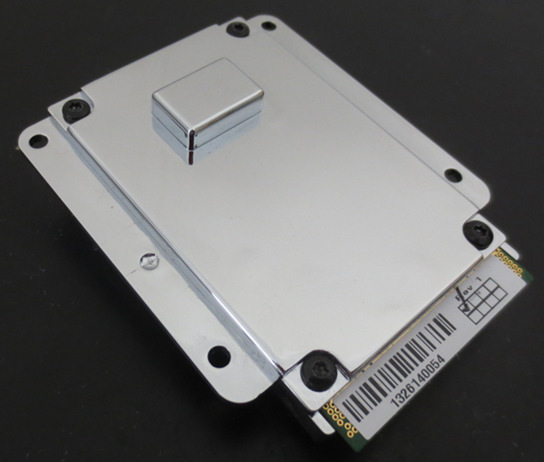

ResMed Sensor Technologies Ltd, NexusUCD, Block 9 & 10, Belfield Office Park Registered in Ireland no:372477 VAT Reg: 6392477W External Photos: Fig NexusUCD, Block 9 & 10, Belfield Office Park, Clonskeagh, Dublin 4, Ireland. Tel: + 353 1 2096400 Fax: + 353 1 2096499 Registered in Ireland no:372477 VAT Reg: 6392477W Directors: C. Hanley D. Pendarvis(USA Fig 1 -1 External view of front of Sensor ResMed Sensor Technologies Ltd NexusUCD Block 9 & 10 Belfield Office Park Clonskeagh Dublin 4 Ireland Tel: +353 1 2096400 Fax: +353 1 2096499 : + 353 1 2096400 Fax: + 353 1 2096499 Directors: C. Hanley D. Pendarvis(USA) ResMed Sensor Technologies Ltd NexusUCD Block 9 & 10 Belfield Office Park Clonskeagh Dublin 4 Ireland Tel: +353 1 2096400 Fax: +353 1 2096499 ResMed Sensor Technologies Ltd, NexusUCD, Block 9 & 10, Belfield Office Park, Clonskeagh, Dublin 4, Ireland. Tel: + 353 1 2096400 Fax: + 353 1 2096499 Registered in Ireland no:372477 VAT Reg: 6392477W Directors: C. Hanley D. Pendarvis(USA) Fig 1 -2 External view of back of Sensor

ID Label/Location Info

Internal Photos

Test Report

Report Ref: 13E4717-1c Page 1 of 25 Project Number: 13E4717-1c Prepared for: Resmed Sensor Technologies By Compliance Engineering Ireland Ltd Clonross Lane Derrockstown Dunshaughlin Co. Meath FCC Site Registration: 92592 Industry Canada Assigned Site Code: 8517A-2 FCC ID: YAKBM14 IC: 11415A-BM14 Date 20 September 2013 FCC EQUIPMENT AUTHORISATION Test Report EUT Description 10.525 GHz field disturbance sensor . Authorised : John McAuley Compliance Engineering Ireland Ltd Clonross Lane, Derrockstown, Dunshaughlin, Co. Meath Tel: +353 1 8256722 Fax: +353 1 8256733 Report Ref: 13E4717-1c Page 2 of 25 TEST SUMMARY The equipment complies with the requirements according to the following standards. FCC Part Section(s) IC Section TEST PARAMETERS Test Result 15.245 RSS-210 A.7 RADIATED EMISSIONS PASS 15.245 RSS-210 A.7 RADIATED SPURIOUS EMISSIONS PASS 15.207 RSS GEN 7.2.4 CONDUCTED EMISSIONS ON THE MAINS PASS THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF COMPLIANCE ENGINEERING IRELAND LTD Report Ref: 13E4717-1c Page 3 of 25 Exhibit A – Technical Report Table of Contents 1.0 EUT DESCRIPTION..............................................................................................................................4 1.1 EUT OPERATION..................................................................................................................................5 1.2 MODIFICATIONS...................................................................................................................................5 1.3 DATE OF TEST......................................................................................................................................5 1.4.1 MEASUREMENT UNCERTAINTY.......................................................................................................6 2.0 EMISSIONS MEASUREMENTS............................................................................................................7 2.1 CONDUCTED EMISSIONS MEASUREMENTS...................................................................................7 2.2 RADIATED EMISSIONS MEASUREMENTS.......................................................................................7 2.3 TEST CRITERIA.....................................................................................................................................9 3.0 MAXIMUM MODULATION PERCENTAGE (M%)..............................................................................10 4.0 FIELD STRENGTH OF SPURIOUS RADIATED EMISSIONS..........................................................13 5.0 LIST OF TEST EQUIPMENT...............................................................................................................18 Report Ref: 13E4717-1c Page 4 of 25 1.0 EUT Description The EUT was a module operating at 10.525GHz used for motion detection. Model: BM14 Type: 10.525GHz Field Disturbance Sensor FCC ID: YAKBM14 Company: Resmed Sensor Technologies Contact Paul Philips Address: Blocks 9&10,NexusUCD Building,Belfield Office Park,Clonskeagh,Dublin 4. Ireland. Phone: 0035312096400 e-mail: [email protected] Test Standards: 47 CFR, Part 15.245 ; 47 CFR, Part 15.207(a) Type of radio: Stand alone Transmitter Transmitter Type: Pulse Modulation Operating Frequency Range(s): 10.525 GHz Number of Channels: 1 Antenna: Integral Transmitter power configuration: 5v dc Oper. Temp Range: 5° C to +35° C Classification: FDS Test Methodology: Measurements performed according to the procedures in ANSI C63.4-2009 Report Ref: 13E4717-1c Page 5 of 25 1.1 EUT Operation Operating Conditions during Test: The equipment under test was operated during the measurement under the following conditions: The EUT was powered from a 5v dc adaptor (Stontronics P/N T4108ST Model 3A- 055WE05 ) except for spurious emissions test in the range 30MHz to 1GHz, where it was powered from a 9v PP3 battery. The EUT was operated in normal operation mode for all tests. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: +15 to +35 ° C Humidity: 20-75 % 1.2 Modifications No modifications were required in order to pass the test specifications. 1.3 Date of Test The tests were carried out on one sample of the EUT during on the 27 th and 28 th August 2013. 1.4 Electromagnetic Emissions Testing The guidelines of CISPR 16-4 were used for all uncertainty calculations, estimates and expressions thereof for EMC testing. A copy of Compliance Engineering Ireland Ltd.’s policy for EMC Measurement Uncertainty is available on request. RF Requirements: Spurious emissions in accordance with FCC CFR 15.207 and 15.209. Tests were carried out to the requirements of CISPR 16-4 and ANSI C63.4-2009. Report Ref: 13E4717-1c Page 6 of 25 1.4.1 Measurement Uncertainty The measurement uncertainty (with a 95% confidence level) for the conducted emissions test was ±3.5 dB. The measurement uncertainty (with a 95% confidence level) for the radiated emissions test was ±5.3 dB (from 30 to 100 MHz), ±4.7 dB (from 100 to 300 MHz), ±3.9 dB (from 300 to 1000 MHz) and ±3.8 dB (from 1 GHz to 60 GHz). Report Ref: 13E4717-1c Page 7 of 25 2.0 Emissions Measurements 2.1 Conducted Emissions Measurements The EUT was powered from a mains to 5v dc adapter which was connected to the mains through a LISN and measurements were carried out using a Receiver over the frequency range 150KHz to 30MHz. 2.2 Radiated Emissions Measurements Radiated Power measurements were made at the Compliance Engineering Ireland Ltd anechoic chamber located in Dunshaughlin, Co. Meath, Ireland to determine the radio noise radiated from the EUT. A "Description of Measurement Facilities" has been submitted to the FCC and approved pursuant to Section 2.948 of CFR 47 of the FCC rules. The EUT was centred on a motorized turntable, which allows 360 degree rotation. A measurement antenna was positioned at a distance of 3 metres as measured from the closest poi…

Text truncated - open the document above for the full version.

Test Setup Photos

Test Set up Fig 1 Test setup Fig 2 Test setup Fig 3 Test setup Fig 4 Test setup Fig 5 Test setup Fig 6 Test setup Fig 7 Test setup
