YCP-MB1263-001STM32MP1 Series (800MHz) evaluation board

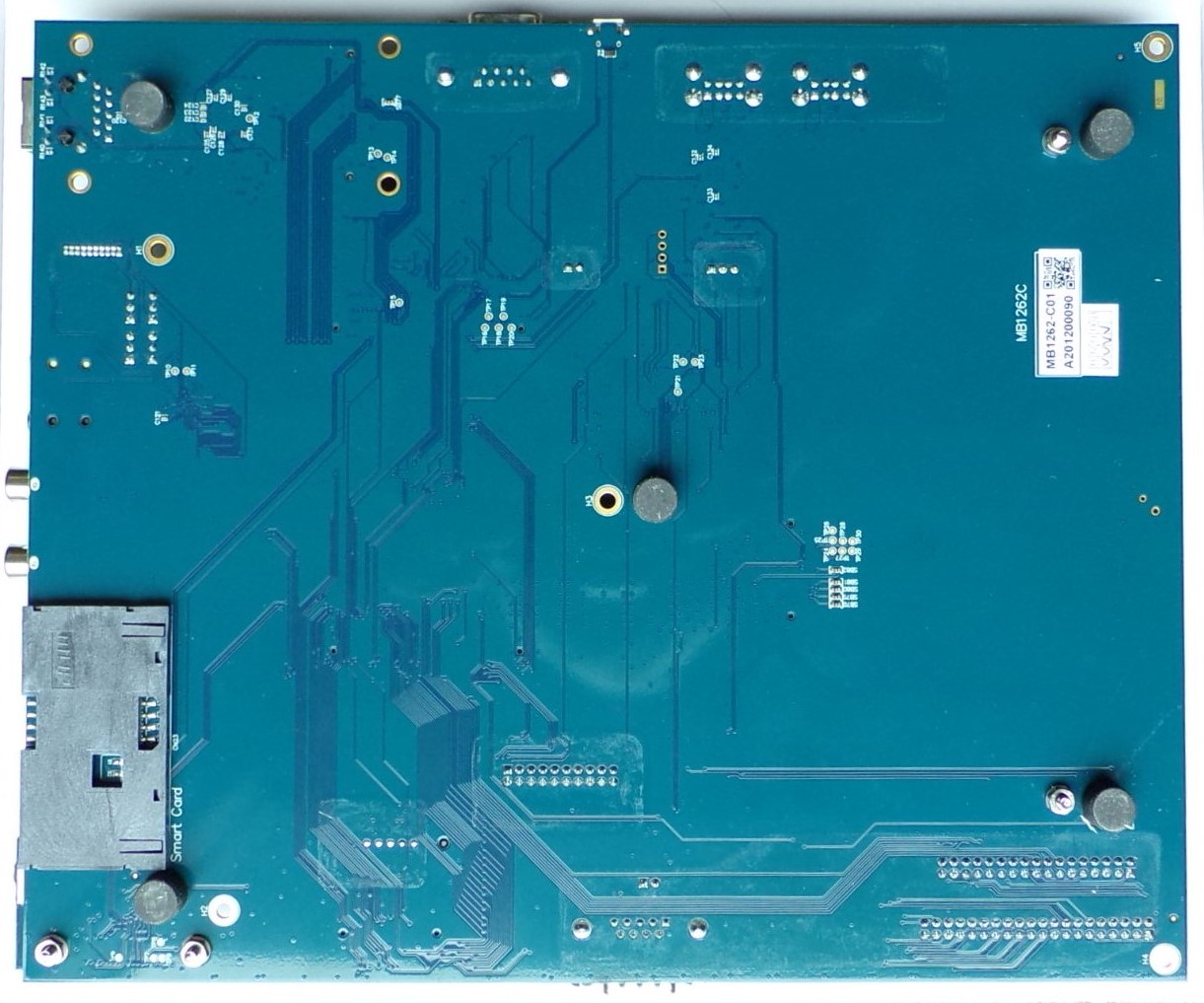

Introduction The STM32MP157F-EV1 Evaluation board is designed as a complete demonstration and development platform for STMicroelectronics Arm ® -based dual Cortex ® ‑A7 32 bits and Cortex ® ‑M4 32 bits MPUs in the STM32MP1 Series. It leverages the capabilities of increased-frequency 800 MHz STM32MP1 Series microprocessors for the user to develop applications, using STM32 MPU OpenSTLinux Distribution software for the main processor, and STM32CubeMP1 software for the co-processor. It includes an ST-LINK embedded debug tool, LEDs, push-buttons, one joystick, 1-Gbps Ethernet, CAN FD, one USB OTG Micro- AB connector, four USB Host Type-A connectors, LCD display with touch panel, camera, stereo headset jack with analog microphone input, four digital microphones, one SPDIF Rx/Tx, smartcard, microSD ™ card, and eMMC, NOR and NAND Flash memories. STM32MP157F-EV1, shown in Figure 1 and Figure 2, is used as the reference design for user application development, although it is not considered as final application. To expand the functionality of the STM32MP157F-EV1 Evaluation board, two GPIO expansion connectors are also available for motor control and Raspberry Pi ® shields. An ST-LINK/V2-1 is integrated on the board, as embedded in-circuit debugger and programmer for the STM32 MPU and the USB Virtual COM port bridge. Figure 1. STM32MP157F-EV1 top view Figure 2. STM32MP157F-EV1 bottom view Pictures are not contractual. Evaluation board with increased-frequency 800 MHz STM32MP157 MPU UM2648 User manual UM2648 - Rev 1 - June 2020 For further information contact your local STMicroelectronics sales office. www.st.com 1Features • STM32MP157 Arm ® -based dual Cortex ® ‑A7 800 MHz 32 bits + Cortex ® ‑M4 32 bits MPU in LFBGA448 package • ST PMIC STPMIC1 • 2 × 4-Gbit DDR3L, 16 bits, 533 MHz • 2 × 512-Mbit Quad-SPI Flash memory • 32-Gbit eMMC v5.0 • 8-Gbit SLC NAND, 8 bits, 8-bit ECC, 4-KB PS • 1-Gbit/s Ethernet (RGMII) compliant with IEEE-802.3ab • USB Host 4-port hub • USB OTG HS • CAN FD • 5.5" TFT 720×1280 pixels with LED backlight, MIPI DSI SM interface, and capacitive touch panel • SAI audio codec • 5-megapixel, 8-bit camera • 4 × ST-MEMS digital microphones • Smartcard • microSD ™ card • 2 user LEDs • 2 user and reset push-buttons, 1 wake-up button • 4-direction joystick with selection button • 5 V / 4 A power supply • Board connectors: – Ethernet RJ45 – 4 × USB Host Type-A – USB OTG Micro-AB – SPDIF RCA input and output – CAN FD – Stereo headset jack including analog microphone input – Audio jack for external speakers – Motor control – External I 2 C – LTDC – Trace, JTAG, RS-232 – GPIO expansion connector (Raspberry Pi ® shields capability) – MEMS-microphone daughterboard expansion connector • On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: Virtual COM port and debug port •STM32CubeMP1 and full mainline open-source Linux ® STM32 MPU OpenSTLinux Distribution (such as STM32MP1Starter) software and examples • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench ® , MDK-ARM, and STM32CubeIDE STM32 Arm Cortex MPUs are based on the Arm ® Cortex ® -A and Cortex ® -M processors. Note:Arm is a registered trademark of Arm Limited (or its subsidiaries) in the US and/or elsewhere. UM2648 Features UM2648 - Rev 1 page 2/61 2Ordering information To order an STM32MP157 Evaluation board, refer to T able 1. Additional information is available from the datasheet and reference manual of the target STM32. Table 1. List of available products Order codeBoard referenceTarget STM32 Differentiating features STM32MP157F-EV1 • MB1262: mother board • MB1263: MPU subsystem daughterboard • MB1230: DSI display board • MB1379: camera board STM32MP157FAA1 Secure Boot and cryptography 2.1Product marking Evaluation tools marked as “ES” or “E” are not yet qualified and therefore not ready to be used as reference design or in production. Any consequences deriving from such usage will not be at ST charge. In no event, ST will be liable for any customer usage of these engineering sample tools as reference designs or in production. “E” or “ES” marking examples of location: • On the targeted STM32 that is soldered on the board (For an illustration of STM32 marking, refer to the STM32 datasheet “Package information” paragraph at the www.st.com website). • Next to the evaluation tool ordering part number that is stuck or silk-screen printed on the board. 2.2Codification The meaning of the codification is explained in T able 2. Table 2. Codification explanation STM32MP1XXY-EVZDescriptionExample: STM32MP157F-EV1 STM32MP1MPU series in STM32 Arm Cortex MPUsSTM32MP1 Series XXMPU product line in the seriesSTM32MP157 Y Options: • F: Secure Boot, cryptography hardware, 800 MHz increased frequency Secure Boot, cryptography hardware, 800 MHz increased frequency EVZ Evaluation board configuration • EV1: with PMIC PMIC The order code is mentioned on a sticker placed on the top or bottom side of the board. UM2648 Ordering information UM2648 - Rev 1 page 3/61 3Development environment 3.1System requirements • Windows ® OS (7, 8 and 10), Linux ® 64-bit, or macOS ® • USB Type-C ™ to Type-A cable • USB Type-A to Micro-B cable • USB Type-A to Micro-AB cable Note: macOS ® is a trademark of Apple Inc. registered in the U.S. and other countries. 3.2Development toolchains • IAR Systems - IAR Embedded Workbench ®(1) • Keil ® - MDK-ARM (1) • STMicroelectronics - STM32CubeIDE • GCC 1. On Windows ® only. 3.3Demonstration software The STM32 MPU OpenSTLinux Distribution and STM32CubeMP1 base demonstration software is preloaded in the microSD ™ for easy demonstration of the device peripherals in standalone mode. The latest versions of the demonstration source code and associated documentation can be downloaded from www .st.com. UM2648 Development environment UM2648 - Rev 1 page 4/61 4Conventions Table 3 provides the conventions used for the ON and OFF settings in the present document. T able 3. …
