UMxxxx - Draft – June 2025 . www.st.com UMxxxx User manual STM32WBA Nucleo-64 board (MB1801 and MB2293) Introduction The NUCLEO-WBA25CE1 STM32 Nucleo-64 board, based on the MB1801 mezzanine board and the MB2293 MCU RF board, is a wireless and ultra‑low‑power board embedding a powerful and ultra‑low‑power radio compliant with the Bluetooth ® LE, IEEE 802.15.4-2015 PHY and MAC, supporting Thread, Matter, and Zigbee ® . A user USB Type-C ® is also provided for easy connection with other devices. The ARDUINO ® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields. Figure 1. NUCLEO-WBA25CE1 global view Picture is not contractual. UMxxxx - Draft page 2/48 UMxxxx Features 1 Features • Ultra‑low‑power wireless STM32WBA25CEU7 microcontroller based on the Arm ® Cortex ® ‑M33 core, featuring 512 Kbytes of flash memory and 96 Kbytes of SRAM in a UFQFPN48 package • MCU RF board (MB2293): – 2.4 GHz RF transceiver supporting Bluetooth ® LE specification v6.0 – Build-in PCB antenna • Three user LEDs • Three user push-buttons and one reset push-button • Board connectors: ◦ User USB Type-C ® ◦ USB Type-C ® for debugging purpose ◦ ARDUINO ® Uno V3 expansion connector ◦ ST morpho headers for full access to all STM32 I/Os • Flexible power-supply options: ST-LINK USB V BUS or external sources • On-board STLINK-V3EC debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port • Comprehensive free software libraries and examples available with the STM32CubeWBA MCU Package • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench ® , MDK-ARM, and STM32CubeIDE Note: Arm and TrustZone are registered trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere. UMxxxx - Draft page 3/48 UMxxxx Ordering information 2 Ordering information To order the NUCLEO-WBA25CE1 board, refer to Table 1. Additional information is available from the datasheet and reference manual of the target microcontroller. Table 1. List of available products Order code Board reference Target STM32 NUCLEO-WBA25CE1 • MB1801 (1) • MB2293 (2) STM32WBA25CEU7 1. Mezzanine board 2. MCU RF board 2.1 Codification The meaning of the codification is explained in Table 2. Table 2. Codification explanation NUCLEO-XXXYYZTU Description Example: NUCLEO-WBA25CE1 XXX MCU series in STM32 32-bit Arm Cortex MCUs STM32WBA series YY MCU product line in the series STM32WBA25 product line Z STM32 package pin count: • C for 48 pins 48 pins T STM32 flash memory size: • E for 512 Kbytes 512 Kbytes U 1 for Cut1.0 First version of NUCLEO-WBA25 UMxxxx - Draft page 4/48 UMxxxx Development environment 3 Development environment 3.1 System requirements • Multi‑OS support: Windows ® 10, Linux ® 64-bit, or macOS ® • USB Type-A or USB Type-C ® to USB Type-C ® cable Note: macOS ® is a trademark of Apple Inc., registered in the U.S. and other countries and regions. Linux ® is a registered trademark of Linus Torvalds. Windows is a trademark of the Microsoft group of companies. 3.2 Development toolchains • IAR Systems ® - IAR Embedded Workbench ®(1) • Keil ® - MDK-ARM (1) • STMicroelectronics - STM32CubeIDE 1. On Windows ® only. 3.3 Demonstration software The demonstration software, included in the STM32Cube MCU Package corresponding to the on-board microcontroller, is preloaded in the STM32 flash memory for easy demonstration of the device peripherals in standalone mode. The latest versions of the demonstration source code and associated documentation can be downloaded from www.st.com. 3.4 CAD resources All board design resources, including schematics, CAD databases, manufacturing files, and the bill of materials, are available from the NUCLEO-WBA25CE1 product page at www.st.com. UMxxxx - Draft page 5/48 UMxxxx Conventions 4 Conventions Table 3 provides the conventions used for the ON and OFF settings in the present document. Table 3. ON/OFF convention Convention Definition Jumper JPx ON Jumper fitted Jumper JPx OFF Jumper not fitted Jumper JPx [1-2] Jumper fitted between pin 1 and pin 2 Solder bridge SBx ON SBx connections closed by 0 Ω resistor Solder bridge SBx OFF SBx connections left open Resistor Rx ON Resistor soldered Resistor Rx OFF Resistor not soldered Capacitor Cx ON Capacitor soldered Capacitor Cx OFF Capacitor not soldered UMxxxx - Draft page 6/48 UMxxxx Safety recommendations 5 Safety recommendations 5.1 Targeted audience This product targets users with at least basic electronics or embedded software development knowledge such as engineers, technicians, or students. This board is not a toy and is not suited for use by children. 5.2 Handling the board This product contains a bare printed circuit board and like all products of this type, the user must be careful about the following points: • The connection pins on the board might be sharp. Be careful when handling the board to avoid hurting yourself • This board contains static‑sensitive devices. To avoid damaging it, handle the board in an ESD‑proof environment. • While powered, do not touch the electric connections on the board with your fingers or anything conductive. The board operates at a voltage level that is not dangerous, but components might be damaged when shorted. • Do not put any liquid on the board and avoid operating the board close to water or at a high humidity level. • Do not operate the board if dirty or dusty. UMxxxx - Draft page 7/48 UMxxxx Quick start 6 Quick start This section describes how to start development quickly using NUCLEO-WBA25CE1. To use the product, you must accept the evaluation product license agreement from the www.st.com/epla webpage. Before the first use, make sure that no damage occurred to the board during shipment: • All socketed components must be firmly secured in their sockets. • Nothing must be loose in the board blister. The Nucleo board is …

Text truncated - open the document above for the full version.

ST Confidential CERTIFICATION DESIGNATING A U.S. AGENT FOR SERVICE OF PROCESS Date: December 01, 2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 FCC ID: YCP-MB229300 To Whom It May Concern: As required by section 2.911(d)(7), we, STMICROELECTRONICS (ROUSSET) SAS, FRN 0019756717 certifies that we acknowledge the designation of a contact located in the United States for purposes of acting as the applicant’s agent for service of process. We, STMICROELECTRONICS SAS, accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. As required by section 2.911(d)(7), we, STMicroelectronics Inc, address 200 Summit Drive | Suite 405 | Burlington, MA 01803 | USA, FRN: 0033628546] certifies that we acknowledge our obligation acting as the applicant’s agent for service of process for the above referenced FCC ID. Thank you for your attention to this matter. Sincerely yours, Signature by applicant Signature by designated agent (if different from applicant) Printed Name: Pascal Scafidi Printed Name: Francesco Doddo Company: STMicroelectronics (Rousset) SAS Address: 190 Avenue Celestin Coq 13106 Rousset France Company: STMicroelectronics Inc Address: 200 Summit Drive Suite 405 Burlington MA 01803 USA FRN: 0019756717 FRN: 0033628546 Job Title:MDRF Group VP Quality & Reliability Job Title: AME AMS Sensors to Cloud Applications | Director Email: [email protected] Email: [email protected] Telephone: +33 4 76 58 50 00 Telephone: +1 781 472 9634 Docusign Envelope ID: ED1E55EF-B927-487F-8005-2327319F79A3

ST Confidential CERTIFICATIONS CONCERNING “COVERED” EQUIPMENT Date: December 01, 2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 FCC ID: YCP-MB229300 To Whom It May Concern: As required by section 2.911(d)(5)(i), STMICROELECTRONICS (ROUSSET) SAS, FRN 0019756717 (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. As required by section 2.911(d)(5)(ii), STMICROELECTRONICS (ROUSSET) SAS, FRN 0019756717 (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Per KDB 986446 D01 v03 section B, 2a, STMICROELECTRONICS (ROUSSET) SAS, FRN 0019756717 (“the applicant”) certifies that the equipment for this application does not contain Kaspersky cybersecurity or anti-virus software. Thank you for your attention to this matter. Sincerely yours, Signature Printed Name: Pascal Scafidi Company: STMICROELECTRONICS (ROUSSET) SAS Job Title: MDRF Group VP Quality & Reliability Email: [email protected] Telephone: +33 4 76 58 50 00 Docusign Envelope ID: ED1E55EF-B927-487F-8005-2327319F79A3

ST Confidential Administrative Contact/Manufacturer Company Name STMICROELECTRONICS (ROUSSET) SAS FRN 0019756717 Address: 190 Avenue Celestin Coq Postcode/Zip Code 13106 City Rousset Country France E-mail Address: [email protected] Date: December 1, 2025 Letter of Authorization To Whom It May Concern. The undersigned STMICROELECTRONICS (ROUSSET) SAS (the “Company”), hereby authorizes: SGS France - SMEE (Mr. Laurent Chapus, 385 Rue René Rambaud, ZA Le Parvis 2, F-38500 Voiron, France) to represent the Company in the carrying-out all matters and processes needed to the FCC Certifications approval equipment authorization for the following products: Trademark ST Manufacturer STMICROELECTRONICS (ROUSSET) SAS Model NUCLEO-WBA25CE1 FCC ID YCP-MB229300 The authorization granted hereunder shall remain effective until (i) it is either expressly revoked on behalf of the Company or (ii) the beneficiary of this authorization significantly changes his business collaboration or other capacity in relation to the Company as existing on the date of this document, including the cessation of business. The express provisions of this letter set forth the entire authorization granted to the beneficiaries appointed above, and this document revokes and supersedes any prior authorizations by the undersigned within the scope of the authorization granted hereunder. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application, is subject to denial of federal benefits, that includes FCC benefits. On behalf of STMICROELECTRONICS (ROUSSET) SAS Signature: Full Name: Pascal Scafidi Title: MDRF Group VP Quality & Reliability Email: [email protected] Phone: +33 4 76 58 50 00 Docusign Envelope ID: ED1E55EF-B927-487F-8005-2327319F79A3

ST Confidential REQUEST FOR CONFIDENTIALITY Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Date: December 1, 2025 FCC ID: YCP-MB229300 To Whom it may concern: We hereby request the exhibits listed below to be held confidential: • Schematics • Block Diagram • Operational Description These exhibits contain trade secrets and proprietary information not customarily released to the public. The public disclosure of the material in these exhibits might provide unjustified benefits to our competitors and be harmful to our operations. Product name: NUCLEO-WBA25CE1 Model name: NUCLEO-WBA25CE1 Brand name: ST Sincerely yours, On behalf of: STMICROELECTRONICS (ROUSSET) SAS 190 Avenue Celestin Coq 13106 ROUSSET – France Signature Full Name: Pascal Scafidi Title: MDRF Group VP Quality & Reliability Email: [email protected] Phone: +33 4 76 58 50 00 Docusign Envelope ID: ED1E55EF-B927-487F-8005-2327319F79A3

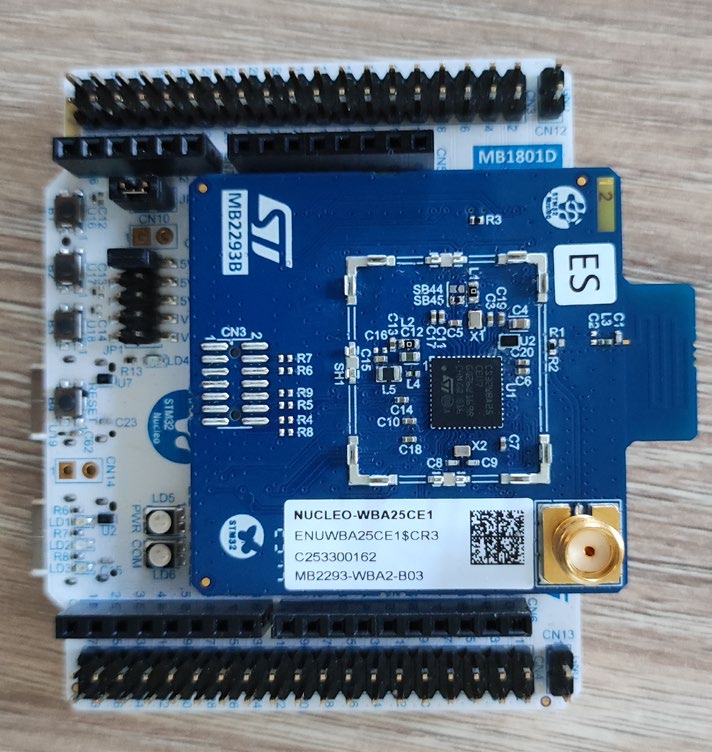

Page 1/1 EXTERNAL PHOTOS OF TESTED EUT Applicant: STMicroelectronics (ROUSSET) SAS Device PMN: NUCLEO-WBA25CE1 Model: NUCLEO-WBA25CE1 Note : SMA connector only mounted for testing purpose

Page 1/1 PRODUCT LABELING Applicant: STMicroelectronics (Rousset) SAS Device PMN: NUCLEO-WBA25CE1 Model: NUCLEO-WBA25CE1 Marking on packaging

Page 1/1 INTERNAL PHOTOS OF TESTED EUT Applicant: STMicroelectronics (ROUSSET) SAS Device model: NUCLEO-WBA25CE1 Model: NUCLEO-WBA25CE1 Note : SMA connector only mounted for testing purpose BLE antenna (PCB)

RF Exposure Considerations for FCC ID: YCP-MB229300 The calculation of the MPE is as following: Prediction of MPE limit at a prediction distance: S= ² . . 4 . R G P  = ² . . 4 . . . R P R I E  S: Power density (mW/cm²) P: Peak output power at antenna terminal (mW) G: Numerical Antenna gain R: Distance of radiation to antenna (cm) MPE calculation (1): Power value is taken from EIRP (Max rated conducted power + antenna gain) (2): No simultaneous RF transmission Conclusion: Therefore, the device complies with FCC’s RF radiation exposure limits for general population for a mobile device. Certified By Laurent CHAPUS (Agent for this device) SGS France - SMEE 385, Rue René Rambaud ZA Le Parvis 2 38500 Voiron - France [email protected] Applicant for this device: STMicroelectronics (Rousset) SAS 190 Avenue Celestin Coq 13106 ROUSSET – France FRN: 0019756717 Frequency (MHz) Maximum EIRP including tune- up tolerance (mW) (1) R (cm) Power Density S (mW/cm²) MPE limit (mW/cm²) % of limit Limit (%) Verdict 2402-2480 4.95 20 0.00098 1 0.10 100% Below MPE limit for uncontrolled exposure Simultaneous transmissions SUM = N/A (2) 100%
