UM3343 - Draft - May 2024 For further information contact your local STMicroelectronics sales office. www.st.com ST Restricted UM3343 User manual NUCLEO-WB05KZ Nucleo-64 board (MB2032 + MB1801) Introduction NUCLEO-WB05KZ is a Bluetooth ® Low Energy wireless and ultra-low-power board embedding a powerful and ultra‑low‑power radio compliant with the Bluetooth ® Low Energy SIG specification v5.4. The ARDUINO ® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields. Figure 1. NUCLEO-WB05KZ global view Picture is not contractual. UM3343 – Draft – May 2024 page 2 UM3343 NUCLEO-WB05KZ user manual 1 Features • Ultra-low-power wireless STM32WB05KZV6TR microcontroller based on the Arm ® Cortex ® ‑M0+ core, featuring 192 Kbytes of flash memory and 24 Kbytes of SRAM in a QFN32 package with internal SMPS in option. • 2.4 GHz RF transceiver supporting Bluetooth® specification v5.4 • Built-in PCB antenna • Three user LEDs • Three user and one reset push buttons • Board connectors: – USB type C® – ARDUINO ® Uno V3 expansion connector – ST morpho headers for full access to all STM32 I/Os • Flexible power-supply options: ST-LINK USB V BUS or external sources • On-board STLINK-V3EC debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port • Comprehensive free software libraries and examples available with the STM32CubeWB MCU Package • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench ® , MDK-ARM, and STM32CubeIDE Note: Arm and TrustZone are registered trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere. UM3343 – Draft – May 2024 page 3 UM3343 NUCLEO-WB05KZ user manual 2 Ordering information To order the NUCLEO-WB05KZ board, refer to Table 1. Additional information is available from the datasheet and reference manual of the target microcontroller. Table 1. List of available products Order code Board reference Target STM32 NUCLEO-WB05KZ • MB1801 (1) • MB2032 (2) STM32WB05KZV6TR 1. Mezzanine board 2. MCU RF board 2.1 Codification The meaning of the codification is explained in Table 2. Table 2. Codification explanation NUCLEO-XXYYRZ Description Example: NUCLEO-WB05KZ XX MCU series in STM32 32-bit Arm Cortex MCUs STM32WB0 series YY MCU product line in the series STM32WB05 product line R STM32 package pin count: • K for 32 pins 32 pins Z STM32 flash memory size: • Z for 192 Kbytes 192 Kbytes UM3343 – Draft – May 2024 page 4 UM3343 NUCLEO-WB05KZ user manual 3 Development environment 3.1 System requirements • Multi‑OS support: Windows ® 10, Linux ® 64-bit, or macOS ® • USB Type-A or USB Type-C ® to USB Type-C ® cable Note: macOS ® is a trademark of Apple Inc., registered in the U.S. and other countries and regions. Linux ® is a registered trademark of Linus Torvalds. Windows is a trademark of the Microsoft group of companies. 3.2 Development toolchains • IAR Systems ® - IAR Embedded Workbench ®(1) • Keil ® - MDK-ARM (1) • STMicroelectronics - STM32CubeIDE 1. On Windows ® only. UM3343 – Draft – May 2024 page 5 UM3343 NUCLEO-WB05KZ user manual 4 Conventions Table 3 provides the conventions used for the ON and OFF settings in the present document. Table 3. ON/OFF convention Convention Definition Jumper JPx ON Jumper fitted Jumper JPx OFF Jumper not fitted Jumper JPx [1-2] Jumper fitted between Pin 1 and Pin 2 Solder bridge SBx ON SBx connections closed by 0 Ω resistor Solder bridge SBx OFF SBx connections left open Resistor Rx ON Resistor soldered Resistor Rx OFF Resistor not soldered Capacitor Cx ON Capacitor soldered Capacitor Cx OFF Capacitor not soldered UM3343 – Draft – May 2024 page 6 UM3343 NUCLEO-WB05KZ user manual 5 Safety recommendations 5.1 Targeted audience This product targets users with at least basic electronics or embedded software development knowledge like engineers, technicians, or students. This board is not a toy and is not suited for use by children. 5.2 Handling the board. This product contains a bare printed circuit board and as with all products of this type, the user must be careful about the following points: • The connection pins on the board might be sharp. Be careful when handling the board to avoid hurting yourself. • This board contains static‑sensitive devices. To avoid damaging it, please handle the board in an ESD‑proof environment. • While powered, do not touch the electric connections on the board with your fingers or anything conductive. The board operates at voltage levels that are not dangerous, but components could be damaged when shorted. • Do not put any liquid on the board and avoid operating the board close to water or at a high humidity level. • Do not operate the board if dirty or dusty. UM3343 – Draft – May 2024 page 7 UM3343 NUCLEO-WB05KZ user manual 6 Hardware layout and configuration 6.1 NUCLEO-WB05KZ block diagrams NUCLEO-WB05KZ is designed around the STM32WB05KZV6TR. The NUCLEO-WB05KZ includes a mezzanine board and an MCU RF Miniboard. The hardware block diagram in Figure 2 illustrates the connection between STM32WB05 and peripherals (ARDUINO ® Uno V3 connectors, ST morpho connector, and embedded ST-LINK). Figure 3 and Figure 5 help users locate these features on the NUCLEO-WB05KZ board. The mechanical dimensions of the NUCLEO-WB05KZ product are shown in Figure 6. Figure 2. Hardware block diagram UM3343 – Draft – May 2024 page 8 UM3343 NUCLEO-WB05KZ user manual Figure 3. NUCLEO-WB05KZ PCB top view UM3343 – Draft – May 2024 page 9 UM3343 NUCLEO-WB05KZ user manual Figure 4. NUCLEO-WB05KZ - PCB details of the MCU RF board UM3343 – Draft – May 2024 page 10 UM3343 NUCLEO-WB05KZ user manual Figure 5. NUCLEO-WB05KZ PCB bottom view UM3343 – Draft – May 2024 page 11 UM3343 NUCLEO-WB05KZ user manual Figure 6. NUCLEO-WB05KZ mechanical dimensions (in millimeters) UM3343 – Draft – May 2024 page 12 UM3343 NUCLEO-WB05KZ user man…

Text truncated - open the document above for the full version.

ST Confidential CERTIFICATIONS CONCERNING “COVERED” EQUIPMENT Date: March 26, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 FCC ID: YCP-MB203200 To Whom It May Concern: As required by section 2.911(d)(5)(i), STMICROELECTRONICS (ROUSSET) SAS, FRN 0019756717 (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. As required by section 2.911(d)(5)(ii), STMICROELECTRONICS (ROUSSET) SAS, FRN 0019756717 (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Thank you for your attention to this matter. Sincerely yours, Signature Printed Name: Pascal Scafidi Company: STMICROELECTRONICS (ROUSSET) SAS Job Title: MDRF Group VP Quality & Reliability Email: [email protected] Telephone: +33 4 76 58 50 00

ST Confidential Administrative Contact/Manufacturer Company Name STMICROELECTRONICS (ROUSSET) SAS FRN 0019756717 Address: 190 Avenue Celestin Coq Postcode/Zip Code 13106 City Rousset Country France E-mail Address: [email protected] Date: March 26, 2024 Letter of Authorization To Whom It May Concern. The undersigned STMICROELECTRONICS (ROUSSET) SAS (the “Company”), hereby authorizes: SMEE (Mr. Laurent Chapus, 385 Rue René Rambaud, ZA Le Parvis 2, F-38500 Voiron, France) to represent the Company in the carrying-out all matters and processes needed to the FCC Certifications approval equipment authorization for the following products: Trademark ST Manufacturer STMICROELECTRONICS (ROUSSET) SAS Model NUCLEO-WB05KZ FCC ID YCP-MB203200 The authorization granted hereunder shall remain effective until (i) it is either expressly revoked on behalf of the Company or (ii) the beneficiary of this authorization significantly changes his business collaboration or other capacity in relation to the Company as existing on the date of this document, including the cessation of business. The express provisions of this letter set forth the entire authorization granted to the beneficiaries appointed above, and this document revokes and supersedes any prior authorizations by the undersigned within the scope of the authorization granted hereunder. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application, is subject to denial of federal benefits, that includes FCC benefits. This authorization was executed on March 26, 2024. On behalf of STMICROELECTRONICS (ROUSSET) SAS Signature: Full Name: Pascal Scafidi Title: MDRF Group VP Quality & Reliability Email: [email protected] Phone: +33 4 76 58 50 00

ST Confidential REQUEST FOR CONFIDENTIALITY Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Date: March 26, 2024 FCC ID: YCP-MB203200 To Whom it may concern: We hereby request the exhibits listed below to be held confidential:  Schematics  Block Diagram  Operational Description These exhibits contain trade secrets and proprietary information not customarily released to the public. The public disclosure of the material in these exhibits might provide unjustified benefits to our competitors and be harmful to our operations. Product name: NUCLEO-WB05KZ Model name: NUCLEO-WB05KZ Brand name: ST Sincerely yours, On behalf of: STMICROELECTRONICS (ROUSSET) SAS 190 Avenue Celestin Coq 13106 ROUSSET – France Signature Full Name: Pascal Scafidi Title: MDRF Group VP Quality & Reliability Email: [email protected] Phone: +33 4 76 58 50 00

Page 1/1 EXTERNAL PHOTOS OF TESTED EUT Applicant: STMicroelectronics (ROUSSET) SAS Device PMN: NUCLEO-WB05KZ Model: NUCLEO-WB05KZ

Page 1/1 PRODUCT LABELING Applicant: STMicroelectronics (Rousset) SAS Device PMN: NUCLEO-WB05KZ Model: NUCLEO-WB05KZ Label is 19x14mm Label location

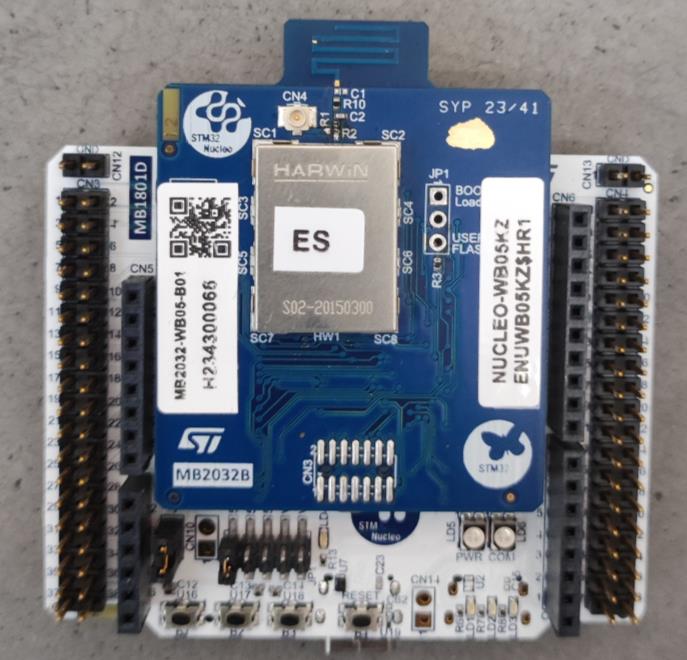

Page 1/2 INTERNAL PHOTOS OF TESTED EUT Applicant: STMicroelectronics (ROUSSET) SAS Device model: NUCLEO-WB05KZ Model: NUCLEO-WB05KZ Cover removed (RF part) Rear side of MB2032B MB1801D BLE antenna Page 2/2 MB1801D

COORDONNEES SMEE TEL : 04 76 65 76 50 385, Rue Renè Rambaud, ZA le Parvis 2 FAX : 04 76 66 18 30 38500 VOIRON - France SAS au capital de 50 000 € / RC Grenoble B534 796 453 / SIRET 534 796 453 00023 / code APE 7490B / n° TVA : FR 59 534 796 453 RF Exposure Considerations for FCC ID: YCP-MB203200 The calculation of the MPE is as following: Prediction of MPE limit at a prediction distance: S= ² . . 4 . R G P  = ² . . 4 . . . R P R I E  S: Power density (mW/cm²) P: Peak output power at antenna terminal (mW) G: Numerical Antenna gain R: Distance of radiation to antenna (cm) MPE calculation (1): Power value is taken from EIRP (Max Conducted power + antenna gain) (2): No simultaneous RF transmission Conclusion: Therefore, the device complies with FCC’s RF radiation exposure limits for general population for a mobile device. Certified By Laurent CHAPUS (Agent for this device) SMEE 385, Rue René Rambaud ZA Le Parvis 2 38500 Voiron - France [email protected] FCC Registration Number: 0020356952 (FRN) Applicant for this device: STMicroelectronics (Rousset) SAS 190 Avenue Celestin Coq 13106 ROUSSET – France FRN: 0019756717 Frequency (MHz) Maximum E.I.R.P. (mW) (1) R (cm) Power Density S (mW/cm²) MPE limit (mW/cm²) % of limit Limit (%) Verdict 2402-2480 9.9 20 0.002 1 0.197 100% Below MPE limit for uncontrolle d exposure Simultaneous transmissions SUM = N/A (2) 100%

Introduction This application note is dedicated to the STM32WB Series microcontrollers. One of the main reasons to use a PCB (printed circuit board) antenna is the reduced overall cost of the radio module. Well designed and implemented PCB-printed antennas have a similar performance to the SMD (surface-mounted device) ceramic equivalence. In general, the footprint for a ceramic SMD antenna is smaller than that for a PCB-printed variant. For a PCB-printed antenna solution, the increased size of the PCB in relation to space required for the antenna means that the radio module is larger and the cost of the PCB increased. However the PCB solution is generally cheaper than a SMD ceramic antenna. The demonstration and development boards for the STM32WB Series implement PCB printed antenna based on this application note. Low cost PCB antenna for 2.4 GHz radio: meander design for STM32WB Series AN5129 Application note AN5129 - Rev 4 - April 2019 For further information contact your local STMicroelectronics sales office. www.st.com 1General information This document applies to STM32WB Series Arm ® -based devices. Note:Arm is a registered trademark of Arm Limited (or its subsidiaries) in the US and/or elsewhere. AN5129 General information AN5129 - Rev 4 page 2/22 2Coordinate system For the purpose of this document, the spherical coordinate system illustrated in the figure below is used. Figure 1. Spherical coordinate system The PCB module is orientated vertically (plane X-Z) and located in proximity to the origin of the coordinate system. The azimuth angle radiates from the X-axis towards the Y-axis and the elevation angle radiates from the Z-axis towards the horizontal X-Y plane. Sometimes, as with geographical and navigational systems, the X-axis is called the "Nord-axis", the Yaxis is called the "East-axis" and the Z-axis is called the "Zenith-axis". AN5129 Coordinate system AN5129 - Rev 4 page 3/22 3Layout specification The PCB antennas, including the electrical parameters of PCB materials used, are layout sensitive. It is recommended to use a layout as close as possible to the one shown in the figure below. Figure 2. PCB antenna dimensions (in mm) The electrical parameters and performance of the PCB antenna are also determined by the substrate used, in particular the thickness of the core and dielectric constants. AN5129 Layout specification AN5129 - Rev 4 page 4/22 The figure below illustrates a typical cross-section of the substrate in a PCB-antennae area. Figure 3. PCB cross section at antennae area A substrate with the parameters as defined in the table below is recommended. Table 1. Recommended substrate specification Layer Dimensions Dielectric constant Ɛ R LabelValue (mil)Value (μm) Solder mask, topS10.717.784.4 Copper traceT1.640.64- CoreC28711.24.4 Solder mask, bottomS20.717.784.4 AN5129 Layout specification AN5129 - Rev 4 page 5/22 4Impedance matching Meander-like PCB antenna can be tuned to the required 50 Ω impedance by matching the impedance circuitry with the π topology. In Figure 2, the impedance matching area is marked with a dashed line. Under nominal conditions, this antenna exhibits and impedance very close to the required nominal impedance (50 Ω). To check the performance of this design, a sample antenna was manufactured (according to the specifications covered by this document). The figure below shows this antenna. Figure 4. Part of 802.15.4 and BLE PCB with meander-like antenna (scale around 4:1) Assuming that the manufactured sample exhibits the expected performance (no impedance matching necessary), the impedance matching circuitry is bypassed by two 100 pF capacitors connected in series, as shown in the figure below. Figure 5. Bypassing impedance matching circuitry - Direct RF connection All electrical parameters of the meander-like antenna have been measured at connection to the band-pass filter (BPF) with the frequency span covering frequencies from 2.4 GHz to 2.5 GHz. AN5129 Impedance matching AN5129 - Rev 4 page 6/22 Complex impedance of the antenna is shown in the Smith diagram in the figure below. Figure 6. Complex impedance of the meander-like antenna (Smith chart) The figure below shows the magnitude of the S11 parameter (in log scale). Figure 7. S11 parameter in logarithmic scale (Cartesian plot) AN5129 Impedance matching AN5129 - Rev 4 page 7/22 The figure below shows the standing wave ratio (SWR). Figure 8. Antenna standing wave ratio (SWR) The following changes affect the radiation impedance of the PCB antenna: • slight board size variation • metal shielding • use of plastic cover • presence of other components in proximity of the antenna The best performance impedance matching circuitry compensates these effects so that, for operating frequencies, the optimum 50 Ω impedance is achieved. AN5129 Impedance matching AN5129 - Rev 4 page 8/22 5Radiation pattern, 3-D visualization A three-dimensional (3-D) visualization of the radiation pattern (magnitude of the electrical far field |E|) is done for the center ISM band frequency 2.44175 GHz. Figure 9. 3-D radiation pattern overview Figure 10. Radiation pattern on X-Z plane AN5129 Radiation pattern, 3-D visualization AN5129 - Rev 4 page 9/22 6Radiation pattern, 2-D visualization In this section, all radiation patterns are related to the magnitude of electrical far field |E|, that is normalized and shown in the logarithmic scale (in dB). This means that the maximum global radiation pattern (maximum magnitude of the electrical far-field E) is represented by 0 dB level. To show the antenna radiation patterns in detail, three two dimensional (2-D) major cuts are presented. Consider the orientation of the module in the spherical coordinate system as shown in Figure 1. A three dimensional (3-D) far field radiation pattern is visualized as three two dimensional (2-D) cuts through a 3- D pattern. The following major planes are used for these cuts (see Figure 11): • one horizontal X-Y plane • two vertical planes: X-Z plan…
