11 March 2015DocID026283 Rev 21/19 UM1761 User manual Evaluation board for ST95HF NFC transceiver Introduction The EVAL-ST95HF is a ready-to-use development kit used to evaluate functions and performances of the RF transceiver ST95HF in Reader mode, Card emulation mode or Peer to Peer Mode for standard contactless applications. The EVAL-ST95HF kit supports: •ISO/IEC 14443 Type A and B communication in Reader; •ISO/IEC 15693 in Reader mode only; •ISO/IEC 14443 Type A communication in Card emulations mode; •ISO/IEC 18092 protocols in Reader modes. The ST95HF also supports the detection, reading and writing of NFC Forum Type 1, 2, 3 and 4 tags. The EVAL-ST95HF kit includes a ST95HF transceiver, a 4 turns 47 x 34 mm 13.56 MHz inductive etched antenna and its associated tuning components, a STM32F103 32-bits microcontroller with 1 Mbyte of Flash memory and a TFT LCD 2.4 inch and 240*230 resolution. Table 1. Ordering information ReferenceOrder code EVAL-ST95HFEVAL-ST95HF www.st.com ContentsUM1761 2/19DocID026283 Rev 2 Contents 1Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 3Hardware and layout description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 3.1Eval-ST95HF assembly drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 3.2Eval-ST95HF board powering and Startup . . . . . . . . . . . . . . . . . . . . . . . . . 8 3.3Program/debug the RF transceiver demo board. . . . . . . . . . . . . . . . . . . . . 9 3.4Electrical schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 4Bill of material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 5Federal Communications Commission (FCC) and Industry Canada (IC) compliance statements . . . . . . . . . . . . . . . . . . . . 17 5.1FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 5.1.1Part 15.19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 5.1.2Part 15.21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 5.1.3FCC ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 5.2IC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 5.2.1Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 5.2.2Déclaration de conformité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 5.2.3IC ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 6Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 DocID026283 Rev 23/19 UM1761List of tables 3 List of tables Table 1.Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Table 2.Bill of materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Table 3.Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 List of figuresUM1761 4/19DocID026283 Rev 2 List of figures Figure 1.Functional block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Figure 2.Top assembly view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Figure 3.Bottom assembly view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Figure 4.EVAL-ST95HF RF transceiver board top picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Figure 5.EVAL-ST95HF RF transceiver board back picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Figure 6.Electric schematics diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 DocID026283 Rev 25/19 UM1761Description 18 1 Description The EVAL-ST95HF board includes a ST95HF transceiver, a 4 turns 47 X 34 mm, 13.56 MHz inductive etched antenna ant its associated tunings components, a STM32F103 32-bits microcontroller with 1Mbytes of Flash memory and a TFT LCD 2.4 inch and 240*230 resolutions. The functional scheme is shown in Figure 1. It is powered by USB cable. A SPI bus allows the microcontroller to communicate with the ST95HF and LCD screen. A 4 positions joystick is used to move in the menu. Two other pushbuttons are placed on the board, one for the reset, the second to rotate the LCD picture. The download is possible through the JTAG connector. The ST android application "ST95HF demo App" shows a proprietary IAP application. The user can upload from the NFC reader (NFC Phone or RFID reader) the firmware of the STM32F103 of the EVAL-ST95HF board and boot on it. More information on the ST95HF evaluation kit and associated demonstration software can be found at www.st.com. Figure 1. Functional block diagram 069 FeaturesUM1761 6/19DocID026283 Rev 2 2 Features •ST95HF, a 13.56-MHz multi-protocol contactless transceiver IC with SPI serial access communication: •Reader mode –ISO/IEC 14443 Type A –ISO/IEC 15693 –ISO/IEC 18092 •Card Emulation mode: –ISO/IEC 14443 Type A •ISO/IEC 14443 Type A in Peer To Peer mode. •47 x 34 mm with 4 turn. 13.56 MHz inductive antenna etched on PCB and associated tuning circuit. •STM32F103RGT6 64LQFP 32-bits microcontroller, with 1Mbytes of Flash memory and USB interface in a 64-pin LQFP package. •KF33BDT, a 3.3V low dropout (LDO) voltage regulator •USB mini B connector •NX2016SA, a 27.12-MHz EXS00A-CS0…

Text truncated - open the document above for the full version.

EVAL-ST95HF Evaluation kit for ST95HF transceiver for NFC Synoptic ST95HFSTM32F103R LCD Screen USB Connector JTAG Connector Antenna loop 13.56MHz Antenna tuning circuit SPI Bus 2Mbps 27.12 MHz 8MHz

PAant102 PAant101PAant100 COant1 PAC102 PAC101 COC1 PAC202 PAC201 COC2 PAC302 PAC301 COC3 PAC402 PAC401 COC4 PAC502 PAC501 COC5 PAC602 PAC601 COC6 PAC702PAC701 COC7 PAC802 PAC801 COC8 PAC902PAC901 COC9 PAC1002 PAC1001 COC10 PAC1101PAC1102 COC11 PAC1202 PAC1201 COC12 PAC1302 PAC1301 COC13 PAC1402PAC1401 COC14 PAC1502 PAC1501 COC15 PAC1602PAC1601 COC16 PAC1701 PAC1702 COC17 PAC1802 PAC1801 COC18 PAC1901 PAC1902 COC19 PAC2002 PAC2001 COC20 PAC2102 PAC2101 COC21 PAC2202 PAC2201 COC22 PAC2302PAC2301 COC23 PAC2402PAC2401 COC24 PAC2502 PAC2501 COC25 PAC2602 PAC2601 COC26 PAC2702 PAC2701 COC27 PAC2802 PAC2801 COC28 PAC2902PAC2901 COC29 PAC3001PAC3002 COC30 PAC3102PAC3101 COC31 PAC3202 PAC3201 COC32 PAC3301PAC3302 COC33 PAC3402PAC3401 COC34 PAC3502PAC3501 COC35 PAC3602PAC3601 COC36 PAC3702 PAC3701 COC37 PAC3802 PAC3801 COC38 PAC3901PAC3902 COC39 PAC4002PAC4001 COC40 PAC4102 PAC4101 COC41 PACa02 PACa01 COCa PACb02 PACb01 COCb PACc02 PACc01 COCc PAFL104PAFL103 PAFL102PAFL101 COFL1 PAFL204PAFL203 PAFL202PAFL201 COFL2 PAFL303 PAFL301 PAFL302 COFL3 PAJ205PAJ204PAJ203PAJ202 PAJ206 PAJ201 PAJ200 COJ2 PAJ301 PAJ302 PAJ303 PAJ304 PAJ305 PAJ306 PAJ307 PAJ308 PAJ309 PAJ3010 PAJ3011 PAJ3012 PAJ3013 PAJ3014 PAJ3015 PAJ3016 PAJ3017 PAJ3018 PAJ3019 PAJ3020 COJ3 PAL102 PAL101 COL1 PAL202PAL201 COL2 PAL302 PAL301 COL3 PAL402 PAL401 COL4 PAL502 PAL501 COL5 PAL602 PAL601 COL6 PAL702PAL701 COL7 PAL802PAL801 COL8 PAL902PAL901 COL9 PAL1002 PAL1001 COL10 PALED10A PALED10K COLED1 PALED20K PALED20A COLED2 PALED30K PALED30A COLED3 PALED40K PALED40A COLED4 PALED50K PALED50A COLED5 PAMIRE101 COMIRE1 PAMIRE201 COMIRE2 PAMIRE301 COMIRE3 PAMIRE401 COMIRE4 PAMIRE501 COMIRE5 PAMIRE601 COMIRE6 PAQ102 PAQ101PAQ103 COQ1 PAQ202 PAQ201PAQ203 COQ2 PAR102 PAR101 COR1 PAR202 PAR201 COR2 PAR302 PAR301 COR3 PAR402 PAR401 COR4 PAR502 PAR501 COR5 PAR602 PAR601 COR6 PAR702 PAR701 COR7 PAR802 PAR801 COR8 PAR902 PAR901 COR9 PAR1002 PAR1001 COR10 PAR1102PAR1101 COR11 PAR1202PAR1201 COR12 PAR1302PAR1301 COR13 PAR1502PAR1501 COR15 PAR1602PAR1601 COR16 PAR1702PAR1701 COR17 PAR1802PAR1801 COR18 PAR1902PAR1901 COR19 PAR2002PAR2001 COR20 PAR2102PAR2101 COR21 PAR2202PAR2201 COR22 PAR2302 PAR2301 COR23 PAR2402 PAR2401 COR24 PAR2502 PAR2501 COR25 PAR2602 PAR2601 COR26 PAR2702PAR2701 COR27 PAR2802PAR2801 COR28 PAR2902 PAR2901 COR29 PAR3002 PAR3001 COR30 PAR3102 PAR3101 COR31 PAR3202 PAR3201 COR32 PAR3302 PAR3301 COR33 PAR3402 PAR3401 COR34 PAR3502 PAR3501 COR35 PAR3602 PAR3601 COR36 PAR3702PAR3701 COR37 PAR3802PAR3801 COR38 PAR3902 PAR3901 COR39 PAR4002 PAR4001 COR40 PAR4102 PAR4101 COR41 PAR4202 PAR4201 COR42 PAR4302 PAR4301 COR43 PAR4402 PAR4401 COR44 PAR4502 PAR4501 COR45 PAR4602 PAR4601 COR46 PAR4702 PAR4701 COR47 PAR4802PAR4801 COR48 PAR4902PAR4901 COR49 PAR5002PAR5001 COR50 PAR5102PAR5101 COR51 PAR5202PAR5201 COR52 PAR5302PAR5301 COR53 PAR5402PAR5401 COR54 PAR5502PAR5501 COR55 PAR5602PAR5601 COR56 PAR5702PAR5701 COR57 PAR5802PAR5801 COR58 PAR5902PAR5901 COR59 PAR6002PAR6001 COR60 PAR6102PAR6101 COR61 PAR6202PAR6201 COR62 PAR6302PAR6301 COR63 PAR6402PAR6401COR64 PAR6502PAR6501 COR65 PAR6602PAR6601 COR66 PAR6702PAR6701 COR67 PAR6802PAR6801 COR68 PAR6902PAR6901 COR69 PAR7002PAR7001 COR70 PAR7101PAR7102 COR71 PAR7202 PAR7201 COR72 PAR7302PAR7301 COR73 PARq02 PARq01 CORq PAST101 COST1 PAST201 PAST202 PAST203 COST2 PAST301 COST3 PASW104 PASW102 PASW103 PASW101 COSW1 PASW204 PASW202 PASW203 PASW201 COSW2 PAU101 PAU102 PAU103 PAU104 PAU105 PAU106 PAU108 PAU109PAU1010PAU1011PAU1012PAU1013PAU1014PAU1015PAU1016 PAU1017 PAU1018 PAU1019 PAU1020 PAU1021 PAU1022 PAU1023 PAU1024 PAU1025PAU1026PAU1027PAU1028PAU1029PAU1030PAU1031PAU1032 PAU1033 PAU107 COU1 PAU2064PAU2063PAU2062PAU2061PAU2060PAU2059PAU2058PAU2057PAU2056PAU2055PAU2054PAU2053PAU2052PAU2051PAU2050PAU2049 PAU2048 PAU2047 PAU2046 PAU2045 PAU2044 PAU2043 PAU2042 PAU2041 PAU2040 PAU2039 PAU2038 PAU2037 PAU2036 PAU2035 PAU2034 PAU2033 PAU2032PAU2031PAU2030PAU2029PAU2028PAU2027PAU2026PAU2025PAU2024PAU2023PAU2022PAU2021PAU2020PAU2019PAU2018PAU2017 PAU2016 PAU2015 PAU2014 PAU2013 PAU2012 PAU2011 PAU2010 PAU209 PAU208 PAU207 PAU206 PAU205 PAU204 PAU203 PAU202 PAU201 COU2 PAU301 PAU303 PAU302 COU3 PAU40G PAU402 PAU405 PAU404 PAU406 PAU403 PAU401 PAU400 COU4 PAU501 PAU502 PAU503 PAU504 PAU505 PAU506 PAU507 PAU508 PAU509 PAU5010 PAU5011 PAU5012 PAU5013 PAU5014 PAU5015 PAU5016 PAU5017 PAU5018 PAU5019 PAU5020 PAU5021 PAU5022 PAU5023 PAU5024 PAU5025 PAU5026 PAU5027 PAU5028 PAU5029 PAU5030 PAU5031 PAU5032 PAU5033 PAU5034 PAU5035 PAU5036 PAU5037 PAU5038 PAU5039 PAU5040 PAU5041 PAU5042 PAU5043 PAU5044 PAU5045 PAU5046 PAU5047 PAU5048 PAU5053 PAU5052 PAU5049 PAU5051 PAU5050 COU5 PAY101 PAY102 COY1 PAY204 PAY203PAY202 PAY201 COY2 PAZ0RX102PAZ0RX101 COZ0RX1 PAZ0RX202PAZ0RX201 COZ0RX2 PAJ303 PAR3601 PAU2056 PAU2033 PAU5038 PAU2037 PAU5036 PAC702 PAJ3015 PAR1102 PASW102 PASW104 PAU207 PAU5039 PAU1015 PAU2020 PAC1201 PAC1301 PAC1401 PAC1501 PAC3301 PAC3402 PAJ301 PAJ302 PAL102 PAL201 PAL301 PAL401 PAQ102 PAR101 PAR502 PAR602PAR802 PAR902 PAR1002 PAR1101 PAR1202 PAR1302 PAR1702 PAR2502PAR3101PAR3201 PAR3302PAR3402PAR3502PAR3602 PAR3701 PAR4802 PAR4902 PAR5002 PAR5102 PAR5302 PAR5402 PAR5502 PAR5602 PAR6502 PAR6702 PAR6902 PAR7101 PAU201 PAU2019 PAU2048 PAU2064 PAU506 PAU507 PAU5044 PAC101 PAC202 PAC302 PAC401 PAC502 PAC602 PAC701 PAC802 PAC902 PAC1002 PAC1102 PAC1202 PAC1302 PAC1402 PAC1502 PAC1602 PAC1702 PAC1802 PAC1902 PAC2002 PAC2101 PAC2302 PAC2401 PAC2602 PAC2702 PAC2802 PAC2902 PAC3002 PAC3102 PAC3201 PAC3302 PAC3401 PAC3502 PAC3601 PAC3901 PAC4001 PAC4101 PAFL204 PAFL303 PAJ205 PAJ304PAJ306PAJ308PAJ3010PAJ3012PAJ3014PAJ3016PAJ3018PAJ3020 PALED10K PALED20KPALED30KPALED40KPALED50K PAQ203 PAR302 PAR702 PAR1501 PAR1601 PAR2601 PAR2701 PAR2902PAR3002 PAR3801 PAR3901PAR4001PAR4101PAR4201 PAR5202 PAR5701 PAR5801 PAR5901 PAR6001 PAR6102 PAR6202 PAR6302 PAR6402 PAR6601 PAR6801 PAR7001 PAR7201 PAR7301 PAST203 PAST301 PASW101 PASW103 PASW201 PASW203 PAU103 PAU104 PAU107 PAU108 PAU1010PAU1011 PAU1022 PAU1023 PAU1024 PAU1025PAU1026PA…

Text truncated - open the document above for the full version.

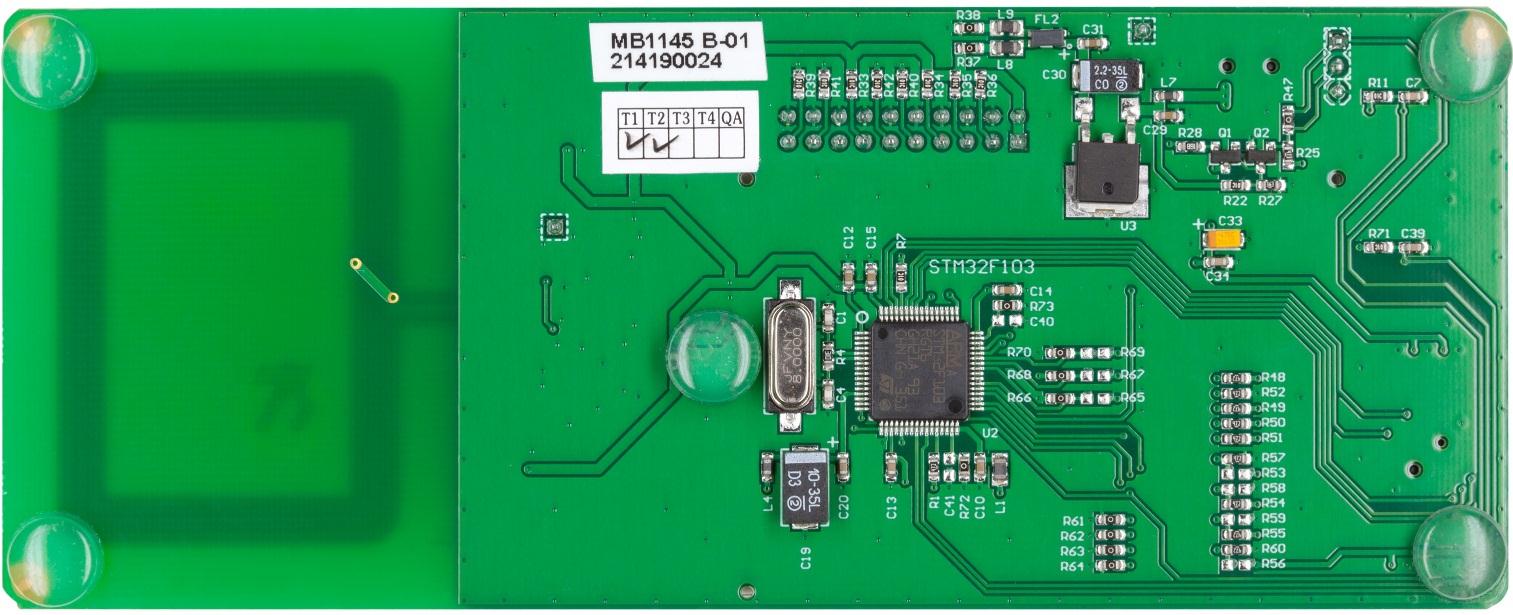

EVAL-ST95HF Evaluation kit for ST95HF transceiver for NFC Description  Ready to use printed circuit board with ST95HF 13.56 MHz transceiver 32 lead 5x5 mm VFQFPN package: o Reader mode.  ISO/IEC 14443 Type A.  ISO/IEC 15693.  ISO/IEC 18092. o Card Emulation mode.  ISO/IEC 14443 Type A. o ISO/IEC 14443 Type A in Peer To Peer mode.  STM32F103RGT6 64LQFP 32-bits microcontroller, with 1 Mbytes of Flash memory.  47 x 34 mm with 4 turns, 13.56 MHz inductive antenna etched on PCB and tuning circuit.  Mini USB connector for board powering.  5 different color LEDs indicating the presence of RF field and protocol used to communicate.  JTAG connector for microcontroller firmware downloads and debug.  Joystick for menu selection.  LCD color screen (320*200pixels).  USB cable: Type A / mini B The EVAL-ST95HF kit is created to evaluate features of the ST-Microelectronics ST95HF. This component is a 13.56 MHz near field communication transceiver which could be used in two modes as well in Tag emulation as NFC Reader. So we could use two ST95HF Eval board face to face. The EVAL-ST95HF board is powered through the USB bus. It is consist of a ST95HF transceiver on a 47 x 34 mm -4 turn and 13.56 MHz inductive etched antenna and its associated tuning circuit components. The ST95HF communicates with the STM32F103RGT6 and LCD screen via SPI bus. In Tag emulation mode it could be used with NFC Reader (NFC smartphone, CR95HF or with another ST95HF) to exchange NDEF messages (URI, VCARD, URL) or establish a P2P communication. Communication protocol is based on ISO/IEC 14443 Type A. In reader mode the ST95HF support ISO/IEC 14443 Type A and B communication, ISO/IEC 15693 and ISO/IEC 18092 protocols. The mode could be selected on screen by using a joystick.

MB1145 BOM release C01 Quantity DescriptionReferenceVersionPackageManufacturer 1Part#1Manufacturer 2Part#2DistributorOrder codeFitted or not fittedSupplied byROHS CompliantComments 1 ST95HFVMD5 ST95HFU1VFQFPN32_5x5STMicroelectronicsST95HF VMD5TST 1 MCU 32 BITS 1MB FLASH 64LQFP STM32F103RGT6U2LQFP64_10x10STMicroelectronicsSTM32F103RGT6ST 1 3.3V Voltage regulator KF33BDTU3DPAKSTMicroelectronicsKF33BDTST 1 Joystick 4 directions 1 select Wealth Metal Factory MT008-A U4JOYSTICK_MT-008AWealth Metal FactoryMT008-A 1 LCD Screen FRD24048U5SF-TC240T-48P-07FRDA LCDFRD24048 2 293D TANTAL SMD POL CAP 1uF 16V 10% Boitier A 1μFC11, C17293D-AFarnell1754174 1 293D TANTAL SMD POL CAP 2,2uF 35V 10% Boitier C 2,2uFC30293D-CFarnell1754228 1 293D TANTAL SMD POL CAP 4,7uF 16V 10% Boitier A 4.7μFC33293D-AFarnell1754174 1 293D TANTAL SMD POL CAP 10uF 35V 10% boitier D 10uFC19293D-DFarnell2112949 6 CONDENSATEUR MLCC 0603 NP0 50V 2% NCC37, C38, C40, C41, Cb, Cc0603N 2 CONDENSATEUR MLCC 0603 NP0 50V 2% 47pFC22, C250603MurataGRM1885C1H470GA01no double source allowed 4 CONDENSATEUR MLCC 0603 NP0 50V 2% 100pFC23, C24, C35, C360603MurataGRM1885C1H101GA01no double source allowed 1 CONDENSATEUR MLCC 0603 NP0 50V 2% 82pFCa0603MurataGRM1885C1H820GA01no double source allowed 2 CONDENSATEUR MLCC 0603 NP0 50V 5% 10pFC27, C280603Farnell1759053 2 CONDENSATEUR MLCC 0603 NP0 50V 5% 20pFC1, C40603Farnell1844172 1 CONDENSATEUR MLCC 0603 NP0 50V 5% 1nFC210603Farnell1759089 1 CONDENSATEUR MLCC 0603 NP0 50V 5% 4,7nFC260603Farnell1833869 2 CONDENSATEUR MLCC 0603 NP0 50V 5% 10nFC16, C180603Farnell1833871 18 CONDENSATEUR MLCC 0603 NP0 50V 5% 100nFC2, C3, C5, C6, C7, C8, C9, C10, C12, C13, C14, C15, C20, C29, C31, C32, C34, C390603Farnell1740621 1 NOISE SUPPRESSOR CMS 90OHM. 370MA 744232090FL1744232xxxWURTH ELEKTRONIK744232090Farnell1636474no double source allowed 1 NOISE SUPPRESSOR CMS 90OHM. 0.37A DLW31SN900SQ2FL2744232xxxMurataDLW31SN900SQ2Radiospares724-1687no double source allowed 1 FILTER, SUPPRESSION, 0603, 1UF, 6.3VDC NFM18PS105R0J3DFL3NFM18PSMurataNFM18PS105R0J3DFarnell1686506no double source allowed 5 FERRITE CMS 600OHM. 0805 742792042L1, L2, L3, L8, L90805WURTH ELEKTRONIK742792042Farnell1635716no double source allowed 1 FERRITE CMS 2200OHM. 0805 742792093L100805WURTH ELEKTRONIK742792093Farnell1635726no double source allowed 1 FERRITE BEAD, 0.38OHM, 500MA, 0603 BLM18AG601SN1DL40603MurataBLM18AG601SN1DFarnell1515679no double source allowed 1 FERRITE CMS 300OHM. 0603 742792641L70603WURTH ELEKTRONIK742792641Farnell1635705no double source allowed 2 Inductor SMD 0805, LQM21NNR56K10D 560nHL5, L60805MurataLQM21NNR56K10DRadiospare786-7087no double source allowed 12 Resistance CMS 0603 0,1W 5% NCR12, R16, R29, R30, R53, R56, R58, R59, R65, R67, R69, Rq0603N 16 Resistance CMS 0603 0,1W 5% 0R13, R15, R31, R32, R37, R38, R47, R61, R62, R63, R64, R66, R68, R70, R72, R730603 3 Resistance CMS 0603 0,1W 5% 10R3, R20, R210603 1 Resistance CMS 0603 0,1W 5% 180R460603 2 Resistance CMS 0603 0,1W 5% 330Z-RX1, Z-RX20603 1 Resistance CMS 0603 0,1W 5% 560R430603 3 Resistance CMS 0603 0,1W 5% 1kR2, R44, R450603 1 Resistance CMS 0603 0,1W 5% 1.5kR280603 5 Resistance CMS 0603 0,1W 5% 3.3kR17, R18, R19, R23, R240603 10 Resistance CMS 0603 0,1W 5% 4.7kR1, R48, R49, R50, R51, R52, R54, R55, R57, R600603 17 Resistance CMS 0603 0,1W 5% 10kR5, R6, R7, R8, R9, R10, R11, R22, R33, R34, R35, R36, R39, R40, R41, R42, R710603 1 Resistance CMS 0603 0,1W 5% 36kR270603 1 Resistance CMS 0603 0,1W 5% 47kR250603 2 Resistance CMS 0603 0,1W 5% 1MR4, R260603 1 Mini USB 5075BMR-05-SM J25075BMR-05-SMNeltron Industrial5075BMR-05-SM 1 HEADER, RIGHT ANGLE, 20WAY J3HE10_20PTS_M_COUDEMULTICOMPMC9A22-2034Farnell1099248 2 Connector 1PT, NCST1, ST3CON_1PTSFCI77311-401-36LFFarnell1097954N 1 Connector 3PTS 2,54, NCST2CON_3PTS_P2.54FCI77311-401-36LFFarnell1097954N 2 Push Button SW_BP_STSW1, SW2FSM4JSMAALCOSWITCHFSM4JSMAFarnell3801305 1 LED, 1206, RED, 80MCD, 635NM Red LedLED1LED-1206DIALIGHT598-8210107FFarnell1850747 1 LED, 1206,YELLOW, 130MCD, 593NM YELLOW LedLED2LED-1206DIALIGHT5988240107FFarnell1465998 1 LED, 1206, BLUE, 140MCD BLUE LedLED3LED-1206DIALIGHT5988291107FFarnell1850752 1 LED, 1206, ORANGE, 110MCD, 610NM ORANGE LedLED4LED-1206DIALIGHT5988230107FFarnell1872396 1 LED, 1206, GREEN, 20MCD, 570NM GREEN LedLED5LED-1206DIALIGHT5988270107FFarnell1466000 2 BC817-16 - TRANSISTOR NPN 0.5A 45V SOT23 BC817Q1, Q2SOT23MULTICOMPBC817-16Farnell1798077 1 SMD CRYSTAL OSCILLATOR,8M,20PF,20ppm 8MHzY1HC49SDFOX ELECTRONICSFOXSDLF/080-20Farnell2063972no double source allowed 1 NX2016SA 27.12MHz EXS00A-CS01188 27.12MHzY2NX2016NDKNX2016SA 27.12MHz EXS00A-CS01188STno double source allowed 1 NFC Antenna ant1ANT_90DEGN 6 PCB MIRE MIRE1, MIRE2, MIRE3, MIRE4, MIRE5, MIRE6MIREN 1 PCB 150mmx60mmx1.6mm (FR4, dual side, components on both sides, green color)B 5 Bumpon protective product 3MSJ5306 1 Five_way switch button hat, PB-504/PB-MT008A (Cyan), along, AKG004, for U4 1 Test (duration : 1,30mn) 1 Kitting Eval-ST95HF

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA 1 STMicroelectronics MMY Division 190, avenue Célestin COQ 13106 ROUSSET Cedex FRANCE 1 EVAL-ST95HF MB1145C01 22/09/2014 Title: Size:Reference: Date:Sheet:of CRevision: USB_DM USB_DP JTMS JTDO /JTRST LED1 Red Led 20pF C4 SW1 /RESET 100nF C7 742792042 L1 3.3V 3.3V BLM18AG601SN1D L4 742792641L7 U5V 1 4 2 3 FL1 744232090 Q2 BC817 Q1 BC817 U5V 3.3V 3.3V USB_DM USB_DP 1 1 2 2 3 3 ST2 USB_Disconnect 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 19 19 20 20 J3 3.3V /JTRST JTDI JTMS JTCK JTDO /RESET 1 4 2 3 FL2 DLW31SN900SQ2 742792042 L8 742792042 L9 U5V 3.3V 2,2uF + C30 10uF + C19 1μF + C11 1μF + C17 742792042 L2 742792042 L3 3.3V 3.3V Interface_Pin SPI_MISO SPI_MOSI SPI_SCK /SPI_CS_NFC UART_RX/IRQ_OUT UART_TX/IRQ_IN XIN 1 GND 2 GND 4 XOUT 3 Y2 27.12MHz ANTENNA 2 1 ant1 ANTENNA VDD MIRE1 MIRE MIRE2 MIRE MIRE3 MIRE Vin 1 G N D 3 Vout 2 U3 KF33BDT JTCK JTDI UART_RX/IRQ_OUT /SPI_CS_NFC SPI_SCK SPI_MISO SPI_MOSI USB_Disconnect Interface_Pin UART_TX/IRQ_IN Y1 8MHz 20pF C1 3.3V 3.3V VDD1 3.3V COMMON 5 Selection 2 DOWN 3 LEFT 1 RIGHT 4 UP 6 U4 MT008-A JOY_SEL JOY_UP JOY_LEFT JOY_DOWN JOY_RIGHT JOY_UP JOY_DOWN JOY_RIGHT JOY_SEL 3.3V BOOT0 60 NRST 7 OSC_IN/PD0 5 OSC_OUT/PD1 6 PA0-WKUP 14 PA1 15 PA2 16 PA3 17 PA4 20 PA5 21 PA6 22 PA7 23 PA8 41 PA9 42 PA10 43 PA11 44 PA12 45 PA13/JTMS/SWDIO 46 PA14/JTCK/SWCLK 49 PA15/JTDI 50 PB0 26 PB1 27 PB2/BOOT1 28 PB3/JTDO 55 PB4/JNTRST 56 PB5 57 PB6 58 PB7 59 PB8 61 PB9 62 PB10 29 PB11 30 PB12 33 PB13 34 PB14 35 PB15 36 PC0 8 PC1 9 PC2 10 PC3 11 PC4 24 PC5 25 PC6 37 PC7 38 PC8 39 PC9 40 PC10 51 PC11 52 PC12 53 PC13-TAMPER-RTC 2 PC14-OSC32_IN 3 PC15-OSC32_OUT 4 PD2 54 VBAT 1 VDD_1 32 VDD_2 48 VDD_3 64 VDD_4 19 VDDA 13 VSS_1 31 VSS_2 47 VSS_3 63 VSS_4 18 VSSA 12 U2 STM32F103RGT6 100nF C12 3.3V 100nF C13 100nF C14 100nF C15 100nF C10 100nF C20 100nF C9 10nF C16 10nF C18 1nF C21 10pF C27 10pF C28 47pF C22 47pF C25 100pF C24 82pF Ca NC Cb 100nF C31 100nF C29 1M R4 10k R11 10k R7 1k R2 4.7k R1 10 R3 330 Z-RX1 330 Z-RX2 NC R12 NC R16 NC R30 NC R29 0 R13 0 R15 0 R32 0 R31 3.3k R23 3.3k R24 3.3k R18 3.3k R19 3.3k R17 0 R37 0 R38 10 R20 10R21 1M R26 36k R27 10k R22 47k R25 1.5k R28 10k R33 10k R34 10k R35 10k R36 10k R39 10k R40 10k R41 10k R42 NC Rq 3.3V 10kR5 100nF C2JOY_UP 10kR6 100nF C3 10kR8 100nF C5 10kR9 100nF C6 10kR10 100nF C8 JOY_LEFT JOY_DOWN JOY_RIGHT JOY_SEL JOY_LEFT 4,7nF C26 3.3V 560 R43 1k R44 1k R45 LED2 YELLOW Led LED3 BLUE Led LED4 ORANGE Led 100nF C32 180 R46 LED5 GREEN Led 1 1 ST1 1 1 ST3 NFM18PS105R0J3D 12 3 FL3 742792093 L10 TX1 1 TX2 2 NC 3 NC 4 RX1 5 RX2 6 NC 7 G N D _ R X 8 S T _ R 0 9 NC 10 NC 11 UART_RX/IRQ_IN 12 V P S 1 3 UART_TX/IRQ_OUT 14 SPI_SS 15 SPI_MISO 16 SPI_MOSI 17 SPI_SCK 18 SSI_0 19 SSI_1 20 ST_R1 21 G N D 2 2 NC 23 NC 24 NC 25 NC 26 NC 27 NC 28 X I N 2 9 X O U T 3 0 G N D _ T X 3 1 V P S _ T X 3 2 B A C K P L A N E 3 3 U1 ST95HF 0 R47 NC Cc ENABLE 32 DOTCLK 31 HSYNC 33 VSYNC 34 CSX 38 DCX/SCL 37 TE 11 WRX/DCX 36 RDX 35 RESET 39 DB0/B0 29 DB1/B1 28 DB2/B2 27 DB3/B3 26 DB4/B4 25 DB5/B5 24 DB6/G0 23 DB7/G1 22 VDD3_P(nc) 8 BC_CTRL(nc) 9 BC(nc) 10 VDD3 7 IM3 43 IM2 42 IM1 41 IM0 40 SDA 30 VCI 6 LEDA 44 LEDK1 45 LEDK2 46 LEDK3 47 LEDK4 48 YD 3 XL 2 YU 1 XR 4 GND 5 DB8/G2 21 DB9/G3 20 DB10/G4 19 DB11/G5 18 DB12/R0 17 DB13/R1 16 DB14/R2 15 DB15/R3 14 DB16/R4 13 DB17/R5 12 U5 FRD24048 LCD_SDA LCD_CLK /LCD_CS /LCD_DC 3.3V 4.7k R48 4.7k R49 4.7k R50 4.7k R51 4.7k R52 NC R53 4.7k R54 4.7k R55 NC R56 3.3V 4.7k R57 NC R58 4.7k R60 NC R59 3.3V 0R61 0R62 0R63 0R64 100nF C34 4.7μF + C33 TE Output /LCD_CS TE Output /LCD_DC LCD_CLK LCD_SDA /RESET 100pF C35 100pF C23 100pF C36 NC C38 NC C37560nH 1 1 2 2 L5 560nH 1 1 2 2 L6 NC R65 NC R67 NC R69 0 R66 3.3V 0 R68 0 R70 OTG 4 D+ 3 D- 2 VDD 1 S H I E L D 6 S H I E L D 6 GND 5 S H I E L D 6 S H I E L D 6 J2 Mini USB SW2 100nF C39 3.3V 10k R71 MIRE4 MIRE MIRE5 MIRE MIRE6 MIRE NC C40 NC C41 0R72 0R73 PIant101 PIant102 COant1 PIC101PIC102 COC1 PIC201PIC202 COC2 PIC301PIC302 COC3 PIC401PIC402 COC4 PIC501PIC502 COC5 PIC601PIC602 COC6 PIC701PIC702 COC7 PIC801PIC802 COC8 PIC901PIC902 COC9 PIC1001 PIC1002 COC10 PIC1101PIC1102 COC11 PIC1201 PIC1202 COC12 PIC1301 PIC1302 COC13 PIC1401 PIC1402 COC14 PIC1501 PIC1502 COC15 PIC1601PIC1602 COC16 PIC1701 PIC1702 COC17 PIC1801 PIC1802 COC18 PIC1901 PIC1902 COC19 PIC2001 PIC2002 COC20 PIC2101 PIC2102 COC21 PIC2201PIC2202 COC22 PIC2301 PIC2302 COC23 PIC2401 PIC2402 COC24 PIC2501PIC2502 COC25 PIC2601 PIC2602 COC26 PIC2701 PIC2702 COC27 PIC2801 PIC2802 COC28 PIC2901 PIC2902 COC29 PIC3001 PIC3002 COC30 PIC3101 PIC3102 COC31 PIC3201 PIC3202 COC32 PIC3301 PIC3302 COC33 PIC3401 PIC3402 COC34 PIC3501 PIC3502 COC35 PIC3601 PIC3602 COC36 PIC3701PIC3702 COC37 PIC3801PIC3802 COC38 PIC3901PIC3902 COC39 PIC4001 PIC4002 COC40 PIC4101 PIC4102 COC41 PICa01 PICa02 COCa PICb01 PICb02 COCb PICc01 PICc02 COCc PIFL101PIFL102 PIFL103PIFL104 COFL1 PIFL201PIFL202 PIFL203PIFL204 COFL2 PIFL301PIFL302 PIFL303 COFL3 PIJ201 PIJ202 PIJ203 PIJ204 PIJ205 PIJ206 COJ2 PIJ301PIJ302 PIJ303PIJ304 PIJ305PIJ306 PIJ307PIJ308 PIJ309PIJ3010 PIJ3011PIJ3012 PIJ3013PIJ3014 PIJ3015PIJ3016 PIJ3017PIJ3018 PIJ3019PIJ3020 COJ3 PIL101 PIL102 COL1 PIL201 PIL202 COL2 PIL301 PIL302 COL3 PIL401PIL402 COL4 PIL501PIL502 COL5 PIL601PIL602 COL6 PIL701PIL702 COL7 PIL801PIL802 COL8 PIL901PIL902 COL9 PIL1001 PIL1002 COL10 PILED10APILED10K COLED1 PILED20APILED20K COLED2 PILED30APILED30K COLED3 PILED40APILED40K COLED4 PILED50APILED50K COLED5 COMIRE1COMIRE2COMIRE3 COMIRE4COMIRE5COMIRE6 PIQ101 PIQ102 PIQ103 COQ1 PIQ201 PIQ202 PIQ203 COQ2 PIR101PIR102 COR1 PIR201PIR202 COR2 PIR301PIR302 COR3 PIR401 PIR402 COR4 PIR501PIR502 COR5 PIR601PIR602 COR6 PIR701PIR702 COR7 PIR801PIR802 COR8 PIR901PIR902 COR9 PIR1001PIR1002 COR10 PIR1101 PIR1102 COR11 PIR1201 PIR1202 COR12 PIR1301 PIR1302 COR13 PIR1501 PIR1502 COR15 PIR1601 PIR1602 COR16 PIR1701 PIR1702 COR17 PIR1801 PIR1802 COR18 PIR1901 PIR1902 COR19 PIR2001PIR2002 COR20 PIR2101PIR2102 COR21 PIR2201 PIR2202 COR22 PIR2301 PIR23…

Text truncated - open the document above for the full version.

 Siège Social : Emitech - 3, rue des Coudriers - Z.A. de l’Observatoire - 78180 MONTIGNY LE BX - France Siret : 344 545 645 00022 - Tél. : 33 (0)1 30 57 55 55 - Fax : 33 (0)1 30 43 74 48 - E-mail : [email protected] - URL : www.emitech.fr S.A. au capital de 1 560 000 € - R.C.S. VERSAILLES 344 545 645 - APE 7112B RR051-14-104046-1-A Ed. 0 Certification test report According to the standard: CFR 47, FCC Part 15 Equipment under test: CARD MB1145 (EVAL-ST95HF) with new antenna FCC ID: YCPEVALST95HF Company: STMICROELECTRONICS GRAND OUEST SAS Distribution: Mr LECLUSE (Company: STMICROELECTRONICS GRAND OUEST SAS) Number of pages: 40 with 7 appendixes Technical Verification and Ed. Date Modified Written by Quality Approval pages Name Visa Name Visa 0 24-Sep-2014 Creation M. DUMESNIL O. ROY Duplication of this test report is only permitted for an integral photographic facsimile. It includes the number of pages referenced here above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the whole manufactured products of the tested sample. RR051-14-104046-1-A Ed. 0 Page 2 out of 40  DESIGNATION OF PRODUCT: CARD RFID Serial number (S/N): ST95HF-PROTO 003 (tag) ST95HF-PROTO 004 (reader) Reference / model (P/N): MB1145 with new antenna PCB : MB1145-B Software version: Not communicated MANUFACTURER: STMICROELECTRONICS GRAND OUEST SAS COMPANY SUBMITTING THE PRODUCT: Company: STMICROELECTRONICS GRAND OUEST SAS Address: 10 Rue de Jouannet E.PARK 35700 RENNES FRANCE Responsible: Mr LECLUSE Person(s) present(s) during the tests: Mr LECLUSE DATE(S) OF TEST: 27 and 28 August 2014 TESTING LOCATION: EMITECH ANGERS laboratory at JUIGNE SUR LOIRE (49) FRANCE EMITECH ANGERS open area test site in JUIGNE SUR LOIRE (49) FRANCE 21 rue de la Fuye 49610 Juigne sur Loire France FCC 2.948 Listed Site Registration Number: 90469 FCC Accredited under US-EU MRA Designation Number: FR0009 Test Firm Registration Number: 873677 TESTED BY: M. DUMESNIL RR051-14-104046-1-A Ed. 0 Page 3 out of 40  CONTENTS TITLE PAGE 1. INTRODUCTION _____________________________________________________________ 4 2. PRODUCT DESCRIPTION ______________________________________________________ 4 3. NORMATIVE REFERENCE _____________________________________________________ 5 4. TEST METHODOLOGY ________________________________________________________ 6 5. TEST EQUIPMENT CALIBRATION DATES _________________________________________ 7 6. TESTS RESULTS SUMMARY ___________________________________________________ 8 7. MEASUREMENT OF THE CONDUCTED DISTURBANCES _____________________________ 10 8. RADIATED EMISSION LIMITS __________________________________________________ 14 9. MEASUREMENT OF THE CONDUCTED DISTURBANCES _____________________________ 16 10. ADDITIONAL PROVISIONS TO THE GENERAL RADIATED EMISSION LIMITATIONS ________ 20 11. OPERATION WITHIN THE BAND 13.110 – 14.010 MHz _______________________________ 22 12. FIELD STRENGTH OUTSIDE THE BAND 13.110-14.010 MHZ __________________________ 24 APPENDIX 1: Photos of the equipment under test APPENDIX 2: Test set up APPENDIX 3: Test equipment list APPENDIX 4: 6 dB bandwidth APPENDIX 5: 20 dB bandwidth APPENDIX 6: Band edge APPENDIX 7: Spectrum mask RR051-14-104046-1-A Ed. 0 Page 4 out of 40  1. INTRODUCTION This report presents the results of radio test carried out on the following equipment: CARD MB 1145 (EVAL- ST95HF) with new antenna, in accordance with normative reference. 2. PRODUCT DESCRIPTION Class: B (Residential use) Utilization: RFID Card Antenna type and gain: loops antenna, unknown gain Operating frequency range: band from 13.110 MHz to to 14.010 MHz Number of channels: 1 Channel spacing: not concerned Frequency generation: Crystal Modulation: RFID type A Power source: 5Vdc by USB port of a computer powered in120 Vac – 60Hz (Computer HP Elitebook 8460p Serial number: RNSNB750 is used for tests) Power level, frequency range and channels characteristics are not user adjustable. The details pictures of the product and the circuit boards are joined with this file. RR051-14-104046-1-A Ed. 0 Page 5 out of 40  The Equipment Under Test is composed of two demoboards called EVAL-ST95HF (PCB reference MB1145) of the ST-Microelectronics ST95HF component (Near field communication transceiver). One is software configured as a “Card Reader” and the second one is software configured as a “Tag Emulator”. Test Setup: -Both boards are powered by a PC via USB cables (1m). -Distance between the two EVAL-ST95HF antennas is fixed at 2cm. -RF communication @13.56MHz is based on ISO/IEC 14443 Type A with a Baud rate at 106 kbit/s Firmware on the “Card Reader” EVAL-ST95HF is running in a loop and continuously checking if a NFC tag is present by sending REQA commands. Firmware of the “Tag Emulator” EVAL-ST95HF is answering of a REQA commande with the STX95HF’s ID. If the tag ID’s answer is well understood by the RF reader, the tag ID is displayed on the reader screen. On “Card Reader” EVAL-ST…
