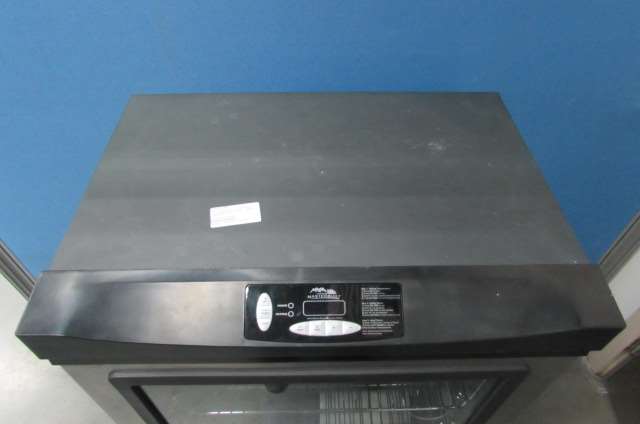

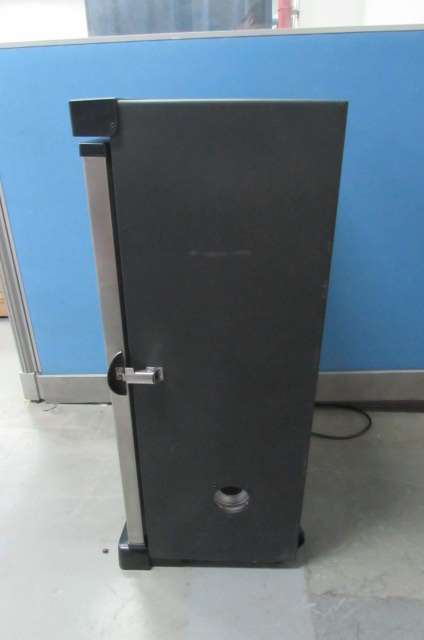

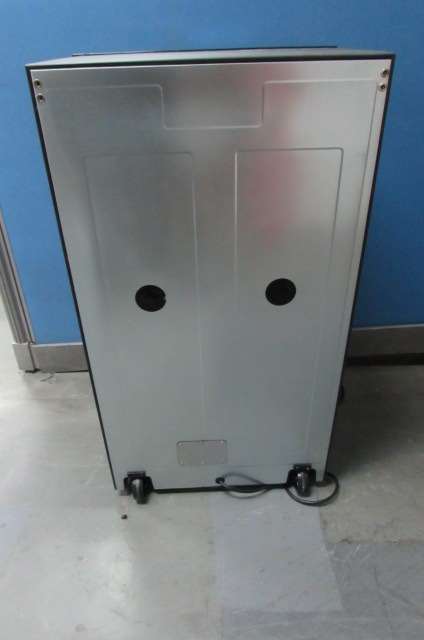

YHXESQ-3040C530 and 40 inch Electric Smoker with Bluetooth

Masterbuilt Manufacturing, Inc. 1 Masterbuilt Ct. Columbus, GA 31907 Servicio de atención al cliente 1-800-489-1581 www.masterbuilt.com www.masterbuilt.com BE A PART OF OUR “DADGUM GOOD” COMMUNITY ONLINE SEA PARTE DE NUESTRA COMUNIDAD EN LÍNEA “DADGUM GOOD” Manual Code:9807140036 020414-23GH 30” DIGITAL ELECTRIC SMOKER MODEL 20072115 Tools needed for assembly: Adjustable Wrench and Phillips Head Screwdriver Approximate assembly time : 25 minutes ASSEMBLY, CARE & USE MANUAL WARNING & SAFETY INFORMATION THIS PRODUCT IS FOR OUTDOOR USE ONLY 1 GENERAL WARNINGS AND SAFETY INFORMATION Failure to follow these warnings and instructions properly could result in personal injury or death. This manual contains important information necessary for the proper and safe use of this unit. Read and follow all warnings and instructions before using smoker and during use. Keep this manual for future reference. Some parts may have sharp edges handle with care. WARNING Burning wood chips gives off carbon monoxide, which has no odor and can cause death. DO NOT burn wood chips inside homes, vehicles, tents, garages or any enclosed areas. Use only outdoors where it is well ventilated. CARBON MONOXIDE HAZARD • Do not leave smoker unattended.• Do not cover cooking racks with metal foil. This will trap heat and cause severe damage to electric smoker.• Drip tray is only for the bottom of electric smoker. Do not put drip tray on cooking rack this may damage electric smoker.• Wood tray is HOT when electric smoker is in use. Use caution when adding wood.• To disconnect, turn control panel “OFF” then remove plug from outlet.• Unplug from outlet when not in use and before cleaning. Allow unit to cool completely before adding/removing grates, tray or water bowl.• Dispose of cold ashes by placing them in aluminum foil, soaking with water and discarding in a non-combustible container.• Do not store electric smoker with HOT ashes inside unit. Store only when all surfaces are cold.• Accessory attachments not supplied by Masterbuilt Manufacturing, Inc. are not recommended and may cause injury.• Never use electric smoker for anything other than its intended purpose. This unit is not for commercial use.• Always use electric smoker in accordance with all applicable local, state and federal fi re codes. • Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.• If a longer detachable power-supply cord or extension cord is used: 1. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance; and 2. The cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled by children or tripped over unintentionally.• The extension cord must be a grounding -type 3-wire cord.• Outdoor extension cords must be used with outdoor use products and are marked with suf fi x “W” and with the statement “Suitable for Use with Outdoor Appliances.”• CAUTION - To reduce the risk of electric shock, keep extension cord connection dry and off the ground.• Do not clean this product with a water sprayer or the like. • Do not use wood pellets. SAVE THESE INSTRUCTIONS 18 GARANTÍA LIMITADA Masterbuilt garantiza que sus productos no presentan defectos de fabricación, ni de material ni de la mano de obra, si se los ensambla correctamente, se los utiliza de forma normal y se los cuida según las recomendaciones, durante un período de 90 días a partir de la fecha de compra original.La garantía de Masterbuilt no cubre el acabado de la pintura ya que puede salirse durante el uso normal. La garantía de Masterbuilt no cubre la oxidación de la unidad. Masterbuilt exige el comprobante razonable de la compra para realizar reclamos de la garantía y sugiere que conserve su recibo. Después de la fecha de vencimiento de la garantía, fi nalizarán todas las responsabilidades.Durante el período de vigencia establecido de la garantía, Masterbuilt, a su criterio, reemplazará o reparará los componentes defectuosos sin costo alguno, debiendo hacerse responsable el propietario de los gastos de envío. Si Masterbuilt requiere la devolución del o los componentes en cuestión para su inspección, Mas-terbuilt será responsable de todos los cargos de envío para devolver el artículo solicitado.Esta garantía excluye los daños ocasionados a la propiedad por el mal uso, el uso excesivo, los accidentes, el transporte o el uso comercial de este producto.Esta garantía expresa es la única garantía entregada por Masterbuilt y reemplaza a todas las demás garantías, expresas o implícitas, incluidas las garantías implícitas de comercialización o idoneidad para cualquier fi n en particular. Ni Masterbuilt ni el establecimiento minorista que ofrece este producto tienen autoridad alguna para otorgar garantías adicionales o prometer otros recursos que sean inconsistentes con los establecidos previamente.La responsabilidad máxima de Masterbuilt, en todos los casos, no superará el precio de compra del produc-to que el cliente o comprador original pagó. Algunos estados no permiten la exclusión o limitación de daños accidentales o resultantes. En dicho caso, no se aplicarán las exclusiones o limitaciones anteriores.Sólo para residentes de California: A pesar de esta limitación de garantía, se aplican las siguientes restricciones especí fi cas; si el mantenimiento, la reparación o el reemplazo del producto no se puede re- alizar comercialmente, el establecimiento minorista que ofrece el producto o Masterbuilt devolverá el monto original de la compra del producto, menos el monto directamente atribuible al uso por parte del comprador original antes de informar su disconformidad. El propietario puede llevar el producto al establecimiento mi-norista que lo ofrece a fi n de obtener la ejecución de cualquier obligación en virtud de esta garantía. Esta garantía expresa le otorga derechos legales especí fi cos, y es posible que también tenga otr…

Text truncated - open the document above for the full version.

15 TROUBLESHOOTING GUIDE SYMPTOM Power light won’t come onUnit takes excessive amount of time to heat up (longer than 60-70 min) There is a gap between the door and the smoker when in use and door latch has no more adjustmentGrease is leaking out of smoker through door and legs No smokeTemperature rapidly decreased or shut down after few hours of useController displaying error message Power light is on, unit isn’t heating Controller does not adjust heatMeat probe temperature does not show on display CAUSE Not plugged into wallHouse fuse trippedController malfunctioningUnit plugged into an extension cordDoor not closed properlyController malfunctioningDoor alignmentDamaged door sealDrip pan not in placeExcess grease or oil build-up in unitDrain tube is not drainingNo wood chipsFaulty control unitController malfunctioningController/unit malfunctioningController/unit malfunctioningProbe malfunctioning POSSIBLE SOLUTION Check wall connectionMake sure other appliances are not operating on the same electrical circuit. Check household fuses.Contact Masterbuilt at 1.800.489.1581Set unit so an extension cord does not have to be usedClose door and fasten latch securelyContact Masterbuilt at 1.800.489.1581Contact Masterbuilt at 1.800.489.1581Reposition so hole lines up with drain hole in bottom of unitClean unitCheck drain tube Add wood chips (See Page 12)Contact Masterbuilt at 1.800.489.1581Contact Masterbuilt at 1.800.489.1581Contact Masterbuilt at 1.800.489.1581Contact Masterbuilt at 1.800.489.1581Contact Masterbuilt at 1.800.489.1581 4 LISTA DE PARTES 4 5 7 8 11 19 13 26 3 16 1 6 21 23 14 12 NO DE PARTE CANT DESCRIPCIÓN NO DE PARTE CANT DESCRIPCIÓN 1 1 Puerta del ahumador 14 2 Bisagra de la puerta 21 Cuerpo del ahumador 15 1 Elemento 3 1 Regulador de aire 16 1 Carcasa de trozos de made-ra 41 Panel de contro l 17 1 Panel lateral derecho 51 Asa posterior 18 1 Panel lateral izquierda 6 1 Asa de la puerta 19 1 Tazón de agua 7 1 Protector solar 20 2 Pata ajustable con tornillos 8 1 Seguro de la puerta 21 2 Patas frontales 9 2 Soportes de la rejilla 22 1 Bandeja de grasa 10 2 Soportes de la rejilla/tazón de agua 23 2 Abrazadera de la bandeja de grasa 11 4 Rejilla para ahumar 24 1 Cargador de trozos de madera 12 1 Sonda de carne 25 1 Bandeja de goteo 13 1 Bandeja de trozos de madera 26 2 Ruedas 24 25 22 17 20 2 9 10 18 15 ¡PARE! NO DEVUELVA AL ESTABLECIMIENTO MINORISTA para solicitar asistencia en el montaje de la unidad, o para reclamar partes faltantes o dañadas. Llame al: Departamento de Servicio al Cliente de MASTERBUILT al: 1-800-489-1581 Tenga a la mano los números de modelo y serie cuando llame. Estos números se ubican en la etiqueta plateada en la parte posterior de la unidad. 3 ¡EMPECEMOS! ADVERTENCIA Propuesta 65 de California 1. Los subproductos combustibles producidos a raíz de la utilización de este producto con- tienen químicos cuyos efectos son reconocidos por el Estado de California por causar cáncer, defectos de nacimiento y otros daños reproductivos. 2. Este producto contiene químicos, entre los cuales se incluye plomo y compuestos de plomo, cuyos efectos son reconocidos por el Estado de California por causar cáncer, defectos de nacimiento u otros daños reproductivos. Lávese las manos después de manipular este producto. • Este es un ahumador lento... permita que haya su fi ciente tiempo para la cocción. El ahumador SOLO DEBE USARSE EN EXTERIORES.• “Sazone previamente” el ahumador antes de su primer uso. Consulte la página 12.• Precaliente el ahumador por 30 a 45 minutos en la máxima temperatura antes de cargar los alimentos.• NO cubra las rejillas con papel de aluminio, ya que esto no permitirá que el calor circule correctamente. • No sobrecargue el ahumador con alimentos. Las cantidades extra grandes de alimento pueden capturar el calor, extender el tiempo de cocción y causar una cocción desigual. Deje espacio entre los alimentos en la rejilla y los lados del ahumador para asegurar una correcta circulación del calor.Si utiliza bandejas de cocción, coloque las bandejas en la parte central de la rejilla para asegurar una cocción uniforme. Consulte el manual para mayores detalles.• Cierre el regulador de aire de la unidad para retener la humedad y el calor. Si cocina alimentos como pescado o carne seca, abra el regulador de aire para liberar la humedad.• La lectura de temperatura en el panel de control va a fl uctuar + o - 15 grados a medida que se encienden y apagan los ciclos del ahumador. • Almacene el ahumador en un área seca después de su uso.• Las temperaturas extremadamente frías pueden extender los tiempos de cocción.• LIMPIE DESPUÉS DE CADA USO. Esto extenderá la vida de su ahumador y evitará la formación de moho y hongos. ¡DISFRUTE! • Maximum temperature setting is 275°F (135°C).• Do NOT move unit across uneven surfaces.• Rear handle is NOT for lifting.• Wood chip loader and wood chip tray MUST be in place when using smoker. This minimizes the chance of wood fl are ups. • Wood chips must be used in order to produce smoke and create the smoke fl avor. • Check grease tray often during cooking. Empty grease tray before it gets full. Grease tray may need to be emptied periodically during cooking. • Do not open smoker door unless necessary. Opening smoker door causes heat to escape and may cause wood to fl are up. Closing the door will re-stabilize the temperature and stop fl are up. • Do not leave old wood ashes in the wood chip tray. Once ashes are cold, empty tray. Tray should be cleaned out prior to, and after each use to prevent ash buildup. • Glass in door is tempered and will not break under normal operation.• This is a smoker. There will be a lot of smoke produced when using wood chips. Smoke will escape through seams and turn the inside of smoker black. This is normal. To minimize smoke loss around door, door latch can be adjusted to further tighten door seal against body. 16 IMPORTANT FACTS ABOUT USING SMOKER For grate supports, smoking racks, water bowl and drip pan use…

Text truncated - open the document above for the full version.

Masterbuilt Manufacturing, Inc. Authority to Act as Agent Date: May 13, 2014 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______ Intertek Testing Services Shenzhen Ltd.Guangzhou Branch ______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 12 months By: Darryl Kraft (Signature) (Print name) Title: Senior Quality Engineer On behalf of: Masterbuilt Manufacturing, Inc. (Company Name) Telephone: 706 256 3931

Masterbuilt Manufacturing, Inc. Request for Confidentiality Date: ___May 13，2014_____ Subject: Confidentiality Request for: _____YHXESQ-3040C5____ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ____ Masterbuilt Manufacturing, Inc._____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Darryl Kraft Senior Quality Engineer 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details.

1 Masterbuilt Court · Columbus, Georgia 31907 · www.masterbuilt.com 1.800.489.1581 · 706.327.5622 · Fax 706.327.5632 FCC ID Label FCC ID: YHXESQ-3040C5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 25MM 100MM

RF Exposure: The Max Conducted Peak Output Power is -3.04dBm in Lowest channel(2.402GHz); The best case gain of the antenna is 0.71dBi. EIRP=-3.04dBm + 0.71dBi = -2.33dBm. -2.33dBm logarithmic terms convert to numeric result is nearly 0.5848mW According to the formula, calculate the EIRP test result: [(max.power of channel, including tune-up tolerance, mW)/(min.test separation distance, mm)] [√f(GHz)] General RF Exposure = (0.5848mW/5mm) x √2.402GHz = 0.1813 ① SAR requirement: S = 3.0 ② ① < ② So the SAR report is not required.

Report No.: 140424004GZU-001 Issued: 28 July 2014 FCC ID: YHXESQ-3040C5 Page 2 of 41 CONTENT TEST REPORT ........................................................................................................................................................... 1 CONTENT ................................................................................................................................................................... 2 1.0 Summary of Test ............................................................................................................................................ 3 2.0 General Description ....................................................................................................................................... 4 2.1 Product Description ........................................................................................................................ 4 2.2 Related Submittal(s) Grants ............................................................................................................ 5 2.3 Test Methodology ........................................................................................................................... 5 2.4 Test Facility .................................................................................................................................... 5 3.0 System Test Configuration ............................................................................................................................. 6 3.1 Justification .................................................................................................................................... 6 3.2 EUT Exercising Software ............................................................................................................... 6 3.3 Special Accessories ......................................................................................................................... 7 3.4 Measurement Uncertainty ............................................................................................................... 7 3.5 Equipment Modification ................................................................................................................. 7 3.6 Support Equipment List and Description ........................................................................................ 7 4.0 Measurement Results ..................................................................................................................................... 8 4.1 Antenna Requirement: .................................................................................................................... 8 4.2 6 dB Bandwidth: ............................................................................................................................. 9 4.3 Maximum Peak Conducted Output Power .................................................................................... 12 4.4 Peak Power Spectral Density ........................................................................................................ 16 4.5 Out of Band Conducted Emissions ............................................................................................... 20 4.6 Out of Band Radiated Emissions .................................................................................................. 26 4.7 Radiated Emissions in Restricted Bands....................................................................................... 27 4.8 Band Edges Requirement ............................................................................................................. 37 4.9 Conducted Emission Test ............................................................................................................. 39 10.0 Test Equipment List ..................................................................................................................................... 41 Report No.: 140424004GZU-001 Issued: 28 July 2014 FCC ID: YHXESQ-3040C5 Page 3 of 41 1.0 Summary of Test TEST TEST REQUIREMENT TEST METHOD RESULT Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PASS 6 dB Bandwidth FCC PART 15 C section 15.247 (a)(2) ANSI C63.10 Clause 6.9.1 PASS Maximum Peak Conducted Output Power FCC PART 15 C section 15.247(b)(3) ANSI C63.10 Clause 6.10.2.1 PASS Peak Power Spectral Density FCC PART 15 C section 15.247(e) ANSI C63.10 Clause 6.11.2.3 PASS Out of Band Conducted Emissions FCC PART 15 C section 15.209 &15.247(d) ANSI C63.10 Clause 6.7 PASS Out of Band Radiated Emission FCC PART 15 C section 15.209 &15.247(d) ANSI C63.10 Clause 6.4, 6.5 and 6.6 PASS Radiated Emissions in Restricted Bands FCC PART 15 C section 15.209 &15.247(d) ANSI C63.10 Clause 6.4, 6.5 and 6.6 PASS Band Edges Measurement FCC PART 15 C section 15.247 (d) &15.205 ANSI C63.10 Clause 6.9.2 PASS Conducted Emissions at Mains Terminals FCC PART 15 C section 15.207 ANSI C63.10 Clause 6.2 PASS Remark: N/A: not applicable. Refer to the relative section for the details. EUT: In this whole report EUT means Equipment Under Test. Tx: In this whole report Tx (or tx) means Transmitter. Rx: In this whole report Rx (or rx) means Receiver. RF: In this whole report RF means Radio Frequency. ANSI C63.10: the detail version is ANSI C63.10:2009 in the whole report. Model difference: The electronic parts are the same for all models, the differences lie in the packages, outlook and size of the smoker, select 20070115 to perform all the tests. Report No.: 140424004GZU-001 Issued: 28 July 2014 FCC ID: YHXESQ-3040C5 Page 4 of 41 2.0 General Description 2.1 Product Description Operating Frequency 2402 MHz to 2480 MHz Type of Modulation: GFSK Number of Channels 40 Channels Channel Separation: 2 MHz Antenna Type Integral Antenna gain: 0.71 dBi Speciality: Bluetooth 4.0 with BLE (Bluetooth Low Energy) Function: Smoker with BT function to be controlled by a phone with app. Power cord:…

Text truncated - open the document above for the full version.
