YHXESQ-3040R330" Black Electric Smoker, 40" Black Electric Smoker

Masterbuilt Manufacturing, Inc. 1 Masterbuilt Ct. Columbus, GA 31907 Customer Service 1-800-489-1581 www.masterbuilt.com Manual Code: 9807100002 100810-04JH Tool needed for assembly: Phillips Head Screwdriver Approximate assembly time : 15 minutes CARBON MONOXIDE HAZARD WARNING Burning wood chips gives off carbon monoxide, which has no odor and can cause death. DO NOT burn wood chips inside homes, vehicles, tents, garages or any enclosed areas. Use only outdoors where it is well ventilated. This manual contains important information necessary for the proper and safe use of this unit. Read and follow all warnings and instructions before using smoker and during use. Keep this manual for future reference. Some parts may have sharp edges handle with care. Failure to follow these warnings and instructions properly could result in personal injury or death. ASSEMBLY, CARE & USE MANUAL WARNING & SAFETY INFORMATION ELECTRIC SMOKER MODELS 20070211, 20070311, 20070411 THIS PRODUCT IS FOR OUTDOOR USE ONLY 1 GENERAL WARNINGS AND SAFETY INFORMATION READ ALL INSTRUCTIONS When using electrical appliances, basic safety precautions should always be followed including the following: • For outdoor use only. Do not operate in an enclosed area. • Unit MUST be on the ground. Do not place unit on tables or counters. Do NOT move unit across uneven surfaces. • Do not lift unit by rear handle. • Do not plug in electric smoker until fully assembled and ready for use. • Use only approved grounded electrical outlet. • Do not use during an electrical storm. • Do not expose electric smoker to rain or water at anytime. • To protect against electrical shock do not immerse cord, plug or control panel in water or other liquid. • Do not operate any appliance with a damaged cord or plug, or after appliance malfunctions or has been damaged in any manner. Contact Masterbuilt Customer Service for assistance at 1-800-489-1581. • Keep a fi re extinguisher accessible at all times while operating electric smoker. • Do not let cord hang touch hot surfaces. • Do not place on or near a hot gas or electric burner, or in a heated oven. • Keep children and pets away from electric smoker at all times. Do not allow children to use electric smoker. Close supervision is necessary should children or pets be in area where electric smoker is being used. • Fuel, such as charcoal briquettes or heat pellets, are not to be used in electric smoker. • Never use electric smoker as a heater (READ CARBON MONOXIDE HAZARD). • Use electric smoker only on a level, stable surface to prevent tipping. • Electric smoker is HOT while in use and will remain HOT for a period of time afterwards. Use caution. • Do not touch HOT surfaces. • Do not allow anyone to conduct activities around electric smoker during or following its use until the unit has cooled. Electric smoker is HOT during operation and remains HOT for a period of time following use. • The use of alcohol, prescription or non-prescription drugs may impair the user’s ability to properly assemble or safely operate electric smoker. WARNINGS & IMPORTANT SAFEGUARDS CONTINUED ON PAGE 2 18 LIMITED WARRANTY Masterbuilt warrants its products to be free from defects in material and workmanship under proper assembly, normal use and recommended care for 90 days from the date of original retail purchase. Masterbuilt warranty does not cover paint fi nish as it may burn off during normal use. Masterbuilt warranty does not cover rust of the unit.Masterbuilt requires reasonable proof of purchase for warranty claims and suggests that you keep your receipt. Upon the expiration of such warranty, all such liability shall terminate.Within the stated warranty period, Masterbuilt, at its discretion, shall repair or replace defective components free of charge with owner being responsible for shipping. Should Masterbuilt require return of component(s) in question for inspection Masterbuilt will be responsible for shipping charges to return requested item.This warranty excludes property damage sustained due to misuse, abuse, accident, damage arising out of transportation, or damage incurred by commercial use of this product.This expressed warranty is the sole warranty given by Masterbuilt and is in lieu of all other warranties, expressed or implied including implied warranty, merchantability, or fi tness for a particular purpose. Neither Masterbuilt nor the retail establishment selling this product, has authority to make any warranties or to promise remedies in addition to or inconsistent with those stated above. Masterbuilt’s maximum liability, in any event, shall not exceed the purchase price of the product paid by the original consumer/ purchaser. Some states do not allow the exclusion or limitation of incidental or consequential damages. In such a case, the above limitations or exclusions may not be applicable.California residents only: Not withstanding this limitation of warranty, the following speci fi c restrictions apply; if service, repair, or replacement of the product is not commercially practical, the retailer selling the product or Masterbuilt will refund the purchase price paid for the product, less the amount directlyattributable to use by the original buyer prior to the discovery of the nonconformity. Owner may take the product to the retail establishment selling this product in order to obtain performance under warranty.This expressed warranty gives you speci fi c legal rights, and you may also have other rights which vary from state to state. Go Online www.masterbuilt.com or complete and return to Attn: Warranty Registration Masterbuilt Mfg. Inc. 1 Masterbuilt Court - Columbus, GA 31907 Name: _________________________________Address :__________________________City:_______________State/Province: ________ Postal Code: ________________Phone Number: (_____) - ____________E-mail Address:_______________________________________Model Number: ____________________ Serial Number: ____________________ Purchase Date: _____- …

Text truncated - open the document above for the full version.

HT49RA1 MCU 4MHz 2.44GHz Remote control PCB MD7105 RF module Fc 32.768KHz Oscillator circuit reset circuit button memory circuit display circuit LCD19 Fs 4MHz oscillator circuit RF IC A7105

2.44GHz Y1 16MHz oscillator DC power A7105PKG

1 Masterbuilt Court · Columbus, Georgia 31907 · www.masterbuilt.com 1.800.489.1581 · 706.327.5622 · Fax 706.327.5632 Letter of Agency I appoint Intertek Testing Services NA Inc. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under the FCC rules until further notice. I further certify that no party (as defined in 1.2002 of CFR 47, 1995) to this application, including myself, is subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853A. Equipment: ___30” Black Electric Smoker, 40” Black Electric Smoker ________ Dated this _8 th _day of_ Nov.__, 2011__. __________________________ Signature ____Darryl Kraft_ ______________________ Name ____Senior Quality Engineer _______ ____ Title ___ Masterbuilt Manufacturing, Inc._ __ Company ____706.256.3931_____________________ Telephone

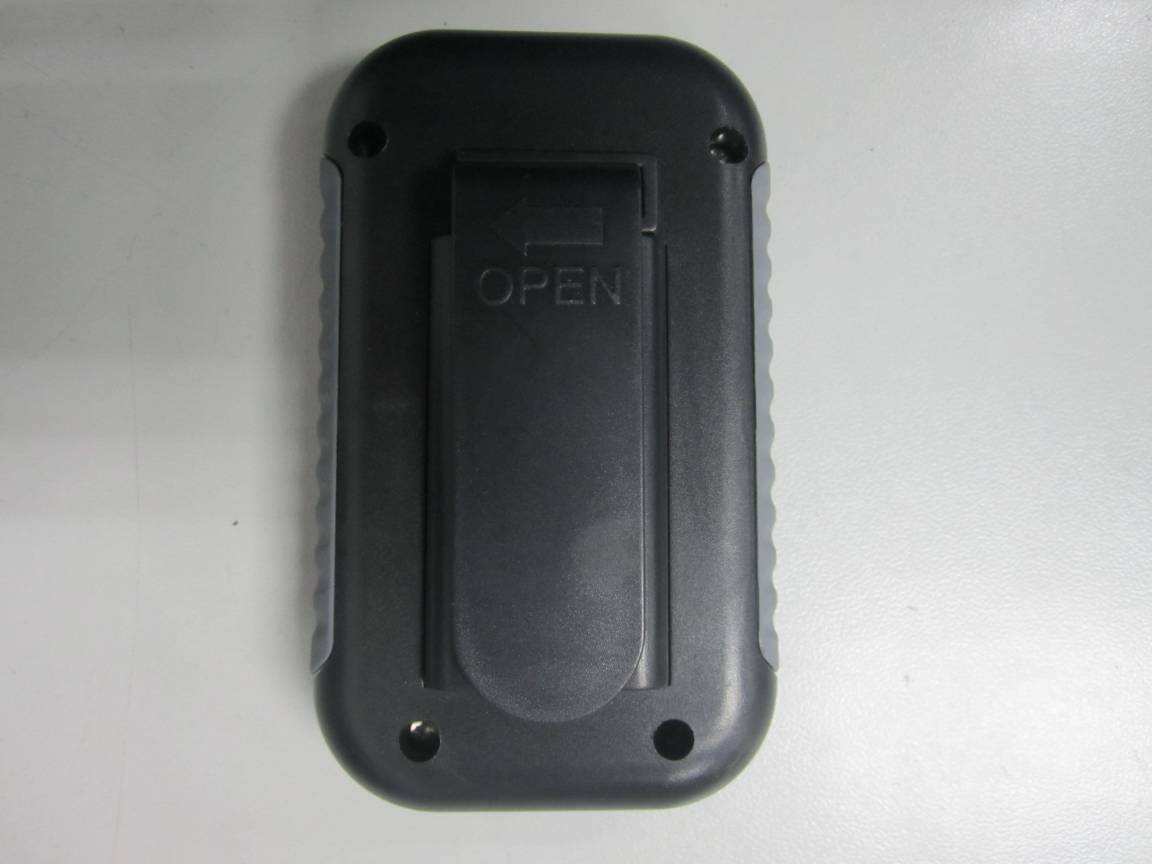

External photos

1 Masterbuilt Court · Columbus, Georgia 31907 · www.masterbuilt.com 1.800.489.1581 · 706.327.5622 · Fax 706.327.5632 FCC ID Label FCC ID: YHXESQ-3040R3 30MM 5MM

Internal photo

Remote controller Technical Description Description Function Component MCU 信号处理，功能控制 signal processing, function controls IC1 HT49RA1 Fs震荡电路 Fs oscillator circuit 产生4MHz频率时钟信号 Generate 4MHz clock signal frequency C5 ,R1 Fc震荡电路 Fc oscillator circuit 产生32.768kHz频率时钟信号 Generate 32.768kHz clock signal frequency YI，C3，C4 震荡电路（射频模块 上） oscillator circuit 产生16MHz频率时钟信号 Generate 16MHz clock signal frequency Y1(on RF module), C14,C15 2.44G射频模块 2.44G RF module 依据单片机指令发送无线信号，将接收到的无线 数据传回 MCU处理 send out RF signal based on the command of singlechip, transmit the RF data to MCU MD7105 射频模块上的IC IC on RF module 处理接收与发送无线数据 Receiving and sending RF data U1 A7105PKG 显示电路 display circuit 显示时间、温度及工作状态 show the status of time 、temperature and operation LCD19 按键 button 执行相应功能 perform relevant function S1-S7 Type of modulation: GFSK modulation. The EUT Antenna Type: internal integrated antenna.

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA TOLERANCE ANGLE 300-1000 100-300 30-100 10-30 -10 SCALE 0.1 0.2 0.30.5 0.8 1 GRADE 0.20.3 0.50.81.0 2 0.3 0.5 0.71.2 2.5 5 A B C mm mm mm Form No.07-151-B DONLIM WEILI ELECTRICAL APPLIANCES CO., LTD TITLE:DWG.NO:MATERIAL CODE:MODEL: MAT'L: PHASE MARKING S AB UNIT SCALE WEIGHT mm 1:1 SHEET 1 OF 1FIRSTANGLEPROGECTION MARK QTY SUBAREA REVISED DOCNO SIGN DATE PRBPARED/DATE CHECKEN/ DATEREVIEWED /DATE CRAFT/DATE STANDARD/ DATE APPROVED/DATE Circuit diagram DOC.NO: PA0 48 RES 47 OSC1 46 VDD 45 OSC3 44 OSC4 43 SEG0 42 SEG1 41 SEG2 40 SEG3 39 SEG4 38 SEG5 37 SEG6 36 SEG7 35 SEG8 34 SEG9 33 SEG10 32 SEG11 31 VLCD 14 PB7 13 PB6 12 PC0/REM 11 VSS 10 PB5 9 PB4 8 PB2/TMR 6 PB3 7 PA5 1 PB1/INT1 5 PB0/INT0 4 PA7 3 PA6 2 V1 15 V2 16 C1 17 C2 18 COM0 19 COM1 20 COM3/SEG20 22 COM2 21 SEG19 23 SEG18 24 SEG17 25 SEG16 26 SEG15 27 SEG14 28 SEG13 29 SEG12 30 PA4 52 PA3 51 PA2 50 PA1 49 IC HT49RA1 BT1 DC3V SEG3SEG4SEG5SEG6SEG7SEG8SEG9SEG10SEG11SEG12SEG13SEG14 SEG0 SEG1 SEG2 Y1 32.768KHz C322PFC422PF VCC COM0 COM1 COM2 COM3 R2100K C6104 R112K C5470PF C7 104 C9 104 C8 104 VCC C2104 C1 10UF/25V VCC COM1 16 COM2 17 COM3 18 COM4 19 SEG1 1 SEG2 2 SEG3 3 SEG4 4 SEG5 5 SEG6 6 SEG7 7 SEG8 8 SEG9 9 SEG10 10 SEG11 11 SEG12 12 SEG13 13 SEG14 14 SEG15 15 LCD SEG0SEG1SEG2SEG3SEG4SEG5SEG6SEG7SEG8SEG9SEG10SEG11SEG12SEG13SEG14COM0COM1COM2COM3 VCC GIO2GIO1CKOSDIOSCKSCSX_CLK S7 KEY7 S6 KEY6 S5 KEY5 S4 KEY4 S3 KEY3 S2 KEY2 S1 KEY1 SCS SCK SDIO GIO1 GIO2 R34.7k R44.7K R64.7K R54.7K SCS SCK GIO1 GIO2 R74.7K SDIO +5V C10 NC 3 VSS 2 SDA 4 SCL 1 VCC 5 IC2HT2201 VCC SDA R94.7K R84.7K SCL SCL SDA ES40-REMOTE-112359ESQ406001 ES30/40 SCL SDA 2.44GHz RF Module

1 2 3 4 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 21-Feb-2012 Sheet of File: D:\P99 DDB\7105-S03.ddb Drawn By: C9680pF R2200 C1310nF C1533pF SCSSCKSDIO C7 120pF C1433pF VDD_D C42.2uF C10 22pF L24.7nH L31.2nH C6 10pF GIO2 GIO1 VIN REGOA C8 1.5nF C12 100pF C310pF VDA2 C50.1uF REGOA REGOA RSSI BPBG C12.2uF ZM7105-S03 VDPLL RSSI 1 BPBG 2 RFI 3 RFO 4 VDA2 5 VT 6 GND 7 XI 8 XO 9 VDA3 10 SCS 11 SCK 12 DVDD 13 SDIO 14 GND 15 CKO 18 GIO2 17 GIO1 16 REGI 19 VDA1 20 A7105PKG U1 A7105PKG V01 C22.2uF C161pF 1 2 Y116MHZ ANT C181pFL43.1nH 2012.02.21 C17 NC SCSSCKSDIO GIO1GIO2GNDVIN 12345 J1CON/5P 2.0 123456 J2CON/6P 2.0 GNDGND

Report No: GZ11100388-2 FCC ID: YHXESQ-3040R3 Page 2 of 16 CONTENT TEST REPORT......................................................................................................................................... 1 CONTENT................................................................................................................................................. 2 1. General Description ...................................................................................................................... 3 1.1 Product Description......................................................................................................... 3 1.2 Related Submittal (s) / Grants....................................................................................... 3 1.3 Test Methodology............................................................................................................ 3 1.4 Test Facility....................................................................................................................... 3 1.5 Measurement Uncertainty.............................................................................................. 4 2. System Test Configuration ........................................................................................................... 5 2.1 Justification....................................................................................................................... 5 2.2 EUT Exercising Software................................................................................................ 5 2.3 Special Accessories........................................................................................................ 5 2.4 Equipment Modification.................................................................................................. 5 2.5 Support Equipment List and Description...................................................................... 5 3. Summary of Test Results .............................................................................................................. 6 3.1 Antenna Requirement..................................................................................................... 6 3.2 Conducted Emission....................................................................................................... 6 3.3 Radiated Emission........................................................................................................... 7 3.4 Bandedges Measurement............................................................................................ 11 4. Appendix III - Document List..................................................................................................... 16 Report No: GZ11100388-2 FCC ID: YHXESQ-3040R3 Page 3 of 16 1. General Description 1.1 Product Description The equipment under test (EUT) is a transceiver for remote control of Black Electric Smoker at 2.440GHz. The EUT is powered by 2*1.5V/AAA battery. It send the command of temperature & time settings & lighting to the Electric Smoker, and it sends a signal to Electric Smoker to request “meat probe” temperature and receives temperature information (probe) from Electric Smoker. Antenna Type: internal integrated antenna. The remote controllers of the model: 20070312, 20072112, 20072212, 20072312, 20072412, 20072912 20070512, 20072512, 20072612, 20072712, 20072812, 20073012 are the same as the test model 20070312 in hardware and software aspect. The only differences are the appearance, and model number for trading purpose. We tested the remote controllers, model: 20070312, to determine if it was in compliance with the relevant FCC standards. We found that the unit met the requirements of FCC part 15.249 when tested as received. The worst case’s test data was presented in this test report. 1.2 Related Submittal (s) / Grants The FCC ID of corresponding transceiver for this transceiver is YHXESQ-3040C3. 1.3 Test Methodology Radiated emission measurements were performed according to the procedures in ANSI C63.4 (2003). Radiated emission measurement was performed in semi-anechoic chamber room. For radiated emission measurement, preliminary scans were performed in the semi-anechoic chamber only to determine the worst case modes. All radiated tests were performed at an antenna to EUT distance of 3 meters, unless stated otherwise in the "Justification Section" of this Application. 1.4 Test Facility The Radiated Emission test is performed at: Compliance Certification Services (Shenzhen) Inc. located at No.10-1Mingkeda Logistics Park, No.18Huanguan South RD. Guanlan Town, Baoan District Shenzhen China. This test facility and site measurement data have been fully placed on file with the FCC, test firm registration number is 441872. Report No: GZ11100388-2 FCC ID: YHXESQ-3040R3 Page 4 of 16 Test Equipment List : Serial No. Equipment Manufacturer Model No. Cal. Date Due Date D286 Horn Antenna SCHWARZBECK BBHA9120D 19-Mar-11 19-Mar-12 US4430039 9 PSA Series Spectrum Analyzer Agilent E4446A 19-Mar-11 19-Mar-12 5082 Bilog Antenna SCHAFFNER CBL6143 03-Jun-11 03-Jun-12 1411843 Amplifier MITEQ AM-1604- 3000 18-Mar-11 18-Mar-12 Test setup figure Test setup figure 1.5 Measurement Uncertainty Radiated Emission: 3.79dB in the frequency range of 30MHz-200MHz, 3.62dB in the frequency range of 200MHz-1000MHz, 5.04dB in the frequency above 1GHz at a level of confidence of 95%. When determining the test conclusion, the Measurement Uncertainty of test has been considered. Or BiConiLog Antenna for test below 1GHz Report No: GZ11100388-2 FCC ID: YHXESQ-3040R3 Page 5 of 16 2. System Test Configuration 2.1 Justification The system was configured for testing in a typical fashion (as a customer would normally use it), and in the confines as outlined in ANSI C63.4 (2003). The EUT was powered by 2*1.5V/AAA battery in the testing. Type of modulation: GFSK modulation, and only the worst data was reported in this report. The unit was operated standalone and…

Text truncated - open the document above for the full version.

Average Factor calculate: The duration of one cycle = 3.967 ms Effective period of the cycle = 0.95 ms DC = 0.95 ms/3.967 ms = 0.2395 or 23.95 % Therefore, the averaging factor is found by 20log 10 0.2395 = - 12.4 dB

20dB bandwidth: 1.209 MHz , it’s within the frequency band designated: 2400 ~ 2483.5MHz

Radiated Emissions
