YJ709472-81532.4GHz Wireless Inspection Camera

DCT410, DCT411, DCT41212V Max* Cordless Inspection CameraCaméra de surveillance sans fil 12 V max*Cámara inalámbrica de inspección 12 V Máx* INSTRUCTION MANUALGUIDE D'UTILISATIONMANUAL DE INSTRUCCIONES INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO. If you have questions or comments, contact us. Pour toute question ou tout commentaire, nous contacter. Si tiene dudas o comentarios, contáctenos. 1-800-4-D E WALT • www.dewalt.com This device complies with part 15 of the FCC rules. Operation is subject to the followingtwo conditions:(1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference thatmay cause undesired operation.Changes or modifications to this unit not expressly approved by the party responsible forcompliance could void the user’s authority to operate the equipment.This device complies with Industry Canada licence-exempt RSS standard(s). Operation issubject to the following two conditions:(1) this device may not cause interference, and(2) this device must accept any interference, including interference that may causeundesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareilsradio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si lebrouillage est susceptible d'en compromettre le fonctionnement. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help. 1 English SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE Work Area Safety a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Keep children and bystanders away while operating an inspection camera. Distractions can cause you to lose control. Personal Safety a) Stay alert, watch what you are doing and use common sense when operating an inspection camera. Do not use an inspection camera while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating the inspection camera may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Do not overreach. Keep proper footing and balance at all times. This enables better control of the inspection camera in unexpected situations. d) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. Use and Care a) Store an idle inspection camera out of the reach of children and do not allow persons unfamiliar with the inspection camera or these instructions to operate the Definitions: Safety Guidelines The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols. DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury . WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury . CAUTION : Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury . NOTICE: indicates a practice not related to personal injury which, if not avoided, may result in property damage . IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY D E WALT TOOL, CALL US TOLL FREE AT: 1-800-4-D E WALT (1-800-433-9258) . WARNING: To reduce the risk of injury, read the instruction manual. Important Safety Instructions• Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Only use attachments/accessories specified by the manufacturer. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 2 English inspection camera. Inspection cameras are dangerous in the hands of untrained users. b) Use the inspection camera, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the inspection camera for operations different from those intended could result in a hazardous situation. Battery Tool Use and Care a) Recharge only with the charger specified by D E WA LT. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects…

Text truncated - open the document above for the full version.

Stanley Black & Decker 701 East Joppa Road Towson Maryland 21286 United States TEL: (410)716-3563 Jan.13,2016 Federal Communication Commission Authorization and Evaluation Division FCC ID: YJ709472-8153 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Stanley Black & Decker Contact person: Kirwan Magdamo Title: Manager

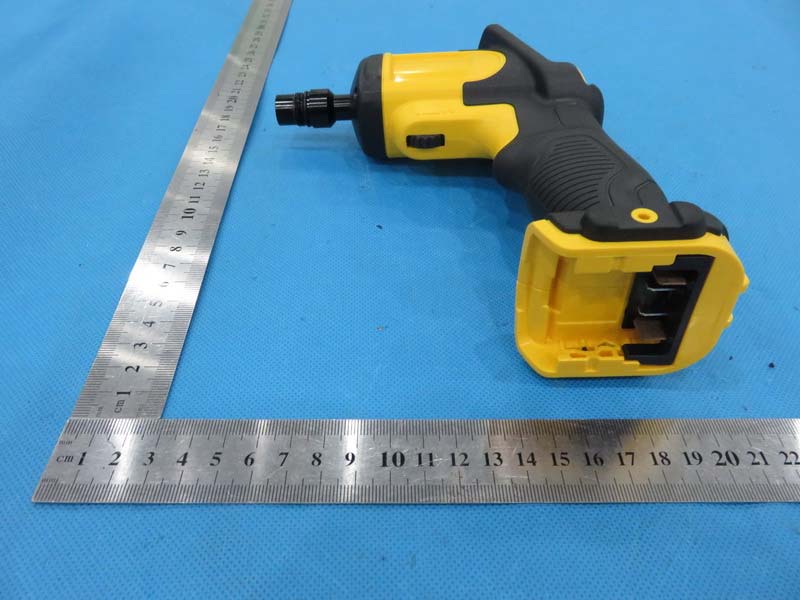

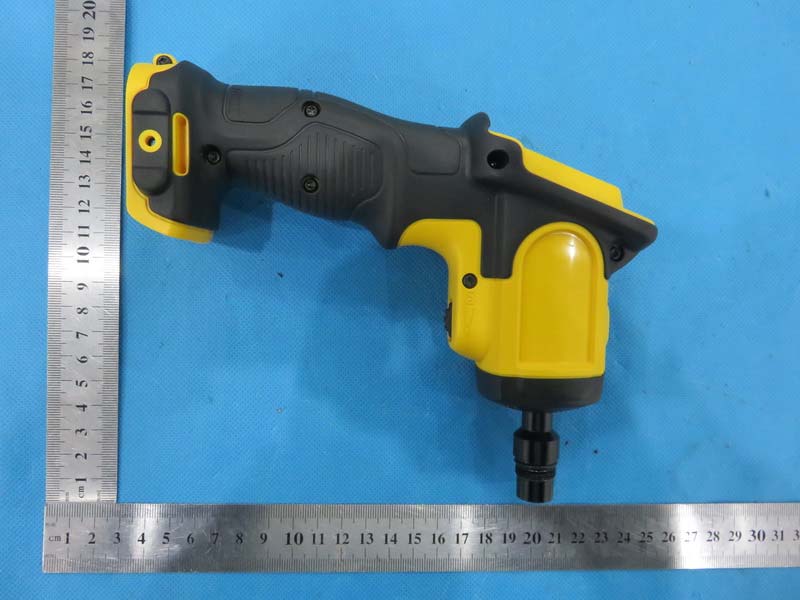

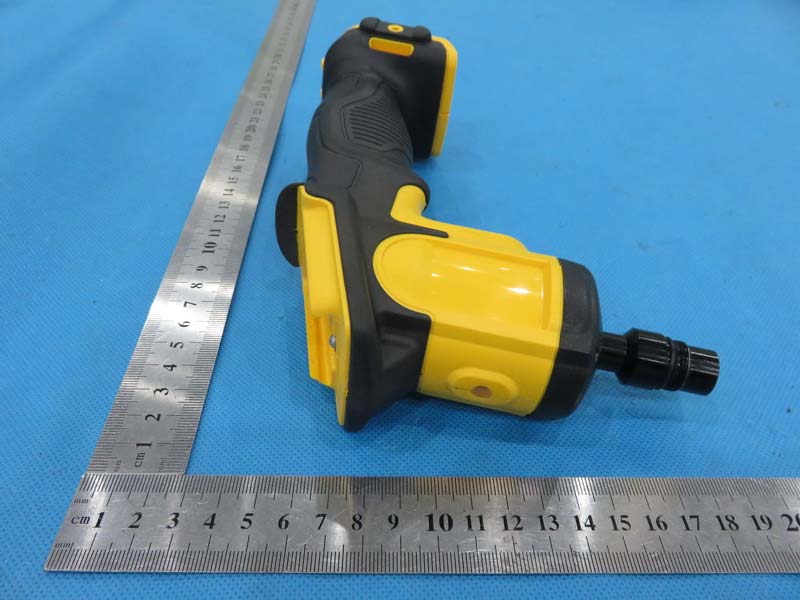

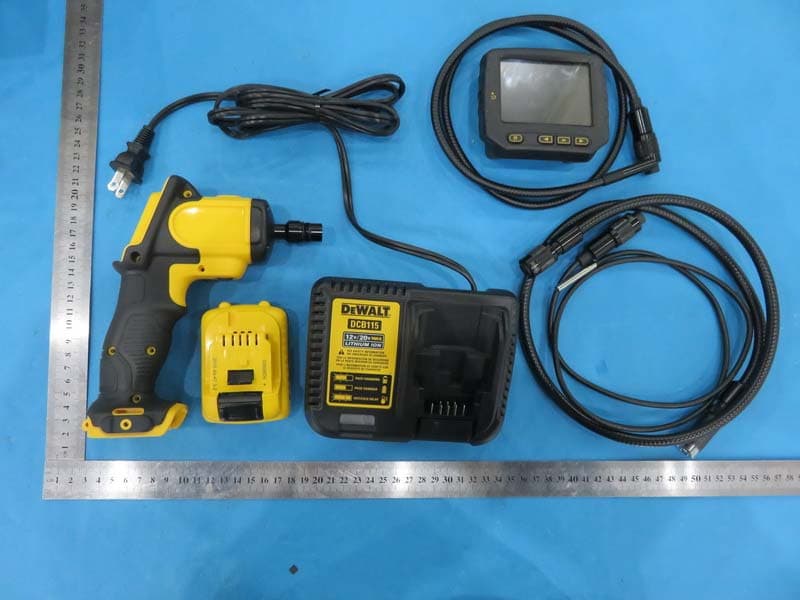

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID/IC Label Location 2.4GHz Wireless Inspection Camera Model: DCT410 Brand: DeWalt FCC ID: DCT411,DCT412 YJ709472-8153 IC:9082A-094728153

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Antenna

Page 1 of 28 FCC Test Report Report No.: AGC02009151208FE03 FCC ID : YJ709472-8153 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : 2.4GHz Wireless Inspection Camera BRAND NAME : DeWalt MODEL NAME : DCT410, DCT411, DCT412 CLIENT : Stanley Black & Decker DATE OF ISSUE : Jan.06, 2016 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC02009151208FE03 Page 2 of 28 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jan.06, 2016 Valid Original Report Report No.: AGC02009151208FE03 Page 3 of 28 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 7 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 7 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 7 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 7 6. TEST FACILITY .................................................................................................................... 8 7. RADIATED EMISSION ......................................................................................................... 9 7.1TEST LIMIT ..................................................................................................................................... 9 7.2. MEASUREMENT PROCEDURE ................................................................................................ 10 7.3. TEST SETUP .............................................................................................................................. 12 7.4. TEST RESULT ............................................................................................................................ 13 8. BAND EDGE EMISSION .................................................................................................... 16 8.1. MEASUREMENT PROCEDURE ................................................................................................ 16 8.2 TEST SETUP ............................................................................................................................... 16 8.3 RADIATED TEST RESULT .......................................................................................................... 16 9. 20DB BANDWIDTH ............................................................................................................ 21 9.1. MEASUREMENT PROCEDURE ................................................................................................ 21 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 21 9.3. MEASUREMENT RESULTS ....................................................................................................... 21 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 23 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 24 Report No.: AGC02009151208FE03 Page 4 of 28 1. VERIFICATION OF CONFORMITY Applicant Stanley Black & Decker Address 701 E. Joppa Road, Towson, MD-21286 USA. Manufacturer ShenZhen Gospell Smarthome Electronic Co., Ltd. Address East of 01st-04st Floor, Block A, No.1 Industrial park, Fenghuanggang, South of No.1 Baotian Road, Xixiang street, Bao’an District, Shenzhen City, Guangdong Province 518126, P.R.China Product Designation 2.4GHz Wireless Inspection Camera Brand Name DeWalt Test Model DCT410 Series Model DCT411, DCT412 Model Difference All the same except for the model name and color. Date of test Dec.27, 2015 to Jan.05, 2016 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Dongguan Precise Testing Service Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Tested by Max Zhang(Zhang Yi) Jan.06, 2016 Reviewed by Rock Huang(Huang Dinglue) Jan.06, 2016 Approved by Solger Zhang(Zhang Hongyi) Authorized Officer Jan.06, 2016 Report No.: AGC02009151208FE03 Page 5 of 28 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 2468MHz Maximum field strength 86.27dBuV(AV)@3m Modulation FM Number of channels 1 Hardware Version GB8808M05 Software Version V1507020 Antenna Designation Fixed Antenna Antenna Gain 2dBi Power Supply DC12V by battery Report No.: AGC02009151208FE03 Page 6 of 28 3. MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz
