YKGMSPC02Crossover 8 Wheel Stunt RC Car

Car requires 8 AA batteries (not included) Remote Control requires 2 AA batteries (not included) 4 AA batteries (not included) insert in compartment. Each Car uses 8 AA batteries (not included). BATTERY INSTALLATION MUST BE PERFORMED TWICE, ONCE ON EACH SIDE UNLOCK 603625760177 Mindscope Products Inc PO Box 9525 Glendale, CA 91226 TEL (626)398-2000 Made in Shantou, Guangdong, China Date of Manufacture: 4/15/2012 Batch #: 41512 Item #: MSPCO49 FORWARD RIGHT TURNRIGHT TURN LEFT TURN REVERSE FORWARD LEFT TURN REVERSE ANTENNA INDICATOR LIGHT WARNING: CHOKING HAZARD TOY CONTAINS SMALL PARTS. NOT FOR CHILDREN UNDER 3 YEARS. Car requires 8 AA batteries (not included) Remote Control requires 2 AA batteries (not included) CAUTION: • Remove old batteries and replace with new batteries. Be sure to insert batteries correctly according to (+) and (-) symbols located in the battery compartment. • Be sure to insert batteries correctly with adult supervision and always follow the toy and battery manufacturer's instructions. • Do not mix old and new batteries. • Do not mix alkaline, standard (carbo-zine), or rechargeable (nickel-cadmium) batteries. • Rechargeable batteries are to be removed from the toy before being charged. • Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are only to be charged under adult supervision. • Only batteries of the same equivalent type as recommended are to be used. • The supply terminals are not to be short-circuited. • Always remove weak or dead batteries from the product. • Remove batteries if the product will be stored for an extended period of time. Please retain these instructions for future reference. Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. NOT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

Block Diagram Control button (S1 - S4) MCU (U1) Modulator (Q2) Oscillator (Y1) Amplify and Antenna Matching (Q1,L1,L3) 49.860 MHz

Mindscope Products Inc. phone: (626)398-2000 P.O. Box 9525 fax: (626)398-2000 Glendale, CA 91226 email: [email protected] To whom it may concern, Letter of Agency I, an officer of Mindscope Products Inc do hereby authorize Intertek Testing Services (Mr. Terry Chan) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, [George Balanchi] [President]

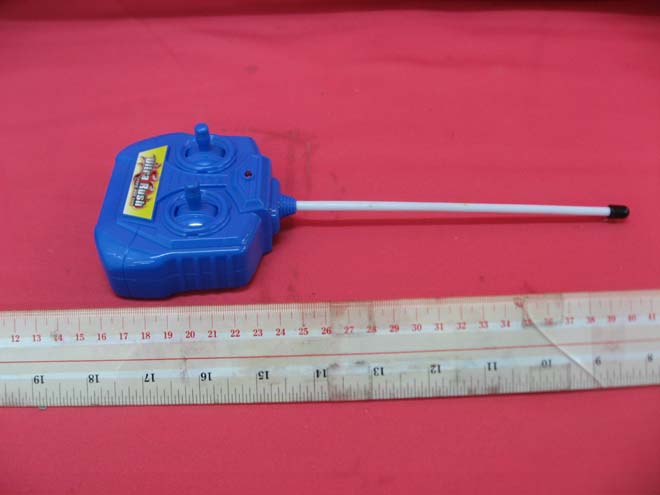

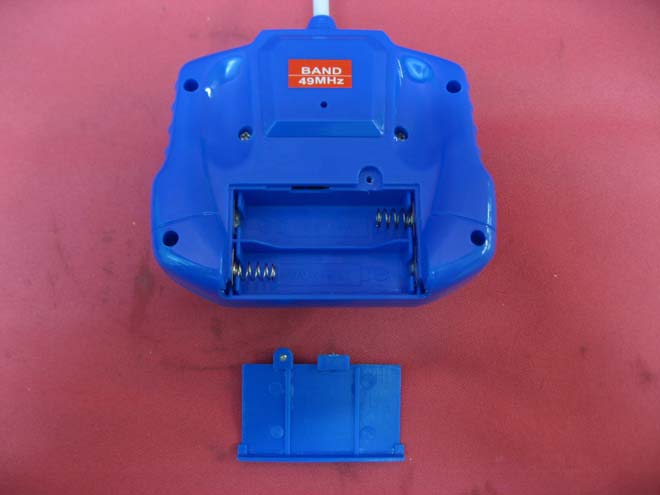

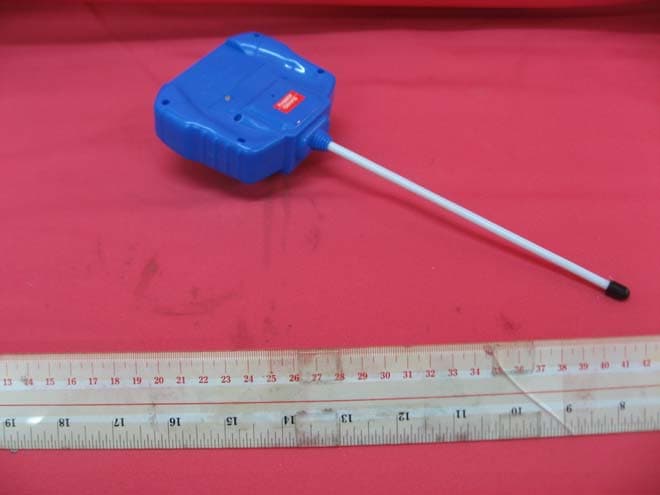

INTERTEK TESTING SERVICE Report No.: HK12041044-1 FCC ID: YKGMSPC02 Equipment Photographs Model: MSPCO (External) INTERTEK TESTING SERVICE Report No.: HK12041044-1 FCC ID: YKGMSPC02 Equipment Photographs Model: MSPCO (External)

Size : 3.0 x 2.6 cm

INTERTEK TESTING SERVICE Report No.: HK12041044-1 FCC ID: YKGMSPC02 Equipment Photographs Model: MSPCO (Internal) INTERTEK TESTING SERVICE Report No.: HK12041044-1 FCC ID: YKGMSPC02 Equipment Photographs Model: MSPCO (Internal) INTERTEK TESTING SERVICE Report No.: HK12041044-1 FCC ID: YKGMSPC02 Equipment Photographs Model: MSPCO (Internal)

FCC ID: YKGMSPC02 Technical Description: The brief circuit description is listed as follows: U1 and associated circuit act as MCU. Y1 and associated circuit act as 49.860MHz oscillator. Q2 and associated circuit act as Modulator. S1 – S4 and associated circuit act as control button. L1, L3, Q1 and associated circuit act as Amplify and antenna matching circuit. Antenna Used: An external, integral antenna has been used.

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2012-5-10Sheet of File:G:\电路板\..\8轮车发射49M原理图.SCHDOCDrawn By: ANT1 L1 5.6UH Q2 C945 LED1 LED S4 FORW Y1 49.860MHz Q1 8050D C4 22P C3 100P C2 100PF L2 1UH L3 2.2UH VCC3V C6 103 S2RIGHT S3 BACK S1LEFT VCC3V 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 U1TX1 C1 47P R3 1K R4 10K R1 180K R2 56K 49MHz R5 330 C7 8P 49MHz

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12041044-1 Mindscope Products Inc. Application For Certification (Original Grant) (FCC ID: YKGMSPC02) Transmitter Prepared and Checked by: Approved by: Signed On File Kung Wing Cheong, Steven Engineer Lau Chin Yu, Benny Lead Engineer Date: May 18, 2012 INTERTEK TESTING SERVICES Report No.: HK12041044-1 FCC ID: YKGMSPC02 i GENERAL INFORMATION Mindscope Products Inc. BRAND NAME: N/A, MODEL: MSPCO FCC ID: YKGMSPC02 Grantee: Mindscope Products Inc. Grantee Address: PO Box 9525, Glendale, CA 91226, U.S.A. Contact Person: George Balanchi Tel: 626 398 2000 Fax: 626 398 2000 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: MSPCO Type of EUT: Transmitter Description of EUT: Crossover 8 Wheel Stunt RC Car Serial Number: N/A FCC ID: FCC ID Date of Sample Submitted: April 23, 2012 Date of Test: May 03, 2012 Report No.: HK12041044-1 Report Date: May 18, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12041044-1 FCC ID: YKGMSPC02 ii SUMMARY OF TEST RESULT Mindscope Products Inc. BRAND NAME: N/A, MODEL: MSPCO FCC ID: YKGMSPC02 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12041044-1 FCC ID: YKGMSPC02 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 2 2.6 Support Equipment List and Description ................................................................ 3 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation.…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK12041044-1 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 Bandwidth Plot – Pursuant to FCC Part 15 Section 15. 235 Requirement

INTERTEK TESTING SERVICE Report No: HK12041044-1 FCC ID: YKGMSPC02 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: MSPCO HK12041044-1 MSPCO A 5 B INTERTEK TESTING SERVICE Report No: HK12041044-1 FCC ID: YKGMSPC02 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model: MSPCO HK12041044-1 MSPCO A B 5
