YLIHC-TX20HC-TX20 remote control

NAME:HC-TX20 NAME:FP-TX20 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. IC This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the deviceÿ Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS) d'Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis aux deux conditions suivantes : (1) Cet appareil ne doit pas causer d'interférences.(2) Cet appareil doit accepter toutes les interférences, y compris celles susceptibles de provoquer un fonctionnement indésirable de l'appareil. FCC

: H.S CRAFT MANUFACTURING CO. : No.9F,NO. 35, GUANG FU N,TAIPEI,TAIWAN ITEM NO.Nation /USA /USA /USA /USA /USA /USA /USA /USA /USA FCC ID YLIHC-TX20 HC-TX02FCCTwo Function product remote control for HC HC-TXyy and HC-Txyy-zz and FP-TXyy and FP-TXyy-zz y="0"-"9" or blank, denotes the product type. z="A"-"Z" or blank,denotes the position of keys. MODEL NO.Report TypeProduct description HC-TX01FCCON/OFF type product remote control for HC FP-TX20FCCMulti Function product remote control for FP HC-TX10FCCMulti Function product remote control for HC ............ FP-TX01FCCON/OFF type product remote control for FP ............ HC-TX20FCCMulti Function product remote control for HC FP-TX02FCCTwo Function product remote control for FP ............ HC-T06-AFCC Six Function product (A)remote control for HC ............ ............ ............ FP-TX10FCCMulti Function product remote control for FP ............ Note HC-TX20 remote control Name Applicant: Add. FCC ID: Company: H.S. CRAFT MANUFACTURING CO. Signature: Date:04-03-2020 Statement all models are electrically identical.

H.S CRAFT MANUFACTURING CO. DATE :04/03/2020 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: YLIHC-TX20 _ Product Name:_HC-TX20 remote control _________ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name ： SARAH LU Title ： SALES COORDINATOR Applicant Company： H.S CRAFT MANUFACTURING CO.

DATE : 04/03/2020 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Flux Compliance Service Laboratory / Room 105 Floor Bao hao Technology Building 1 NO.15 Gong yeWest Road Hi-Tech Industrial, Song shan lake Dongguan, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with H.S CRAFT MANUFACTURING CO. / No.9F,NO. 35, GUANG FU N,TAIPEI,TAIWAN (Applicant Name and address) <Signature> Name ： SARAH LU Title ： SALES COORDINATOR Applicant Company： H.S CRAFT MANUFACTURING CO.

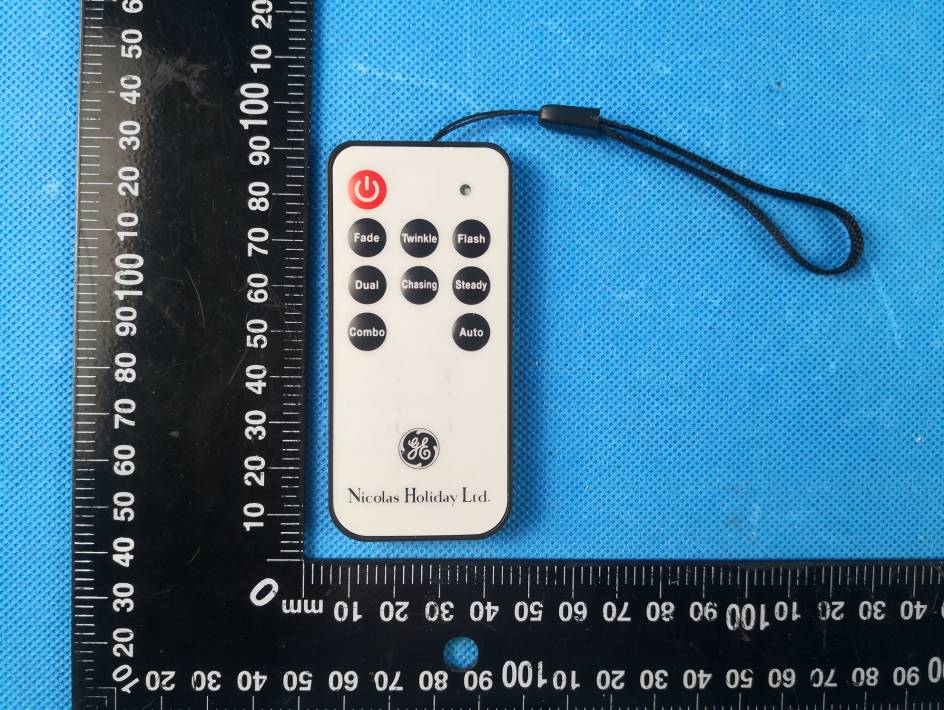

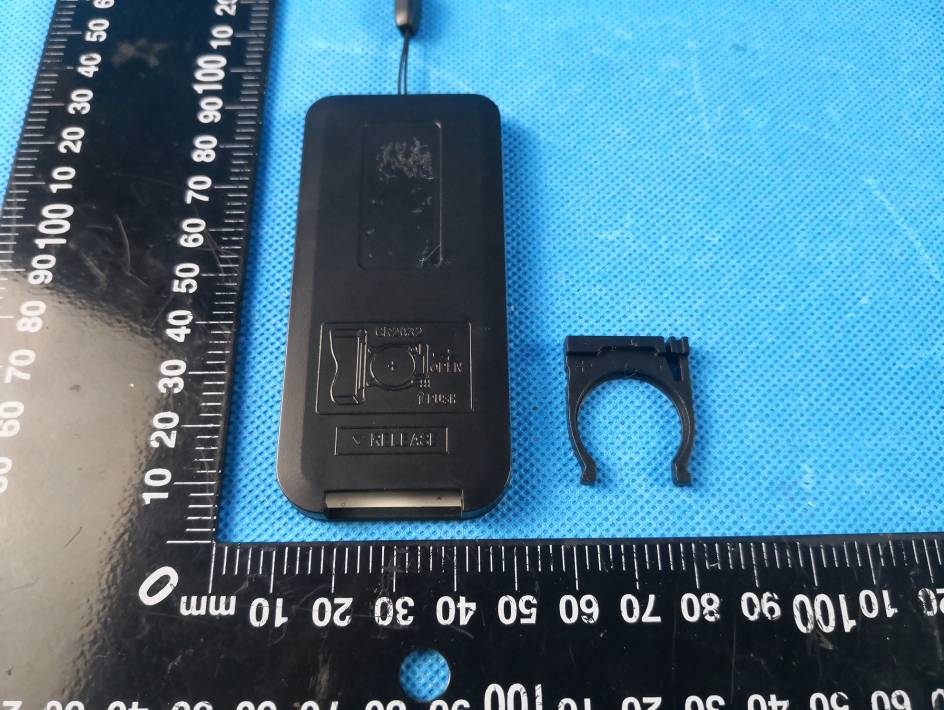

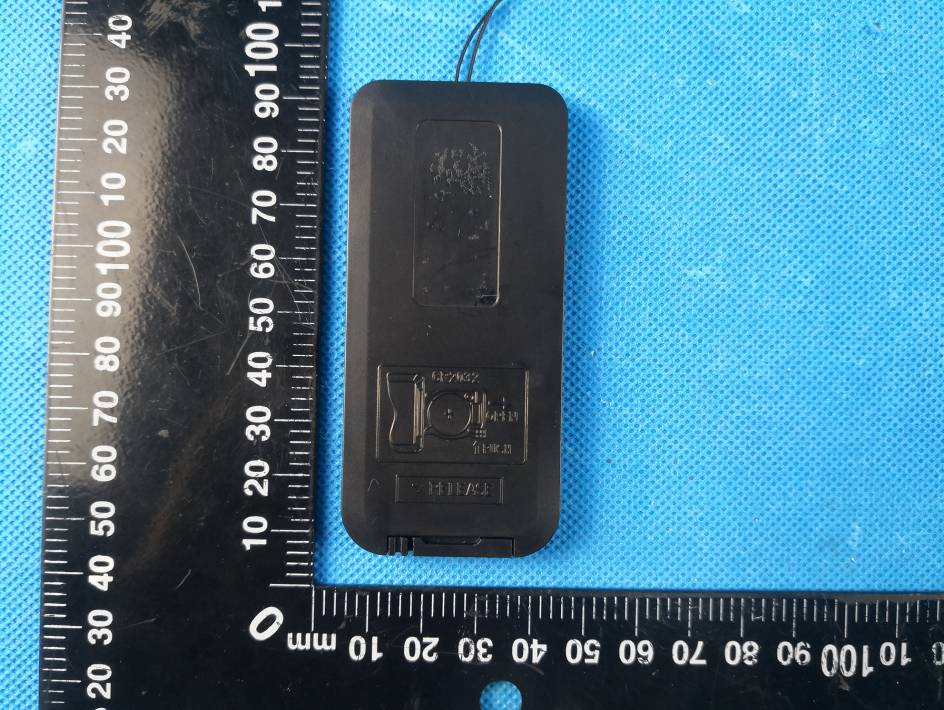

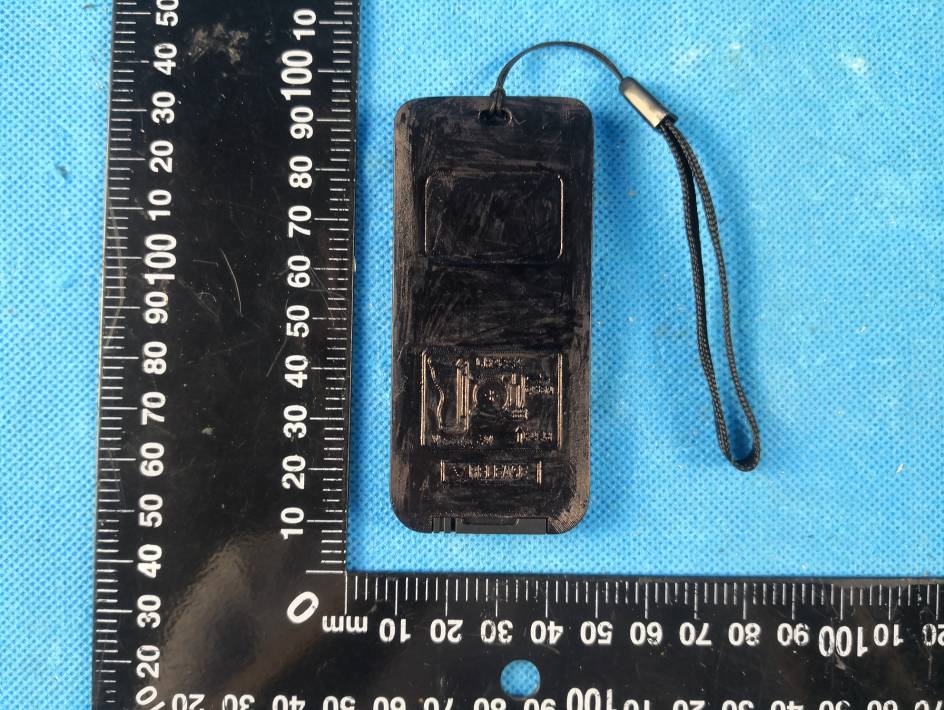

FCC ID: YLIHC-TX20 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 FCC ID: YLIHC-TX20 IC: 9107A-HCTX20 Photo 3 Photo 4 FCC ID: YLIHC-TX20 IC: 9107A-HCTX20 Photo 5 Photo 6 FCC ID: YLIHC-TX20 IC: 9107A-HCTX20 Photo 7 Photo 8 FCC ID: YLIHC-TX20 IC: 9107A-HCTX20 Photo 9 Photo 10

LABELING AND LOCATION Label Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

FC C ID: YLIHC-TX20 Photo 11 Photo 12 Antenna FCC ID: YLIHC-TX20 Photo 13

FCS REPORT FCC Test Report Report No: FCS20200330007W01 Issued for Applicant: H.S CRAFT MANUFACTURING CO. Address: No.9F,NO. 35, GUANG FU N,TAIPEI,TAIWAN Product Name: HC-TX20 remote control Brand Name: N/A Model Name: HC-TX20 Series Model: HC-TXyy, HC-TXyy-zz, FP-TXyy, FP-TXyy-zz (y="0"-"9" or blank, denotes the product type. z="A"-"Z" or blank,denotes the position of keys.) FCC ID: YLIHC-TX20 Issued By: Flux Compliance Service Laboratory Add: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong yeWest Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com Page 2 of 34 Test Report No.: FCS20200330007W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong yeWest Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1TEST LABORATORY 6 1.2 MEASUREMENT UNCERTAINTY 6 1.3 TEST ENVIRONMENT CONDITIONS 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF THE EUT 7 2.2 CHANNEL LIST 9 2.3 ASSISTANT EQUIPMENT USED FOR TEST 9 2.4 DESCRIPTION OF THE TEST MODES 9 2.5 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.6 EQUIPMENTS LIST 10 3. DESCRIPTION OF TEST CONDITIONS 12 3.1 E.U.T. OPERATION 12 4. TEST RESULT 13 4.1 ANTENNA REQUIREMENT 13 4.2 TRANSMIT TIME 14 4.3 FIELD STRENGTH OF FUNDAMENTAL& FIELD STRENGTH OF UNWANTED EMISSIONS 16 4.4 OCCUPIED BANDWIDTH & BAND EDGE 29 4.5 CONDUCTED EMISSIONS AT MAINS TERMINALS 150 KHZ TO 30 MHZ 31 5. PHOTOGRAPHS 34 5.1 RADIATED EMISSION TEST SETUP 34 Page 3 of 34 Test Report No.: FCS20200330007W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong yeWest Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com Revision History Rev. Issue Date Effect Page Contents 01 14 March 2020 All Initial Issue Page 4 of 34 Test Report No.: FCS20200330007W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong yeWest Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com ‘ TEST RESULT CERTIFICATION Applicant’s Name ................... : H.S CRAFT MANUFACTURING CO. Address .................................. : No.9F,NO. 35, GUANG FU N,TAIPEI,TAIWAN Manufacture's Name .............. : H.S CRAFT MANUFACTURING CO. Address .................................. : No.9F,NO. 35, GUANG FU N,TAIPEI,TAIWAN Product Description Product Name ........................ : HC-TX20 remote control Brand Name ......................... : N/A Model Name ........................... : HC-TX20 Series Model .......................... : HC-TXyy, HC-TXyy-zz, FP-TXyy, FP-TXyy-zz (y="0"-"9" or blank, denotes the product type. z="A"-"Z" or blank,denotes the position of keys.) Test Standards........................ : FCC Rules and Regulations Part 15 Subpart C 15.231 Test Procedure ....................... : ANSI C63.10:2013 This device described above has been tested FCS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of FCS, this document may be altered or revised byFCS, personal only, and shall be noted in the revision of the document.. Date of Test................................: Date (s) of performance of tests .: 09 March 2020 ~ 14 March 2020 Date of Issue ..............................: 29 March 2020 Test Result ..................................: Pass Prepared By : (Chris Chen/Engineer) Approved By : (Brown Lu/EMC Manager ) Page 5 of 34 Test Report No.: FCS20200330007W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong yeWest Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com 1. Summary of Test Results Standard Section Test Item Judgment Remark Section 15.203 RSS-GEN section 6.8 Antenna Requirement Pass Section 15.207(a) RSS-Gen 8.8 Conduction Emissions N/A Section 15.209,15.231(b) RSS-210 A1.2 Radiated Emissions Pass -- Section 15.231(c) RSS-Gen clause 6.7 & RSS-210 A1. 3 Occupied Bandwidth Pass Section 15.231(a) (1) RSS 210 Issue 10 A1.1(a) Transmit time Pass NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 34 Test Report No.: FCS20200330007W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong yeWest Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com 1.1Test Laboratory Company Name: Flux Compliance Service Laboratory Address: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong yeWest Road Hi-Tech Industrial, Song shan lake Dongguan Telephone: +86-769-27280901 Fax: +86-769-27280901 A2LA Accreditation No. : 5545.01 1.2 Measurement Uncertainty The reported uncertainty of measurement y ±U,where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2,providing a level of confidence of approximately 95 %. No. Items Uncertainty 1 RF output power, conducted ±0.71dB 2 Unwanted Emissions, conducted ±2.988 dB 3 Conducted Emission (9KHz-150KHz) ±4.13 dB 4 Conducted Emission (150KHz-30MHz) ±4.74 dB 5 All emissions,radiated(<1G) 30MHz-1000MHz ±5.2 dB 6 All emissions,radiated(>1G) 1000MHz -3000MHz ±4.66 dB 7 All emissions,radiated(<1G) 3000MHz -6000MHz ±5.31 dB 1.3 Test Environment Conditions During the measurement the environmental conditions were within the listed ranges: Temperature rang: 20-26°C Humidity range: 40-65% Pressure range: 86-106Kpa Page 7 of 34 Test Report No.: FCS20200330007W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong yeWest Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27…
