NAME:HC-TX40 NAME:FP-TX40 Small RGB Product SMD RGB Product This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. FCC Statement ISED Statement English:This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES-3 (B)/NMB-3(B). French: Cet appareil contient des émetteurs/récepteurs exempts de licence qui sont conformes aux RSS exemptés de licence d'Innovation, Sciences et Développement économique Canada. L'exploitation est soumise aux deux conditions suivantes : (1) Cet appareil ne doit pas provoquer d'interférences. (2) Cet appareil doit accepter toute interférence, y compris les interférences susceptibles de provoquer un fonctionnement indésirable de l'appareil. l'appareil numérique du ciem conforme canadien peut - 3 (b) / nmb - 3 (b). This device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS 102 RF exposure, users can obtain Canadian information on RF exposure and compliance. cet appareil est conforme à l'exemption des limites d'évaluation courante dans la section 2.5 du cnr - 102 et conformité avec rss 102 de l'exposition aux rf, les utilisateurs peuvent obtenir des données canadiennes sur l'exposition aux champs rf et la conformité. This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. Cet équipement est conforme aux limites d'exposition aux rayonnements du Canada établies pour un environnement non contrôlé. RF Exposure Statement The device has been evaluated to meet general RF exposure requirement. This equipment should be installed and operated with minimum distance 0mm between the radiator & your body. L'appareil a été évalué pour répondre aux exigences générales d'exposition aux RF. Cet équipement doit être installé et utilisé avec une distance minimale de 0 mm entre le radiateur et votre corps.

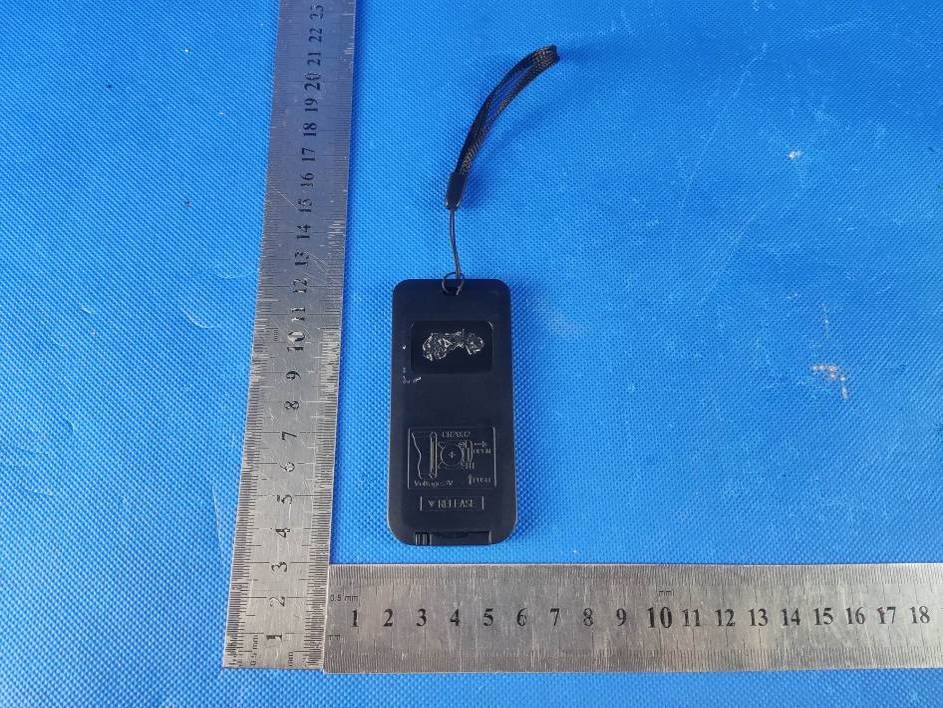

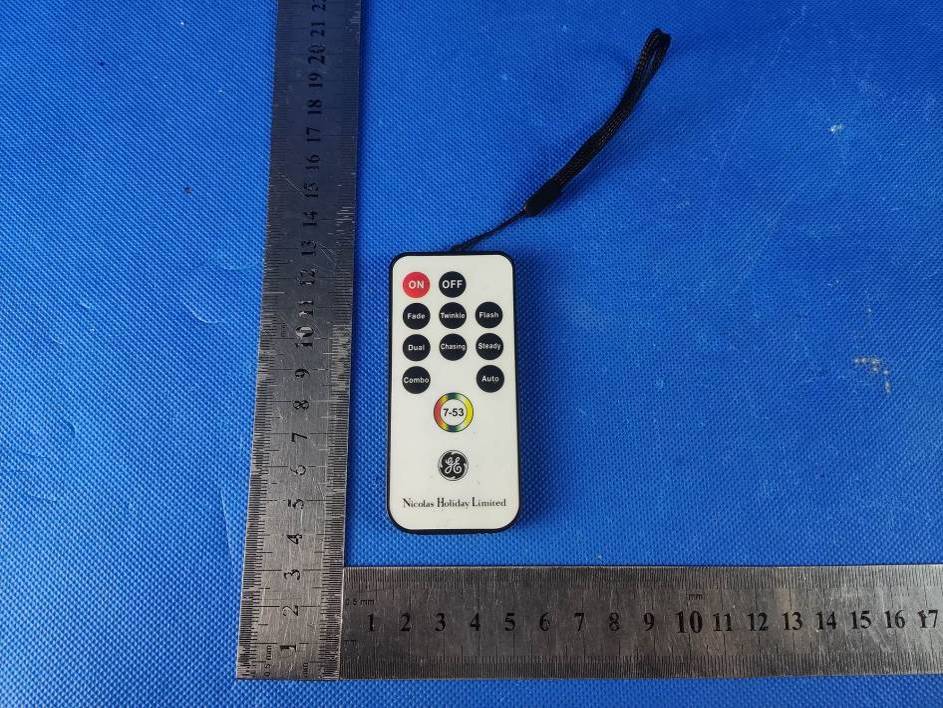

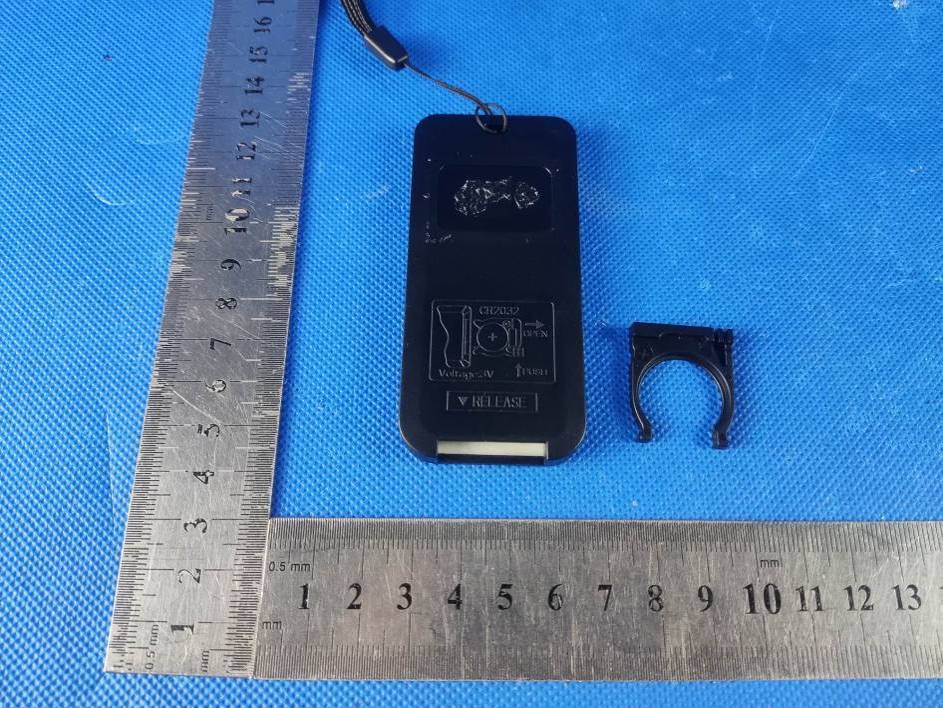

Page 1 of 5 FCC ID: YLIHC-TX40 IC: 9107A-HCTX40 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. External Photos Photo 1 Photo 2 Page 2 of 5 FCC ID: YLIHC-TX40 IC: 9107A-HCTX40 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 5 FCC ID: YLIHC-TX40 IC: 9107A-HCTX40 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 5 FCC ID: YLIHC-TX40 IC: 9107A-HCTX40 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 5 FCC ID: YLIHC-TX40 IC: 9107A-HCTX40 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 ------End------

Page 1 of 2 FCC ID: YLIHC-TX40 IC: 9107A-HCTX40 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Internal Photos Photo 1 Photo 2 Page 2 of 2 FCC ID: YLIHC-TX40 IC: 9107A-HCTX40 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 ------End------ Antenna

Page 1 of 33 Report No.: AIT22120109W1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. TEST REPORT Client Information: Applicant: H.S. CRAFT MANUFACTURING CO. Applicant add.: 9F ,NO.35, GUANG FU N. ROAD ,TAIPEI,Taiwan Manufacturer: H.S CRAFT MANUFACTURING CO. Manufacturer add.: No.1, Bushang E. Road , Shashi Town ,Ganzhou City, Jiangxi Province Product Information: Product Name: Remote control Model No: HC-TX40 Serial Model: HC-TXyy and HC-TXyy-zz and FP-TXyy and FP-TXyy-zz y="0"-"9" or blank, denotes the product type. z="A"-"Z" or blank,denotes the position of keys. Brand Name: N/A FCC ID: YLIHC-TX40 Applicable standards : FCC CFR Title 47 Part 15 Subpart C Section 15.249 Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: Dec. 01, 2022 Date of Test: Dec. 01~ Dec. 06, 2022 Date of Issue: Dec. 07, 2022 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Simba Huang Seal.chen Page 2 of 33 Report No.: AIT22120109W1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS .................................................................................................................................................................... 2 2 TEST SUMMARY .......................................................................................................................................................... 4 2.1 Statement of the Measurement Uncertainty .............................................................................. 4 2.2 Measurement Uncertainty ......................................................................................................... 4 3 TEST FACILITY ............................................................................................................................................................. 5 3.1 Deviation from standard ............................................................................................................ 5 3.2 Abnormalities from standard conditions .................................................................................... 5 3.3 Test Location ............................................................................................................................. 5 4 GENERAL INFORMATION ......................................................................................................................................... 6 4.1 Test frequencies ........................................................................................................................ 7 4.2 EUT Peripheral List ................................................................................................................... 8 4.3 Test Peripheral List ................................................................................................................... 8 4.4 TEST METHODOLOGY............................................................................................................ 9 4.5 Description of Test Modes ....................................................................................................... 10 5 EQUIPMENT USED DURING TEST ........................................................................................................................ 11 6 TEST RESULTS AND MEASUREMENT DATA .................................................................................................... 12 6.1 Antenna requirement .............................................................................................................. 12 6.2 20 dB Spectrum/99% Bandwidth Measurement ...................................................................... 13 6.3 Radiated Emissions Measurement ......................................................................................... 18 6.4 Conducted Emissions ............................................................................................................. 31 7 TEST SETUP PHOTO ................................................................................................................................................ 33 8 EUT CONSTRUCTIONAL DETAILS ........................................................................................................................ 33 Page 3 of 33 Report No.: AIT22120109W1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Revision History Revision Issue Date Revisions Revised By 000 Dec. 07, 2022 Initial Issue Seal Chen Page 4 of 33 Report No.: AIT22120109W1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. 2 Test Summary Test Item Section Result Antenna requirement §15.203 RSS-GEN section 6.8 Pass AC Power Line Conducted Emission §15.207 RSS-Gen clause 8.8 N/A Fundamental &Radiated Spurious Emission Measurement §15.249 (a)/ §15.209 RSS-210 B.10 Pass 20dB Channel Bandwidth 15.215(c) Pass Band Edge RSS-Gen clause 6.7 &RSS-210 B.10 Pass Note 1. Test according to ANSI C63.10:2013. 2. The measurement uncertainty is not included in the test result. 2.1 Statement of the Measurement Un…

Text truncated - open the document above for the full version.

H.S. CRAFT MANUFACTURING CO. 9F ,NO.35, GUANG FU N. ROAD ,TAIPEIN ,Taiwan 1. Antenna Description: Antenna type: PCB antenna Manufacturer: H.S. CRAFT MANUFACTURING CO. Model: HC-TX40 antenna Antenna Gain(Peak): 0 dBi Frequency range:2400-2500MHz 2. Antenna Photo: Length:16mm

TEST SETUP PHOTOS RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz ****************************************End of Report************************************* Page 1 of 1 FCC ID: YLIHC-TX40 IC: 9107A-HCTX40
