YXG-ES6500EGEAlarm system control panel

E E S S 6 6 5 5 0 0 0 0 E E G G E E V V e e r r s s i i o o n n 5 5 . . 1 1 J J a a n n u u a a r r y y 2 2 0 0 1 1 1 1 E E v v e e r r G G u u a a r r d d E E x x p p r r e e s s s s C C o o n n t t r r o o l l P P a a n n e e l l U U s s e e r r G G u u i i d d e e © 2011 EGI Group Ltd. (Essence Global Innovations Group Ltd.) All rights reserved. This document is the protected intellectual property of the Essence group. Any copying, reprinting, reuse, reproduction ,adaptation distribution or translation without the prior written permission of EGI Group is prohibited. The information included in this document is subject to change without notice. For more information, please contact: EGI Group Ltd. 11 Galgalei HaPlada Street. Herzliya Pituach 46120 Israel www.essence-grp.com Tel: +972-73-2447777 Fax: +972-9-9564182 Table of Contents EverGuard Express 3 Table of Contents 1 Overview ............................................................................................. 6 2 Installation .......................................................................................... 7 2.1 Power ....................................................................................................... 7 2.1.1 Power Status ................................................................................. 7 2.2 Inserting the Battery and SIM Card .............................................................. 7 2.3 EverGuard Express Wall Mount ..................................................................... 9 2.4 Connecting the Mini USB Cable .................................................................. 10 3 Operation .......................................................................................... 11 3.1 About the EverGuard Express Control Panel Equipment ................................. 11 3.2 Audible Indicators .................................................................................... 13 3.3 Wireless Communication Status ................................................................. 14 3.4 System Status ......................................................................................... 14 3.5 Programming the EverGuard Express Panel ................................................. 15 3.5.1 Accessing Programming Mode ........................................................ 15 3.5.2 Audible Indicators during Configuration ........................................... 17 3.6 Defining Users ......................................................................................... 17 3.7 Defining Peripherals .................................................................................. 18 3.8 Setting Exit/Entry Times............................................................................ 18 3.9 Setting Entry/Exit Countdown Beeps ........................................................... 19 3.10 Defining the Telephone Numbers for Incoming Calls ..................................... 19 3.11 Defining Telephone Numbers for Outgoing Calls ........................................... 20 3.12 Programming the Arm Function .................................................................. 21 3.13 Setting Operational Status ......................................................................... 21 3.13.1 Transmitting the EverGuard Express Configuration to the Monitoring Station 22 3.13.2 Switching from ITS to CCS Mode .................................................... 22 3.13.3 Returning the EverGuard Express Panel to Factory Default Settings .... 22 3.14 Arming and Disarming the System ............................................................. 22 3.14.1 The Arm Cycle .............................................................................. 23 3.14.2 Arm Status .................................................................................. 24 3.14.3 Arming the EverGuard Express System ........................................... 24 3.14.4 Disarming the System ................................................................... 24 3.15 Handling the Alarm ................................................................................... 25 3.15.1 Alarm Status ................................................................................ 25 3.16 Using Home Automation ............................................................................ 26 4 EverGuard Express 3.16.1 Activating the “Comfort Camera” request ........................................ 26 3.16.2 Comfort Camera status ................................................................. 26 3.16.3 Activating the Door Lock ................................................................ 27 3.16.4 Door Lock Activation Status ........................................................... 27 3.17 Calls ....................................................................................................... 27 3.17.1 Call Status ................................................................................... 28 3.17.2 Adjusting the Call Volume .............................................................. 29 3.17.3 Calling Emergency ........................................................................ 29 3.17.4 Emergency Number Status ............................................................ 29 3.17.5 Monitoring Station Communication ................................................. 30 3.17.6 Monitoring Station Status .............................................................. 30 3.17.7 Sending an SOS Message .............................................................. 31 3.17.8 SOS Status .................................................................................. 31 3.18 Making a Telephone Call ............................................................................ 31 3.19 Receiving a Telephone Call ........................................................................ 32 3.20 Optional Settings and Defaults ................................................................... 32 3…

Text truncated - open the document above for the full version.

Transceiver block diagram. GSM modem Main CPU Audio XT 19.2 MHz Micro Controller Low Noise Amplifier Low Pass filter XT 26 MHz P.S XT 19.2 MHz To 120VAC

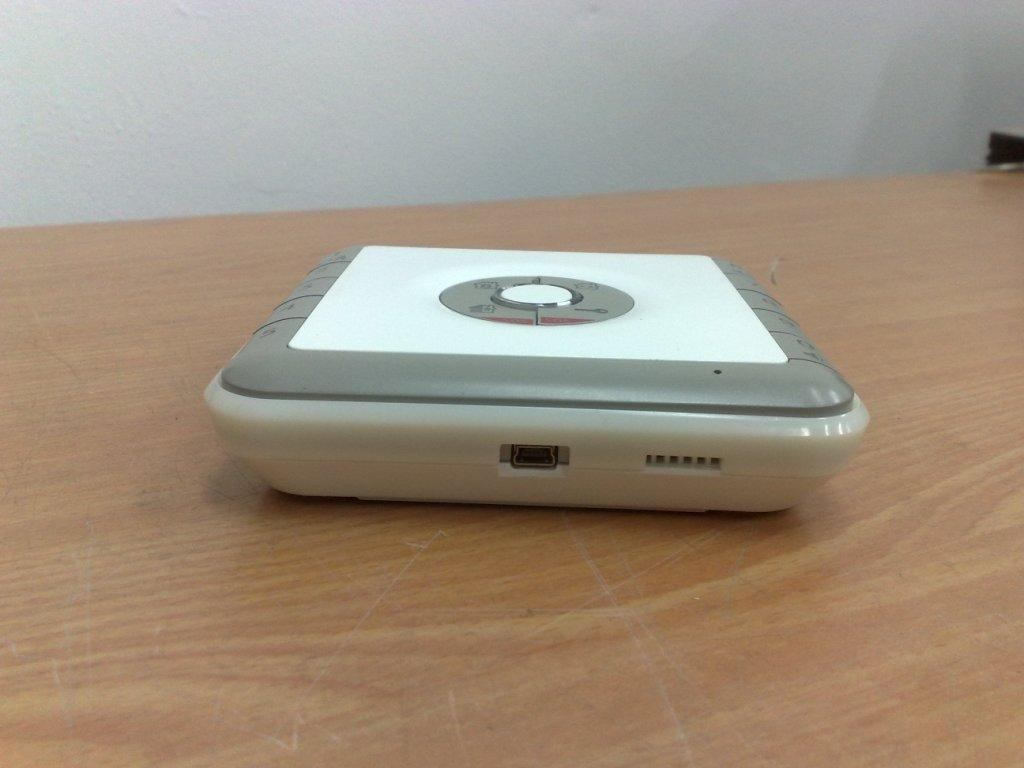

External photos.

45 mm 30 mm Essence Security International Ltd. Model: ES6500EGE 100-240VAC; 60/50Hz; 0.5 A EN 50131-1 Class-II Grade-2 UL 1023, ANSI/SIA CP-01 FCC ID: YXG-ES6500EGE Contains FCC ID: IHDT56HQ1

Internal photos.

Test Report No. 9112303133 Applicant : Essence Security International Ltd. Equipment Under Test: Bi-directional wireless security system, Everguard Express Control Unit Model: ES6500EGE FCC ID: YXG-ES6500EGE From The Standards Institution Of Israel Industry Division Electronics & Telematics Laboratory EMC Section ACLASS Accreditation Services Certificate Number: AT-1359 Test Report No.: 9112303133 Page 1 of 29 pages Title: Test on Bi-directional wireless security system, Everguard Express Control Unit Model: ES6500EGE FCC ID: YXG-ES6500EGE Description of Equipment Under Test (EUT): Bi-directional wireless security system, Everguard Express Control Unit. Model: ES6500EGE RF unit model. ES1100B Software version of radio unit V.01 Hardware version of radio unit V.05 Serial Number: N/A Manufactured by: Essence Security International (ESI) Ltd. Reference Documents: ™ CFR 47 FCC: Rules and Regulations; Part 15. “Radio frequency devices”; Subpart B: “Unintentional radiators” (2009). Section 15.107. “Conducted limits”. Section 15.109. “Radiated emission limits”. Subpart C : “Intentional radiators” (2009). Section 15.205. “Restricted bands of operations Section 15.207. “Conducted limits”. Section 15.209. “Radiated emission limits, general requirements”. “Radiated Emission Limits, Additional Provisions”; Section 15.249. “Operation within the bands 902 – 928 MHz, 2400 – 2483.5 MHz, 5725 – 5875 MHz and 24.0 24.25 GHz”. Applicant: Essence Security International Ltd. Address: 11 Galgaley Haplada St., POB 2073, Herzliya, Israel Sample for test selected by: The customer The date of tests: 6, 27 December 2009; 22 December 2010 This Test Report contains 29 pages and may be used only in full. This Test Report applies only to the specimen tested and may not be applied to other specimens of the same product. Test Report No.: 9112303133 Page 2 of 29 pages Title: Test on Bi-directional wireless security system, Everguard Express Control Unit Model: ES6500EGE FCC ID: YXG-ES6500EGE Table of Contents 1. EUT Description and operation 3 1.1. General description: 3 2. Test summary 4 2.1. Potential emission sources: 7 2.2. EUT setup and operation: 7 3. Measurements, examinations and derived results 7 3.1. Location of the Test Site: 7 3.2. Test condition: 7 3.3. Initial visual check and functional test: 7 3.4. Radiated emission test. 8 3.5. Test of field strength emission from intentional radiator. 9 3.6. Test of occupied bandwidth per 15.215(c) 17 3.7. Test of conducted emission at main terminal. 18 3.8. Test of field strength emission in Initialisation, Stand by/receive modes. 22 4. Appendix 1. Test equipment used 25 5. Appendix 2: Antenna Factor and Cable Loss 26 Test Report No.: 9112303133 Page 3 of 29 pages Title: Test on Bi-directional wireless security system, Everguard Express Control Unit Model: ES6500EGE FCC ID: YXG-ES6500EGE 1. EUT Description and operation 1.1. General description: * Note: the customer supplied all information in clause below. EverGuard is a unit of advanced end-to-end, bi-directional security, safety and home automation system. Among other functions, EverGuard also enables communicating with wireless devices at 916.5 MHz, from anywhere in the home or office: Door / Window Transmitters, Keypads / Key Fob Commanders , Passive Infrared Detector and Indoor Video PIR Transmitters. The EverGuard system is based on ESI's proprietary monitoring platform, which incorporates state-of-the art communication protocols, authentication software and applications for the maintenance and control of installed units. Type of modulation: FSK Antenna type: Internal Spring mod. ES6500VSF The EUT power source: 100 – 230VAC power supply. The EUT’s block diagram is shown in Figures 1 The EUT external and internal views are presented in Photos #1. GSM modem Main CPU Audio XT 19.2 MHz Micro Controller Low Noise Amplifier Low Pass filter XT 26 MHz P.S XT 19.2 MHz To 120VAC Figure 1. Transceiver block diagram. Test Report No.: 9112303133 Page 4 of 29 pages Title: Test on Bi-directional wireless security system, Everguard Express Control Unit Model: ES6500EGE FCC ID: YXG-ES6500EGE 2. Test summary Parameter FCC Part 15 Reference paragraph Verdict Conducted emission test on unintentional radiator. Subpart B Section 15.107 Comply Radiated emission test on unintentional radiator. Subpart B Section 15.109 Comply Radiated emission test in receive/stand-by mode Subpart B Section 15.109 Comply Test of field strength emission from intentional radiators “Radiated Emission Limits, Additional Provisions”; Section 15.249. Comply Radiated emission from intentional radiators in restricted bands. Subpart C Section 15.205 Comply Conducted emission test. Subpart C Section 15.207 Comply Electronics & Telematics Laboratory December 2010 Name: Eng. Yuri Rozenberg Name: Michael Feldman Position: Head of EMC Branch Position: Test Technician Measurement uncertainty. Were relevant, the following measurement uncertainty level have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expended uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Test description Expanded uncertainty Radiated emissions in the open field test site at 3 m measuring distance: 30 MHz – 1.0 GHz 1.0 GHz – 18 GHz 2 Uc (E) = ± 4.32 dB 2 Uc (E) = ± 4.47 dB Test Report No.: 9112303133 Page 5 of 29 pages Title: Test on Bi-directional wireless security system, Everguard Express Control Unit Model: ES6500EGE FCC ID: YXG-ES6500EGE Photo 1. EUT’s external front and rear view Test Report No.: 9112303133 Page 6 of 29 pages Title: Test on Bi-directional wireless security system, Everguard Express Control Unit Model: ES6500EGE FCC ID: YXG-ES6500EGE Photo 2. Spurious emissions test setups. Test Report No.: 9112303133 Page 7 of 29 pages Title: Test on Bi-directional wireless security system, Everguard Express Control Unit Model: ES6500EGE FCC ID: YXG-ES6500EGE 2.1. Potential emission sourc…
