YXG-ES700TRKPDTag Reader with Keypad

Smart Security TR-KPD User Guide ESUGSS070 Version 1.0 September 2020 Table of Contents 2 Smart Security TR-KPD User Guide Table of Contents 1. Product Description ................................................................................................................................ 3 2. Installing the Keypad ............................................................................................................................. 4 3. Arming and Disarming ............................................................................................................................ 7 3.1. Arming ........................................................................................................................................ 7 3.2. Disarming .................................................................................................................................... 7 3.3. Checking Arming Status ............................................................................................................ 8 3.4. Triggering a Panic Alarm ............................................................................................................ 8 4. Changing the Batteries ........................................................................................................................... 9 5. Specifications ........................................................................................................................................ 10 Appendix A Keypad Indications and Actions .......................................................................................... 13 Product Description Smart Security TR-KPD User Guide 3 1. Product Description The TR-KPD (keypad) is an encrypted, battery operated, wireless, access control and system arming device. Key features include:  User identity verification using a proximity RFID tag or passcode  MiFare® DESFire® RFID technology  Five-button design provides system activation controls and status indications  Full numeric keypad  Functions:  Arm  Disarm  Partial arm  Panic alarm  Efficient power consumption to extend battery life  Supports automatic over-the-air software programming and configuration upgrade (RSU) Installing the Keypad 4 Smart Security TR-KPD User Guide 2. Installing the Keypad Ensure that you have:  Four AA batteries  A screw and wall anchor  Screwdriver  Drill To install the keypad: 1. Choose a smooth, flat indoor wall near the door. 2. Release the keypad's mounting base by lifting the tab and sliding the base in the tab’s direction. Installing the Keypad Smart Security TR-KPD User Guide 5 3. Press the tamper switch several times. 4. Insert four fresh new AA alkaline batteries, according to the correct polarity. WARNING! A new battery can explode if it is incorrectly installed. 5. Drill a hole in the wall and insert a wall anchor. 6. Clean and dry the wall. Tamper switch Installing the Keypad 6 Smart Security TR-KPD User Guide 7. Peel off the mounting-tape protective strips. 8. Ensure that the wall anchor and tamper pin holes are aligned. 9. Press the wall mount into place. 10. Insert a screw in the tamper pin hole and tighten. 11. Align the keypad onto the mounting base, and slide the keypad into place. Tamper pin hole Arming and Disarming Smart Security TR-KPD User Guide 7 3. Arming and Disarming You can use the keypad to activate the following arming modes:  Armed Away - Arms all devices  Armed Partial- Arms a specified group of devices  Armed Perimeter - Arms perimeter devices  Disarmed 3.1. Arming To arm: 1. Press the button for the arming mode you want. 2. If your installation requires authentication for arming, enter your numeric passcode or place your tag over the . Partial and perimeter arming modes can be activated at the same time. 3.2. Disarming To disarm:  If your user does not require a passcode, place the tag over the .  If your user is configured for passcode only, enter the passcode and press √.  If your user requires a tag and a passcode, enter the passcode and then place the tag over the . Arm Partial 2 Arm Perimeter Arm Away Arm Partial 1 Arming and Disarming 8 Smart Security TR-KPD User Guide 3.3. Checking Arming Status To check the system's arming status, press .  If lights green, the system is disarmed.  If light red, the system is armed. The button or buttons that light indicate the arming mode. 3.4. Triggering a Panic Alarm In case of an emergency, you can trigger a panic alarm. To trigger a panic alarm, press and hold the keypad's SOS button for at least five seconds. SOS button Changing the Batteries Smart Security TR-KPD User Guide 9 4. Changing the Batteries To change the keypad's batteries: 1. Release the keypad's mounting base by lifting the tab and sliding the keypad away from the tab. 2. Remove the old batteries. 3. Press the tamper switch several times. 4. Insert four new fresh AA alkaline batteries, according to the correct polarity. WARNING! A new battery can explode if it is incorrectly installed. 5. Align the keypad onto the mounting base, and slide the keypad into place. Tamper switch Specifications 10 Smart Security TR-KPD User Guide 5. Specifications Item Data Part Number ES700TRKPD Communications  Bi-directional protocol: ECOP – Essence proprietary communication protocol  Maximum RF range: Up to 700m (2,296 ft.) – open air  Modulation and frequency:  Europe: 868.3 MHz 2FSK  The Americas: 916.5 MHz 2FSK  RFID 106 kbps, 13.56 Mhz  Data Security  RF: 32-bit ID, over four billion combinations  RFID: 128-bit ID, DES, AES, and ECC Security and safety  Tamper mechanism – wall tamper  Unique electronic serial number Power supply  Keypad  Batteries: Four 1.5V AA alkaline batteries  Battery life: Three years with 10 tag-reads and 10 code entries per day  Tag: No batteries required Dimensions  Size (H x W x D):  Keypad: 103 x 103 x 20 mm (4.1 x 4.1 x 1.2 in.)  Tag: 10 x 34 x 50 mm (0.39 x 1.34 x 1.97 in.)  Weight:  Keypad: 135…

Text truncated - open the document above for the full version.

June 3, 2020 Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Composite application for certification of a Tag Reader with Keypad, ES700TRKPD-ES-M02, FCC ID: YXG-ES700TRKPD Dear Gentlemen, Please find attached our composite application for certification of a Tag Reader with Keypad, ES700TRKPD-ES- M02, FCC ID: YXG-ES700TRKPD, prepared in accordance with FCC Rules, parts 15, section 15.231, 15.225. The product testing and this application for certification were performed by Hermon Laboratories, which is recognized and accredited by FCC, Test Firm Registration Number is 927748, Designation Number is IL1001. Hermon Labs responsible person is Mr. Michael Nikishin, tel: +972 4626 8440, fax:+972 4628 8277, e-mail: [email protected]. Please send an invoice to Hermon Labs. We hope this application satisfies your requirements Sincerely yours, Tal Cohen Technical Director of Regulatory, Certification and Reliability Signature:

RF_160, Issue 04 Declaration of Authorization We Name: Essence Security International Ltd. Address: 12 Abba Eban avenue, Ackerstein Tower Bldg. D, P.O.Box 2073 City: Herzliya 4612001 Country: Israel . Declare that: Agent Company name: Hermon Laboratories Ltd. Address: Harakevet Industrial Zone City: Binyamina 3055001 Country Israel is authorized to apply for Certification of the following product(s): Product description:  Tag Reader with Keypad Type designation:  ES700TRKPD-ES-M02 Trademark:  Essence Security International Ltd Validity/ expiry date: June 02, 2021 on our behalf. Date: June 02, 2020 Name: Tal Cohen Function: Technical Director of Regulatory, Certification and Reliability Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Essence Security International Ltd. Address: 12 Abba Eban avenue, Ackerstein Tower Bldg. D, P.O.Box 2073 City: Herzliya 4612001 Country: Israel To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: YXG-ES700TRKPD Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Trade secret. Not to permit to competitors to view the device interiors and to improve their products Planned Release Date STC: 180 days from grant date (notes 2, 3, 4, 5) Date: June 3, 2020 Name and signature of applicant: Tal Cohen Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

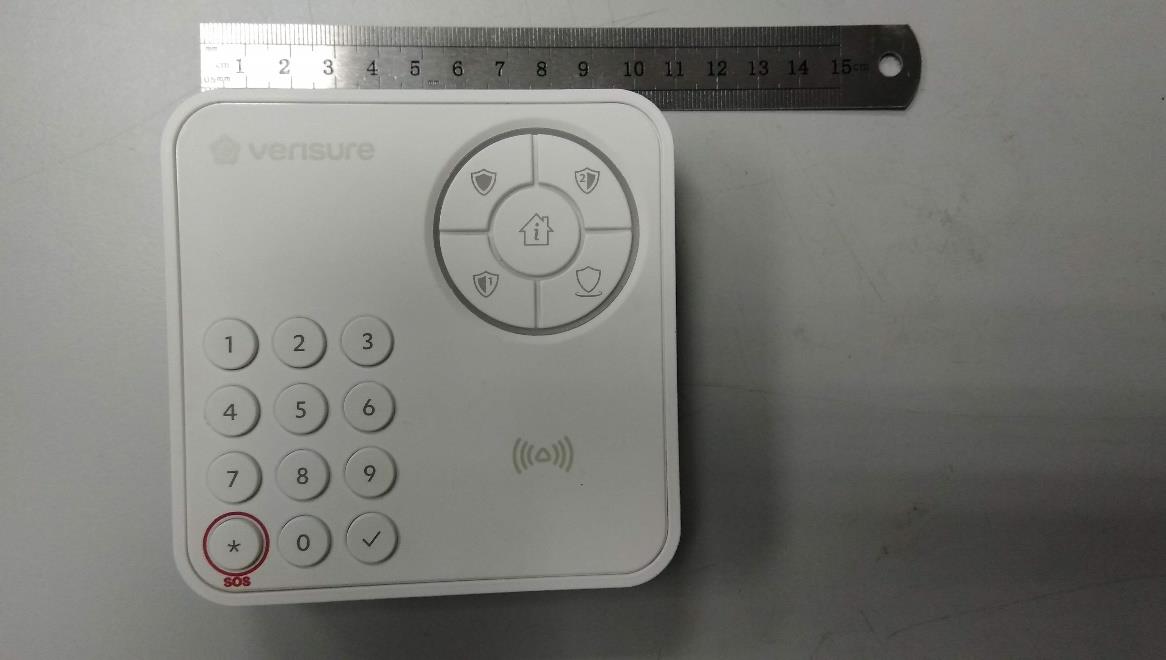

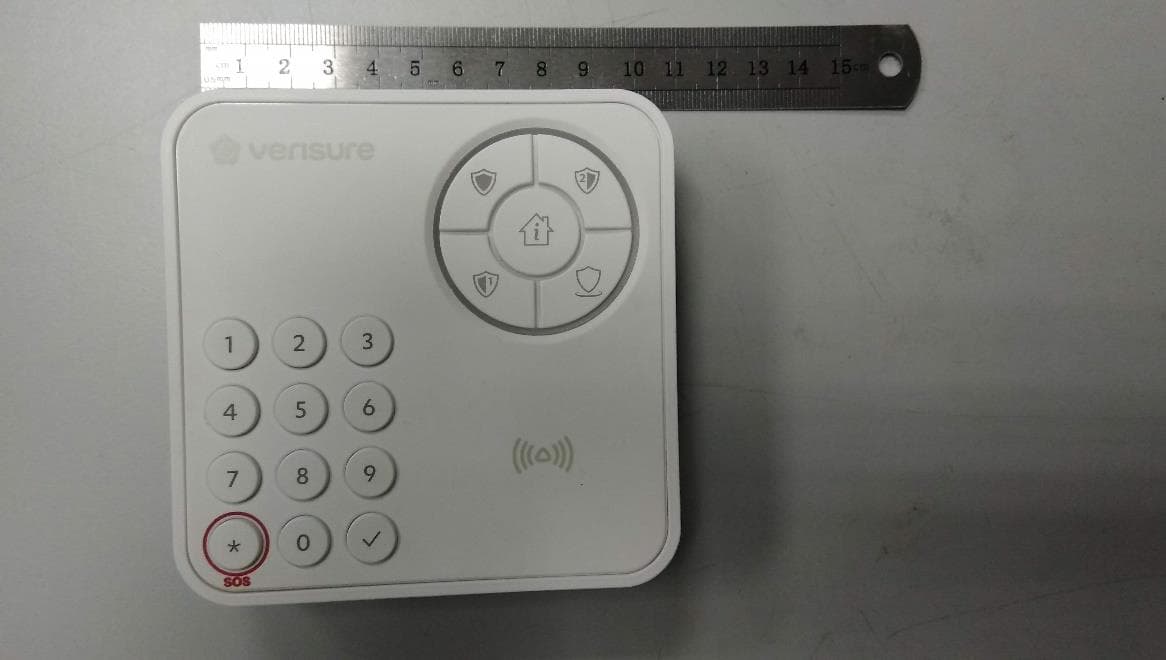

Essence Security International Ltd. FCC ID: YXG-ES700TRKPD IC: 11061A- ES700TRKPD Page 1 of 3 EXTERNAL PHOTOGRAPHS Essence Security International Ltd. FCC ID: YXG-ES700TRKPD IC: 11061A- ES700TRKPD Page 2 of 3 Tag Reader with Keypad Front view Essence Security International Ltd. FCC ID: YXG-ES700TRKPD IC: 11061A- ES700TRKPD Page 3 of 3 Rear view

Essence Security International Ltd. FCC ID: YXG-ES700TRKPD IC: 11061A- ES700TRKPD Page 1 of 1 Label The label with FCC ID: YXG-ES700TRKPD and IC: 11061A- ES700TRKPD is affixed on the rear side of the device. The label material is PVC with a permanent adhesive. Label location The statement according to FCC part 15 §15.19(a)(3) is placed in User’s Guide (Application exhibit User_manual_33716).

Essence Security International Ltd. FCC ID: YXG-ES700TRKPD IC: 11061A- ES700TRKPD Page 1 of 3 INTERNAL PHOTOGRAPHS Essence Security International Ltd. FCC ID: YXG-ES700TRKPD IC: 11061A- ES700TRKPD Page 2 of 3 Tag Reader with Keypad Internal view Essence Security International Ltd. FCC ID: YXG-ES700TRKPD IC: 11061A- ES700TRKPD Page 3 of 3 Component side of the main PCB

1 © Copyright 2020 Essence Security International and Essence Smart Care, all rights reserved Proprietary and Confidential This product functions as a remote keypad with embedded RFID tag reader. The intended use for this device is wireless Arm/Disarm control for alarm system. It consists of MCU with RF front end (CC1352P) and RFID transponder (TRF7964A) for 13.56MHz passive RFID tag reading. The MCU is triggered by a capacitive proximity sensor and or keypress on the keypad. It invokes RFID tag reading and sends data over the proprietary Sub-1G link to the control panel. The device is powered from 4xAA Alkaline type batteries.  Sub 1-G Antenna parameters are: o Type: Wire Antenna soldered to the main PCB o Gain: -0.2dBi  The CC1352P RF transceiver is interface between internal circuit data, and control panel. Modulation and frequency: 2FSK, 916.5MHz  13.56 MHz RFID coil combined with proximity sense pad is printed on PCB and assembled using board-to-board connector on the main PCB.
