For more information, go to: www.essence-grp.com © 2013 Essence Security International (E.S.I.) Ltd. Information contained within this document may change without notice Tag Reader ES700TR5 Wireless Access Control RFID Tag Reader with 5 Buttons 11 Lifestyle ProductSpecifications The simplest and most user-friendly control node / access control unit. It features: •User’s identity verification using RFID technology implemented in a portable Tag (ES700TAG) carried by the user. •Has ARM, DISARM, partial ARM, Perimeter ARM, bell, SOS, open and close door functions. •The ES700TAG Tag is an elegant device, comfortable to use and carry, light-weight and easily attached to a keychain. Due to its RFID passive technology, it requires no battery. •Extremely easy and simple to use “Plug-&-Play” state-of-the-art Wireless security system: •User-friendly •Utilizes cutting-edge technology •Bidirectional RF wireless communication •Battery operated •Easy to install •Nonintrusive, state-of-the-art design COMMUNICATION: •Bi-directional: End-to-End Bi-Directional ESI protocol •Advanced radio supervision algorithm •Up to 700 meters / 2296 ft. RF range (open air) •Modulation and Frequency: BFSK , 868.3 for Europe MHz or 916.5 MHz for USA •RFID modulation: ASK, 13.56MHz •Encoding: 32-bit ID, over 4 billion combinations SECURITY: •Tamper mechanism when removed from wall mount •Unique electronic serial number POWER CONSUMPTION: •Used 3 standard AA Alkaline batteries •Long operational period (36 months) •Tag is a passive unit and does not require a power source SIZE and WEIGHT: •Dimensions: •Tag Reader: 90x90x25 mm / 3.5x3.5x1 In. (LxWxD) •Tag: 50x34x7 mm / 2x1.3x0.3 In. (LxWxD) •Weight: •Tag Reader: 135 gr. / 0.3 lb. (excluding batteries) •Tag: 10 gr. / 0.02 lb. ENVIRONMENT: •Operating Ambient Temperature range: -10°C ~ 55°C / 14°F ~ 131°F •Humidity: up to 95%, non condensing CERTIFICATION: •CE: CE mark, EMC/EMI according to ETSI EN 301 489-4, ETSI EN 301 489-1, EN 50130-4:1996, EU Directive 1999/5/EC for R&TTE •Radio: ETSI EN 300 220-3, ETSI EN 300 220-1, CEPT/ERC Recommendation 70-03, EN 50131-5-3:2005 + A1:2008 •Safety: EN/IEC60950-1, TUV : UL 60950-1 •Security & Alarm systems: EN 50131-1:2006 + A1:2009 Class-II Grade- 2, EN50131-6:2008 Type-C •Environmental Regulation: RoHS2002/95/EC •Reliability (Mechanical & Environmental conditions): EN 50130-5:1999 and IEC 60068 •Manufacturing and Materials Standards: ISO 9001:2008, ISO 14000 Certifications and approvals: NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this equipment not expressly approved by the party responsible for compliance (Essence Security International Ltd.) could void the user’s authority to operate the equipment. WARNING!To comply with FCC RF exposure compliance requirements, the device should be located at a distance of at least 20 cm from all persons during normal operation. The antennas used for this product must not be co-located or operated in conjunction with any other antenna or transmitter. This devicecomplies withFCC RulesPart 15. Operationissubjectto the followingtwo conditions: (1) This devicemaynot cause harmfulinterference, and (2) This devicemust acceptanyinterferencereceived, includinginterferencethatmay cause undesiredoperation

, January 16, 2014 Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Composite application for certification of a tag reader, FCC ID:YXG-ES700TR5 Dear Gentlemen, Please find attached our composite application for certification of a tag reader, model ES700TR5, FCC ID:YXG-ES700TR5, prepared in accordance with FCC Rules part 2 and part 15 subpart C sections 15.231(a), 15.225. The product testing and this application for certification were performed by Hermon Laboratories, which is listed by FCC, Registration Numbers 90623, 90624. The FCC Designation Number is US1003. Hermon Labs responsible person is Mr. Michael Nikishin, tel: +972 4626 8440, fax:+972 4628 8277, e-mail: [email protected]. Please send an invoice to Hermon Labs. We hope this application satisfies your requirements Sincerely yours, Igal Zertser, RF Engineering TL

Essence Security International Ltd. FCC ID:YXG-ES700TR5 Page 1 of 3 EXTERNAL PHOTOGRAPHS This document contains 2 photographs Essence Security International Ltd. FCC ID:YXG-ES700TR5 Page 2 of 3 Photograph No.1 ES700TR5 tag reader front view Essence Security International Ltd. FCC ID:YXG-ES700TR5 Page 3 of 3 Photograph No.2 ES700TR5 tag reader rear side view

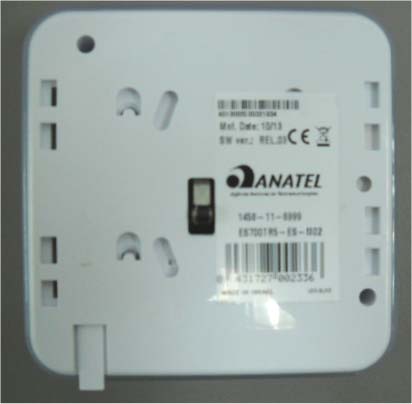

Essence Security International Ltd. FCC ID:YXG-ES700TR5 Page 1 of 1 Label The label is affixed on the rear side of the tag reader as shown below. The label material is PVC with a permanent adhesive. Label location Label with FCC ID:YXG-ES700TR5 is located at the rear side panel. The statement according to FCC part 15 §15.19(a)(3) is placed in User’s Guide (Application exhibit User_manual_25193). FCC ID:YXG-ES700TR5

Essence Security International Ltd. FCC ID:YXG-ES700TR5 Page 1 of 9 INTERNAL PHOTOGRAPHS This document contains 8 photographs Essence Security International Ltd. FCC ID:YXG-ES700TR5 Page 2 of 9 Photograph No.1 ES700TR5 tag reader internal view Essence Security International Ltd. FCC ID:YXG-ES700TR5 Page 3 of 9 Photograph No.2 RF module close view Essence Security International Ltd. FCC ID:YXG-ES700TR5 Page 4 of 9 Photograph No.3 ES700TR5 tag reader main PCB front view Essence Security International Ltd. FCC ID:YXG-ES700TR5 Page 5 of 9 Photograph No.4 ES700TR5 main PCB second side view Essence Security International Ltd. FCC ID:YXG-ES700TR5 Page 6 of 9 Photograph No.5 RFID module antenna Essence Security International Ltd. FCC ID:YXG-ES700TR5 Page 7 of 9 Photograph No.6 RF module and antenna view Essence Security International Ltd. FCC ID:YXG-ES700TR5 Page 8 of 9 Photograph No.7 RF PCB front view Essence Security International Ltd. FCC ID:YXG-ES700TR5 Page 9 of 9 Photograph No.8 RF PCB second side view

Essence Security International (E.S.I.) Ltd. www.essence-grp.com+972-73-244-7777 [email protected] © 2013 Essence Security International (E.S.I.) Ltd. Information contained within this document may change without notice. part of the Essence Group Tag Reader ES700TR5 Wireless Access Control RFID Tag Reader with 5 Buttons Essence Security International (E.S.I.) Ltd. www.essence-grp.com+972-73-244-7777 [email protected] © 2013 Essence Security International (E.S.I.) Ltd. Information contained within this document may change without notice. The ES700TR5 requires 3x1.5V AA Alkaline (non-rechargeable batteries). The ES700TG Tag requires no battery, due to its RFID passive technology. The ES700TR5 has a range of 500 meters (1640 feet). The ES700TR5 has four red /green LEDs. The LEDs can be configured to identify specific state. The light around the perimeter of the buttons can be either red or green depending whether it is an approve (green) or deny (red) indication. The main micro-controller gets data from the RFID chip, buttons and tamper switch. Modulation and Frequency: BFSK , 868.3 for Europe MHz or 916.5MHz for USA RFID modulation: ASK, 13.56MHz Block Diagram Description

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 30 Report ID: ESSRAD_FCC.25193_15.225.docx Date of Issue: 29-Dec-13 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC CFR 47 part 15 subpart C, section 15.225 FOR: Essence Security International Ltd. Tag Reader Model:ES700TR5 FCC ID:YXG-ES700TR5 This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: ESSRAD_FCC.25193_15.225.docx Date of Issue: 29-Dec-13 Page 2 of 30 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 Test configuration .......................................................................................................................................................... 5 6.3 Changes made in the EUT ............................................................................................................................................ 5 6.4 Transmitter characteristics of RFID transmitte .............................................................................................................. 6 7 Transmitter tests according to 47CFR part 15 subpart C requirements ........................................................................ 7 7.1 In band radiated emissions ........................................................................................................................................... 7 7.2 Out of band radiated emissions ................................................................................................................................... 11 7.3 Frequency stability test ................................................................................................................................................ 17 7.4 Occupied bandwidth test ............................................................................................................................................. 19 7.5 Antenna requirements ................................................................................................................................................. 22 8 APPENDIX A Test equipment and ancillaries used for tests ....................................................................................... 23 9 APPENDIX B Measurement uncertainties ................................................................................................................... 24 10 APPENDIX C Test laboratory description ................................................................................................................... 25 11 APPENDIX D Specification references ....................................................................................................................... 25 12 APPENDIX E Test equipment correction factors ......................................................................................................... 26 13 APPENDIX F Abbreviations and acronyms ................................................................................................................. 30 Report ID: ESSRAD_FCC.25193_15.225.docx Date of Issue: 29-Dec-13 Page 3 of 30 1 Applicant information Client name: Essence Security International Ltd. Address: 12 Abba Eban Avenue, Ackerstein Towers Bldg. D, P.O.B. 2073, Herzliya 4612001, Israel Telephone: +972 73 244 7735 Fax: +972 9772 9962 E-mail: [email protected] Contact name: Mr. Israel Gottesman 2 Equipment under test attributes Product name: Tag Reader Product type: Transmitter operating at 13.56 MHz Model(s): ES700TR5 Serial number: 4013092e0032193b Hardware version: 1 Software release: 3.0.2 Receipt date 24-Nov-13 3 Manufacturer information Manufacturer name: Essence Security International Ltd. Address: 12 Abba Eban Avenue, Ackerstein Towers Bldg. D, P.O.B. 2073, Herzliya 4612001, Israel Telephone: +972 73 244 7735 Fax: +972 9772 9962 E-Mail: [email protected] Contact name: Mr. Israel Gottesman 4 Test details Project ID: 25193 Location: Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Test started: 24-Nov-13 Test completed: 16-Dec-13 Test specification(s): FCC CFR 47 part 15 subpart C, §15.225 Report ID: ESSRAD_FCC.25193_15.225.docx Date of Issue: 29-Dec-13 Page 4 of 30 5 Tests summary Test Status Transmitter characteristics Sections 15.225(a) (b) (c), In band radiated emissions Pass Sections 15.225(d), Out of band radiated emissions Pass Section 15.225(e), Frequency stability Pass Section 15.207…
