Z4D-SBRTRU1Remote Trainer Ultrasonic collar

MODEL: SBRTUS1 remote trainerultrasonic collar

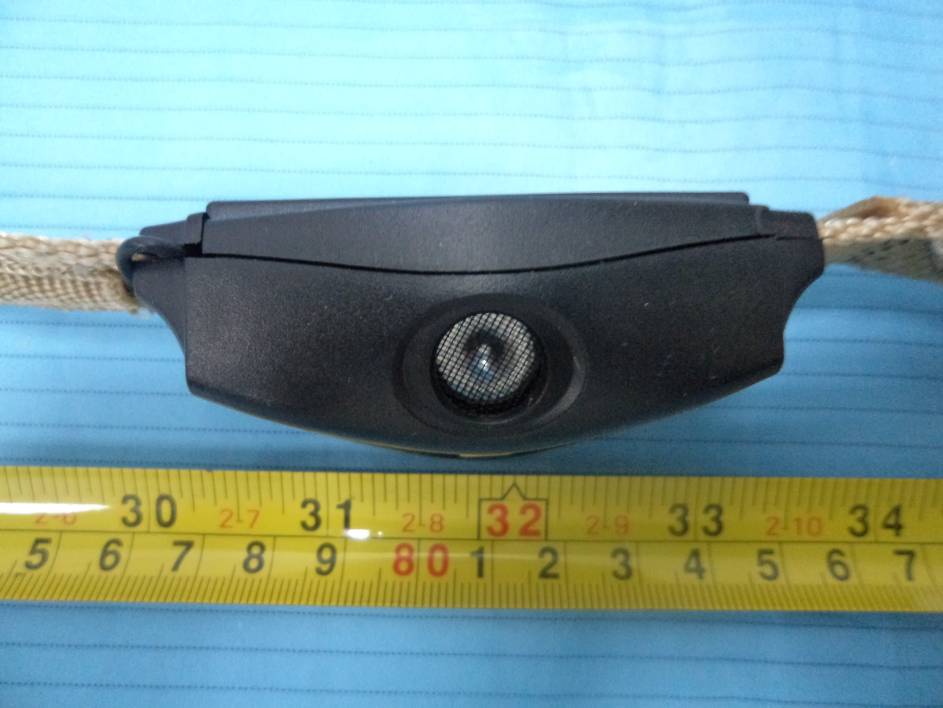

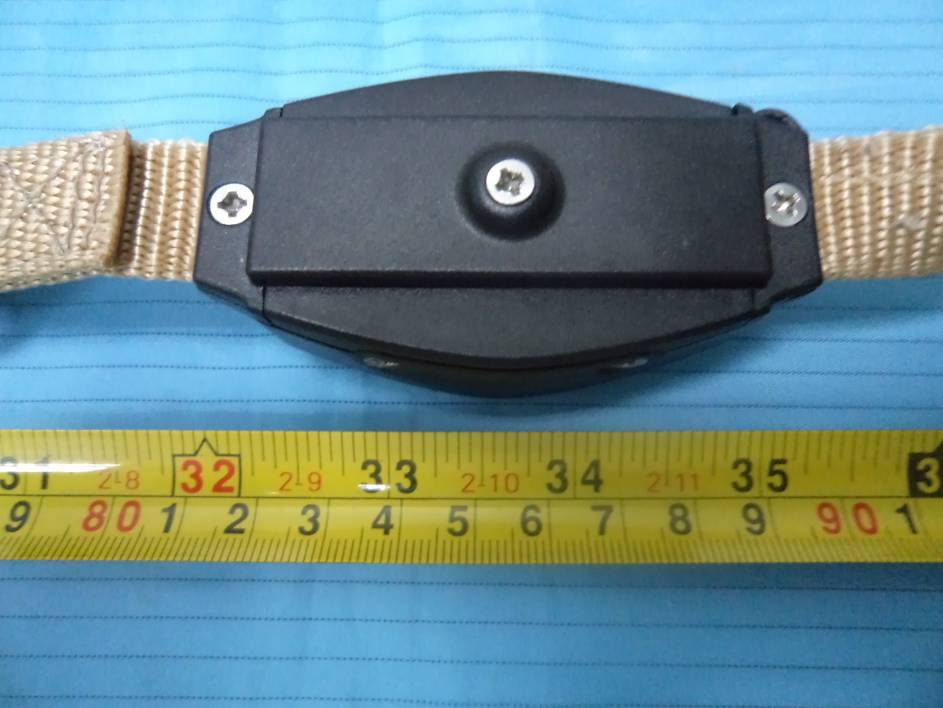

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Side View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15 CLASS B TEST REPORT For Sunbeam Products, Inc. d/b/a Jarden Consumer Solutions 2381 NW Executive Center Drive, Boca Raton, Florida 33431 FCC ID: Z4D-SBRTRU1 Report Type: Original Report Product Type: Remote Trainer Ultrasonic collar-Receiver Test Engineer: Tiger Ye Report Number: RSZ111010003-00 Report Date: 2011-11-25 Reviewed By: Lisa Zhu EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ111010003-00 FCC Part15B Page 2 of 9 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EUT EXERCISE SOFTWARE..........................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 FCC47 §15.109 - RADIATED EMISSIONS ...............................................................................................................7 MEASUREMENT UNCERTAINTY....................................................................................................................................7 EUT SETUP..................................................................................................................................................................7 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST PROCEDURE........................................................................................................................................................8 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 TEST DATA..................................................................................................................................................................8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ111010003-00 FCC Part15B Page 3 of 9 GENERAL INFORMATION Product Description for Equipment under Test (EUT) The Sunbeam Products, Inc. d/b/a Jarden Consumer Solutions’s product, model number: SBRTUS1 (FCC ID: Z4D-SBRTRU1) (the "EUT") in this report is a Remote Trainer Ultrasonic collar, which was measured approximately: 36.7 cm (L) x 4.1 cm (W) x 2.3 cm (H), rated input voltage: DC 6 V battery. The highest operating frequency is 433.92MHz. All measurement and test data in this report was gathered from production sample serial number: 1110011 (Assigned by BACL, Shenzhen). The EUT was received on 2011-10-10. Objective This test report is prepared on behalf of Sunbeam Products, Inc. d/b/a Jarden Consumer Solutions in accordance with Part 2-Subpart J, Part 15-Subparts A and B of the Federal Communication Commissions rules. The objective of the manufacturer is to determine the compliance of the EUT with FCC Part 15 Class B. Related Submittal(s)/Grant(s) No related submittal(s). Test Methodology All measurements contained in this report were conducted with ANSI C63.4-2009. American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. All emissions measurement was performed and Bay Area Compliance Laboratories Corp. (Shenzhen). The radiated testi…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions View (Below 1GHz) Radiated Emissions View (Above 1GHz)
