33020.mc-20HoTT.2.en Programming ManualoProPro mc-20 mc-20 2 Table of contents Code lock ...................................................... 31 Secret mode .................................................. 32 Display contrast ........................................ 32 Language selection Voice update............................................. 32 Change of display language ..................... 33 Firmware update via SD card ................... 36 Joystick calibration ................................... 36 Telemetry data display ................................... 36 Commissioning the transmitter ................................ 42 Firmware update via PC ..................................... 43 Commissioning the receiver .................................... 46 Receiver system power supply ........................... 47 General charging notices ................................... 49 Firmware update ................................................ 50 Installation notices ................................................... 52 Term defi nitions ....................................................... 54 Assigning transmitter controls, switches and control switches ................................................ 56 Digital trim ............................................................... 58 Winged models ........................................................ 60 Receiver layout ................................................... 61 Helicopter models .................................................... 64 Receiver layout ................................................... 65 Program descriptions Loading a new memory location .............................. 66 » Model select« ....................................................... 69 » Copy / Erase« ....................................................... 70 Erase model ....................................................... 70 Copy model ¼ Model ......................................... 70 Export to SD card ............................................... 71 Import from SD card ........................................... 72 Copy fl ight phase ................................................ 72 Changes ............................................................. 73 » Suppress codes« ................................................. 74 » Suppress models«............................................... 75 » Basic settings, model« Winged model .................................................... 76 Binding receivers ........................................... 77 General notices Table of contents ....................................................... 2 Environmental protection notices .............................. 3 Safety notices ............................................................ 4 Safety notices and handling regulations for Lithium-Ion (LiIo) and Lithium-Polymer (LiPo) batteries .......................................................... 7 Foreword .................................................................. 10 Remote control set description ................................ 11 Technical data .......................................................... 14 General operating notices Transmitter ..........................................................16 Opening the transmitter housing ...................16 Transmitter power supply...............................16 Recommended chargers ...............................17 Battery operation timer in display .................. 18 Lithium battery, CR 2032 ............................... 18 Joystick length adjustment ............................18 Joystick conversions ......................................19 Holder bracket for transmitter straps ............. 20 Installing additional controls, switches, etc. ... 20 Aligning the antenna ...................................... 20 Transmitter description Front side.......................................................21 Face-side connectors Charger socket ......................................... 22 DSC (Direct Servo Control) ...................... 22 mini-USB connector ................................. 23 Data socket .............................................. 23 Card slot (data storage) ........................... 23 Headset connector ................................... 24 ext. PPM ................................................... 25 SPI ........................................................... 25 Inside the transmitter ..................................... 26 Display and key pads .................................... 28 Operating the "data terminal" ........................ 29 Shortcuts ....................................................... 30 Warnings in the display ................................. 30 Function fi elds in the display ......................... 31 Table of contents Range test ..................................................... 80 Helicopter model ................................................ 84 Binding receivers ........................................... 85 Range test ..................................................... 88 » Model type« .......................................................... 94 » Helicopter type«................................................... 98 » Servo adjustment« ............................................ 102 » Stick mode« Winged model .................................................. 104 Helicopter model .............................................. 106 » Control adjust« Winged model .................................................. 108 Helicopter model .............................................. 112 Throttle limit function ................................... 117 Idle setting ................................................... 117 Throttle limit in combination with AR in the »Stick mode menu« ......................... 119 » Dual Rate / Expo« Winged model .................................................. 120 Helicopter model .............................................. 1…

Text truncated - open the document above for the full version.

Graupner GmbH & Co. KG. FCC ID: ZKZ-MC-20 POWER OF ATTORNEY August 8, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Bontek Compliance Testing Laboratory Ltd.(Tony Wu) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Bontek Compliance Testing Laboratory Ltd. (Tony Wu) on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act.We, Graupner GmbH & Co. KG. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuantto that section. Sincerely, Graupner GmbH & Co. KG. Mr. Ralf Helbing (Head of Development Dept.)

Graupner GmbH & Co. KG August 12, 2012. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ZKZ-MC-20. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit TypeFile Name Block Diagram ZKZ-MC-20_BlcokDiagram.pdf Schematic Diagram ZKZ-MC-20_SchematicDiagram.pdf Circuit Description ZKZ-MC-20_CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, we are aware that the exhibits listed above have publicly available since 08/08/2012 the date the grant was issued. Yours Sincerely, Graupner GmbH & Co. KG <SIGNATURE of Mr. Ralf Helbing > ---------------------------------------------------------- Head of Development Dept.

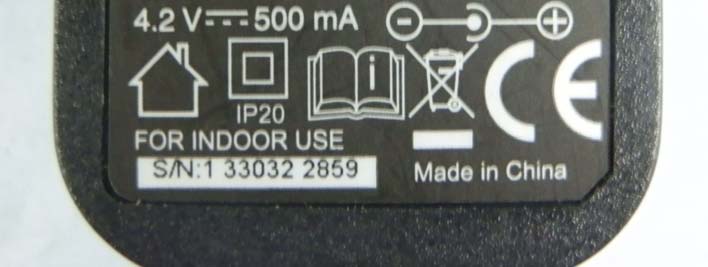

EUT EXTERNAL PHOTOS EUT –Front View EUT –Rear View EUT –Rear View EUT –Adapter View EUT –Adapter View

FCC ID Label Sample Graupner/SJ HoTT MC-20 2.4GHz FCC ID:ZKZ-MC-20 FCC Statement This device complies with Part 1. 15C of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference, received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. No. 33020 Made in China

FCC ID Location FCC ID Location

EUT INTERNAL PHOTOGRAPHS EUT –Uncover View EUT –Antenna Location and Details Antenna Location EUT –PCB View EUT –PCB View EUT –PCB View EUT –PCB View EUT –PCB View EUT –PCB View EUT –PCB View EUT –LCD View EUT –Transmitter Module View

© All Rights Reserved Taoglas Limited, Unit 7 Peare Campus, Moyne Business Park, Enniscorthy, Co. Wexford, Ireland [email protected] +353 53 9169500 www.taoglas.com SPECIFICATION Part No. : SWLP.2450.12.4.B.02 Product Name : 12mm*12mm*4mm 2.4GHz SMD Patch Antenna Features : For Wi-Fi/WLAN/ISM/Zigbee Industrial Applications ROHS Compliant High Gain 2dBi REVISION STATUS Version Date Page Revision Description Prepared Approved 01 Nov 25 th 2009 All Release TW Product Centre Ronan Quinlan Top Bottom © All Rights Reserved Taoglas Limited, Unit 7 Peare Campus, Moyne Business Park, Enniscorthy, Co. Wexford, Ireland [email protected] +353 53 9169500 www.taoglas.com 1.0 Introduction This 12mm*12mm*4mm high gain 2.4GHz patch antenna is ideally suited for high performance industrial applications in Wi-fi, ISM, Zigbee bands. This product has highest gain in the XZ (azimuth) plane direction, most suitable for fixed wireless applications where transmission and reception is focused to one hemisphere of the device, for example a wireless meter on a reinforced concrete wall. It can also be placed anywhere on the device ground-plane, unlike most chip or loop antennas which need to be edge mounted. 2.0 Key Antenna Performance Indicators* No Parameter Specification 1 Range of Receiving Frequency 2400 MHz to 2500 MHz 2 Bandwidth 100 MHz @ -7dB 3 Polarization Linear VSWR 3.0 max @ Center Frequency Peak Gain +2 dBi typ. Impedance 50 Ohms 4 Dimensions 12mm x 12mm x 4mm 5 Operating Temperature -40°C to +105°C 6 Storage Temperature -40°C to +105°C Termination Ag (Environmentally Friendly Pb Free) Original Patch Specification measured on EVB 50*50mm, actual value depends on ground-plane and housing © All Rights Reserved Taoglas Limited, Unit 7 Peare Campus, Moyne Business Park, Enniscorthy, Co. Wexford, Ireland [email protected] +353 53 9169500 www.taoglas.com 3.0 Mechanical Specifications 3.1Return Loss With 50×50mm 2 Evaluation board © All Rights Reserved Taoglas Limited, Unit 7 Peare Campus, Moyne Business Park, Enniscorthy, Co. Wexford, Ireland [email protected] +353 53 9169500 www.taoglas.com 3.2 Definition of X-Y-Z Plane © All Rights Reserved Taoglas Limited, Unit 7 Peare Campus, Moyne Business Park, Enniscorthy, Co. Wexford, Ireland [email protected] +353 53 9169500 www.taoglas.com 3.3 Radiation Patterns XY Plane © All Rights Reserved Taoglas Limited, Unit 7 Peare Campus, Moyne Business Park, Enniscorthy, Co. Wexford, Ireland [email protected] +353 53 9169500 www.taoglas.com XZ Plane YZ Plane © All Rights Reserved Taoglas Limited, Unit 7 Peare Campus, Moyne Business Park, Enniscorthy, Co. Wexford, Ireland [email protected] +353 53 9169500 www.taoglas.com 3.3Efficiency Chart 3.4Average Gain © All Rights Reserved Taoglas Limited, Unit 7 Peare Campus, Moyne Business Park, Enniscorthy, Co. Wexford, Ireland [email protected] +353 53 9169500 www.taoglas.com 4.0 Shape and Dimensions © All Rights Reserved Taoglas Limited, Unit 7 Peare Campus, Moyne Business Park, Enniscorthy, Co. Wexford, Ireland [email protected] +353 53 9169500 www.taoglas.com © All Rights Reserved Taoglas Limited, Unit 7 Peare Campus, Moyne Business Park, Enniscorthy, Co. Wexford, Ireland [email protected] +353 53 9169500 www.taoglas.com © All Rights Reserved Taoglas Limited, Unit 7 Peare Campus, Moyne Business Park, Enniscorthy, Co. Wexford, Ireland [email protected] +353 53 9169500 www.taoglas.com 5.0 Packaging © All Rights Reserved Taoglas Limited, Unit 7 Peare Campus, Moyne Business Park, Enniscorthy, Co. Wexford, Ireland [email protected] +353 53 9169500 www.taoglas.com 6.0 Recommended Reflow Temperature Profile The SWLP.12 can be assembled following either Sn-Pb or Pb-Free assembly processes. According to the Standard IPC/JEDEC J-STD-020C, the recommended soldering temperatures are as follows: Phase Profile Features Sn-Pb Assembly Pb-Free Assembly (SnAgCu) Ramp-Up Avg. Ramp-Up Rate (Ts max to TP) 3°C/second (max) 3°C/second (max) Preheat Temperature Min (Ts min ) Temperature Max (Ts max ) Time (ts min to ts max ) 100° 150° 60-120 seconds 100° 150° 60-120 seconds Reflow Temperature (T L ) Total Time Above T L b(t L) 183°C 60-150 seconds 217°C 60-150 seconds Peak Temperature (T p ) Time (tp) 235°C 10-30 seconds 260°C 20-40 seconds Ramp-Down Rate 6°C/second (max) 6°C/second (max) Time from 25°C to peak Temperature 6 minutes max 8 minutes max Temperature profile – (green area) for the assembly process in reflow ovens © All Rights Reserved Taoglas Limited, Unit 7 Peare Campus, Moyne Business Park, Enniscorthy, Co. Wexford, Ireland [email protected] +353 53 9169500 www.taoglas.com

Radio Frequency Exposure Report On Behalf of Graupner GmbH & Co. KG. FCC ID: ZKZ-MC-20 Product Description: Computer System Graupner/SJ HoTT Model No.: MC-20 Supplementary Model: N/A Prepared for: Graupner GmbH & Co. KG. Henriettenstr. 94-96 D-73230 Kirchheim/Teck GERMANY Prepared by: Bontek Compliance Testing Laboratory Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Tel: 86-755-86337020 Fax: 86-755-86337028 Report No.: BCT12GR214E-3 Issue Date: August 13, 2012 Test Date: July 20~ August 9, 2012 Test by: Reviewed By: Vincent Jiang Kevin Chi TABLE OF CONTENTS 1 - GENERAL INFORMATION....................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................................3 1.2 OBJECTIVE.................................................................................................................................................................3 1.3 GENERAL DESCRIPTION OF TEST..................................................................................................................................4 1.4 HUMAN EXPOSURE ASSESSMENT RESULTS...................................................................................................................4 Report No.: BCT12GR214E-3 Page 2 of 5 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Applicant: Graupner GmbH & Co. KG Address of Applicant: Henriettenstr. 94-96 D-73230 Kirchheim/Teck GERMANY Manufacturer: SJ TECHNOLOGY(SHENZHEN) CO.,LTD Address of Manufacturer: F6, 1 BLDG, A AREA, YINTIANXIFA INDUSTRIAL AREA, XIXIANG TOWN, BAOAN DISTRICT SHENZHEN, GUANGDONG PROVINCE, CHINA General Description of E.U.T Items Description EUT Description: Computer System Graupner/SJ HoTT Model No.: MC-20 Trade Name: HoTT Supplementary Model: N/A Frequency Band: 2404 MHz ~ 2479 MHz Channel Spacing: 1 MHz Number of Channels: 75 Type of Modulation: FHSS Antenna Type: Built-in Antenna Rated Voltage: Intput: 4.2VDC 500mA from AC/DC adapter Adapter description: Model: Graupner/SJ/ 33032.4 Input:100-240V~, 50/60Hz, MAX 0.5A Output: 4.2V DC/500mA Remark: * The test data gathered are from the production sample provided by the manufacturer. 1.2 Objective The objective of the following report is used to demonstrate that EUT operated in a manner that ensures the public is not exposed to radio frequency energy levels in excess of the relative provisions of FCC 47CFR Part 1.1307 Report No.: BCT12GR214E-3 Page 3 of 5 1.3 General Description of Test Items Description EUT Frequency band FHSS: 2.400GHz ~ 2.483GHz WLAN: 2.400GHz ~ 2.483GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others: __________________________ Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Others: __________________________ Antenna diversity Single antenna Multiple antennas: Tx diversity Rx diversity Tx/Rx diversity Max. output power 19.65dBm (0.0923W) Antenna gain (Max) 1 dBi (Numeric gain:10) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 19.65dBm (0.0923W) at 2404MHz (with 10 numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. 1.4 Human Exposure Assessment Results Report No.: BCT12GR214E-3 Page 4 of 5 EUT parameter (data from the separate report) Given Where G: numerical gain of transmitting antenna; TP: Transmitted power in watt; d: distance from the transmitting antenna in meter Max average output power in Watt (TP) 19.65dBm (0.0923W) Antenna gain (G) 1 dBi (Numeric gain: 10) Minimum distance in meter (d) (from transmitting structure to the human body) 20cm (0.2m) Yields E =26.31V/m S=0.1836mW/cm 2 Conclusion: S=0.1836mW/cm2 is significant lower than the 1mW/cm2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm2 even if the calculation indicates that the power density would be larger.) Report No.: BCT12GR214E-3 Page 5 of 5

Test Report of FCC CFR 47 Part 15 Subpart C On Behalf of Graupner GmbH & Co. KG. FCC ID: ZKZ-MC-20 Product Description: Computer System Graupner/SJ HoTT Model No.: MC-20 Supplementary Model: N/A Prepared for: Graupner GmbH & Co. KG. Henriettenstr. 94-96 D-73230 Kirchheim/Teck GERMANY Prepared by: Bontek Compliance Testing Laboratory Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Tel: 86-755-86337020 Fax: 86-755-86337028 Report No.: BCT12GR214E-1 Issue Date: August 14, 2012 Test Date: July 20~ August 13, 2012 Test by: Reviewed By: Vincent Jiang Kevin Chi TABLE OF CONTENTS 1. GENERAL INFORMATION................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT (S) AND TEST METHODOLOGY....................................................................... 4 1.3 TEST FACILITY...................................................................................................................................................... 5 2. SYSTEM TEST CONFIGURATION...................................................................................................................... 6 2.1 EUT CONFIGURATION.......................................................................................................................................... 6 2.2 EUT EXERCISE.................................................................................................................................................... 6 2.3 GENERAL TEST PROCEDURES............................................................................................................................. 6 2.4 MEASUREMENT UNCERTAINTY............................................................................................................................ 6 2.5TEST EQUIPMENT LIST AND DETAILS................................................................................................................... 7 3. SUMMARY OF TEST RESULTS.......................................................................................................................... 9 4. TEST OF AC POWER LINE CONDUCTED EMISSION................................................................................. 10 4.1 APPLICABLE STANDARD..................................................................................................................................... 10 4.2 TEST SETUP DIAGRAM....................................................................................................................................... 10 4.3 TEST RESULT..................................................................................................................................................... 10 5. TEST OF HOPPING CHANNEL BANDWIDTH................................................................................................ 15 5.1 APPLICABLE STANDARD..................................................................................................................................... 15 5.2 EUT SETUP........................................................................................................................................................ 15 5.3 TEST EQUIPMENT LIST AND DETAILS................................................................................................................ 15 5.4 TEST PROCEDURE............................................................................................................................................. 15 5.5 TEST RESULT..................................................................................................................................................... 15 6. TEST OF HOPPING CHANNEL SEPARATION.............................................................................................. 18 6.1 APPLICABLE STANDARD..................................................................................................................................... 18 6.2 EUT SETUP........................................................................................................................................................ 18 6.3 TEST EQUIPMENT LIST AND DETAILS................................................................................................................ 18 6.4 TEST PROCEDURE............................................................................................................................................. 18 6.5 TEST RESULT..................................................................................................................................................... 18 7. TEST OF NUMBER OF HOPPING FREQUENCY........................................................................................... 19 7.1 APPLICABLE STANDARD..................................................................................................................................... 19 7.2 EUT SETUP........................................................................................................................................................ 19 7.3 TEST EQUIPMENT LIST AND DETAILS................................................................................................................ 19 7.4 TEST PROCEDURE............................................................................................................................................. 19 7.5 TEST RESULT..................................................................................................................................................... 19 8. TEST OF DWELL TIME OF EACH FREQUENCY.......................................................................................... 20 8.1 APPLICABLE STANDARD........................................................................................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS Conducted Emission Radiated Emission
