ZKZ-MC-32ComputerSystem Graupner HoTT

Programming Manual 33124.mc-32 HoTT.1.en HOPPING TELEMETRY TRANSMISSION mc-32 2 Table of contents Transmitter initialization ............................................... 38 Firmware update ................................................... 39 Receiver initialization ................................................... 42 Firmware update ................................................... 43 Installation notices ....................................................... 46 Receiver system power supply .............................. 47 Term defi nitions ........................................................... 50 Switch and control assignments .................................. 52 Digital trimming ............................................................ 54 Winged models ............................................................ 56 Receiver layout ...................................................... 57 Helicopter models ........................................................ 58 Receiver layout ...................................................... 59 Program descriptions Loading a new memory location .................................. 60 "Model select" ............................................................ 63 "Copy / Erase" ............................................................ 64 Erase model .......................................................... 64 Copy model ¼ model ........................................... 64 Export to SD card .................................................. 65 Import from SD card .............................................. 66 Copy fl ight phase ................................................... 66 "Suppress menus" ..................................................... 67 "Suppress models" .................................................... 67 "Base setup model" Winged model ....................................................... 68 Model name .................................................... 68 Stick mode ...................................................... 68 Bound receiver ................................................ 68 Binding receivers ............................................ 69 Receiver output ............................................... 70 RF transmit ...................................................... 71 Range test ....................................................... 71 DSC output...................................................... 72 General notices Table of contents ........................................................... 2 Environmental protection notices .................................. 3 Safety notices ................................................................ 4 Safety notices and handling regulations for nickel-metal-hydride rechargeable batteries ............. 8 Foreword ...................................................................... 10 Remote control set description .................................... 11 Recommended chargers ............................................. 13 Transmitter power supply ............................................. 14 Receiver power supply .......................................... 16 Joystick length adjustment........................................... 17 Opening the transmitter housing ................................. 17 Changing joystick behavior .......................................... 18 Transmitter description ................................................ 20 Operating elements ............................................... 20 Backside of the transmitter .................................... 21 Headset connector ................................................ 21 Mini-USB connector .............................................. 21 Data jack ............................................................... 21 DSC (Direct Servo Control) ................................... 22 Data storage / card slot ......................................... 22 Display and keypad ............................................... 24 Operating the "data terminal" ................................ 25 Shortcuts ............................................................... 26 Hidden menu columns ........................................... 27 Hidden mode ......................................................... 28 Language selection and display contrast .............. 28 Joystick calibration ................................................ 29 Telemetry data display ........................................... 32 Displayed warnings ............................................... 36 Function fi eld displays ........................................... 37 Position display for rotary controls, CTRL 7 & 8 .... 37 Entry lockout .......................................................... 37 Table of contents Cut-off ............................................................. 72 Helicopter model ................................................... 74 Model name .................................................... 74 Stick mode ...................................................... 74 Bound receiver ................................................ 74 Binding receivers ............................................ 75 Receiver output ............................................... 76 RF transmit ...................................................... 77 Range test ....................................................... 77 DSC output...................................................... 78 Autorotation ..................................................... 78 Auto.C1 Pos. .................................................... 79 Cut-off ............................................................. 79 "Model type" ............................................................... 82 "Helicopter type" ........................................................ 86 "Servo adjustment" .................................................... 90 "Stick mode" Winged model .................................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) Revised wording (current) SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Graupner GmbH & Co. KG December 10, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Graupner GmbH & Co. KG hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description, ComputerSystem Graupner HoTT model name, mc-32 ) We affirm that between SIEMIC and Graupner GmbH & Co. KG , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Head of Development Dept. Contact information / address: Henriettenstr. 94-96 D-73230 Kirchheim/Teck GERMANY

Date: December 15, 2011 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID:ZKZ-MC-32 To Whom It May Concern: This letter is to ascertain that Graupner GmbH & Co. KG Product ComputerSystem Graupner HoTT has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature: Client’s name / title: Head of Development Dept. Contact information / address: Henriettenstr. 94-96 D-73230 Kirchheim/Teck GERMANY

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 Graupner GmbH & Co. KG Date: December 10, 2011 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: ZKZ-MC-32 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Signature Best Regards Name : Ralf Helbing Title: Head of Development Dept. Company Name: Graupner GmbH & Co. KG Address: Henriettenstr. 94-96 D-73230 Kirchheim/Teck Germany. Email: [email protected] Telephone: ：+49/7021/722-185

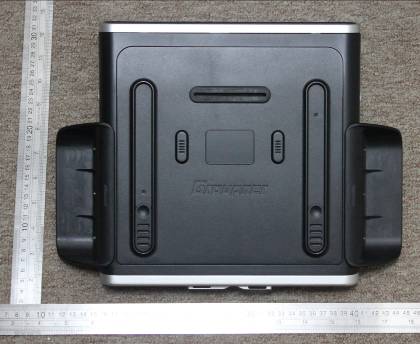

External Photographs EUT –Top View EUT –Rear View

FCC ID Label

FCC ID Label Location FCC ID Label Location

Internal Photographs EUT –Uncovered View EUT –PCB View

1 Radio Frequency Exposure Graupner GmbH & Co. KG FCC ID: ZKZ-MC-32 Product Description: ComputerSystem Graupner HoTT Model No.: mc-32 Trade Mark: HoTT Prepared for: Graupner GmbH & Co. KG Henriettenstr. 94-96 D-73230 Kirchheim Teck,Germany Prepared by: Shenzhen Laker Testing Technology Co.,Ltd 15C，Block 1,Sunshine Huayi Building,Nanhai West Road, Nanshan, Shenzhen, China Tel: 86-755-86307736 Fax: 86-755-86307736 Report No.: LK11KR-00218E-M Issue Date: December 10, 2011 Te s t D a t e : December 01~10, 2011 Te s t b y : Reviewed By: Owen Li Edmund Zou 2 LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See FCC part 15.247(i)and §1.1307(b)(1) of this chapter. EUT Specification EUT ComputerSystem Graupner HoTT Type of Modulation: FHSS Frequency Band: 2404.056MHz ~ 2474.025 MHz Number of Channels: 70 Channel Bandwidth: 1.014 MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 20.5dBm (112.2mW) Antenna gain (Max) 2.0 dBi Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 20.5dBm (112.2mW)) at 2438.533MHz (with 1.585 numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULT No non-compliance noted. 3 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field Strength in Volts / meter P = Power in Watts G=Numeric antenna gain d=Distance in meters S=Power Density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) Yields 2 )100/(3770 )1000/(30 d GP S × ×× = = 2 0796.0 d GP × × Equation 1 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm 2 Maximum Permissible Exposure EUT Output Power=112.2mW Numeric antenna gain=1.585 Substituting the MPE safe distance using d=20 cm into Equation 1 : Yields S=0.000199 × P × G Where P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm2 The power density S = 0.000199 × 112 .2 × 1.585=0.035389563 mW / cm2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm 2 even if the calculation indicates that the power density would be larger.) Evaluation reslut : PA S S

Test Report of FCC Part 15 C for FCC Certificate On Behalf of Graupner GmbH & Co. KG FCC ID: ZKZ-MC-32 Product Description: ComputerSystem Graupner HoTT Model No.: mc-32 Trade Mark: HoTT Prepared for: Graupner GmbH & Co. KG Henriettenstr. 94-96 D-73230 Kirchheim Teck,Germany Prepared by: Shenzhen Laker Testing Technology Co.,Ltd 15C，Block 1,Sunshine Huayi Building,Nanhai West Road, Nanshan, Shenzhen, China Tel: 86-755-86307736 Fax: 86-755-86307736 Report No.: LK11KR-00218E Issue Date: December 10, 2011 Test Date: December 01~10, 2011 Test by: Reviewed By: Owen Li Edmund Zou Report No.: LK11KR-00218E Page 2 of 40 FCC ID: ZKZ-MC-32 TABLE OF CONTENTS 1. GENERAL INFORMATION....................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).........................................................................4 1.2 RELATED SUBMITTAL(S) / GRANT (S)...................................................................................................................4 1.3 TEST METHODOLOGY...........................................................................................................................................4 1.4 TEST FACILITY......................................................................................................................................................5 2. SYSTEM TEST CONFIGURATION......................................................................................................................6 2.1 EUT CONFIGURATION..........................................................................................................................................6 2.2 EUT EXERCISE.....................................................................................................................................................6 2.3 GENERAL TEST PROCEDURES.............................................................................................................................6 2.4 LIST OF MEASURING EQUIPMENTS USED............................................................................................................7 3. SUMMARY OF TEST RESULTS...........................................................................................................................9 4. TEST OF HOPPING CHANNEL BANDWIDTH................................................................................................10 4.1 APPLICABLE STANDARD.....................................................................................................................................10 4.2 EUT SETUP........................................................................................................................................................10 4.3 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................10 4.4 TEST PROCEDURE..............................................................................................................................................10 4.5 TEST RESULT......................................................................................................................................................10 5. TEST OF HOPPING CHANNEL SEPARATION...............................................................................................14 5.1 APPLICABLE STANDARD.....................................................................................................................................14 5.2 EUT SETUP........................................................................................................................................................14 5.3 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................14 5.4 TEST PROCEDURE..............................................................................................................................................14 5.5 TEST RESULT......................................................................................................................................................14 6. TEST OF NUMBER OF HOPPING FREQUENCY...........................................................................................18 6.1 APPLICABLE STANDARD.....................................................................................................................................18 6.2 EUT SETUP........................................................................................................................................................18 6.3 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................18 6.4 TEST PROCEDURE..............................................................................................................................................18 6.5 TEST RESULT......................................................................................................................................................18 7. TEST OF DWELL TIME OF EACH FREQUENCY...........................................................................................20 7.1 APPLICABLE STANDARD.....................................................................................................................................20 7.2 EUT SETUP........................................................................................................................................................20 7.3 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................20 7.4 TEST PROCEDURE..............................................................................................................................................20 7.5 TEST RESULT..............................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS Radiated Emission
