ZKZ-MX-16-20AComputer System Graupner HoTT

Programming Manual 33116.mx-16 HoTT.1.gb HOPPING TELEMETRY TRANSMISSION mx-16 2 Contents Switch and transmitter control assignment .................. 39 Digital trims .................................................................. 40 Fixed-wing model aircraft............................................. 42 Receiver socket sequence ............................... 43/44 Model helicopters ........................................................ 46 Receiver socket sequence .................................... 47 Program descriptions Setting up a new model memory ................................. 48 “Model memories” ...................................................... 52 “Base settings” (model) Fixed-wing model aircraft ...................................... 56 Binding receivers ............................................. 61 Range-checking .............................................. 62 Model helicopter .................................................... 64 Binding receivers ............................................. 70 Range-checking .............................................. 70 “Servo settings” .......................................................... 72 “Transmitter control settings” Fixed-wing model aircraft ...................................... 74 Model helicopter .................................................... 76 Throttle limit function ....................................... 79 Basic idle setting ............................................. 79 “D/R Expo” Fixed-wing model aircraft ...................................... 82 Model helicopter .................................................... 84 “Phase trim” (fi xed-wing) ............................................ 86 What is a mixer? .......................................................... 88 “Wing mixer” .............................................................. 88 “Heli mixer” ................................................................ 94 Setting up throttle and collective pitch curves ..... 100 Auto-rotation setting ............................................ 104 General notes re. freely programmable mixers .......... 106 General Information Safety Notes .................................................................. 3 Safety notes and handling instructions relating to Nickel-Metal-Hydride rechargeable batteries ............ 8 Foreword ...................................................................... 10 Description of radio control set .................................... 11 Recommended battery chargers ................................. 13 Transmitter power supply ............................................. 14 Receiver power supply ................................................ 16 Environmental protection notes ................................... 16 Adjusting the stick length ............................................. 17 Opening the transmitter case ...................................... 17 Changing the stick mode ............................................. 18 Description of transmitter............................................. 20 Transmitter controls ............................................... 20 Rear of transmitter ................................................. 21 Headphone socket ................................................ 21 Mini-USB socket .................................................... 21 Data socket ........................................................... 21 DSC (Direct Servo Control) ................................... 22 Data storage / card slot ......................................... 22 Screen and keypad ............................................... 24 Operating the “Data Terminal” ............................... 25 Short-cuts .............................................................. 25 Language selection, screen contrast ..................... 26 On-screen warnings .............................................. 28 On-screen function fi elds....................................... 28 Position indicator, rotary controls CTRL 7 + 8 ....... 29 Input lock ............................................................... 29 Using the transmitter for the fi rst time .......................... 30 Using the receiver for the fi rst time .............................. 32 Installation notes .......................................................... 34 Receiving system power supply ............................ 35 Defi nition of terms ....................................................... 38 Contents “Free mixers” ........................................................... 107 Examples............................................................. 111 “Swashplate mixers” ............................................... 112 “Servo display” ......................................................... 113 “Basic settings” ........................................................ 114 “Fail-Safe” ................................................................. 116 “Telemetry” ............................................................... 117 Setting & Data view ............................................. 118 Satellite operation with two receivers ............ 126 Simple data view ................................................. 127 RF status view ..................................................... 129 Voice trigger ........................................................ 130 “Trainer mode” ......................................................... 132 Wiring diagrams .................................................. 135 Wireless HoTT system ........................................ 136 “Info” ........................................................................ 140 Programming examples Introduction ................................................................ 142 Fixed-wing model aircraft First steps ............................................................ 144 Including an electr ic power system ..................... 148 E-motor and Butterfl y (crow) …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Graupner GmbH & Co. KG Date: September 12, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Graupner GmbH & Co. KG hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description:Computer System Graupner HoTT model name: mx-16, mx-20 ) We affirm that between SIEMIC and Graupner GmbH & Co. KG, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Signature Best Regards Name : Ralf Helbing Title: Head of Development Dept. Company Name: Graupner GmbH & Co. KG Address: Henriettenstr. 94-96 D-73230 Kirchheim/Teck Germany. Email: [email protected] Telephone: ：+49/7021/722-185

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 Graupner GmbH & Co. KG Date: September 12, 2011 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: ZKZ-MX-16-20A We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Signature Best Regards Name: Ralf Helbing Title: Head of Development Dept. Company Name: Graupner GmbH & Co. KG Address: Henriettenstr. 94-96 D-73230 Kirchheim/Teck Germany. Email: [email protected] Telephone: ：+49/7021/722-185

Date: September 15, 2011 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: ZKZ-MX-16-20A To Whom It May Concern: This letter is to ascertain that Graupner GmbH & Co. KG Product Computer System Graupner HoTT has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Signature Best Regards Name : Ralf Helbing Title: Head of Development Dept. Company Name: Graupner GmbH & Co. KG Address: Henriettenstr. 94-96 D-73230 Kirchheim/Teck Germany. Email: [email protected] Telephone: ：+49/7021/722-185

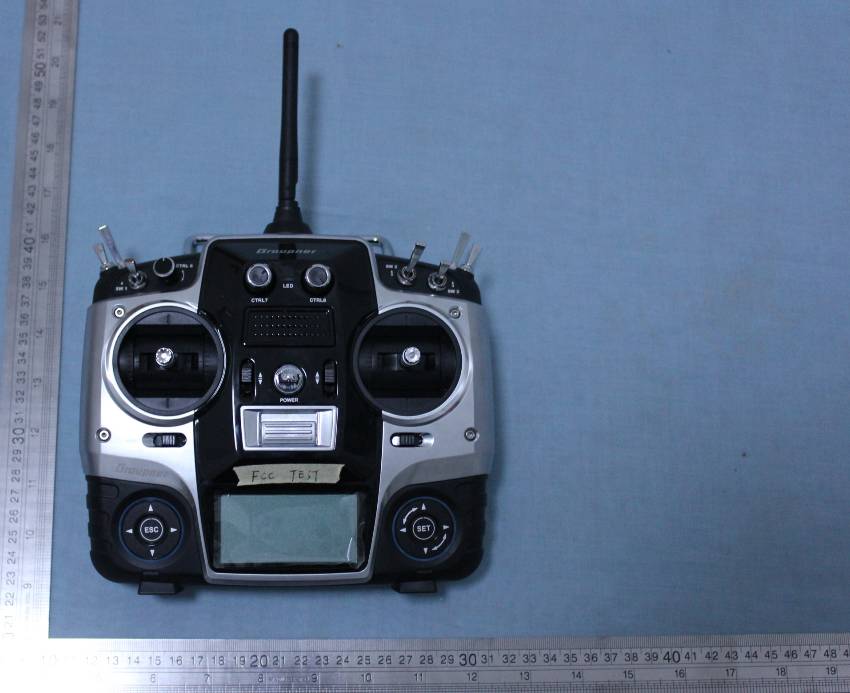

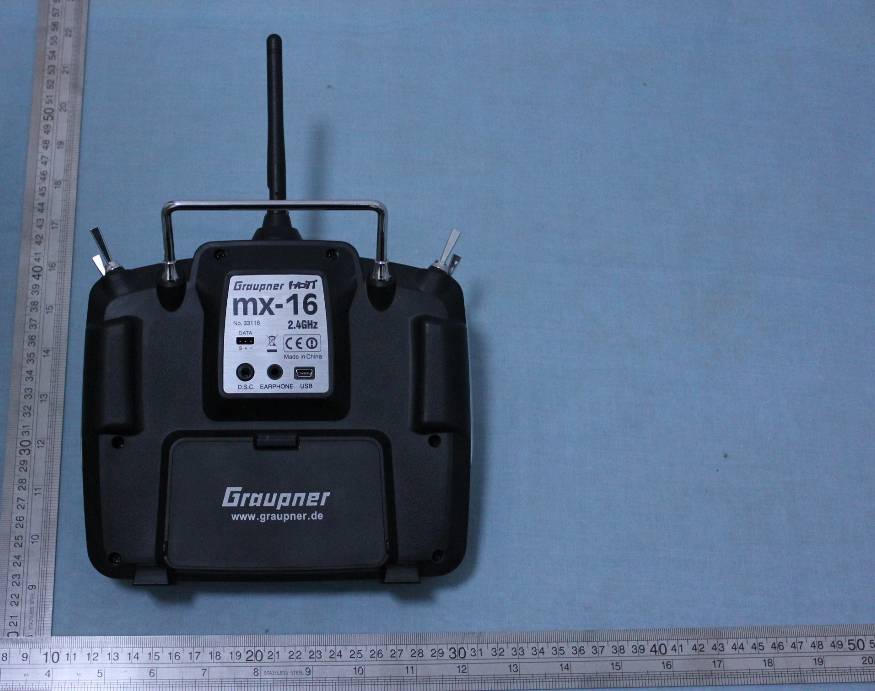

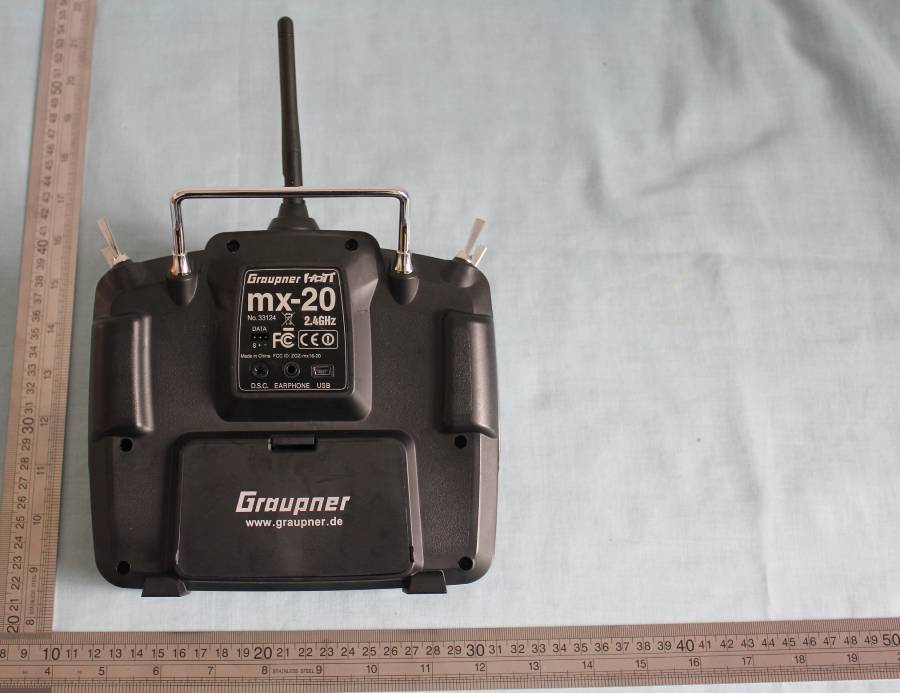

External Photographs EUT –Top View （mx-16） EUT –Rear View （mx-16） EUT –Top View （mx-20） EUT –Rear View （mx-20）

FCC ID Label Sample （mx-16） (mx-20)

FCC ID Label Location FCC ID Label Location （mx-16） （mx-20）

Internal Photographs EUT – Uncovered View EUT –PCB View Antenna connection Note：（The mx-16 and mx-20 are the same internal photo,they are just different with colour and feature）

1 Radio Frequency Exposure Graupner GmbH & Co. KG FCC ID: ZKZ-MX-16-20A Product Description: Computer System Graupner HoTT Model No.: mx-16 Supplementary No.: mx-20 Prepared for: Graupner GmbH & Co. KG Henriettenstr. 94-96 D-73230 Kirchheim Teck,Germany Prepared by: Shenzhen Laker Testing Technology Co.,Ltd 15C，Block 1,Sunshine Huayi Building,Nanhai West Road, Nanshan, Shenzhen, China Tel: 86-755-86307736 Fax: 86-755-86307736 Report No.: LK11ER-A0101E-M Issue Date: September 16,2011 Te s t D a t e : September 05~16,2011 Te s t b y : Reviewed By: Owen Li Edmund Zou 2 LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See EN62311and §1.1307(b)(1) of this chapter. EUT Specification EUT Computer System Graupner HoTT Frequency band (Operating) FHSS: 2.400GHz ~ 2.483GHz WLAN: 2.400GHz ~ 2.483GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 20.45dBm (110.92mW) Antenna gain (Max) 1 dBi (Numeric gain:1.0dB) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 20.45 dBm (110.921mW) at 2404MHz (with 1.0 numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULT No non-compliance noted. 3 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field Strength in Volts / meter P = Power in Watts G=Numeric antenna gain d=Distance in meters S=Power Density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) Yields 2 )100/(3770 )1000/(30 d GP S × ×× = = 2 0796.0 d GP × × Equation 1 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm 2 Maximum Permissible Exposure EUT Output Power=110.92mW Numeric antenna gain=1.0 Substituting the MPE safe distance using d=20 cm into Equation 1 : Yields S=0.000199 × P × G Where P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm 2 The power density S = 0.000199 × 110.92 × 1.0 mW / cm 2 =0.02207308 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm 2 even if the calculation indicates that the power density would be larger.) Evaluation reslut : PA S S

Test Report of FCC Part 15 C for FCC Certificate On Behalf of Graupner GmbH & Co. KG FCC ID: ZKZ-MX-16-20A Product Description: Computer System Graupner HoTT Test Model No.: mx-16 Supplementary No.: mx-20 Prepared for: Graupner GmbH & Co. KG Henriettenstr. 94-96 D-73230 Kirchheim Teck,Germany Prepared by: Shenzhen Laker Testing Technology Co.,Ltd 15C，Block 1,Sunshine Huayi Building,Nanhai West Road, Nanshan, Shenzhen, China Tel: 86-755-86307736 Fax: 86-755-86307736 Report No.: LK11ER-A0101E Issue Date: September 16,2011 Test Date: September 05~16,2011 Test by: Reviewed By: Owen Li Edmund Zou Report No.: LK11ER-A0101E Page 2 of 46 FCC ID: ZKZ-MX-16-20A TABLE OF CONTENTS 1. GENERAL INFORMATION....................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).........................................................................4 1.2 RELATED SUBMITTAL(S) / GRANT (S)...................................................................................................................4 1.3 TEST METHODOLOGY...........................................................................................................................................4 1.4 TEST FACILITY......................................................................................................................................................5 2. SYSTEM TEST CONFIGURATION......................................................................................................................6 2.1 EUT CONFIGURATION..........................................................................................................................................6 2.2 EUT EXERCISE.....................................................................................................................................................6 2.3 GENERAL TEST PROCEDURES.............................................................................................................................6 2.4 LIST OF MEASURING EQUIPMENTS USED............................................................................................................7 3. SUMMARY OF TEST RESULTS...........................................................................................................................9 4. TEST OF HOPPING CHANNEL BANDWIDTH................................................................................................10 4.1 APPLICABLE STANDARD.....................................................................................................................................10 4.2 EUT SETUP........................................................................................................................................................10 4.3 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................10 4.4 TEST PROCEDURE..............................................................................................................................................10 4.5 TEST RESULT......................................................................................................................................................10 5. TEST OF HOPPING CHANNEL SEPARATION...............................................................................................14 5.1 APPLICABLE STANDARD.....................................................................................................................................14 5.2 EUT SETUP........................................................................................................................................................14 5.3 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................14 5.4 TEST PROCEDURE..............................................................................................................................................14 5.5 TEST RESULT......................................................................................................................................................14 6. TEST OF NUMBER OF HOPPING FREQUENCY...........................................................................................18 6.1 APPLICABLE STANDARD.....................................................................................................................................18 6.2 EUT SETUP........................................................................................................................................................18 6.3 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................18 6.4 TEST PROCEDURE..............................................................................................................................................18 6.5 TEST RESULT......................................................................................................................................................18 7. TEST OF DWELL TIME OF EACH FREQUENCY...........................................................................................20 7.1 APPLICABLE STANDARD.....................................................................................................................................20 7.2 EUT SETUP........................................................................................................................................................20 7.3 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................20 7.4 TEST PROCEDURE..............................................................................................................................................20 7.5 TEST RESULT........…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS Radiated Emission
