ZLGHRMBTLEHRM BTLE

General Network > Bluetooth > iTunes WiFi Sync > > Settings On GoTrack ExploreSettings Coaching & Zones Coaching Method > Back Pace Your miCoach Zones PACE ZONES: Red: 0:00 - 0:00 min/km Yellow: 0:00 - 0:00 min/km Green: 0:00 - 0:00 min/km Blue: 0:00 - 0:00 min/km HEART RATE ZONES: Red: 000 - 000 BPM Yellow: 000 - 000 BPM Green: 000 - 000 BPM Blue: 000 - 000 BPM SPEED ZONES: Red: 00.0 - 00.0 km/h Yellow: 00.0 - 00.0 km/h Green: 00.0 - 00.0 km/h Blue: 00.0 - 00.0 km/h Heart Rate +0162_12_LF_SP_13010823_V1.indd 10162_12_LF_SP_13010823_V1.indd 12012/7/24  3:112012/7/24  3:11 1 2 3 4 +0162_12_LF_SP_13010823_V1.indd 20162_12_LF_SP_13010823_V1.indd 22012/7/24  3:112012/7/24  3:11 Statement regarding the disposal of miCoach products containing electronic components: As a company, adidas is committed to sustainable business practices, which are aimed to preserve, protect and improve the quality of the environment. We apply these to product technologies, design and the selection of the materials used in our products. Adhering to corresponding environmental laws, directives and guidelines are a core element of our sustainability principles. Since the miCoach concept is equipped with electronic components, we will ensure that it complies with actual or planned directives and laws, which are mandatory for electronic products and may require specific measures regarding labeling, collection and recycling. NOTE: If not disposed of properly, batteries can be harmful. Protect the environment by taking exhausted batteries to authorized disposal stations. European Commission (CE) Statement This product has been tested and is compliance with the following directives: * EMC Directive: 2004/108/EC * R&TTE Directive: 1999/5/EC * Safety Directive: 2006/95/EC FCC Regulatory Information NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: * Reorient or relocate the receiving antenna * Increase the separation between the equipment and receiver * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected * Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Unauthorized repair or modification may result in permanent damage to the equipment and / or lead to possible health risks. Furthermore, by doing so you will void your warranty and your authority to operate this device under Part 15 regulations. Please refer to www.adidas.com/micoach for the DoC. Canadian Conformity Industry Canada (IC) regulatory information This Category I radio-communication device complies with Industry Canada Standard RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Avis de conformité à la réglementation d’Industrie Canada. Cet appareil est conform à la norme RSS-210 du Industrie Canada. L’utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes: (1) il ne doit pas produire de brouillage, et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. REV A “Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specially to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance. iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc, registered in the U.S. and other countries. iPad is a trademark of Apple

::.::::::adidas Authorityto Act as Agent Date:Aug28,2012 AmericanCertificationBody,Inc. 6731WhittierAvenue SuiteClIO 11cLean,VA 22101 To WhomItMayConcern: SGS-CSTCStandardsTechnicalServicesCo.!Ltd.(SGS)ShenzhenBranchis authorizedto act on our behalf,untilotherwise.notified,for applicationsto American CertificationBody,Inc. (ACB). We certifythat we are not subjectto denialof federalbenefits,that includesFCCbenefits, pursuantto Section5301of the Anti-DrugAbuseAct of 1988,21U.S.C.862.Further,no party,as definedin 47 CFR1.2002(b), to the applicationis subjectto denialof federal benefits,that includesFCCbenefits. Thankyou, AgencyAgreementExpirationDate:__ 1=-.:2=--.::..::m=0=n=th=s=-__ By: (Signature 1 ) SimonDrabble (Printname) Title:BusinessUnitDirector,Interactive On behalfof:adidasAG (CompanyName) adidasAG P.O. Box 1120 91072Herzogenaurach Germany Telephone:+49 (0)9132842687 I_Mustbe signedby applicantcontactgivenfor applicantOn the FCCsite,or by the authorizedagentif an appropriateauthorizedagentletterhas beenprovided.Letters shouldbe placedon appropriateletterhead. adidasAG ChairmanofFurtherExecutive 91072HypoVereinsbank,Erlangen Postfach1120 SupervisoryBoard' BoardMembers HerzogenaurachBLZ76320072I Kto.4607112 91072Herzogenaurach IgorLandau GlennBennett Germany RobinStalker AmtsgerichtFürthDresdnerBank,Erlangen ErichStamminger HRB3868 BLZ76080040I Kto.540690000 T (+49)9132840 ChiefExecutiveOfficer UST-IDNRBay.Landesbank,München F (+49)9132842241 HerbertHainer adidas-Group.com DE132490588BLZ70050000I Kto.54 719

RequestforConfidentiality Date:Aug28,2012 Subject:ConfidentialityRequestfor: __.;..F--=C:.....:C::........::..:ID=--:=Z=L:.....;:G::..=H:.=RM::...=.c..=B::;_T=..;;L=E=-__ Pursuantto FCC47 CRF0.457(d)and 0.459and IC RSP-IOO,Section10, the applicantrequeststhata partof the subjectFCCapplicationbe heldconfidential. TypeofConfidentialityRequested D ShortTerm~ Permanent D ShortTerm D ShortTerm D ShortTerm D ShortTerm D ShortTerm D ShortTerm D ShortTerm D ShortTermD Permanent* *Note:(InsertExplanationas Necessary) D Permanent*1 ~ Permanent D Permanent D Permanent ~ Permanent Exhibit BlockDiagrams ExternalPhotos InternalPhotos OperationDescription/Theoryof Operation PartsList& Placement/BOM Tune-UpProcedure Schematics TestSetupPhotos User'sManual adidasAGhasspentsubstantialeffortin developingthis productandit is one of the firstof its kindin industry.Havingthe subjectinformationeasilyavailableto "competition"wouldnegatethe advantage theyhaveachievedby developingthis product.Notprotectingthe detailsof the designwillresultin financialhardship. PermanentConfidentiality: Theapplicantrequeststhe exhibitslistedaboveas permanentlyconfidentialbe permanentlywithheld frompublicreviewdue to materialsthatcontaintradesecretsand proprietaryinformationnot customarilyreleasedto the public. Short-TermConfidentiality: Theapplicantrequeststhe exhibitsselectedaboveas shorttermconfidentialbe withheldfrompublic viewfor a periodof(specifynumberof daysnot to exceed180)2_daysfromthe dateof the Grant of EquipmentAuthorizationand priorto marketing.Thisis to avoidprematurereleaseof sensitive informationpriorto marketingor releaseof the productto the public.Applicantis alsoawarethatthey are responsibleto notifyACBin the eventinformationregardingthe productor the productis made availableto the public.ACBwillthenreleasethe documentslistedabovefor publicdisclosurepursuant 1 _ Theasteriskeditems(*) requirefurtherjustificationbeforepermanentconfidentialitywillbe allowed.These alsocurrentlyrequirereviewby the FCCundertheirPermit-But-Askpolicybeforethe grantis issuedand can delaycompletionof an application.Furtherjustificationshouldbe addedto the noteabove.Onesuch examplefor a potteddevicewouldbe: "TheEUTis FULLYpottedusinga non-removableepoxybased material.Removalof pottingmaterialcausesirreparabledamageto internalcircuitry.See photographs exhibitsthat outlinethe devicebeforeand afterpotting." 2 _ Pleasereferto http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for completedetails. adidasAG ChairmanofFurtherExecutive 91072HypoVereinsbank,Erlangen Postfach1120 SupervisoryBoard: BoardMembers HerzogenaurachBLl76320072/ Kto.4 607112 91072Herzogenaurach IgorLandau GlennBennett Germany RobinStalker AmtsgerichtFurthDresdnerBank,Erlangen ErichStamminger HRB3868BLl76080040/Kto.540690000 T (+49)9132840 ChiefExecutiveOfficer UST-IDNRBayLandesbank,München F (+49)9132842241 HerbertHainer adidas-Group.com DE132490588BLl70050000/ Kto.54 719 =:::adidas page2 to FCCPublicNoticeDA 04-1705. NOTEforIndustryCanadaApplications: TheapplicantunderstandsthatuntilsuchtimethatIC distinguishesbetweenShortTermand Permanent Confidentiality,eithertypeof markedexhibitabovewillsimplybe markedConfidentialwhensubmitted to IC. Sincerely, By: ~ ~IO(c..e.c.b:::~-SimonDrabble (Signatureltitle 3 )~C~~t.{_(Printname) 3 _ Mustbe signedby applicantcontactgivenfor applicanton the FCCsite,or by the authorizedagentif an appropriateauthorizedagentletterhas beenprovided.Lettersshouldbe placedon appropriateletterhead.

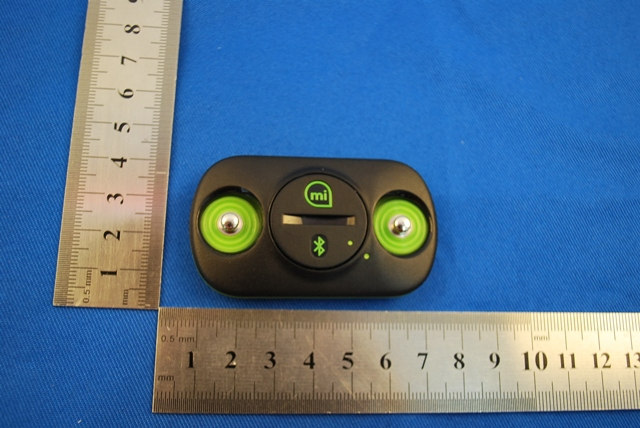

1 Photographs - EUT Constructional Details Test Model No.: Z51347

SZ310 ADIDAS LASER MARKING (ON REAR CAB) SN:11122334444444 MODEL: Z51347 FCC ID: ZLGHRMBTLE IC:9722A-HRMBTLE SN: 10512360000007 MODEL: Z51347 M M / Y Y 1:1 Font:AdiHaus(4pt) Font:AdiHaus(4pt) Height:1mm 5MM 7MM Laser Marking information: 111 = 105 (Product Id) 22 = 12(2012), 13(2013) ... (Production year) 33 = 01, 02... (Production week) 4444444 = 0000001, 0000002...(Serialized number) MODEL: Z51347 MM/YY MM = 01~12 (Production month) YY = 12(2012), 13(2013)... (Production year)

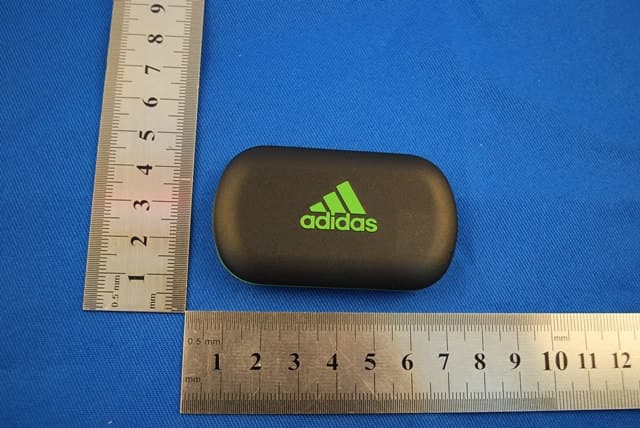

1 Photographs - EUT Constructional Details Test Model No.: Z51347

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Nanshan District, Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM120800453402 Page: 1 of 5 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page Cover PageCover Page Cover Page SAR Evaluation Report Application No.: SZEM1208004534RF Applicant: adidas AG Manufacturer: IDT Technology Limited Factory IDT Technology Limited Product Name: HRM BTLE Model No.(EUT): Z51347 Standard: 47 CFR Part 1.1307(2011) 47 CFR Part 2.1093 (2011) KDB447498D01 FCC ID: ZLGHRMBTLE Date of Receipt: 2012-08-10 Date of Test: 2012-08-15 to 2012-08-22 Date of Issue: 2012-09-14 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM120800453402 Page: 2 of 5 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents 1 COVER PAGE COVER PAGECOVER PAGE COVER PAGE...................................................................................................................................................................1 2 CONTENTS..................................................................................................................................................................2 3 GENERAL INFORMATION........................................................................................................................................3 3.1 CLIENT INFORMATION...........................................................................................................................................3 3.2 GENERAL DESCRIPTION OF EUT.........................................................................................................................3 3.3 TEST LOCATION....................................................................................................................................................3 3.4 TEST FACILITY......................................................................................................................................................4 3.5 DEVIATION FROM STANDARDS.............................................................................................................................4 3.6 ABNORMALITIES FROM STANDARD CONDITIONS.................................................................................................4 3.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER......................................................................................4 4 SAR EVALUATION................................................................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM120800453401 Page: 1 of 42 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1208004534RF Applicant: adidas AG Manufacturer: IDT Technology Limited Factory: IDT Technology Limited Product Name: HRM BTLE Model No.(EUT): Z51347 FCC ID: ZLGHRMBTLE Standards: 47 CFR Part 15, Subpart C (2011) Date of Receipt: 2012-08-10 Date of Test: 2012-08-15 to 2012-08-22 Date of Issue: 2012-09-14 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM120800453401 Page: 2 of 42 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) KDB558074 D01 ANSI C63.10 2009 PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(3) KDB558074 D01 ANSI C63.10 2009 PASS 6dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(2) KDB558074 D01 ANSI C63.10 2009 PASS Power Spectral Density 47 CFR Part 15, Subpart C Section 15.247 (e) KDB558074 D01 ANSI C63.10 2009 PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) KDB558074 D01 ANSI C63.10 2009 PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) KDB558074 D01 ANSI C63.10 2009 PASS Radiated Spurious Emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 KDB558074 D01 ANSI C63.10 2009 PASS Band Edge (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 KDB558074 D01 ANSI C63.10 2009 PASS SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM120800453401 Page: 3 of 42 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole resp…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup (Test model No. Z51347) 1.1 Radiated Emission
