ZLGSMARTRUNFitness monitor with Bluetooth 4.0 dual mode (EDR + BLE), WLAN 802.11b/g/n and GPS.

miCoach SMART RUN User Manual Table of Contents 1. Welcome to miCoach 2. Welcome to the miCoach SMART RUN 2.1 Overview 2.2 Compatibility 3. Basic steps 3.1 Charging 3.2 Status Icons 3.3 Wearing the miCoach SMART RUN 3.4 Turning the device on/off 3.5 Initial set up 3.6 Navigating the watch 3.7 Keyboard use 3.8 Screen lock 4. How to use your mCoach SMART RUN 4.1 Clock domain 4.1.1 Stopwatch 4.1.2 Timer 4.2 miCoach domain 4.2.1 Custom workout 4.2.1.1 Free Workout 4.2.1.2 Interval Workout 4.2.2 Your plans 4.2.2.1 Cardio plan 4.2.2.2 Strength & Flex plan 4.2.3 Extras 4.2.3.1 Fit Test 4.2.3.2 Single Workouts 4.2.4 Track 4.3 Music domain 4.3.1 Managing music files 4.3.2 Using the music player 4.3.3 Managing music during a workout 4.4 Settings domain 4.4.1 Battery and sync 4.4.2 Connectivity 4.4.3 Workout settings 4.4.4 Device settings 5. Care and maintenance 6. Specifications 7. Customer Service Information 7.1 Warranty 7.2 Support 8. Legal Notes and Disclaimer 8.1 Trademark and Copyright 8.2 Regulatory Compliance 8.3 Medical Disclaimer 8.4 Precautions 8.5 Trademark Footnote - Bluetooth® 1. Welcome to miCoach miCoach customizable workouts give you the performan ce edge needed to get faster, stronger, and better for your sport. miCo ach combines real-time audible coaching with an intelligent Web applicatio n to help every athlete, from beginner to advanced, get the most out of each training session. 2. Welcome to the miCoach SMART RUN Thank you for your interest in miCoach and congratu lations on purchasing the miCoach SMART RUN, a cutting-edge fitness monitor and personal coach that helps you to reach your individual goals . This user manual provides you with everything you nee d to use the miCoach SMART RUN and enjoy a smooth start into the unique user experience we’ve created for you. The miCoach SMART RUN is the most comprehensive and sop histicated sports running product on the market. Using a full-col or, touchscreen navigation, the device brings together a range of un ique features for runners, including: - Real-time audio coaching to guide you through every run and avoid fatigue early on - GPS tracking to map your runs - Understand what your race pace feels like with person alised training schedules tailored to meet your goals - Set your workout intensity via individualized Heart Rate or Pace zones - Achieve your target distance times with vibration ale rts to pick up the pace or slow down - Track, monitor, and share stats from each workout - Store up to 3GB of your favourite music playlists to k eep you entertained on the go - Continuous heart rate monitoring from your wrist—no n eed for chest-based heart rate monitoring anymore! - Wireless connectivity to miCoach.com for complete ru n records and training programs - The miCoach SMART RUN never runs old – get continuou s software updates with new functions and features after having b ought the device via WLAN Acting like a personal coach, the miCoach SMART RUN will work out together with you as you run. By combining personal ized training schedules, GPS mapping, and integrated heart rate mon itoring technologies, the miCoach SMART RUN will guide you through every run to ensure you’re getting the most out of each session no m atter the distance or what type of runner—beginner, to intermediate, o r advanced—you are. Uniquely, it will know how hard to push you and for how long. Take the guesswork out of your workout so you’ll never overtrai n or undertrain again. Data Tracked: - Heart rate (in BPM) - Calories - Distance - Route - Speed - Workout duration - Pace - Auto Laps (time or distance based) - Running cadence - Manual splits (time or distance based) Other features supporting you through your run: - Coaching narrations - Workout summary - Customizable data metrics on screens - Workout schedules and customizable training plans - Revolutionary 1-minute fitness assessment called “Fit T est” to enable fully personalized coaching plans - Lifetime stats summary – all data you ever achieved a t a glance - Wireless audio through Bluetooth® (wireless Bluetooth ® headset not included) - Revolutionary Strength & Flexibility training - Timer and stopwatch functionality - Zone-based, real-time coaching based on heart rate o r pace - Unique ”Run Score” value indicating your running po tential based on shorter distance runs (min. 1.5km) in terms of fini shing times for longer distances (e.g. marathon, half-marathon, 10K, 5K) – see your running potential and train for more 2.1 Overview Let us give you a quick overview of the device and all components you’ll find in the miCoach SMART RUN package: miCoach SMART RUN miCoach button Optical Heart rate Monitor Charger Contact points USB cable 2.2 Compatibility The miCoach SMART RUN works with devices compatible with Bluetooth® Smart technology. SPEED_CELL BTLE BLUETOOTH® WIRELESS HEADSETS NOTE: If you haven’t paired your miCoach SMART RUN with a Bluetooth® device, pair them before you start working out (see B luetooth® on page 63). Basic steps 3.1 Charging After unpacking the device, we recommend fully char ging the miCoach SMART RUN before using it for the first time. The miC oach SMART RUN is charged using a supplied charging cradle. This cradle is also used for transferring music files. When your miCoach SMART RUN is turned on and connect ed to your PC/Mac, the screen goes to the Settings domain with on ly battery status displayed. Please note that the charging status will always be vi sible on top with a light grey overlay over the usual screen. It shows the battery charging icon. This combined with the steady growth of the battery p ercentage tells you that your miCoach SMART RUN is charging. You’ll also see the animated battery icon in the status bar (see page 19 ). The screen blanks after 20 seconds of inactivity. Pressing the miCoach bu tton displays the Clock domain. Generally, we recommend not using the device during charging to ensure a fast and smooth charging process. When wearing the miCoach …

Text truncated - open the document above for the full version.

BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Date: August 19, 2013 Ref: Confidentiality request for FCC ID: ZLGSMARTRUN FCC ID: Title/model: ZLGSMARTRUN Fitness Monitor / G76792 To whom it may concern: Pursuant to §0.457(d)(1)(ii) and §0.459 of the Commission’s Rules (47 C.F.R.) and §552 (b)(4) of the Freedom of Information Act, Adidas AG hereby request permanent confidentiality to avoid release of sensitive information of the product to the public. For the product stated above, we request that the following information be withheld from public disclose: - Schematics - Operational description - Block diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to Adidas AG and provide unjustified benefits to our competitors. Adidas AG understand that pursuant to §0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, By: Simon Drabble __p.a.________________________ Title: BU Director Interactive (Signature) Company: Adidas AG, Adi-Dassler- Strasse 1, D-91074 Herzogenaurach, Germany Telephone / Fax: +49 (0) 9132 84 2687 / +49 (0) 9132 84 5773 e-mail: [email protected]

BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Date: August 19, 2013 REF: Short-term confidentiality request for FCC ID: ZLGSMARTRUN FCC ID: Title/model: ZLGSMARTRUN Fitness Monitor / G76792 To whom it may concern: Pursuant to §0.457(d)(1)(ii) and §0.459 of the Commission’s Rules (47 C.F.R.) and §552 (b)(4) of the Freedom of Information Act, Adidas AG hereby request short-term confidentiality to avoid premature release of sensitive information prior to marketing or release of the product to the public. For the product stated above, we request that the following information be temporarily withheld from public disclose for an initial period of 180 days: - External photographs - Internal photographs - Test setup photographs - User’s guide It is understood that no extensions of the short-term confidentiality may be requested. Sincerely, By: Simon Drabble __p.a.________________________ Title: BU Director Interactive (Signature) Company: Adidas AG, Adi-Dassler- Strasse 1, D-91074 Herzogenaurach, Germany Telephone / Fax: +49 (0) 9132 84 2687 / +49 (0) 9132 84 5773 e-mail: [email protected]

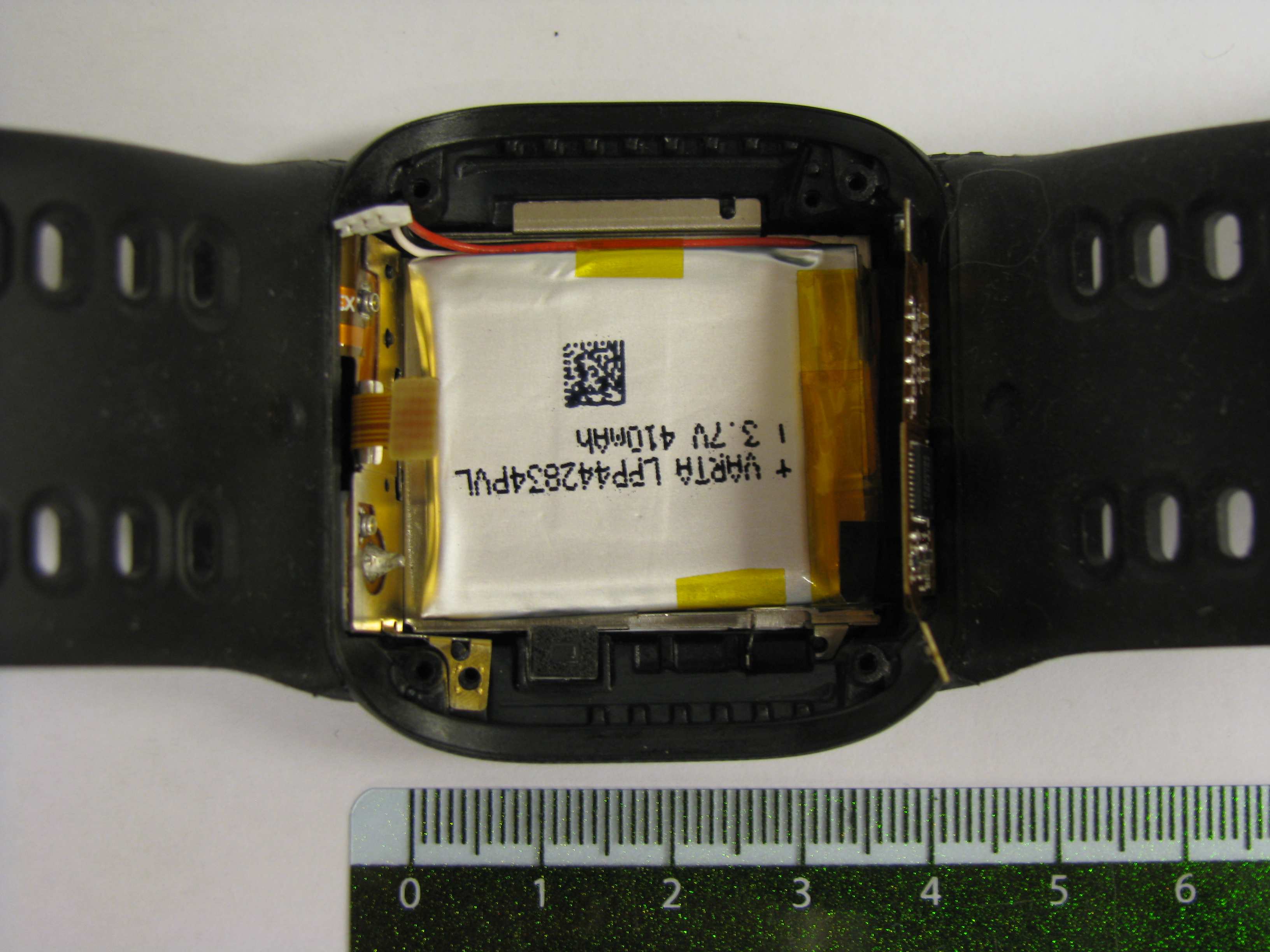

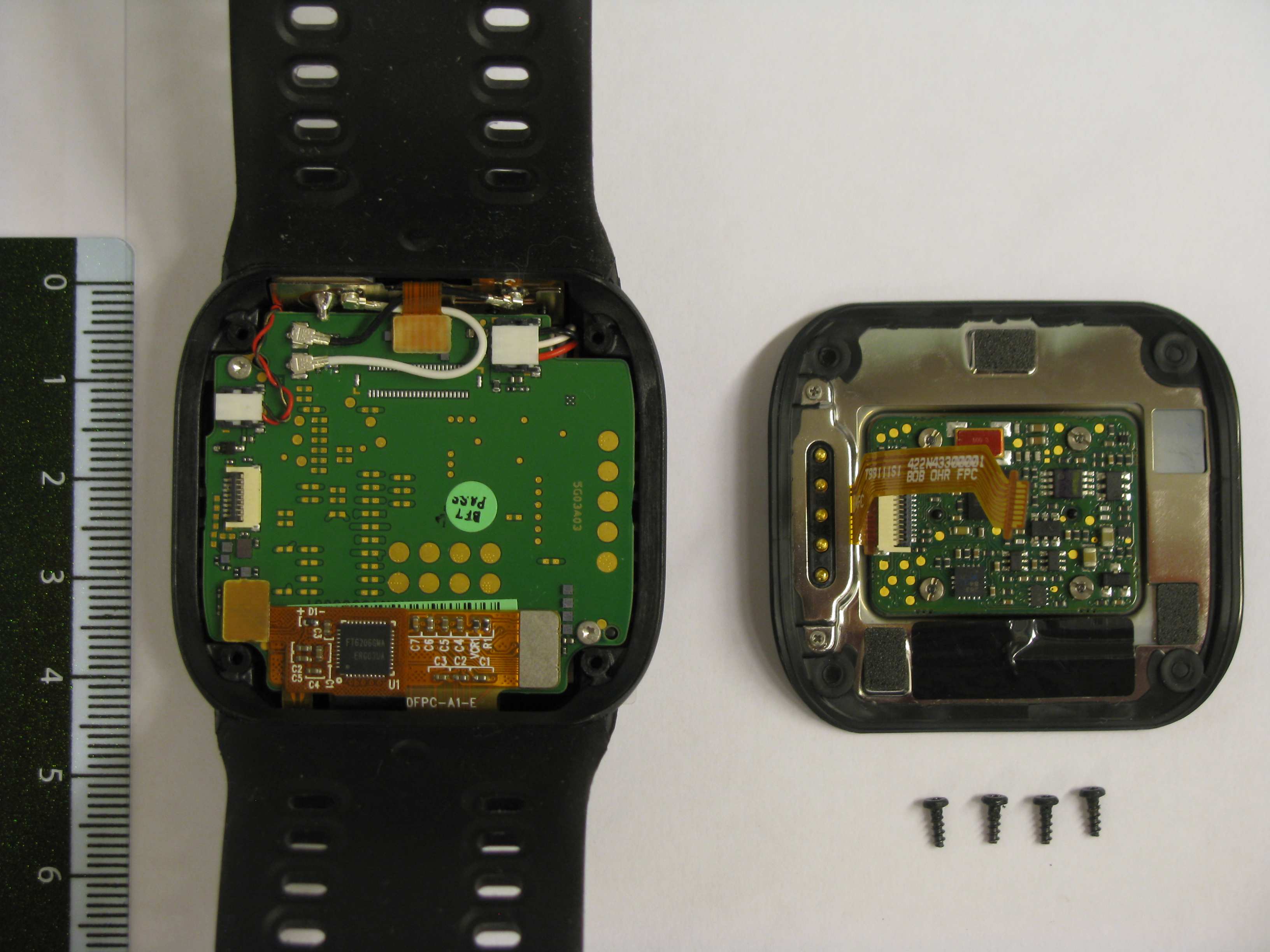

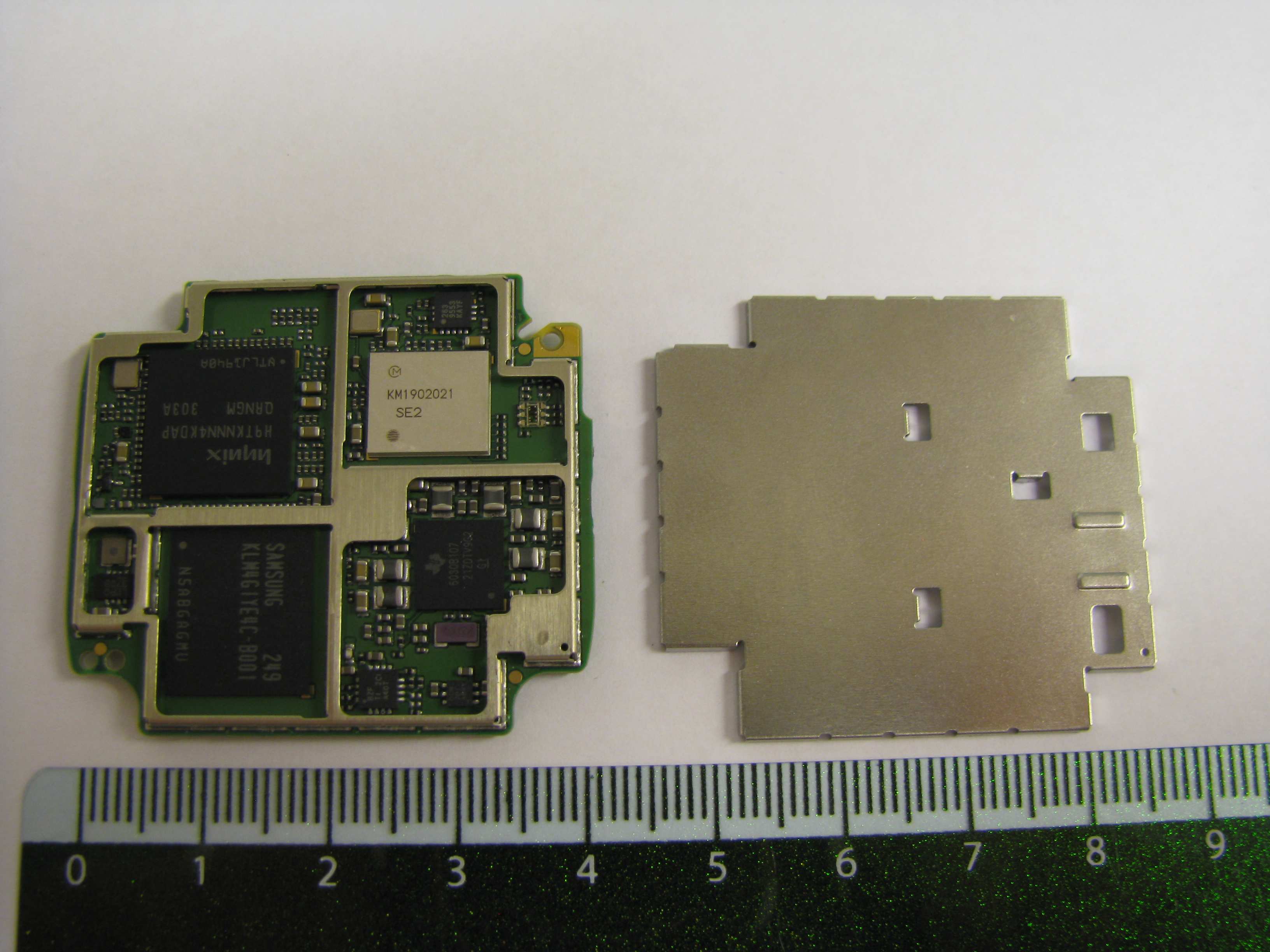

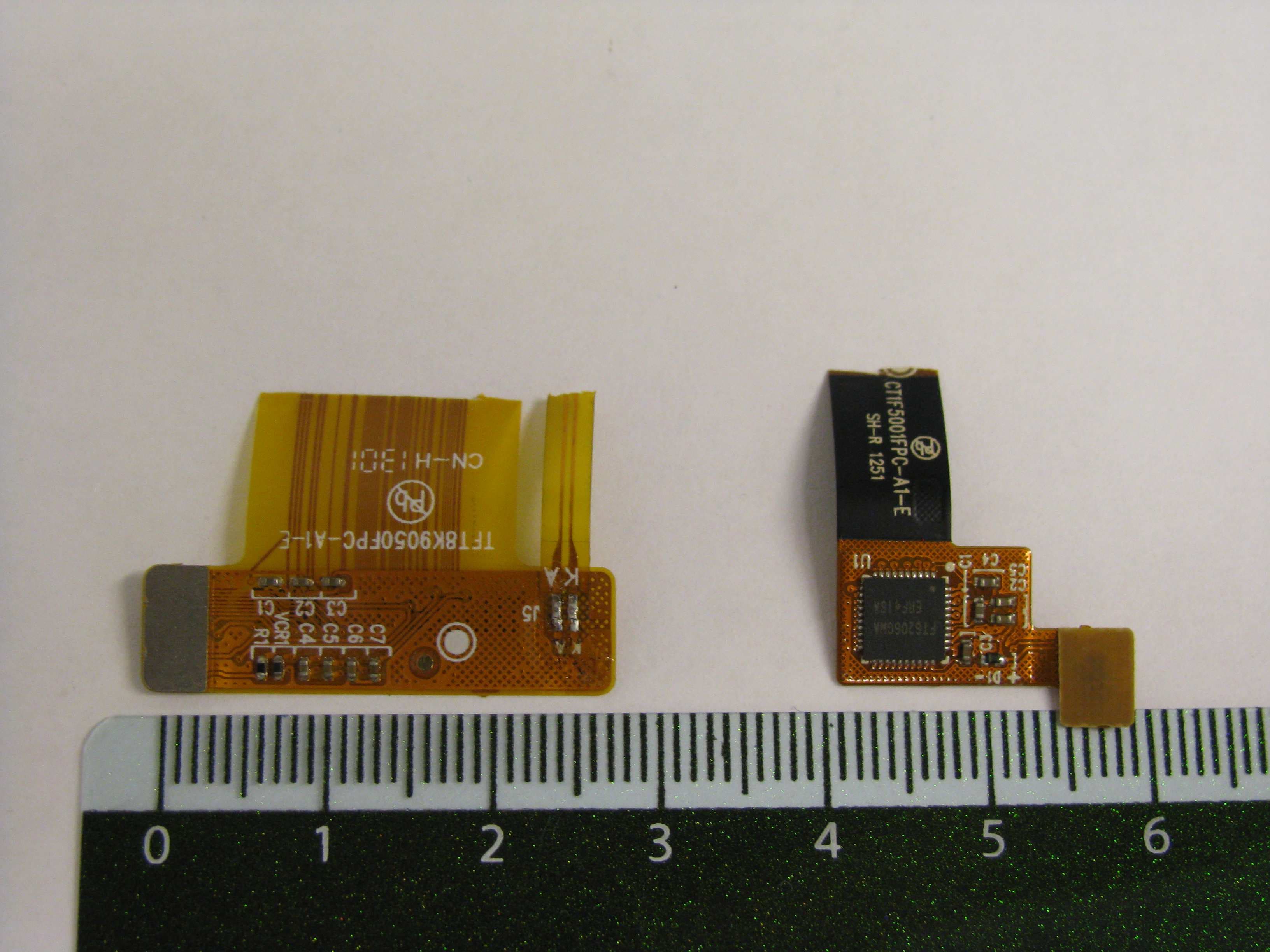

Adidas Model: G76792 Pictures External pictures: Front: Back: Adidas Model: G76792 Pictures Right: Left: Adidas Model: G76792 Pictures Internal pictures: Back cover opened; back side of main PCB, back side of sensor PCB Main PCB front, Adidas Model: G76792 Pictures Battery under main PCB Battery removed; Adidas Model: G76792 Pictures Antenna board assembled; Antenna back; Adidas Model: G76792 Pictures Antenna front; Battery; Adidas Model: G76792 Pictures Sensor PCB front; Sensor PCB back; Adidas Model: G76792 Pictures Flex cables front; Flex cables back;

Label location

Adidas Model: G76792 Pictures External pictures: Front: Back: Adidas Model: G76792 Pictures Right: Left: Adidas Model: G76792 Pictures Internal pictures: Back cover opened; back side of main PCB, back side of sensor PCB Main PCB front, Adidas Model: G76792 Pictures Battery under main PCB Battery removed; Adidas Model: G76792 Pictures Antenna board assembled; Antenna back; Adidas Model: G76792 Pictures Antenna front; Battery; Adidas Model: G76792 Pictures Sensor PCB front; Sensor PCB back; Adidas Model: G76792 Pictures Flex cables front; Flex cables back;

BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Date: August 19, 2013 RF exposure analysis for the equipment G76792 (FCC ID: ZLGSMARTRUN) 1. Introduction The device G76792 (FCC ID: ZLGSMARTRUN) is a fitness monitor designed to be wrist held and so that to be in portable exposure conditions. 2. SAR limits According to § 2.1093 (d) (2) the limits for General Population/Uncontrolled exposure: 0.08 W/kg as averaged over the whole-body and peak spatial-average SAR limit is 4 W/kg, averaged over any 10 grams of tissue for extremities, such as hands, wrists, feet, ankles, and pinnae. 3. Compliance criteria: 3.1. Standalone compliance criteria. Individual transmitters are deeded to comply with § 2.1093 requirements if the output power of the transmitter meets the conditions specified in section 4.3.1 (Standalone SAR test exclusion) considerations of the document “KDB 447498 D01 General RF Exposure Guidance v05r01”. 3.2. Simultaneous transmission compliance criteria There is no simultaneous transmission over the different RF interfaces, so that standalone compliance is enough to prove compliance of the whole device. 4. Compliance calculations: 4.1. Standalone transmission 2402-2,010,63524COMPLIANT 2441-2,510,56524COMPLIANT 2480-3,120,49524COMPLIANT 2402-3,990,40524COMPLIANT 2441-4,510,35524COMPLIANT 2480-5,150,31524COMPLIANT 2402-4,000,40524COMPLIANT 2441-4,500,35524COMPLIANT 2480-5,130,31524COMPLIANT 2402-2,020,63524COMPLIANT 2441-3,020,50524COMPLIANT 2480-2,800,52524COMPLIANT 241213,0520,18524COMPLIANT 243711,9015,49524COMPLIANT 246211,8015,14524COMPLIANT 24127,305,37524COMPLIANT 24376,604,57524COMPLIANT 24626,524,49524COMPLIANT 24127,005,01524COMPLIANT 24376,204,17524COMPLIANT 24626,124,09524COMPLIANT SAR Test Exclusion Thresholds per KDB 447498 D01 General RF Exposure Guidance v05r01 - 4.3.1 - 1) 1 Mbps GFSK 2 Mbps Π/4-DQPSK 3 Mbps 8-DPSK SAR Test Exclusion Thresholds per KDB 447498 D01 General RF Exposure Guidance v05r01 - 4.3.1 - 1) WiFi BLE ModeSub-mode Frequency Average output power (dBm) Average output power (mW) Evalutation distance per KDB 447498 D01 General RF Exposure Guidance v05r01 - 4.3.1 Bluetooth BLE 802.11b 802.11g 802.11n-20 Sincerely, By: Simon Drabble __p.a.________________________ Title: BU Director Interactive (Signature) Company: Adidas AG, Adi-Dassler- Strasse 1, D-91074 Herzogenaurach, Germany Telephone / Fax: +49 (0) 9132 84 2687 / +49 (0) 9132 84 5773 e-mail: [email protected]

Report Nº(NIE): 39342RRF.002 Page 1 of 83 2013-08-09 FCC LISTED, REGISTRATION NUMBER: 905266 IC LISTED REGISTRATION NUMBER IC 4621A-1 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 29590 Campanillas/ Málaga/ España Tel. 952 61 91 00 - Fax 952 61 91 13 MÁLAGA, C.I.F. A29 507 456 Registro Mercantil de Málaga,Tomo 1169, Libro 82, Folio 133, Hoja MA3729 TEST REPORT REFERENCE STANDARD: USA FCC Part 15.247 and 15.207 CANADA RSS-210, RSS-Gen Radio Frequency Devices. Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. Licence-Exempt Radio Apparatus (All Frequency Bands): Category I Equipment. General Requirements and Information for the Certification of Radio Apparatus. NIE ........................................................ : 39342RRF.002 Approved by (name / position & signature) ............... : A. Llamas / RF Lab. Manager .......................................................... Elaboration date .................................... : 2013-08-09 Identification of item tested ................ : FITNESS MONITOR Trademark ............................................ : ADIDAS Model and/or type reference ................. : G76792 Serial number ........................................ : D10813060000099, D10813060000106 Other identification of the product ........ : Commercial name: MICOACH SMART RUN Hw version: 7.0.0 Sw version: 1.6.2 FCC ID: ZLGSMARTRUN IC ID: 9722B-SMARTRUN Features ................................................. : Bluetooth 4.0+EDR, Wlan b/g/n20 1x1, GPS receiver, battery charger Description ............................................ : FITNESS MONITOR Applicant ............................................. : ADIDAS AG Address .................................................. : WORLD OF SPORTS, ADI-DASSLER-STRABE 1, D-91074 HERZOGENAURACH, GERMANY CIF/NIF/Passport ................................... : DE132490588 Contact person: Simon Drabble Telephone / Fax ..................................... : +49 160 8 84 2687 / +49 9132 84 5773 e-mail: ................................................... : [email protected] Test samples supplier ......................... : ELEKTROBIT Address .................................................. : Tutkijantie 8, Oulu FINLAND CIF/NIF/Passport ................................... : 1737565-0 Contact person: ...................................... : Pertti Harmaala Telephone / Fax ..................................... : +358 403445781 e-mail: .................................................... : [email protected] Manufacturer ...................................... : Same as applicant Report Nº(NIE): 39342RRF.002 Page 2 of 83 2013-08-09 Test method requested ........................: See Standard Standard ................................................: USA FCC Part 15.247 10-01-11 Edition: Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. USA FCC Part 15.209 10-01-11 Edition: Radiated emission limits; general requirements. USA FCC Part 15.207 10–01–11 Edition: Conducted limits CANADA RSS-210 Issue 8 (December 2010). CANADA RSS-Gen Issue 3 (December 2010). FCC part 15.247 and Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum System DA 00-705 Released March 30, 2000. ANSI C63.10-2009: American National Standard for Testing Unlicensed Wireless Devices. Test procedure .......................................: PERF010 Non-standardized test method ...............: N/A Used instrumentation .............................: Conducted Measurements Last Cal. date Cal. due date 1. Spectrum analyser Agilent PSA E4440A 2012/02 2014/02 2. EMI Test Receiver R&S ESU40 2012/03 2014/03 3. Transient limiter. HP 11947A 2012/09 2014/09 4. Line Impedance Stabilization Network (L.I.S.N.) R&S. ESH2-Z5 2013/01 2015/01 5. DC power supply R&S NGPE 40/40 2011/11 2014/11 6. Universal Power Meter R&S NRP-Z11 2012/12 2014/12 Radiated Measurements Last Cal. date Cal. due date 1. Semianechoic Absorber Lined Chamber IR 11. BS N.A. N.A. 2. Control Chamber IR 12.BC N.A. N.A. 3. Hybrid Bilog antenna Sunol Sciences Corporation JB6 2011/05 2014/05 4. Antenna mast EM 1072 NMT N.A. N.A. 5. Rotating table EM 1084-4. ON N.A. N.A. 6. Double-ridge Guide Horn antenna 1-18 GHz HP 11966E 2011/05 2014/05 7. Double-ridge Guide Horn antenna 18- 40 GHz Agilent 119665J 2011/09 2014/09 8. EMI Test Receiver R&S ESIB26 2011/11 2013/11 9. RF pre-amplifier Miteq JS4-12002600- 30-5A. 2012/07 2014/07 10. Multi Device Controller EMCO 2090 N.A. N.A. 11. Spectrum Analyzer Agilent E4440A 2012/02 2014/02 12. RF pre-amplifier Miteq AFS5- 04001300-15-10P-6. 2012/07 2014/07 13. RF pre-amplifier Schaffner CPA 9231A. 2013/06 2015/06 Report template No. .............................: FDT08_14 IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of AT4 wireless, S.A. Report Nº(NIE): 39342RRF.002 Page 3 of 83 2013-08-09 INDEX Competences and guarantees ................................................................................................................ 4 General conditions ................................................................................................................................ 4 Uncertainty ............................................................................................................................................ 4 Usage of samples................................................................................................................................... 5 Testing period ....................................................................................................................................... 5 Environmental conditions ..................................................................................................................... 6 Summary ...................................................................…

Text truncated - open the document above for the full version.

Report Nº(NIE): 39342RRF.002 Page 1 of 7 2013-08-09 APPENDIX B: Photographs Report Nº(NIE): 39342RRF.002 Page 2 of 7 2013-08-09 EQUIPMENT FOR RADIATED MEASUREMENTS Report Nº(NIE): 39342RRF.002 Page 3 of 7 2013-08-09 EQUIPMENT FOR CONDUCTED MEASUREMENTS Report Nº(NIE): 39342RRF.002 Page 4 of 7 2013-08-09 GENERAL SET-UP FOR RADIATED MEASUREMENTS Report Nº(NIE): 39342RRF.002 Page 5 of 7 2013-08-09 TEST SET-UP FOR RADIATED MEASUREMENTS BELOW 1 GHz Report Nº(NIE): 39342RRF.002 Page 6 of 7 2013-08-09 TEST SET-UP FOR RADIATED MEASUREMENTES ABOVE 1GHz Report Nº(NIE): 39342RRF.002 Page 7 of 7 2013-08-09 TEST SET-UP FOR CONDUCTED MEASUREMENTES
