ZRQ-B2PENCLIC MOUSE

Penclic Mouse (B2) WELCOME to the quick guide Penclic Mouse combines ergonomically sound design with modern mouse technology to bring you unparalleled precision, comfort and efficiency. Mouse setup Insert the battery into the mouse Charge the battery with the included micro usb charging cable until full. Set the mouse power switch on the bottom of the mouse to ON Install the Penclic Mouse B2 Standard PC Bluetooth device installation Activate the Bluetooth connection on the computer. Press the button under the mouse to activate the Bluetooth search on the mouse. Search for Bluetooth devices on your computer. Select BT Mouse once found. Install the mouse and the Penclic Mouse B2 is ready to use. Important: Apple has not approved mouse use for your iOS device, i.e. iPhone and iPad. Trouble installing your Penclic Mouse B2 any device. Please look at www.penclic.se/troubleshooting HOW TO USE YOUR Penclic Mouse 1, Hold Penclic Mouse like a pen, the bottom part acts like a traditional mouse. 2, Let your forearm and your hand rest on a surface, while keeping your shoulders relaxed. 3, The pen part can be adjusted to suit specific grips. Fixate the bottom part with one hand and rotate the pen to the preferred angle with the other. • Left click 1 • Right click 2 • Middle click 3 • Backward click 4 • Forward click 5 • Scroll wheel 6 • On‐off button 7 • Bluetooth button 8 TROUBLESHOOTING http://www.Penclic.se/troubleshooting • Check the battery. • When the battery needs charging the LED on the mouse will show red. When the battery is fully charged a green light will be displayed. • Cursor movement may be effected by very glossy surfaces. • Trouble connecting finding the Bluetooth connection, please look at www.penclic.se/troubleshooting TECHNICAL SPECIFICATIONS The supported platforms for Penclic Mouse are all operating systems that support HID 1.1. These include Windows XP or later, Mac OSX version 10.1 or later and most Linux/BSD flavors. No extra software/driver installation is needed. • Bluetooth connection o Not supported by standard iOS • Operates on almost any surface without any pad or tablet. • Implements a 5-button and scroll wheel. • AAA 1.2V NiMH Recharging battery (Everyday use last approximately 3 months before charging is needed). • LR 03/AAA/1.5V Alkaline None rechargeable battery can be used. NOTE: DO NOT RECHARGE • Energy saving mode starts after 10 min, press a button to start. • Wireless reach, minimum 5 metres. • Dpi setting wireless 800-1200-1600-2400. Note: The DPI setting can be changed by holding in the left and right button at the same time for 3 sec, the cursor will move faster for each setting. It will rotate around from 800-2400 and then go back to slow 800. Once the power is shut of the dpi setting will return to its default setting, 1200 dpi. Measurements: • Height: 140 mm Base: 44.1 x 20 mm • Weight: 41 g TECHNICAL SUPPORT Should you require additional technical support with your Penclic Mouse™, please use our Web site for further information or contact our support group through e- mail. Call Technical Support during business hours, central European time (CET) Contact: + 46 8 544 98 995 or email: [email protected] SPRÅK: 507 Polska ord på 1 språk FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC WARNING This device complies with Industry Canada RSS‐210 standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a PCB and maximum ‐1.2dBi gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

AB1120 SENSOR A7530 MCU RF ANTENNA 26M CRYSTAL Block diagram BT laser mouse EEPROM

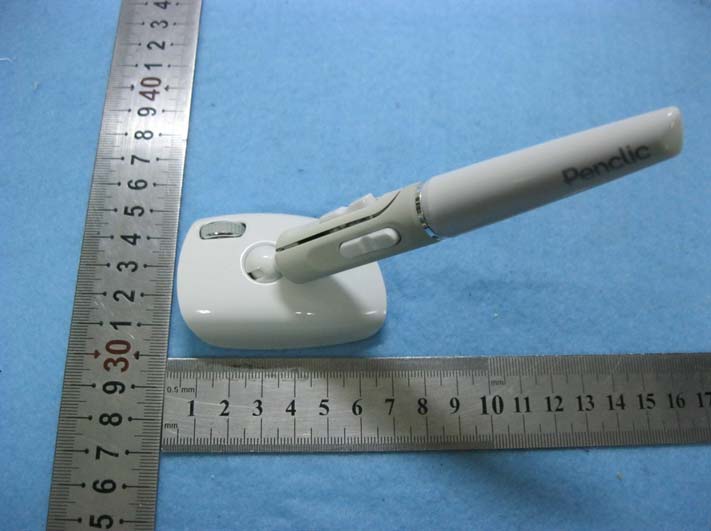

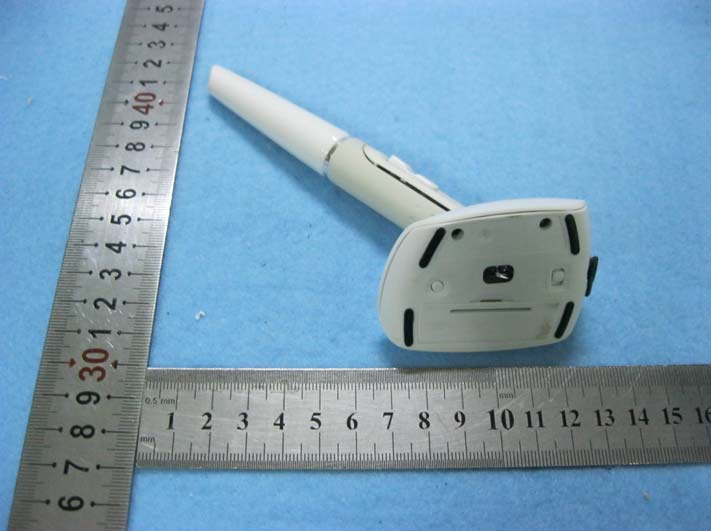

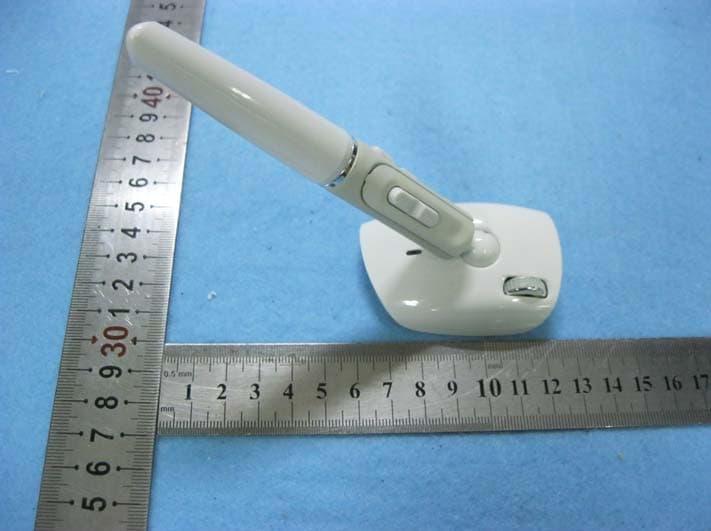

Penclic AB Model: B2 REPORT NO.: STR12108292I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Penclic AB Model: B2 REPORT NO.: STR12108292I FCC PART 15.247 EUT View 3 EUT View 4

Penclic AB Model: B2 REPORT NO.: STR12108292I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format Penclic AB Model: B2 Product Name: Penclic mouse FCC ID: ZRQ-B2 IC: 9999A-B2 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Penclic AB Model: B2 REPORT NO.: STR12108292I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format Penclic AB Model: B2 Product Name: Penclic mouse FCC ID: ZRQ-B2 IC: 9999A-B2 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Penclic AB Model: B2 REPORT NO.: STR12108292I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Penclic AB Model: B2 REPORT NO.: STR12108292I FCC PART 15.247 Solder Board-Component View 1 Solder Board-Component View 2 Penclic AB Model: B2 REPORT NO.: STR12108292I FCC PART 15.247 Solder Board-Component View 3 Solder Board-Component View 4

Operational Description 1. IC AB1120(U1) is used for wireless transmission chip based on Bluetooth 3.0 technology. The signal to the receiver by built-in RF, and a clock frequency of the 26MHz as base clock signal, the 2.4G RF transmitting frequency is 2402 to 2480MHz with GFSK modulation. 2. The work voltage is DC 1.2V by NI-MH rechargable battery, and you could to recharge the battery via USB charging port，it supports only charging function, it does not support that any information is exchanged between device and PC or laptop.

1234 A B C D 4 321 D C B A 拟 制 审 核 标准化 批 准 第 1页,总1 页等级: A 森松尼科技有限公司 20120417 型号: 文件编号: 名称: BTM7530(2*1.5V) C12 0.1uF C13 0.1uF C16 2.2uF +1.8V C17 0.1uF C18 0.1uF +1.8V C10 0.1uF C11 0.1uF +3.0V +1.8V C9 4.7uF BATP SPI_MOSISPI_CLK UARTTX UARTRX C7 0.1uF +3.0V RightKey LeftKey RSTN DPIKye IDKey WPSCLSDALED0 LED1 ZWHA ZWHB MiddleKey4Key5Key +1.8V +1.8V R3 10R C19 0.1uF L3 3.0nH L4 56nH C15 2.7pF C14 220nF CF2* CF1 * CF3 * A1ANTENNA Matching Circuit +1.8V L2 2.7nH +1.8V X1 26M±10ppM 8.5pF C2 6pF C1 6pF PIO23 1 PIO24 2 VCCANA 3 VCCRF 4 RF_P 5 RF_N 6 RST_N 7 PIO0 8 PIO1 9 PIO2 10 PIO3 11 VREG_IN 12 VCCDIV 13 PIO10 14 LI_MODE 15 PIO11 16 PIO14 17 PIO15 18 PIO16 19 PIO17 20 SDA 21 SCL 22 PIO29 23 LED0 24 LED1 25 WP 26 PIO4 27 PIO5 28 UART_RX 29 UART_TX 30 VCCIO 31 USB_DP 32 USB_DN 33 VCCLED 34 BOOST_V 35 LX2 36 VB_OUT 37 BAT_N 38 LX1 39 BAT_P 40 V_CHG 41 VCCDIG 42 PIO6 43 PIO8 44 PIO26 45 VCCXO 46 XTAL_OUT 47 XTAL_IN 48 GND 49 U1 AB1120 L1 33uH(LQH32CN330K53) C8 10uF S1 LFET S3 MIDDLE S2 RIGHT ZWHAZWHB S4 DPI DPIKye S5 PD/IDIDKey SW2 5键 SW1 4键 RightKey LeftKey MiddleKey 4Key 5Key A 1 B 2 COM 3 SE1 EC10E BATP UARTTXUARTRXSDARSTNIDKey MiddleKey 123456789 J1 CON9 WP A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U2 FM24LC128 R6 4.7k R7 2.2k R8 2.2k C6 0.1uF WP SCL SDA EEPROM Circuit +3.0V R5 330R LED0 D2 LED1 R4 330R LED1 +3.0V +3.0V D1 LED0 Power ManagerLED IndicationTesting interface D1为上电/对码/DPI指示灯 D2为LOW POWER指示灯 Sensor Circuit Key\Encode Circuit Main Circuit AB1120 V1.1 BATP SPI_MISOSNS_CS# C20 100uF C21 0.1uF SW3 BATP BT 2*1.5V +3.0V C22 0.1uF C5 10uF L5 22uH(LQH32CN220K53) MOTION C23 0.1uF C24 3.3uF +VCSEL 1 LASER_NEN 2 NCS 3 MISO 4 SCLK 5 MOSI 6 MOTION 7 XYLASER 8 VDD3 9 NC 10 GND 11 VDD3 12 RefA 13 DGND 14 VDDIO 15 -VCSEL 16 U3 ADNS-7530 C26 470P 1 32 Q12N3906 R2 *（4.7K） R1 *(1R) 3V1 SPI_MISO SPI_CLK SPI_MOSI C25 *(10nF) RfeA C3 0.1uF C4 3.3uF -VCSEL -VCSEL SNS_CS# MOTION +3.0V NTA4151P(Onsemi) AAT8401(Analogic tech) ZXM61P02F(ZETEX)SOT-23-3 Q1使用PMOS管时，R3用0~10R，可参考如下PMOS管 使用2N3906三极管时，功耗可能会大一点，R3使用4.7K左右 ① ② ③ 3V1 3V1 Sensor可以在0度、90度、180度、270度这四个方向顺便摆放 程序可以根据Sensor的摆放方向来进行修改
