ZRQ-B3PENCLIC MOUSE

WELCOME to the quick guide Penclic Mouse combines ergonomically sound design with modern mouse technology to bring you unparalleled precision, comfort and efficiency. Mouse setup Insert the battery into the mouse Charge the battery with the included micro usb charging cable until full. Set the mouse power switch on the bottom of the mouse to ON Install the Penclic Mouse B3 Standard PC Bluetooth device installation Activate the Bluetooth connection on the computer. Press the button under the mouse to activate the Bluetooth search on the mouse. Search for Bluetooth devices on your computer. Select Penclic Mouse B3 once found. Install the mouse and the Penclic Mouse B3 is ready to use. Trouble installing your Penclic Mouse B3. Please look at www.penclic.se/troubleshooting HOW TO USE YOUR Penclic Mouse 1, Hold Penclic Mouse like a pen, the bottom part acts like a traditional mouse. 2, Let your forearm and your hand rest on a surface, while keeping your shoulders relaxed. 3, The pen part can be adjusted to suit specific grips. Fixate the bottom part with one hand and rotate the pen to the preferred angle with the other. • Left click 1 • Right click 2 • Middle click 3 • Scroll wheel 4 • On‐off button 5 • DPI switch 6 • Bluetooth connect button 7 TROUBLESHOOTING http://www.Penclic.se/troubleshooting • Check the battery. • When the battery needs charging the LED on the mouse will show red. When the battery is fully charged a green light will be displayed. • Cursor movement may be effected by very glossy surfaces. • Trouble connecting finding the Bluetooth connection, please look at www.penclic.se/troubleshooting TECHNICAL SPECIFICATIONS The supported platforms for Penclic Mouse are all operating systems that support HID 1.1. These include Windows XP or later, Mac OSX version 10.1 or later and most Linux/BSD flavors. No extra software/driver installation is needed. • Bluetooth connection • Operates on almost any surface without any pad or tablet. • Implements a 3-buttons and scroll wheel mouse. • AAA 1.2V NiMH Recharging battery (Everyday use last approximately 3 months before charging is needed). • LR 03/AAA/1.5V Alkaline None rechargeable battery can be used. NOTE: DO NOT RECHARGE • Energy saving mode starts after 10 min, press a button to start. • Wireless reach, minimum 5 metres. • Dpi settings 800-1200-1600. Measurements: • Height: 140 mm Base: 44.1 x 20 mm • Weight: 41 g TECHNICAL SUPPORT Should you require additional technical support with your Penclic Mouse™, please use our Web site for further information or contact our support group through e- mail. Call Technical Support during business hours, central European time plus one hour. Contact: + 46 8 544 98 995 or email: [email protected] All rights reserved of Bluetooth® is owned by Bluetooth SIG and is used under licence. SPRÅK: ord på 13 språk Svenska, norska, danska, finska, tyska, franska, spanska, italienska, holländska, portugisiska, turkiska och grekiska. + polska FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC WARNING This device complies with Industry Canada RSS‐210 standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a PCB and maximum ‐1.2dBi gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

Penclic AB Vendev.90, 7tr 182 32 Danderyd, Sweden (FCC ID: ZRQ-B3) Date: 2013-12-02 Attestation Letter Gentlemen: We, Penclic AB declare the device of FCC ID: ZRQ-B3, Model Name: B3, the USB port supports only charging function, it does not support that any information is exchanged between device and PC or laptop. Sincerely, Penclic AB (Olle Wanlqvist / CTO)

Penclic AB Model: B3 REPORT NO.: STR13118279I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Penclic AB Model: B3 REPORT NO.: STR13118279I FCC PART 15.247 EUT View 3 EUT View 4 Penclic AB Model: B3 REPORT NO.: STR13118279I FCC PART 15.247 EUT View 5 EUT View 6 Penclic AB Model: B3 REPORT NO.: STR13118279I FCC PART 15.247 EUT View 7

Penclic AB Model: B3 REPORT NO.: STR13118279I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Penclic AB Model: B3 Product Name: Penclic mouse FCC ID: ZRQ-B3 IC: 9999A-B3 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Penclic AB Model: B3 REPORT NO.: STR13118279I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Penclic AB Model: B3 Product Name: Penclic mouse FCC ID: ZRQ-B3 IC: 9999A-B3 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

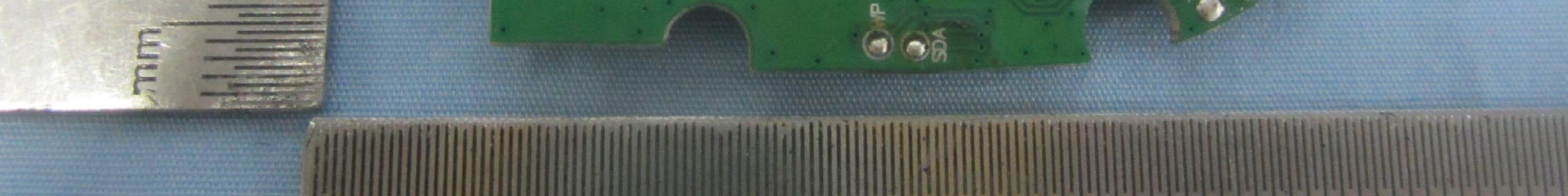

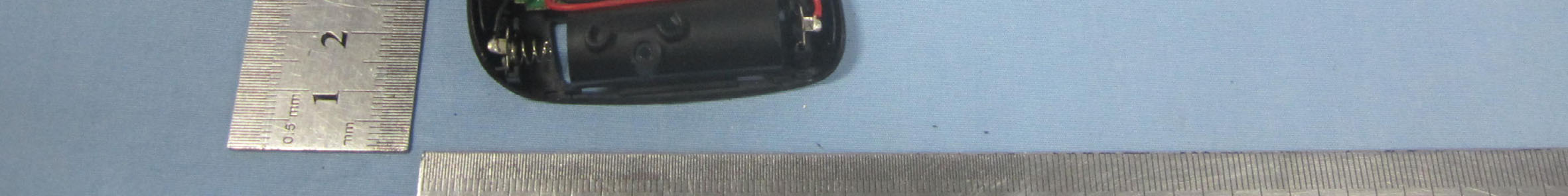

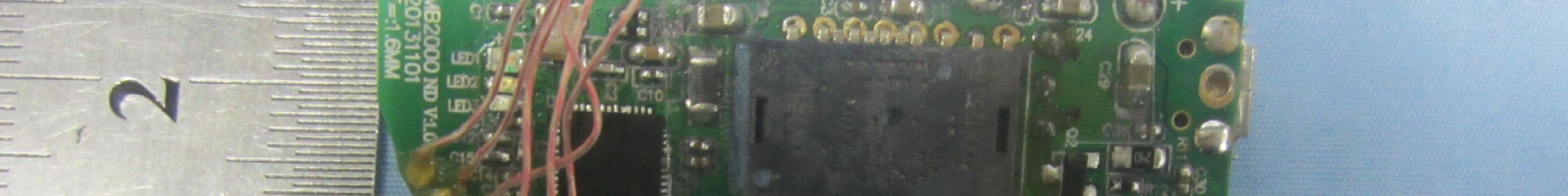

Penclic AB Model: B3 REPORT NO.: STR13118279I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Penclic AB Model: B3 REPORT NO.: STR13118279I FCC PART 15.247 Solder Board-Component View 2

RF Exposure Requirements Product Description: Penclic mouse Model No.: B3 FCC ID: ZRQ-B3 Acorrding to the KDB-447498 D01 V05, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Bluetooth Tx frequency range: 2402~2480MHz Device category: Portable Device Maximum Conducted Output Power: -2.232 dBm Maximum Antenna Gain: -1.2 dBi Maximum EIRP Output Power: -3.432 dBm (0.4537 mW) Minimum Distance: 5mm Limit: 10mW Source-based time-averaged EIRP output power is 0.4537 mW < 10 mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

Penclic AB Model: B3 REPORT NO.: STR13118279I PAGE 1 OF 53 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Penclic AB Vendev. 90, 7tr 182 32 Danderyd, Sweden FCC ID: ZRQ-B3 FCC Rule(s): FCC Part 15.247 Product Description: Penclic mouse Tested Model: B3 Report No.: STR13118279I Tested Date: 2013-11-20 to 2013-11-28 Issued Date: 2013-11-28 Tested By: Lebron Wang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. Penclic AB Model: B3 REPORT NO.: STR13118279I PAGE 2 OF 53 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................4 1.2 TEST STANDARDS...................................................................................................................................................5 1.3 TEST METHODOLOGY.............................................................................................................................................5 1.4 TEST FACILITY.......................................................................................................................................................5 1.5 EUT SETUP AND TEST MODE.................................................................................................................................6 2. SUMMARY OF TEST RESULTS ...........................................................................................................................7 3. RF EXPOSURE .........................................................................................................................................................8 3.1 STANDARD APPLICABLE.........................................................................................................................................8 3.2 TEST RESULT..........................................................................................................................................................8 4. ANTENNA REQUIREMENT ..................................................................................................................................9 4.1 STANDARD APPLICABLE.........................................................................................................................................9 4.2 EVALUATION INFORMATION..................................................................................................................................9 5. FREQUENCY HOPPING SYSTEM REQUIREMENTS ...................................................................................10 5.1 STANDARD APPLICABLE.......................................................................................................................................10 5.2 FREQUENCY HOPPING SYSTEM.............................................................................................................................10 5.3 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE....................................................................................11 6. QUANTITY OF HOPPING CHANNELS AND CHANNEL SEPARATION ...................................................12 6.1 STANDARD APPLICABLE.......................................................................................................................................12 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................12 6.3 TEST PROCEDURE.................................................................................................................................................12 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................12 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................13 7. DWELL TIME OF HOPPING CHANNEL ..........................................................................................................17 7.1 STANDARD APPLICABLE.......................................................................................................................................17 7.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................17 7.3 TEST PROCEDURE.................................................................................................................................................17 7.4 ENVIRONMENTAL CONDITIONS............................................................................................................................17 7.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................18 8. 20DB BANDWIDTH ...............................................................................................................................................28 8.1 STANDARD APPLICABLE.......................................................................................................................................28 8.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................28 8.3 TEST PROCEDURE..............................................…

Text truncated - open the document above for the full version.

Penclic AB Model: B3 REPORT NO.: STR13118279I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (30MHz to 1GHz) Penclic AB Model: B3 REPORT NO.: STR13118279I FCC PART 15.247 Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) Penclic AB Model: B3 REPORT NO.: STR13118279I FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz)
