ZRQ-R2Penclic Wireless Mouse

User Manual 1．Plug one batteries into the battery compartment and turn on power switch, LED light would blink. 2．Pairing: the wireless connection activates automatically. 3．You could use it normally after pairing successfully. 4．You could to recharge the battery via USB port. Caution: . Make sure of polarity. . Battery type has to be AAA battery (DC 1.5V) or NI-MH Rechargeable battery. . Take out the batteries while mouse is not in use for a long time. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE 2: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

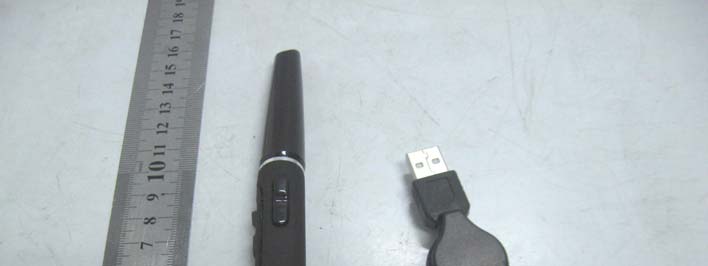

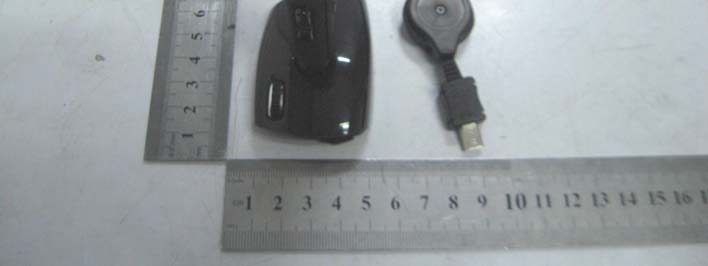

Penclic AB Model: R2 REPORT NO.: STR11078089I FCC PART 15.249 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

Penclic AB Model: R2 REPORT NO.: STR11078089I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: ZRQ-R2 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Penclic AB Model: R2 REPORT NO.: STR11078089I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: ZRQ-R2 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Penclic AB Model: R2 REPORT NO.: STR11078089I FCC PART 15.249 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Penclic AB Model: R2 REPORT NO.: STR11078089I FCC PART 15.249 Solder Board-Component View 2

Circuit Description 1, IC U2(M24-001) is used for wireless transmission chip. The signal to the receiver by built-in RF, and a clock frequency of the 16MHz as base clock signal, the 2.4G RF transmitting frequency is 2405 to 2476MHz with GFSK modulation. 2, The work voltage is DC 1.5V by AAA battery or NI-MH rechargable battery, and you could to recharge the battery via USB charging port.

44 33 22 11 4 4 3 3 2 2 1 1 Y.C. Chen D.C. Closed toRF XIO 2.4G RF SoC Closed toRF VCCD Closed toVDD_OUT (DIR2) Not Mount Sensor Orientation Not Mount MountR8 (DIR2) 90 degree Not Mount Not Mount 180 degree MountR7 (DIR1) 270 degree 0 degree Mount Mount Closed toRF_VDD Closed toRF_ANT Digital GND & Analog GND Should be connected by this point GND PCBANT ANT PCB LayoutPattern seeAppendix Closed toRF_ANT For EMI concern ** ** C8 and C9depend on X1Crystal Spec TBDTBD TBD (DIR1) Ext DC Power Block Closed toSoC VDDpin Closed toDC/DC Lxpin TBD TBD ## ## #### #### ## ## Depend on Z Encoder quality (optional) Closed to Sensor Closed to Sensor Closed to Sensor Laser Sensor ADNS-7530 Closed to Q1 Not Mount INT. DC 2CELLExt. DC 2CELL ( ## ) Ext. DC 1CELL R4, R13R5, R6, U3, D1 R4, R9,R10,R13 Mount R5, R6, R9, U3, D1 Power Type R4, R10, R13 Power Straps Option R5, R6, R9, R10, U3, D1 Keypad Tilt-Wheel Buttons 2.4GHZ-2W-ISS-MSE-M24-001-A7530-TX-A-TECH A1 2.4GHz 2way RF SoC Laser Mouse Solution ( DC optional) B 11 Friday, May 01, 2009 TitleSize Document Number Rev Date: Sheet of SunplusIT ENG. AP: Drawn: Check By: BIND NCS R2R0 RF_PWR S0 VSS MISO RF_PWR R1 MOSI S1 S2 ZA R3 ESCLK RF_PSB ZB BIND DIR BIND RF_PWR ZBZA MOTION MISOMOTIONNCSMOSIESCLK RF_PSB R0R2R1 S2 S1 R3 S0 VCC RFVCC VCC VCC VCC SVDD RFVCC VCC VCC SVDD ADNS7530 U1 821413 9 54637 10 1 15 12 16 11 XYLASER LASER_NEN DGND RefA VDD3 SCLKMISOMOSINCSMOTIONNC +VCSEL VDDIO VDD3 -VCSEL GND S7 TILT-L D1 1N5819 1 2 + C273.3uF C17 1pF C1022pF C29470pF U3 XC6383A-281PR 3 2 1 Lx Vout Vss R121M C280.1uF + C610uF S5 B5_DN R733K Q1 2N3906 3 2 1 C180.1uF S2 MB C130.01uF L2 0R C140.01uF SW2BIND S3 RB C820pF + C14.7uF C1922pF + C253.3uF C71uF C40.1uF R31K LD2 BAT_LOW S8 TILT-R R130R SW3SW MAG-SPDT X1 16MHz C16 0.1uF C2122pF S6 CPI C112.2nF C23 0.1uF C150.1uF + C2100uF L5 100uH C22 0.1uF R9 10M 1% R833K C201pF S1 LB C260.1uF R50R + C3 100uF R10 10M 1% L422nH L33.3nH SW1Z Encoder 32 1 U2 M24-00 2 1234 11 12 13 14 24262830 31 32 33 34 56789 10 15 16 17 18 19 20 212223252729 35 36 37 38 39 40 VBATVDD_OUTTESTVLX RF_GNDD RF_VDDD RF_XOUT RF_XIN RF_VCC PB1 PD2PD0 PC5 PA4 PA3 PB2 PC6VSSPA5VDDPA1RF_VCCD RF_PSB RF_VCOG RF_VCOPG RF_VCOVDD RF_VDD ANT1 ANT2 RF_GNDPG RF_GND GND_IF PC4PD1 PB3 PA6 PA7 PB0 PB7 PB6 R40R S12 CUST4 R60 C24 1uF R1 2K C920pF S4 B4_UP R14 10R C12 2pF S11 CUST3 R11 10R S10 CUST2 J1 BAT Conn 12 S9 CUST1 V_BAT V_BAT V_BAT VLX1 VLX1

Penclic AB Model: R2 REPORT NO.: STR11078089I PAGE 1 OF 23 FCC PART 15.249 FCC PART 15.249 MEASUREMENT AND TEST REPORT FOR Penclic AB Vendev. 90, 7tr182 32, Danderyd, Sweden FCC ID: ZRQ-R2 Report Concerns: Original Report Equipment Type: Penclic wireless Mouse Model: R2 Report No.: STR11078089I Test Date: 2011-07-11 to 2011-07-25 Issue Date: 2011-07-26 Tested By: Silin Chen / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Penclic AB Model: R2 REPORT NO.: STR11078089I PAGE 2 OF 23 FCC PART 15.249 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................3 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.207 CONDUCTED EMISSIONS.......................................................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.3 TEST PROCEDURE...................................................................................................................................................7 4.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................7 4.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.6 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 4.7 CONDUCTED EMISSIONS TEST DATA......................................................................................................................8 5. §15.205, §15.209, §15.249 (A)- RADIATED EMISSION......................................................................................11 5.1 MEASUREMENT UNCERTAINTY............................................................................................................................11 5.2 STANDARD APPLICABLE.......................................................................................................................................11 5.3 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.4 TEST PROCEDURE.................................................................................................................................................12 5.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................12 5.6 ENVIRONMENTAL CONDITIONS............................................................................................................................12 5.7 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................13 6. §15.249(B) OUT OF BAND EMISSIONS .............................................................................................................21 6.1 STANDARD APPLICABLE.......................................................................................................................................21 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................21 6.3 TEST PROCEDURE.................................................................................................................................................21 6.4 ENVIRONMENTAL CONDITIONS.............................…

Text truncated - open the document above for the full version.

Penclic AB Model: R2 REPORT NO.: STR11078089I FCC PART 15.249 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conduction Emsission Test Setup Only Charging Radiation Emission Test Setup (30MHz to 1GHz) Penclic AB Model: R2 REPORT NO.: STR11078089I FCC PART 15.249 Radiation Emission Test Setup (Above 1GHz)
