ZY4ABC01Remote for controlling indoor blinds

24.8.2009 24.8.2009

12.9.2011 FCC Manual Regulatory information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: ZY4ABC01 1 FCC Information to User This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifi cations will invalidate all applicable regulatory certi- fi cations and approvals. 2 FCC Guidelines for Human Exposure Warning: In order to comply with RF exposure limits, the user is advised to maintain a distance of at least 20 cm from the antenna structure of this device while it is in use. 3 FCC Electronic Emission Notices This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference 2. This device must accept any interference received, including interference that may cause unde- sired operation. 4 FCC Radio Frequency Interference statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area may cause harmful interference, in which case the user will be required to correct the interference at his own expense. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help

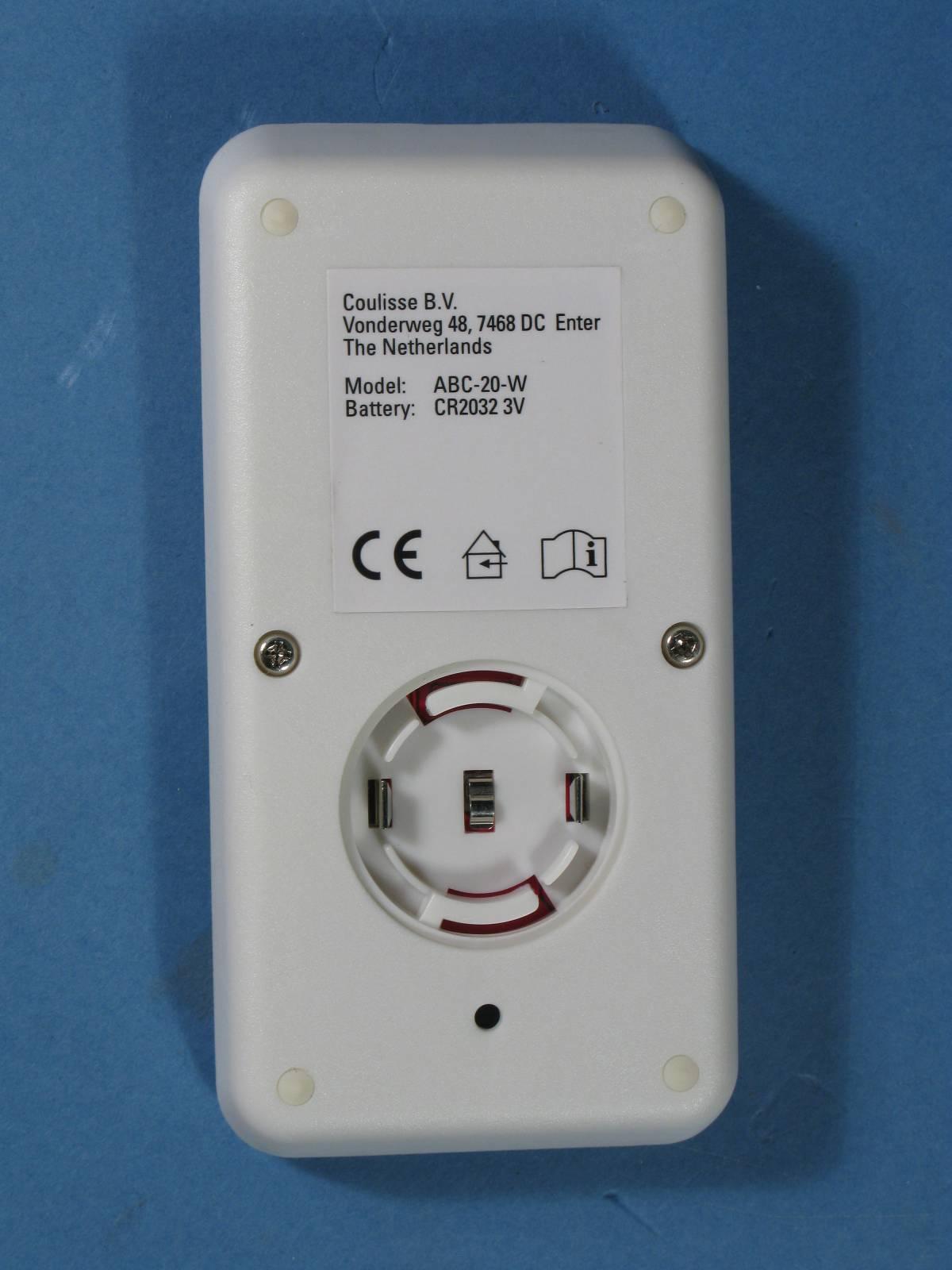

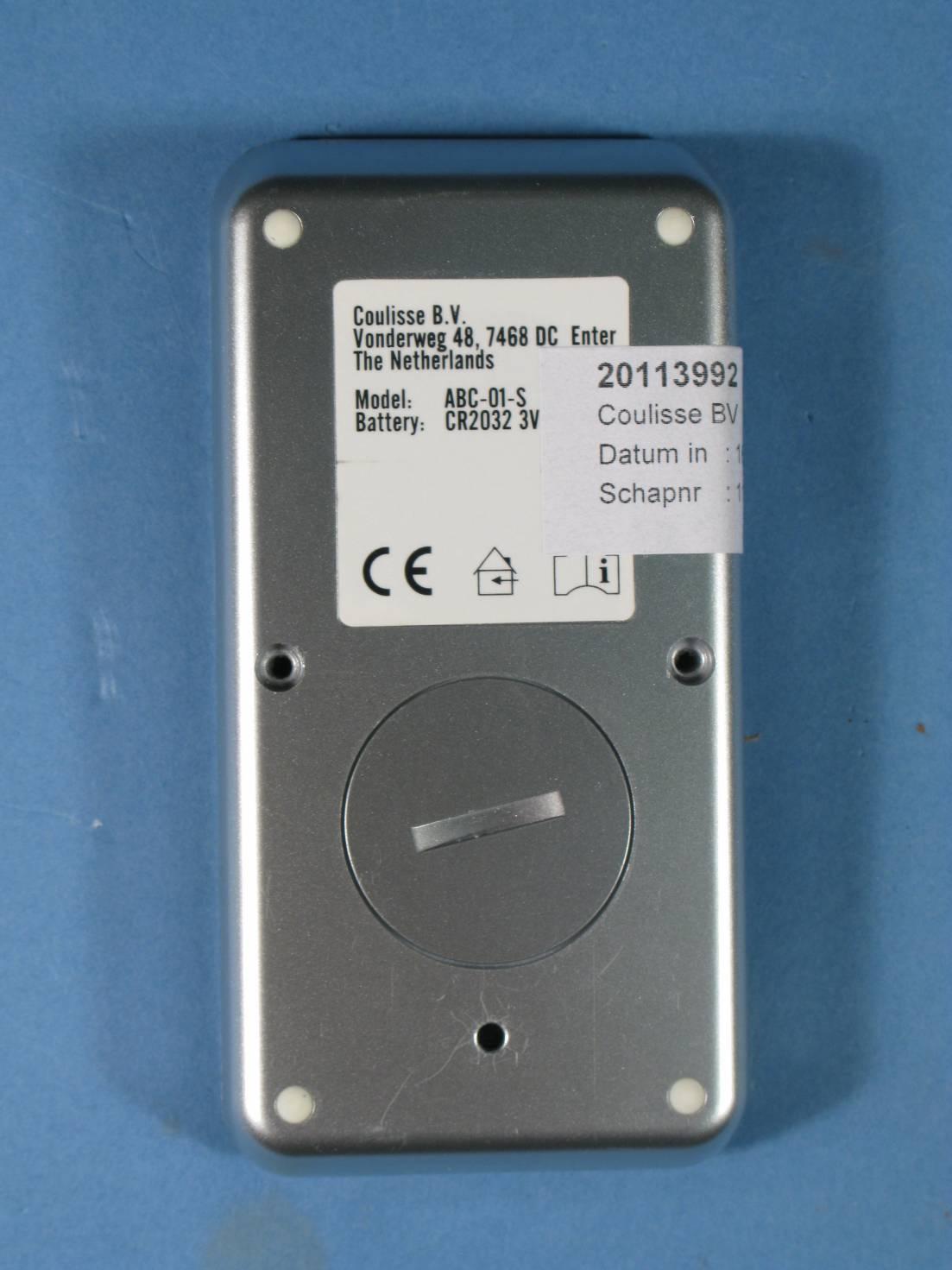

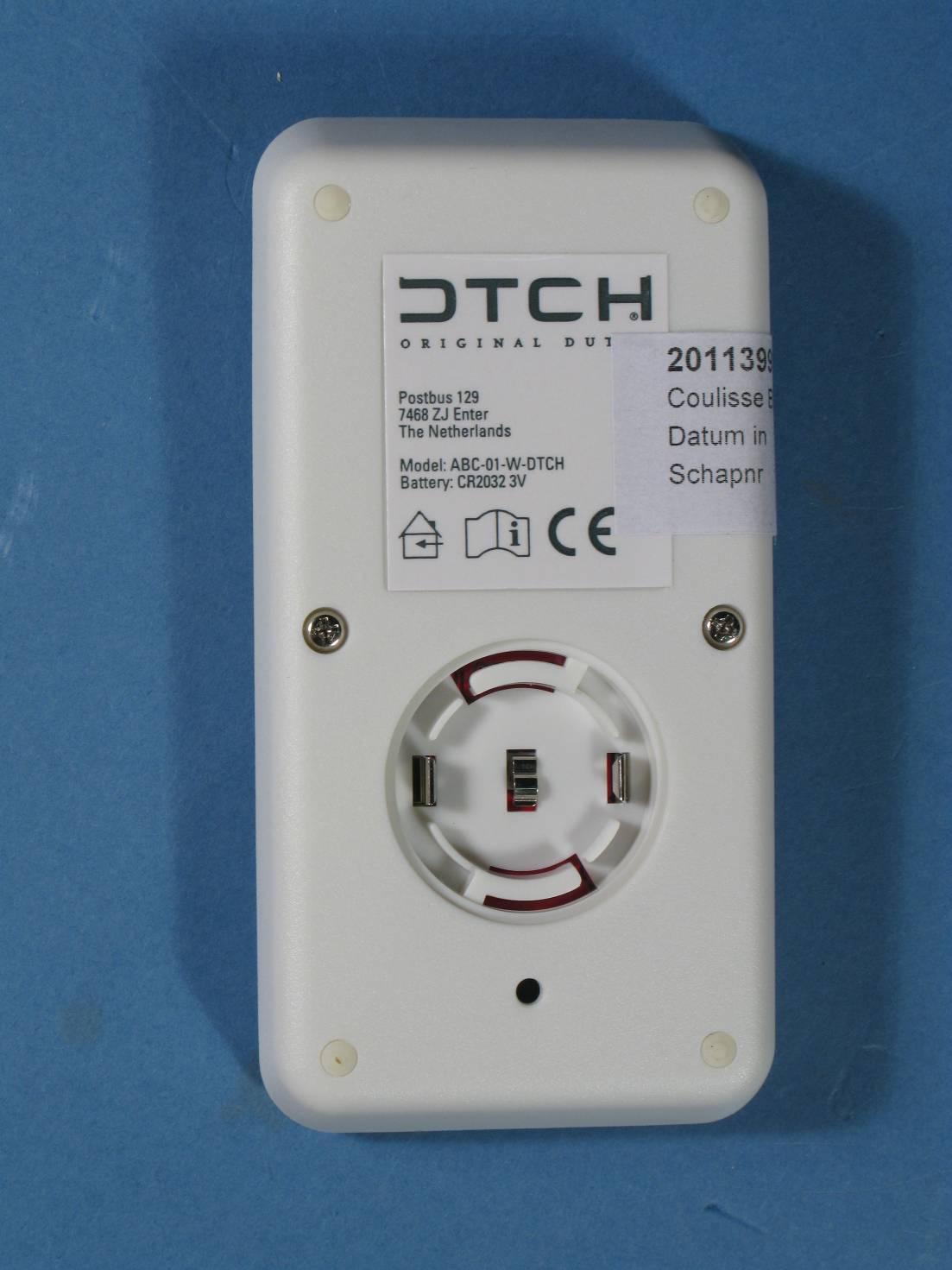

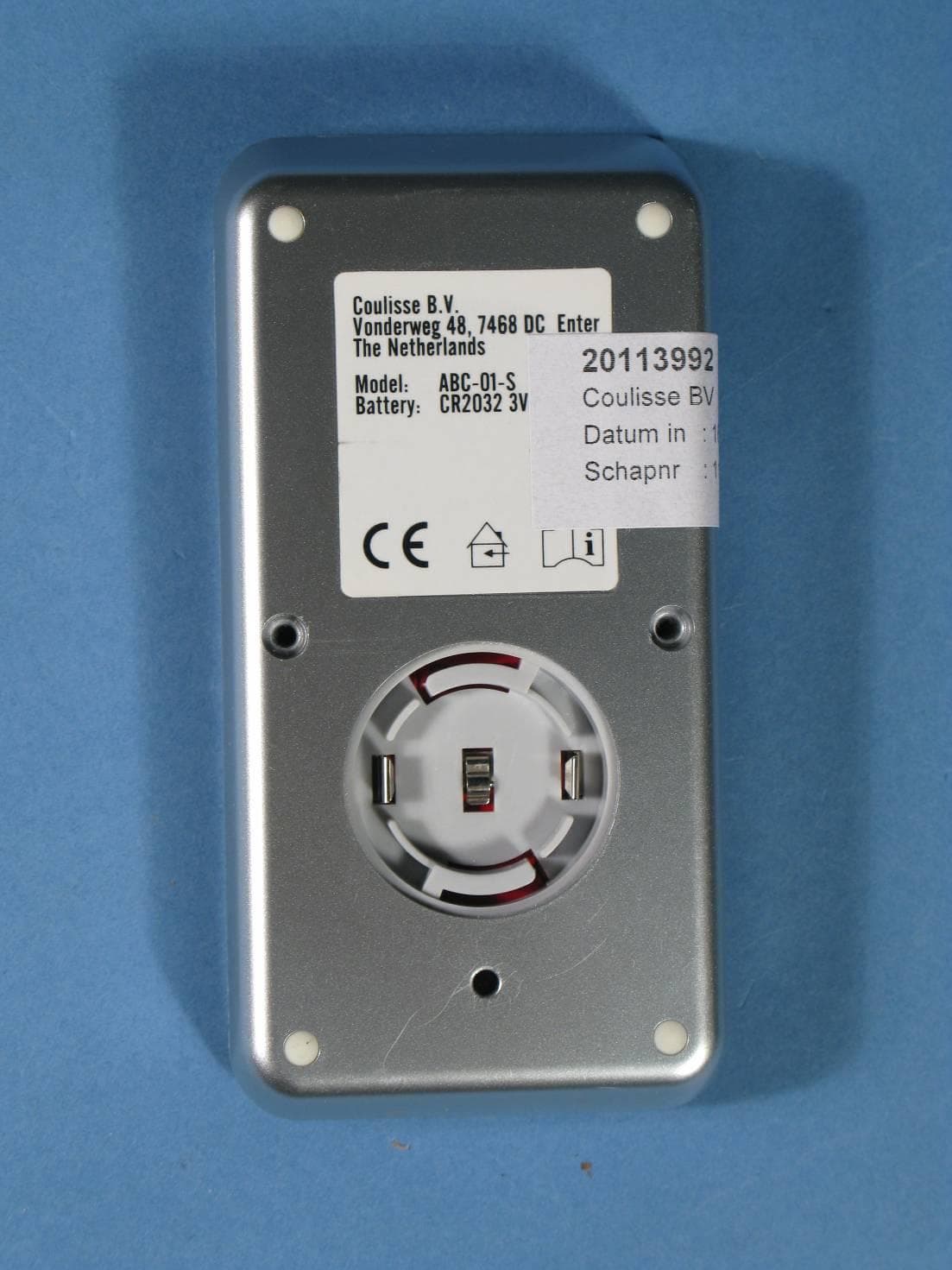

Photographs module 20113992300 External PHOTOGRAPH 1: - ABC-01, REMOTE CONTROL, TOP VIEW .............................................................................................. 2 PHOTOGRAPH 2: - ABC-01, REMOTE CONTROL, BOTTOM VIEW ....................................................................................... 3 PHOTOGRAPH 3: - ABC-01, REMOTE CONTROL, BATTERY COMPARTMENT ....................................................................... 4 PHOTOGRAPH 4: - ABC-01-DTCH, REMOTE CONTROL, TOP VIEW .................................................................................. 5 PHOTOGRAPH 5: - ABC-01-DTCH, REMOTE CONTROL, BOTTOM VIEW ........................................................................... 6 PHOTOGRAPH 6: - ABC-01-DTCH, REMOTE CONTROL, BATTERY COMPARTMENT ........................................................... 7 PHOTOGRAPH 7: - ABC20, REMOTE CONTROL, TOP VIEW ............................................................................................... 8 PHOTOGRAPH 8: - ABC20, REMOTE CONTROL, BOTTOM VIEW ........................................................................................ 9 PHOTOGRAPH 9: - ABC20, REMOTE CONTROL, BATTERY COMPARTMENT ...................................................................... 10 Page: 2 of 10 Report number: 20103992300 Photograph 1: - ABC-01, remote control, top view Page: 3 of 10 Report number: 20103992300 Photograph 2: - ABC-01, remote control, bottom view Page: 4 of 10 Report number: 20103992300 Photograph 3: - ABC-01, remote control, battery compartment Page: 5 of 10 Report number: 20103992300 Photograph 4: - ABC-01-DTCH, remote control, top view Page: 6 of 10 Report number: 20103992300 Photograph 5: - ABC-01-DTCH, remote control, bottom view Page: 7 of 10 Report number: 20103992300 Photograph 6: - ABC-01-DTCH, remote control, battery compartment Page: 8 of 10 Report number: 20103992300 Photograph 7: - ABC20, remote control, top view Page: 9 of 10 Report number: 20103992300 Photograph 8: - ABC20, remote control, bottom view Page: 10 of 10 Report number: 20103992300 Photograph 9: - ABC20, remote control, battery compartment

FCC Label location ABC-01: ABC-01

Coulisse B.V. Vonderweg 48, 7468 DC Enter The Netherlands Model: ABC-01-W Battery: CR2032 3V FCC ID: ZY4ABC01 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Photographs module 20113992300 Internal PHOTOGRAPH 1: - ABC-01 REMOTE CONTROL, INTERNAL VIEW .......................................................................... 2 PHOTOGRAPH 2: - ABC-01 REMOTE CONTROL, TOP VIEW ................................................................................... 3 PHOTOGRAPH 3: - ABC-01 REMOTE CONTROL, TOP VIEW OF PCB ..................................................................... 4 PHOTOGRAPH 4: - ABC-01 REMOTE CONTROL, BOTTOM VIEW OF PCB ............................................................... 5 Page: 2 of 5 Report number: 20113992300 Photograph 1: - ABC-01 remote control, internal view Page: 3 of 5 Report number: 20113992300 Photograph 2: - ABC-01 remote control, top view Page: 4 of 5 Report number: 20113992300 Photograph 3: - ABC-01 remote control, top view of PCB Page: 5 of 5 Report number: 20113992300 Photograph 4: - ABC-01 remote control, bottom view of PCB

Radio test report 20113992300 based on: - FCC part 15; subpart C; section 15.209 & 15.249 (10-1-10 edition) - FCC part 15, subpart B, section 15.109 (10-1-10 edition) Remote control ABC-01 ABC-01-DTCH ABC20 Report number: 20113992300 Contents MAIN MODULE .............................................................................................................................................. 3 1 ..... INTRODUCTION ...................................................................................................................................... 3 2 ..... PRODUCT ............................................................................................................................................... 4 3 ..... TEST SCHEDULE ..................................................................................................................................... 5 4 ..... PRODUCT DOCUMENTATION ................................................................................................................... 5 5 ..... OBSERVATIONS AND COMMENTS ........................................................................................................... 6 6 ..... MODIFICATIONS TO THE SAMPLE ............................................................................................................ 6 7 ..... SUMMARY.............................................................................................................................................. 6 8 ..... CONCLUSIONS ........................................................................................................................................ 7 TEST RESULTS MODULE ............................................................................................................................ 8 1 ..... GENERAL INFORMATION ........................................................................................................................ 8 1.1 Equipment information ..................................................................................................................... 8 2 ..... EMISSION TESTS ..................................................................................................................................... 9 2.1 Field strength of intentional signal .................................................................................................... 9 2.2 Field strength of unwanted emissions 0.15 - 30 MHz ..................................................................... 10 2.3 Field strength of unwanted emissions 30 - 1000 MHz .................................................................... 11 2.4 Field strength of unwanted emissions > 1000 MHz ........................................................................ 15 USED TEST EQUIPMENT MODULE ........................................................................................................ 21 REVISION HISTORY ................................................................................................................................... 23 This report comprises of three modules. The total number of pages is: 23 Page: 3 of 23 Main module Report number: 20113992300 Main module 1 Introduction This report contains the result of tests performed by: Telefication B.V. Edisonstraat 12a 6902 PK Zevenaar The Netherlands Telefication complies with the accreditation criteria for test laboratories as laid down in ISO/IEC 17025:2005. The accreditation covers the quality system of the laboratory as well as the specific activities as described in the authorized annex bearing the accreditation number L021 and is granted on 30 November 1990 by the Dutch Council For Accreditation (RvA: Raad voor Accreditatie). The contents of this test report, if reproduced, shall be copied in full, unless special consent in writing for reproduction in part is granted by Telefication. Copyright of this test report is reserved to Telefication. Ordering party: Company name : Coulisse B.V. Address : Vonderweg 48 Zipcode : 7468 DC City/town : Enter Country : The Netherlands Date of order : 1 September 2011 Page: 4 of 23 Main module Report number: 20113992300 2 Product A sample of the following product was submitted for testing: Product description : Remote control Manufacturer : Coulisse B.V. Trade mark : Coulisse Type designation : ABC-01 FCC ID : ZY4ABC01 Hardware version : REVG Serial number : -- Software release : -- Variant 1 Product description : Remote control Manufacturer : Coulisse B.V. Trade mark : Coulisse Type designation : ABC-01-DTCH Hardware version : REVG Serial number : -- Software release : -- Variant 2 Product description : Remote control Manufacturer : Coulisse B.V. Trade mark : Coulisse Type designation : ABC20 Hardware version : REVG Serial number : -- Software release : -- Page: 5 of 23 Main module Report number: 20113992300 3 Test schedule Tests are carried out in accordance with the specification detailed in chapter 7 “Summary” of this report. Tests are carried out at the following location: Telefication, Zevenaar The samples of the product were received on: 16 August 2011 Tests are carried out on: 16 August and 17 August 2011 4 Product documentation For production of this report the following product documentation was used: Description Identification Date Manual ABC-01_R0_GB0.pdf 2011-10-04 FCC manual FCCManualZY4ABC01.pdf 2011-10-04 Circuit diagram Remote4Channel REVG.pdf 2011-09-28 Bill Of Materials RemoteRevGBOM.txt 2011-09-28 The above-mentioned documentation will be filed at Telefication for a period of 10 years following the issue of this test report. Page: 6 of 23 Main module Report number: 20113992300 5 Observations and comments None. 6 Modifications to the sample No modifications were made to the sample. 7 Summary The product is intended for use in the following application area(s): INTENTIONAL RADIATOR OPERATING IN THE FREQUENCY BAND 2400 - 2483.5 MHz The sample is tested according to the following specification(s): FCC part 15; subp…

Text truncated - open the document above for the full version.

Photographs module 20113992300 Test set up PHOTOGRAPH 1: - TEST SETUP RADIATED EMISSIONS (0.15 - 30 MHZ)............................................................................ 2 PHOTOGRAPH 2: - TEST SETUP RADIATED EMISSIONS (30 - 1000 MHZ)........................................................................... 3 PHOTOGRAPH 3: - TEST SETUP RADIATED EMISSIONS (1 - 18 GHZ) ................................................................................. 4 PHOTOGRAPH 4: - TEST SETUP RADIATED EMISSIONS (18 - 26 GHZ) ............................................................................... 5 Page: 2 of 5 Report number: 20113992300 Photograph 1: - Test setup radiated emissions (0.15 - 30 MHz) Page: 3 of 5 Report number: 20113992300 Photograph 2: - Test setup radiated emissions (30 - 1000 MHz) Page: 4 of 5 Report number: 20113992300 Photograph 3: - Test setup radiated emissions (1 - 18 GHz) Page: 5 of 5 Report number: 20113992300 Photograph 4: - Test setup radiated emissions (18 - 26 GHz)
