ZY4ABC26Remote control

+ - CR2430 3V ABC-26_R0_ ! Coulisse B.V., Vonderweg 48, 7468 DC Enter, The Netherlands + PICO-WBX-ADAPT Claro wallplate Claro wallplate      Different materials require different types of fittings. Always choose screws and plugs that are specially suited to the material. WARNING: Important safety instructions. Follow all instructions, since incorrect installation can lead to severe injury.Do not make repairs yourself. Do not attempt to open the device or disassemble it. You run the risk of electric shock and voiding the limited warranty. No user-serviceable parts are inside. WARNING: ManualAbsolute ControlRemote control ABC-261. General information1.3 Changing the battery ABC-26 Battery CR2430 3.0V Channels 1 Max. blinds remote infinite Range (inside building) 20m, 2 concrete walls Frequency 2.4 GHz Weight 40 grams 1.1 Performances1.2 Buttons Program button Up Right Down Indicator Left Center button(stop - favorite) The ABC-26 the wall switch to operate Coulisse automation blinds. 2. Programming Set in Program mode: Press program button on the motor, The blind starts stepping. Exit Program mode: Press program button on the blind, The blind stops stepping. Pair/unpair by pressing the program button (use pen) Action confirmed: blind stops stepping for 3 seconds 3. OperatingOperate a blind Up / tilt Down / tilt Left * Right * Stop 2 sec: Favorite position 3. Switch the blind’s direction of rotation Hold the up and down button to switch the direction of rotation To program a blind, the blind must be in program mode. (Press program button on the motor, when blind is not stepping.)Example: when you press up on the remote and your blind moves down, you have to switch the rotation direction of the blind. Hold the left and right button to switch the direction of rotation. Switch UP & DOWN Switch LEFT & RIGHT Action confirmed: blind stops stepping for 3 seconds 2. Set the favorite position Set the blind in the desired position. Save your position by pressing the center button for two seconds. To program a blind, the blind must be in program mode. (Press program button on the motor, when blind is not stepping.) Action confirmed: blind stops stepping for 3 seconds 1. Programming a blind Pairing a blind to the remote that is already paired with the blind, will delete the pairing. 6. Safety & Cleaning6.1 Safety6.2 CleaningFollow these general rules when cleaning the outside of the device and its components:- Make sure the device is unplugged.- Use a damp, soft, lint-free cloth. Avoid getting moisture in openings.- Don’t use aerosol sprays, solvents, alcohol, or abrasives.- Do not let children play with the blind and/or remote control- Do not paint the device- Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will corrode electronic circuits. If your device does get wet, remove the battery, and allow the device to dry completely before replacing the battery.- Do not drop, knock, or shake the device. Rough handling can break internal circuit boards. 5. Tips & Troubleshooting7. Service & SupportOnline ResourcesFor the latest information and updated manuals go to www.coulisse.nl.Obtaining Warranty ServiceFirst follow the advice in this booklet and then go to your local dealer. If the product appears to be damaged or does not function properly, go to your local dealer for instructions on how to obtain warranty service. Do not make repairs yourself. Do not attempt to open the device or disassemble it. You run the risk of electric shock and voiding the limited warranty. No user-serviceable parts are inside. WARNING: Do not make repairs yourself. Do not attempt to open the device or disassemble it. You run the risk of electric shock and voiding the limited warranty. No user-serviceable parts are inside. WARNING: Please check www.coulisse.nl for the latest tips and troubleshooting guide. Disclaimer:© Copyright CoulisseAll rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, by any means, electronic, mechanical, photocopying, recording, digital or otherwise without the written permission of the publisher.Although this manual has been composed with the most care, Coulisse B.V. does not accept any responsibility for damage due to mistakes and/or faults in this manual.Coulisse B.V. reserves the right to revise the manual and to revise and/or changes its content at any time, without obligation to notify any person or entity of such revisions or changes.The most recent version replaces older versions of this manual. The most recent version is available at ww.coulisse.nl or conta ct your Coulisse contact person .We invite you to send remarks and comments about this manual to Coulisse at [email protected]. 4. Remote Holder GB0 indoor use only * vertical motor only FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the use…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Coulisse B.V. November 03, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Coulisse B.V.hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Remote control Model name:ABC-26-W, ABC-26-G, ABC-26-S FCC ID: ZY4ABC26 Sincerely, Bas Klein Tuente / Manager Engineering Coulisse B.V. Address: Vonderweg 48 7468 DC ENTER Telephone: +31 547855555 Fax : +31 547855550 E-mail: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 Coulisse B.V. November 03, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: ZY4ABC26 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Bas Klein Tuente / Manager Engineering Coulisse B.V. Address: Vonderweg 48 7468 DC ENTER Telephone: +31 547855555 Fax : +31 547855550 E-mail: [email protected]

Coulisse B.V. Address: Vonderweg 48 7468 DC ENTER Tel：+31 547855555 Fax：+31 547855550 Email: [email protected] November 06, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA We, Coulisse B.V. hereby declare EUT (Remote control): The models of ABC-26-W, ABC-26-G and ABC-26- S have same parts, components and specifications/functions. The difference is just color. Bas Klein Tuente / Manager Engineering Coulisse B.V. Address: Vonderweg 48 7468 DC ENTER Telephone: +31 547855555 Fax : +31 547855550 E-mail: [email protected]

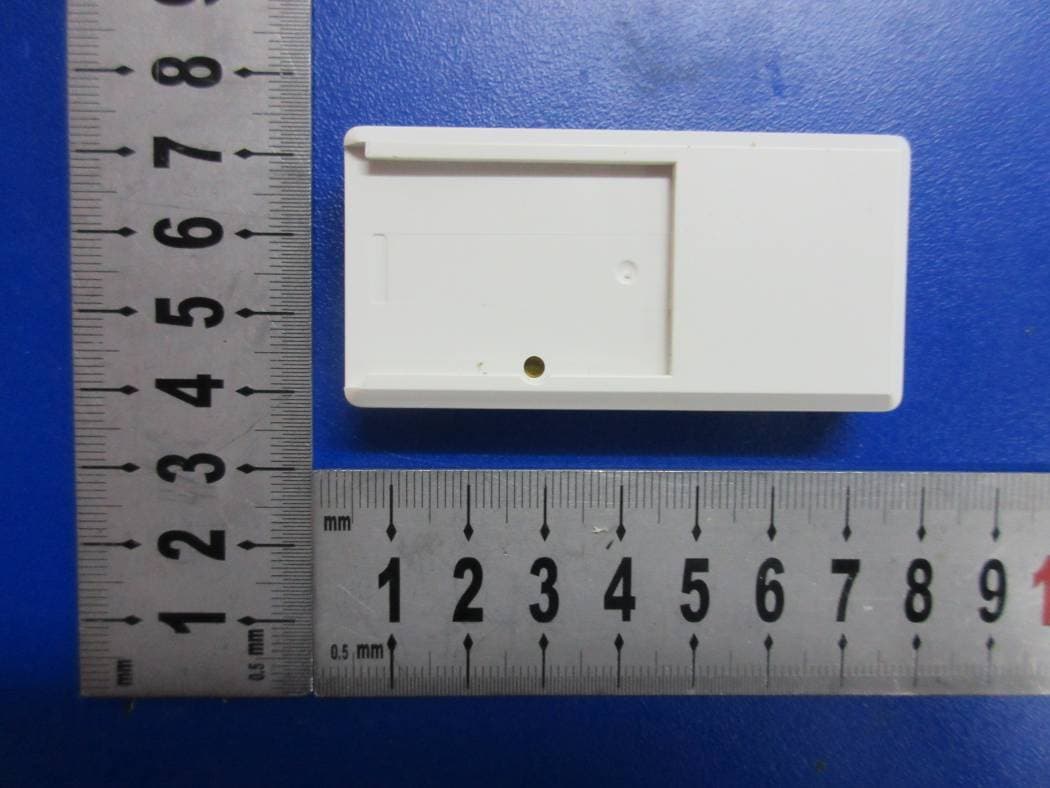

External photos: ---The End---

Coulisse B.V. Vonderweg 48, 7468 DC Enter The Netherlands Model: ABC-26-W Battery: CR2430 3V FCC ID: ZY4ABC26 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal photos: ---The End---

SHENZHEN EMTEK CO., LTD. REPORT NO: ES151030004E FCC ID: ZY4ABC26 DATE: 11/04/2015 Page 1 of 19 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART B &C REQUIREMENT OF Remote control MODEL No.: ABC-26-W, ABC-26-G, ABC-26-S FCC ID: ZY4ABC26 REPORT NO: ES151030004E ISSUE DATE: November 06, 2015 Prepared for Coulisse B.V. Vonderweg 48 7468 DC ENTER Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL:0086-755-26954280 FAX: 0086-755-26954282 SHENZHEN EMTEK CO., LTD. REPORT NO: ES151030004E FCC ID: ZY4ABC26 DATE: 11/04/2015 Page 2 of 19 VERIFICATION OF COMPLIANCE Applicant: Coulisse B.V. Vonderweg 48 7468 DC ENTER Product Description: Remote control Model Number: ABC-26-W, ABC-26-G ABC-26-S(Note: The models of ABC-26-W, ABC-26-G and ABC-26-S have same parts, components and specifications/functions. The difference is just color.) File Number: ES151030004E Date of Test: October 30, 2015 to November 04, 2015 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.249. The test results of this report relate only to the tested sample identified in this report. Approved By Lisa Wang/Manager SHENZHEN EMTEK CO., LTD. SHENZHEN EMTEK CO., LTD. REPORT NO: ES151030004E FCC ID: ZY4ABC26 DATE: 11/04/2015 Page 3 of 19 Table of Contents 1. GENERAL INFORMATION............................................................................................................... 4 1.1. Product Description .................................................................................................................... 4 1.2. Related Submittal(s) / Grant (s) .................................................................................................. 4 1.3. Test Methodology ....................................................................................................................... 4 1.4. Special Accessories ................................................................................................................... 4 1.5. Equipment Modifications ............................................................................................................ 4 1.6. Test Facility ................................................................................................................................ 5 1.7. Measurement Uncertainty .......................................................................................................... 5 2. SYSTEM TEST CONFIGURATION .................................................................................................. 6 2.1. EUT Configuration ...................................................................................................................... 6 2.2. EUT Exercise ............................................................................................................................. 6 2.3. Requirement for Compliance ..................................................................................................... 6 2.4. Configuration of Tested System ................................................................................................. 8 2.5. Description of support units ........................................................................................................ 8 3. SUMMARY OF TEST RESULTS ...................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................... 9 5. RADIATED EMISSION TEST ......................................................................................................... 10 5.1. Measurement Procedure .......................................................................................................... 10 5.2. Measurement Equipment Used: ............................................................................................... 10 5.3. Test SET-UP ............................................................................................................................. 11 5.4. Radiated Measurement Result ................................................................................................. 11 5.5. Radiated Measurement Photos: ............................................................................................... 15 6. BAND EDGES MEASUREMENT ................................................................................................... 16 6.1. Standard Applicable ................................................................................................................. 16 6.2. Measurement Procedure .......................................................................................................... 16 6.3. Measurement Equipment ......................................................................................................... 16 6.4. Test Setup ................................................................................................................................ 16 6.5. Test Results .............................................................................................................................. 16 7. ANTENNA APPLICATION .............................................................................................................. 19 7.1. Standard Applicable ................................................................................................................. 19 7.2. Antenna Construction ....................................................................................................…
