ZYASIDEWINDER4Mini Android PC

Xtreamer SideWinder 4 Xtreamer SideWinder 4 Xtreamer SideWinder 4 Xtreamer SideWinder 4 Xtreamer SideWinder 4 Xtreamer SideWinder 4 Xtreamer SideWinder4 Xtreamer SideWinder 4 Chipset: Processor: Dual-Core AML8726-Mx-D (AMLOGIC) ARM Cortex-A9 dual core/1.5GHZ Memory: FLASH: 8GB NAND Flash (32M bit nor ash+32GbitMLC ash) SDRAM: 1GB DDR3 OS: Android™ Jelly Bean 4.2.2 Size: Weight: 395 grams including WIFI antenna Size: 171x110x36mm Wireless Connectivity: 802.11 b/g/n Wi-Fi AirPlay, Miracast and DLNA support Video Output: HDMI™ 1.4, Full HD 1080p Audio Output: HDMI™ 1.4 SPDIF optical Power: DC 5V, 2A adapter included (CE, FCC, CCC certied) Supported Video Format: AVI/RM/RMVB/MKV/WMV/MOV/MP4/WEBM/DAT(VCD format) VOB(DVD format)/MPEG/MPG/FLV/ASF/TS/TP/3GP...etc Sound: Supported Audio Format: MP3/WMA/WMV/APE/OGG/ FLAC/AAC...etc Dolby & DTS 2ch output 5CH & 7CH passthrough Peripheral Interface: RJ-45 Ethernet jack (10/100Mbps) Micro SD card reader USB 2.0 HOST port x 3 Multilingual support: Google JellyBean supported languages System optimization: Airplay & DLNA by Airpin Root Access Init.d Scripting CIFS mount XBMC Plugins & Repo OTA Update Setup Wizard Kids Mode Camera: Not included we recommend Logitech Cams AirMouse: Included Requirements: Gmail account, and minimum WiFi or LAN may be required to activate Xtreamer SideWinder4 features/updates with online services. Package Content: Xtreamer SideWinder4 (WiFi 802.11n Antenna built-in) HDMI 1.4 Cable 5V 2A Power Adapter AirMouse (remote control) Quick start guide Xtreamer SideWinder 4 SideWinder 4 SideWinder 4 Xtreamer SideWinder 4 Xtreamer SideWinder 4 SideWinder 4 Xtreamer SideWinder 4 Xtreamer SideWinder 4 Xtreamer SideWinder 4 USB2.0 Host Xtreamer SideWinder 4 Why Pay More? Xtreamer SideWinder4 Xtreamer SideWinder 4 supports wired and wireless network allowing you to stream multimedia files locally or enjoy a vast variety of online content. Connect USB cable to an external USB storage device of your choice. การเชื่อตอสาย Optical คุณสามารถสนุกสนานกับเสียง 5.1 ผานแอมปรีฟายเวอรหรือรีซีฟเวอร โดยการเชื่อมตอกับพอรต Optical ตามที่แสดงในรูปดานบน การเชื่อตอสาย HDMI ตอสาย HDMI เขากับพอรตหลังเครื่อง ปลายอีกดานของสายตอเขากับพอรต HDMI หลังทีวีหรือจอภาพ การเชื่อตอเน็ตเวิรค Xtreamer SideWinder 4 รองรับการเชื่อมตอเน็ตเวิรคทั้งแบบมีสายและไรสาย ทําใหคุณสามารถสตรีมมัลติมีเดียไฟลที่ถูกจัดเก็ บอยูบนวงเน็ตเวิรคเดียวกันหรือคอนเทนตออนไลนตางๆได การเชื่อตออุปกรณจัดเก็บขอมูลภายนอก คุณสามารถใชสายยูเอสบีเชื่อมตออุปกรณจัดเก็บขอมูลภายนอกตางๆกับเครื่องได LAN Optical AV Power InOut HDMI LAN Optical AV Power InOut HDMI LAN Optical AV Power InOut HDMI Xtreamer SideWinder 4 Network Connection Requirements Return/ Right click Left, Right Up, Down Power Home OK Vol up/down Page up/down Play/ Pause Menu Google Play Store www.xtreamer.net/SideWinder4 Learn more at: http://forum.xtreamer.net Join our community at: מגיעה כשהיא מכילה את חנות האפליקציות של גוגל מותקנת מראש. לתשומת ליבך יתכנו Xtreamer SideWinder 4ה ישומים שנכתבו עבור מכשירי סלולר והם אינם מוצגים באופן המותאם לטלויזיה שברשותך. חנות האפליקציות של גוגל Xtreamer SideWinder 4 is fully compatible with Google Play Store apps. Please note that not all the applications might be suitable for high-definition TV screens. Google Play Store Den Xtreamer SideWinder 4 is 100% compatible mit Google Play Store apps. Achtung bitte: nicht alle verfügbare apps sind ge-eignet für wiedergabe auf HD Fernseher ! Google Play Store De Xtreamer SideWinder 4 is volledig compatible met de Google Play Store apps. Gelieve er rekening mee te houden dat niet alle apps geschikt zijn voor HD tv-schermen ! Google Play Store Xtreamer SideWinder 4 es totalmente compatible con las aplicaciones de Google Play Store. Por favor, ten en cuenta que no todas las aplicaciones pueden ser adecuadas para las pantallas de televisión de alta definición. Google Play Store Xtreamer SideWinder 4 совершенно совместима с приложениями из Google Play Store. Однако не все приложения разработаны для телеэкранов. Google Play Store להתאמת מכשירך לשירותי תוכן וחנות האפליקציות עליך להזין פרטי חשבון גוגל. דרישות בסיסיות Please note that Gmail account is required for you to enjoy the full potential of the Xtreamer SideWinder 4 system as well as Internet connection for access to Web-based games and services. Requirements Een Gmail-account is vereist om alle gebruiksmogelijkheden van de Xtreamer SideWinder 4 en de internettoegang voor Web-gebaseerde services en spellen ten volle te benutten. Erforderlich Please note that Gmail account is required for you to enjoy the full potential of the Xtreamer SideWinder 4 system as well as Internet connection for access to Web-based games and services. Vereist Se requiere una cuenta de Gmail para poder disfrutar de todo el potencial del sistema de Xtreamer SideWinder 4, así como conexión a Internet para acceder a los juegos y servicios basados en la Web. Requerimientos Xtreamer SideWinder 4의 다양한 기능을 이용하거나, 웹기반의 게임과 서비스을 위해 Gmail정보가 요구됩니다. 요구 사항 Для того чтобы воспользоваться всеми функциями консоли, вам понадобится аккаунт в Gmail и доступ к Интернету. Требования Xtreamer SideWinder 4 Harap diingat bahwa Akun Gmail diperlukan untuk dapat menikmati potensi penuh dari sistem Xtreamer SideWinder 4 dan koneksi internet untuk mengakses permainan dan servis berbasis web. Persyaratan Xtreamer SideWinder 4 sepenuhnya kompatibel dengan Aplikasi dari Google Play Store. Harap diingat bahwa tidak semua aplikasi bisa cocok dengan televisi beresolusi tinggi. Google Play Store Google Play Store Requirements Setup Wizard При первом включении консоли, Мастер Установки поможет вам настроить прибор так, чтобы он полностью удовлетворял ваши потребности. בהדלקה ראשונה של המכשיר יוצג בפניך מדריך מקוון שיוביל אותך בצעדים הראשונים של הגדרת המכשיר לעבודה תקינה. אשף הגדרות Менеджер Установки When you switch your Xtreamer SideWinder 4 for the first time, a Setup Wizard will help you to customize the device to uniquely suit your needs.…

Text truncated - open the document above for the full version.

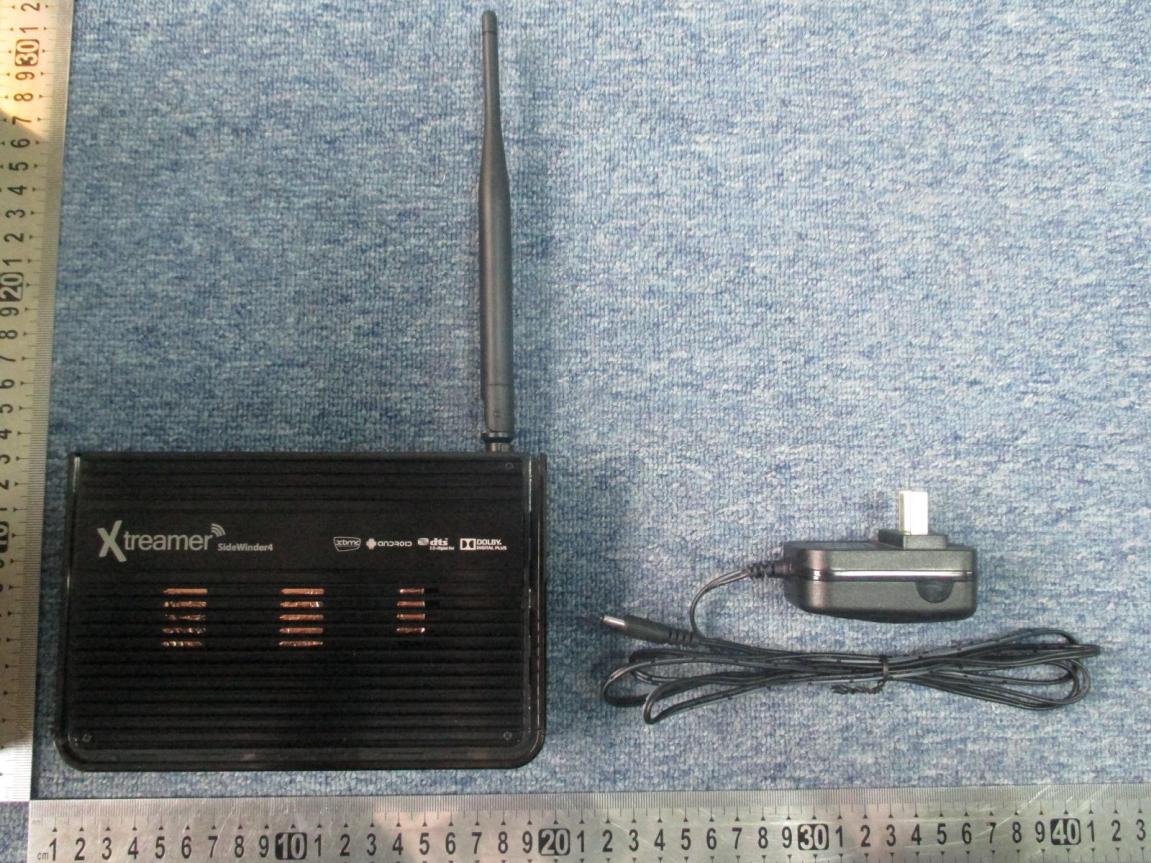

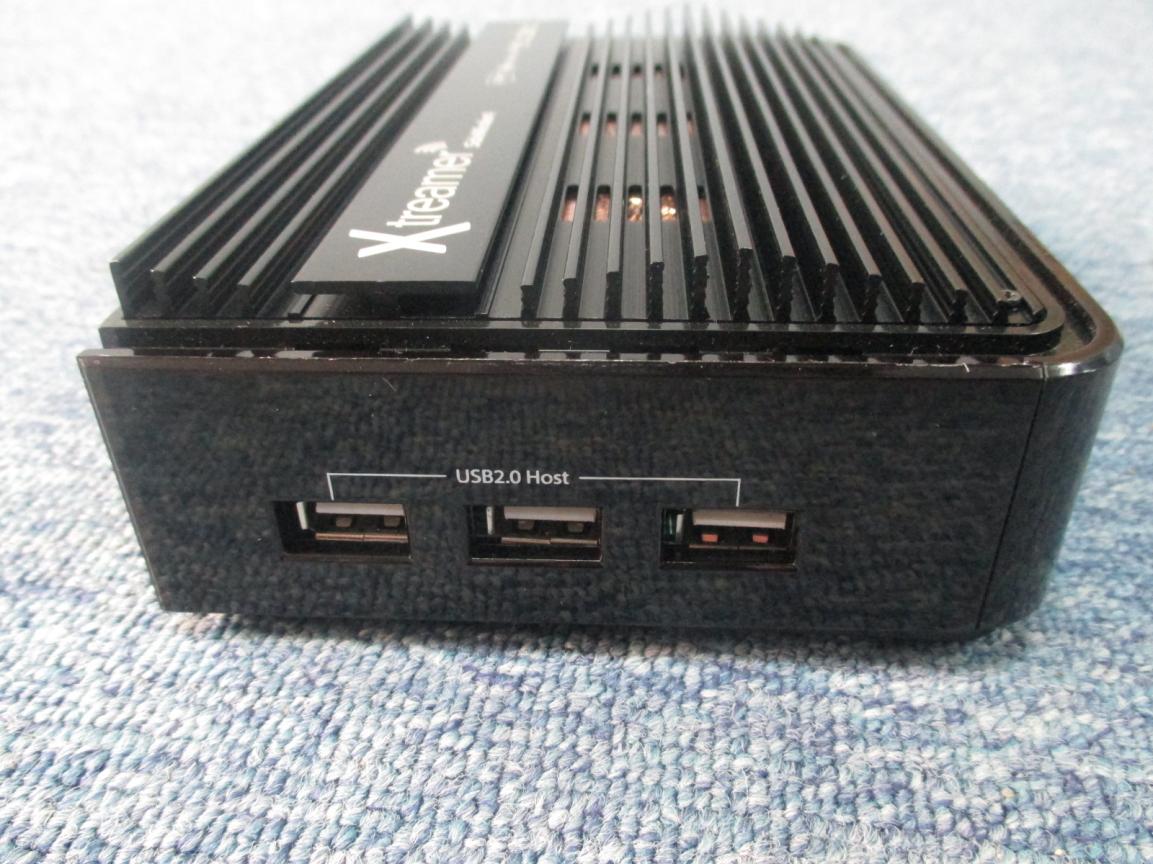

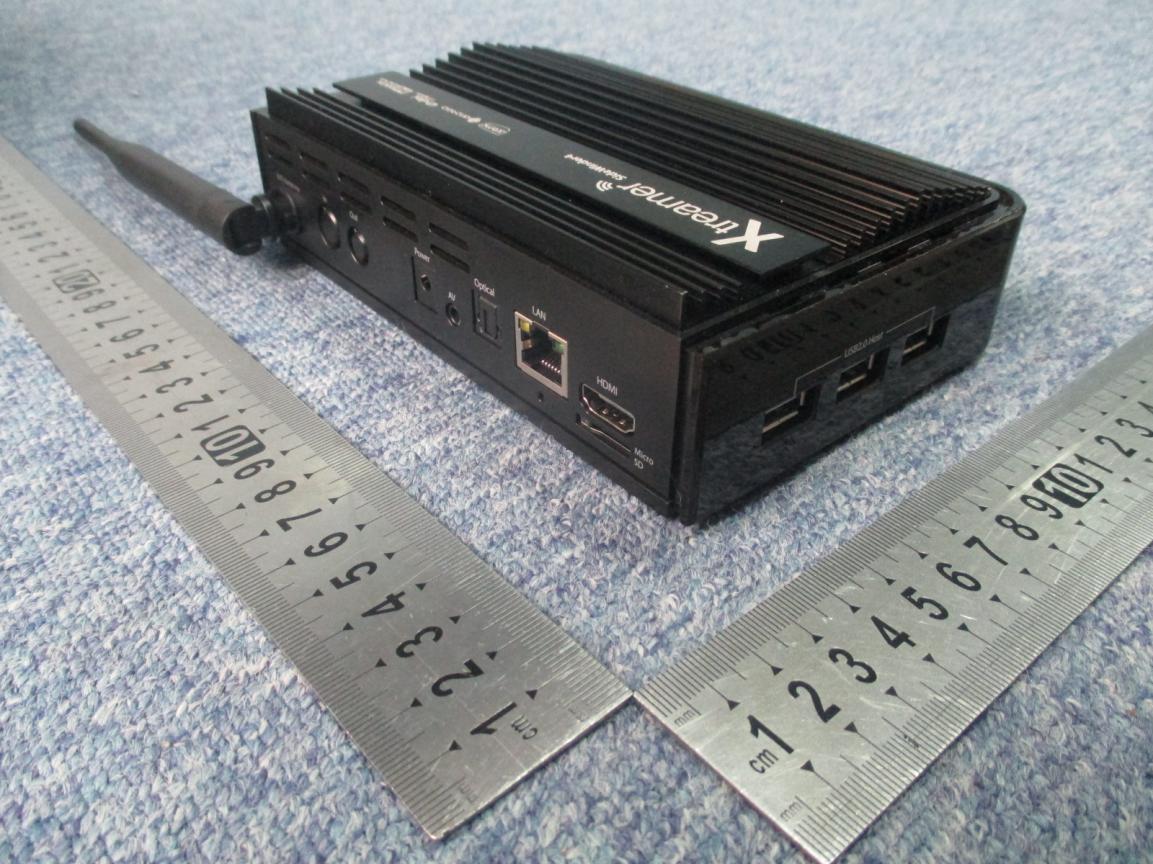

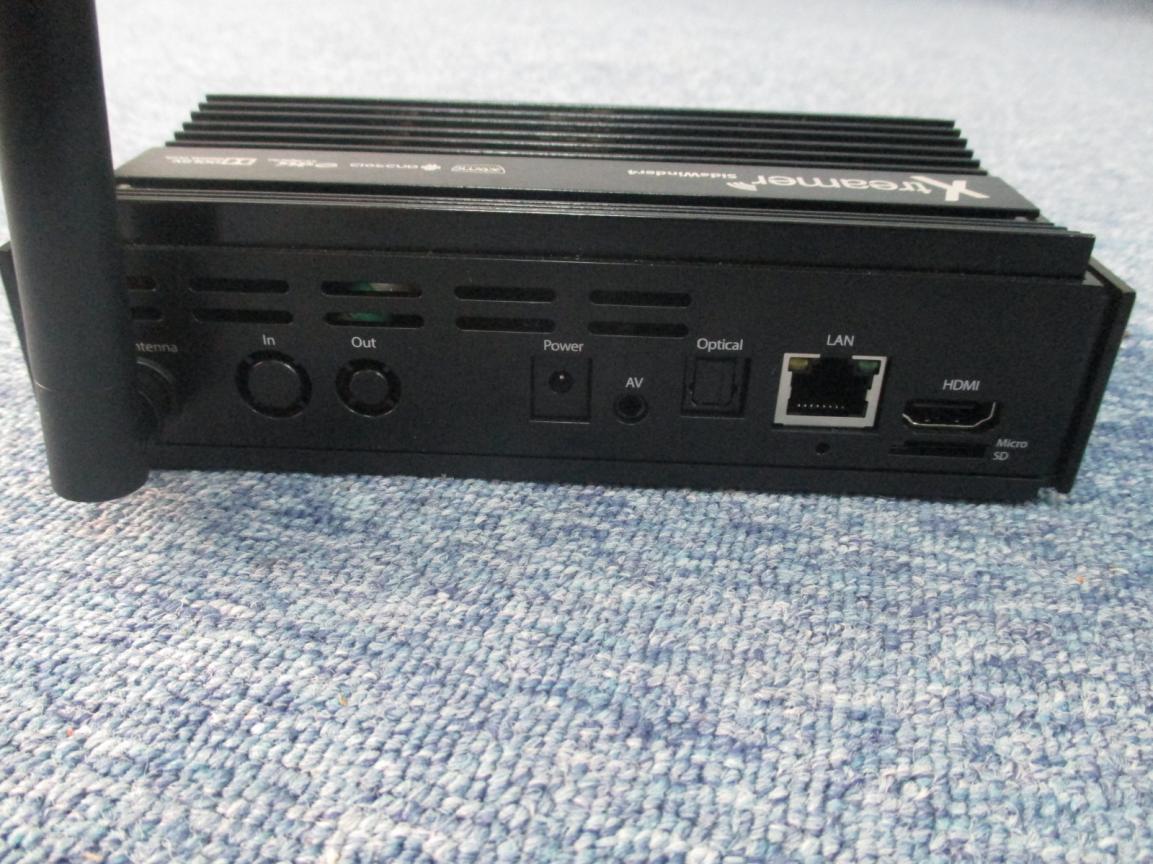

External photo \

Internal photo

Report No.: SET2014-02419 CCIC-SET/T（00） Page 1 of 80 RF TEST REPORT Report No.: SET2014-02419 Product Name: Xtreamer Mini Android PC FCC ID: ZYASIDEWINDER4 Model No. : Xtreamer Sidewinder4 Applicant: Address: XTREAMER LIMITED Flat A,15/F Hiller Commercial Building 65-67 Bonham Strand East,Sheung Wan,HongKong Issued by: CCIC-SET Lab Location: Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 80 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 20 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2014-02419 CCIC-SET/T（00） Page 2 of 80 Test Report Product Name ...................... : Xtreamer Mini Android PC Brand Name ......................... : Xtreamer Trade Name .......................... : Xtreamer Applicant .............................. : XTREAMER LIMITED Applicant Address ............... : Flat A,15/F Hiller Commercial Building 65-67 Bonham Strand East,Sheung Wan,HongKong Manufacturer ........................ : XTREAMER LIMITED Manufacturer Address ........ : Flat A,15/F Hiller Commercial Building 65-67 Bonham Strand East,Sheung Wan,HongKong Test Standards ..................... : 47 CFR Part 15 Subpart C：Radio Frequency Devices ANSI C63.10:2009：American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 DTS Meas Guidance v03r01 Test Result ........................... : PASS Tested by ............................ : 2014.03.26 Haigang He，Test Engineer Reviewed by ......................... : 2014.03.26 Lu Lei , Senior Engineer Approved by ........................ : 2014.03.26 Wu Li’an，Manager Report No.: SET2014-02419 CCIC-SET/T（00） Page 3 of 80 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 5 1.1 EUT Description ......................................................................................................................... 5 1.2 Support Equipment .................................................................................................................... 5 1.3 Test Standards and Results ........................................................................................................ 5 1.4 Facilities and Accreditations ...................................................................................................... 7 1.4.1 Facilities .................................................................................................................................... 7 1.4.2 Test Environment Conditions .................................................................................................... 7 2. 47 CFR PART 15C REQUIREMENTS .................................................................................... 8 2.1 Antenna requirement ................................................................................................................. 8 2.1.1 Applicable Standard .................................................................................................................. 8 2.1.2 Antenna Information ................................................................................................................. 8 2.1.3 Result: comply .......................................................................................................................... 8 2.2 Peak Output Power .................................................................................................................... 9 2.2.1 Requirement .............................................................................................................................. 9 2.2.2 Test Description ........................................................................................................................ 9 2.2.3 Test Result ................................................................................................................................. 9 2.3 Bandwidth ................................................................................................................................. 16 2.3.1 Requirement ............................................................................................................................ 16 2.3.2 Test Description ...................................................................................................................... 16 2.3.3 Test Result ............................................................................................................................... 16 2.4 Conducted Spurious Emissions ............................................................................................... 25 2.4.1 Requirement ............................................................................................................................ 25 2.4.2 Test Description ...................................................................................................................... 25 2.4.3 Test Result ............................................................................................................................... 25 2.5 Power spectral density (PSD) .................................................................................................. 34 2.5.1 Requirement ............................................................................................................................ 34 2.5.2 Test Description .....................................................…

Text truncated - open the document above for the full version.

Radiated Emission Test setup photos 9K~30M 30M~1G 1G~18G 18G~25G Conducted Emission Test setup photo Conducted Test setup photo
