ZYAWONDERPLUSXtreamer Mini Android PC

Why Pay More? Xtreamer Wonder Chipset: Processor: Quad Core Amlogic S812-H(w/ Dolby+DTS) Cortex-A9 upto 2.0GHz GPU: 8 Core GPU: Mali -450 Memory: FLASH: 16GB eMMC ver 5.0 SDRAM: 2GB DDR3 OS & UI: OS: Android™ KitKat 4.4 UI: Xtreamer ver 2.0 Size: Weight: 190 grams including WIFI antenna Size: 166x138x28mm Wireless Connectivity: External powerful antenna 802.11 b/g/n Wi-Fi AirPlay, Miracast and DLNA support Video Output: HDMI™ 1.4 Audio Output: HDMI™ 1.4 SPDIF optical Power: DC 5V, 2A adapter included (CE, FCC, CCC certified) Peripheral Interface: RJ-45 Ethernet jack (10/100Mbps) Micro SD card reader USB 2.0 HOST port x 3 Supported Video Format: AVI/RM/RMVB/MKV/WMV/MOV/MP4/WEBM/ DAT(VCD format) VOB(DVD format)/MPEG/MPG /F LV/ASF/TS/TP/3GP...etc Sound: Supported Audio Format: MP3/WMA/WMV/ APE/OGG/FLAC/AAC...etc Support Dolby&DTS Package Content: Xtreamer Wonder (E xternal powerful Wi-Fi antenna) HDMI 1.4 Cable 5V 2A Power Adapter AirMouse (remote control) Quick start guide § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the foll owing two conditions: (1) This device may not cause harmful in terference, and (2) this device must acc ept any interference received, including interference that may cause undesired operation. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in acc ordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the foll owing measures: -Reorient or relocate the receiving antenna. -Inc rease the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit dif ferent from that to which the recei ver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated withminimum distance 20cm between the radiator & your body Wonder Xtreamer Xtreamer Wonder Wonder Xtreamer Wonder Wonder Xtreamer Wonder HDMI 连接 将HDMI线的一端接入机器背部的HDMI口，另一端接入电视或者显示 器的HDMI口。 Wonder 光纤连接 接入功放或音响的光纤口，享受高品质的5.1音效，请按以下图 示接入。 Xtreamer Wonder การเชื่อตอสาย HDMI ตอสาย HDMI เขากับพอรตหลังเครื่อง ปลายอีกดานของสายตอเขากับพอรต HDMI หลังทีวีหรือจอภาพ Xtreamer Wonder Xtreamer BaseCam การเชื่อตอสาย Optical คุณสามารถสนุกสนานกับเสียง 5.1 ผานแอมปรีฟายเวอรหรือรีซีฟเวอร โดยการเชื่อมตอกับพอรต Optical ตามที่แสดงในรูปดานบน Network Connection Connect USB cable to an external USB storage device of your choice. Xtreamer Wonder supports wired and wireless network allowing you to stream multimedia files locally or enjoy a vast variety of online content. Xtreamer Wonder Xtreamer Wonder Xtreamer Wonder Xtreamer Wonder Xtreamer Wonder Xtreamer Wonder Xtreamer Wonder 网络连接 Xtreamer Wonder 支持有线和无线连接，实时播放本地局域网多媒体文件和大量在线内容 การเชื่อตอเน็ตเวิร ค Xtreamer Wonder รองรับการเชื่อมตอเน็ตเวิร คทั้งแบบมีสายและไรสาย ทําใหคุณสามารถสตรีมมัลติมีเดียไฟลที่ถูกจัดเก็ บอยูบนวงเน็ตเวิรคเดียวกันหรือคอนเทนตออนไลนตางๆได Xtreamer Wonder Xtreamer Wonder 外部存储设备连接 通过USB线连 接到外部存储设备 การเชื่อตออุปกรณจัดเก็บขอมูลภายนอก คุณสามารถใชสายยูเอสบีเชื่อมตออุปกรณจัดเก็บขอมูลภายนอกตางๆก ับเครื่องได Requirements WiFi 802.11n Antenna Power Vol Left, Right Up, Down Home OK Pl ay/ Pause up/down Page up/down Power Optical AV HDMI LAN Micro SD USB2.0 host port x 3 Requirements Please note that Gmail account is required for you to enjoy the ful l potential of the Xtreamer Wonder system as well as Internet connection for access to Web-based games and services. Erforderlich Een Gmail-account is vereist om alle gebruiksmogelijkheden van de Xtreamer Wonder en de internettoegang voor Web-gebaseerde services en spellen ten volle te benutten. Vereist Please note that Gmail account is required for you to enjoy the ful l potential of the Xtreamer Wonder system as well as Internet connection for access to Web-based games and services. Требования Для того чтобы восп ользоватьс я всем и функциям и консоли, вам понадобится аккаунт в Gmail и дос туп к Интернету. Requirements ゲームや一部サービスをご利用いただくにはGmailアカウントが必要です。 ב סיסיות דרישות .ג וגל ח שבון פ רטי ל הזין ע ליך ה אפליקציות ו חנות תוכן ל שירותי מ כשירך להתאמת Persyaratan Harap diingat bahwa Akun Gmail diperlukan untuk dapat menikmati potensi penuh dari sistem Xtreamer Wonder dan koneksi internet untuk mengakses permainan dan servis berbasis web. Menu Return/ Right click Requerimientos Se requiere una cuenta de Gmail para poder disfrutar de todo el potencial del sistema de Xtreamer Wonder, así como conexión a Internet para acceder a los juegos y servicios basados en la Web. 요구 사항 Xtreamer Wonder의 다양한 기능을 이용하거나, 웹기반의 게임과 서비스을 위해 Gmail정보가 요구됩니다. 配置要求 请注意需要Gmail帐号以完美体验Xtreamer 的各项功能，同时需要因特网连接方可进 入 网络游戏和服务。 สิ่งที่จําเปน หากคุณตองการใช Xtreamer Wonder ใหเต็มความสามารถ คุณจําเป นตองมี Gmail Account และตองเชื่อมตออินเตอรเน็ต เพื่อเข าถึงเกมสและเซอรวิสตางๆออนไลน Setup Wizard Google Play Store Setup Wizard When you switch your Xtreamer Wonder for the first time, a Setup Wizard wil l help yo u to customize the device to uniquely suit your needs. Setup Wizard Nachdem Sie das BaseCam zu m ersten m…

Text truncated - open the document above for the full version.

\\192.168.6.111\任务\15-13145 Xtreamer Limited (Xtreamer Wonder Plus) FCC\签字\TIMCO\POA_Letter_140225.docx XTREAMER LIMITED. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2015-10-20 SUBJECT: FCC Application for ( ZYAWONDERPLUS) To Whom It May Concern: We, the undersigned, hereby authorize Mr. Zhang Shangwen from CCIC-SET on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by CCIC-SET on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signature: Name/Title: Roger Wang/ Product Manager Company name: XTREAMER LIMITED Tel: +086-755-29958815 E-Mail: [email protected] Address: Flat A, 15F Hiller Commercial Building 65-67 Bonham Strand East, Sheung Wan, Hongkong

Rev 11/20/07 XTREAMER LIMITED Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ZYAWONDERPLUS. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram ZYAWONDERPLUS _Block Diagram.pdf Circuit Diagram ZYAWONDERPLUS _Schematics.pdf Operational Description ZYAWONDERPLUS _Operational description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Regards, Signature: Name/Title: Roger Wang/ Product Manager Company name: XTREAMER LIMITED Tel: +086-755-29958815 E-Mail: [email protected] Address: Flat A, 15F Hiller Commercial Building 65-67 Bonham Strand East, Sheung Wan, Hongkong

External Photo WIFI/BT ANT

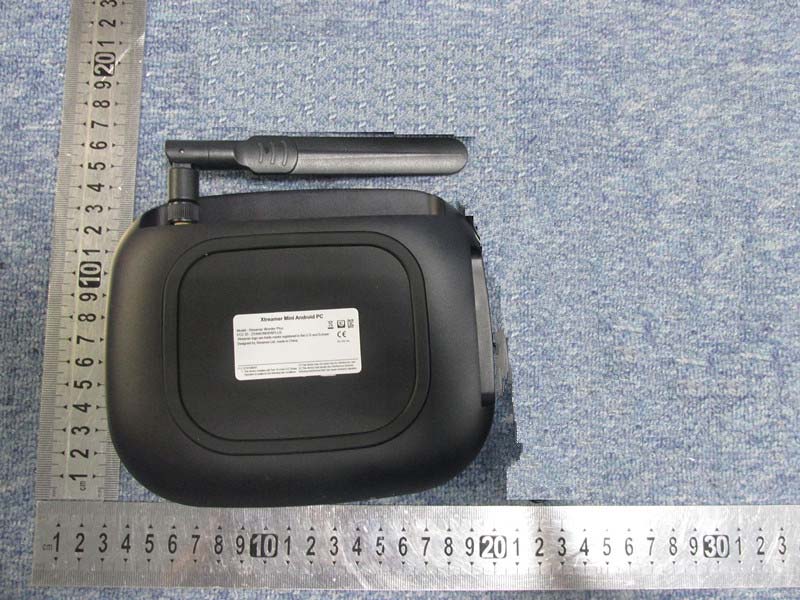

Label &Label location

Internal Photo BT/WIFI ANT Antenna connector

MPE FCC ID: ZYAWONDERPLUS Applicant: XTREAMER LIMITED Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device Refer Standard: FCC Part 2.1091: Radio Frequency (RF) Exposure Compliance of Radio communication Apparatus (All Frequency Bands) FCC MPE Limited: Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Test Data Predication of MPE limit at a given distance Where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Conducted Output Power Results Test mode Channel Frequency (MHz) RF Power(dBm) 802.11b 1 2412 16.21 6 2437 16.27 11 2462 16.03 802.11g 1 2412 14.57 6 2437 14.22 11 2462 14.09 802.11n20 1 2412 13.74 6 2437 13.52 11 2462 12.93 GFSK 0 2402 6.80 39 2441 6.38 78 2480 6.53 π/4-DQPSK 0 2402 7.28 39 2441 7.14 78 2480 6.82 8- DPSK 0 2402 7.45 39 2441 7.34 78 2480 7.11 BLE 0 2402 5.68 20 2442 5.67 39 2480 5.42 Manufacturing tolerance Test mode Channel Frequency (MHz) Target (dBm) Tolerance ±(dB) 802.11b 1 2412 16 1 6 2437 16 1 11 2462 16 1 802.11g 1 2412 14 1 6 2437 14 1 11 2462 14 1 802.11n20 1 2412 13 1 6 2437 13 1 11 2462 13 1 GFSK 0 2402 7 1 39 2441 7 1 78 2480 7 1 π/4-DQPSK 0 2402 7 1 39 2441 7 1 Test mode Channel Frequency (MHz) Target (dBm) Tolerance ±(dB) 78 2480 7 1 8- DPSK 0 2402 7 1 39 2441 7 1 78 2480 7 1 BLE 0 2402 6 1 20 2442 6 1 39 2480 6 1 Calculation results (for FCC): pass Test mode Channel Frequency (MHz) Maximum tune up power(dBm) RF distance(cm) Result (mW/cm2) Limit (mW/cm2) 802.11b 1 2412 17 20 0.0315 1.0 6 2437 17 20 0.0315 11 2462 17 20 0.0315 802.11g 1 2412 15 20 0.0199 6 2437 15 20 0.0199 11 2462 15 20 0.0199 802.11n20 1 2412 14 20 0.0158 6 2437 14 20 0.0158 11 2462 14 20 0.0158 GFSK 0 2402 8 20 0.0040 39 2441 8 20 0.0040 78 2480 8 20 0.0040 π/4-DQPSK 0 2402 8 20 0.0040 39 2441 8 20 0.0040 78 2480 8 20 0.0040 8- DPSK 0 2402 8 20 0.0040 39 2441 8 20 0.0040 78 2480 8 20 0.0040 BLE 0 2402 7 20 0.0032 20 2442 7 20 0.0032 39 2480 7 20 0.0032 NOTE: Antenna Gain 5dBi=3.16

Report No.: SET2015-13488 CCIC-SET/T（00） Page 1 of 56 RF TEST REPORT Report No.: SET2015-13488 Product Name: Xtreamer Mini Android PC FCC ID: ZYAWONDERPLUS Model No. : Xtreamer Wonder Plus Applicant: XTREAMER LIMITED Address: Flat A, 15F Hiller Commercial Building 65-67 Bonham Strand East, Sheung Wan, Hongkong Issued by: CCIC-SET Lab Location: Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 59 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 20 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2015-13488 CCIC-SET/T（00） Page 2 of 56 Test Report Product Name ...................... : Xtreamer Mini Android PC Model No. .........................: Xtreamer Wonder Plus Trade Name........................: XTREAMER Brand Name ......................... : XTREAMER Applicant .............................. : XTREAMER LIMITED Applicant Address ............... : Flat A, 15F Hiller Commercial Building 65-67 Bonham Strand East, Sheung Wan, Hongkong Manufacturer ........................ : XTREAMER LIMITED Manufacturer Address ........ : Flat A, 15F Hiller Commercial Building 65-67 Bonham Strand East, Sheung Wan, Hongkong Test Standards ..................... : 47 CFR Part 15 Subpart C：Radio Frequency Devices ANSI C63.10:2009：American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 DTS Meas Guidance v03r03 Test Result ........................... : PASS Tested by ............................ : 2015.09.19 Lu Lei, Test Engineer Reviewed by ......................... : 2015.09.19 Zhu Qi, Senior Egineer Approved by ........................ : 2015.09.19 Wu Li’an, Manager Report No.: SET2015-13488 CCIC-SET/T（00） Page 3 of 56 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 5 1.1 EUT Description ............................................................................................................... 5 1.2 Test Standards and Results ............................................................................................. 6 1.3 Facilities and Accreditations ........................................................................................... 7 1.3.1 Facilities ............................................................................................................................. 7 1.3.2 Test Environment Conditions ............................................................................................. 7 2. 47 CFR PART 15C REQUIREMENTS .................................................................................... 8 2.1 Antenna requirement ....................................................................................................... 8 2.1.1 Applicable Standard ........................................................................................................... 8 2.1.2 Antenna Information .......................................................................................................... 8 2.1.3 Result: comply ................................................................................................................... 8 2.2 Peak Output Power .......................................................................................................... 9 2.2.1 Requirement ....................................................................................................................... 9 2.2.2 Measuring Instruments ....................................................................................................... 9 2.2.3 Test Setup ........................................................................................................................... 9 2.2.4 Test Procedures .................................................................................................................. 9 2.2.5 Test Result ........................................................................................................................ 10 2.3 6Db Bandwidth ............................................................................................................... 11 2.3.1 Limit of 6dB Bandwidth .................................................................................................. 11 2.3.2 Measuring Instruments ..................................................................................................... 11 2.3.3 Test Setup ......................................................................................................................... 11 2.3.4 Test Procedures ................................................................................................................ 11 2.3.5 Test Result ........................................................................................................................ 12 2.4 Conducted Band Edges and Spurious Emissions ........................................................ 18 2.4.1 Limit of Conducted Band Edges and Spurious Emissions .............................................. 18 2.4.2 Measuring Instruments ..................................................................................................... 18 2.4.3 Test Setup ......................................................................................................................... 18 2.4.4 Test Procedure ......................................................................................................…

Text truncated - open the document above for the full version.

Report No.: SET2015-13490 CCIC-SET/T（00） Page 1 of 33 RF TEST REPORT Report No.: SET2015-13490 Product Name: Xtreamer Mini Android PC FCC ID: ZYAWONDERPLUS Model No. : Xtreamer Wonder Plus Applicant: XTREAMER LIMITED Address: Flat A, 15F Hiller Commercial Building 65-67 Bonham Strand East, Sheung Wan, Hongkong Issued by: CCIC-SET Lab Location: Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 33 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 20 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2015-13490 CCIC-SET/T（00） Page 2 of 33 Test Report Product Name ...................... : Xtreamer Mini Android PC Model No. .........................: Xtreamer Wonder Plus Trade Name.......................: XTREAMER Brand Name ......................... : XTREAMER Applicant .............................. : XTREAMER LIMITED Applicant Address ............... : Flat A, 15F Hiller Commercial Building 65-67 Bonham Strand East, Sheung Wan, Hongkong Manufacturer ........................ : XTREAMER LIMITED Manufacturer Address ........ : Flat A, 15F Hiller Commercial Building 65-67 Bonham Strand East, Sheung Wan, Hongkong Test Standards ..................... : 47 CFR Part 15 Subpart C：Radio Frequency Devices ANSI C63.10:2009：American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 DTS Meas Guidance v03r03 Test Result ........................... : PASS Tested by ............................ : 2015.09.19 Lu Lei， Test Engineer Reviewed by ......................... : 2015.09.19 Zhu Qi , Senior Egineer Approved by ........................ : 2015.09.19 Wu Li’an，Manager Report No.: SET2015-13490 CCIC-SET/T（00） Page 3 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................. 4 1.1. EUT Description .................................................................................................................... 4 1.2. Test Standards and Results ..................................................................................................... 5 1.3. Facilities and Accreditations .................................................................................................. 6 2. 47 CFR PART 15C REQUIREMENTS ................................................................................. 7 2.1. Antenna requirement .............................................................................................................. 7 2.2. Peak Output Power................................................................................................................. 8 2.3. 6dB Bandwidth ...................................................................................................................... 9 2.4. Conducted Band Edges and Spurious Emissions ................................................................. 13 2.5. Power spectral density (PSD) .............................................................................................. 18 2.6. Conducted Emission ............................................................................................................ 21 2.7. Radiated Band Edge and Spurious Emission ....................................................................... 25 3. LIST OF MEASURING EQUIPMENT .............................................................................. 33 Change History Issue Date Reason for change 1.0 2015.09.19 First edition Report No.: SET2015-13490 Page 4 of 33 1. General Information 1.1. EUT Description EUT Type Xtreamer Mini Android PC Hardware Version RM-MPEG-114AG VER1.0 Software Version N/A EUT supports Radios application WLAN2.4GHz 802.11b/g/n (HT20) Bluetooth V3.0+EDR / Bluetooth V4.0LE Frequency Range Bluetooth LE 4.0 2402MHz~2480MHz Channel Number Bluetooth LE 4.0 40 Bit Rate of Transmitter Bluetooth LE 4.0 1Mbps Modulation Type Bluetooth LE 4.0 GFSK Antenna Type Omni-directiona Antenna Gain 5dBi Note 1: The EUT is Xtreamer Mini Android PC, it contain Bluetooth 4.0 LTE Module operating at 2.4GHz ISM band; the frequencies allocated for the Bluetooth 4.0 LTE is F(MHz)=2402+2*n (0<=n<=39). The lowest, middle, highest channel numbers of the Bluetooth Module used and tested in this report are separately 0 (2402MHz), 20(2442MHz) and 39 (2480MHz). Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 3: The EUT was programmed to be in continuously transmitting mode and the transmit duty cycle is not less than 98%.” Report No.: SET2015-13490 Page 5 of 33 1.2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C (Bluetooth, 2.4GHz ISM band radiators) for the EUT FCC Certification: No. Identity Document Title 1 47 CFR Part 15 Subpart C 2013 Radio Frequency Devices Test detailed items/section required by FCC rules and results are as below: No. Section in CFR 47 Description Result 1 15.203 Antenna Requirement PASS 2 15.247(b) Peak Output Power PASS 3 15.247(a) Bandwidth PASS 4 15.247(d) Conducted Band Edges and Spurious Emission PASS 5 15.247(e) Power spectral density (PSD) PASS 6 15.207 Conducted Emission PASS 7 15.209 15.247(d) Radiated Band Edges and Spurious Emission PASS The tests of Conducted Emission and Radiated Emission were performed according to the method of measurements prescribed in…

Text truncated - open the document above for the full version.

15C Setup Photo
