ZYAWONDERPROXtreamer Mini Android PC

Why Pay More? Xtreamer Wonder Pro Chipset: Processor: Quad Core Amlogic S812-H(w/ Dolby+DTS) Cortex-A9 upto 2.0GHz GPU: 8 Core GPU: Mali-450 Memory: FLASH: 32GB eMMC ver 5.0 SDRAM: 2GB DDR3 OS & UI: OS: Android™ Lollipop 5.1 UI: Xtreamer ver 2.0 Size: Weight: 270 grams including WIFI antenna Size: 166x138x28mm Wireless Connectivity: External powerful antenna 802.11ac_n_g_g Wi-Fi AirPlay, Miracast and DLNA support Video Output: HDMI™ 1.4 Audio Output: HDMI™ 1.4 SPDIF optical Power: DC 5V, 2A adapter included (CE, FCC, CCC certified) Peripheral Interface: RJ-45 Ethernet jack (1000/100/10Mbps) Micro SD card reader USB 2.0 HOST port x 3 OTG support Supported Video Format: AVI/RM/RMVB/MKV/WMV/MOV/MP4/WEBM/ DAT(VCD format) VOB(DVD format)/MPEG/MPG /FLV/ASF/TS/TP/3GP...etc Sound: Supported Audio Format: MP3/WMA/WAV/ APE/OGG/FLAC/AAC...etc Support Dolby&DTS Package Content: Xtreamer Wonder Pro (External powerful Wi-Fi antenna) HDMI 1.4 Cable 5V 2A Power Adapter AirMouse Pro (remote control with keybaord) Quick start guide § 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful in terference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated withminimum distance 20cm between the radiator & your body Pro Xtreamer Wonder Xtreamer Wonder Pro Wonder Pro Xtreamer Wonder Pro Wonder Pro Xtreamer Wonder Pro HDMI 连接 将HDMI线的一端接入机器背部的HDMI口，另一端接入电视或者显示 器的HDMI口。 Wonder Pro 光纤连接 接入功放或音响的光纤口，享受高品质的5.1音效，请按以下图 示接入。 Koneksi Kabel HDMI Hubungkan kabel HDMI ke terminal HDMI pada bagian belakang produk. Hubungkan ujung kabel satunya pada terminal HDMI di belakang TV digital. การเชื่อตอสาย HDMI ตอสาย HDMI เขากับพอรตหลังเครื่อง ปลายอีกดานของสายตอเขากับพอรต HDMI หลังทีวีหรือจอภาพ Koneksi Optikal Anda dapat menikmati kualitas suara tinggi 5.1CH jika perlengkapan audio adalah amplifier atau receiver dengan kabel output optikal input terminal. Hubungkan kabel optikal ke terminal output optikal pada Xtreamer Wonder Pro seperti yang tertampil diatas. Setelah itu, hubungkan amplifier atau receiver untuk menikmati 5.1CH. การเชื่อตอสาย Optical คุณสามารถสนุกสนานกับเสียง 5.1 ผานแอมปรีฟายเวอรหรือรีซีฟเวอร โดยการเชื่อมตอกับพอรต Optical ตามที่แสดงในรูปดานบน Network Connection Connect USB cable to an external USB storage device of your choice. Xtreamer Wonder Pro supports wired and wireless network allowing you to stream multimedia files locally or enjoy a vast variety of online content. Xtreamer Wonder Pro Xtreamer Wonder Pro Xtreamer Wonder Pro Xtreamer Wonder Pro Xtreamer Wonder Pro Xtreamer Wonder Pro Koneksi Jaringan (LAN, WiFi) Xtreamer Wonder Pro mendukung jaringan kabel dan nirkabel yang memperbolehkan Anda melakukan stream file multimedia secara local atau menikmati konten online yang bervariasi. 网络连接 Xtreamer Wonder Pro 支持有线和无线连接，实时播放本地局域网多媒体文件和大量在线内容 การเชื่อตอเน็ตเวิรค Xtreamer Wonder Pro รองรับการเชื่อมตอเน็ตเวิรคทั้งแบบมีสายและไรสาย ทําใหคุณสามารถสตรีมมัลติมีเดียไฟลที่ถูกจัดเก็ บอยูบนวงเน็ตเวิรคเดียวกันหรือคอนเทนตออนไลนตางๆได Xtreamer Wonder Pro Koneksi Penyimpanan Eksternal ubungkan kabel USB dengan penyimpanan USB ekternal yang Anda pilih. 外部存储设备连接 通过USB线连 接到外部存储设备 การเชื่อตออุปกรณจัดเก็บขอมูลภายนอก คุณสามารถใชสายยูเอสบีเชื่อมตออุปกรณจัดเก็บขอมูลภายนอกตางๆก ับเครื่องได Requirements Power Learning Keys Full QWERTY keybaord Home Menu Return Left, Right Up, Down OK/Play/Pause KODI home Previous Next KODI Addons Play Store Files Shortcut KODI Favorites Vol up/down AirMouse mode KODI Settings Settings & MIC ON/OFF (hold 3 sec) Apps Shortcut KODI LIVE-TV Power AV Optical HDMI LAN Micro SD USB2.0 host port x 3 Requirements Please note that Gmail account is required for you to enjoy the full potential of the Xtreamer Wonder Pro system as well as Internet connection for access to Web-based games and services. Erforderlich Een Gmail-account is vereist om alle gebruiksmogelijkheden van de Xtreamer Wonder Pro en de internettoegang voor Web-gebaseerde services en spellen ten volle te benutten. Vereist Please note that Gmail account is required for you to enjoy the full potential of the Xtreamer Wonder Pro system as well as Internet connection for access to Web-based games and services. Requerimientos Se requiere una cuenta de Gmail para poder disfrutar de todo el potencial del sistema de Xtreamer Wonder Pro , así como conexión a Internet para acceder a los juegos y servicios basados en la Web. Persyara…

Text truncated - open the document above for the full version.

\\192.168.6.111\任务\15-13150 Xtreamer Limited (Xtreamer Wonder Pro )FCC\签字\POA_Letter_140225.docx XTREAMER LIMITED. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2015-10-20 SUBJECT: FCC Application for ( ZYAWONDERPRO) To Whom It May Concern: We, the undersigned, hereby authorize Mr. Zhang Shangwen from CCIC-SET on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by CCIC-SET on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signature: Name/Title: Roger Wang/ Product Manager Company name: XTREAMER LIMITED Tel: +086-755-29958815 E-Mail: [email protected] Address: Flat A, 15F Hiller Commercial Building 65-67 Bonham Strand East, Sheung Wan, Hongkong

Rev 11/20/07 XTREAMER LIMITED Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ZYAWONDERPRO. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram ZYAWONDERPRO _Block Diagram.pdf Circuit Diagram ZYAWONDERPRO _Schematics.pdf Operational Description ZYAWONDERPRO _Operational description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Regards, Signature: Name/Title: Roger Wang/ Product Manager Company name: XTREAMER LIMITED Tel: +086-755-29958815 E-Mail: [email protected] Address: Flat A, 15F Hiller Commercial Building 65-67 Bonham Strand East, Sheung Wan, Hongkong

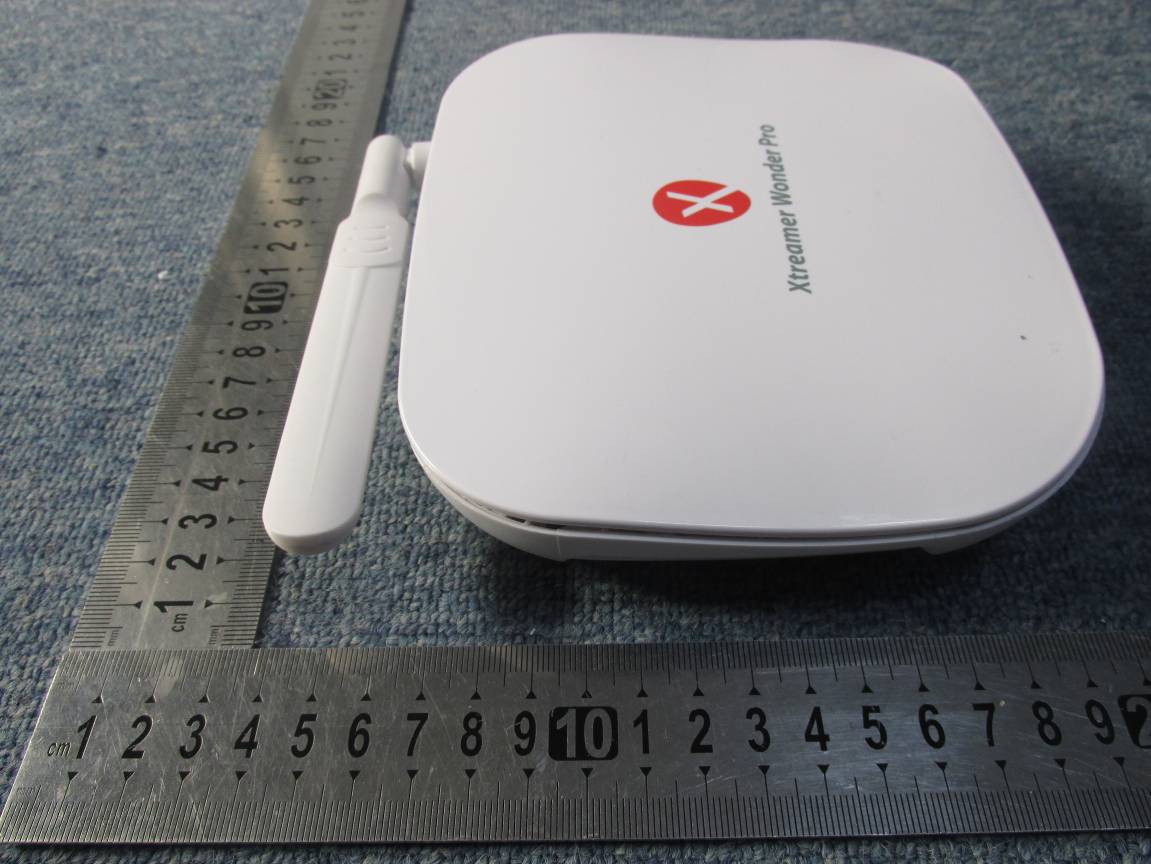

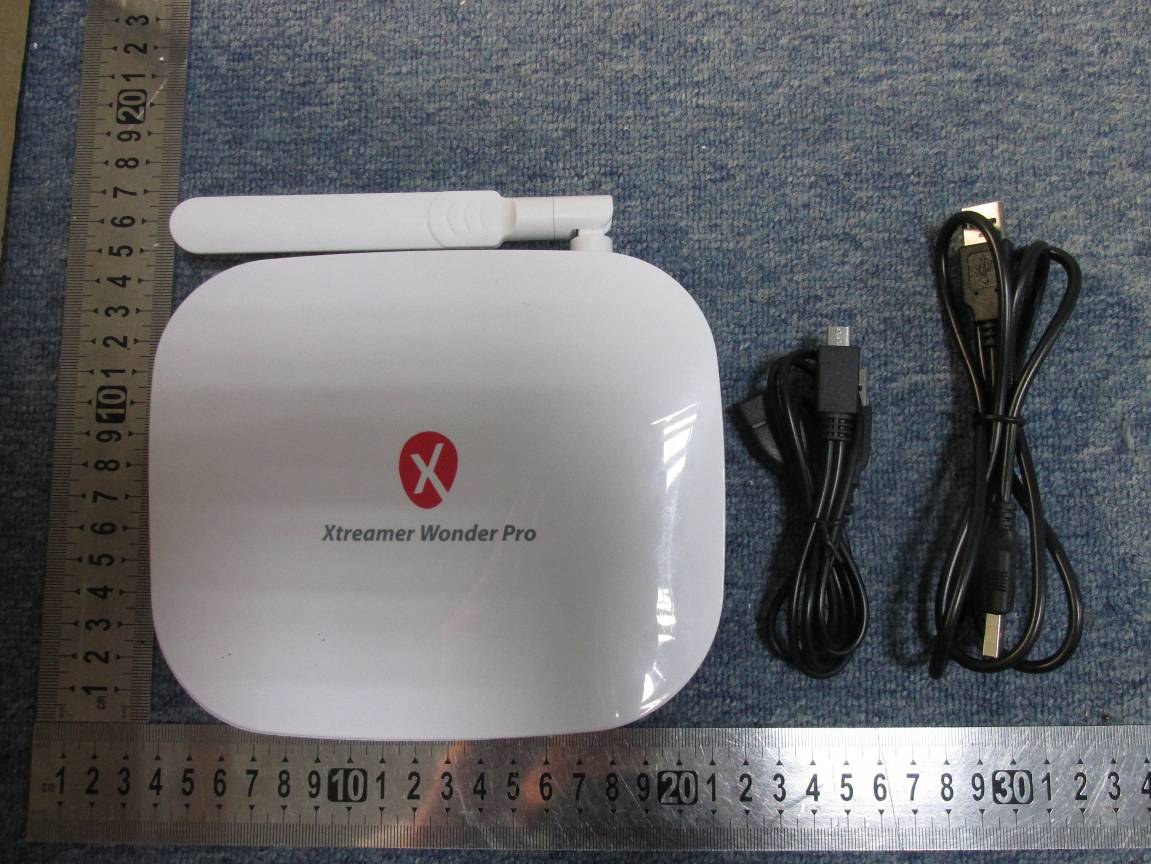

External Photo

Label location

Model : Xtreamer Wonder Pro FCC ID : ZYAWONDERPRO

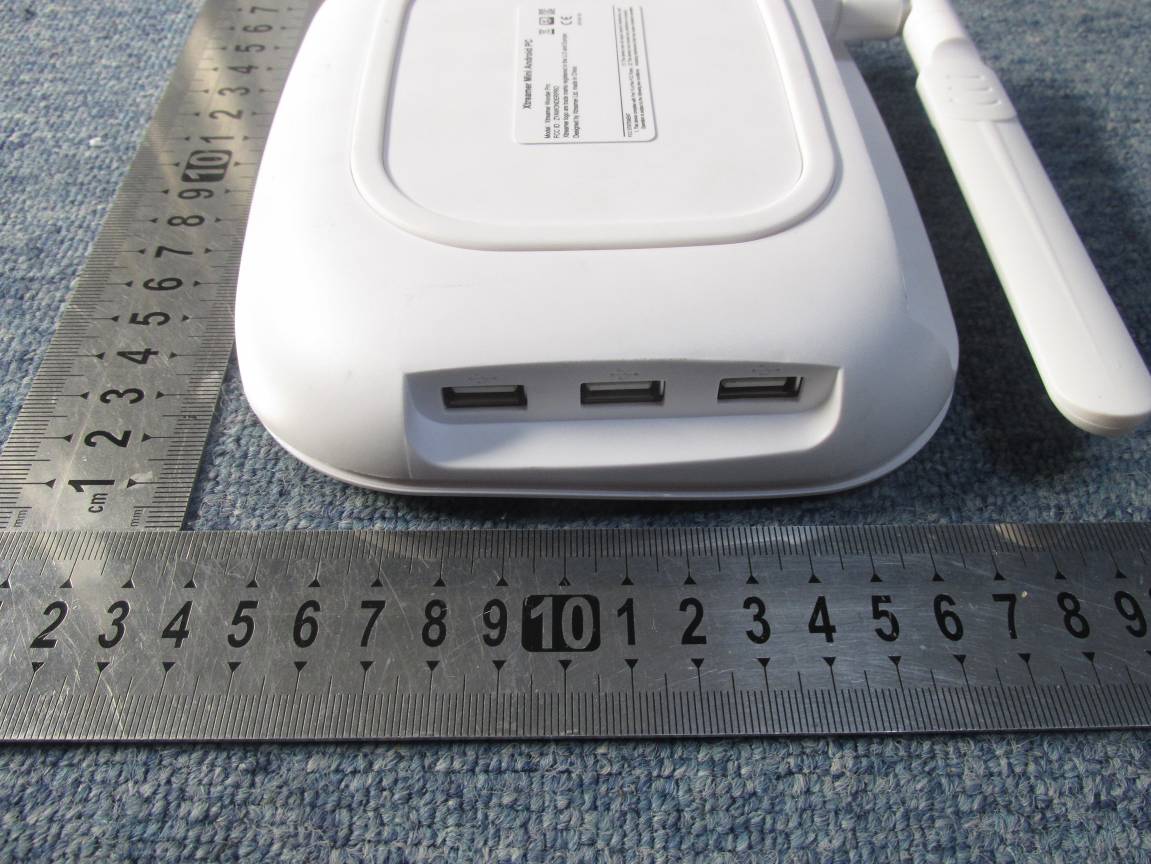

Internal Photo WIFI/BT ANT

MPE FCC ID: ZYAWONDERPRO Applicant: XTREAMER LIMITED Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device Refer Standard: FCC Part 2.1091: Radio Frequency (RF) Exposure Compliance of Radio communication Apparatus (All Frequency Bands) FCC MPE Limited: Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Test Data Predication of MPE limit at a given distance Where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Conducted Output Power Results Test mode Channel Frequency (MHz) RF Power(dBm) 802.11b 1 2412 19.34 6 2437 19.79 11 2462 19.88 802.11g 1 2412 18.69 6 2437 18.57 11 2462 18.74 802.11n20 1 2412 17.94 6 2437 17.82 11 2462 17.56 802.11n40 3 2422 16.57 6 2437 16.64 9 2452 16.59 GFSK 0 2402 0.8 39 2441 1.0 78 2480 0.7 π/4-DQPSK 0 2402 0.3 39 2441 0.6 78 2480 0.8 8- DPSK 0 2402 0.6 39 2441 1.1 78 2480 1.3 BLE 0 2402 3.66 20 2442 5.27 39 2480 4.50 Manufacturing tolerance Test mode Channel Frequency (MHz) Target (dBm) Tolerance ±(dB) 802.11b 1 2412 19 1 6 2437 19 1 11 2462 19 1 802.11g 1 2412 18 1 6 2437 18 1 11 2462 18 1 802.11n20 1 2412 18 1 6 2437 18 1 11 2462 18 1 802.11n40 3 2412 17 1 6 2437 17 1 Test mode Channel Frequency (MHz) Target (dBm) Tolerance ±(dB) 9 2452 17 1 GFSK 0 2402 1 1 39 2441 1 1 78 2480 1 1 π/4-DQPSK 0 2402 1 1 39 2441 1 1 78 2480 1 1 8- DPSK 0 2402 1 1 39 2441 1 1 78 2480 1 1 BLE 0 2402 4 1 20 2442 5 1 39 2480 5 1 Calculation results (for FCC): pass Test mode Channel Frequency (MHz) Maximum tune up power(dBm) RF distance(cm) Result (mW/cm2) Limit (mW/cm2) 802.11b 1 2412 20 20 0.063 1.0 6 2437 20 20 0.063 11 2462 20 20 0.063 802.11g 1 2412 19 20 0.050 6 2437 19 20 0.050 11 2462 19 20 0.050 802.11n20 1 2412 19 20 0.050 6 2437 19 20 0.050 11 2462 19 20 0.050 802.11n40 3 2422 18 20 0.040 6 2437 18 20 0.040 9 2452 18 20 0.040 GFSK 0 2402 2 20 0.001 39 2441 2 20 0.001 78 2480 2 20 0.001 π/4-DQPSK 0 2402 2 20 0.001 39 2441 2 20 0.001 78 2480 2 20 0.001 8- DPSK 0 2402 2 20 0.001 39 2441 2 20 0.001 78 2480 2 20 0.001 BLE 0 2402 5 20 0.002 20 2442 6 20 0.003 Test mode Channel Frequency (MHz) Maximum tune up power(dBm) RF distance(cm) Result (mW/cm2) Limit (mW/cm2) 39 2480 6 20 0.003 NOTE: Antenna Gain 5dBi=3.16

Report No.: SET2015-13497 Page 1 of 65 RF TEST REPORT Report No.: SET2015-13497 Product Name: Xtreamer Mini Android PC FCC ID: ZYAWONDERPRO Model No. : Xtreamer Wonder Pro Applicant: XTREAMER LIMITED Address: Flat A, 15F Hiller Commercial Building 65-67 Bonham Strand East, Sheung Wan, Hongkong Dates of Testing: 09/07/2015 — 09/19/2015 Issued by: CCIC-SET Lab Location: Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 65 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 20 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2015-13497 Page 2 of 65 Test Report Product Name ....................... : Xtreamer Mini Android PC Model No. .........................: Xtreamer Wonder Pro Trade Name.......................: XTREAMER Brand Name .......................... : XTREAMER Applicant ............................... : XTREAMER LIMITED Applicant Address ................ : Flat A, 15F Hiller Commercial Building 65-67 Bonham Strand East, Sheung Wan, Hongkong Manufacturer ........................ : XTREAMER LIMITED Manufacturer Address ......... : Flat A, 15F Hiller Commercial Building 65-67 Bonham Strand East, Sheung Wan, Hongkong Test Standards ...................... : 47 CFR Part 15 Subpart C 2013：Radio Frequency Devices ANSI C63.10:2009：American National Standard for Testing Unlicensed Wireless Devices DA 00-705: Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems Test Result ............................ : PASS Tested by ............................. : 2015.09.19 Lu Lei，Test Engineer Reviewed by......................: 2015.09.19 Zhu Qi, Senior Egineer Approved by ......................... : 2015.09.19 Wu Li’an，Manager Report No.: SET2015-13497 Page 3 of 65 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 4 1.1. EUT Description ....................................................................................................................... 4 1.2. Test Standards and Results ........................................................................................................ 5 1.3. Frequency Hopping System Requirements ............................................................................... 6 1.4. Facilities and Accreditations ..................................................................................................... 7 2. 47 CFR PART 15C REQUIREMENTS .................................................................................... 8 2.1. Antenna requirement ................................................................................................................. 8 2.2. Number of Hopping Frequency ................................................................................................ 9 2.3. Peak Output Power.................................................................................................................. 12 2.4. 20dB Bandwidth ..................................................................................................................... 14 2.5. Carried Frequency Separation ................................................................................................. 20 2.6. Dwell time ............................................................................................................................... 23 2.7. Conducted Spurious Emissions ............................................................................................... 30 2.8. Conducted Band Edge ............................................................................................................. 40 2.9. Conducted Emission ............................................................................................................... 47 2.10. Radiated Band Edges and Spurious Emission ........................................................................ 51 3. LIST OF MEASURING EQUIPMENT ................................................................................. 65 Change History Issue Date Reason for change 1.0 2015.09.19 First edition Report No.: SET2015-13497 Page 4 of 65 1. General Information 1.1. EUT Description EUT Type Xtreamer Mini Android PC Hardware Version RM-MPEG-147G VER1.0 Software Version N/A EUT supports Radios application WLAN2.4GHz 802.11b/g/n (HT20/HT40) Bluetooth V3.0+EDR / Bluetooth V4.0LE Frequency Range Bluetooth EDR 2402MHz~2480MHz Channel Number Bluetooth EDR 79 Bit Rate of Transmitter Bluetooth EDR 1/2/3Mbps Modulation Type Bluetooth EDR GFSK,π/4-DQPSK,8DPSK Antenna Type Omni-directiona Antenna Gain 5dBi Note 1: The EUT is a Xtreamer Mini Android PC, it contains Bluetooth Module operating at 2.4GHz ISM band; the frequencies allocated for the Bluetooth Module is F(MHz)=2402+1*n (0<=n<=78). The lowest, middle, highest channel numbers of the Bluetooth Module used and tested in this report are separately 0 (2402MHz), 39 (2441MHz) and 78 (2480MHz). Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 3: a. When power on, the EUT will scan the whole frequency until a Connection command from the other BT devices. b. When receiving the signal from the other BT devices, The EUT transmit are sponse signal. c. The other devices receive the response signal and recognize it, then send a connection command to establish the …

Text truncated - open the document above for the full version.

15C Setup Photo
