2A46G-3WWDZ-20BHP40 Agricultural Drone

User Manual P40 Agricultural UAS EN Version 1.0 To User Dear user, thank you for choosing XAG products. For safety purposes and better user experience, it is highly recommended that you read this manual carefully and strictly follow the instructions hereof. Contact Us If you have any questions about this document, please contact our Technical Support team via email: [email protected] www.xa.com/en1 Safety Guidelines • Please make sure that the drone operator has passed the drone operation training programme and obtained a drone pilot certificate prescribed by laws and regulations where the product is used in advance. Never operate the drone without permission unless otherwise provided. • Observe the surroundings, ensure a safe distance from the obstacles and the crowd as well as eliminate unsafe conditions including environmental factors like bad weather and extreme temperatures before operation. • NEVER operate while drowsy, drunk or in a poor mental state so as to prevent accidents. • Keep the product away from heat to avoid damage to the electronic device and other components. • Instead of operating alone, the beginner should seek help from a veteran beforehand and operate the drone accompanied by the veteran. • Please operate within maximum takeoff weight to avoid dangers caused by overload. • It is a MUST to do the pre-flight inspection and eliminate co-frequency interference prior to operation. • Stay away from the operating machine. Do NOT touch the spinning propellers with your body or other components. Loose clothing is NEVER allowed as it should get caught in the spinning propellers easily and cause injury. • For safety purposes, it is NOT recommended to install the propellers until finishing the trial run of the drone and inspections of the remote control devices, motors and other modules. • NEVER install/remove any module or insert/extract circuit while the power is on. • NEVER take the human body or animal, whether still or moving, as an obstacle for the obstacle avoidance experiment. • NEVER impede, intervene or impact the drone with the human body, animal or any other object. • Should there be adverse weather conditions like a strong wind, rain, snow and hail, hover the drone and return to home as soon as possible. Weather not permitting, hover the drone and fly towards a nearby safe place. • Drone operator shall strictly comply with relevant laws and regulations where the product is used, including but not limited to the flight height, flight area and visual line of sight. www.xa.com/en 2 List of Items Please check that the following items are all present when unpacking the box. Should there be any item missed, please contact your dealer. Airframe ×1 No.3 Arm Module ×1 No.4 Arm Module ×1 No.1 Arm Module ×1 No.2 Arm Module ×1 Smart Liquid Tank（20L） ×2 RealTerra (optional) ×1 Tool Kit ×1 USB-Type-C Cable ×1 [1]：ACS2(B) ControlStick namely ACS2 Remote Control. ACS2(B) ControlStick (X4 RTK Ver) ×1 [1] www.xa.com/en3 About P40 Agricultural UAV The main components of P40 Agricultural UAV are as follows: ② ③ ④ ⑤ ⑲ ㉑ ㉒ ㉓ ㉔ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ① (Above) Figure 1: Airframe Module Structure 1 (Below) Figure 2: Airframe Module Structure 2 ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑳ ⑱ www.xa.com/en 4 ① Head Cover ② PSL Camera ③ Propeller ④ Arm ⑤ Motor ⑥ ESC (Electronic Speed Controller) ⑦ Dynamic Radar ⑧ Terrain Sensor ⑨ Spraying Hub Housing ⑩ Searchlight ⑪ Peristaltic Pump ⑫ Landing Gear ⑬ Nozzle ⑭ Smart Battery ⑮ 2.4GHz Antenna ⑯ Spraying Status Indicator ⑰ RTK Antenna ⑱ Liquid Tank ⑲ Liquid Tank Sensor Patch ⑳ Airframe Nameplate ㉑ RealTerra System ㉒ Flight Status Indicator ㉓ Central Cabin Cover ㉔ Super X4 Intelligent Control System ㉕ Arm Position Number ㉖ Spraying Hub ㉗ Airframe Position Number ㉘ ESC Hub Arm No. ㉖ ㉕ ㉗ ㉘ (Below) Figure 3: Airframe Module Structure 3 There are labels on the upper plate of the airframe and the aluminium sleeves of arms. The numbers correspond to the position numbers of arms.1 for ；2 for ；3 for ；4 for 。 Arm No. Arm No. Arm No. Warning www.xa.com/en5 Airframe Assembly Preparation Remove Spraying Hub Housing Remove Spraying Hub Housing by unscrewing its 6 screws (2 on the top and 2 on both left side and right side ) Remove Central Cabin Cover and Arm Bracket Pull off the Liquid Tank Sensor Cable on the Spraying Hub. Liquid Tank Sensor Cable www.xa.com/en 6 Remove 8 Arm Brackets and Central Cabin Cover. www.xa.com/en7 Arms Assembly Put the wire into the Arm. By matching the Arm Position Number to the Airframe Position Number, insert the Arm into the Airframe and fit the Arm Bracket. www.xa.com/en 8 Cable Connection Connect ESC Power Cables Upon Arms assembly, push the ESC Power Cables of Arm No.1 & No.2 into the hole of the Bottom Central Compartment and connect to those of arm No.3 & No.4. (The red connector fits only to the other red connector while the black one connects to the other black one). Lock ESC Power Cables of Arm No.3 & No.4 with Fastener. Please remove the Fastener preceding connection of ESC Power Cables of Arm No.1 & No.2 and lock the Fastener back upon connection lest the connector get loose. Fastener Arm No.2 ESC Power Cable Arm No.3 ESC Power Cable Arm No.4 ESC Power Cable Arm No.1 ESC Power Cable Warning www.xa.com/en9 Tighten connectors on both sides with cable ties upon the connection between Power Cables of Arm No.1 & No.2 in the Bottom Central Compartment. (The red connector fits only to the other red connector while the black one connect to the other black one) Connect Signal Cable of Flight Indicator and Sprayer Pull the Flight Indicator Signal Cables of Arm No.1 and Arm No.2, plus those of the lights and sprayers of Arm No.3 and Arm No.4 through the hole on the Spraying Hub to the Bottom Central Compartment. Hole www.xa.com/en 10 Right Flight Indicator LED_RLeft Flight Indicator LED_L Right Sprayer ATO_R Left Sprayer ATO_L Arm No.3 & No.4 Flight Indicator & Sprayer Cable Sprayer Plug Flight Indicator Male Connector Flight Indicator Plug Flight Indicator Female Connector …

Text truncated - open the document above for the full version.

www.xa.com/en11 Connect ESC Signal Cable Connect ESC Signal Cable inside the Arm to ESC hub. Connect Liquid tube Pull the Liquid Tube inside Arm No.3 & No.4 through the hole as shown below and connect it to the Peristaltic Pump. ESC for Arm No.4ESC for Arm No.3 ESC for Arm No.2ESC for Arm No.1 NEVER swap the ESC Signal Cables between M1 and M2, M3 and M4, as incorrect connection may cause flight accidents Warning www.xa.com/en 12 Reassembly of Removed Parts Fit the Spraying Hub Housing and Central Cabin Cover. When fitting the Central Cabin Cover, put the Liquid Tank Sensor Cable correctly and connect it to the Spraying Hub. (Please refer to Page 4 for the exact place). Liquid Tank Sensor Cable www.xa.com/en13 Unfold Propeller After unfolding all the propellers, check whether the model of propeller, which could be seen between clamp and blade, corresponds to the Arm Number. CW Propellers correspond to Arm No.1 & No. 3, while CCW Propellers correspond to Arm No.2 & No.4. Arm No.1Arm No.2 Arm No.3Arm No.4 CW Propeller - Arm No.1/3CCW Propeller - Arm No.2/4 NEVER swap the CW and CCW Propellers, as incorrect installation may cause flight accidents. Warning www.xa.com/en 14 RealTerra Installation Insert the RealTerra into the RealTerra Slot until hearing a clicking sound. www.xa.com/en15 Switch On/Off Battery Long-press twice to switch on/off the battery. After connecting the drone or the charger, long-press the battery button for at least 1 second until all the battery level indicators flash synchronously. Then long-press for another second until the battery beeps and the status indicator is ON/OFF, which means the battery switches on/off successfully. Charge with Auto SuperCharge Station Charge Battery Please charge the battery with GC4000+ Auto SuperCharge Station or Intelligent SuperCharger. When reaching full charge, the battery will switch off and the Auto SuperCharge Station or the Intelligent SuperCharger will stop charging automatically. Smart Battery Preparation About Indicator / Button There are 1 power button and 6 indicators on the smart battery screen. Solid: Normal Slow Flash: Overcooled Fast Flash: Overheated Double Flash: Error Battery Level Indicator Battery Status Indicator Power Button www.xa.com/en 16 Charge with Intelligent SuperCharger Check Battery Level When the battery is OFF, short-press the power button once to check the battery level. When the battery is ON, the battery level indicators will be on solid. Check Battery Status When the battery is on, check the battery status on the screen. Description LED Behaviour 2 Lights Double Flash Status Fault Lock Battery locked for the low battery,please contact tech support to unlock the device. Battery locked remotely,please contact tech support to unlock the device. Protection triggered by overcurrent,please contact tech support to unlock the device. Dual-battery power on disabled,voltages of bo th batteries should be roughly equal before use. Remote Lock 3 Lights Double Flashing 2/4 Alternate Flashing Lights 2/3 Alternate Flashing Lights Anti-dismantling Lock Over current Protection Dual-battery Power on Disabled 4 Lights Double Flashing www.xa.com/en17 Smart battery should be fully charged and used in strict accordance with instructions preceding UAV operation. Battery should be charged with the charging device specified by XAG. Otherwise, user shall assume all the economic and legal responsibilities arising therefrom. Intelligent SuperCharger is available to purchase separately. If necessary, please contact your local dealer. Battery Installation Insert Battery into the Battery Compartment cautiously until hearing a clicking sound. Warning www.xa.com/en 18 Precautions for Battery Use • NEVER insert/remove the battery when it is ON, or it may cause damage to the interface. • It is a MUST to check and update to the latest battery firmware and software version preceding operation. Loss caused by failing to do so shall be borne by the user. • An optimal ambient temperature range for the battery is from 10 °C to 45 °C . Chances are that fire, even explosions will happen at a temperature over 45°C . • NEVER connect the cathode and anode with a wire or other metals, as this will cause a short circuit. • For heat dissipation, the battery should be immersed into pure water instead of corrosive liquids within the maximum and minimum level indicated for NO more than 60min, or else the battery will get damaged for having water leak inside. • Please always keep the interface clean and clean the liquid or foreign matters off it promptly. Otherwise, it will cause poor contact, contributing to energy loss or failure to charge. • Please handle the battery with care and do NOT take it apart, pierce the housing or apply pressure to it, including but not limited to behaviours such as sitting/standing on the battery, stacking heavy items on it and the like. • Please regularly check the components like the battery interface and the plug before use. NEVER clean the charging device with alcohol or other combustible liquids. NEVER use the damaged charging device. • Please place the battery and charging device on even ground with no combustible materials around while charging. NEVER leave the battery unattended while charging in case of an accident. • For your safety, keep a minimum of 30cm distance between the battery and the charger, and between two batteries, lest too much heat lead to the charger or battery failure, even causing dreadful consequences like a fire. • Please make sure the battery is fully charged prior to each operation. NEVER operate at full capacity preceding completion of charging. • NEVER use batteries provided by manufacturers other than XAG, or to dismantle/replace the battery without permission. If necessary, please contact XAG or the authorized dealer. For the battery incidents, technical faults or other accidents caused by using a battery or accessories provided by non-XAG manufacturers, the user shall be held respons…

Text truncated - open the document above for the full version.

www.xa.com/en19 Liquid Tank Infusion Twist the Cap counterclockwise to open the tank. Upon infusion, screw the Cap clockwise till tight. To protect the parts from chemical splash damage, direct pesticide infusion is NOT allowed when the tank is installed on the UAV. Tank Removal/Installation Pick up with force/put down with care to remove/install the Liquid Tank. Please DO handle the tank with pesticide inside with care. Emptying liquid tank/granule container beforehand to enhance the efficiency of aerial mapping is recommended. A drone installing RealTerra is unable to spray or spread. Warning Warning www.xa.com/en 20 APP Interface Introduction "Field" Tab (Main) Device List Operator "Field" Tab Functions Map Layers Focus on Aircraft Focus on Operator Measure Aircraft "My Account" Tab "Operation" Tab Device List: Full device list Operator: Operator's location "Field" Tab: Main field options tab Functions: New fields, New fields group, New HDMap, Import data, Bind devices Map Layers: Select map type Focus on Aircraft: Centre screen on aircraft Focus on Operator: Centre screen on operator Measure: Measure distance Aircraft: Aircraft's location "Operation" Tab: Main operation options tab "My Account" Tab: Main account options tab www.xa.com/en21 "Operation"Tab Tap on “Operation” tab to view the operation options. Return: Return to “Field” Tab (Main) Operation Area: Area of selected field Spraying Settings: Spraying settings Start Operation: Start operation Volume Required: Estimated volume required for current operation Flights Required: Estimated flights required for current operation FPV: First-person-view camera Flight Settings: Flight settings Return Aircraft Operation Area Spraying Settings Start Operation Map Layers Focus on Aircraft Focus on Operator Measure Operator Flights Required FPV Flight Settings Volume Required www.xa.com/en 22 Appendix Wiring Quick Guide The guideline in this page is applicable for all the connections of P40 Agricultural UAV. Warning www.xa.com/en23 Description of Status Indicator Super X4 Intelligent Control System Indicator Get to know the current status of the drone by checking Super X4 Intelligent Control System Indicator. Details are as follows: Solid Red Light Red/Green Light Alternate Flashing(slow) Red/Green Light Alternate Flashing(rapid) Not sea rching for satellites, not positioning, no output from board RTK Indicator Flashing Green Light (slow) Description Normal Flashing Green Light (rapid) Flashing Red Light (slow) RTK timeout exceeding 10s Flashing Red Light (rapid) Firmware Update www.xa.com/en 24 Flight Indicator There are one Flight Indicatoron the side of each motor mount, Details are as follows. Flight Status Indicator Get to know the current status of the drone by checking the Flight Status Indicators (Tail Lights). Details are as follows. Solid Red Light Flashing Purple Light(rapid) Powered on, Flight Control initialization incomplete or heating up Tail Lights Red/Green Light Alternate Flashing(slow) Description Weak GPS signal Double Flashing Green Light Strong GPS signal Flashing Blue Light(rapid) Flashing Red Light(rapid) Flashing White Light(rapid) Triple Flashing Green Light GPS route mode Flashing Red Light(slow) Fly in safe mode Flight Control formatted or parameter anomalous Propulsion system detected as anomalous Sensors (excluding IMU) anomalous, GPS malfunction or low heading accuracy IMU failure Low voltage alert Triple Flashing Red Light www.xa.com/en25 P40 Agricultural UAV Model3WWDZ-20BH Flight Control SystemSuperX 4 Symmetrical Motor Wheelbase1560mm Dimensions1280×1280×550mm Empty Weight 28.1kg (Spraying system and battery included) 32kg (Spreading system and battery included) Rated Takeoff Weight 48.1kg (Spraying) 48.1kg (Spreading) Protection RatingIP67 Flight Parameters Operating Frequency2.4000 GHz-2.4835 GHz Maximum Thrust-Weight Ratio:1.6 Hovering Precision (good GNSS signal) RTK Enabled: ±10cm (horizontal), ±10cm (vertical) RTK Disabled: ±0.6m (horizontal), ±0.3m (vertical) (radar enabled: ±0.1m) Continuous High Precision Naviga- tion Time without Signa ≤ 600s Hovering Duration 19.3min (with No-load @20000mAh & Takeoff Weight: 28.1kg) 7.3min (with Full-load @20000mAh & Takeoff Weight: 48.1kg) Maximum Flying Speed10m/s Maximum Flying Height30m Maximum Flight Distance2000m Wind Force Recommended≤ 3 RevoSpray System Smart Liquid Tank Volume20L SensorLiquid Level Sensor Nozzle Quantity2 Rotational speed of spray disc1000~16000rpm/min Atomizing Size60-400μm Spray Width5~10m Peristaltic Pump Quantity2 Voltage50V Maximum System Flow Rate10L/min Maximum flow rate (single pump)5L/min XAG RealTerra Image Sensor1/2.3inch 12M CMOS Sensor Specifications www.xa.com/en 26 LensFOV 112° 2.7mm/16.8mm (35mm Equivalent) Mechanical Shutte1/200-1/2000s Image FormatJPG Power10W Optimum Operating Temperature10~40°C PSL Camera Dimensions50 x 36.7 x 29mm Video Resolution720P/1080P Video Coding FormatH.264 Frame Rate30fps Focal Length2.75mm Image Sensor1/2.95inch 2M CMOS Sensor Obstacle Sensing & Avoidance System Dynamic Radar ModelRD2436 Voltage24~60V Power6W Operating Frequency24GHz Sensing ModeMillimeter-wave Imaging, MTMR Sensing Parameters Obstacle's Position, Distance, Direction of Motion, Relative Velocity Field of View (FOV)Horizontal ±40° ; Vertical ±45° Relative Height of Safe Obstacle Avoidance 1.5m Relative Speed of Safe Obstacle Avoidance 2.5m (Distance between the propeller tip and obstacle after the UAV brakes and hovers stably) Relative Speed of Safe Obstacle Avoidance ≤ 6m/s Terrain Sensor ModelTR24S100 Voltage5.8V Power1.5W Sensing ModeMillimeter-wave Operating Frequency24GHz Height Measurement Range0.5~100m Fixed Height Range45° (at flying speed of ≤ 2m/s) Protection RatingIP67 Propulsion System Motor ModelA25 www.xa.com/en27 Stator Size80 x 25mm KV Value85rmp/V Maximum Tension (Single Motor)20kg Rated Power (Single Motor)1500W Electronic Speed Controller ModelVC13180 Maximum Continuous Operating Current 180A Maximum Ope…

Text truncated - open the document above for the full version.

Dear UL TCB We are submitting an application for certification of a drone to cover the cellular modem. The digital device and receiver approvals will be covered using the SDoC procedures. The drone will also include three certified transmitter modules, a WLAN module (FCC ID 2A46G-WM101) and two mmWave modules operating under FCC 15.249 (FCC IDs 2A46G-RD2426 and 2A46G-TR24S100). This certification addresses colocation with the WLAN module; colocation of the mmWave modules is being addressed as part of the module integration verification tests. Best regards, Vicky Gao UL SSL Lab

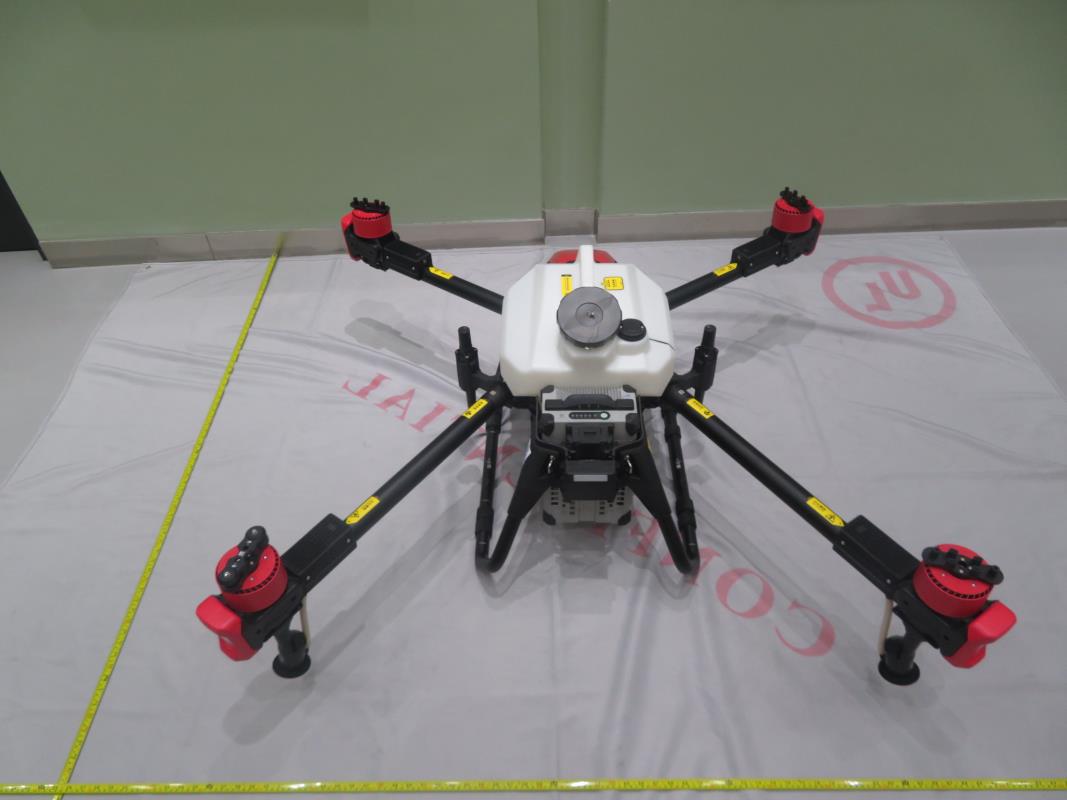

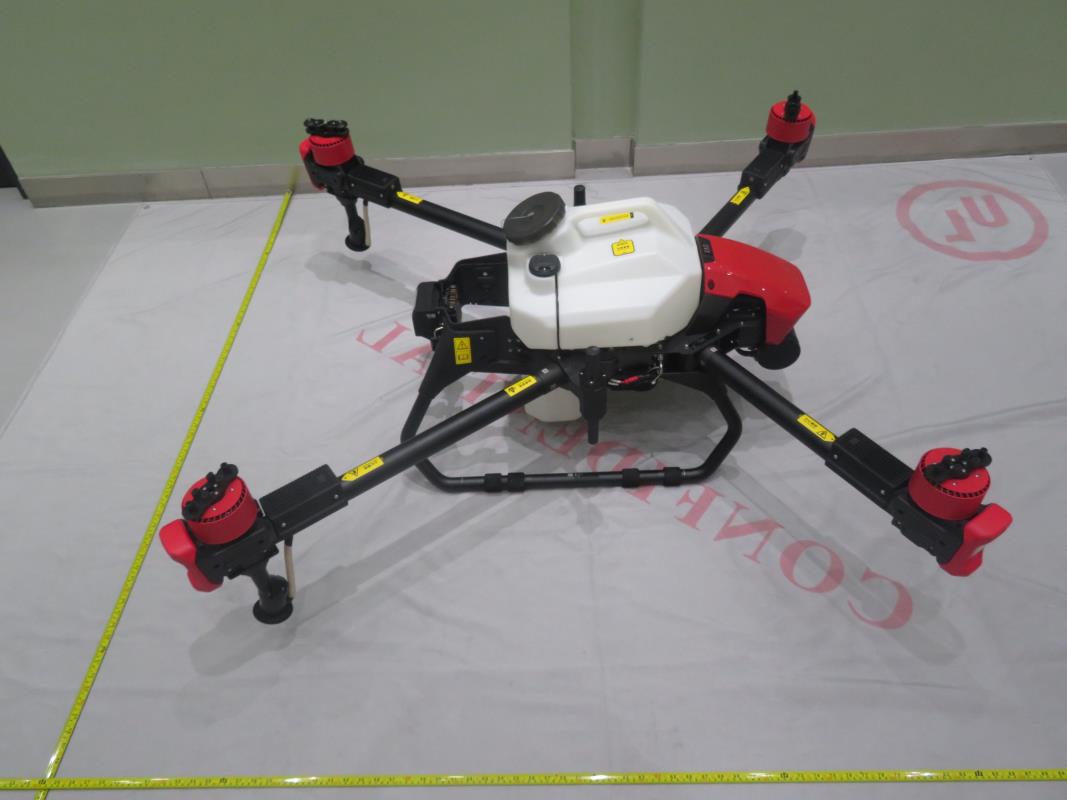

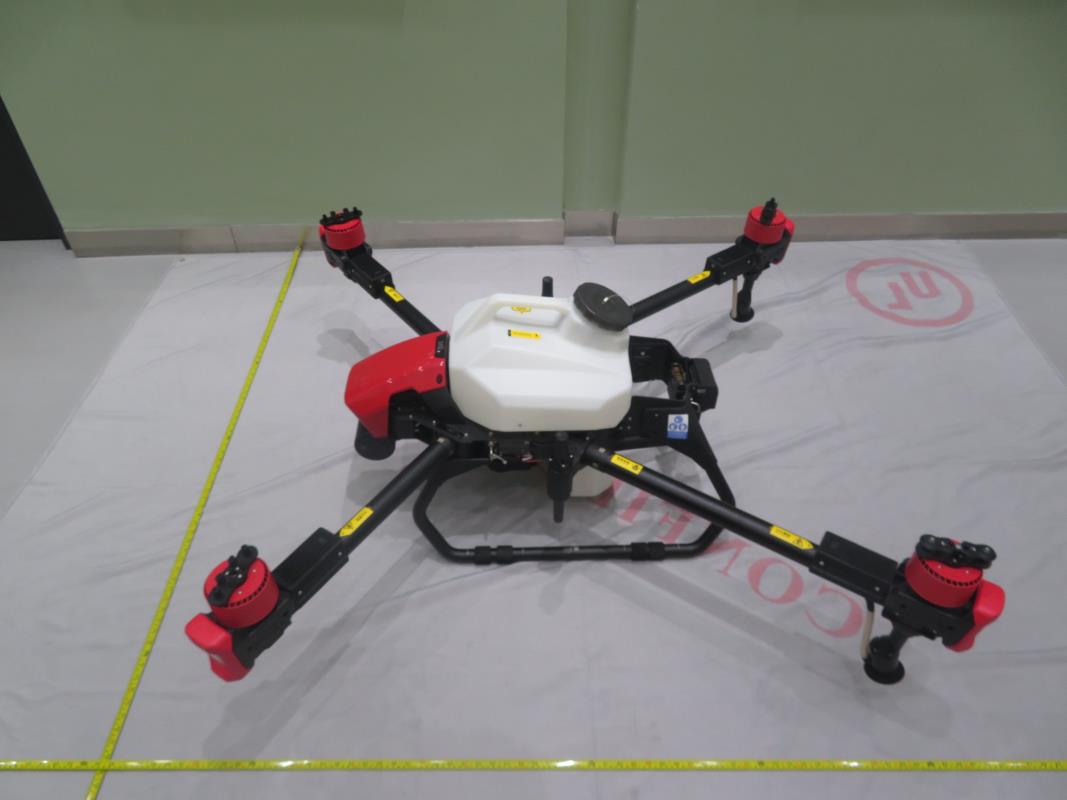

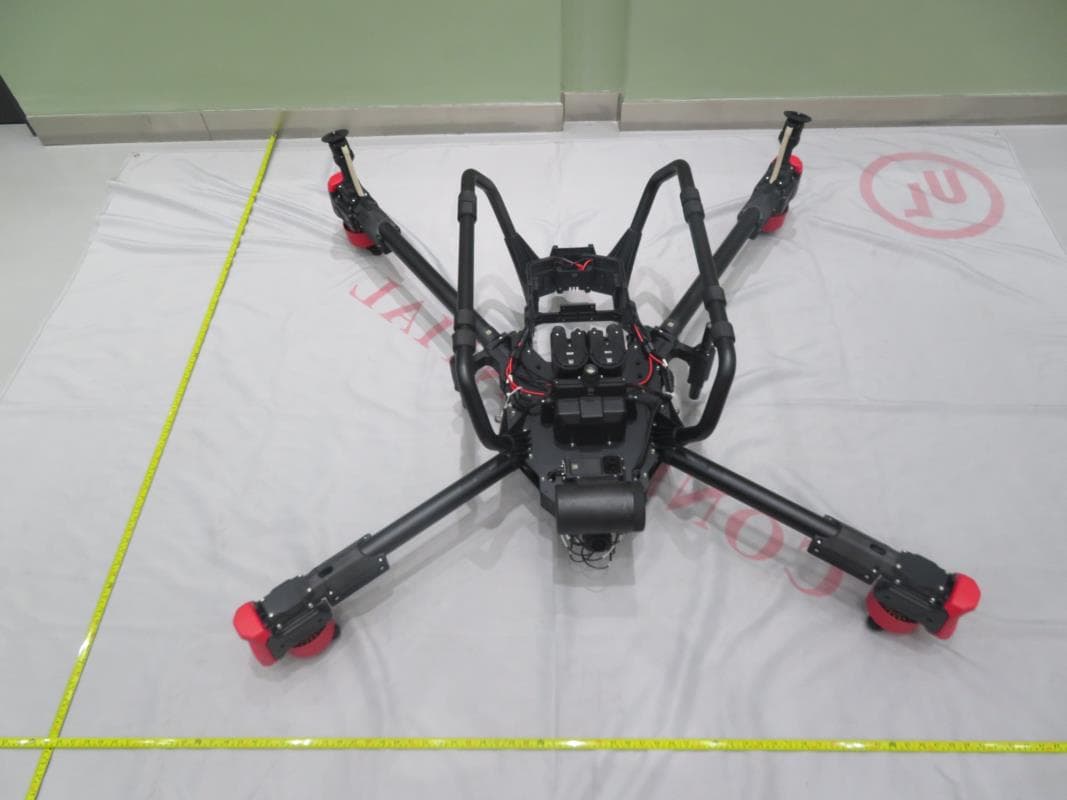

Appendix I External Photographs Page 2 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. External View of EUT-1 External View of EUT-2 Page 3 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. External View of EUT-3 External View of EUT-4 Page 4 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. External View of EUT-5 External View of EUT-6

Label location

Appendix II Internal Photographs Page 2 of 14 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-1 Internal View of EUT-2 Page 3 of 14 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-3 Internal View of EUT-4 Page 4 of 14 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-5 Internal View of EUT-6 Page 5 of 14 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-7 Internal View of EUT-8 DIV Antenna MAIN Antenna Page 6 of 14 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-9 Internal View of EUT-10 Page 7 of 14 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-11 (GNSS Module) Internal View of EUT-12 (GNSS Module) Page 8 of 14 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-13 (WIFI Module) Internal View of EUT-14 (WIFI Module) Page 9 of 14 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-15 (WIFI Module) Internal View of EUT-16 (WIFI Module) Page 10 of 14 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-17 (WIFI Module) Internal View of EUT-18 (Terrain Radar) Page 11 of 14 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-19 (Terrain Radar) Internal View of EUT-20 (Terrain Radar) Page 12 of 14 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-21 (Obstacle Radar) Internal View of EUT-22 (Obstacle Radar) Page 13 of 14 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-23 (Obstacle Radar) Internal View of EUT-24 (Obstacle Radar) Page 14 of 14 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-25 (Obstacle Radar)

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT For P40 Agricultural Drone MODEL NUMBER: 3WWDZ-20BH FCC ID: 2A46G-3WWDZ-20BH REPORT NUMBER: 4790254511-7 ISSUE DATE: March 31, 2022 Prepared for Guangzhou Xaircraft Technology CO.,LTD Block C, 115 Gaopu Rd, Tianhe Dist, Guangzhou, Guang-dong, Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4790254511-7 Page 2 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 03/31/2022 Initial Issue REPORT NO.: 4790254511-7 Page 3 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT NO.: 4790254511-7 Page 4 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Guangzhou Xaircraft Technology CO.,LTD Address: Block C, 115 Gaopu Rd, Tianhe Dist, Guangzhou, Guang-dong, China Manufacturer Information Company Name: Guangzhou Xaircraft Technology CO.,LTD Address: Block C, 115 Gaopu Rd, Tianhe Dist, Guangzhou, Guang-dong, China EUT Information EUT Name: P40 Agricultural Drone Model: 3WWDZ-20BH Sample Received Date: February 14, 2022 Sample Status: Normal Sample ID: 4675027-2 Date of Tested: February 14, 2022 ~ March 30, 2022 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 PASS KDB-447498 D01 V06 PASS Prepared By: Checked By: Kebo Zhang Shawn Wen Project Engineer Laboratory Leader Approved By: Stephen Guo Laboratory Manager REPORT NO.: 4790254511-7 Page 5 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 and KDB 447498 D01 General RF Exposure Guidance v06. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Delcaration of Conformity (DoC) and Certification rules ISED (Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with ISED. The Company Number is 21320 and the test lab Conformity Assessment Body Identifier (CABID) is CN0046. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B , the VCCI registration No. is C-20012 and T-20011 Note 1: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China Note 2: The test anechoic chamber in UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. Note 3: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. And these measurements below 30MHz had been correlated to measurements performed on an OFS. REPORT NO.: 4790254511-7 Page 6 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. REQUIREMENT LIMIT AND CALCULATION METHOD Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this d…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. CO-LOCATION TEST REPORT For P40 Agricultural Drone MODEL NUMBER: 3WWDZ-20BH FCC ID: 2A46G-3WWDZ-2…
