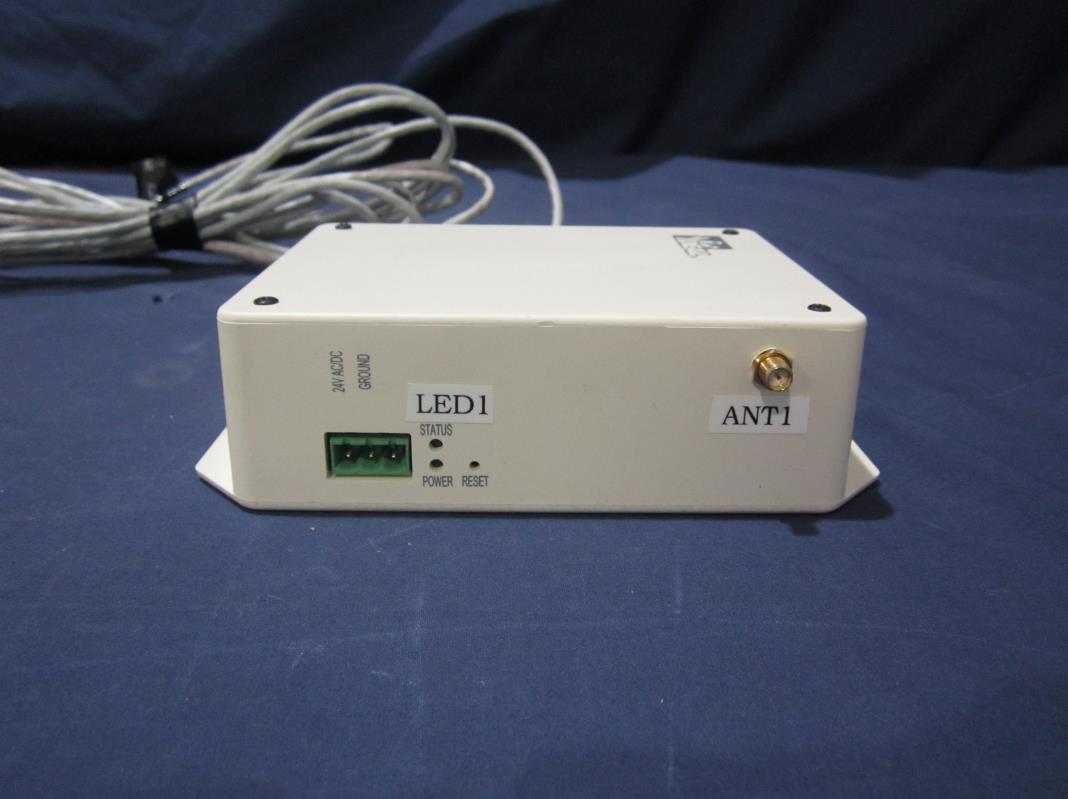

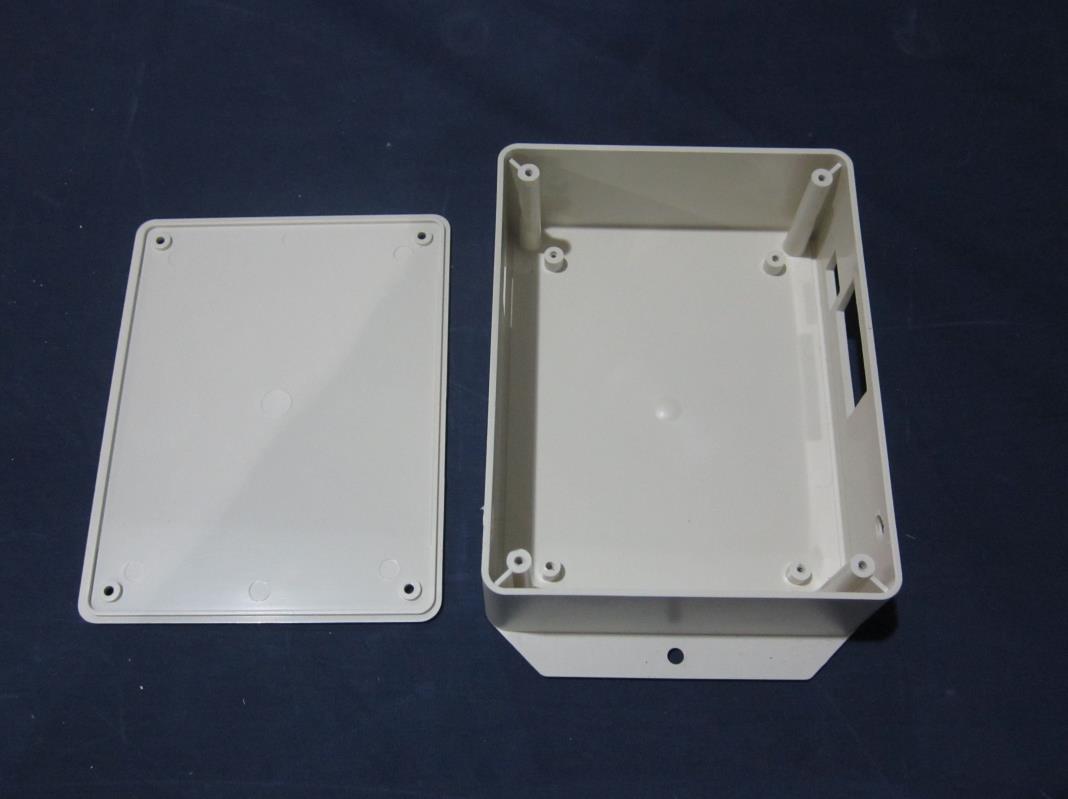

Product Manual GW1100 – Wireless Gateway ND 7944-2 02/2014 Users Manual – GW1100 Wireless Gateway Page 1 www.idealindustries.com PRODUCT DESCRIPTION The GW1100 Wireless Gateway is an electronic communications device which acts as the central processing “hub” of the Audacy™ system. The GW1100 wirelessly receives and prioritizes inputs from sensors, switches, building automation systems (BAS), and/or a dedicated internet interface (e.g., website or app). It then communicates wirelessly with each Smart Connector to turn on, turn off, or dim light fixtures, based on input from the systems above. The GW1100 can also pass information such as light fixture status, sensor data, and energy usage to the building automation system and/or internet interface. KEY FEATURES 24V AC or DC power input FCC and IC approved Flexible mounting options RoHS compliant PRODUCT CONTENTS The following items are included inside the package: Qty Description 1 GW1100 Wireless Gateway 2 Mounting Screws Product Manual GW1100 – Wireless Gateway ND 7944-2 02/2014 Users Manual – GW1100 Wireless Gateway Page 2 www.idealindustries.com IDEAL Model GW1100 Wireless Gateway Installation Instructions PHYSICAL MOUNTING 1. The GW1100 Wireless Gateway can be mounted on a wall or surface using the screws provided. Refer to Figure 1 for mounting hole dimensions. It is important to keep the external antennas oriented vertically, regardless of the orientation of the gateway enclosure. See Figures 2 and 3 for orientation examples. Alternately, the GW1100 Wireless Gateway can be set atop a desk or countertop anywhere. 2. The GW1100 requires a 24VDC input. This can be achieved via a PSU1500 power supply (sold separately) or by wiring 24VDC directly into the power connector on the unit. See Figure 4 for details. 3. To connect the GW1100 to your office network, insert an Ethernet cable into the Ethernet port on the side of the unit. See Figure 5 for details. *Dimensions in inches Figure 1: Horizontal Mount, Top View Product Manual GW1100 – Wireless Gateway ND 7944-2 02/2014 Users Manual – GW1100 Wireless Gateway Page 3 www.idealindustries.com Figure 2: Horizontal Mount, Antennas Extended Figure 3: Vertical Mount, Antennas Extended Product Manual GW1100 – Wireless Gateway ND 7944-2 02/2014 Users Manual – GW1100 Wireless Gateway Page 4 www.idealindustries.com Figure 4: Gateway Power Input Figure 5: Gateway Ethernet Input 24V Power Input Ethernet Input Product Manual GW1100 – Wireless Gateway ND 7944-2 02/2014 Users Manual – GW1100 Wireless Gateway Page 5 www.idealindustries.com SPECIFICATIONS Item Description Radio 915 MHz Band, Dual External Antennas Regulatory Approvals FCC Part 15 and Industry Canada Contains FCC ID: 2AAMXGW1100 Contains IC: 11250A-GW1100 Transmit Range 300 ft. indoors in a typical commercial office building Power 24V AC/DC, removable terminal block Configuration Port Ethernet Network Port Ethernet, RS-485, or FTT-10 Operating Temperature 10°C to 32°C Storage Temperature -20°C to 50°C Installation Environment Indoor use only Mounting 2 mounting holes – vertical (wall mount) or horizontal Enclosure ABS plastic, UL94-5VA rating Color Bone Dimensions 6.59” x 4.34” x 1.84” (167.4 x 110.2 x 46.7 mm) Weight 11.2 oz. Warranty 1 year SUPPORT Technical support for IDEAL INDUSTRIES products can be initiated through the following methods: Website: http://www.idealindustries.com/support/ Telephone: +1 800-435-0705 Email: [email protected] Product Manual GW1100 – Wireless Gateway ND 7944-2 02/2014 Users Manual – GW1100 Wireless Gateway Page 6 www.idealindustries.com COMPLIANCE STATEMENTS This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This device is intended for commercial and industrial applications. Changes or modifications not expressly approved by IDEAL could void the user’s authority to operate the equipment. Use and maintain device only as specified in this manual. When using the RS-485 interface, install the provided snap-on ferrites on the RS-485 cable adjacent to the RS-485 interface of the GW1100. WARNING! FCC and IC Radiation Exposure Statement: This equipment complies with FCC’s and IC’s RF radiation exposure limits set forth for an uncontrolled environment under the following conditions: 1. This equipment should be installed and operated such that a minimum separation distance of 20cm is maintained between the radiator (antenna) & user’s/nearby person’s body at all times. 2. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Product Manual GW1100 – Wireless Gateway ND 7944-2 02/2014 Users Manual – GW1100 Wireless Gateway Page 7 www.idealindustries.com IMPORTANT NOTICE Information furnished by IDEAL INDUSTRIES, INC. is believed to be accurate and reliable. No license, express or implied, to any intellectual property rights is granted by this document. No responsibility is assumed by IDEAL INDUSTRIES, INC. for its use, nor for any infringements of patents or other rights of third parties that may result from its use. IDEAL INDUSTRIES, INC. assumes no liability for misuse of this product. Specifications are subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of IDEAL INDUSTRIES, INC. Trademarks and registered trademarks are the property of their respective owners. IDEAL INDUSTRIES, INC. PRODUCT…

Text truncated - open the document above for the full version.

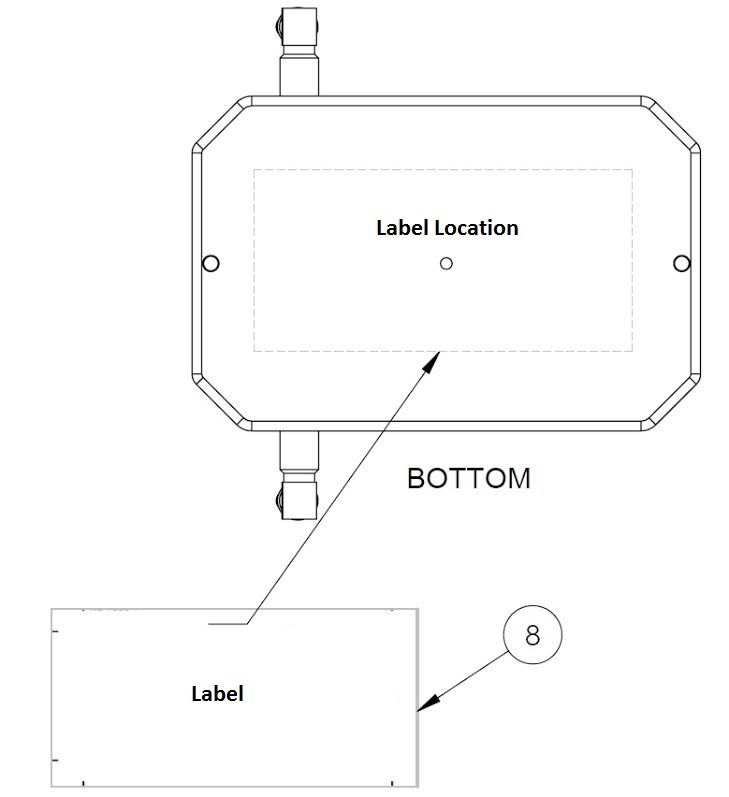

GW1100 24V DC or AC FCC ID: 2AAMXGW1100 IC: 11250A-GW1100 S/N: 00000001 Notes to Supplier: - First two digits of S/N # are fixed. Remaining digits are hexadecimal format and sequential. - Bar code format: 3 of 9 ND 7965-3 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

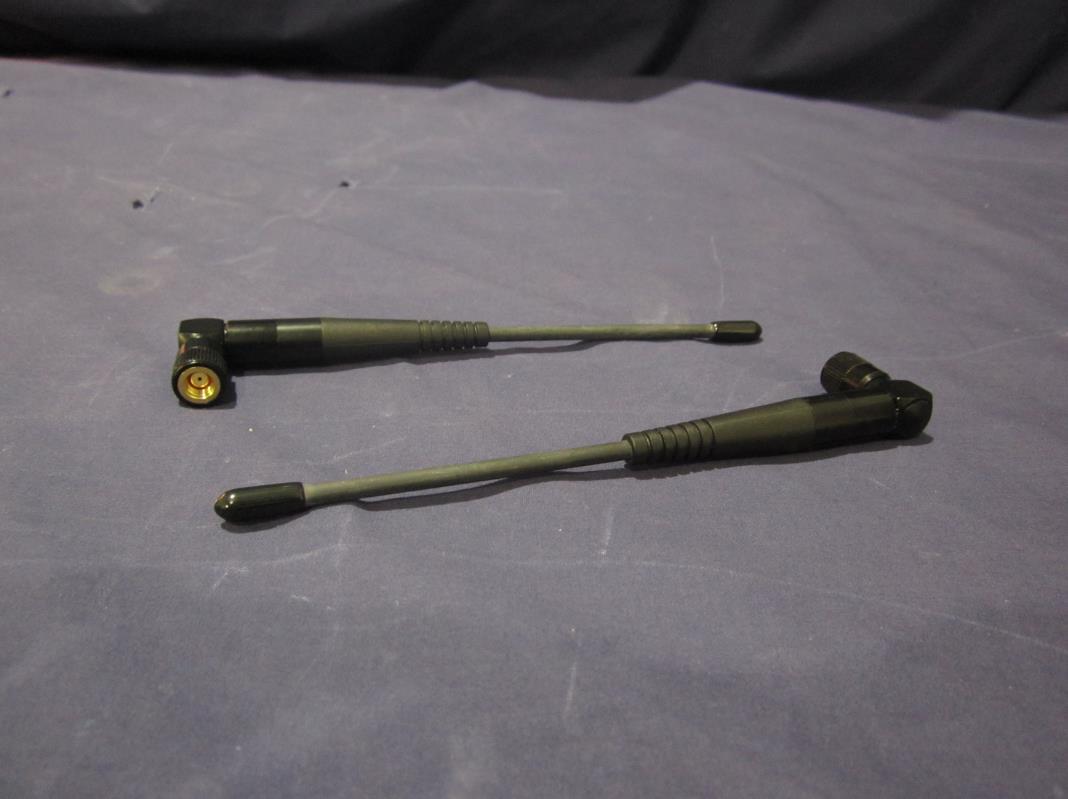

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at the antenna terminal:19.47(dBm) Maximum peak output power at the antenna terminal:88.51156098(mW) Antenna gain(typical):3(dBi) Maximum antenna gain:1.995262315(numeric) Prediction distance:20(cm) Prediction frequency:902.7(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.6018(mW/cm^2) Power density at prediction frequency:0.035134(mW/cm^2) Maximum allowable antenna gain:15.33722039(dBi) 2 4 R PG S p =

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 1 of 39 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EN3532-6 Client Powercast Corporation Charlie Greene Address 566 Alpha Drive Pittsburgh, PA 15238 Phone 412-436-4077 Items tested GW1100 FCC ID IC 2AAMXGW1100 11250A-GW1100 FRN 0002862225 Equipment Type Part 15.247 Digitally Modulated Equipment Code DTS FCC/IC Rule Parts 47 CFR 15.247, RSS-210 Issue 8, RSS GEN Issue 3 Test Dates January 16-17, 20 and 22, 2014 Results As detailed within this report Prepared by Tuyen Truong A. – Test Engineer Authorized by Christopher Reynolds – EMC Supervisor Issue Date 2/20/2014 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 38 of this report. Test Report for Powercast Corporation.  Report No. EN3532-6 March 25, 2014 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 2 of 39 Contents Contents .................................................................................................................................. 2 Summary ................................................................................................................................. 3 Test Methodology .................................................................................................................... 4 Product Tested - Configuration Documentation ....................................................................... 5 Statement of Conformity ...................................................................................................... 6 Test Results ............................................................................................................................ 7 Bandwidth ............................................................................................................................ 7 Fundamental Emission Output Power ................................................................................ 12 Radiated Spurious Emissions ............................................................................................ 17 Conducted Spurious Emissions ......................................................................................... 21 Power Spectral Density ...................................................................................................... 25 AC Line Conducted Emissions ........................................................................................... 30 Occupied Bandwidth .......................................................................................................... 32 Measurement Uncertainty .................................................................................................. 37 Conditions Of Testing ............................................................................................................ 38 Form Final Report REV 7-20-07 (DW) Test Report for Powercast Corporation.  Report No. EN3532-6 March 25, 2014 ______________________________________________________________________ Release Control Record Issue No. Reason for change Date Issued 1 Original Release November 10, 2012 _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 3 of 39 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 15.247. The product is the GW1100. It is a digitally modulated transmitter that operates in the range 902-928MHz. We found that the product met the above requirements with modification. Specifically, two ferrites were installed on the serial cable: Fair-Rite Products part number 0461178281 (straight- through). Charlie Greene from Powercast Corporation was present during the testing. The test sample was received in good condition. Test Report for Powercast Corporation.  Report No. EN3532-6 March 25, 2014 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 4 of 39 Test Methodology Radiated emission and AC Line conducted testing were performed according to the procedures specified in FCC Guidance for performing compliance measurement on DTS operating under section 15.247, April 19, 2013 and ANSI C63.10 (2009) and C63.4 (2009). Radiated Emissions were maximized by rotating the device around its axes as well as varying the test antenna’s height and polarity. The device antennas were maximized separately. Conducted emission at the antenna ports were performed, as required by rule section. The EUT operating voltage is 120VAC, 60Hz Low operating channel frequency = 902MHz Mid operating channel frequency = 915MHz High operating channel frequency = 927MHz The following bandwidths were used during radiated spurious and line conducted emissions. Frequency RBW VBW 0.15-30MHz 9kHz 30kHz 30-1000MHz 120kHz 1MHz 1-10GHz 1MHz 3MHz Test Report for Powercast Corporation.  Report No. EN3532-6 March 25, 2014 ______________________________________________________________________ __________________________________…
