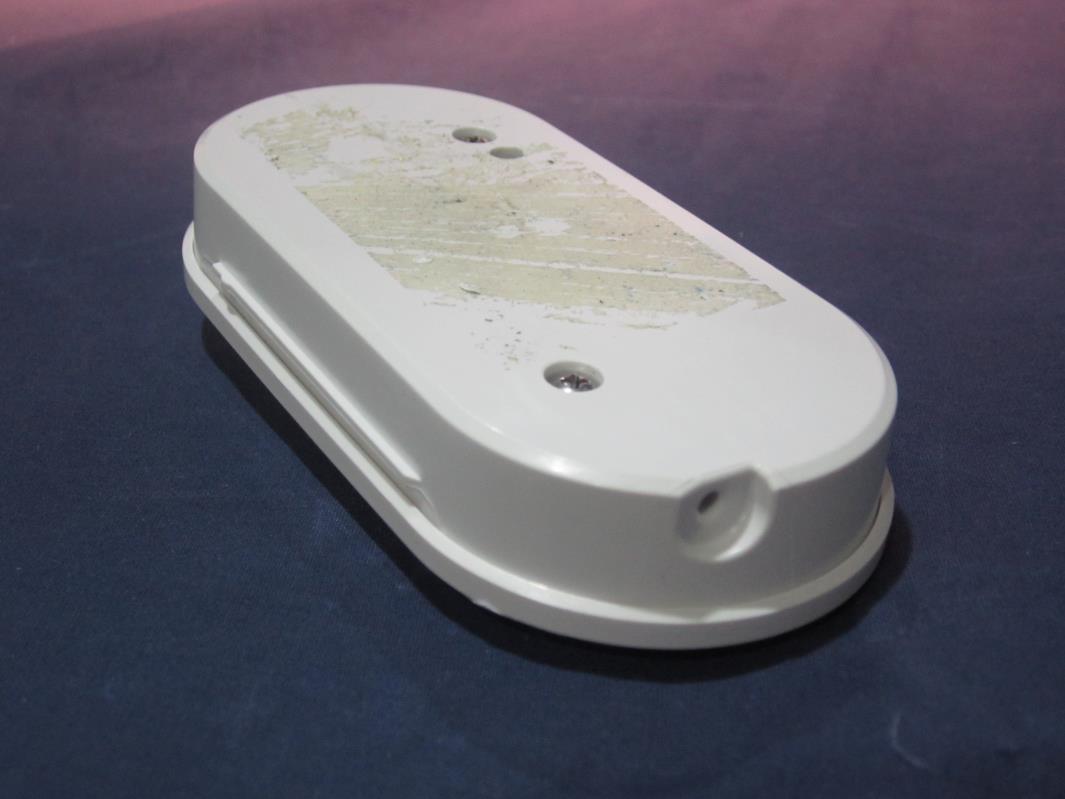

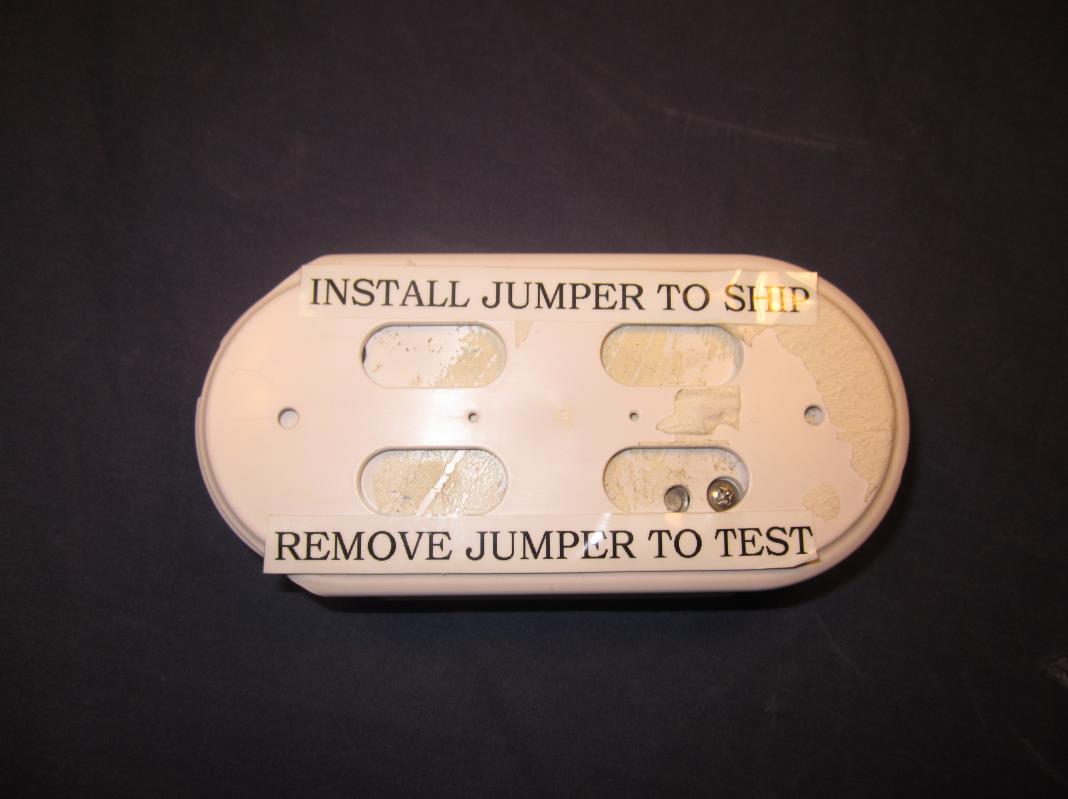

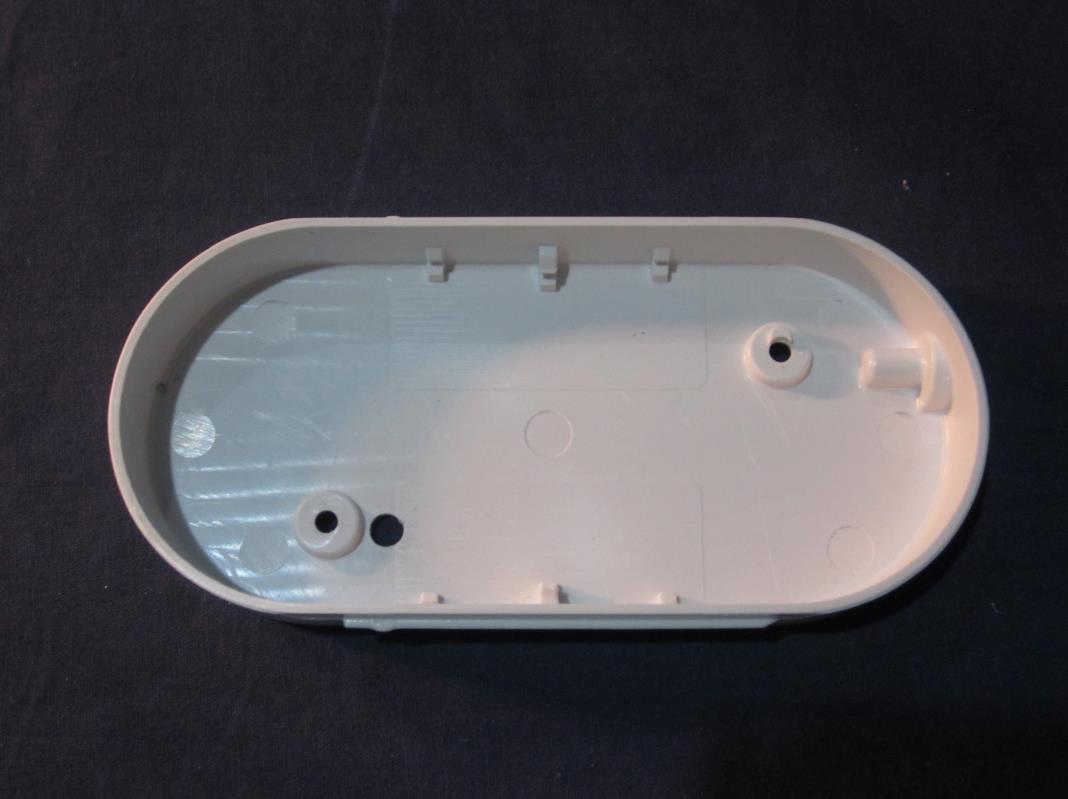

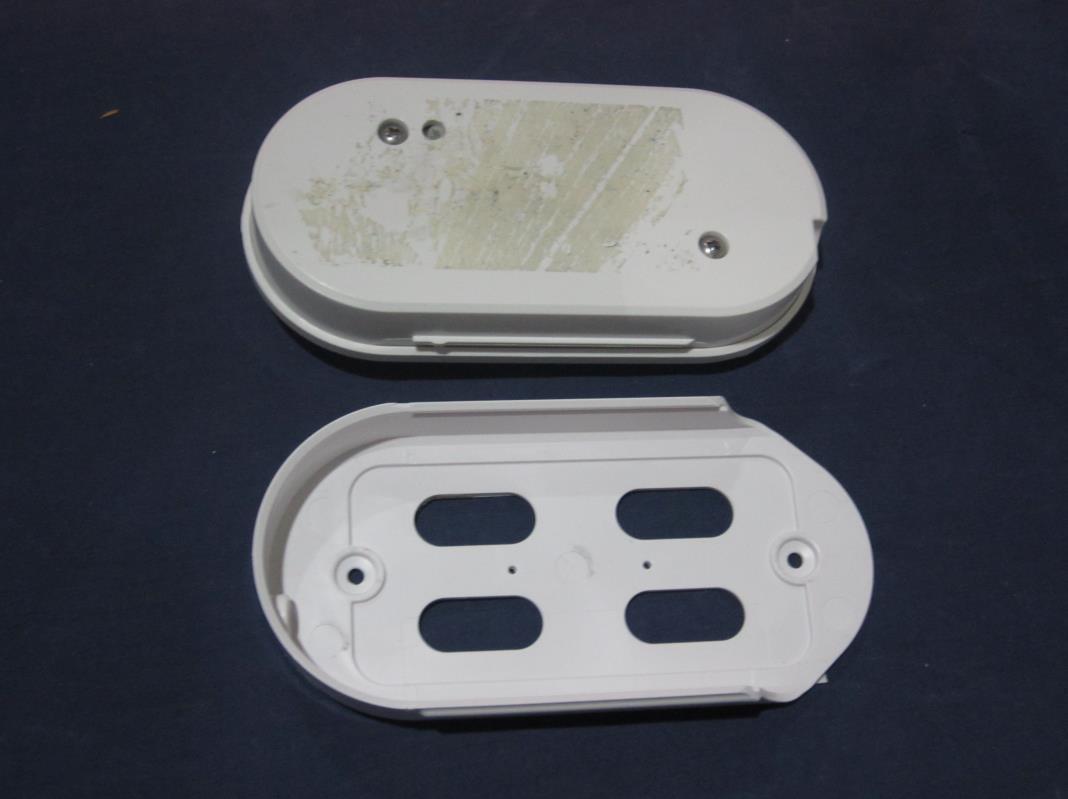

Product Manual LS1400 Light Sensor ND7948-2 02/2014 Users Manual – LS1400 Light Sensor Page 1 www.idealindustries.com PRODUCT DESCRIPTION The Audacy LS1400 Light Sensor is a battery powered device specially designed to detect ambient light levels and wirelessly transmit this information to the Audacy Gateway. The information provided by the sensor is used to determine the amount of artificial light needed in given space. This provides for daylight harvesting and reduction of energy consumption. The product has a 25-year battery life design and will not require AC or DC line power, providing building owners and occupants placement flexibility. KEY FEATURES FCC and IC approved Flexible mounting options 25+ year battery life Small form factor with internal antenna RoHS compliant Factory configurable for custom applications PRODUCT CONTENTS The following items are included inside the package: Qty Description 1 Light Sensor LS1400 1 Sensor Cradle 2 Mounting Screw 1 Locking Screw 1 Instruction card Product Manual LS1400 Light Sensor ND7948-2 02/2014 Users Manual – LS1400 Light Sensor Page 2 www.idealindustries.com SET-UP AND OPERATION 1. Wall-mount the LS1400 cradle in the desired location with the optional mounting screws(2). Cradle can be mounted directly to drywall. 2. Press the button located on the bottom side of the LS1400 to activate device. 3. An optional screw can be used to lock the LS1400 in the cradle. SPECIFICATIONS Item Description Radio 915 MHz Band, Internal Antenna Regulatory Approvals FCC Part 15 and Industry Canada Contains FCC ID: 2AAMXLS1400 Contains IC: 11250A-LS1400 Transmit Range 100 ft. indoors to an Audacy Gateway or Smart Connector in a typical commercial office building Power 25+ year Li battery, non-replaceable Operating Temperature 10°C to 32°C Storage Temperature -20°C to 50°C Installation Environment Indoor use only Mounting 2 bracket mounting holes (See mechanical drawing for dimensions) Color White Dimensions 4.56” x 2.29” x 1.12” (115.82 x 58.17 x 22.68 mm) Weight 2.9 oz Warranty 1 year Product Manual LS1400 Light Sensor ND7948-2 02/2014 Users Manual – LS1400 Light Sensor Page 3 www.idealindustries.com MECHANICAL (REAR VIEW) *Dimensions in inches MECHANICAL (TOP VIEW) *Dimensions in inches Product Manual LS1400 Light Sensor ND7948-2 02/2014 Users Manual – LS1400 Light Sensor Page 4 www.idealindustries.com SUPPORT Technical support for IDEAL INDUSTRIES products can be initiated through the following methods: Website: http://www.idealindustries.com/support/ Telephone: +1 800-435-0705 Email: [email protected] Product Manual LS1400 Light Sensor ND7948-2 02/2014 Users Manual – LS1400 Light Sensor Page 5 www.idealindustries.com COMPLIANCE STATEMENTS This device is intended for commercial and industrial applications. Changes or modifications not expressly approved by IDEAL INDUSTRIES could void the user’s authority to operate the equipment. Use and maintain device only as specified in this manual. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. WARNING! FCC and IC Radiation Exposure Statement: This equipment complies with FCC’s and IC’s RF radiation exposure limits set forth for an uncontrolled environment under the following conditions: 1. This equipment should be installed and operated such that a minimum separation distance of 20cm is maintained between the radiator (antenna) & user’s/nearby person’s body at all times. 2. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Product Manual LS1400 Light Sensor ND7948-2 02/2014 Users Manual – LS1400 Light Sensor Page 6 www.idealindustries.com IMPORTANT NOTICE Information furnished by IDEAL INDUSTRIES, INC. is believed to be accurate and reliable. No license, express or implied, to any intellectual property rights is granted by this document. No responsibility is assumed by IDEAL INDUSTRIES, INC. for its use, nor for any infringements of patents or other rights of third parties that may result from its use. IDEAL INDUSTRIES, INC. assumes no liability for misuse of this product. Specifications are subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of IDEAL INDUSTRIES, INC. Trademarks and registered trademarks are the property of their respective owners. IDEAL INDUSTRIES, INC. PRODUCTS (INCLUDING HARDWARE AND/OR SOFTWARE) ARE NOT DESIGNED OR INTENDED TO BE FAIL-SAFE, FAULT TOLERANT OR FOR USE IN ANY APPLICATION THAT COULD LEAD TO DEATH, PERSONAL INJURY OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (INDIVIDUALLY AND COLLECTIVELY, “CRITICAL APPLICATIONS”), SUCH AS LIFE- SUPPORT OR SAFETY DEVICES OR SYSTEMS, CLASS III MEDICAL DEVICES, NUCLEAR FACILITIES, APPLICATIONS THAT AFFECT CONTROL OF A VEHICLE OR AIRCRAFT, APPLICATIONS RELATED TO THE DEPLOYMENT OF AIRBAGS, OR ANY OTHER CRITICAL APPLICATIONS. CUSTOMER AGREES, PRIOR TO USING OR DISTRIBUTING ANY SYSTEMS THAT INCORPORATE IDEAL INDUSTRIES, IN…

Text truncated - open the document above for the full version.

LS1400 FCC ID: 2AAMXLS1400 IC: 11250A-LS1400 S/N: 07000001 S/N: 07000001 S/N: 07000001 Notes to Supplier: - First two digits of S/N # are fixed. Remaining digits are hexadecimal format and sequential. - Bar code format: 3 of 9 ND 7966-3 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at the antenna terminal:3.34(dBm) Maximum peak output power at the antenna terminal:2.157744409(mW) Antenna gain(typical):2.5(dBi) Maximum antenna gain:1.77827941(numeric) Prediction distance:20(cm) Prediction frequency:902.7(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.6018(mW/cm^2) Power density at prediction frequency:0.000763(mW/cm^2) Maximum allowable antenna gain:31.46722039(dBi) 2 4 R PG S p =

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 1 of 27 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EN3532-2 Client Powercast Corporation Charlie Greene Address 566 Alpha Drive Pittsburgh, PA 15238 Phone 412-436-4077 Items tested LS1400 FCC ID IC 2AAMXLS1400 11250A-LS1400 FRN 0002862225 Equipment Type Part 15.247 Digitally Modulated Equipment Code DTS FCC/IC Rule Parts 47 CFR 15.247, RSS-210 Issue 8, RSS GEN Issue 3 Test Dates December 26 - 31, 2013 and January 10, 2014 Results As detailed within this report Prepared by Tuyen Truong A. – Test Engineer Authorized by Issue Date 2/20/2014 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 26 of this report. Test Report for Powercast Corporation.  Report No. EN3532-2 March 24, 2014 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 2 of 27 Contents Contents .................................................................................................................................. 2 Summary ................................................................................................................................. 3 Test Methodology .................................................................................................................... 4 Product Tested - Configuration Documentation ....................................................................... 5 Statement of Conformity ...................................................................................................... 6 Test Results ............................................................................................................................ 7 Bandwidth ............................................................................................................................ 7 Fundamental Emission Output Power ................................................................................ 10 Radiated Spurious Emissions ............................................................................................ 14 Power Spectral Density ...................................................................................................... 19 Occupied Bandwidth .......................................................................................................... 22 Measurement Uncertainty...................................................................................................... 25 Conditions Of Testing ............................................................................................................ 26 Form Final Report REV 7-20-07 (DW) Test Report for Powercast Corporation.  Report No. EN3532-2 March 24, 2014 ______________________________________________________________________ Release Control Record Issue No. Reason for change Date Issued 1 Original Release November 10, 2012 _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 3 of 27 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 15.247. The product is the LS1400. It is a digitally modulated transmitter that operates in the range 902-928MHz. Product was tested with an on board antenna with a gain of 2.5dBi permanently attached. We found that the product met the above requirements without modification. Charlie Greene from Powercast Corporation was present during the testing. The test sample was received in good condition. Test Report for Powercast Corporation.  Report No. EN3532-2 March 24, 2014 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 4 of 27 Test Methodology Radiated emission testing was performed according to the procedures specified in FCC Guidance for performing compliance measurement on DTS operating under section 15.247, April 19, 2013 and ANSI C63.10 (2009) and C63.4 (2009). Radiated Emissions were maximized by rotating the device around its axes as well as varying the test antenna’s height and polarity. The device antenna cannot be maximized separately. Conducted emission at the antenna port was not performed since EUT antenna was permanently attached. The EUT operating voltage is 3.6Vdc (Battery Powered) Low operating channel frequency = 902MHz Mid operating channel frequency = 915MHz High operating channel frequency = 927MHz The following bandwidths were used during radiated spurious emissions. Frequency RBW VBW 0.15-30MHz 9kHz 30kHz 30-1000MHz 120kHz 1MHz 1-10GHz 1MHz 3MHz Test Report for Powercast Corporation.  Report No. EN3532-2 March 24, 2014 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 5 of 27 Product Tested - Configuration Documentation EUT Configuration Work Order: N3235 Company: Powercast Corporation Company Add…

Text truncated - open the document above for the full version.

Radiated EMI tests:
