2AAMXSCL1000Digital Transmission

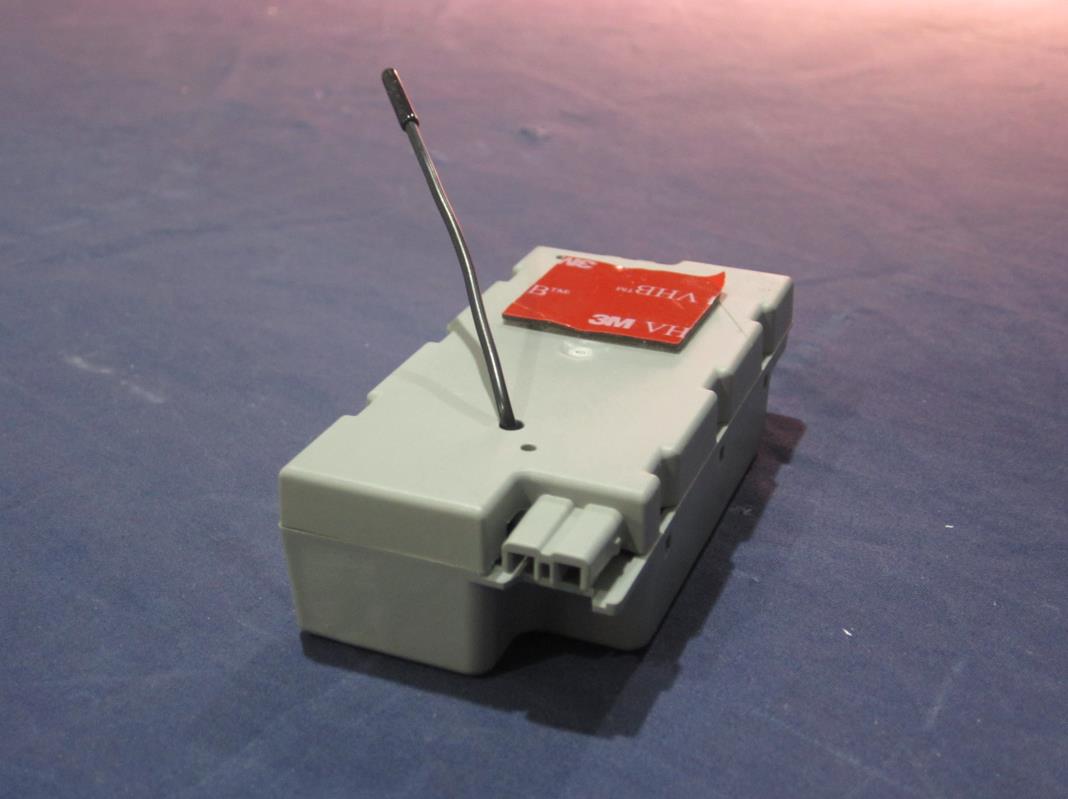

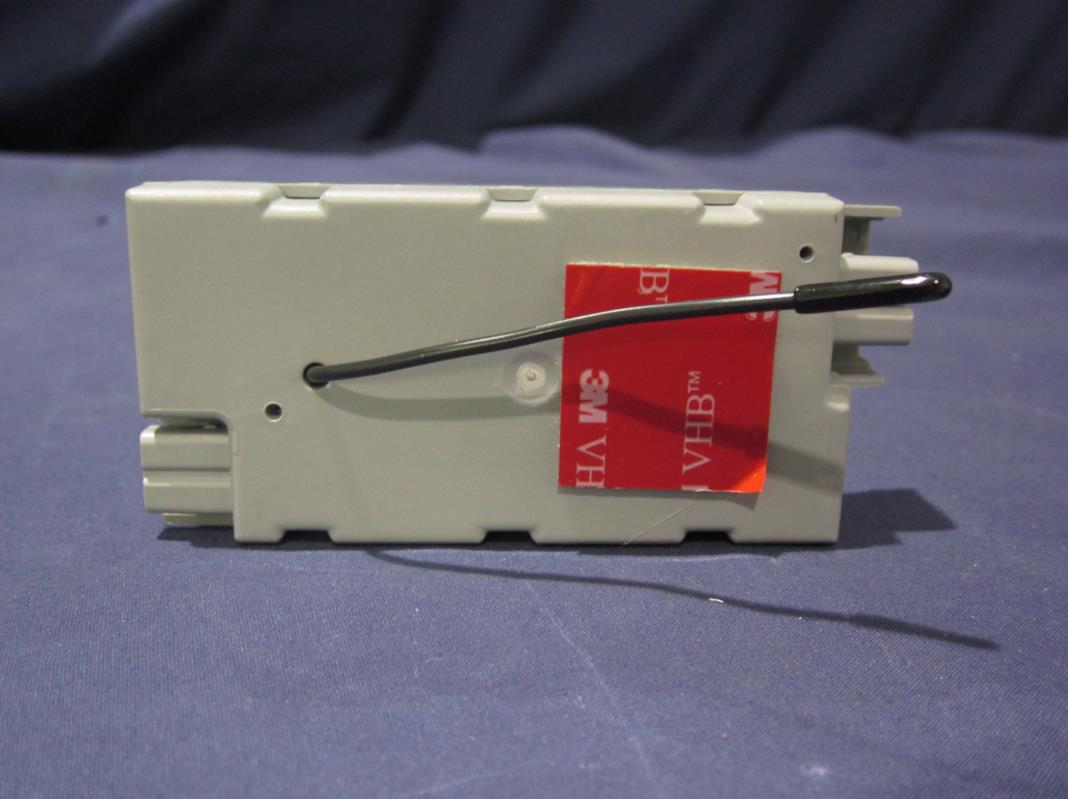

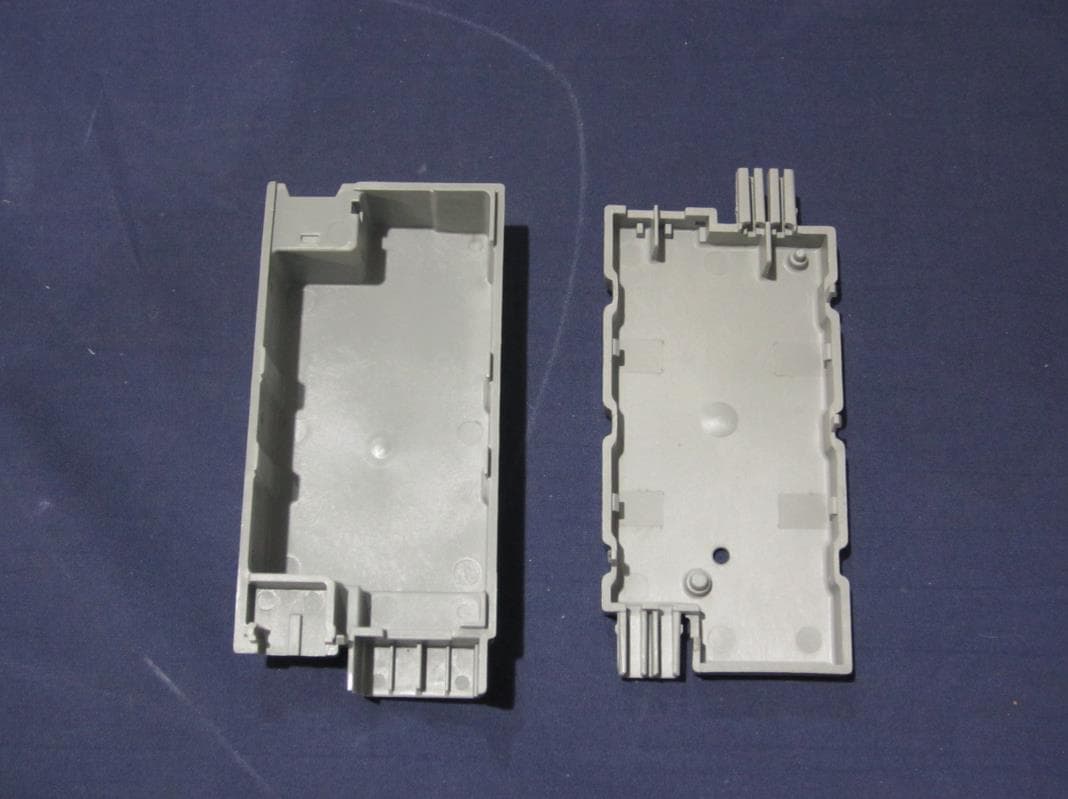

Product Manual SCL1000 – Smart Connector ND 7941-3 02/2014 Users Manual – SCL1000 Smart Connector Page 1 www.idealindustries.com PRODUCT DESCRIPTION The AC Smart Connector is a wireless device which provides electrical connectivity between the light fixture (load) and 120V/277V AC line power and provides on/off power control and dimming signals to the load. The information that tells the connector to power on/off/dim the fixture is acquired via wireless signals that originate from a building automation system or from room controls, based on environmental conditions and/or predetermined programs. KEY FEATURES FCC and IC approved In-fixture mounting Small form factor with external antenna Push-in wire termination RoHS compliant PRODUCT CONTENTS The following items are included inside the package: Qty Description 1 SCL1000 Smart Connector Product Manual SCL1000 – Smart Connector ND 7941-3 02/2014 Users Manual – SCL1000 Smart Connector Page 2 www.idealindustries.com IDEAL Model SCL1000 Smart Connector Installation Instructions WARNING: This is a current rated device. Use in applications involving amperage beyond its rating can be dangerous and cause electrical fires. Wiring must comply with all applicable electrical codes. Turn off power before removing or installing connector. TERMINOLOGY LINE: Incoming power feed from premise wiring LOAD: Power output from Smart Connector to ballast AC power input DIM: 0-10 VDC dimming control output from Smart Connector to ballast dimming input CONNECTING THE WIRES LINE Connector The LINE Connector accepts 12 AWG-18 AWG copper conductors, solid or stranded (19 strands or less for 12 AWG-16 AWG, 7 strands or less for 18 AWG). Use only one conductor per port and ensure that no copper is exposed on any of the wires after installation. 1. Strip wires to 1/2”. 2. Grip LINE hot wire and firmly push conductor into one of the black LINE ports. See Fig. 2. 3. Grip LINE neutral wire and firmly push conductor into one of the unmarked LINE ports. See Fig. 2. LINE Connector LOAD Connector DIM Connector Fig. 1 Fig. 2 LINE hot & feed-through LINE neutral & feed-through LOAD hot (black) & neutral (white) Antenna LINE Connector LOAD Connector Product Manual SCL1000 – Smart Connector ND 7941-3 02/2014 Users Manual – SCL1000 Smart Connector Page 3 www.idealindustries.com 4. For feed-through (i.e., “daisy-chain”) installations, insert the LINE hot feed-through conductor into the other black line port. Insert the LINE neutral feed-through conductor into the other unmarked LINE port. See Fig. 2. 5. After LINE wire installation, the supply power can safely be disconnected and re-connected without re-installing the wires. To disconnect the supply power, firmly grip the LINE connector and pull to separate it from the main body of the Smart Connector. To re- connect, simply push the LINE connector into the corresponding port on the Smart Connector. LOAD Connector The LOAD Connector accepts 18 AWG copper conductors, solid or stranded (16 strands or less). Use only one conductor per port and ensure that no copper is exposed on any of the wires after installation. 1. Strip the wires to 3/8”. 2. Grip the LOAD hot wire and firmly push conductor into the port marked with the black stripe. See Fig. 2. 3. Grip the LOAD neutral wire and firmly push conductor into the unmarked port. See Fig. 2. 4. After LOAD wire installation, the load can safely be disconnected and re-connected without re-installing the wires. To disconnect the load, firmly grip the LOAD connector and pull to separate it from the main body of the Smart Connector. To re-connect, simply push the LOAD connector into the corresponding port on the Smart Connector. DIM Connector The DIM Connector accepts 18 AWG copper conductors, solid or stranded (16 strands or less). Use only one conductor per port and ensure that no copper is exposed on any of the wires after installation. 1. Strip wires to 3/8”. 2. Grip positive/(+)/purple DIM conductor and firmly push into the port marked “1”. See Fig. 3. 3. Grip negative/(-)/gray DIM conductor and firmly push into the port marked “2”. See Fig. 3. 4. After DIM wire installation, the DIM connector can safely be disconnected and re-connected without re-installing the wires. To disconnect the DIM connector, firmly grip the DIM connector and pull to separate it from the main body of the Smart Connector. To re- connect, simply push the DIM connector into the corresponding port on the Smart Connector. Product Manual SCL1000 – Smart Connector ND 7941-3 02/2014 Users Manual – SCL1000 Smart Connector Page 4 www.idealindustries.com INSTALLING THE SCL1000 SMART CONNECTOR IN THE FIXTURE 1. After properly installing all wires per the instructions on page 1, fully extend the antenna. See Fig. 1. 2. Remove the backing of the double-sided tape on the SCL1000, exposing the adhesive. 3. Insert the antenna through an available open hole in the fixture trough, making sure that as much of the antenna extends into the plenum space above the fixture as possible. See Fig. 4. 4. Firmly press the connector into place. Fig. 3 Positive/purple/+ conductor Negative/gray/- conductor Fig. 4 Product Manual SCL1000 – Smart Connector ND 7941-3 02/2014 Users Manual – SCL1000 Smart Connector Page 5 www.idealindustries.com PROGRAMMING Refer to the Audacy™ system configuration manual to associate smart connectors to other devices and to set up operating parameters for the Audacy™ lighting control system SPECIFICATIONS Item Description Radio 915 MHz Band, External Antenna Regulatory Approvals FCC Part 15 and Industry Canada Contains FCC ID: 2AAMXSCL1000 Contains IC: 11250A-SCL1000 Transmit Range 100 ft. indoors to an Audacy Gateway or Smart Connector in a typical commercial office building Input Voltage 300V AC Rated Current 5A Operating Temperature 10°C to 32°C Storage Temperature -20°C to 50°C Installation Environment Indoor use only Mounting UL-listed double-sided tape Color Gray Dimensions 4.67” x 1.75” x 3.94”, antenna fully…

Text truncated - open the document above for the full version.

SCL 1000 5.0 AMP 50/60 Hz 120 to 277 VAC For Electronic Ballast only FCC ID: 2AAMXSCL1000 IC: 11250A - SCL1000 Pat. Pending S/N: 01000001 S/N: 01000001 S/N: 01000001 Energy Management Equipment E359679 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Notes to Supplier: - First two digits of S/N # are fixed. Remaining digits are hexadecimal format and sequential. - Bar code format: 3 of 9 ND 7962-3

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at the antenna terminal:18.81(dBm) Maximum peak output power at the antenna terminal:76.03262769(mW) Antenna gain(typical):3(dBi) Maximum antenna gain:1.995262315(numeric) Prediction distance:20(cm) Prediction frequency:902.7(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.6018(mW/cm^2) Power density at prediction frequency:0.030181(mW/cm^2) Maximum allowable antenna gain:15.99722039(dBi) 2 4 R PG S p =

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 1 of 26 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EN3532-5 Client Powercast Corporation Charlie Greene Address 566 Alpha Drive Pittsburgh, PA 15238 Phone 412-436-4077 Items tested SCL1000 FCC ID IC 2AAMXSCL1000 11250A - SCL1000 FRN 0002862225 Equipment Type Part 15.247 Digitally Modulated Equipment Code DTS FCC/IC Rule Parts 47 CFR 15.247, RSS-210 Issue 8, RSS GEN Issue 3 Test Dates December 30 and 31, 2013 and January 10, 2014 Results As detailed within this report Prepared by Tuyen Truong A. – Test Engineer Authorized by Christopher Reynolds – EMC Supervisor Issue Date 2/20/2014 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 25 of this report. Test Report for Powercast Corporation.  Report No. EN3532-5 March 19, 2014 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 2 of 26 Contents Contents .................................................................................................................................. 2 Summary ................................................................................................................................. 3 Test Methodology .................................................................................................................... 4 Product Tested - Configuration Documentation ....................................................................... 5 Statement of Conformity ...................................................................................................... 6 Test Results ............................................................................................................................ 7 Bandwidth ............................................................................................................................ 7 Fundamental Emission Output Power ................................................................................ 10 Radiated Spurious Emissions ............................................................................................ 13 Conducted Spurious Emissions ......................................................................................... 15 Power Spectral Density ...................................................................................................... 16 AC Line Conducted Emissions ........................................................................................... 20 Occupied Bandwidth .......................................................................................................... 21 Measurement Uncertainty .................................................................................................. 24 Conditions Of Testing ............................................................................................................ 25 Form Final Report REV 7-20-07 (DW) Test Report for Powercast Corporation.  Report No. EN3532-5 March 19, 2014 ______________________________________________________________________ Release Control Record Issue No. Reason for change Date Issued 1 Original Release November 10, 2012 _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 3 of 26 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 15.247. The product is the SCL1000. It is a digitally modulated transmitter that operates in the range 902-928MHz. Product was tested with an on board antenna with a gain of 3.0dBi. We found that the product met the above requirements without modification. Charlie Greene from Powercast Corporation was present during the testing. The test sample was received in good condition. Test Report for Powercast Corporation.  Report No. EN3532-5 March 19, 2014 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 4 of 26 Test Methodology Radiated emission and AC Line conducted testing were performed according to the procedures specified in FCC Guidance for performing compliance measurement on DTS operating under section 15.247, April 19, 2013 and ANSI C63.10 (2009) and C63.4 (2009). Radiated Emissions were maximized by rotating the device around its axes as well as varying the test antenna’s height and polarity. The antenna was maximized separately. Conducted emissions at the antenna port was performed, as required by rule section. The EUT operating voltage is 120VAC, 60Hz Low operating channel frequency = 902MHz Mid operating channel frequency = 915MHz High operating channel frequency = 927MHz The following bandwidths were used during radiated spurious and line conducted emissions. Frequency RBW VBW 0.15-30MHz 9kHz 30kHz 30-1000MHz 120kHz 1MHz 1-10GHz 1MHz 3MHz Test Report for Powercast Corporation.  Report No. EN3532-5 March 19, 2014 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC…

Text truncated - open the document above for the full version.

Conducted Antenna port Emi Test: AC CEMI test: Radiated Spurious EMI test:
