2AB6OTX7470Paging Transmitter for restaurant seating

Long Range Systems, LLC 4550 Excel Parkway, Suite 200 Addison, TX 75001 800.437.4996 • 214.553.5308 www.pager.net (T7470 Paging System Transmitter) USER MANUAL Table Of Contents Compatible Pagers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Installation and Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Hardware Provided . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 I nstallation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Keypad Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Initial Power Up and Time Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Basic Paging Operation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Page Guest Pagers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Page Individual Staff Pagers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Page a Cell Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Canned or Special Alphanumeric Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Canned Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Special Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Theft-Deterrent Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Custom Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Group Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Manager Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Dry Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Set Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Feature Setup Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 User Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Set Manager Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Set Page Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Set to Page Staff or Guest Pagers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Create Alphanumeric Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Setting System Time/Date for Freedom Transmitter (T7470) . . . . . . . . . . . . . . . . . .17 Repeat Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 ID Span . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Alphanumeric Pager Button Enable/Disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Guest Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Freeform Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Alpha Vibration Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Display the Prompt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Turning ON/OFF Canned Messages in Display Prompt . . . . . . . . . . . . . . . . . . . . . .20 Editing Canned Messages in Display Prompt . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Freeform Staff Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Long Range Systems1Freedom User Manual Display the Staff Prompt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Staff Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Turning ON/OFF Canned Messages in Staff Display Prompt . . . . . . . . . . . . . . . . .21 E diting Canned Messages in Staff Display Prompt . . . . . . . . . . . . . . . . . . . . . . . . .22 USB Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Alpha Pager Communication Baud Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Maintenance Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Paging Types in Mixed Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Station ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Adjust Transmit Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Installation, Warranty and Service Information Long Range Systems, LLC 4550 Excel Parkway, Suite 200 Addison, TX 75001 800.437.4996 • www.pager.net T 7 4 7 0 C 2 3 2 F C C I D : M 7 4 T 7 4 0 0 R S - 2 3 2 R e c e i v e T r a n s m i t P o w e r 1 2 V D C 8 0 0 . 4 3 7 . 4 9 9 6 w w w . p a g e r . n e t CONDOR C L A S S 2 T R A N S F O R M E R ( 4 0 8 ) 7 4 5 - 7 1 4 1 I N P U T : A C 1 2 O V 6 0 H z 1 9 w O U T P U T : A C 9 V 1 8 0 0 m A P / N : A 9 1 A 8 R o H S U U L L L ISTED C M O D E L : 4 8 A - 9 - 1 8 0 0 E I A 3 6 3 0 6 3 5 S M A D E I N C H I N A TX-7470-C232 Paging System Transmitter USER MANUAL Table Of Contents Installation and Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Set Restaurant ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Repeat Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 High Power Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Service Questions and Answers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Long Range Systems1TX-7470-C232 User Manual INSTALLATION AND SETUP Basic Installation 1) Plug the 12V power supply into the side of the Transmitter. 2) Connect the serial cable from the connector on the Transmitter to the serial port on the host com- puter. 3) Note the COM Port that the serial cable is connected to on the host computer. 4) Open HyperTerminal on the host computer. 5) Assign a Name for the new connection. 6) Select the COM Port coming from the serial cable. 7) Use the following settings: Bits per second: 9600 Data bits:8 Parity:None Stop bits:1 Flow control:None 8) Type ECHO1 and press ENTER. (This echo function will allow you to see what is being typed.) 9) You are now ready to use the interface. Note:At any time, use the STAT command to view any changes. Long Range Systems2TX-7470-C232 User Manual Screen View of ECHO ON Screen View of Typing ECHO Set Restaurant ID This must be set correctly to page pagers. T o set the Restaurant ID, type RID,x and press ENTER twice. X is the Restaurant ID. Example:To set an ID of 2, type RID,2 and press ENTER twice. Long Range Systems3TX-7470-C232 User Manual Example Restaurant ID to 2 HyperTerminal Output Showing ID as 2 Type STAT and press ENTER Status View Showing Restaurant ID as 2 Repeat Delay To turn ON Repeat Delay, type RPTDLY,1 and press ENTER twice. To turn OFF Repeat Delay, type RPTDLY,0 and press ENTER twice. High Power Setting To change the Power Setting, type HWPR,x and press ENTER twice. X is the Power Setting, a value of 0 to 4. Example: To set a Power Setting of 3, type HWPR,3 and press ENTER twice.. Long Range Systems4TX-7470-C232 User Manual Example Repeat Delay ON Status View Showing Repeat Delay ON Example High Power Set to 1 HyperTerminal Output Showing High Power Set to 1 Status View Showing High Power Set to 1 Long Range Systems5TX-7470-C232 User Manual SERVICE QUESTIONS AND ANSWERS Should your paging system ever fail or should you need additional paging supplies, call Long Range Systems at (800) 437-4996 Monday through Friday 8:30 am to 5:00 pm Central Time. F or weekend or night emergencies: • Long Range Systems has 24/7 live technical support available • Please keep in mind that options are limited over the weekend. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause unde- sired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE:This equipment has been tested and found to comply with the limits for a Class B digital de- vice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in ac- cordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harm- ful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is con- nected. • Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Warranty Long Range Systems, LLC permits a one-year manufacturer’s warranty following the original consumer purchase date of any LRS system. Any individual components or products purchased will receive a 30-day manufacture warranty. This warranty covers any defects due to faulty material or workmanship, but does not include damage to the product result- ing from accident, misuse or improper electrical connection. If the product or system should become defective within the warranty period, we will repair or replace with equivalent equipment, free of charge. We will pay transportation charges…

Text truncated - open the document above for the full version.

Long Range Systems, LLC 4550 Excel Pkwy, Suite 200 | Addison, TX 75001 | 214.553.5308 lrsus.com April 20, 2015 TUV SUD BABT FCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL FCC ID: 2AB6OTX7470 IC:5501A-TX7470 Product Name: TX-7470 and TX-7470-C232 Attn: Director of Certification Request Family Certification TX7470-C232 Transmtitter. The LRS model TX-7470 and model TX-7470-C232 transmitter design and PCB are identical. The different models offer customers a variation in the user interface. The TX-7470 Figure 1 is a transmitter with button keypad and LCD display and is designed to interact directly and immediately with a user in close proximity to the transmitter. Whereas the TX-7470-C232 Figure 2 is machine interface controlled solely by a serial port connection and a computer. The transmitter can be stationed anywhere a wired connection allows. There is no visual or mechanical feedback to a user in the TX-7470-C232 model. Electronically sections are identical except for parts needed or not needed in the user interface sections. The PCB does not change between models, only certain electronic parts and components are designated as Populate or Do Not Populate on the model number Bill of Material. Power, microcontroller, amplifier, transmitter, and antenna sections are identical between models. Mechanically the same principal applies, since there is no need for immediate user interaction to the transmitter, the TX-7470-C232 does not have a button or display interface in the plastic case, however the TX- 7470-C232 model has a DB9 serial connector which the TX-7470 does not. Figure 1 Figure 2 Sincerely, Mike Williams Long Range Systems

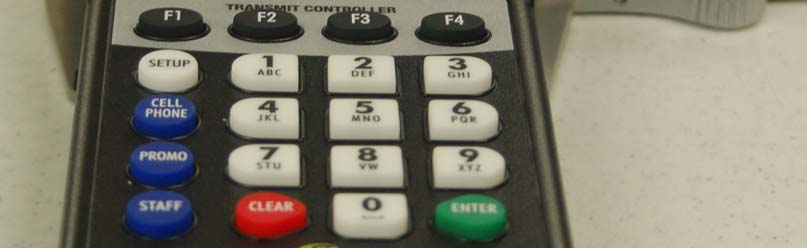

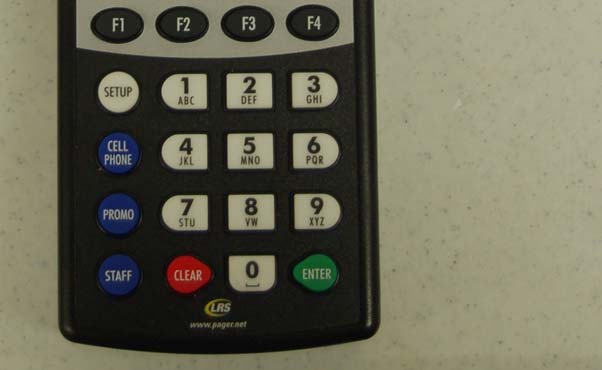

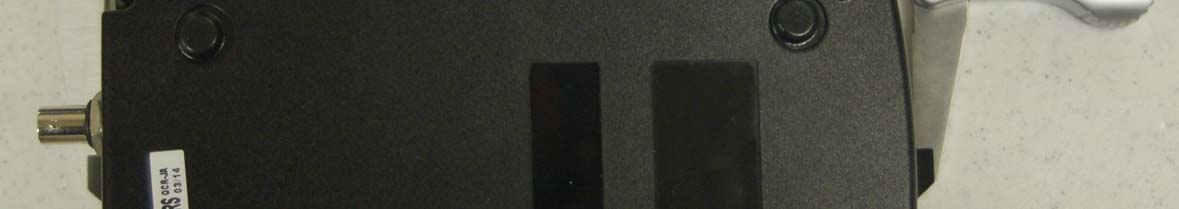

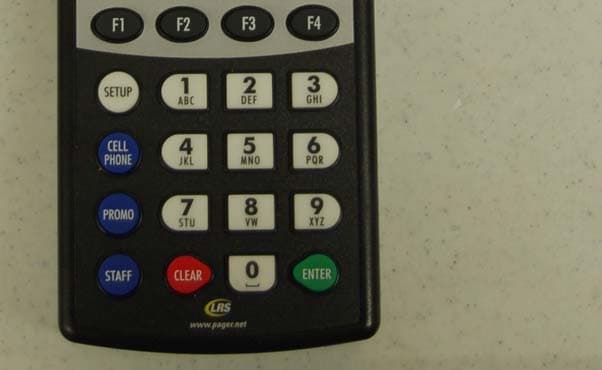

15689 TX‐7470 External Photographs Page 1 of 3 Side 1 of 6: Rear with Connectors Side 2 of 6: Top 15689 TX‐7470 External Photographs Page 2 of 3 Side 3 of 6: Left Side Side 4 of 6: Bottom Side 5 of 6: Right Side 15689 TX‐7470 External Photographs Page 3 of 3 Side 6 of 6: Front ***

15689 TX‐7470‐C232 External Photographs Page 1 of 3 Side 1 of 6: Left Side Side 2 of 6: Right Side 15689 TX‐7470‐C232 External Photographs Page 2 of 3 Side 3 of 6: Front Side Side 4 of 6: Rear Connector Side 15689 TX‐7470‐C232 External Photographs Page 3 of 3 Side 5 of 6: Bottom Side 6 of 6: Top ***

Long Range Systems LABEL ART AND SPECS 04-17-15 TX-T7470 FCC Label Placement & Dimensions Label goes here 1.99” x 0.996” (Actual Size Shown) - 6pt. Type Long Range Systems, LLC FCC ID: 2AB6OTX7470 IC:5501A-TX7470 MODEL: TX-7470 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

15689 TX ‐ 7470 Internal Photographs Page 1 of 3 15689 TX ‐ 7470 Internal Photographs Page 2 of 3 15689 TX ‐ 7470 Internal Photographs Page 3 of 3

15689 TX ‐ 7470 Internal Photographs Page 1 of 3 15689 TX ‐ 7470 Internal Photographs Page 2 of 3 15689 TX ‐ 7470 Internal Photographs Page 3 of 3

16332 Exposure Supplemental Report Rev01 Page 1 of 3 Professional Testing (EMI) Inc. 1601 North A.W. Grimes Blvd., Suite B Round Rock, TX 78665 e-mail: [email protected] (512) 244-3371 Fax: (512) 244-1846 1.0 Maximum Permissible Exposure Evaluation (Supplements the test report.) The measured power is considered for the intended use of the device and resulting RF exposure to the user. 1.2 Criteria Section Reference Date KDB 447498 D01 Mobile Portable RF Exposure v05r01 // RSS‐102 Issue 5 March 2015, Notice 2013 DRS0911 2015‐04‐24 1.3 Procedure Using measurement of peak power and considering the intended application, determine the permissible exposure level, applicability of exclusion, or whether additional exposure tests (SAR) are indicated. When applicable justify conclusion for selected exposure level and separation distance. 1.4 Source Duty Cycle Measurement Duty cycle was measured with the EUT in a diagnostic continuous range test mode (most aggressive automatic transmission mode) with 9.16 seconds of summed transmit time per 20 seconds. Duty cycle is 45.8 % yielding a factor of -3.39 dB. This yields a very conservative result. 1.5 Spacing Measurement Spacing was determined by direct measurement from antenna surface to nearest keyboard key row (the F1 to F4 keys) as shown below. The result was 105 mm. 90 mm was selected as conservative figure based on unit shape. 16332 Exposure Supplemental Report Rev01 Page 2 of 3 Professional Testing (EMI) Inc. 1.6 Power to Exposure Calculation Radio transmit power was determined by conducted measurement cited in the test report. Table 1.6.1 Power Calculation for Exposure; Highest frequency 0.46915 GHz* Measured Conducted Power mW Calculated Peak EIRP dBm Source Duty Cycle Factor dB Antenna Gain dBi Calculated EIRP dBm EIRP In Linear Terms mW 834 29.2 ‐3.39 0 25.81 381 *Highest power frequency 434.000 MHz. 1.7 SAR Exemption Calculation – FCC 3.0 Criteria Applicable requirement: KDB 447498 Clause 4.3.1 [(381 mW)/(90 mm)] · [√0.46915 (GHz) ] = 2.9 Step 1 (Rounded to nearest tenth.) [2.9] + [(90 mm - 50 mm)·( 469.15 MHz /150)] mW = 128.0 mW Step 2 “ Appendix B SAR Exclusion Level (90 mm, 450 MHz): 344 mW Applying Limb Exposure Factor (2.5), 344 mW * 2.5 = 860 mW Adjusting for Limb Exposure 128.0 mW < 860 mW 1.8 SAR Exemption Calculation – IC Exposure Calculation The field density limit is determined from Table 1; distance column ≥ 50 mm Interpolating for 434 MHz from 300 to 450 MHz. At 434 MHz: 227 mW Ref. RSS-102 Issue 5, Table 1 Limb Adjustment: 227 * 2.5 = 567.5 mW Ref. RSS-102 Issue 5, 2.5.1 381 mW < 567.5 mW Field density limit is determined for Table 4; General Public (Uncontrolled Environment): S = 0.02619ƒ 0.6834 = 0.02619 (469.15) 0.6834 = 1.8 W/m 2 Ref. RSS-102 Issue 5, Table 4 Field density is determined at 20 cm then compared to field density limit: S = EIRP / (4 π 20 2 ) S = 381 mW / 5026.55 cm 2 = 0.075 mW/cm 2 = 0.75 W/ m 2 0.75 W/ m 2 < 1.8 W/ m 2 1.9 Conclusion The device meets the exemption requirements for the respective agencies. 16332 Exposure Supplemental Report Rev01 Page 3 of 3 Professional Testing (EMI) Inc. Signed: Eric Lifsey ***
