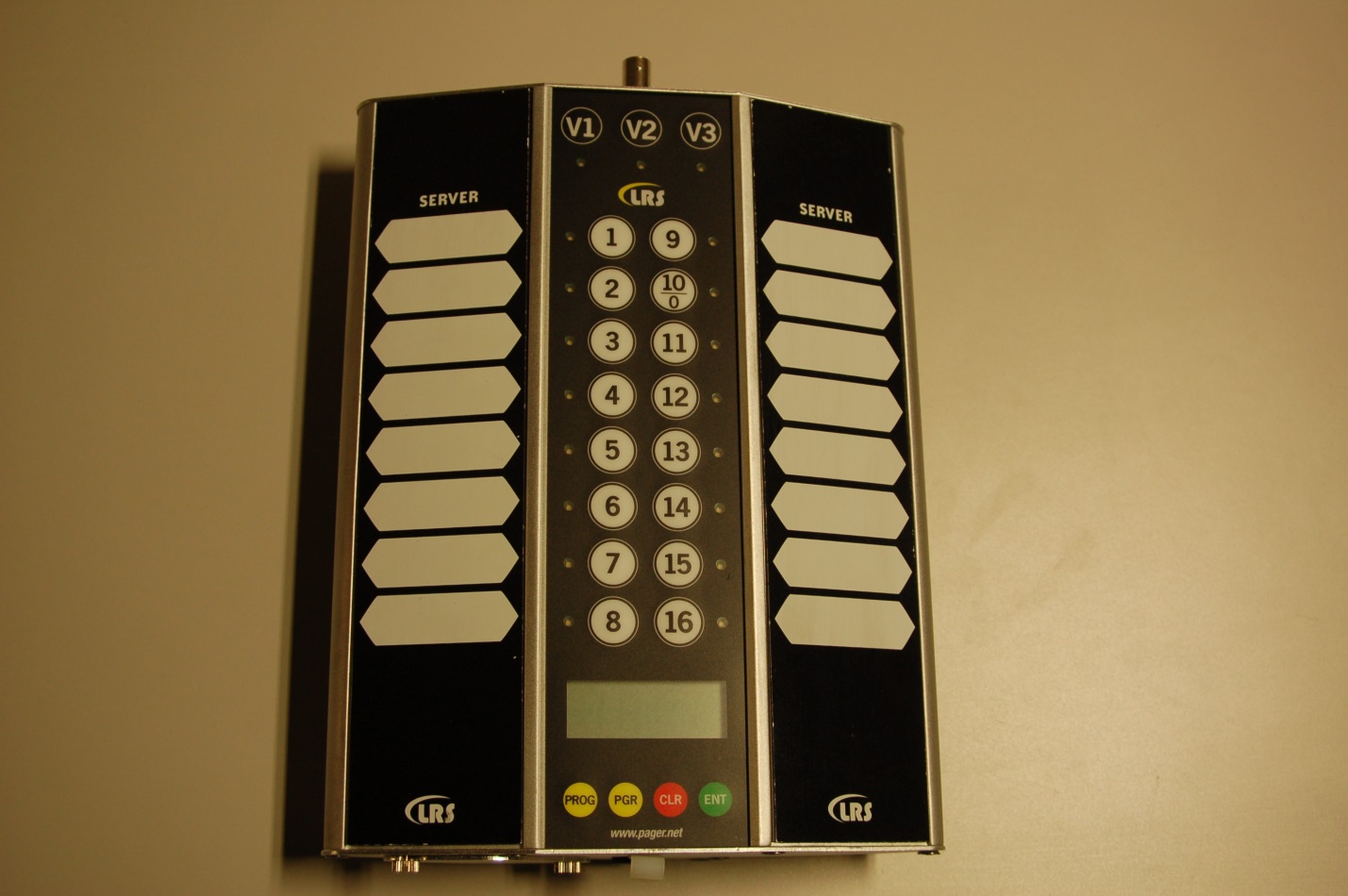

2AB6OTX9601Paging transmitter with keypad and display

SERVER V1 V2 V3 1 2 3 4 5 6 7 8 9 1 0 1 1 1 2 1 3 1 4 1 5 1 6 P R O G P G R C L R E N T w w w . p a g e r . n e t Usage, Installation, Warranty and Service Information Long Range Systems, LLC 4550 Excel Parkway, Suite 200 Addison, TX 75001 800.437.4996 • www.pager.net T9601 Paging System Transmitter USER MANUAL Warranty Long Range Systems, LLC permits a one-year manufacturer’s warranty following the original consumer purchase date of any LRS sys- tem. Any individual components or products purchased will receive a 30-day manufacture warranty. This warranty covers any defects due to faulty material or workmanship, but does not include damage to the product resulting from accident, misuse or improper elec- trical connection. If the product or system should become defective within the warranty period, we will repair or replace with equiva- lent equipment, free of charge. We will pay transportation charges to return your product via standard FedEx Ground shipping, provided the product is shipped prepaid to: Long Range Systems, LLC 4550 Excel Pkwy, Suite 200 Addison, TX 75001 No return or replacement can be received without prior authorization from the LRS Customer Support department or without the proper RMA# posted on the outside of the shipping container. Contact Customer Support at 800.437.4996 or www.pager.net. This warranty gives you specific legal rights and you may also have rights that vary by state. Copyright © 2014, Long Range Systems, LLC All Rights Reserved This manual contains proprietary information of Long Range Systems, LLC (LRS) and is intended for use only by its employees or cus- tomers. None of the material contained herein may be copied, reproduced, republished, downloaded, displayed, posted, or transmit- ted in any form or by any means, including but not limited to, electronic, mechanical, photocopying, recording, or otherwise without the prior written permission of LRS. Additional copies of this manual may be obtained by contacting LRS. Screen displays, keyboard layouts, hardware descriptions, or software are proprietary to LRS and are subject to copyright and other in- tellectual property rights of LRS and shall be treated in accordance with the previous paragraph. All attempts have been made to make the information in this document complete and accurate. LRS is not responsible for any direct or indirect damages or loss of business resulting from inaccuracies or omissions. Specifications and other information contained within this document are subject to change without notice. Long Range Systems, LLC. reserves the right to make changes without further notice to any products herein. LRS, LLC makes no war- ranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does LRS, LLC assume any li- ability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation consequential or incidental damages. “Typical” parameters that may be provided in LRS, LLC data sheets and/or specifica- tions can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typi- cals”, must be validated for each customer application by customer’s technical experts. LRS, LLC products are not designed, intended, or authorized for use as components in systems intended to support or sustain life, or for any other application in which the failure of the LRS, LLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use LRS, LLC prod- ucts for any such unintended or unauthorized application, Buyer shall indemnify and hold LRS, LLC and its officers, employees, sub- sidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that LRS, LLC was negligent regarding the design or manufacture of the part, device or system. RF Warning Statement: 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a par- ticular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. RF exposure statement: This device must be operated in a stationary table top or wall mount configuration and should not be held or carried while in opera- tion. The user is cautioned to observe a minimum separation distance of at least 1 centimeter from the antenna to user extremities (fin- gers, hands) and maintain a separation of at leas…

Text truncated - open the document above for the full version.

16005 TX‐9601 External Photographs Page 1 of 3 16005 TX‐9601 External Photographs Page 2 of 3 16005 TX‐9601 External Photographs Page 3 of 3 ***

Long Range Systems LABEL ART AND SPECS 06-19-14 TX-9601 FCC Label Placement & Dimensions Label goes here 2.0” x 0.50” Material: 2 Mil Digipro DGPWS Polyester white gloss DPM 94 lb, High perf, aggressive permanent adhesive – FLX015412 5 Mil 3M FV02610N Clear Textured Vinyl Laminate Clear Poly liner FCC ID: 2AB6OTX9601 MODEL: TX-9601

16005 TX‐9601 Internal Photographs Page 1 of 3 16005 TX‐9601 Internal Photographs Page 2 of 3 16005 TX‐9601 Internal Photographs Page 3 of 3 ***

16005 TX‐9601 SAR Exclusion Page 1 of 1 SAR Exclusion Justification for FCC ID 2AB6OTX9601 Test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm Guidance document reference: 447498 D01 General RF Exposure Guidance v05r01, page 11, paragraph 4.3.1(1). The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. SAR test exclusion analysis: Assumptions: Since the exact separation distance may vary from sensor to sensor, the minimum separation distance of 5 mm is assumed per the guidance document. Max. power of channel: 10 mW Min. separation distance: 5 mm Max. frequency: 0.46775 GHz Calculation: [(Pwr/Dist)*Sqrt(Freq.)] = 1.367, or rounded to 1.4 The result of the above SAR threshold calculation demonstrates that the result is less than the 1‐g numeric threshold of 3 and the 10‐g numeric threshold of 7.5. Conclusion: The above analysis shows that the digital transmission system transceiver with FCC ID 2AB6OTX9601 qualifies for exemption from SAR testing. ***

1601 North A.W. Grimes Blvd., Suite B Round Rock, TX 78665 e-mail: [email protected] (512) 244-3371 Fax: (512) 244-1846 June 25, 2014 John Weber Long Range Systems, LLC 4550 Excel Parkway Suite 200 Addison TX 75001 Dear John: Thank you for allowing Professional Testing (EMI), Inc. an opportunity to perform testing for Long Range Systems, LLC. Enclosed is the Wireless Certification Report for the TX-9601 Paging System Transmitter. This report can be used to demonstrate compliance with FCC requirements for wireless devices in the United States. If you have any questions, please contact me. Sincerely, Jeffrey A. Lenk President Attachment Wireless Certification Report for the TX-9601 by Long Range Systems, LLC 16005-15 Page 2 of 38 Project 15689-10 TX-9601 Paging System Transmitter Wireless Certification Report Prepared for: Long Range Systems, LLC By Professional Testing (EMI), Inc. 1601 North A.W. Grimes Blvd., Suite B Round Rock, Texas 78665 June 25, 2014 Reviewed by Written by Larry Finn Regulatory Design Engineer Eric Lifsey Test Engineer Wireless Certification Report for the TX-9601 by Long Range Systems, LLC 16005-15 Page 3 of 38 Revision History Revision Number Description Date 00 Reviewed and released. June 25, 2014 Wireless Certification Report for the TX-9601 by Long Range Systems, LLC 16005-15 Page 4 of 38 Table of Contents Revision History ............................................................................................................................................................ 3 Certificate of Compliance ............................................................................................................................................. 5 1.0 Introduction.......................................................................................................................................................... 6 1.1 Scope ............................................................................................................................................................... 6 1.2 EUT Description ............................................................................................................................................. 6 1.3 EUT Operation ................................................................................................................................................ 6 1.4 Modifications to Equipment ............................................................................................................................ 7 1.5 Test Site .......................................................................................................................................................... 7 2.0 Applicable Documents and Clauses ..................................................................................................................... 8 3.0 Conducted Output Power [90.205] ...................................................................................................................... 9 3.1 Procedure ........................................................................................................................................................ 9 3.2 Criteria ............................................................................................................................................................ 9 3.3 Results ............................................................................................................................................................. 9 4.0 Emission Mask [90.217(b)] ............................................................................................................................... 10 4.1 Procedure ...................................................................................................................................................... 10 4.2 Criteria .......................................................................................................................................................... 10 4.3 Results ........................................................................................................................................................... 10 5.0 Spurious Emissions at Antenna Terminals [90.217(b)] ..................................................................................... 11 5.1 Procedure ...................................................................................................................................................... 11 5.2 Criteria .......................................................................................................................................................... 11 5.3 Results ........................................................................................................................................................... 11 6.0 Field Strength of Radiated Unintentional Emissions – Idle Mode [15.109] ...................................................... 14 6.1 Procedure ...................................................................................................................................................... 14 6.2 Criteria .......................................................................................................................................................... 14 6.3 Results ........................................................................................................................................................... 14 7.0 Field Strength of Radiated Spurious Emissions – Transmit Mode [90.217(b)] ................................................. 19 7.1 Procedure ...................................................................................................................................................... 19 7.2 Criteria .......................................................................................................................................................... 19 7.3 Results ...................…
