2AD8UFZPFWIC01Flexi Zone Indoor Pico BTS

Date: 2015-04-27 GENERAL DECLARATION We,Nokia Solutions and Networks. declare that the device does not support any non-US channels in all the operational mode(s) for the following product. FCC ID: 2AD8UFZPFWIC01 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! ----------------------------------- Terry Schwenk Title: R&D Engineer – Regulatory Compliance Nokia Solutions and Networks TEL: 1.847.809.6952 FAX: 1.224.248.8208 E-mail: [email protected] We, Nokia Solutions and Networks. declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product.

Declaration Letter Date: June 8, 2015 We, Nokia Solutions and Networks. declare that the product will be used in the system operators service area. Currently the end product is a non‐consumer product, certified and housed in a sealed enclosure, and is only accessible and installed by trained /approved maintenance personnel. This product is not marketed or available to the general public. FCC ID: 2AD8UFZPFWIC01 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! Terry Schwenk Title: R&D Engineer – Regulatory Compliance Nokia Solutions and Networks TEL: 1.847.809.6952 FAX: 1.224.248.8208 E‐mail: [email protected]

AGENCY AUTHORIZATION LETTER Date: 2015-04-21 FCC ID: 2AD8UFZPFWIC01 To whom it may concern: We, the undersigned, hereby authorize Amanda Wu of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Amanda Wu of BV CPS Taoyuan on our behalf shall have the same effect as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, Terry Schwenk Title: R&D Engineer – Regulatory Compliance Nokia Solutions and Networks TEL: 1.847.809.6952 FAX: 1.224.248.8208 E-mail: [email protected]

Request for Confidentiality Date: June 8, 2015 Confidentiality Request for: FCC ID: 2AD8UFZPFWIC01 IC: 109D-FZPFWIC01 To Whom It May Concern, Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, Nokia Solutions and Networks requests that a part of the subject FCC and/or IC application listed below be held permanently confidential and permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. •Operational Description •Block Diagram •Schematics/Parts List •User Manual •Internal Photos •Tune-up procedure •Operational description Confidentiality of the User Manual is maintained by requiring that any party that is supplied a user manual must first sign a non-disclosure agreement. Currently only cellular system operators have access to these manuals. Internal photos are kept confidential by virtue of the fact that the end product is a non-consumer product, certified and housed in a sealed enclosure, and is only accessible by trained /approved maintenance personnel. Further, the Applicant has spent substantial effort in developing this product, some aspects of which are deemed to be trade secret and proprietary. Having the subject information easily available to our competitors in this market would negate the advantage we have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Sincerely yours, Terry Schwenk Title: R&D Engineer – Regulatory Compliance Nokia Solutions and Networks TEL:1.847.809.6952 FAX: 1.224.248.8208 E-mail: [email protected] ΘʳSoftware operation description

Federal Communications Commission Authorization and Evaluation Division Date: May 4, 2015 Confidentiality Request FCC ID: 2AD8UFZPFWIC01 Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos Thank you! Sincerely yours, Terry Schwenk Title: R&D Engineer – Regulatory Compliance Nokia Solutions and Networks TEL: 1.847.809.6952 FAX: 1.224.248.8208 E-mail: [email protected]

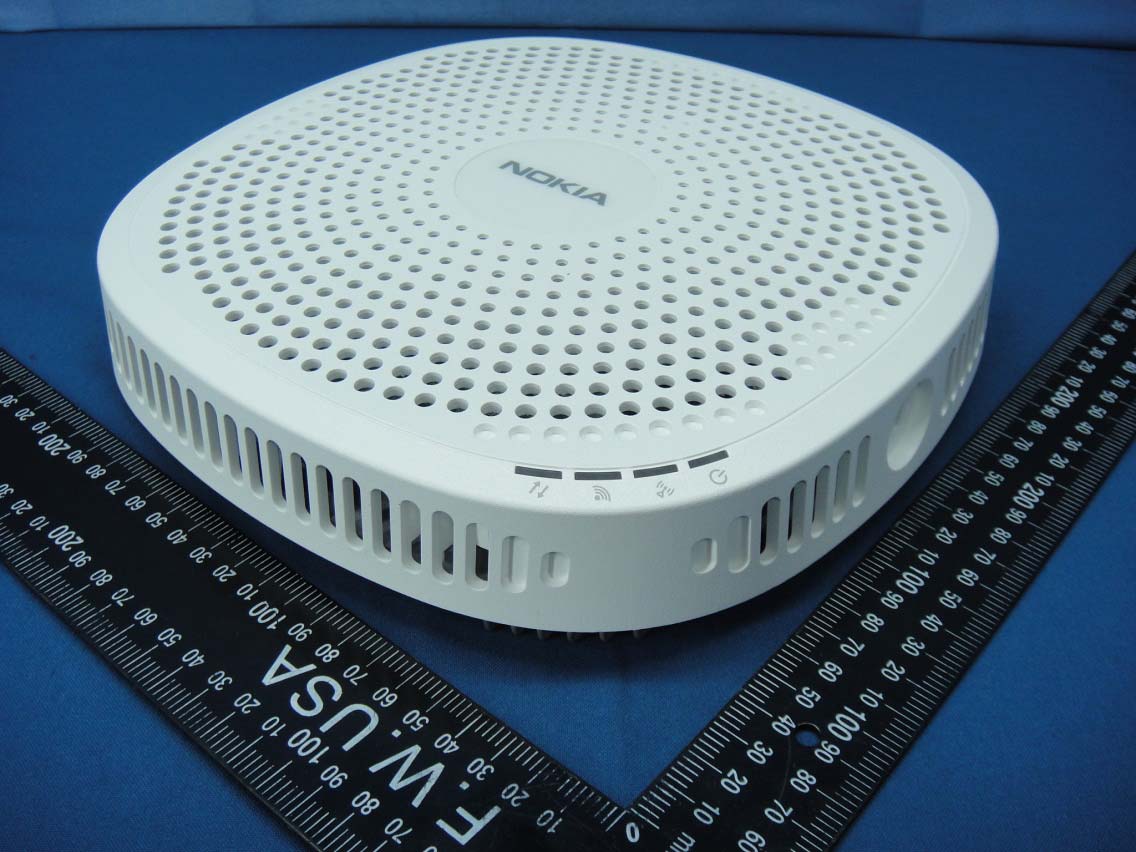

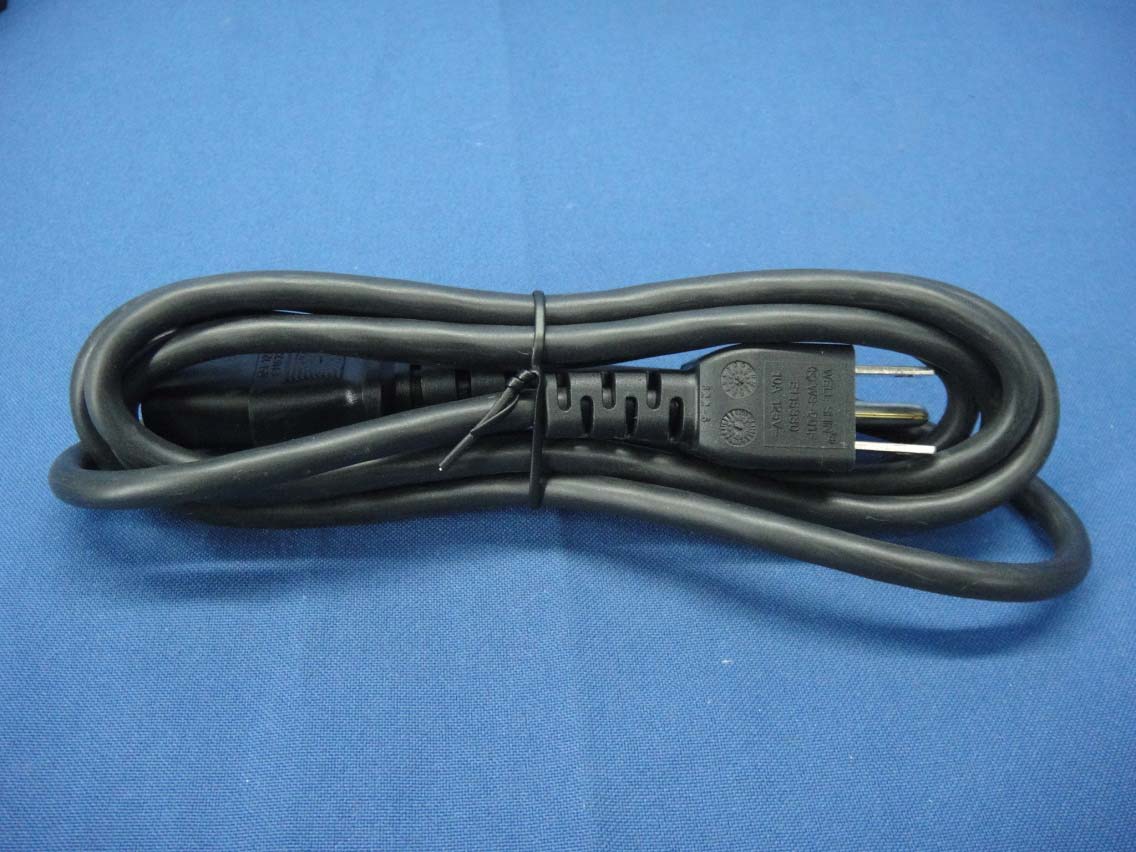

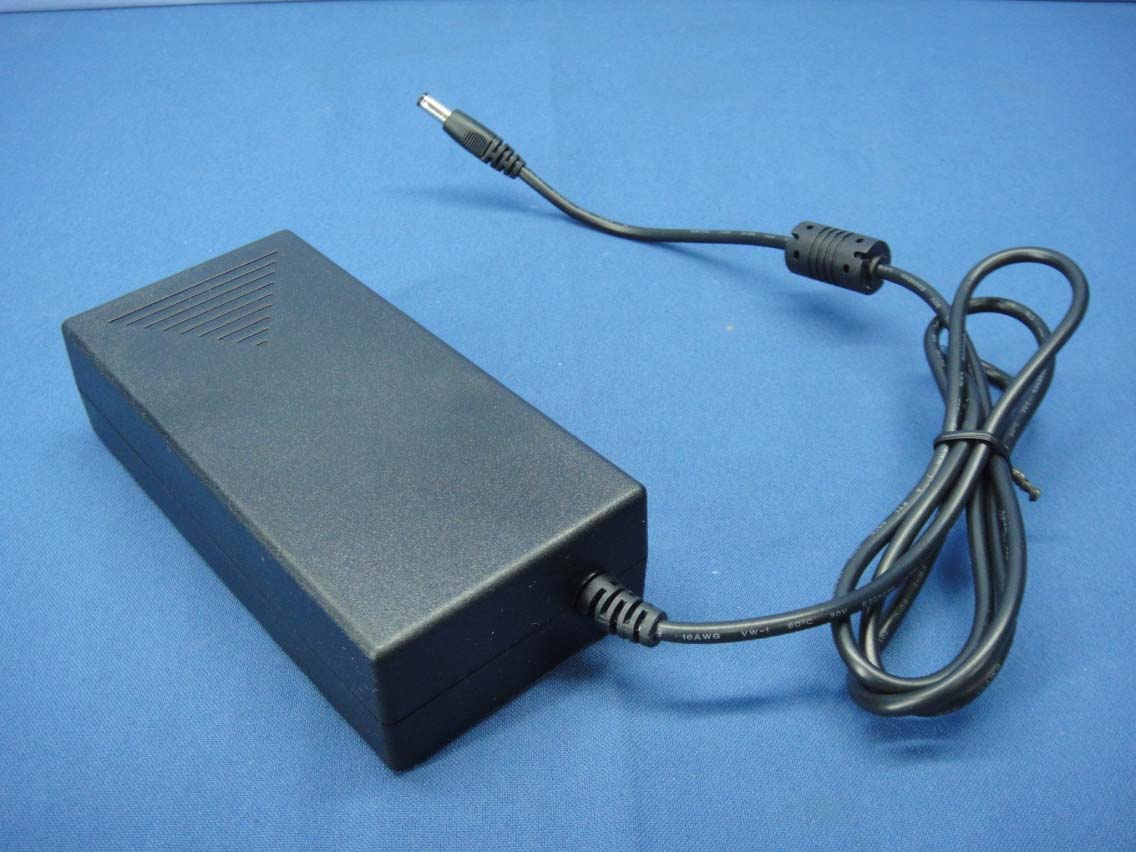

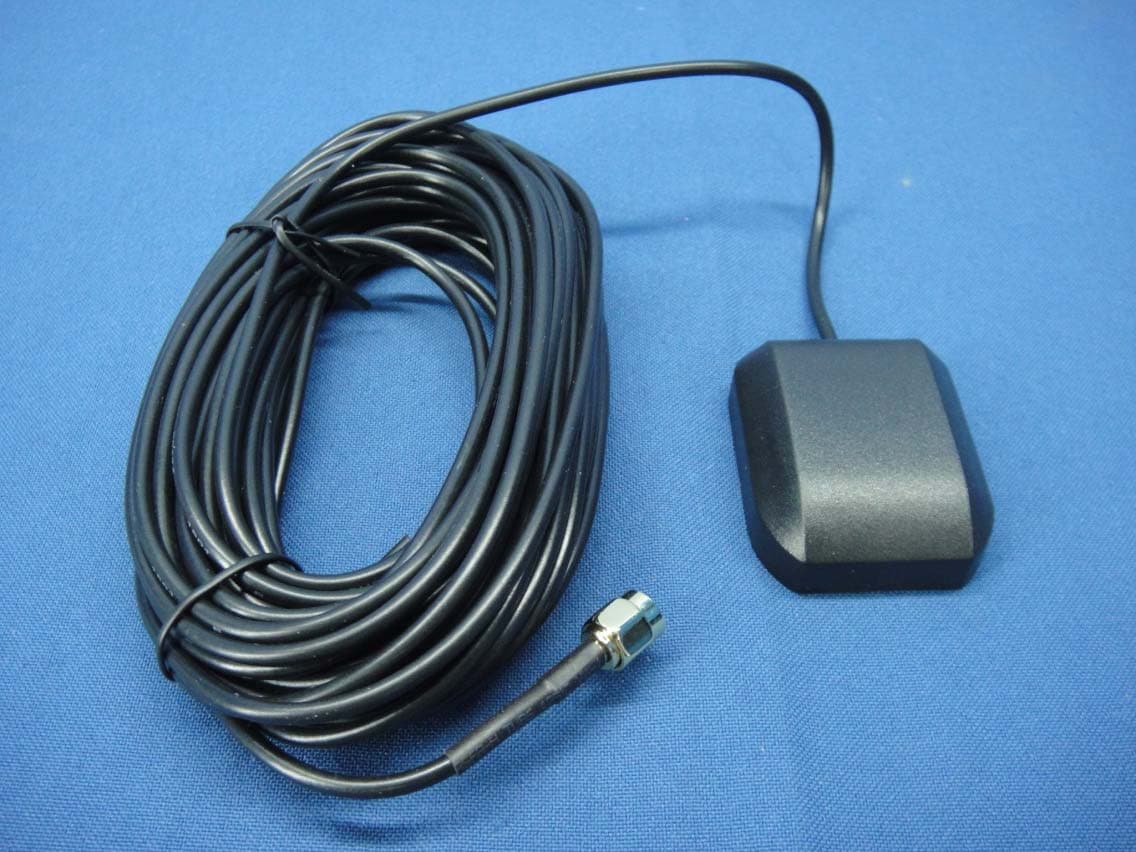

Report No. : 150326E02 Page 1 CONSTRUCTION PHOTOS OF EUT FZP top FZP bottom Rev 1.0 Report No. : 150326E02 Page 2 FZP I/O port Rev 1.0 Report No. : 150326E02 Page 28 Adaptor bottom Adaptor top Rev 1.0 Report No. : 150326E02 Page 29 Adaptor label Power cord Rev 1.0 Report No. : 150326E02 Page 30 GPS external antenna Rev 1.0

(Fig. 1) FCC ID: 2AD8UFZPFWIC01 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label © Nokia 2014 For internal use Confirmed Coverage •Canada •Colombia •U.S. Unconfirmed Coverage Not Covered Flexi Zone Pico Indoor Label Detail FD Band 4

Report No.: SA150326E02 Page No. 1 / 10 Report Format Version: 6.1.1 RF Exposure Report Report No.: SA150326E02 FCC ID: 2AD8UFZPFWIC01 Test Model: FWIC Received Date: Mar. 26, 2015 Test Date: Apr. 01 to 17, 2015 Issued Date: June 02, 2015 Applicant: Nokia Solutions and Networks Address: 1455 West Shure Drive, Arlington Heights, IL 60004, USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies Report No.: SA150326E02 Page No. 2 / 10 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 3 Antenna Gain ......................................................................................................................................... 6 4 Calculation Result (For FCC) ............................................................................................................... 7 5 Calculation Result (For Canada) ......................................................................................................... 8 6 Calculation Result (For Europe) .......................................................................................................... 9 7 Brief Summary of results ................................................................................................................... 10 Report No.: SA150326E02 Page No. 3 / 10 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SA150326E02 Original release. June 02, 2015 Report No.: SA150326E02 Page No. 5 / 10 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as fixed station and installations by professional service persionnel device. Report No.: SA150326E02 Page No. 6 / 10 Report Format Version: 6.1.1 3 Antenna Gain The antenna provided to the EUT, please refer to the following table: LTE Antenna Spec. Antenna No Brand Model Antenna Type Antenna Connector Gain(dBi) <Including cable loss> Cable Length (mm) Frequency (MHz) Internal LTE (Main) TongDa T-543-8141050-6 PIFA i-pex(MHF) 4.9 50 1710~2390 (Band 4) Internal LTE (Aux) T-543-8141050-7 4.6 190 1710~2390 (Band 4) WLAN Antenna Spec. Antenna No Brand Model Antenna Type Antenna Connector Gain(dBi) <Including cable loss> Cable Length (mm) Frequency (MHz) Internal WIFI (Main) TongDa T-543-8141037-3 PIFA i-pex(MHF) 3.3 90 2412~2472 2.4 5150~5825 Internal WIFI (Aux) TongDa T-543-8141037-4 PIFA i-pex(MHF) 3 70 2412~2472 2.9 5150~5825 GPS Antenna Spec. Antenna No Brand Model Antenna Type Antenna Connector Gain(dBi) <Including cable loss> Cable Length (mm) Frequency (MHz) External GPS Ant TongDa T-543-8141037-9 ElecPatch SMA Male 4.0 9140 ± 100 GPS：1575.42 ± 3 MHz Glonass：1602 ± 8 MHz BT Antenna Spec. Antenna No Brand Model A…
