2AEBL-D04011Smart Access Point Pro with Wi-Fi and Bluetooth

Deutsch Smart Access Point Pro Anschluss und Bedienung 1USB-Anschluss (reserviert) 2Sabotagekontakt 3Statusanzeige 4 Binäreingang (Wenn zum Beispiel die Alarmanlage eines Drittanbieters aktiviert wird, erhält die gekoppelte Welcome- APP eine Benachrichtigung.) 5 Binärausgang (Wenn zum Beispiel eine Tür geöffnet wird, wird die Alarmanlage eines Drittanbieters deaktiviert oder das Smart-Home-System ausgelöst.) 6Reset-Taster 7 Schalter für den Betrieb im AP-Modus Wenn der AP-Modus aktiviert ist, blinkt die LED rot 8Anschluss für Micro-SD-Karte (reserviert) 9 Sicherheitsschalter ON = erlaubt keine neuen Geräte; OFF = erlaubt neue Geräte (Standardeinstellung) 10Netzanschluss (DC-Eingangsbuchse) 11LAN (PoE) 12LAN (Reserved) EU-Konformitätserklärung (vereinfacht) ABB Xiamen Smart Technology Co., Ltd., erklärt hiermit, dass der Smart Access Point Pro D04011 die Richtlinie 2014/53/EU erfüllt. Der vollständige Text der EU-Konformitätserklärung ist durch Scannen des QR-Codes verfügbar. Technische Daten Nennspannung 24 V⎓ Betriebsspannungsber eich 20-27 V⎓ Nennstrom 24 V⎓, 375 mA PoE StandardIEEE802.3 af Drahtlos- Übertragungsfrequenz 802.11b/g/n: 2412...2472MHz 802.11a/n: 5150...5250MHz 5250...5350MHz 5470...5725MHz Drahtlos- Übertragungsleistung Max. 20 dBm@12 Mbps OFDM 2.4 G Max. 20 dBm@12 Mbps OFDM 5.8 G Drahtlos- Übertragungsstandard IEEE 802.11 a/b/g/n Umgebungstemperatur-10 °C...+45 °C Lagertemperatur-25 °C...+70 °C IP-LevelIP 30 IK-LevelIK 05 Relaisausgang 30 V⎓, 1 A Potentialfreie Kontakteingabe 5 V⎓, 1mA Bluetooth-Daten Bluetooth-Standard4.2 Frequenzbereich2.402...2.480 GHz SendeleistungMaximum 8 dBm EmpfangsempfindlichkeitMinimum -92 dBm English Smart Access Point Pro Connection and operation 1USB stick connector (reserved) 2Tamper switch 3Status indicator 4 Binary input (e.g. if 3rd-party alarm system is arming, paired Welcome APP will receive a notification.) 5 Binary output (e.g. if door is opened, the 3rd-party alarm system is disarmed or smart home system is triggered.) 6Reset button 7 Switch for operation in AP mode When AP mode is activated, LED flashes red light. 8Micro SD card connector (reserved) 9 Security switch ON = does not allow new devices OFF = allows new devices (default) 10Power input connector (DC-JACK input) 11LAN (PoE) 12LAN (Reserved) FCC ID: 2AEBL-D04011 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. The complete of FCC information is available at the package shipped with the product. EU declaration of conformity (simplified) ABB Xiamen Smart Technology Co., Ltd., herewith declares that Smart Access Point Pro D04011 conform to directive 2014/53/EU. The complete of the EU declaration of conformity is available by scanning the QR code. Manufacturer ABB Xiamen Smart Technology Co., Ltd. Address: No.7 Fangshan South Road, Xiang An, Xiamen, Fujian, China Post Code: 361000 Technical data Rating voltage 24 V⎓ Operating voltage range 20-27 V⎓ Rating current 24 V⎓, 375 mA PoE standardIEEE802.3 af Wireless transmission band 802.11b/g/n: 2412...2462MHz (for United States) 2412...2472MHz (for European countries) 802.11a/n: 5150...5250MHz 5250...5350MHz 5470...5725MHz 5725...5850MHz (for United States) Wireless transmission power Max. 20 dBm@12 Mbps OFDM 2.4 G Max. 20 dBm@12 Mbps OFDM 5.8 G Wireless transmission standard IEEE 802.11 a/b/g/n Operating temperature-10 °C...+45 °C Storage temperature-25 °C...+70 °C IP levelIP 30 IK levelIK 05 Relay output 30 V⎓, 1 A Dry contact input 5 V⎓, 1mA Bluetooth data Bluetooth standard4.2 Frequency range2.402...2.480 GHz TX powerMaximum 8 dBm RX sensitivityMinimum -92 dBm 中文 智能网关-Pro 接口与操作 1USB stick接口 (预留) 2防拆开关 3状态指示灯 4 二进制输入 (例如第三方报警系统被触发的时候，匹配的 Welcome APP会收到通知) 5 二进制输出 (例如门锁开的时候，第三方报警系统被撤防或者 智能家居系统被触发) 6复位按钮 7 AP模式开关 当AP模式被激活，LED灯闪红色 8Micro SD card connector (reserved) 9 Security switch ON = does not allow new devices OFF = allows new devices (default) 10电源输入接口 (DC-JACK输入) 11LAN (PoE) 12LAN (预留) 制造商 厦门ABB智能科技有限公司 地址：厦门市翔安区火炬园舫山南路7号 邮政编码：361000 电话：+86 592-5758713 / 5758913传真：+86 592-5625072 服务热线：800-820-9696 / 400-820-9696 技术参数 额定电压 24 V⎓ 工作电压范围 20-27 V⎓ 额定电流 24 V⎓, 375 mA PoE标准IEEE802.3 af 无线发射频带 802.11b/g/n: 2412...2462MHz (for United States) 2412...2472MHz (for European countries) 802.11a/n: 5150...5250MHz 5250...5350MHz 5470...5725MHz 5725...5850MHz (for United States) 无线发射功率 Max. 20 dBm@12 Mbps OFDM 2.4 G Max. 20 dBm@12 Mbps OFDM 5.8 G 无线发射标准IEEE 802.11 a/b/g/n 环境温度 -10 °C...+45 °C 储存温度-25 °C...+70 °C IP等级 IP 30 IK等级IK 05 继电器输出 30 V⎓, 1 A 干接点输入 5 V⎓, 1mA 蓝牙参数 蓝牙标准 4.2 频段 2.402...2.480 GHz 发送功率最大 8 dBm 接收灵敏度最小 -92 dBm Italiano Smart Access Point Pro Collegamento e uso 1Collegamento USB (riservato) 2Contatto antisabotaggio 3Indicazione di stato 4 Ingresso binario (se, ad esempio, l'impianto di allarme di un operatore terzo viene attivato, l'APP Welcome collegata riceve un avviso). 5 Uscita binaria (se, ad esempio, si apre una porta, l'impianto di allarme di un operatore terzo viene disattivato o il sistema Smart Home viene azionato). 6Pulsante Reset 7 Interruttore modalità punto di accesso Quando la modalità AP è attivata, il LED lampeggia a luce rossa 8Micro SD card connector (reserved) 9 Security switch ON = does not allow new devices OFF = allows new devices (default) 10Branchement secteur (prise d'alimentation DC) 11LAN (PoE) 12LAN (Reserved) Dichiarazione di conformità UE (semplificata) ABB Xiamen Smart Technology Co., Ltd., dichiara con la presente che il ripetitore Smart Access Point Pro D04011 è conforme alla Direttiva 2014/53/UE. Per consultare il testo completo della dichiarazione di conformità UE scansionare il codice QR. Technical data Valore di tensione 24 V⎓ Range di tensione di esercizio 20-27 V⎓ Corrente nominale 24 V⎓, 375 mA Standard PoEIEEE802.3 af Frequenza di trasmissione senza fili 802.11b/g/n: 2412...2462MHz (for United States) 2412...2472MHz (for European countries) 802.11a/n: 5150...5250MHz 5250...5350MHz 5470...5725MHz 57…

Text truncated - open the document above for the full version.

2TMU200000M0001100 D e u t s c h GEFAHR Hinweis Bei direktem oder indirektem Kontakt mit spannungsführenden Teilen kommt es zu einer gefährlichen Körperdurchströmung. Elektrischer Schock, Verbrennungen oder der Tod können die Folge sein. Bei unsachgemäß ausgeführten Arbeiten an spannungsführenden Teilen besteht Brandgefahr. – Vor Montage und Demontage Netzspannung freischalten! – Arbeiten am 100-240 V-Netz nur von Fachpersonal ausführen lassen. Das Erstellen und Speichern von Bildaufnahmen sowie Benutzerdaten kann Persönlichkeitsrechte verletzen! Beachten Sie bei Aufstellung und Betrieb von Geräten immer die geltenden Rechtsvorschriften.

Date (2020-06-01) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2AEBL-D04011 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, (ABB Xiamen Smart Technology Co., Ltd., No.7 Fangshan South Road, Torch High Technology, Development Zone (Xiang An), Industrial Zone, 361000 Xiamen S.E.Z, Fujian Province, PEOPLE'S REPUBLIC OF CHINA) hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: ShanShan.Wang Telephone Number: 0592-7616016 Email: [email protected]

5G Wi-Fi Declaration Letter Federal Communications Commission 2020-06-01 Oakland Mills Road Columbia MD 21046 Model：D04011 FCC ID: 2AEBL-D04011 Subject: Software security requirements for U-NII device. The information within this section of the Operational Description is to show compliance against the Software Security Requirements laid out within KDB 594280 D02 U-NII Device Security v01r03. General Description 1. Describe how any software/firmware update will be obtained, downloaded, and installed. Software that is accessed through manufacturer’s website or device’s management system, must describe the different levels of security. The software/firmware update is bundled, as part of the device software update, and the user or installer cannot modify the content. The installation and/or update proceeds automatically once the user accepts to install/update the software/firmware. 2. Describe all the radio frequency parameters that are modified by any software/firmware without any hardware changes. Are these parameters in some way limited, such that, it will not exceed the authorized parameters? The Software/Firmware in the device, controls the following RF parameters: 1. Transmitter Frequency 2. Transmitter Output Power 3. Receiver Frequency 4. Channel Bandwidth 5. RSSI calibration The Software/Firmware controls the RF parameters listed above so as to comply with the specific set of regulatory limits in accordance with the FCC grants issued for this device. The RF parameters are limited to comply with FCC rules and requirements during calibration of the device in the factory. Security keys (certification certificates) are in place to ensure that these parameters cannot be access by the User and/or a 3rd party. 3. Describe in detail the authentication protocols that are in place to ensure that the source of the software/firmware is legitimate. Describe in detail how the software is protected against modification. All software images are digitally signed with public key cryptography. Images are signed by private key stored in securely merged server, and verified by public key stored in a device when they are flashed into the device. 4. Describe in detail the verification protocols in place to ensure that installed software/firmware is legitimate. The same as General Description Q3 5G Wi-Fi Declaration Letter 5. For a device that can be configured as a master and client (with active or passive scanning), explain how the device ensures compliance for each mode? In particular if the device acts as master in some band of operation and client in another; how is compliance ensured in each band of operation? Software/firmware is encrypted by DES3. 3rd Party Access Control 1. Explain if any third parties have the capability to operate a U.S.-sold device on any other regulatory domain, frequencies, or in any manner that may allow the device to operate in violation of the device’s authorization if activated in the U.S. 3rd party does not have the capability 2. Describe, if the device permits third-party software or firmware installation, what mechanisms are provided by the manufacturer to permit integration of such functions while ensuring that the RF parameters of the device cannot be operated outside its authorization for operation in the U.S. In the description include what controls and/or agreements are in place with providers of third-party functionality to ensure the devices’ underlying RF parameters are unchanged and how the manufacturer verifies the functionality. 3rd party cannot access SW/FW 3. For Certified Transmitter modular devices, describe how the module grantee ensures that hosts manufactures fully comply with these software security requirements for U-NII devices. If the module is controlled through driver software loaded in the host, describe how the drivers are controlled and managed such that the modular transmitter parameters are not modified outside the grant of authorization. Not applicable – this is not a modular device SOFTWARE CONFIGURATION DESCRIPTION 1. To whom is the UI accessible? (Professional installer, end user, other.) N/A a) What parameters are viewable to the professional installer/end-user? N/A b) What parameters are accessible or modifiable to the professional installer? N/A 5G Wi-Fi Declaration Letter i) Are the parameters in some way limited, so that the installers will not enter parameters that exceed those authorized? N/A ii) What controls exist that the user cannot operate the device outside its authorization in the U.S.? N/A c) What configuration options are available to the end-user? N/A i) Are the parameters in some way limited, so that the installers will not enter parameters that exceed those authorized? N/A ii) What controls exist that the user cannot operate the device outside its authorization in the N/A U.S.? N/A d) Is the country code factory set? Can it be changed in the UI? N/A i) If so, what controls exist to ensure that the device can only operatewithin its authorization in the U.S.? N/A e) What are the default parameters when the device is restarted? N/A 2. Can the radio be configured in bridge or mesh mode? If yes, an attestation may be required. Further information is available in KDB Publication 905462 D02. N/A 3. For a device that can be configured as a master and client (with active or passive scanning),if this is user configurable, describe what controls exist, within the UI, to ensure compliance for each mode. If the device acts as a master in some bands and client in others, how is this configured to ensure compliance? N/A Best Regards Name: Shanshan Wang Title: Certification Engineer Company: ABB Xiamen Smart Technology Co.,Ltd. Address: No.7 Fangshan South Road, Torch High Technology, Development Zone (Xiang An), Industrial Zone, 361000 Xiamen S.E.Z, Fujian Province, PEOPLE'S REPUBLIC OF CHINA E-mail: [email protected]

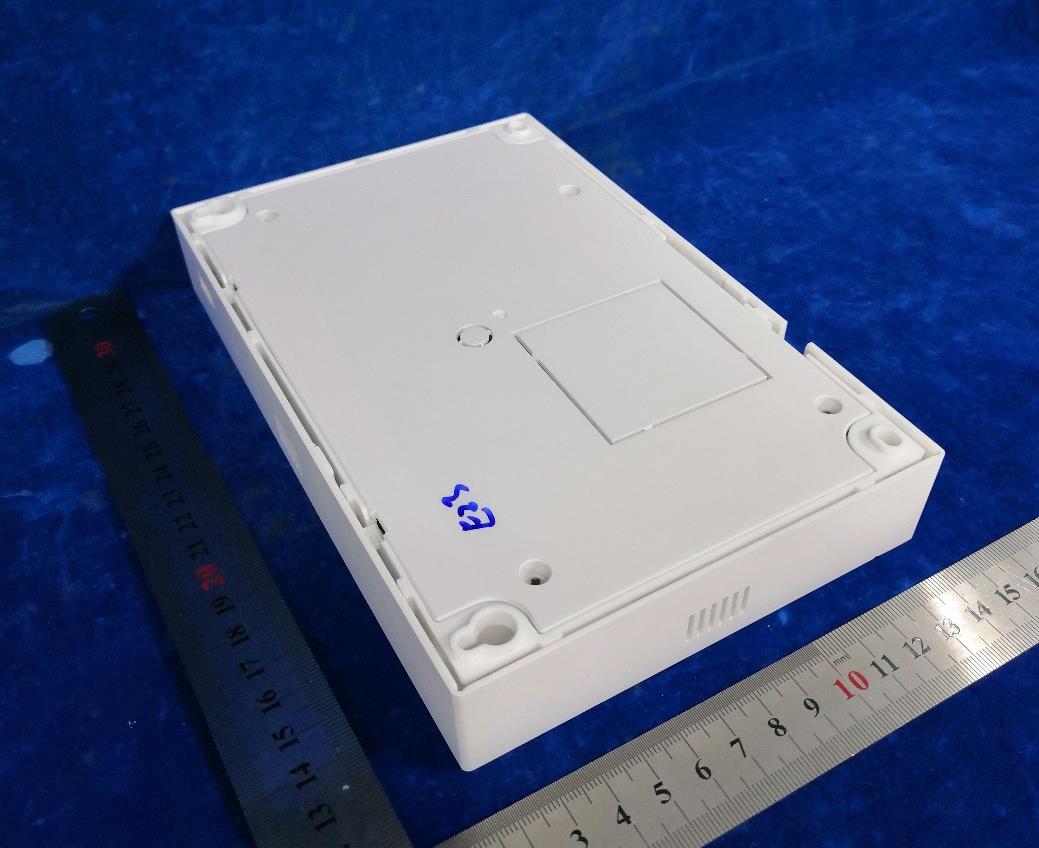

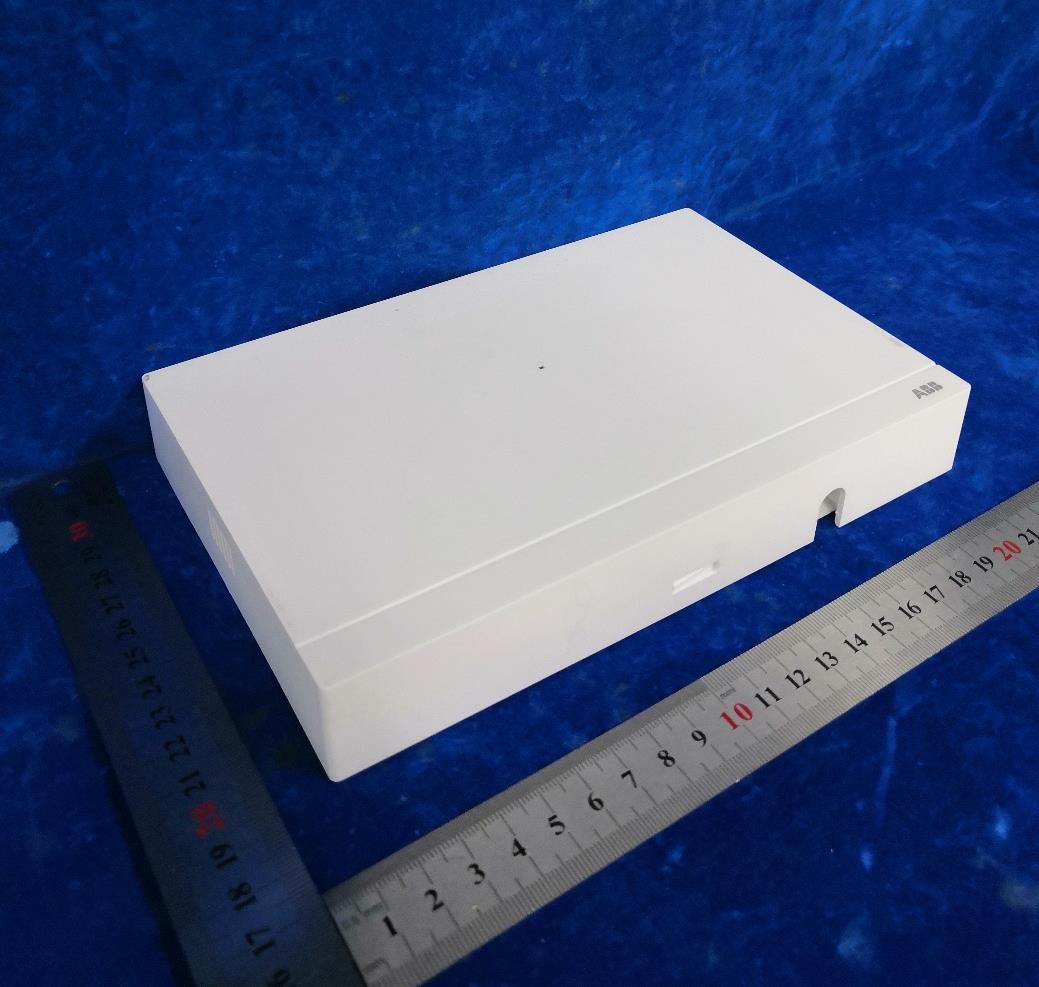

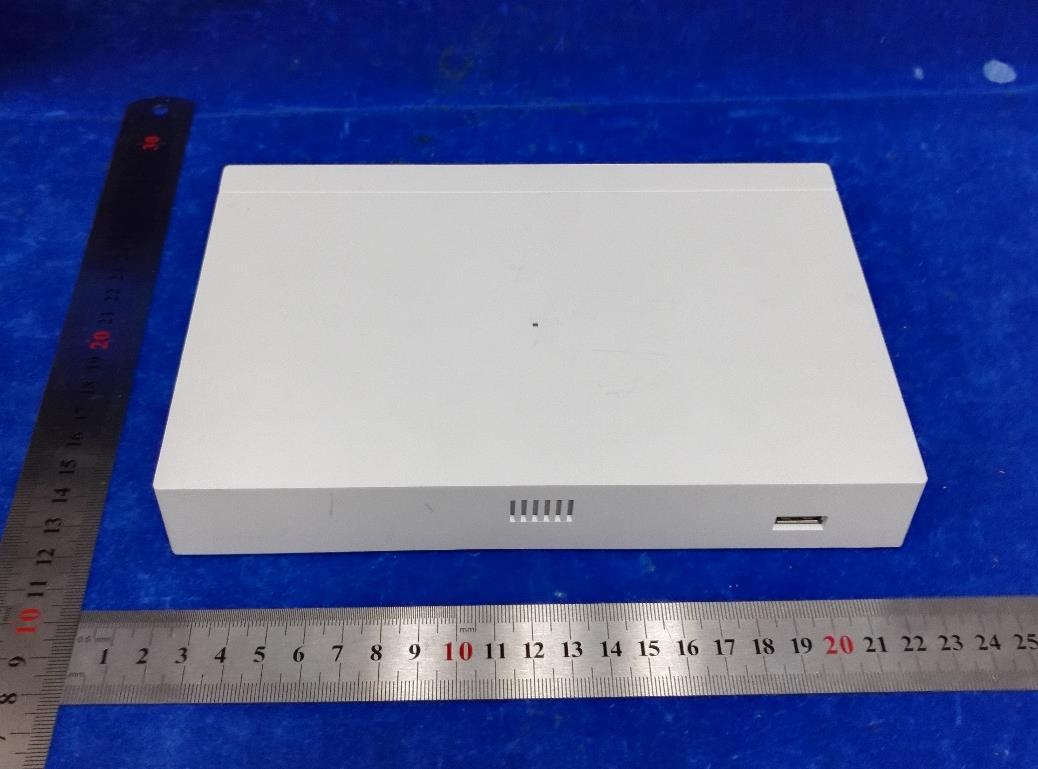

External Photos Page 1 of 2 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 External Photos Page 2 of 2 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478

Internal Photos Page 1 of 9 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Internal Photos Page 2 of 9 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Internal Photos Page 3 of 9 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Internal Photos Page 4 of 9 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Internal Photos Page 5 of 9 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 MCU Internal Photos Page 6 of 9 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 WIFI module WIFI antenna Internal Photos Page 7 of 9 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 WIFI antenna WIFI antenna Antenna 2.4G-1 Antenna 5G Antenna 2.4G-2 Internal Photos Page 8 of 9 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Bluetooth module Internal Photos Page 9 of 9 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Bluetooth antenna

Page 1 of 3 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 MPE Calculation Model : D04011 Product Type : Smart Access Point Pro Applicant : ABB Xiamen Smart Technology Co., Ltd. Manufacturer : ABB Xiamen Smart Technology Co., Ltd. Address : No.7 Fangshan South Road, Torch High Technology, Development Zone (Xiang An), Industrial Zone, 361000 Xiamen S.E.Z, Fujian Province, PEOPLE'S REPUBLIC OF CHINA FCC ID : 2AEBL-D04011 According to subpart 15.247(i), 15.407(f), subpart §1.1307(b)(1) and §2.1091, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. All equipment shall be considered to operate in a “general population/uncontrolled” environment. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1,500 / / f/1500 30 1,500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/(4R²) = power density (in appropriate units, e.g. mW/cm2); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Page 2 of 3 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Calculated Data: For BLE: Maximum peak output power at antenna input terminal (dBm): 4.01 Maximum peak output power at antenna input terminal (mW): 2.52 Prediction distance (cm): 20 Antenna Gain, typical (dBi): 1 Maximum Antenna Gain (numeric): 1.26 The worst case is power density at predication frequency at 20 cm (mW/cm2): 6.32x 10 -4 MPE limit for general population exposure at prediction frequency (mW/cm2): 1.0 6.32x 10 -4 (mW/cm2) < 1 (mW/cm2) For 2.4G WIFI: Ant1: Maximum peak output power at antenna input terminal (dBm): 18.89 Maximum peak output power at antenna input terminal (mW): 77.4 Prediction distance (cm): 20 Antenna Gain, typical (dBi): 3.6 Maximum Antenna Gain (numeric): 2.29 The worst case is power density at predication frequency at 20 cm (mW/cm2): 0.035 MPE limit for general population exposure at prediction frequency (mW/cm2): 1.0 Ant2: Maximum peak output power at antenna input terminal (dBm): 18.95 Maximum peak output power at antenna input terminal (mW): 78.5 Prediction distance (cm): 20 Antenna Gain, typical (dBi): 3.6 Maximum Antenna Gain (numeric): 2.29 The worst case is power density at predication frequency at 20 cm (mW/cm2): 0.036 MPE limit for general population exposure at prediction frequency (mW/cm2): 1.0 0.036 (mW/cm2) < 1 (mW/cm2) For 5G WIFI: Maximum output power at antenna input terminal (dBm): 20.40 Maximum peak output power at antenna input terminal (mW): 109.6 Prediction distance (cm): 20 Antenna Gain, typical (dBi): 4.2 Maximum Antenna Gain (numeric): 2.63 The worst case is power density at predication frequency at 20 cm (mW/cm2): 0.057 MPE limit for general population exposure at prediction frequency (mW/cm2): 1.0 0.057 (mW/cm2) < 1 (mW/cm2) Page 3 of 3 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 For simultaneous transmission: BLE and 2.4G WIFI and 5G WIFI transmit at the same time: The total power density at predication frequency at 20 cm (mW/cm2): 6.32x10 -4 +0.035+0.036+0.057=0.128632 MPE limit for general population exposure at prediction frequency (mW/cm2): 1.0 0.128632 (mW/cm2) < 1 (mW/cm2) Result: Compliant TUV SUD China, Guangzhou Branch Reviewed by: Prepared By: Tony Liu / Project Reviewer Kevin Ouyang / Project Handler Date: 2020-07-06 Date: 2020-07-06

Report Number: 64.790.19.00122.02-2Page 1 of 50 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 FCC - TEST REPORT Report Number:64.790.19.00122.02-2Date of Issue:2020-07-06 Model:D04011 Product Type:Smart Access Point Pro Applicant:ABB Xiamen Smart Technology Co., Ltd. Manufacturer:ABB Xiamen Smart Technology Co., Ltd. Address: No.7 Fangshan South Road, Torch High Technology,Development Zone (Xiang An), Industrial Zone, 361000 Xiamen S.E.Z, Fujian Province, PEOPLE'S REPUBLIC OF CHINA Test Result:PositiveNegative Total pages including Appendices:50 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 64.790.19.00122.02-2Page 2 of 50 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 1.Table of Contents 1.TABLE OF CONTENTS ................................................................................................ 2 2.DETAILS ABOUT THE TEST LABORATORY ............................................................. 3 3.SUMMARY OF TEST STANDARDS ............................................................................ 6 4.SUMMARY OF TEST RESULTS .................................................................................. 7 5.GENERAL REMARKS .................................................................................................. 8 6.TECHNICAL REQUIREMENT ...................................................................................... 9 8.1.Conducted Emission ..................................................................................................... 9 8.2.Emission bandwidth .................................................................................................... 12 8.3.Maximum conducted output power ........................................................................... 13 8.4.Maximum power spectral density .............................................................................. 14 8.5.Unwanted emissions ................................................................................................... 15 8.6.Band Edge .................................................................................................................... 43 8.7.Frequencies Stability ................................................................................................... 44 8.8.Dynamic Frequency Selection (DFS) ....................................................................... 45 7.TEST EQUIPMENT LIST ............................................................................................ 49 8.SYSTEM MEASUREMENT UNCERTAINLY .............................................................. 50 Report Number: 64.790.19.00122.02-2Page 3 of 50 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 2.Details about the Test Laboratory Details about the Test Laboratory FCC Registration Number: 514049 IC Registration No: 10320A Report Number: 64.790.19.00122.02-2Page 4 of 50 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 DESCRIPTIONMODEL NO.(SHIELD)MANUFACTURER IP touch 7, LAN+WiFi, T-loopH8236-.ABB IP touch 10, LAN /W LANH8237-.ABB IP touch 7, LAN+LAN, T-loopH8236-*ABB IP touch 10, LAN / LANH8237-*ABB Outdoor station Bar pushbutton module5138.SP.ABB Outdoor station Round pushbutton module5138.RP.ABB Outdoor station keypad module5138.K-.ABB System controllerYSM01ABB POE SwitchTL-SL1218PTP-LINK Test software information: Test Software VersionTI_Wireless_Tools_3.0.2.1 ModulationSetting TX PowerModePacket Type 802.11a17Continuous6 Mbps 802.11n HT2017ContinuousMCS0Mbps 802.11n HT4017ContinuousMCS0 Mbps Report Number: 64.790.19.00122.02-2Page 5 of 50 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Test channel: Test ModeChannel (MHz) 802.11a, 802.11n HT20 5G WIFI-Band 1 CH36 (5180MHz)CH40 (5200MHz)CH46 (5240MHz) 5G WIFI-Band 2 CH52 (5260MHz)CH56 (5280MHz)CH64 (5320MHz) 5GWIFI-Band 3 CH100 (5500MHz)CH116 (5580MHz)CH140 (5700MHz) CH 142 (5710MHz) 5G WIFI-Band 4 CH149 (5745MHz),CH157(5785MHz)CH165 (5825MHz) Test ModeChannel (MHz) 802.11n HT405G WIFI-Band 1 CH38(5190MHz)CH46 (5230MHz) 5GWIFI-Band 2 CH54(5270MHz)CH62(5310MHz) 5G WIFI-Band 3 CH102(5510MHz)CH110(5550MHz)CH134(5670MHz) CH 14…

Text truncated - open the document above for the full version.

Report Number: 64.790.18.04286.02-2 Appendix Page 1 of 60 Appendix A1: Emission Bandwidth Test Result Report Number: 64.790.18.04286.02-2 Appendix Page 2 of 60 Test Graphs Report Number: 64.790.18.04286.02-2 Appendix Page 3 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 4 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 5 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 6 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 7 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 8 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 9 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 10 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 11 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 12 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 13 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 14 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 15 of 60 Appendix A2: Occupied channel bandwidth Test Result Report Number: 64.790.18.04286.02-2 Appendix Page 16 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 17 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 18 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 19 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 20 of 60

Report Number: 64.790.18.04286.02-2 Appendix Page 21 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 22 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 23 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 24 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 25 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 26 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 27 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 28 of 60 Appendix A3: Min emission bandwidth Test Result Report Number: 64.790.18.04286.02-2 Appendix Page 29 of 60 Test Graphs Report Number: 64.790.18.04286.02-2 Appendix Page 30 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 31 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 32 of 60 Appendix B: Maximum conducted output power Test Result Report Number: 64.790.18.04286.02-2 Appendix Page 33 of 60 Appendix C: Maximum power spectral density Test Result Report Number: 64.790.18.04286.02-2 Appendix Page 34 of 60 Test Graphs Report Number: 64.790.18.04286.02-2 Appendix Page 35 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 36 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 37 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 38 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 39 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 40 of 60

Report Number: 64.790.18.04286.02-2 Appendix Page 41 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 42 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 43 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 44 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 45 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 46 of 60 Appendix D: Band edge measurements Test Result Report Number: 64.790.18.04286.02-2 Appendix Page 47 of 60 Report Number: 64.790.18.04286.02-2 Appendix Page 48 of 60 Test Graphs Report Number: 64.790.18.04286.02-2 Appendix Page 49 of 60 Report Number: 64.7…
