2AEBL-M2131Mini video outdoor station

English Mini Video Outdoor Station Warning Risk of death and fire due to electrical voltage of 100- 240V.  Work on the 100-240V supply system may only be performed by authorized electricians!  Disconnect the mains power supply prior to installa- tion and/or disassembly!  Please read the mounting instructions carefully and keep them for future use.  Detailed user manual is available via the link in chapter "Service" or by scanning the QR codes (device with corresponding software is required). Intended use The outdoor station is part of the ABB-Welcome door communication system and operates exclusively with components from this system. The device must only be used with suitable ABB-Welcome surface- mounted installation sockets. Mini video outdoor station has 1/2 round pushbuttons, light switch or calling guard programmable for the button, built-in ID card reader and up to 2 locks connections. Technical data Single-wire clamps 2 x 0.28 mm² – 2 x 0.75 mm²; Fine-wire clamps 2 x 0.28 mm² – 2 x 0.75 mm²; Bus voltage 20-30V DC Protection IP 54 Power supply ,door opener (Lock-GND) 18V 4A impulsive, 250mA holding Floating output, door opener (COM-NC-NO) 30V AC / DC 1A Operating temperature -40 °C – +70 °C -40 °F– 158 °F Addressing For outdoor stations: With the selector switch 1 set the address of the outdoor station (1 to 9). For indoor stations: With the left selector switch 2 set the address of the default outdoor station (1 to 9). Then use the other two selector switches and dip-switches 3 to set the address (hundreds, tens and units digits e.g. 001) of the indoor station. Mounting & Connection 1 Connector for device software update 2 Rotary switch to set the address of OS (1-9) 3 Set feedback tone of pushbutton: ON/OFF 4 Set general call to all indoor stations in one family: ON/OFF If GC=ON, press button 1/button 2, all IS ring 5 Configuration function of 1st/2nd round pushbutton 5A Mini Video Outdoor Station with one push botton 3 -> OFF; 4 -> OFF = Call IS 001 3 -> ON; 4 -> OFF = Switch on light 3 -> OFF; 4 -> ON = Call guard unit 3 -> ON; 4 -> ON = Call IS 001 5B Mini Video Outdoor Station with two push botton 3 -> OFF; 4 -> OFF = Call IS 001/002 3 -> ON; 4 -> OFF = Switch on light/call IS 001 3 -> OFF; 4 -> ON = Call guard unit/call IS 001 3 -> ON; 4 -> ON = Call IS 001/call IS 002 6 Set the video mode PAL/NTSC OFF = PAL video mode ON = NTSC video mode 7 Set default lock OFF = set (Lock-GND) as default lock ON = set (COM-NC-NO) as default lock *Default lock is controlled by "unlock" button on IS 8 Plug-in clamps (a,b) for bus connection 9 Plug-in clamps (Exit-GND) for exit button 10 Plug-in clamps (Lock-GND) for door opener 11 Plug-in clamps (COM-NC-NO) for floating output, door opener 12 Rotary switch to adjust default door lock release time, 1-10s 13 Rotary switch to adjust loudspeaker volume Operation 1 LED flashed slowly to indicate call established LED flashed fast to indicate system busy 2 LED illuminate to indicate communication possible 3 LED illuminate to indicate door unlocked 4 If round pushbutton with ID card reader，please find the details in outdoor station manual. Service ABB Genway Xiamen Electrical Equipment CO., LTD. http://new.abb.com/low-voltage/products/residential-products/door- communication Español Estación al Aire Libre de Mini Video Advertencia   Riesgo de muerte y fuego causado por voltaje eléctrico de 100-240V  ¡Sólo se permite que electricistas autorizados operan el sistema de potencia de operación de 100-240V!  ¡Desconectar la fuente de potencia principal antes de instalación y/o desmontaje!   Por favor, lea las instrucciones de montaje y guárdelas para ser usadas en el futuro.  El manual de usuario puede ser descargado en www.abb.es. Uso indicado La estación al aire libre es parte del sistema de interfonía de ABB- Welcome y funcionamiento exclusivo con componentes de este sistema El dispositivo sólo se debe utilizar con zócalos de instalación de montaje en superficie de ABB-Welcome adecuados. Mini estación al aire libre de vídeo tiene 1/2 pulsadores redondos, interruptor de iluminación o bloqueo de llamada programable para el botón, una función de lector de tarjeta de identificación y hasta 2 conexiones cerraduras. Datos Técnicos Abrazaderas de un solo alambre 2 x 0.28 mm² – 2 x 0.75 mm²; Abrazaderas alambre fino 2 x 0.28 mm² – 2 x 0.75 mm²; Tensión de bus 20-30V DC Protección IP 54 Fuente de alimenta- ción, apertura de puerta (Lock-GND) Impulsivo 18V 4A, Retención 250mA Salida flotante, apertura de puerta (COM-NC-NA) 30V CA / CD 1A Temperatura de fun- cionamiento -40 °C – +70 °C -40 °F– 158 °F Direccionamiento Para las estaciones al aire libre: Con el selector 1 se establece la dirección de la estación al aire libre (1 a 9). Para las estaciones de interior: Con el interruptor de selección izquierdo 2 se establece la dirección de la estación al aire libre predeterminada (1 a 9). A continuación, utilice los otros dos interruptores 3 para establecer la dirección (cientos, decenas y dígitos de unidades por ejemplo, 001) de la estación interior. Montaje y Conexión 1 Conector para la actualización del software del dispositivo 2 Interruptor giratorio para ajustar la dirección del OS (1-9) 3 Ajustar el tono de retroalimentación del botón de pulsado: ON/OFF 4 Ajustar la llamada general a toda la estación interior en un solo grupo: ON/OFF Si GC=ON, pulse el botón 1/botón 2, todo timbre IS 5 La función de configuración del primer/segundo botón de pulsado redondo 5A Estación al aire libre de Mini Video con un botón de pulsado 3 -> OFF; 4 -> OFF = Llamada IS 001 3 -> ON; 4 -> OFF = Encender la luz 3 -> OFF; 4 -> ON = Unidad de bloqueo de llamada 3 -> ON; 4 -> ON = Llamada IS 001 5B Mini Video Estación al aire libre con dos botones pulsado 3 -> OFF; 4 -> OFF = llamada IS 001/002 3 -> ON; 4 -> OFF = Encender luz/llamada IS 001 3 -> OFF; 4 -> ON = Boqueo de llamadas unidad/llamada IS 001 3 -> ON; 4 -> ON = Llamada IS 001/llamada IS 002 6 Ajustar el modo de video …

Text truncated - open the document above for the full version.

Date: December 10, 2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, ABB Genway Xiamen Electrical Equipment Co.,Ltd, Room 501-1,No.12-14,3rd Chuang Xin Road,Torch High Technology Development Zone, hereby authorize TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd, Huangpu West Ave. Guangzhou 510656 P. R. China Peter Jia Phone: +86 20 3815 3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C 862 because of conviction for possession or distribution of controlled substance. This authorization is application to product: Product name: Mini video outdoor station Model name: M2131.P.-. FCC ID: 2AEBL- M2131 Product name: Pushbutton module, with NFC/IC card reader Model name: 51012P. FCC ID: 2AEBL- 51012P This authorization expires one year from the current date. Yours sincerely, Signature: Signed by (printed name): ShanshanWang Email: [email protected] Date: December 10, 2015

Date: December 10, 2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request Product name: Mini video outdoor station Model name: M2131.P.-. FCC ID: 2AEBL- M2131 Product name: Pushbutton module, with NFC/IC card reader Model name: 51012P. FCC ID: 2AEBL- 51012P Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, ABB Genway Xiamen Electrical Equipment Co.,Ltd, Room 501-1,No.12-14,3rd Chuang Xin Road,Torch High Technology Development Zone, on behalf of Icon Health & Fitness hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics PCB layout Parts List Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Signature: Signed by (printed name): ShanshanWang Email: [email protected] Date: December 10, 2015

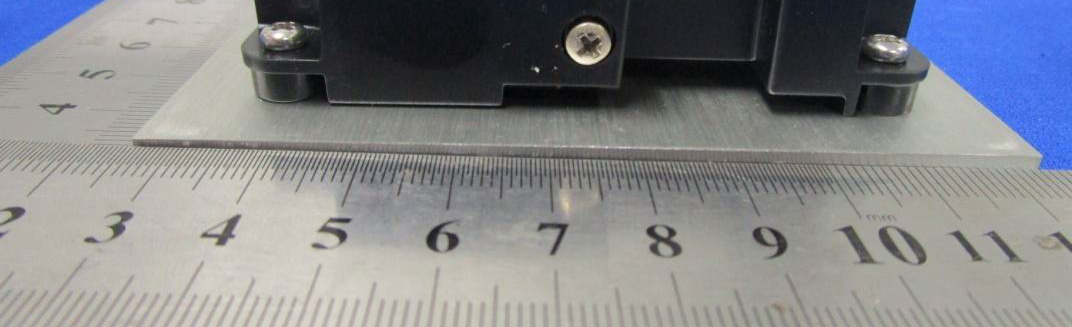

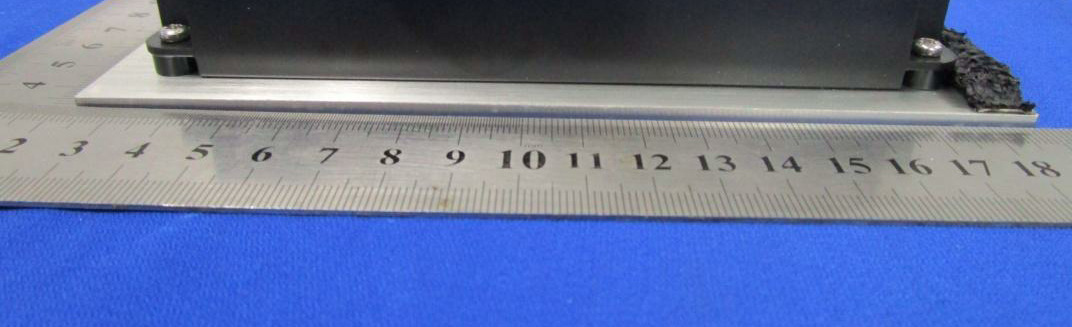

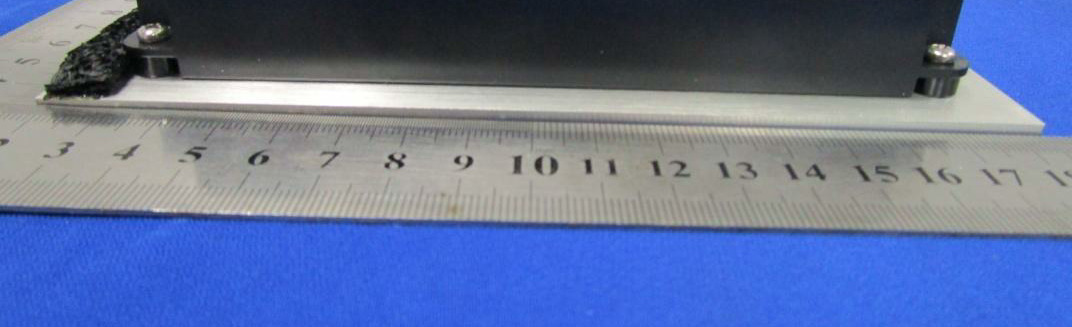

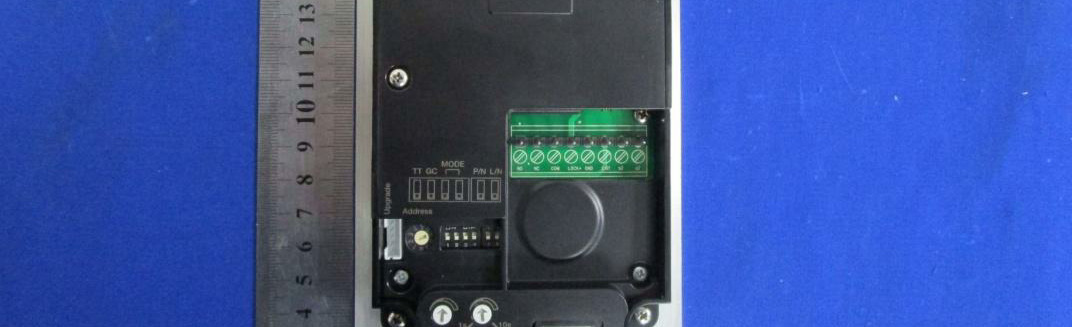

Report Number: 64.790.15.03711.01 Page B1 of B7 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 External photos Front View Back view Report Number: 64.790.15.03711.01 Page B2 of B7 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Side view Report Number: 64.790.15.03711.01 Page B3 of B7 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478

Report Number: 64.790.15.03711.01 Page B4 of B7 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Internal Photos Report Number: 64.790.15.03711.01 Page B5 of B7 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Report Number: 64.790.15.03711.01 Page B6 of B7 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Report Number: 64.790.15.03711.01 Page B7 of B7 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Antenna photo

© ABB Group Operation Description Name：Mini video outdoor station Model：M2131.P.-. This product is a device which act as the video outdoor station in 2-wire system. Its operating supply voltage is 20~30V. It uses the STM32F051R8T6 as the microcontroller. The visitors can call resident by pushing the button. A camera is integrated in the device .The device supports RFID proximity reader for ID card through the ID card reader circuit whose operating frequence is 125KHz. The device has two unlock output interfaces to surport most type of lock.One is relay output,another is DC18V output derectly. The device has a SPI flash to store the voice source and card numbers. The module has a software update. The modulation type is ASK using coil antenna.

Report Number: 64.790.15.03711.01-RF Exposure Page 1 of 2 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 R F E x p o s u r e C o m p l i a n c e R e p o r t Model : M2131.P.-. FCC ID : 2AEBL-M2131 Product Type : Mini video outdoor station Applicant : ABB Genway Xiamen Electrical Equipment Co.,Ltd Address : Room 501-1,No.12-14,3rd Chuang Xin Road,Torch High Technology Development Zone,Xiamen S.E.Z,Fujian Province,P.R.China Production Facility : ABB Genway Xiamen Electrical Equipment Co.,Ltd Address : NO.7 Fangshan South Road,Torch High Technology Development Zone (Xiang An) Industrial Zone,Xiamen S.E.Z,Fujian Province,P.R.China Test Result :  COMPLIED Total pages including Appendices : 2 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Prepared by Approved by Peter Jia Celia Xiang Report Number: 64.790.15.03711.01-RF Exposure Page 2 of 2 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 RF Exposure Compliance Requirement SAR exclusion justification in accordance to KDB 447498 D01 Section 4.3.1: EIRP power = 4.6 x 10 -7 mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 [(4.6 x 10 -7 , mW)/(5, mm)] · [√0.000125(GHz)] ≤ 3.0 1 x 10 -9 ≤ 3.0 Therefore the device meets the FCC SAR exemption requirements

Report Number: 64.790.15.03711.01 Page 1 of 17 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 FCC - TEST REPORT Report Number : 64.790.15.03711.01 Date of Issue: 2015-12-15 Model : M2131.P.-. Product Type : Mini video outdoor station Applicant : ABB Genway Xiamen Electrical Equipment Co.,Ltd Address : Room 501-1,No.12-14,3rd Chuang Xin Road,Torch High Technology Development Zone,Xiamen S.E.Z,Fujian Province,P.R.China Production Facility : ABB Genway Xiamen Electrical Equipment Co.,Ltd Address : NO.7 Fangshan South Road,Torch High Technology Development Zone (Xiang An) Industrial Zone,Xiamen S.E.Z,Fujian Province,P.R.China Test Result :  Positive  Negative Total pages including Appendices : 26 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 64.790.15.03711.01 Page 2 of 17 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 1 Table of Contents 1 Table of Contents ..................................................................................................................................................2 2 Details about the Test Laboratory .........................................................................................................................3 3 Description of the Equipment Under Test .............................................................................................................4 4 Summary of Test Standards ..................................................................................................................................5 5 Summary of Test Results ......................................................................................................................................5 6 General Remarks ...................................................................................................................................................6 7 Test Setups ............................................................................................................................................................7 8 Test Methodology ..................................................................................................................................................8 8.1 Conducted Emission ......................................................................................................................................8 8.2 Radiated Emission .........................................................................................................................................8 8.3 Field Strength Calculation ..............................................................................................................................8 9 Systems test configuration ....................................................................................................................................9 10 Technical Requirement ....................................................................................................................................... 10 10.1 Conducted Emission Measurement ............................................................................................................ 10 10.2 Filed Strength Measurement ....................................................................................................................... 13 10.3 Occupied Bandwidth ................................................................................................................................... 15 11 Test Equipment List ............................................................................................................................................ 17 12 System Measurement Uncertainty ..................................................................................................................... 17 13 Appendix A – Setup Photos .......................................................................................................................... A1-A2 14 Appendix B – EUT Photos ............................................................................................................................ B1-B7 Report Number: 64.790.15.03711.01 Page 3 of 17 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park…

Text truncated - open the document above for the full version.

Report Number: 64.790.15.03711.01 Page A1 of A2 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Setup photo of radiated emission (9KHz-30MHz) Report Number: 64.790.15.03711.01 Page A2 of A2 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Setup photo of conducted emission (150KHz-30MHz)
