2AEBL-M2240Video indoor station 4.3 with 802.11b/g/n

2TMU200000M0001100 D e u t s c h GEFAHR Hinweis Bei direktem oder indirektem Kontakt mit spannungsführenden Teilen kommt es zu einer gefährlichen Körperdurchströmung. Elektrischer Schock, Verbrennungen oder der Tod können die Folge sein. Bei unsachgemäß ausgeführten Arbeiten an spannungsführenden Teilen besteht Brandgefahr. – Vor Montage und Demontage Netzspannung freischalten! – Arbeiten am 100-240 V-Netz nur von Fachpersonal ausführen lassen. Das Erstellen und Speichern von Bildaufnahmen sowie Benutzerdaten kann Persönlichkeitsrechte verletzen! Beachten Sie bei Aufstellung und Betrieb von Geräten immer die geltenden Rechtsvorschriften.

English Video indoor station 4.3, WiFi Operation 14.3" IPS screen 2 Communication button While a call is coming in, press this button to activate the communication within 30 s and press again to end the call. 3 Programmable button 1 ■ Release the 2nd lock of the outdoor station by default ■ Programmable for additional function, e.g. call guard unit, intercom call, control the switch actuator. 4 Unlock button Open the door by pressing this button at any time. 5 Mute button ■ In standby mode, press this button to mute the ringtone of this indoor station. 6 Surveillance button In standby mode, press this button to surveil the outdoor station and external cameras if available. 7Setting button Connection 1 Outdoor station selector switch Set the address of the default outdoor station. 2 Indoor station selector switch Selector switch X10 sets tens digits, selector switch X1 sets units digits, Dip switches X100 and X200 set hundreds digits. 3 Master/slave function switch Only one indoor station in each apartment can be set as "Master" (ON=Master). 4 Terminal resistor switch In video installations or mixed audio and video installations, the switch must be set as 'RC on' on the last device of the line (ON=RC on). 5a, b = bus connector 6a potential free contact, such as a doorbell pushbutton 7Connector for local power supply (for M22403-W only) 8 Setting button Press it to enter the setting mode. 9Microphone 10Speaker EU declaration of conformity (simplified) Hereby, ABB Xiamen Smart Technology Co., Ltd., declares that the radio equipment type Video indoor station 4.3, M2240.-W is in compliance with Directive 2014/53/EU. The complete of the EU declaration of conformity is available by scanning the QR code. Technical data Operating voltage range 20-30 V⎓ Standby current 24 V⎓, 45 mA Operating current 24 V⎓, 330 mA Operating temperature5 °C...+45 °C Display size4.3" Single-wire clamps2 x 0.28 mm 2 ...2 x 0.75 mm 2 Fine-wire clamps2 x 0.28 mm 2 ...2 x 0.75 mm 2 Wireless transmission band 2412...2462MHz (for United States) 2412...2472MHz (for European countries) Wireless transmission power Max. 20 dBm Wireless transmission standard IEEE 802.11 b/g/n Protection IP 30（after complete installation）

Date (2020-06-20) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request Product name: Video indoor station 4.3 Model name: M2240.-W FCC ID:2AEBL-M2240 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, (ABB Xiamen Smart Technology Co., Ltd. No.7 Fangshan South Road Torch High Technology Development Zone (Xiang An) Industrial Zone 361000 Xiamen S.E.Z, Fujian Province PEOPLE'S REPUBLIC OF CHINA) hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Signature: Signed by (printed name): Shanshan Wang Email: [email protected] Date: 2020-06-20

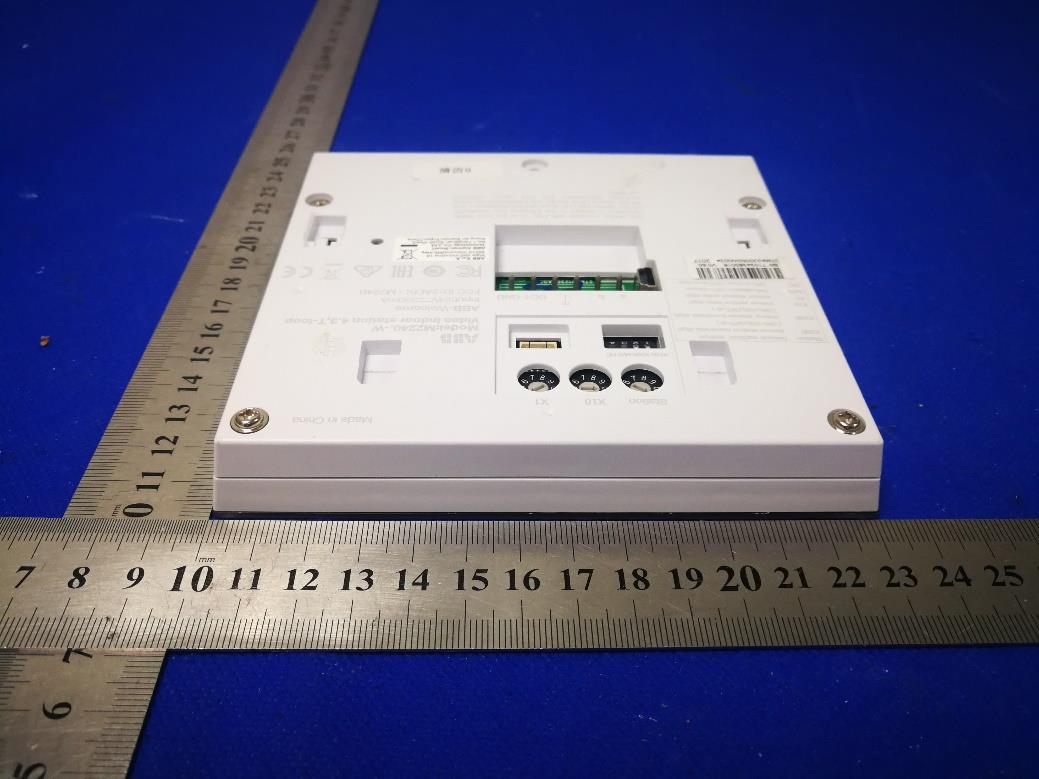

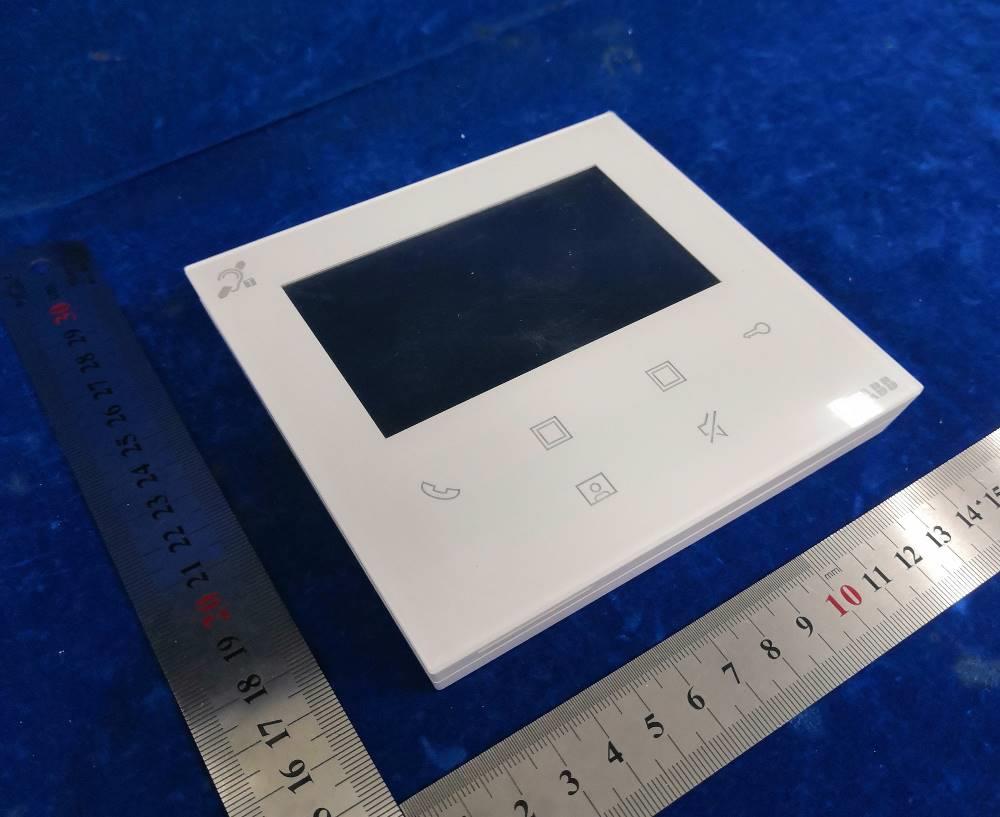

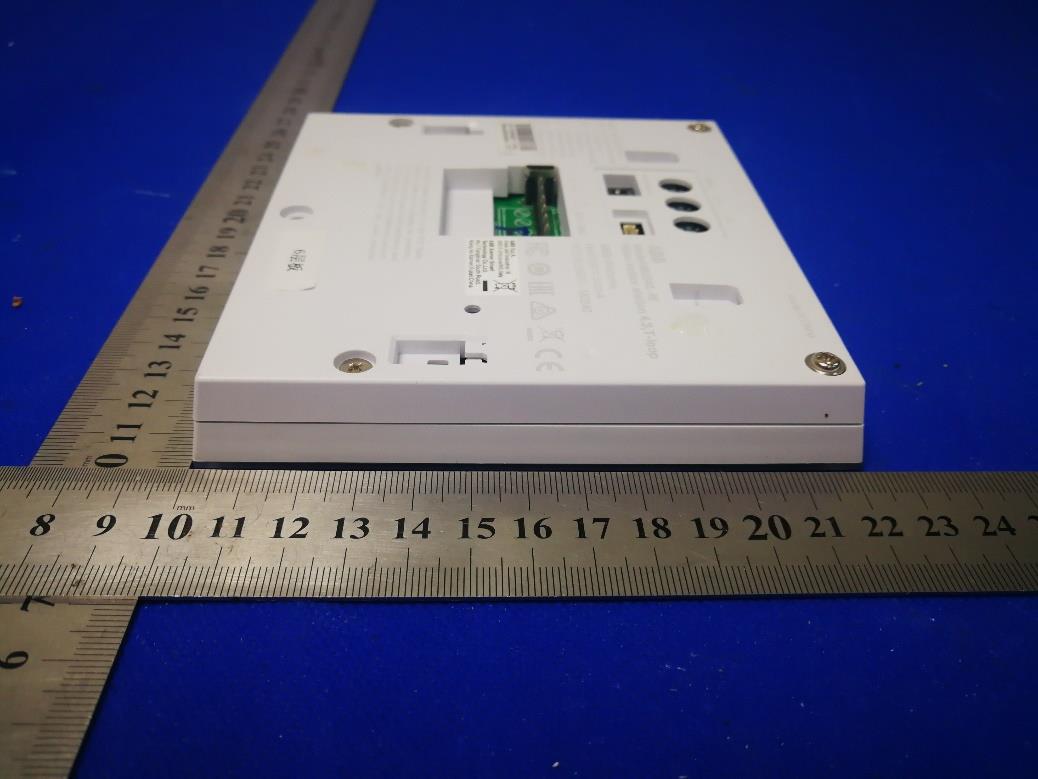

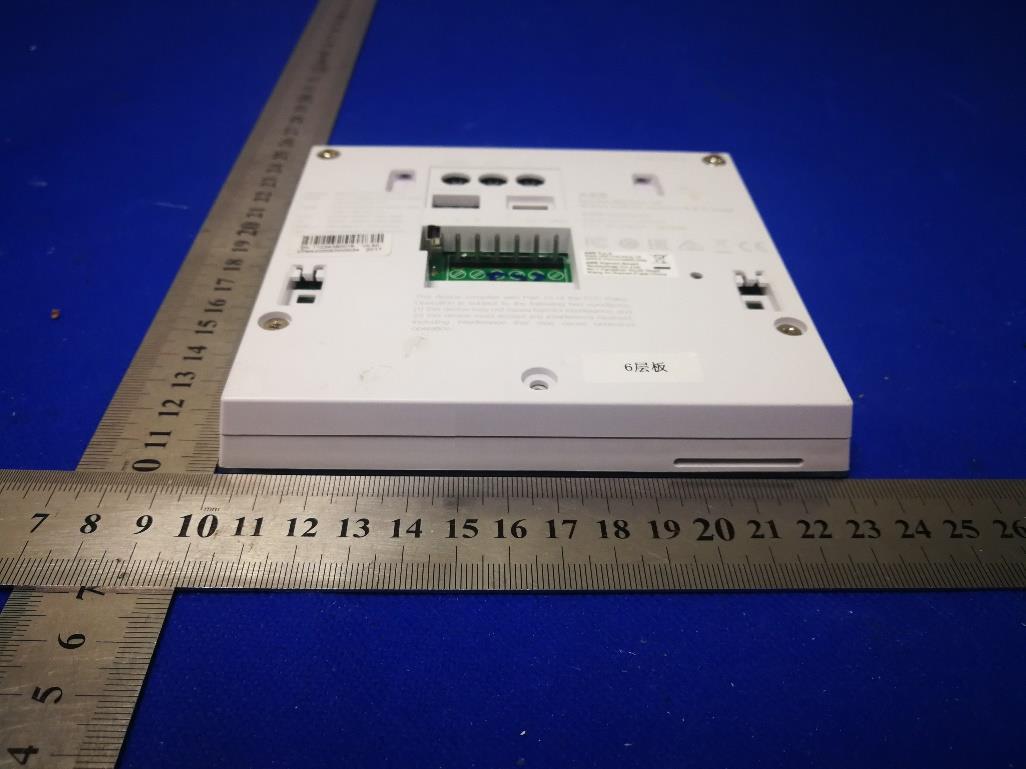

Report Number: 64.790.17.06051.01 Page B1 of B3 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 APPENDIX B Details of: General view (for M2240.-W) Details of: General view (for M2240.-W) Report Number: 64.790.17.06051.01 Page B2 of B3 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Details of: General view (for M2240.-W) Details of: General view (for M2240.-W) Report Number: 64.790.17.06051.01 Page B3 of B3 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Details of: General view (for M2240.-W) Details of: General view (for M2240.-W)

Report Number: 64.790.20.02028.01 Page B1 of B4 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 APPENDIX C INTERNAL PHOTOS Details of: Internal view (for M2240.-W) Details of: PCB view (for M2240.-W) Report Number: 64.790.20.02028.01 Page B2 of B4 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Details of: PCB view (for M2240.-W) Details of: PCB view (for M2240.-W) Report Number: 64.790.20.02028.01 Page B3 of B4 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Details of: PCB view (for M2240.-W) Details of: PCB view of WIFI module (for M2240.-W) Report Number: 64.790.20.02028.01 Page B4 of B4 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Details of: PCB view of WIFI module (for M2240.-W) Details of: PCB view of Antenna (for M2240.-W)

Page 1 of 2 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 MPE Calculation Model : M2240.-W Product Type : Video indoor station 4.3 Applicant : ABB Xiamen Smart Technology Co., Ltd. Address : No.7 Fangshan South Road, Torch High Technology, Development Zone (Xiang An), Industrial Zone, Xiamen, Fujian, China Manufacturer : ABB Xiamen Smart Technology Co., Ltd. FCC ID : 2AEBL-M2240 According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1,500 / / f/1500 30 1,500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/(4R²) = power density (in appropriate units, e.g. mW/cm2); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Page 2 of 2 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Calculated Data: Maximum peak output power at antenna input terminal (dBm): 19.66 Maximum peak output power at antenna input terminal (mW): 92.47 Prediction distance (cm): 20 Antenna Gain, typical (dBi): 2.4 Maximum Antenna Gain (numeric): 1.74 The worst case is power density at predication frequency at 20 cm (mW/cm2): 0.032 MPE limit for general population exposure at prediction frequency (mW/cm2): 1.0 0.032 (mW/cm2) < 1 (mW/cm2) Result: Compliant TUV SUD China, Guangzhou Branch Reviewed by: Prepared By: Tony Liu / Reviewer Kevin Ouyang / Project Engineer Date: 2020-07-06 Date: 2020-07-06

Report Number: 64.790.20.02028.01 Page 1 of 57 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 FCC- TEST REPORT Report Number : 64.790.20.02028.01 Date of Issue: July 3, 2020 Model : M2240.-W Product Type : Video indoor station 4.3 Applicant : ABB Xiamen Smart Technology Co., Ltd. Address : No.7 Fangshan South Road, Torch High Technology, Development Zone (Xiang An), Industrial Zone, Xiamen, Fujian, China Production Facility : ABB Xiamen Smart Technology Co., Ltd. Address : No.7 Fangshan South Road, Torch High Technology, Development Zone (Xiang An), Industrial Zone, Xiamen, Fujian, China Test Result : ◼ Positive  Negative Total pages including Appendices : 57 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 64.790.20.02028.01 Page 2 of 57 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 1 Table of Contents 1 Table of Contents ..................................................................................................................................................2 2 Details about the Test Laboratory .........................................................................................................................3 3 Description of the Equipment under Test ..............................................................................................................4 4 Summary of Test Standards .................................................................................................................................5 5 Summary of Test Results ......................................................................................................................................6 6 General Remarks ..................................................................................................................................................7 7 Test Setups ...........................................................................................................................................................8 8 Systems test configuration ....................................................................................................................................9 9 Technical Requirement ...................................................................................................................................... 10 9.1 Conducted Emission .................................................................................................................................. 10 9.2 Conducted peak output power ................................................................................................................... 13 9.3 6dB and 99% bandwidth ............................................................................................................................ 18 9.4 Power spectral density ............................................................................................................................... 26 9.5 Spurious RF conducted emissions ............................................................................................................. 30 9.6 Band edge .................................................................................................................................................. 41 9.7 Spurious radiated emissions for transmitter ............................................................................................... 44 10 Test Equipment List ........................................................................................................................................ 56 11 System Measurement Uncertainty ................................................................................................................. 57 Report Number: 64.790.20.02028.01 Page 3 of 57 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China FCC Registration Number: 514049 Telephone: 86 755 8828 6998 Fax: 86 755 8828 5299 Report Number: 64.790.20.02028.01 Page 4 of 57 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86…

Text truncated - open the document above for the full version.

Report Number: 64.790.20.02028.01 A1 of A2 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 APPENDIX A SETUP PHOTOS Radiated emission Below 1GHz 1GHz – 18GHz Report Number: 64.790.20.02028.01 A2 of A2 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 18GHz-40GHz Conducted emission
