2AEBL-M2700TPStandalone Transponder module of Card Reader

2TMU190000M0035100

English Standalone transponder module DANGER Dangerous currents flow through the body when coming into direct or indirect contact with live components. This can result in electric shock, burns or even death. Work improperly carried out on current-carrying parts can cause fires. – Disconnect the mains voltage prior to mounting and dismantling! – Permit work on the 100-240 V mains network to be carried out only by specialist staff. ■ Please read the mounting instructions carefully and keep them for future use. ■ Additional user information and information about planning is available at http://new.abb.com/low-voltage/products/building- automation/product-range/abb-welcome or by scanning the QR code. Intended use This device is a central control panel of the ABB-Welcome system and operates exclusively with components from this system. Manufacturer ABB Xiamen Smart Technology Co., Ltd. Address: No.7 Fangshan South Road, Xiang An, Xiamen, Fujian, China Post Code: 361000 Technical data Input (a, b) 24 V ⎓ Operating voltage range 20-30 V ⎓ Standby current 24 V ⎓, 30 mA Operating current 24 V ⎓, 30 mA Operating temperature -25 °C...+55 °C Single-wire clamps 2 x 0.28 mm 2 ...2 x 0.75 mm 2 Fine-wire clamps 2 x 0.28 mm 2 ...2 x 0.75 mm 2 IP level IP 54 IK level IK 07 Carrier frequency: 13.56MHz Carrier filed strength: -1.36dBμA/m @ 3m FCC ID: 2AEBL-M2700TP This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. The complete of FCC information is available at the package shipped with the product. EU declaration of conformity Hereby, ABB Xiamen Smart Technology Co., Ltd., declares that this Standalone transponder module M2700TP is in compliance with the essential requirements and other relevant provisions of RE Directive 2014/53/EU. The complete of the EU declaration of conformity is available by scanning the QR code. Operation 1 Swiping card position Empty status If this module has not enrolled any card, it will enter "Empty status" when it is powered on. Transponder module flash in green, orange and red. Function Operation Note Create the first admin card Swipe the card 1x Transponder LED light green if successful Standby status If this module has enrolled the card, it will enter "Standby status" when it is powered on. Function Operation Note Open a door Swipe the enrolled card 1. Lock is connected with switch actuator 2. Switch actuator works in "door opener" mode 3. Switch actuator's address = transponder module address(1- 32) Setting mode status On standby status, Swipe the enrolled card (any admin) 1x to enter setting mode status, Transponder module light orange. Function Operation Create a user card Swipe any admin card 1x + user card1 + user card2 + ... Delete a user card Swipe any admin card 2x + user card1 + user card2 + ... Create admin cards Swipe admin0 3x + admin card1 + admin card2 + ... *Here, admin0 can be replaced by any enrolled admin. Delete admin cards Swipe any admin card 4x + admin card1 + admin card2 + ... *Any admin card can’t delete itself. Delete all user cards Swipe any admin card 6x Transponder module light green if successful. Connection 1 Plug-in clamps (a - b) for bus connection and power input 2 Terminal resistor In video installations or mixed audio and video installations, the Switch must be set as 'RC on' on the last device of the line. 3 Set the address of this device (1...32) 4 N/A

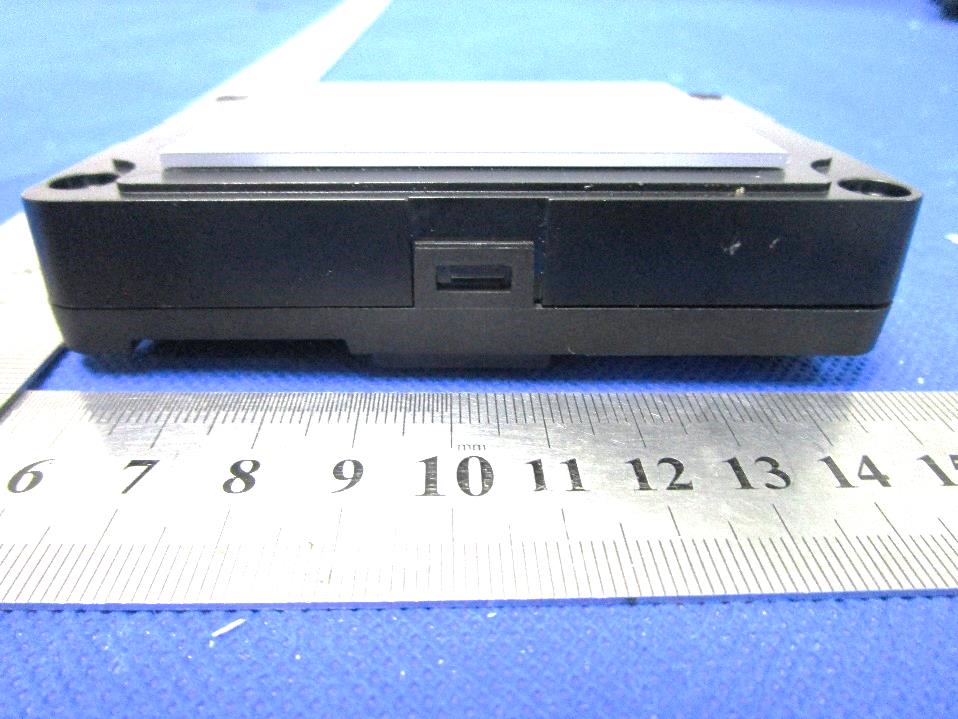

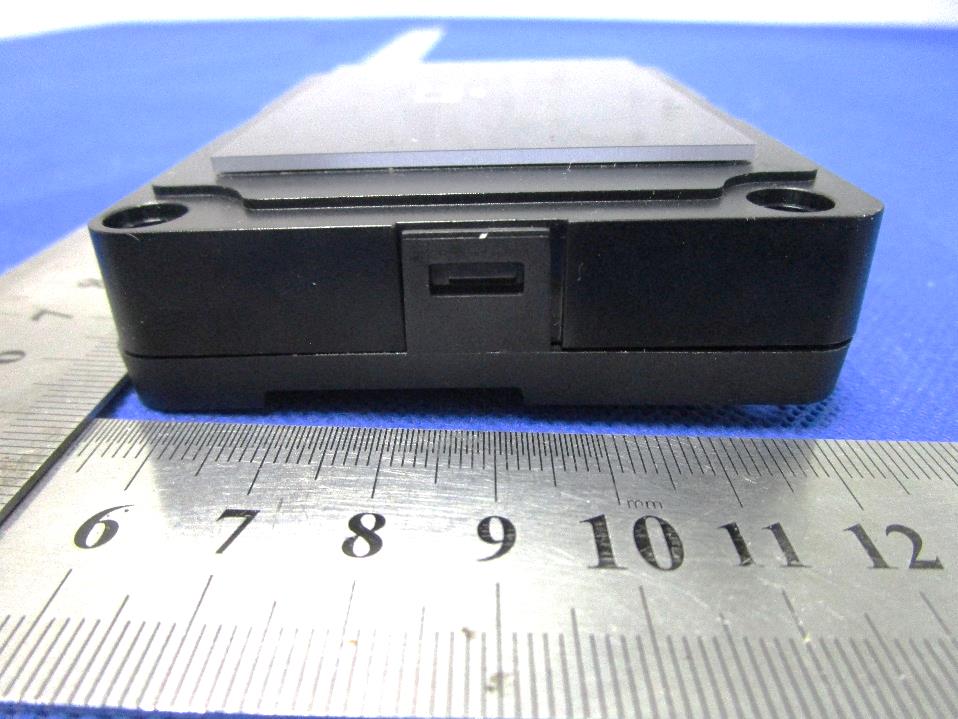

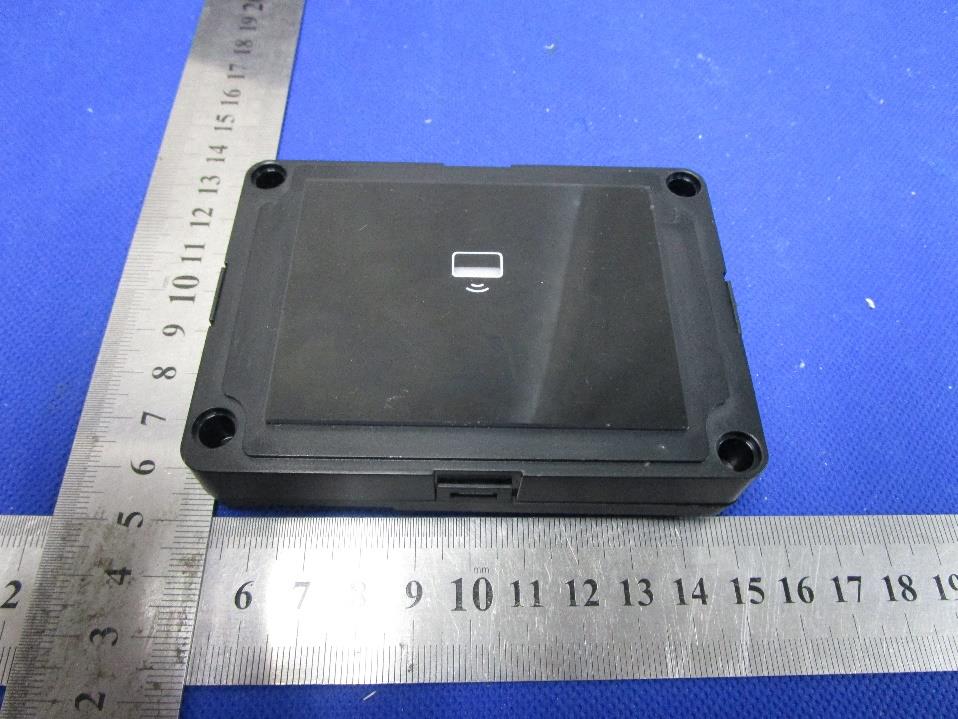

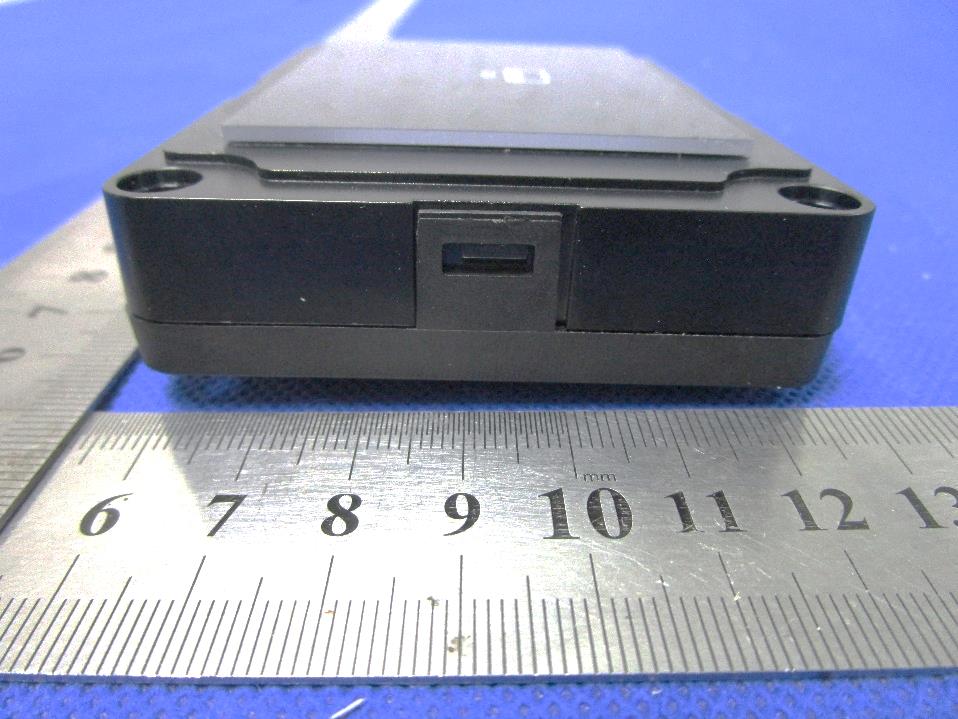

P1 of P3 P2 of P3 P3 of P3

P1 of P4 P2 of P4 P3 of P4 P4 of P4 Antenna

Page 1 of 1 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 R F E x p o s u r e C o m p l i a n c e R e p o r t Model : M2700TP-. FCC ID : 2AEBL-M2700TP Product Type : Standalone Transponder module Applicant : ABB Xiamen Smart Technology Co., Ltd. Production Facility : ABB Xiamen Smart Technology Co., Ltd. Address : NO.7 Fangshan South Road,Torch High Technology Development Zone (Xiang An) Industrial Zone,Xiamen S.E.Z,Fujian Province,P.R.China RF Exposure Compliance Requirement According to ANSI C63.10:2013 clause12.7.3 d): EIRP =(E x d) 2 / 30 EIRP is power in W E is the electric field strength in V/m d is the measurement distance in meters (m) when d is 3m, EIRP[dBm] = E[dBμV/m] − 95.2 maximum field strength of 13.56MHz is 49.3dBμV/m at 3m, EIRP[dBm]=49.3[dBμV/m]-95.2= - 45.9dBm EIRP = 2.57 x 10 - 5 mW SAR exclusion justification in accordance to KDB 447498 D01 Section 4.3.1: EIRP power = 0.0000257mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 [(0.0000257, mW)/(5, mm)] · [√0.01356(GHz)] ≤ 3.0 5.96 x 10 -7 ≤ 3.0 Therefore the device meets the FCC SAR exemption requirements --TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch-- Reviewed by: Prepared by: Tony Liu / Project Reviewer Kevin Ouyang / Project Handler Date: 2020-05-21 Date: 2020-05-21

Report Number: 64.790.19.06206.01 Page 1 of 27 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 FCC - TEST REPORT Report Number : 64.790.19.06206.01 Date of Issue: 2020-05-21 Model : M2700TP-. Product Type : Standalone Transponder module Applicant : ABB Xiamen Smart Technology Co., Ltd. Production Facility : ABB Xiamen Smart Technology Co., Ltd. Address : NO.7 Fangshan South Road,Torch High Technology Development Zone (Xiang An) Industrial Zone,Xiamen S.E.Z,Fujian Province,P.R.China Test Result : ◼ Positive  Negative Total pages including Appendices : 27 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 64.790.19.06206.01 Page 2 of 27 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 1 Table of Contents 1 Table of Contents ..................................................................................................................................................2 2 Details about the Test Laboratory .........................................................................................................................3 3 Description of the Equipment Under Test .............................................................................................................4 4 Summary of Test Standards .................................................................................................................................5 5 Summary of Test Results ......................................................................................................................................5 6 General Remarks ..................................................................................................................................................6 7 Test Setups ...........................................................................................................................................................7 8 Test Methodology ..................................................................................................................................................8 8.1 Conducted Emission .....................................................................................................................................8 8.2 Radiated Emission ........................................................................................................................................8 8.3 Field Strength Calculation .............................................................................................................................8 9 Systems test configuration ....................................................................................................................................9 10 Technical Requirement ...................................................................................................................................... 10 10.1 Conducted Emission Measurement ........................................................................................................... 10 10.2 Filed Strength Measurement ...................................................................................................................... 13 10.3 Frequency Stability ..................................................................................................................................... 16 10.4 Occupied Bandwidth .................................................................................................................................. 17 11 Test Equipment List ............................................................................................................................................ 18 12 System Measurement Uncertainty ..................................................................................................................... 18 13 Appendix A – Setup Photos ............................................................................................................................... 19 14 Appendix B – EUT Photos............................................................................................................................. 21-27 Report Number: 64.790.19.06206.01 Page 3 of 27 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Bus…

Text truncated - open the document above for the full version.

P1 of P2 Setup photo of radiated emission (9KHz-30MHz) Setup photo of radiated emission (30MHz-1GHz) P2 of P2 Setup photo of conducted emission (150KHz-30MHz)
