2ASIVPGD7Y-7AElectronic lock with BLE and Fingerprint

ACCESS TOUCH USER MANUAL TABLE OF CONTENTS 9 12 13 14 Section 1 - Product Highlights Section 3 - Using Your Smart Lock 2 3 4 5 6 7 8 1 Section 2 - Product Overview 2.1 Product Overview - Exterior 2.2 Product Overview - Interior 2.3 Getting the Most From Your LOCKLY 2.4 Pair Lock with LOCKLY App 2.5 Resetting Your Lock 2.6 Low Battery 2.7 Changing the Battery 1.1 Product Features 3.1 Adding a Fingerprint 3.2 Fingerprint Scanning Directions 3.3 Deleting Stored Fingerprints 3.4 Adding Optional Secure Link 15 16 17 18 19 20 Section 4 - Locking and Unlocking 4.1 Locking/Unlocking LOCKLY with Fingerprints 4.2 Locking/Unlocking LOCKLY with App 4.3 Locking/Unlocking LOCKLY with Physical Key 4.4 Locking and Unlocking with Voice Assistant Control 4.5 Rain Mode 4.6 Welcome Mode 21 23 24 25 Section 5 - Advanced Features Section 6 - Important Notes Section 7 - Cleaning Tips Section 8 - Safety Precautions 5.1 eBadge Table of Contents SECTION 1.11 Advanced 3D Fingerprint Recognition Biometric Fingerprint Recognition protocol stores up to 99 unique fingerprints. Accepts only actual fingerprints (no copies or lifted prints) for extra security. Auto Lock Feature Never worry that you forgot to lock your door. Custom auto lock feature can be set to automatically lock 5 seconds up to 5 minutes after unlocking, making sure your door is always secure. External Battery Backup Open with access externally with emergency power backup via 9V battery that attaches to external contacts and your registered fingerprint. Access Profile Duplication Allows time saving, secure copying and pasting through the LOCKLY app of dupli- cate fingerprint and eKey profiles from one lock to another lock. Multi-door Locking Mode Easily program all your LOCKLY smart locks to lock simultaneously with one touch using the LOCKLY app, Google Assistant or Amazon Alexa.* SmartSync Monitoring Check real-time* door status and access history on your smartphone with LOCKLY mobile app or through LOCKLY OS TM online tool anytime, from anywhere. 1.1 Product Features *Requires optional Secure Link Wi-Fi Hub (sold separately - www.lockly.com) For additional support scan or visit LOCKLY.com/help or email [email protected] SECTION 2.1 2 2.1 Product Overview - Exterior Key Cylinder (NOT INCLUDED) 9V Backup Contacts Fingerprint Sensor SECTION 2.23 2.2 Product Overview - Interior Battery Compartment (8 x AA Alkaline Batteries) Battery Cover Thumb-turn Alert (beep) speaker Reset Button Program Button SECTION 2.3 4 Get the Free App scan or visit LOCKLY.com/app LOCKLY ACCESS TOUCH Thanks for purchasing your new LOCKLY. To get the most out of your lock be sure to read completely through this manual to learn all of its features and capabilities. LOCKLY smart locks are at their full potential when used with the free LOCKLY app. Be sure to download to take advantage of all of the connected features. If you have any questions or need help contact customer care at [email protected] or online LOCKLY.com/help To speak to a customer care representative, call (669) 500 – 8835 Monday through Friday, from 11 AM to 7 PM PST You can also send an email to [email protected] 2.3 Getting the Most From Your LOCKLY SECTION 2.45 To pair your lock with the free LOCKLY mobile app, you must have your Activation Code available. The Activation Code is specific to your lock and is located on the Activation Code Card included with you smart lock. 2.4 Pair Lock with the LOCKLY App 1. If you have not, download the LOCKLY app from the App Store or Google Play. 2. Open the App and create an account, or log into your existing account. 3. Select set up a new device. 3. Stand within Bluetooth range (10/ft or less) of lock and choose lock model you wish to pair. 4. Turn on your Bluetooth through your phone settings and select start connecting 5. Choose the lock you wish to pair (e.g. LOCKLY Access Touch) and select Yes Continue to follow on-screen instruction to complete pairing and set-up. The Activation Code is unique to each specific lock. DO NOT LOSE IT. Keep it in a safe place, as you will not be able to re-pair or reset your lock without it. SCAN & SAVE LOCK SERIAL ACTIVATION CODE PGDXXXXXXXXXXXXXXXX XXXXXXXX SECTION 2.5 6 2.5 Resetting Your Lock Press Reset Button for one (1) second or till you hear a short beep See page 5 for re-pairing your lock to the LOCKLY app In order to restore your lock to factory default settings, you must have your “Activation Code” available. The Activation Code is specific to your lock and is located on the Activation Code Card included with you smart lock, see page (5). To reset, push the reset button located under the battery cover, in the lower right corner. WARNING: once the smart lock has been reset, all previously stored data will be deleted. To add your lock to the mobile app have your activation code available and refer to “Pair Lock with LOCKLY app” on page 5. Reset Button Under battery cover SECTION 2.67 _ + 9V Alkaline battery LOCKLY Access Touch will notify you with a continuous beep that it's time to change the batteries before they reach critical level. You should replace the batteries immediately to avoid the lock from shutting down and auto locking. If you do not change the batteries after hearing the low battery warning alert beeps, the alert will eventually stop. You will then have 3 chances to unlock using your fingerprint. If unlocking was successful, the low battery warning alert will come back on for one minute. The lock will then auto-lock (within 5 seconds) and return to low battery mode. Dead Battery ConditionIndicatorSolution Low Battery Low battery warning alert (continuous beep). Replace batteries immediately to avoid battery failure. Lock may still operate for a short period (up to 300 cycles) in low battery condition. When there is no alarm sound(conti- nuous beep)and fingerprint access is non-functional. Replace batteries immediately. Supplied physical backup keys can be used to unlock the door. Alternatively, use a 9V battery as sho…

Text truncated - open the document above for the full version.

PIN GENIE, INC. DBA LOCKLY 676 Transfer Rd., St. Paul, Minnesota 55114, United States --------------------------------------------------------------------------------------------------------------------- Date: 2021-07-08 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ASIVPGD7Y-7A Confidentiality Request To whom it may concern, Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of the information accompanying this application as outlined below: ☒ Block Diagram ☐ Tune-Up Information ☒ Operational Description ☐ Security Information ☒ Schematics ☐ Software Defined Radio (SDR) Information ☐ Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, PIN GENIE, INC. DBA LOCKLY ------------------------------ (Cindy zhou) (COO)

PIN GENIE, INC. DBA LOCKLY 676 Transfer Rd., St. Paul, Minnesota 55114, United States -------------------------------------------------------------------------------- (FCC ID：2ASIVPGD7Y-7A) POWER OF ATTORNEY DATE: 2021-07-08 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, PIN GENIE, INC. DBA LOCKLY are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, PIN GENIE, INC. DBA LOCKLY ------------------------------- (Cindy zhou) (COO)

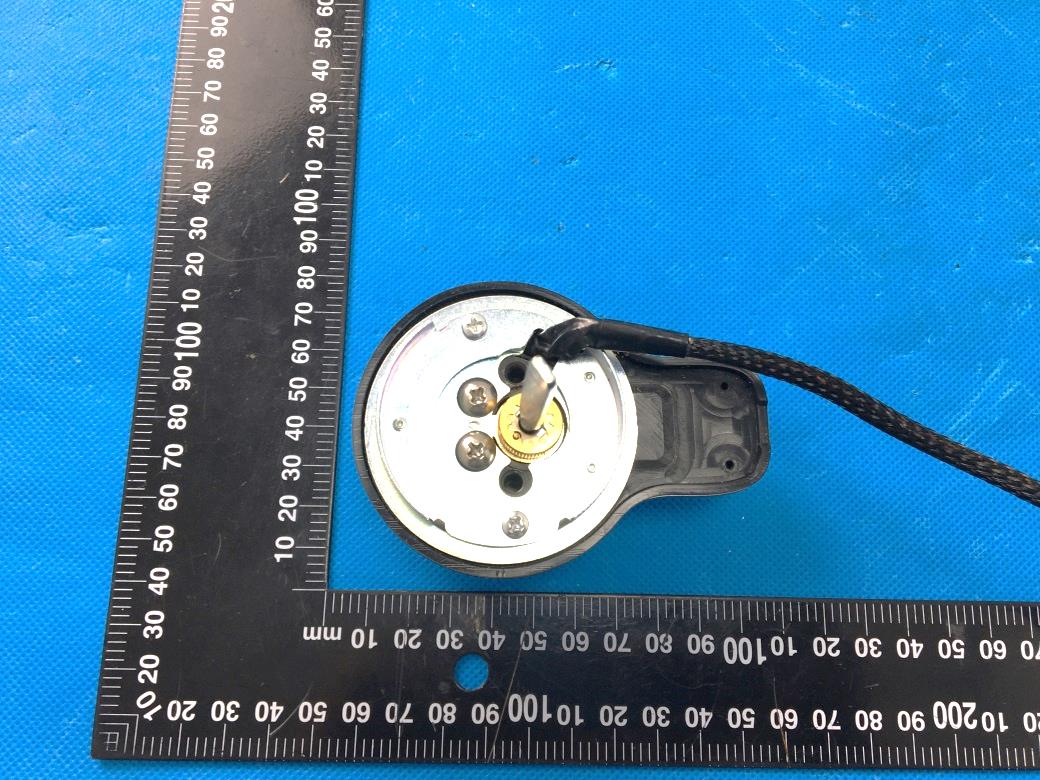

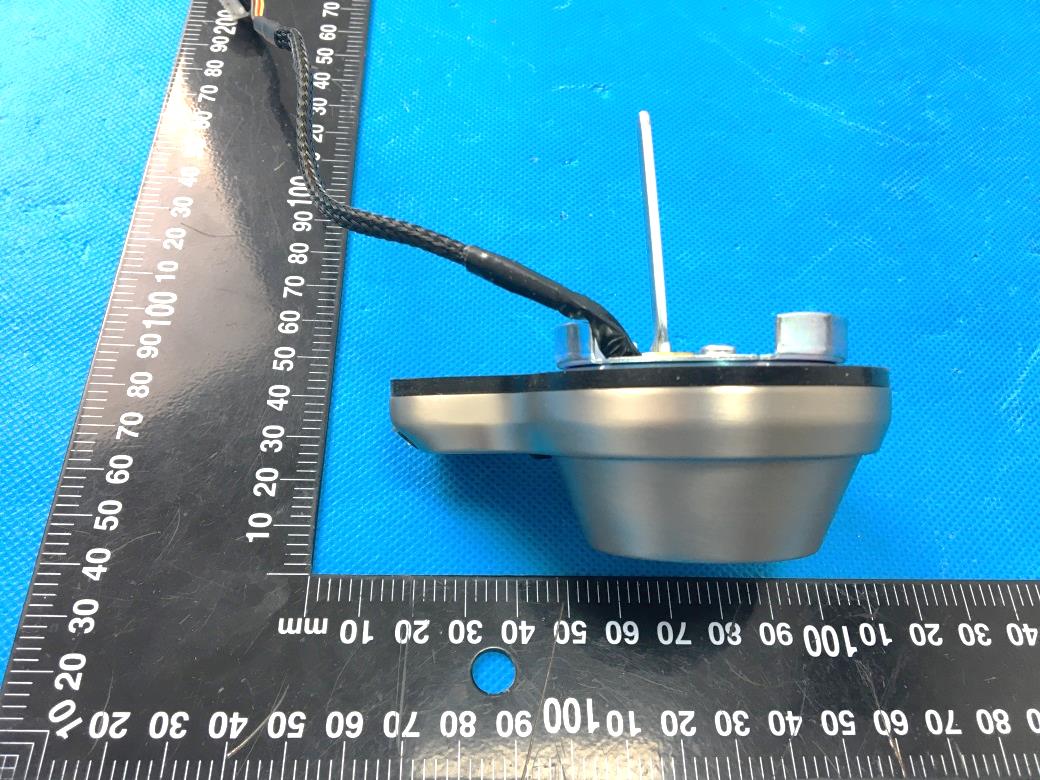

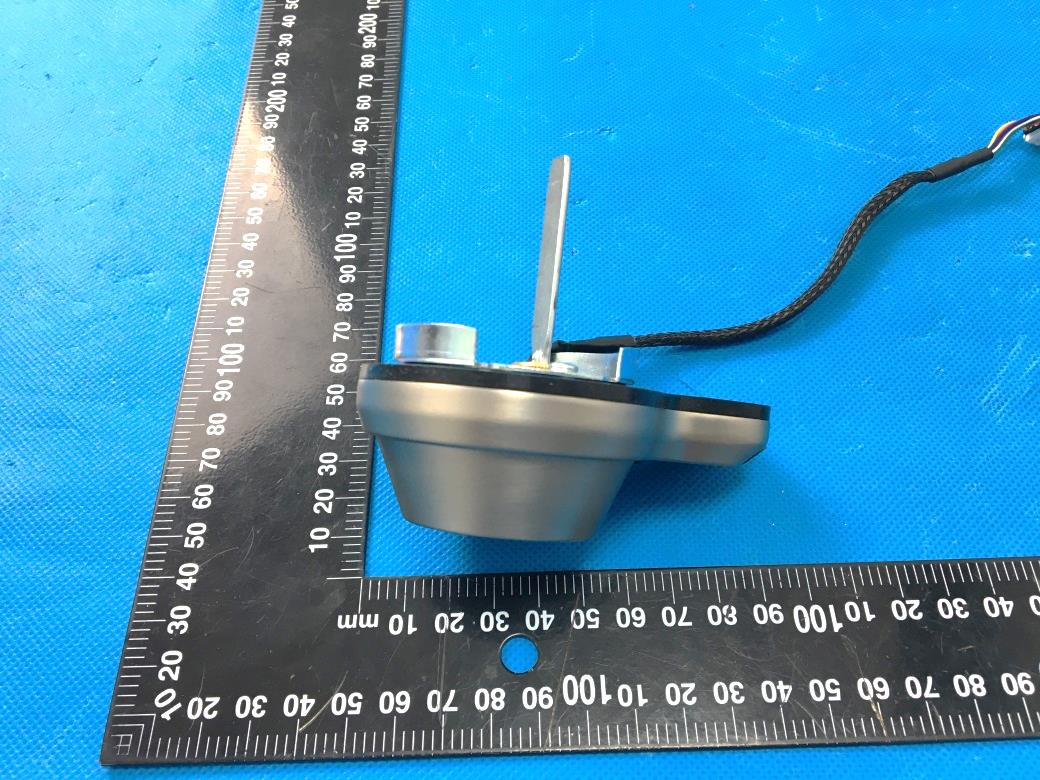

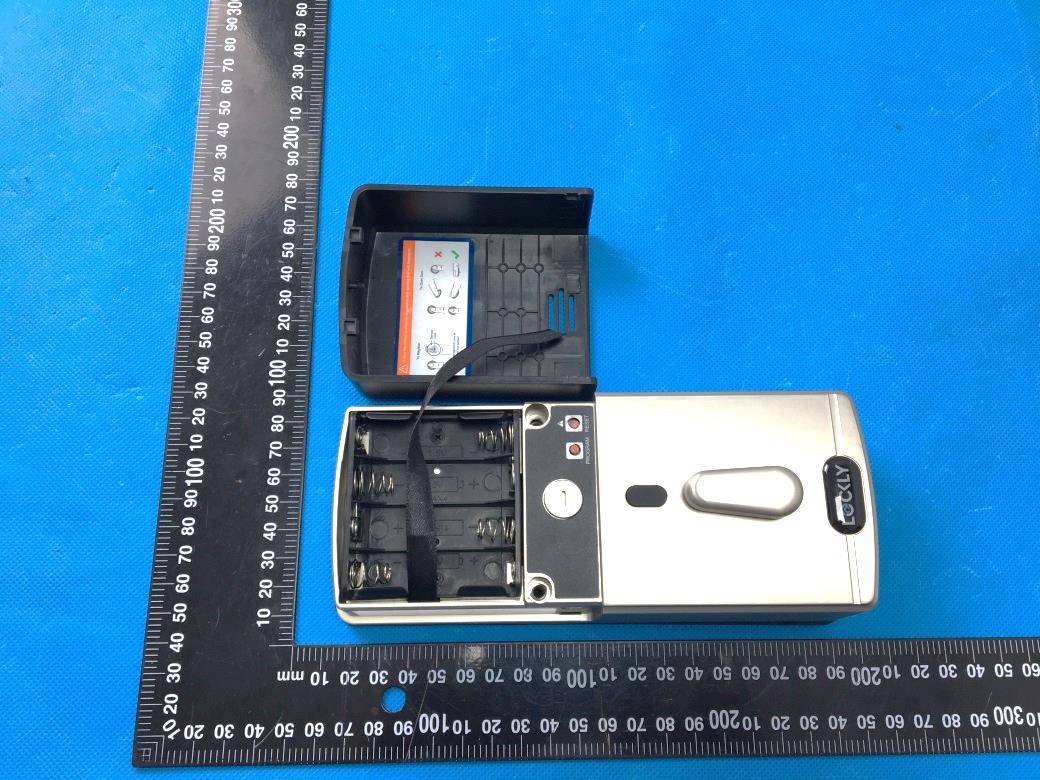

Reference No.: WTX21X05049671W-1 Page 2 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS Model: PGD7A & PGD7Y EUT View 1 Model: PGD7A EUT View 1 Reference No.: WTX21X05049671W-1 Page 3 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 2 EUT View 3 Reference No.: WTX21X05049671W-1 Page 4 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 4 EUT View 5 Reference No.: WTX21X05049671W-1 Page 5 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 6 EUT View 7 Reference No.: WTX21X05049671W-1 Page 6 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 8 EUT View 9 Reference No.: WTX21X05049671W-1 Page 7 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 10 Model:PGD7Y EUT View 1 Reference No.: WTX21X05049671W-1 Page 8 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 2 EUT View 3 Reference No.: WTX21X05049671W-1 Page 9 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 4 EUT View 5 Reference No.: WTX21X05049671W-1 Page 10 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 6 EUT View 7 Reference No.: WTX21X05049671W-1 Page 11 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 8 EUT View 9 Reference No.: WTX21X05049671W-1 Page 12 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 10 EUT View 11 Reference No.: WTX21X05049671W-1 Page 13 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 12 EUT View 13 Reference No.: WTX21X05049671W-1 Page 14 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 14

Reference No.: WTX21X05049671W-1 Page 1 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX21X05049671W-1 Page 15 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS Model: PGD7A EUT Housing and Board View 1 Solder Board-Component View 1 Reference No.: WTX21X05049671W-1 Page 16 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 2 Solder Board-Component View 3 Reference No.: WTX21X05049671W-1 Page 17 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 4 Solder Board-Component View 5 Reference No.: WTX21X05049671W-1 Page 18 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 6 Solder Board-Component View 7 Reference No.: WTX21X05049671W-1 Page 19 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 8 Solder Board-Component View 9 Reference No.: WTX21X05049671W-1 Page 20 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 10 Solder Board-Component View 11 Reference No.: WTX21X05049671W-1 Page 21 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Model: PGD7Y EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTX21X05049671W-1 Page 22 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTX21X05049671W-1 Page 23 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 3 Solder Board-Component View 4 Reference No.: WTX21X05049671W-1 Page 24 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 5 Solder Board-Component View 6 Reference No.: WTX21X05049671W-1 Page 25 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 7 Solder Board-Component View 8 Reference No.: WTX21X05049671W-1 Page 26 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Antenna View

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 General Information Client Information Applicant: PIN GENIE, INC. DBA LOCKLY Address of applicant: 676 Transfer Rd., St. Paul, MN 55114 Manufacturer: Smart Electronic Industrial (Dong Guan) Co., Ltd. Address of manufacturer: Qing Long Road, Long Jian Tian Village, Huang Jiang Town, Dong Guan, Guang Dong, China General Description of EUT: Product Name: Electronic lock with BLE and Fingerprint Trade Name: LOCKLY Model No.: PGD7A Adding Model(s): PGD7Y Rated Voltage: PGD7A, INPUT: DC 6V,1.5V*4(*2); PGD7Y, INPUT:DC6V,1.5V*4 Power Adapter / FCC ID: 2ASIVPGD7Y-7A Equipment Type: Fixed device Technical Characteristics of EUT: Bluetooth Bluetooth Version: V5.0 (BLE mode) Frequency Range: 2402-2480MHz RF Output Power: -1.32dBm (Conducted) Data Rate: 1Mbps Modulation: GFSK Quantity of Channels: 40 Channel Separation: 2MHz Type of Antenna: FPC Antenna Antenna Gain: -0.5dBi 1.2 Standard Applicable According to §1.1307(b)(1) and KDB 447498 D01 General RF Exposure Guidance v06, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 / / F/300 6 1500-100000 / / 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100000 / / 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.3 MPE Calculation Method S = (30*P*G) / (377*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.4 MPE Calculation Result For Bluetooth Maximum Tune-Up output power: -1(dBm) Maximum peak output power at antenna input terminal: 0.79(mW) Prediction distance: >20(cm) Prediction frequency: 2480(MHz) Antenna gain: -0.5 (dBi) Directional gain (numeric gain): 0.89 The worst case is power density at prediction frequency at 20cm: 0.0001(mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) Result: Pass

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 34 TEST REPORT Reference No. ....................: WTX21X05049671W-1 FCC ID ............................... .: 2ASIVPGD7Y-7A Applicant .......................... .: PIN GENIE, INC. DBA LOCKLY Address ............................ .: 676 Transfer Rd., St. Paul, MN 55114 Product Name .................. .: Electronic lock with BLE and Fingerprint Test Model. ....................... .: PGD7A Standards ......................... .: FCC Part 15.247 Date of Receipt sample ... .: May. 24, 2021 Date of Test....................... .: May. 24, 2021 to Jul. 05, 2021 Date of Issue .................... .: Jul. 05, 2021 Test Result ........................ .: Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Mike Shi / Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTX21X05049671W-1 Page 2 of 34 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY .............................................................................................................................. 6 1.7 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 7 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 9 3. ANTENNA REQUIREMENT ................................................................................................................................ 10 3.1 STANDARD APPLICABLE ....................................................................................................................................... 10 3.2 EVALUATION INFORMATION ................................................................................................................................ 10 4. POWER SPECTRAL DENSITY ........................................................................................................................... 11 4.1 STANDARD APPLICABLE ....................................................................................................................................... 11 4.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 1 1 4.3 TEST PROCEDURE ................................................................................................................................................. 11 4.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 11 5. DTS BANDWIDTH ................................................................................................................................................. 12 5.1 STANDARD APPLICABLE ....................................................................................................................................... 12 5.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 1 2 5.3 TEST PROCEDURE ................................................................................................................................................. 12 5.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 12 6. RF OUTPUT POWER ............................................................................................................................................ 13 6.1 STANDARD APPLICABLE ....................................................................................................................................... 13 6.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 1 3 6.3 TEST PROCEDURE ................................................................................................................................................. 13 6.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 13 7. FIELD STRENGTH OF SPURIOUS EMISSIONS ............................................................................................. 14 7.1 STANDARD APPLICABLE ..…

Text truncated - open the document above for the full version.

Reference No.: WTX21X05049671W-1 Page 27 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) Reference No.: WTX21X05049671W-1 Page 28 of 28 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (1GHz to 18GHz) Radiation Emission Test Setup (Above 18GHz) ***** END OF REPORT *****
