  1. Home/
  2. PIN GENIE, INC. DBA LOCKLY/
  3. 2ASIVPGH200UM

2ASIVPGH200UMENABLES WI-FI, RF &BLE CONNECTIVITY FOR LOCKLY SMART LOCKS

PIN GENIE, INC. DBA LOCKLY
ENABLES WI-FI, RF &BLE CONNECTIVITY FOR LOCKLY SMART LOCKS - FCC ID 2ASIVPGH200UM - PIN GENIE, INC. DBA LOCKLY
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Feb 27, 2023
Application Purpose
Original Equipment
Date of Application
Feb 27, 2023
Equipment Note
ENABLES WI-FI, RF &BLE CONNECTIVITY FOR LOCKLY SMART LOCKS
Frequency Range
2402.00000000 - 2480.00000000
Company
PIN GENIE, INC. DBA LOCKLY
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

RF Exposure Info

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Installation & User Manual PGH200 SECURE LINK ERP机型:GA3562UQ-GL-SMT00010A-V1 Designed:曹显贵Date:2022-11-28 描述: 说明书:GA3562UQ/PGH200UM, SMT000,REVA(IUMPGH200UM20221128), 115X157mm,8页16面装订本, 内页:105G双粉纸,封面:128G双粉纸,双面印4C, RoHS2.0,REACH, Prop65, POPs, PAHs; ERP P/N: REV: 0.2 KYMC 2 The Lockly Secure Link Wi-Fi Hub comes in two parts. Each part of the Secure Link is crucial to enable voice assistant features and live monitoring and control of your Lockly device. The Wireless Door Sensor is optional but highly recommended as they provide the ability to verify that your door is securely closed and not ajar. * You may plug the USB Secure Link Wi-Fi Hub into any UL Certified 5V 1A USB outlet, however we recommend using ours for best performance. Power adaptor supplied in this box is based on standard power plug and socket used by country. Secure Link Wi-Fi Hub USB 5V 1A AC Adaptor* Wireless Door Sensor LED Indicator Door Sensor PART APART B Door Frame Sensor 3 1. Setting up the Secure Link Wi-Fi Hub You should install the Secure Link Wi-Fi Hub after you have successfully finished installation and set up of your Lockly Smart Lock. Refer to your appropriate Lockly Smart Lock Installation Guide and User Manual that came with the lock for reference. The Secure Link Wi-Fi Hub (Part A) can be plugged into any standard 5V 1A USB port or use the UL certified USB AC adapter included in this box (recommended). For best connectivity, choose an appropriate location for the Secure Link Wi-Fi Hub for optimum performance (see below). For optimum connectivity, it is recommended that the hub be no further away from the lock than 30 feet (9 meters) Lockly Smart Lock PGD728 Series Shown as reference only Secure Link Wi-Fi Hub Part A Shown Above as reference only 30 Feet (9 Meters) Distance Between In order for your Secure Link Wi-Fi Hub to connect to the internet, you must have a Wi-Fi network with a radio signal emitting 2.4 GHz. All modern Wi-Fi devices support 2.4 GHz connections while some equipment supports both 2.4 GHz and 5 GHz. Please check with your network administrator or internet provider if you’re unsure what kind of network you have. Proceed to the next page to read how to finish set up of your Wi-Fi Hub. 4 Plug the Secure Link Wi-Fi Hub into the 5V 1A USB AC adapter and plug the AC adapter to your wall socket. A GREEN LED indicator light will Rapid Flashing to indicate that the Wi-Fi Hub is ready to connect. Once you have confirmed that your Secure Link Wi-Fi Hub is ready to connect to your lock, open the Lockly app to get started. In case you have not downloaded our app, you can scan the QR code to the left or visit https://Lockly.com/app Make sure you have already created an account and setup your Lockly device to the Lockly app to continue. Before you continue the Secure Link Wi-Fi Hub set up on your app, proceed to the next page to learn more about using the Secure Link Wi-Fi Hub and best practices for connectivity. 5 2. Using the Secure Link Wi-Fi Hub During the setup process position yourself between the lock and the Secure Link Wi-Fi Hub—ideally no more than 30 feet (9 meters) apart. Ensure your iOS or Android ™ device has both Bluetooth and Wi-Fi enabled. 30 Feet (9 Meters) Distance Between Lockly Smart Lock PGD728 Series Shown as reference only Secure Link Wi-Fi Hub Part A Shown Above as reference only You Using an iOS or Android ™ Device with Bluetooth & Wi-Fi enabled TIP: The Secure Link requires a strong wireless signal for optimal performance. Make sure the Secure Link will be installed in a location with a strong 2.4 Ghz wireless signal. Sometimes distances between Wi-Fi hub and lock can vary due to circumstances. If you are having difficulty setting up optimal range of 30/ft or less, we’re here to help. Call our customer care team: (669) 500 8835, or visit Lockly.com/help for suggestions and troubleshooting tips. 6 Secure Link Installation Checklist. You have a Lockly Smart Lock already, and now adding the Wi-Fi Hub. The Secure Link Wi-Fi Hub is installed within 30 feet (9 meters) from your Lockly Smart Lock. You have the Lockly App installed on your iOS or Android ™ device. You are standing between your smart lock and the Secure Link Wi-Fi Hub. Your Secure Link Wi-Fi Hub is located in a location with a strong Wi-Fi signal. You are currently connected to a 2.4 GHz Wi-Fi Network (802.11 B/G/N) on your iOS or Android ™ device. Be sure you check off the above 8 boxes before proceeding. If any of the boxes are not checked, you may experience intermittent or delayed response time in notifications. I’m excited for my new Lockly smart lock, now compatible with Alexa and Hey Google. *Requires successful installation of the Secure Link Wi-Fi Hub and connected to a strong internet connection Your smartphone Bluetooth connection is ON and connected to your Lockly device. 7 3. Configuring Your Secure Link Wi-Fi Hub First, make sure the smartphone you are using to add the Wi-Fi Hub is connected to your 2.4 GHz Wi-Fi Network. Next, open your Lockly App and select the main menu from the upper left corner. (Image shown with iOS demo). Once the menu opens go ahead select “Set up a New Device” Select the Secure Link Wi-Fi Hub on the bottom NEXT > Select the Secure Link Wi-Fi Hub on the bottom 8 If you have connected the Secure Link Wi-Fi Hub to your smart lock, the Secure Link should have a slow flashing RED LED Indicator. Press and hold the Setup Button located on the top of the Wi-Fi Hub for 3 seconds until you see the GREEN LED Indicator start to rapidly flash. If you don’t see anything appear with a Bluetooth icon and a name starting with PGH200... simply click the Refresh button on the middle to rescan. Make sure your Wi-Fi Hub is showinga flashing GREEN LED indicator and the Wi-Fi Hub is within the optimal distance of 30 feet from your lock. Select the desired Wi-Fi Hub to continue. Connect to Secure LINK Minimum 2-3 Bars Recommended Press and Hold 3 Seconds PGH200UM22010001T 9 Enter your Wi-Fi passwo…

Text truncated - open the document above for the full version.

External Photos

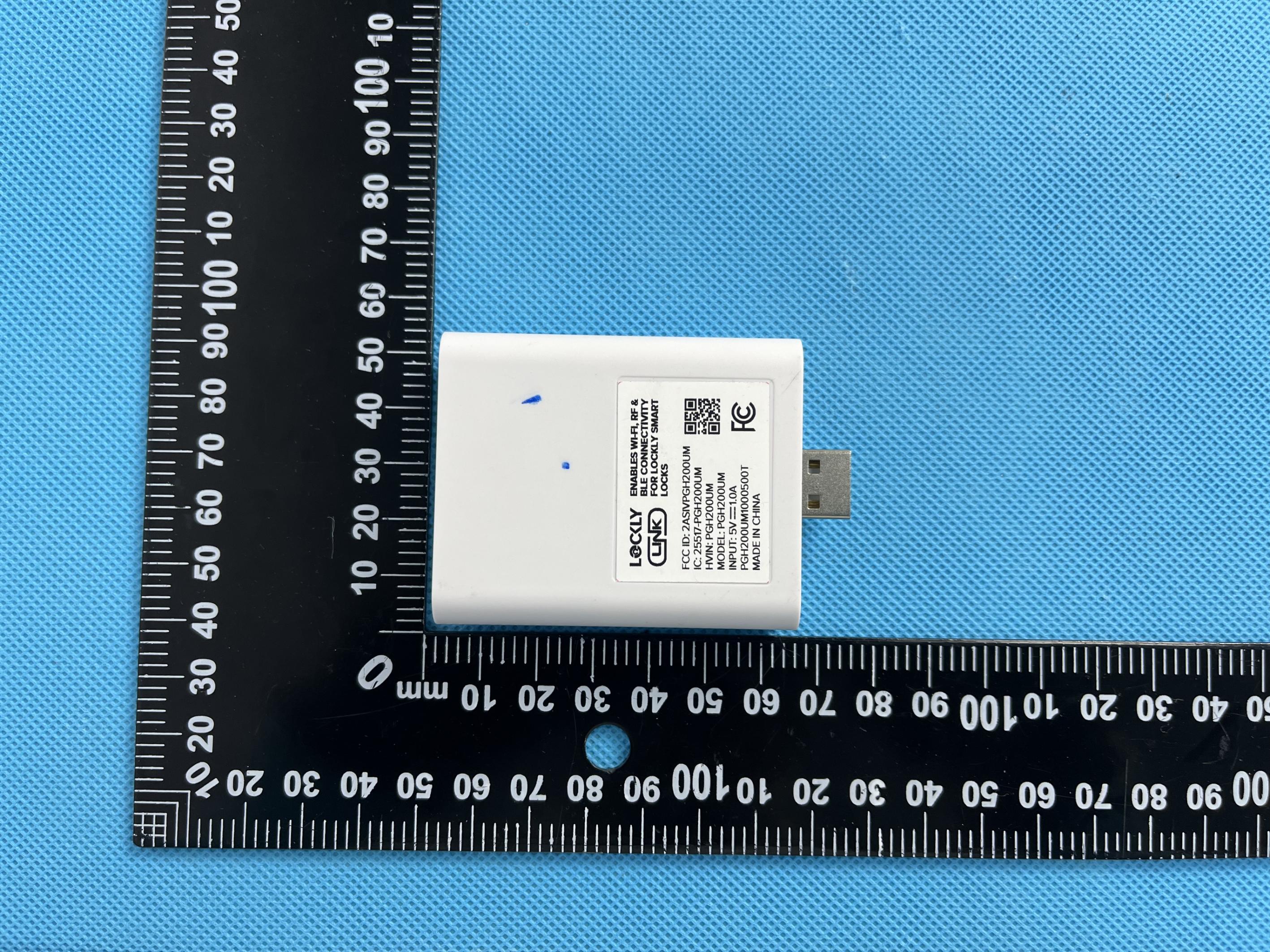

ReferenceNo.:WTX22X11232443W001/002/003Page2of10 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EXHIBIT2-EUTEXTERNALPHOTOGRAPHS EUTView1 EUTView2 ReferenceNo.:WTX22X11232443W001/002/003Page3of10 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView3 EUTView4 ReferenceNo.:WTX22X11232443W001/002/003Page4of10 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView5 EUTView6

ID Label/Location Info

ReferenceNo.:WTX22X11232443W001/002/003Page1of10 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT1-PRODUCTLABELING ProposedFCCIDLabelFormat Specifications:Thelabelshallbesecurelyaffixedtoapermanentlyattachedpartofthedevice,inalocation whereitisvisibleoreasilyaccessibletotheuser,andshallnotbereadilydetachable.Thelabelshallbe sufficientlydurabletoremainfullylegibleandintactonthedeviceinallnormalconditionsofusethroughout thedevice’sexpectedlifetime. ProposedLabelLocationonEUT FCCIDLabel Location

Test Report

WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 1 of 64 TESTREPORT ReferenceNo.......................:WTX22X11232443W001 FCCID....................................:2ASIVPGH200UM Applicant...............................:PINGENIE,INC.DBALOCKLY Address.................................:676TransferRd.,St.Paul,MN55114 Manufacturer........................:SmartElectronicIndustrial(DongGuan)Co.,Ltd. Address.................................: QingLongRoad,LongJianTianVillage,HuangJiangTown,DongGuan, GuangDong,China ProductName ......................: ENABLESWI-FI,RF&BLECONNECTIVITYFORLOCKLYSMARTLOCKS ModelNo... ............................: PGH200 Standards ..............................: FCCPart15.247 DateofReceiptsample.....:2022-11-18 DateofTest ...........................: 2022-11-18to2022-12-06 DateofIssue........................:2022-12-06 TestReportFormNo. ......... : WTX_Part15_247W TestResult ............................: Pass Remarks: Theresultsshowninthistestreportreferonlytothesample(s)tested,thistestreportcannotbe reproduced,exceptinfull,withoutpriorwrittenpermissionofthecompany.Thereportwouldbeinvalidwithout specificstampoftestinstituteandthesignaturesofapprover. PreparedBy: WaltekTestingGroup(Shenzhen)Co.,Ltd. Address:1/F.,Room101,Building1,HongweiIndustrialPark,Liuxian2ndRoad, Block70Bao'anDistrict,Shenzhen,Guangdong,China Tel.:+86-755-33663308Fax.:+86-755-33663309Email:[email protected] Testedby:Approvedby: MikeShiSilinChen ReferenceNo.:WTX22X11232443W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 2 of 64 TABLEOFCONTENTS 1.GENERALINFORMATION.....................................................................................................................................4 1.1PRODUCTDESCRIPTIONFOREQUIPMENTUNDERTEST(EUT)........................................................................4 1.2TESTSTANDARDS.................................................................................................................................................5 1.3TESTMETHODOLOGY...........................................................................................................................................5 1.4TESTFACILITY.......................................................................................................................................................5 1.5EUTSETUPANDTESTMODE..............................................................................................................................6 1.6MEASUREMENTUNCERTAINTY.............................................................................................................................7 1.7TESTEQUIPMENTLISTANDDETAILS..................................................................................................................8 2.SUMMARYOFTESTRESULTS.........................................................................................................................11 3.ANTENNAREQUIREMENT.................................................................................................................................12 3.1STANDARDAPPLICABLE......................................................................................................................................12 3.2EVALUATIONINFORMATION................................................................................................................................12 4.POWERSPECTRALDENSITY...........................................................................................................................13 4.1STANDARDAPPLICABLE......................................................................................................................................13 4.2TESTSETUPBLOCKDIAGRAM...........................................................................................................................13 4.3TESTPROCEDURE..............................................................................................................................................13 4.4SUMMARYOFTESTRESULTS/PLOTS................................................................................................................13 5.DTSBANDWIDTH..................................................................................................................................................14 5.1STANDARDAPPLICABLE......................................................................................................................................14 5.2TESTSETUPBLOCKDIAGRAM...........................................................................................................................14 5.3TESTPROCEDURE..............................................................................................................................................14 5.4SUMMARYOFTESTRESULTS/PLOTS................................................................................................................14 6.RFOUTPUTPOWER............................................................................................................................................15 6.1STANDARDAPPLICABLE......................................................................................................................................15 6.2TESTSETUPBLOCKDIAGRAM...........................................................................................................................15 6.3TESTPROCEDURE..............................................................................................................................................15 6.4SUMMARYOFTESTRESULTS/PLOTS................................................................................................................15 7.FIELDSTRENGTHOFSPURIOUSEMISSIONS.............................................................................................16 7.1STANDARDAPPLICABLE..........................................................................................................................…

Text truncated - open the document above for the full version.

Test Report

ReferenceNo.:WTX22X11232443W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 56 of 64 APPENDIXD ConductedOutofBandEmissions 802.11b-Low 802.11b-Middle ReferenceNo.:WTX22X11232443W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 57 of 64 802.11b-High ReferenceNo.:WTX22X11232443W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 58 of 64 802.11g-Low 802.11g-Middle ReferenceNo.:WTX22X11232443W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 59 of 64 802.11g-High ReferenceNo.:WTX22X11232443W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 60 of 64 802.11n-HT20-Low 802.11n-HT20-Middle ReferenceNo.:WTX22X11232443W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 61 of 64 802.11n-HT20-High ReferenceNo.:WTX22X11232443W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 62 of 64 802.11n-HT40-Low 802.11n-HT40-Middle ReferenceNo.:WTX22X11232443W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 63 of 64 802.11n-HT40-High ReferenceNo.:WTX22X11232443W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 64 of 64 APPENDIXPHOTOGRAPHS Pleasereferto“ANNEX” *****ENDOFREPORT*****

Test Setup Photos

ReferenceNo.:WTX22X11232443W001/002/003Page8of10 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EXHIBIT4-TESTSETUPPHOTOGRAPHS ConductedEmissionTest Setup RadiationEmissionTest Setup(Below30MHz) ReferenceNo.:WTX22X11232443W001/002/003Page9of10 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn RadiationEmissionTest Setup(30MHzto1GHz) RadiationEmissionTest Setup(1GHzto18GHz) ReferenceNo.:WTX22X11232443W001/002/003Page10of10 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn RadiationEmissionTest Setup(Above18GHz) *****ENDOFREPORT*****

Contact Information

Applicant

Cindy zhou(COO)
[email protected]4159109522Fax: 4159109522

Test Firm

Waltek Testing Group (Shenzhen) Co., Ltd.Jandy So
[email protected]86 755 33663308Fax: 86-755-33663309

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.40 GHz - 2.48 GHz2.20 mW
Confidentiality
Long Term
Grant Notes
Output power listed is the maximum conducted output power. Device must be operated to provide a separation distance of at least 20cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20MHz and 40MHz bandwidth mode.
