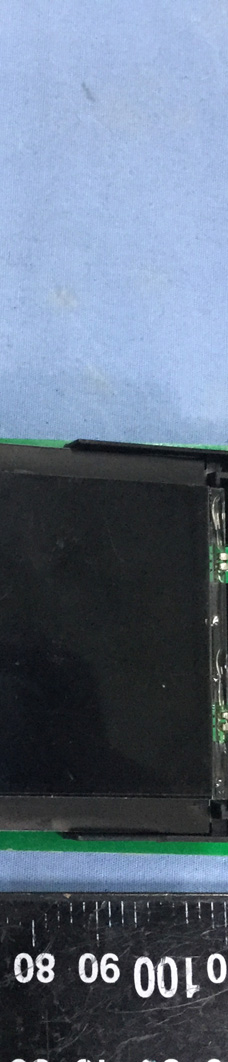

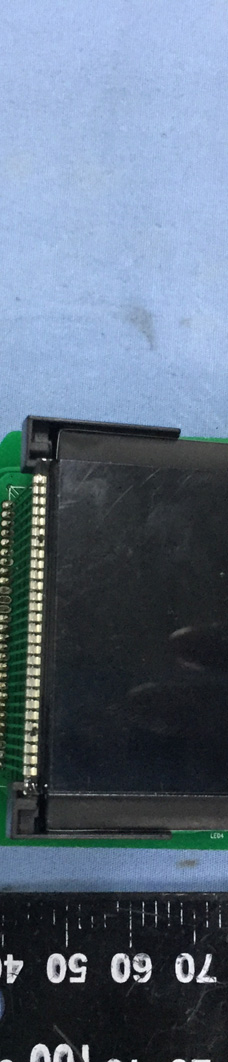

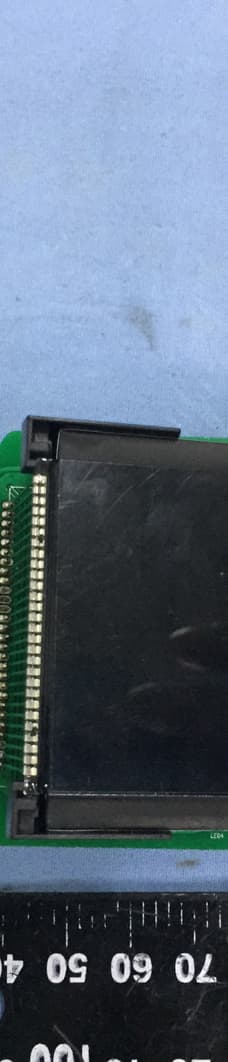

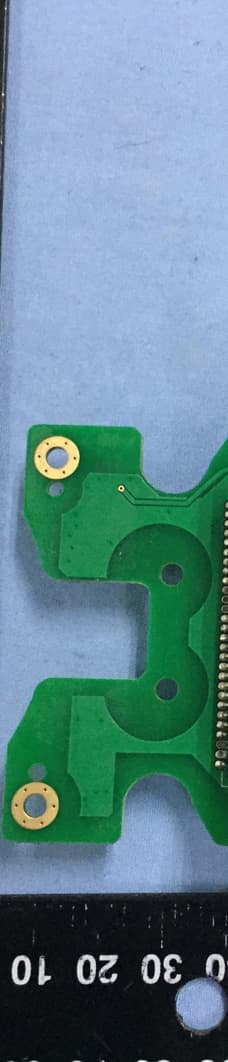

2ASIVPGD829AFElectronic lock with BLE, fingerprint & RFID

REV᧶2.1 Date:2019-11-30 ERP㧉⨚᧶PL3522FW-HK-SMT00010A-V1 DesignerSunny K 㙞承᧶PL3522FW/PGD829AFHKSMT000,REV.C145x210mm80g 2244“UMPGD82920191130”RoHS2.0REACHProp65POPsPAHs ERP P/N: MORTISE EDITION USER MANUAL SECURE LUX 10 11 12 14 16 17 20 22 23 24 25 26 Section 1 - Product Highlights Section 3 - Using Your Smart Lock 3 4 5 6 6 7 8 9 1 Section 2 - Product Overview 2.1 Product Overview- Exterior 2.2 Product Overview- Interior 2.3 Understanding Your New Lock 2.4 Factory Reset 2.5 Keypad Display Switch 2.6 Rebooting Lockly Secure 2.7 Low Battery 2.8 Changing the Battery 1.1 Product Features 3.1 Configuring Access 3.2 Entering Programming Mode 3.3 Adding an Access Code 3.4 Deleting an Access Code 3.5 Checking the Access Code 3.6 Adding a Fingerprint 3.7 Fingerprint Scanning Directions 3.8 Fingerprint Scanning Tips & Troubleshoot 3.9 Deleting Stored Fingerprints 3.10 Adding an RFID card 3.11 Deleting RFID Card 3.12 Adding Secure Link 27 28 29 29 30 31 33 34 35 35 Section 4 - Locking and Unlocking 4.1 Locking/Unlocking with Access Codes 4.2 Locking/Unlocking Lockly with Fingerprints 4.3 Locking/Unlocking Lockly with App 4.4 Locking/Unlocking using RFID 4.5 Locking/Unlocking Lockly with Physical Key 4.6 Locking and Unlocking with Voice Assistant Control 4.7 Safe Mode 4.8 Lock and Unlock using Anti-theft Button 4.9 Anti - Theft Button Switch 4.10 Locking from the Outdoor 36 37 38 39 Section 5 - Advanced Features Section 6 - Important Notes Section 7 - Cleaning Tips Section 8 - Safety Precaution 5.1 Offline Access Code (OAC) TABLE OF CONTENTS For additional support, visit http://lockly.com/help or email [email protected] Table of Contents SECTION 1.11 Patented Anti-Peep Keypad Digits are randomly displayed on the keypad ensuring access codes to be undetectable to intruders after repeated use. To experience the patented and innovative keypad software, powered by PIN Genie TM , please download the PIN Genie TM Vault App from iOS App Store or Google Play. Multiple Access Codes & Monitoring Store up to 18 Access Codes for family, friends and guests, as well as monitor entry and exit records. Advanced 3D Fingerprint Recognition Biometric Fingerprint Recognition protocol allows up to 99 registered fingerprints to be used and accepts only actual fingerprints - preventing lifted prints from being used. RFID Card Access You Lockly Secure Lux can be accessed by use of RFID card. Complete Privacy The exterior displayed keypad can be locked and switched off using the simple ON/OFF toggle from the inside panel. The owner can prevent others trying to input the passcode from the outside and entering the home. Offline Access Code (OAC) The offline access code can allow owners to issue access codes, set the allowed access duration, all without Lockly ever connecting to the internet, so in case of power outage, you can still magically and remotely issue Access Codes without any connection to the web. Anti-theft Button Thieves may use improvised wires or other picking tools to access your inside door handle. Prevent them from unlocking your door when this button is activated. 1.1 Product Features SECTION 1.12 Automatic Lock Owners no longer have to worry about forgetting to lock the door. With Auto Lock enabled, Lockly Secure will automatically re-lock the door based on your customized timing set between 5-300 seconds. Backup Keys and 9V Battery Socket The door can be opened with physical backup keys. There is also a 9V battery connection socket for emergency power backup to access the keypad in case your smart lock runs out of battery. SECTION 2.13 2.1 Product Overview- Exterior Lock Status icon Bluetooth light Power Status Bluetooth icon OK Button Front (Front Body Fingerprint Reader Handle Key Hole Cover 9V Battery Back Up Socket Key Hole RFID Card Reader Touchscreen Keypad Buttons SECTION 2.24 2.2 Product Overview - Interior Reset Button Program Button Touchscreen Switch Battery compartment *Operated by 4 X AA size alkaline batteries ( not included ) Thumbturn Anti-theft Button Inside Handle Back (Main Body Battery Compartment Cover SECTION 2.35 After the installation of your new Lockly, understanding some key functions of operating your smart lock is important. The following guides will walk you through resetting a lock, adding Access Codes, deleting Access Codes, adding and deleting fingerprints , adding and deleting RFID cards and also how to configure your OAC (Offline Access Code). For any questions you can always visit http://lockly.com/help for assistance. Don't forget that Lockly Secure works best with our iOS and Android app. Please download the app by visiting the link below. 2.3 Understanding Your New Lock The Default Access Code is NOTICE 1 2 3 4 5 6 Scan or visit Lockly.com/app SECTION 2.46 Reset Button 2.4 Factory Reset In order to restore the Lockly to factory default settings, you must have your “Initial Code” available. The Initial Code can be found on the Initical Code Card that came with your smart lock. (See Quick Start Guide) After you have the Initial Code ready, push the reset button on the back panel of the Lockly to perform your reset. See below to see which Reset Process applies for you. Once the smart lock has been reset, all the data previously stored will be deleted. 2.5 Keypad Display Switch The exterior keypad screen can be locked and turned off using the ON/OFF switch at the back panel of the smart lock. When it is switched off, people outside cannot enter any passcode to unlock the door. Keypad Keypad screen OFF ON SECTION 2.67 2.6 Rebooting Lockly Secure Press and release the reboot button when you want to reboot the lock. Your Lockly will beep once after reboot. Only reboot when necessary. To reboot, find the reboot button located below the keyhole from the exterior of Lockly Secure Lux. You will need something small such as a paperclip, to press the reboot button. Insert the paper clip and press down firmly. NOTICE Reboot Lockly in case of dead battery or malfunction. No settings w…
