2ATPH-JNET2-ODCAP OUTDOOR

JUGANU Ltd.
CAP OUTDOOR - FCC ID 2ATPH-JNET2-OD - JUGANU Ltd.
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Jan 29, 2023
Application Purpose
Original Equipment
Date of Application
Jan 17, 2023
Equipment Note
CAP OUTDOOR
Frequency Range
5180.00000000 - 5240.00000000
Company
JUGANU Ltd.
Country
Israel

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

The Information provided herein is subject to change without prior notice by Juganu. Please verify all details with Juganu. Any information included in this document is and shall remain, at all times, the exclusive property of Juganu Ltd. and/or its licensors. Neither the furnishing, receipt or possession of any information thereof shall constitute the granting or transferring of any right or license to copy, use or reproduce such information or any physical article or device, or any part thereof, nor to derive any benefit therefrom, in any way, unless approved otherwise in writing by Juganu Ltd. Juganu HQ 1 Yahadut Canada St., Or-Yehuda, Israel Tel.: + 972-3-5310031 [email protected] JL-DS_CAP OD_0722 REV: 1.0 Outdoor CAP Juganu’s proprietary High Bandwidth CAP (Centralized Access Point), provides an easy- to-deploy, highly reliable, secure, flexible, dynamic and intelligent connectivity infrastructure. The CAP functions as a gateway, creating an autonomous, self-managed and scalable luminaire network. It automatically connects with Juganu’s luminaires and ensures their smooth operation. Wireless Network Standards for Lighting The CAP complies with the FCC 15 part B standards for: •915MHz to 928MHz Wi-Fi Network Standards for Data The CAP complies with the Wi-Fi IEEE 802.11ac standards for: •5GHz (channels permitted per country) SMART CONNECTIVITY Outdoor CAP Data Sheet The Information provided herein is subject to change without prior notice by Juganu. Please verify all details with Juganu. Any information included in this document is and shall remain, at all times, the exclusive property of Juganu Ltd. and/or its licensors. Neither the furnishing, receipt or possession of any information thereof shall constitute the granting or transferring of any right or license to copy, use or reproduce such information or any physical article or device, or any part thereof, nor to derive any benefit therefrom, in any way, unless approved otherwise in writing by Juganu Ltd. Juganu HQ 1 Yahadut Canada St., Or-Yehuda, Israel Tel.: + 972-3-5310031 [email protected] JL-DS_CAP OD_0722 REV: 1.0 GENERAL INFORMATION Dimensions (mm) 280 x 280 x 130 Weight 4.5 kg Materials Technopolymer GWPLAST 75 in compliance with EN 50267-2-2 OPERATING AND ELECTRICAL Power Consumption 50W (maximum) Operating Voltage 110 – 277 V Maximum Voltage 100 – 305 V Surge Protection 10KV / 5KVA Operating Frequency Range 915MHz, UNII1 Operating Temperature –30°C to +55°C Humidity 95% non-condensing Water Resistance (IP Rating) IP66 Effective Data Throughput •500 Mbps with 40MHz bandwidth •800 Mbps with 80MHz bandwidth Interface •AC power •RJ45 •Sealed connectors, bottom side Transmitter Output for data (EIRP) Up to 36 dBm Transmitter Output for lighting control (EIRP) Up to 10 dBm LED indicators •Power •Link Mounting Wall Mount, Pole Mount & Mounting Bands Optional - Customized adaptor design to meet specific requirements Outdoor CAP — City & Infrastructure Product Data Product Segment: Outdoor FOAM Tm Smart HUB Product Type: Street & Road lights with full embedded FOAM capabilities Product Family: Cap Outdoor Outdoor CAP Data Sheet The Information provided herein is subject to change without prior notice by Juganu. Please verify all details with Juganu. Any information included in this document is and shall remain, at all times, the exclusive property of Juganu Ltd. and/or its licensors. Neither the furnishing, receipt or possession of any information thereof shall constitute the granting or transferring of any right or license to copy, use or reproduce such information or any physical article or device, or any part thereof, nor to derive any benefit therefrom, in any way, unless approved otherwise in writing by Juganu Ltd. Juganu HQ 1 Yahadut Canada St., Or-Yehuda, Israel Tel.: + 972-3-5310031 [email protected] JL-DS_CAP OD_0722 REV: 1.0 Standards Compliance for Lighting The CAP complies with the FCC 15 part B standards for: •915MHz to 928MHz Standards Compliance for Data The CAP complies with the Wi-Fi IEEE 802.11ac standards for: •5GHz (channels permitted per country) Mechanical Dimensions Maintenance and Deployment The self-configuring network automatically accepts a new node into the existing structure without requiring any adjustments by a network administrator, enabling easy deployment. Installation and removal of the CAP is easy. No pre-installation design or installation plans are required to ensure stability and to operate smoothly. FCC warning statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The …

Text truncated - open the document above for the full version.

Cover Letter(s)

Juganu LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023-01-10 Subject; Request for Long Term Confidentiality FCC ID: 2ATPH-JNET2-OD To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: 2023-01-10 Name David Davidov Position HW Manager Company Name Juganu LTD Address 1 Yahadut Canada 1A, terminal center, building A, 2nd Floor, Or Yehuda, Israel Tel +972-522790969 Email [email protected]

Cover Letter(s)

Juganu LTD June 24, 2022 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Alpha Product Testing Co., Ltd. Address: Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Person: Mark Zhu (Name and address,person). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Juganu LTD Address: 1 Yahadut Canada 1A, terminal center, building A, 2nd Floor, Or Yehuda, Israel ( applicant name and address). Signature: 2023-01-10 Name David Davidov Position HW Manager Company Name Juganu LTD Address 1 Yahadut Canada 1A, terminal center, building A, 2nd Floor, Or Yehuda, Israel Tel +972-522790969 Email [email protected]

External Photos

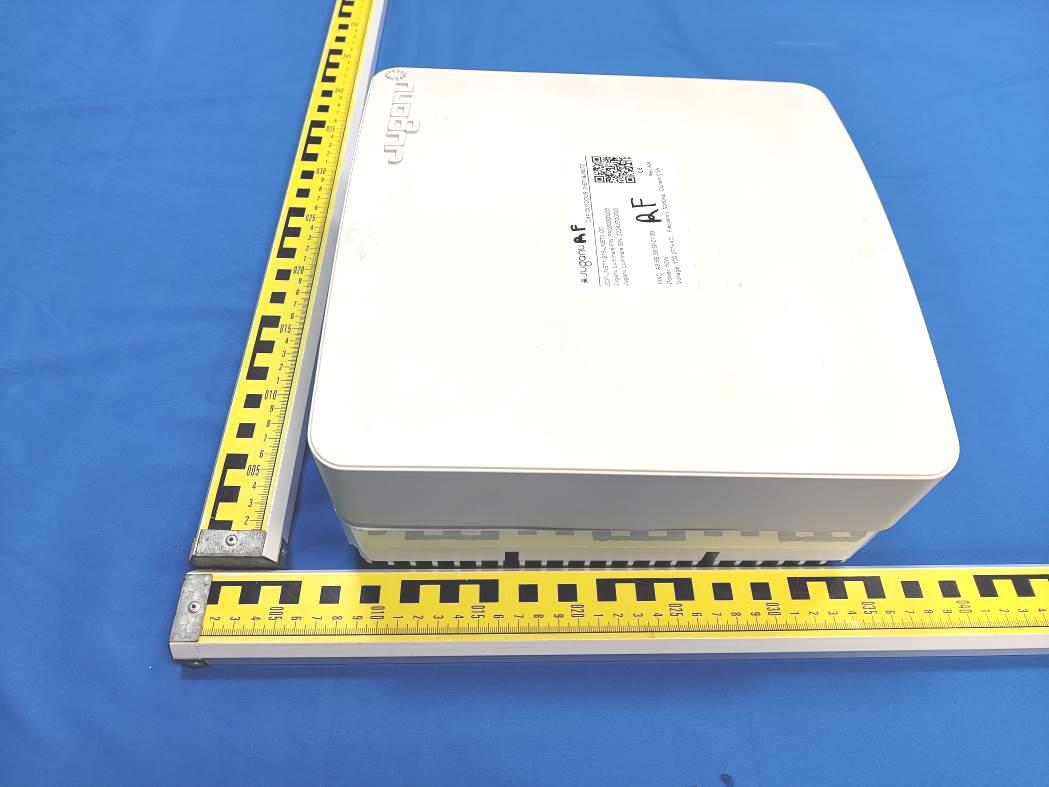

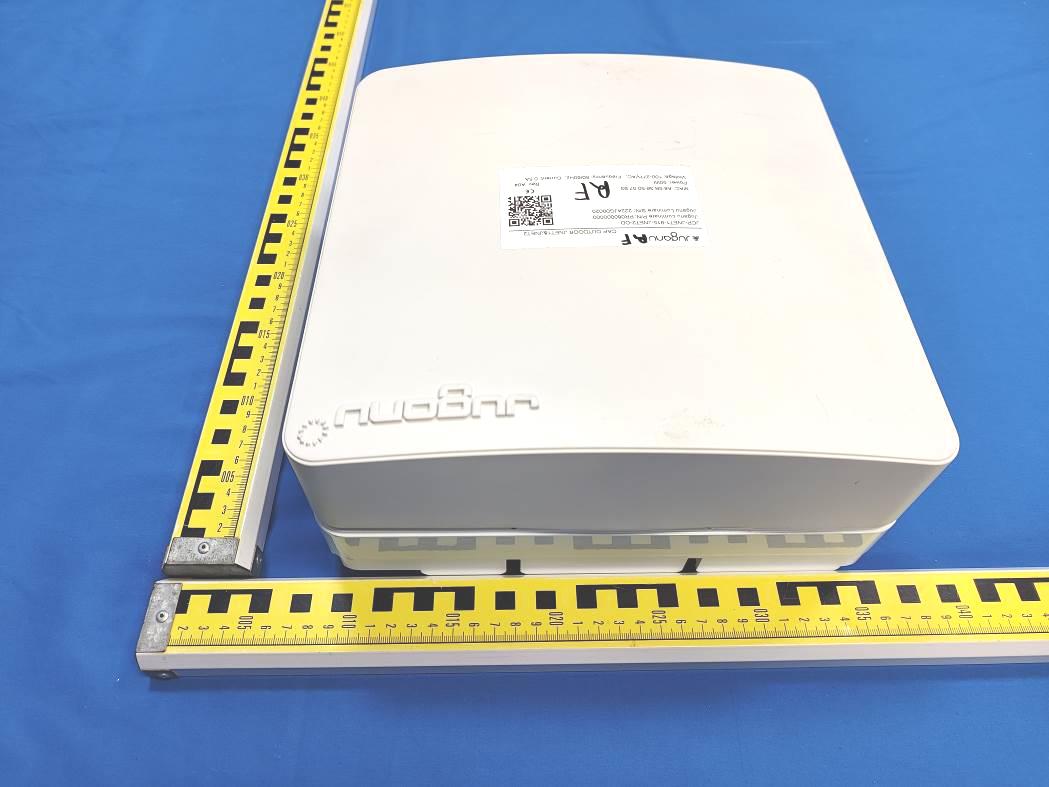

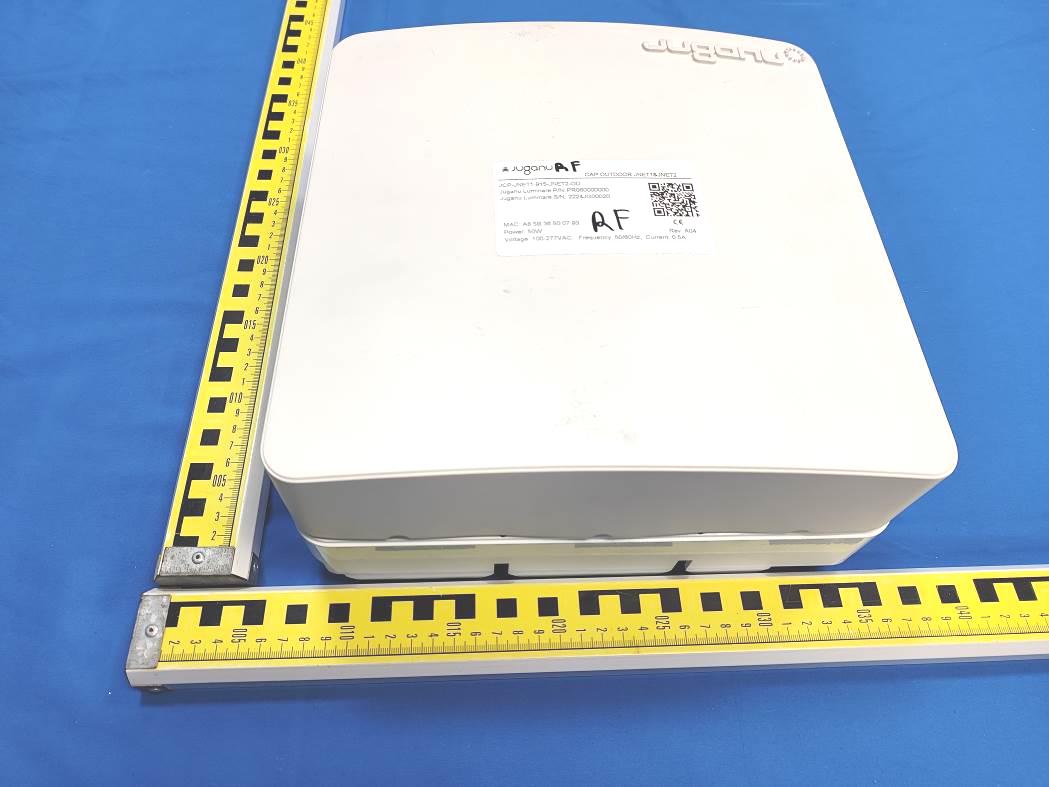

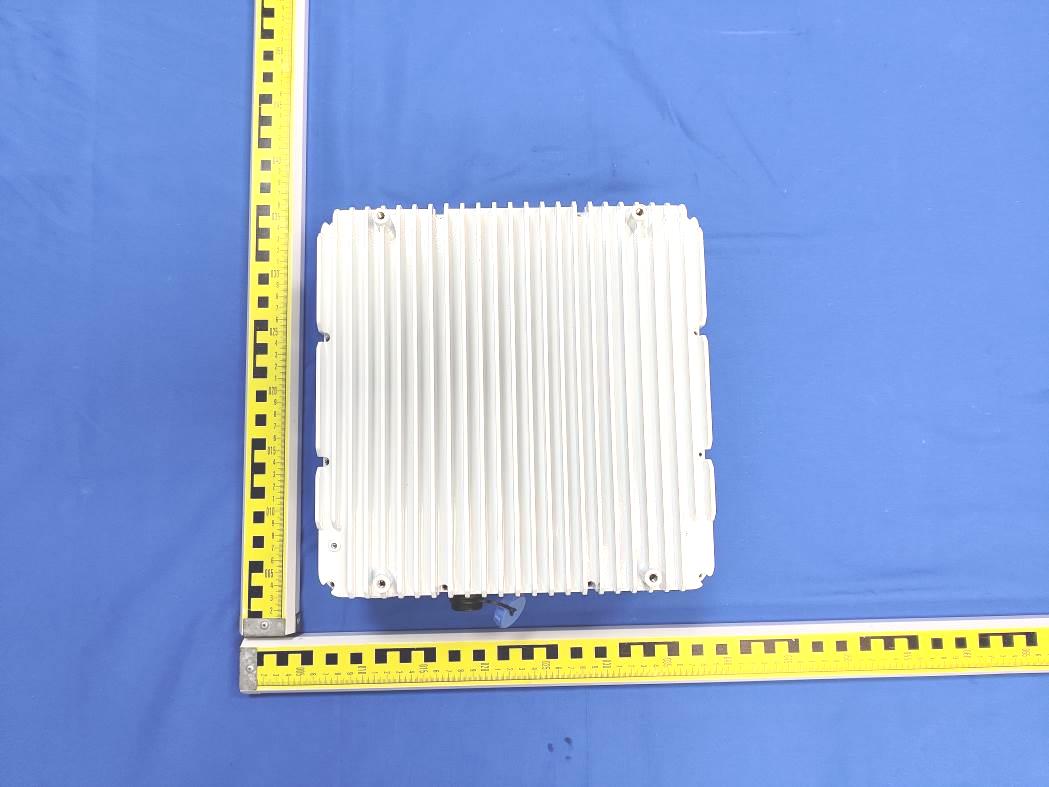

FCC ID: 2ATPH-JNET2-OD EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View

ID Label/Location Info

Size: 6.0cm *1.5cm Label Location FCC ID: 2ATPH-JNET2-OD CAP OUTDOOR Model No.: JCP-JNET1-915-JNET2-OD

Internal Photos

FCC ID: 2ATPH-JNET2-OD EUT View EUT View WIFI ANT 915M RX ANT EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View

RF Exposure Info

FCC ID: 2ATPH-JNET2-OD Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna FCC ID: 2ATPH-JNET2-OD 3. Result Worse case is as below: Mode Frequency (MHz) Prediction distance (cm) RF output power MPE (mW/cm 2 ) Limit (mW/cm 2 ) SAR Test Exclusion dBm mW 5G WIFI 5240 20 19.96 99.0832 0.1971 1 Yes WIFI Antenna Gain: OMNI Antenna, max gain 10dBi Then SAR evaluation is not required.

Test Report

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 400-8300-895 Website: http://www.a-lab.cn FCC TEST REPORT FCC ID: 2ATPH-JNET2-OD On Behalf of Juganu LTD CAP OUTDOOR Model No.: JCP-JNET1-915-JNET2-OD Prepared for : Juganu LTD Address : 1 Yahadut Canada 1A, terminal center, building A, 2nd Floor, Or Yehuda, Israel Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2209211-C02-R02 Date of Receipt : September 23, 2022 Date of Test : October 18, 2022-November 15, 2022 Date of Report : November 16, 2022 Version Number : V0 Page 2 of 71 Report No.: A2209211-C02-R02 TABLE OF CONTENTS Description Page 1 TEST SUMMARY ..................................................................................................................................... 5 1.1 MEASUREMENT UNCERTAINTY............................................................................................................. 5 2 GENERAL INFORMATION ...................................................................................................................... 6 2.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 6 2.2 TEST MODE ........................................................................................................................................ 7 2.3 TEST FACILITY .................................................................................................................................... 7 2.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 2.5 DEVIATION FROM STANDARDS ............................................................................................................. 7 2.6 ABNORMALITIES FROM STANDARD CONDITIONS.................................................................................... 7 2.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 7 2.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 3 TEST INSTRUMENTS LIST ..................................................................................................................... 8 4 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 4.1 ANTENNA REQUIREMENT: .................................................................................................................... 9 4.2 CONDUCTED EMISSIONS ................................................................................................................... 10 4.3 EMISSION BANDWIDTH AND 99% OCCUPIED BANDWIDTH .................................................................... 13 4.4 PEAK TRANSMIT POWER ................................................................................................................... 46 4.5 POWER SPECTRAL DENSITY .............................................................................................................. 48 4.6 BAND EDGE ...................................................................................................................................... 50 4.7 RADIATED EMISSION ......................................................................................................................... 64 4.8 FREQUENCY STABILITY ...................................................................................................................... 70 Page 3 of 71 Report No.: A2209211-C02-R02 TEST REPORT DECLARATION Applicant : Juganu LTD Address : 1 Yahadut Canada 1A, terminal center, building A, 2nd Floor, Or Yehuda, Israel Manufacturer : Juganu LTD Address : 1 Yahadut Canada 1A, terminal center, building A, 2nd Floor, Or Yehuda, Israel EUT Description : CAP OUTDOOR (A) Model No. : JCP-JNET1-915-JNET2-OD (B) Trademark : Measurement Standard Used: FCC Rules and Regulations Part 15 Subpart E RSS-247 Issue 2, ANSI C63.4:2014, ANSI C63.10:2013 The device described above is tested by Shenzhen Alpha Product Testing Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart E limits both conducted and radiated emissions. The test results are contained in this test report and Shenzhen Alpha Product Testing Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these tests. After the test, our opinion is that EUT compliance with the requirement of the above standards. This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Shenzhen Alpha Product Testing Co., Ltd. Tested by (name + signature).........: Lucas Pang Project Engineer Approved by (name + signature).......: Jack Xu Project Manager Date of issue................................: November 16, 2022 Page 4 of 71 Report No.: A2209211-C02-R02 Revision History Revision Issue Date Revisions Revised By V0 November 16, 2022 Initial released Issue Lucas Pang Page 5 of 71 Report No.: A2209211-C02-R02 1 Test Summary Test Item Section in CFR 47 Result Antenna requirement Section 15.203 Section 7.1.4 RSS-Gen Issue 5 Pass AC Power Line Conducted Emission Section 15.207 Section 7.2.4 RSS-GEN(8.8), ANSI C63.10 Pass Peak Transmit Power Section 15.407(a), RSS-247 5.4(2) Pass Power Spectral Density Section 15.407(a), RSS-247 5.2(2) Pass Undesirable Emission Section 15.407(b), RSS-247 5.5 Pass Radiated Emission Section 15.407(b)&15.209 Section 5.5 RSS-Gen(8.9), RSS-247(5.5), ANSI C63.10 Pass Band Edge 15.205, RSS-247…

Text truncated - open the document above for the full version.

Test Report

Gateway Antenna patterns Manufacturer : Juganu LTD Address : 1 Yahadut Canada 1A, terminal center, building A, 2nd Floor, Or Yehuda, Israel Radio antenna Model: JCP-JNET1 Antenna configuration •The antennas are Dual pole (H+V) printed directional dipole antennas •MAXgain of 10dBi •Average beamwidth 70deg Antenna Configuration Radio 1 –Vertical 2 Radio 1 –Horizontal 2 Radio 2 –Vertical 1 Radio 2 –Horizontal 1 Radio 2 –Vertical 2 Radio 2 –Horizontal 2 Radio 1 –Vertical 2 Radio 1 –Horizontal 2 Radio 1 -5.15GHz Radio 1 -5.85GHz Radio 2 -5.15GHz Radio 2 -5.85GHz

Test Setup Photos

FCC ID: 2ATPH-JNET2-OD 1.1. Photo of Radiated Emission test 1.2. Photo of Conducted Emission test

Contact Information

Applicant

David Davidov(HW Manager)
[email protected]+972-522790969Fax: +972-3-531-0113

Test Firm

Shenzhen Alpha Product Testing Co., LTD.Real Yak
[email protected]+86 755 29766001

Technical Specifications

#Rule PartsFrequency RangePower Output
115E5.18 GHz - 5.24 GHz99.08 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. Co-location of this module with other transmitters that operate simultaneously are required to be evaluated using the FCC multi-transmitter procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This device only has 20 MHz, 40 MHz and 80 MHz bandwidth modes.
